Product Overview

Description



Products Description


SZL Series Evaporative Condenser
SZL series evaporative condenser uses heat exchange tube bundles and PVC fins for compound heat exchange, which increases the spray water cooling process, suitable for operating in clean air environment, and is widely used in food freezing and refrigeration, central air conditioning and other systems.




















Product details


SZL Series Evaporative Condenser
SZL series evaporative condenser belongs to induced draft cross-flow condenser. During working operation, the dry cool air inlet through wide louvers on one side of the condenser, passes through the spray water, cooling coil and the filler, becomes hot and humid air, and is finally discharged into atmosphere by the fan on the top. During this process, a part of heat from the fluids inside the closed loop is transferred efficiently, and removed continuously. The cooling medium is not in contact with the outside during the cooling process, ensuring the cleanliness of the cooling medium and greatly improving the service life of the cooled host device.






Model
Heat Output
kw
Fan Power
kw
Air Volume
m3/h
Pump Power
kw
Pump Flow
m3/h
Net Weight
kg
Height
mm
SZL100
100
1.1
15000
0.75
25
1430
3206
SZL200
202
1.5
18500
0.75
25
1910
3706
SZL370
370
4.0
55000
1.1
50
2628
4049
SZL400
400
5.5
60000
1.1
50
2643
4049
SZL450
450
5.5
60000
1.1
50
2889
4309
SZL500
500
7.5
75000
1.1
50
2908
4314
SZL570
575
4.0*2
55000*2
2.2
50
3687
4064
SZL660
667
5.5*2
60000*2
2.2
100
3727
4064
SZL740
740
5.5*2
60000*2
2.2
100
4093
4314
SZL830
830
7.5*2
65000*2
2.2
100
4113
4314
SZL1020
1020
5.5*5
78000*2
2.2*2
100*2
5700
4788
SZL1100
1100
7.5*2
90000*2
2.2*2
100*2
5739
4788
SZL1240
1240
5.5*2
78000*2
2.2*2
100*2
6194
5038
SZL1400
1400
7.5*2
90000*2
2.2*2
100*2
6813
5088
SZL1600
1610
7.5*2
90000*2
2.2*2
100*2
8597
5588
SZL2000
2000
7.5*3
100000*3
3*2
120*2
9620
4883
SZL2200
2200
11*3
120000*3
3*2
120*2
9695
4883
SZL2500
2500
11*3
120000*3
3*2
120*2
10429
7542
SZL3000
3000
5.5*4
90000*4
3*2
120*2
13095
4923
SZL3780
3780
11*4
120000*4
4*2
120*2
14423
5298


Circulating Water Pump
1. Large flow, low head, low power
2.  German mechanical seal
3. High-quality motor
Axial Fan
1.  hollow aluminum alloy impeller
2. Direct connection,ow wind resistance, large air volume, low noise, good performance and high efficiency
3.  IP 55
PVC Fill
1. High temperature resistance, good flame retardancy
2. Low drag coefficient
3. Anti-aging, anti-ultraviolet


Water Distribution System
1. large flow rate, no clogging nozzle
2. Uniform spraying, high heat transfer coefficient
3. Thread connection, easy disassembly and cleaning
Drift Eliminator
1. Polyvinyl chloride (PVC)
2. Impervious to rot, decay, and biological attack
3. Assembled in easy to handle sections
 Finned Tube
1. Made of aluminum, steel or hot-dip galvanized steel.
2. High heat transfer efficiency
3. Simple maintenance and long service life

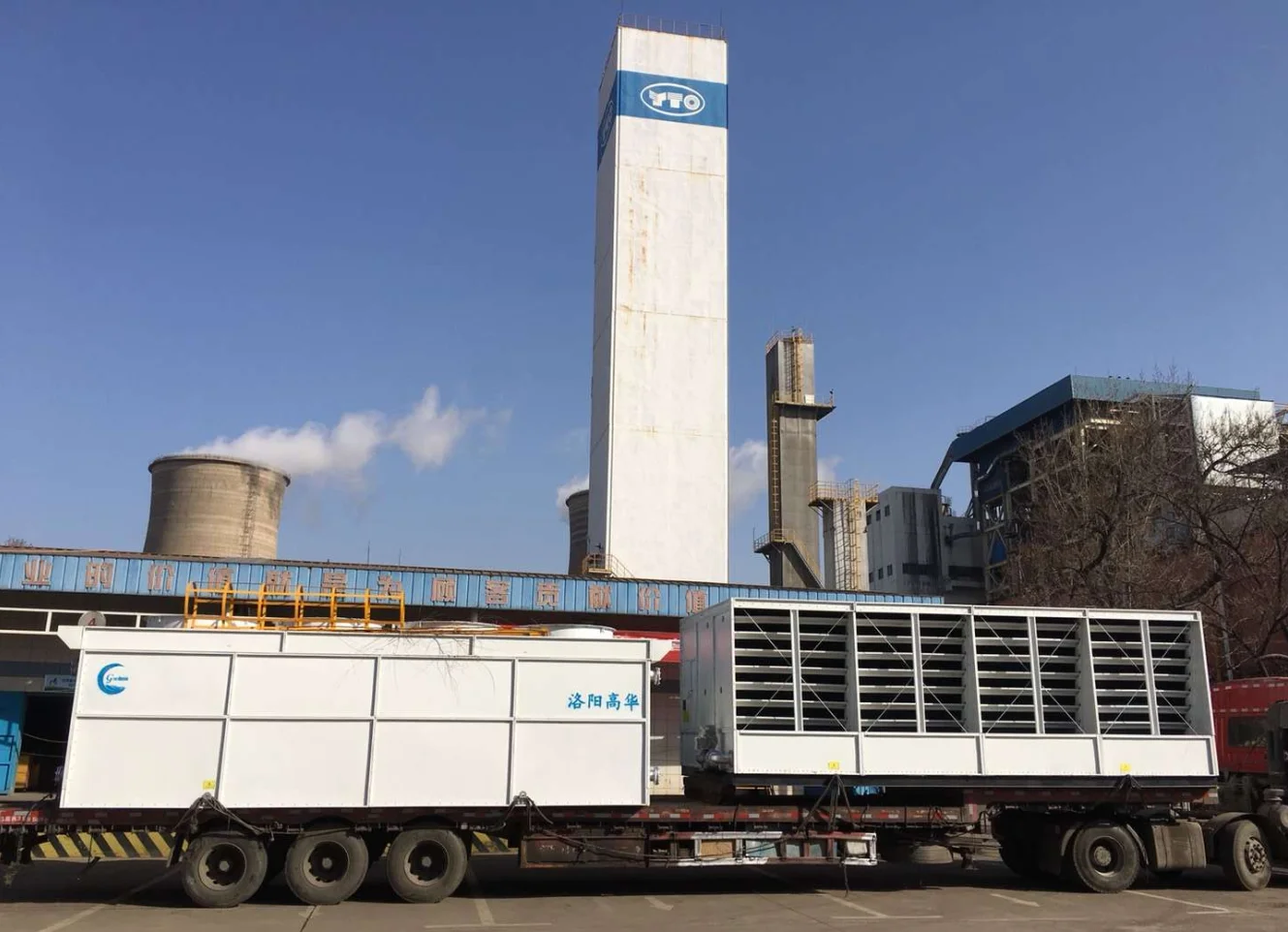

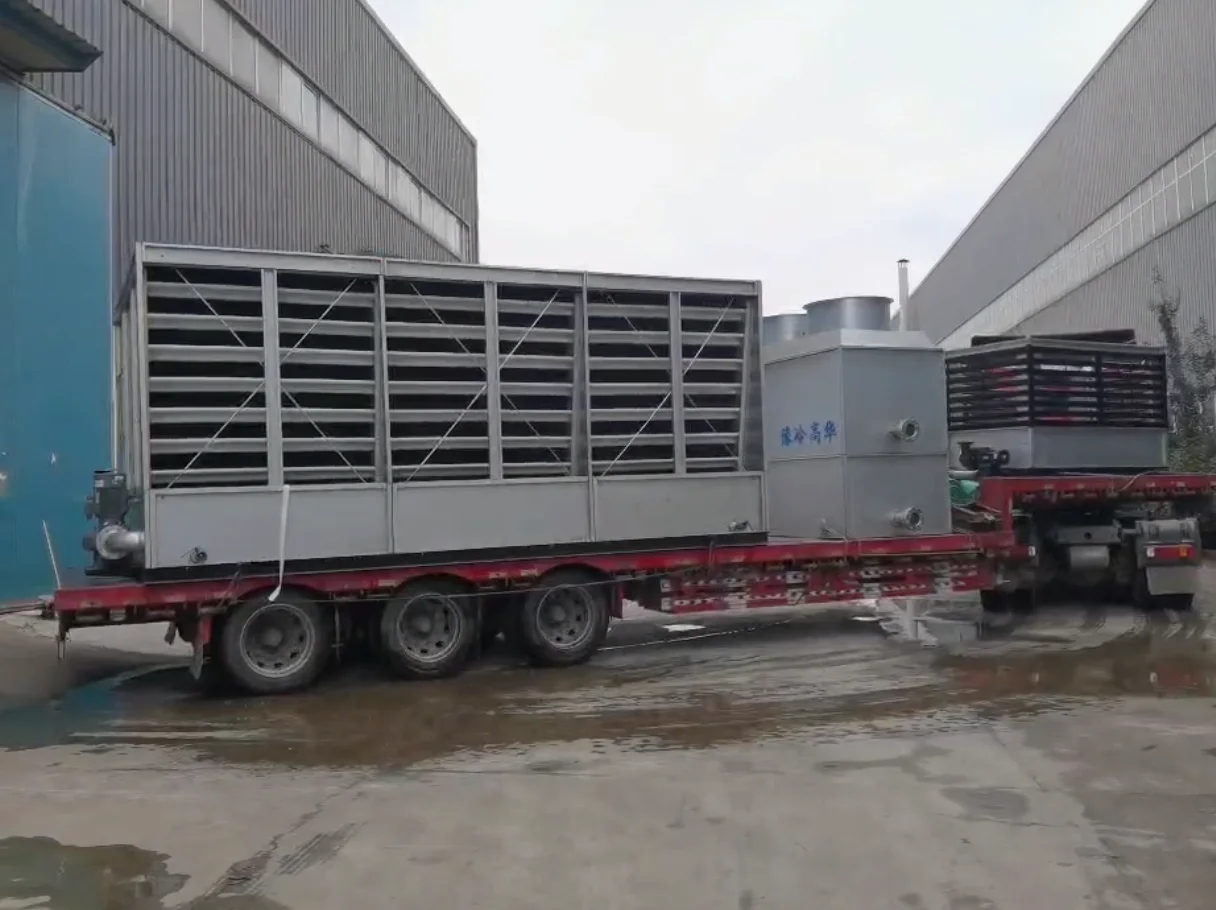

Packaging & Delivery






About us


Company profile
LY Gaohua is a professional design & manufacturer of cooling tower in China. Our main products are evaporative condenser, closed cooling tower, air cooled heat exchanger, "air cooling + evaporative cooling" composite closed cooling system, anti-white mist efficient cooling system, etc. The products are be used in power, chemical, metallurgy, petrochemical, coal chemical, air condition, food refrigeration industries and so on. We covers an area of 13,500m2 and hold certificates of ISO. Our products are popular in domestic and international markets.












Certifications

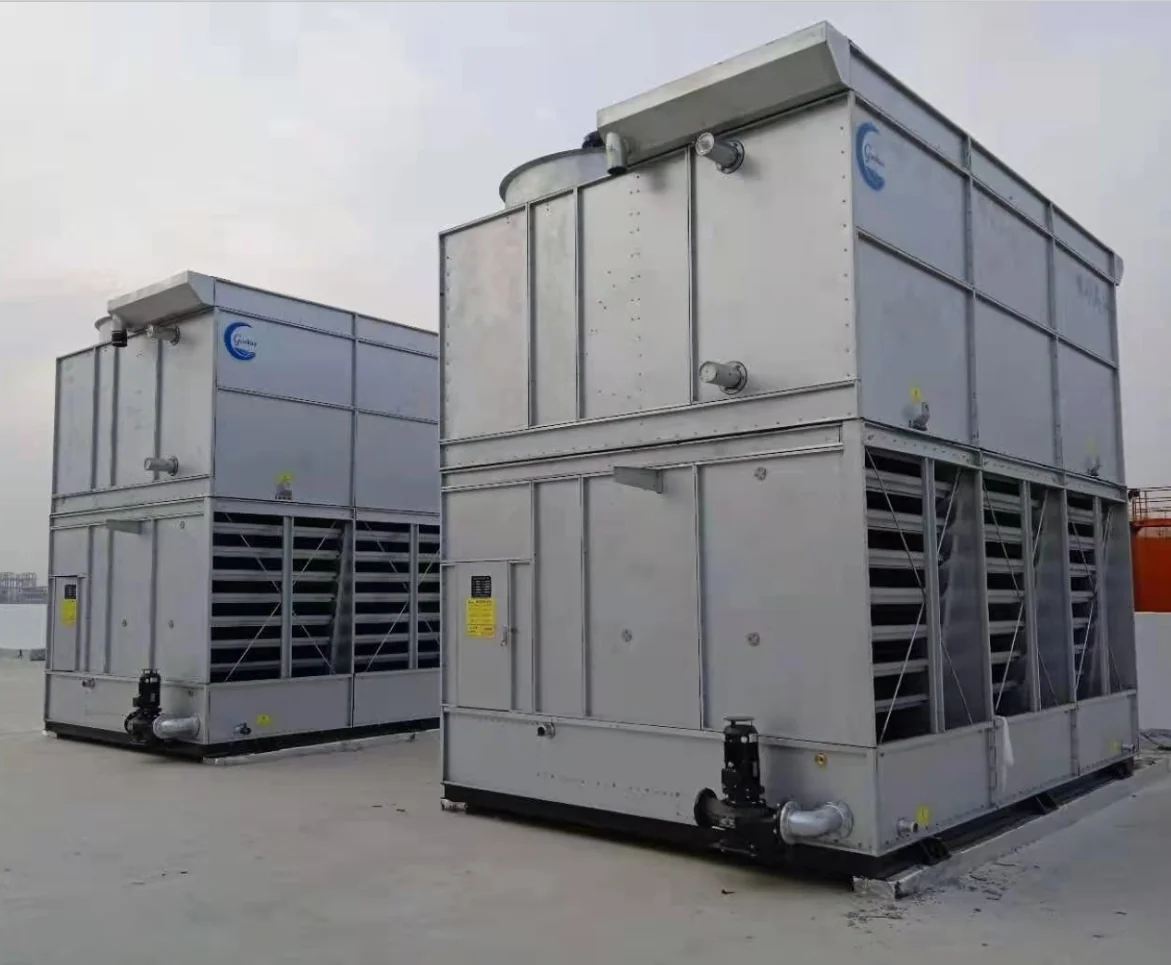

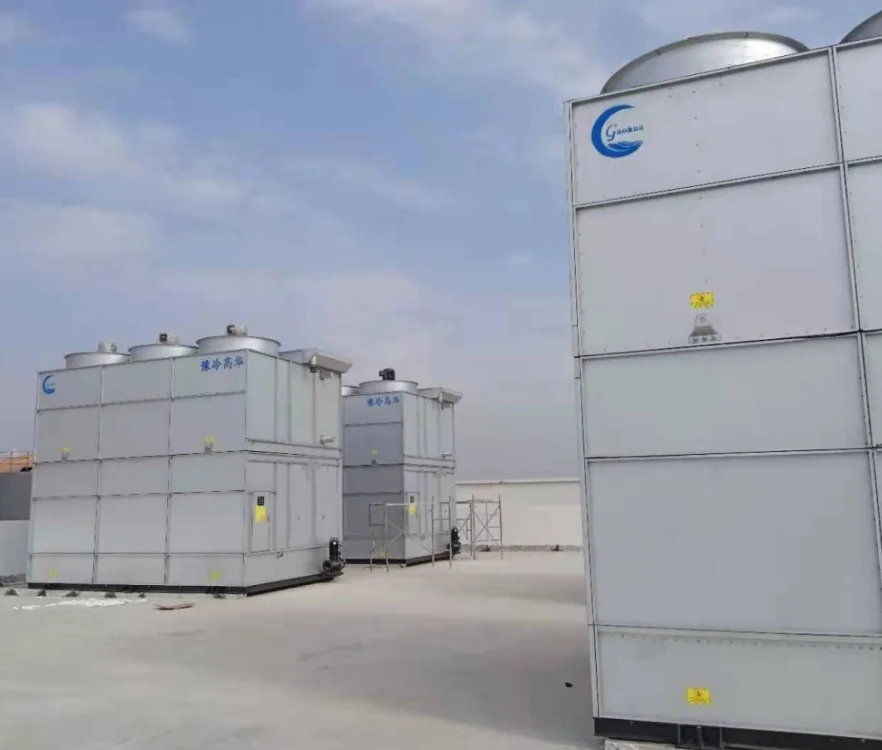

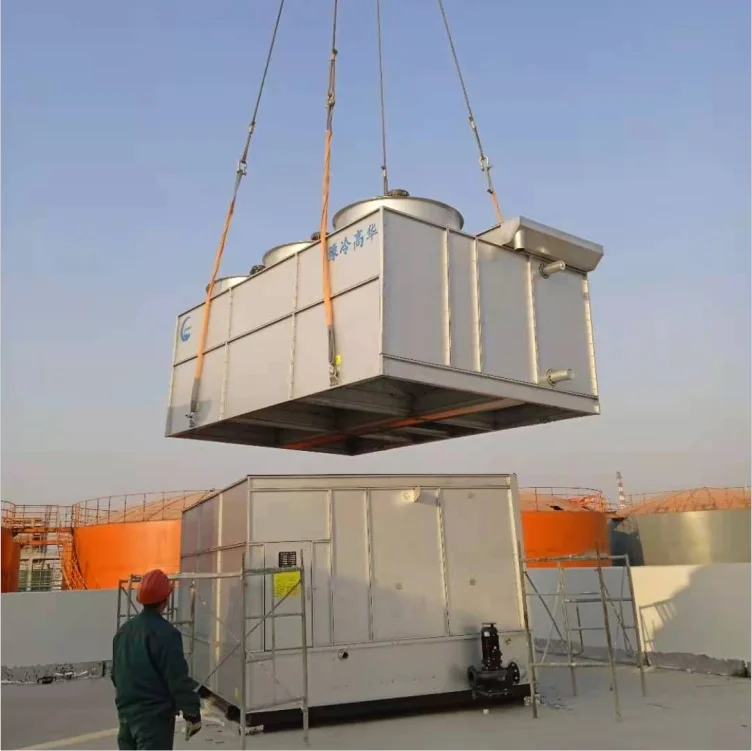

Project cases














FAQ


1.What technical parameters you need provide to get a quotation quicky?
(1).Flow rate;
(2). Inlet/Outlet temperature;
(3).Wet bulb temperature;
(4). Working Fluid;
(5).Other data.
2.How long is the warranty period? How long is the product life?
The evaporative condenser is warranty period is 2 year, and the evaporative condenser working life is 15 years.
3.How long is the delivery time?
Usually, the delivery time is 45 days after receiving the advanced payment and drawing confirmation.
