Product Overview
Description
Double Side Automatic Battery Pack Spot Welding Machine
The XW-ADW Double Side Automatic Battery Pack Spot Welding Machine is a general platform of automatic processing technology based on microcomputer, suitable battery pack spot welding and assembly in the factory.
Compared with manual spot welding, the efficiency and accuracy of welding have been greatly improved. Humanized design makes the operation and debugging very easy and convenient. Design of components built-in makes appearance more concise.
XW-ADW is double welder design, the positive and negative pole of the battery can be welded at the same time, the efficiency is improved by 2 times compared to the single side welding machine.
XW-ADW is double welder design, the positive and negative pole of the battery can be welded at the same time, the efficiency is improved by 2 times compared to the single side welding machine.
No | Item | XW-ADW |
1 | Welding power supply | 5000A/8000A inverter spot welding power supply(optional) |
2 | Welding power supply quantity | 2 |
3 | Travel | 500*350mm |
4 | Suitable cell type | 18650, 21700, 32650... all types of cylinderial cells |
5 | Cell capacity | 300-600 pcs |
6 | Welding speed | Max 0.35s/spot, 5500 pcs/h |
7 | Welding material | Nickel, Nickel-Plated Steel |
8 | Welding thickness | 0.1mm-0.3mm |
9 | Max parameter groups | 99 groups |
10 | Operation system | Microcomputer and touch screen user interface |
11 | Driver mode | Motro and precision guide rail |
12 | Cooling | By air or water (optional) |
13 | Air pressure | 0.4-0.6 Mpa |
14 | Power supply | Single phase 220V/Three phase 380V |
15 | Power | 8000 W |
16 | Size | 900L*900W*1930Hmm |
17 | Weight | 400kg |

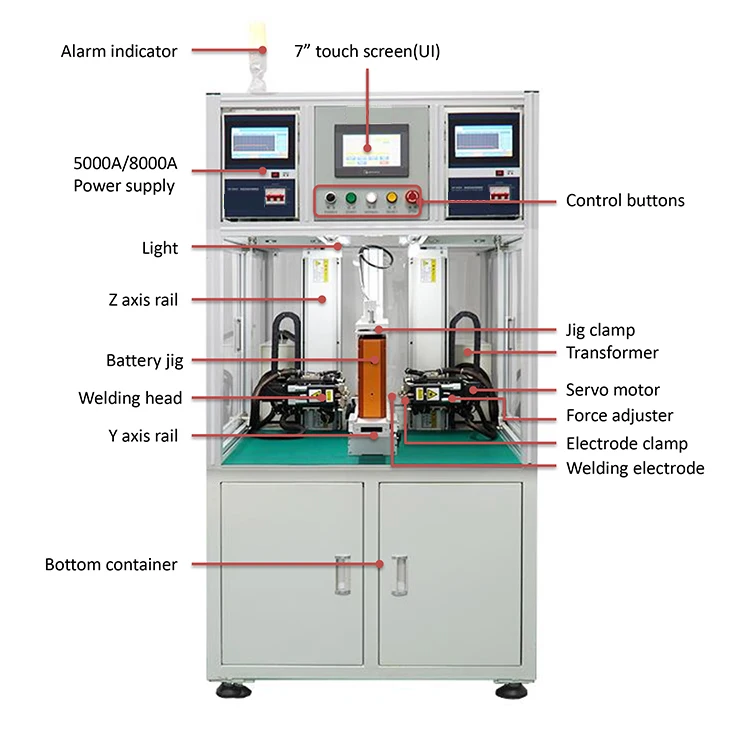

Double side spot welding machine structure

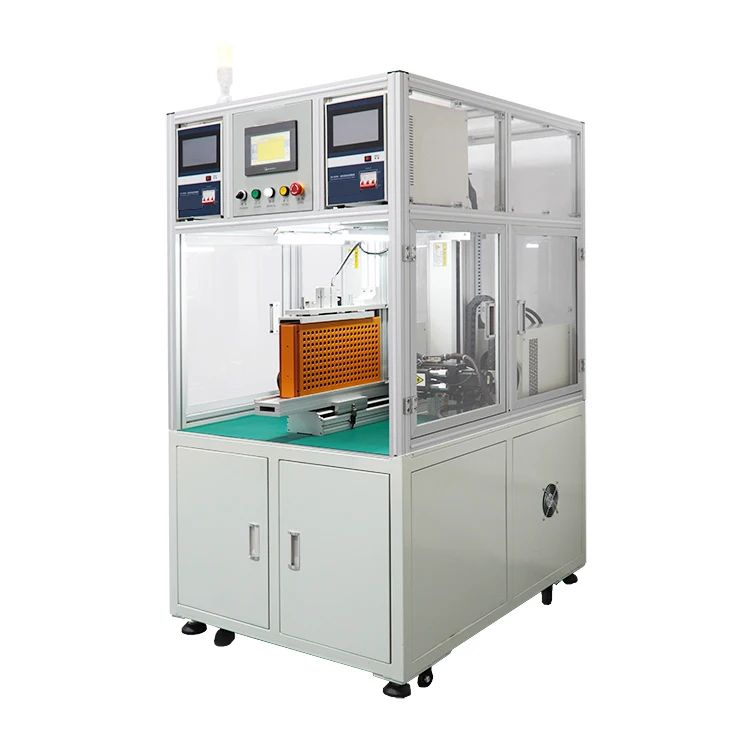

Left view
Front view

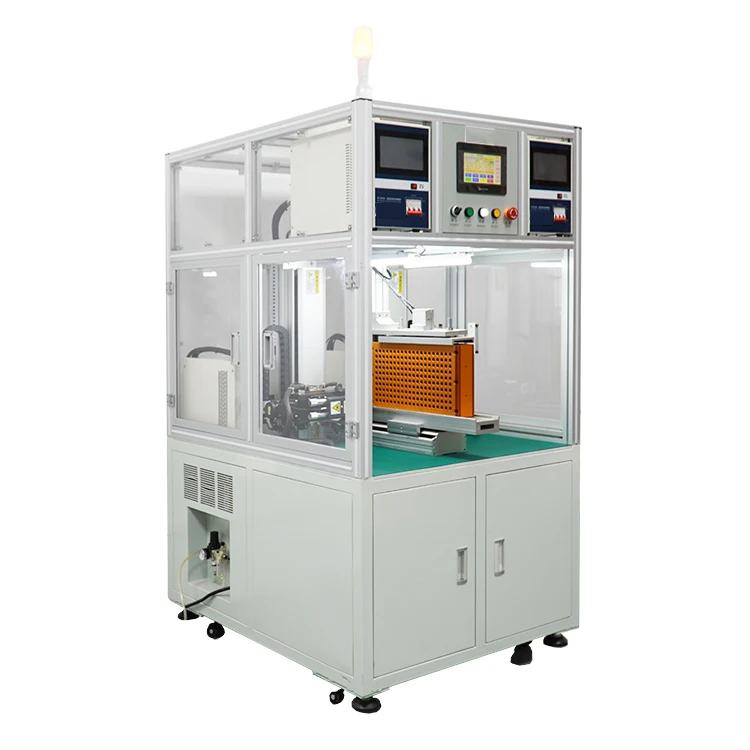

Right view

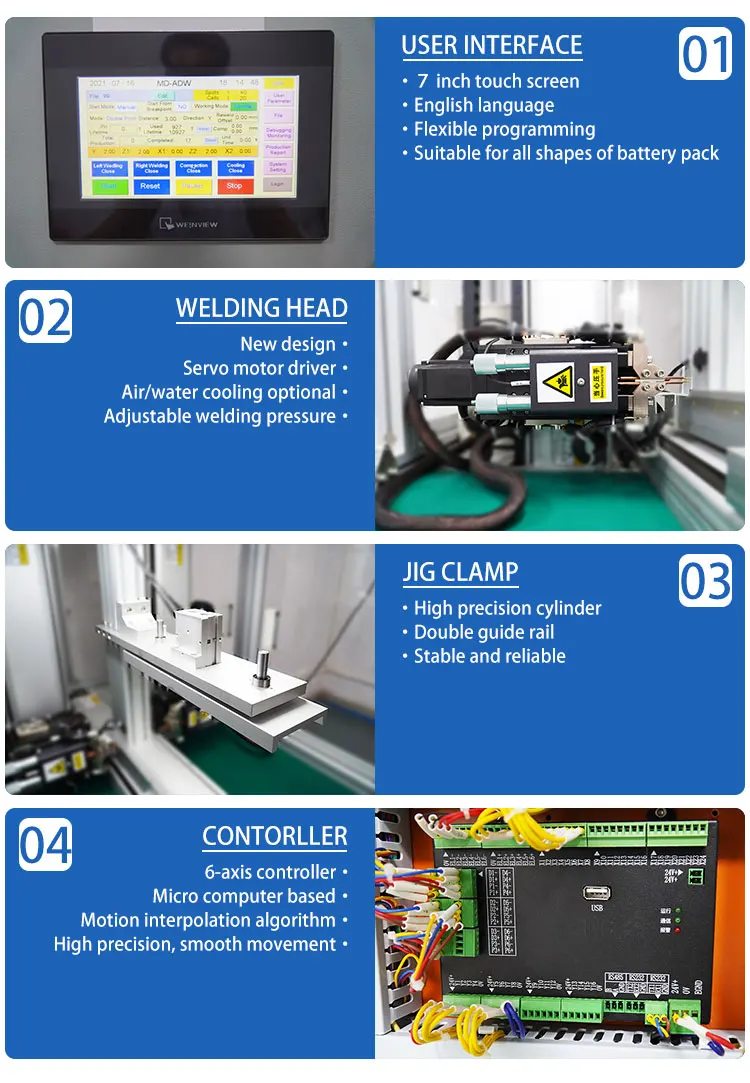

Features
1) Suitable for all cylindrical cells, like 18650, 21700, 26650, 32650 … battery pack welding; widely application area, like
E-bike, scooter, and electro mobile battery pack welding.
E-bike, scooter, and electro mobile battery pack welding.
2) 5000A/8000A inverter spot welding power supply (optional), high quality welding effect.
3) Servo motor driving, fast, stable welding.
4) Support breakpoint start, automatic start, and manual start.
5) Cold solder joint and sealing off alarm.
6) Easy program, support matrix, array and point program, can welding for any shape and store 99 group parameters.
7) Welding needle abrasion alarm.
8) Build-in welding current monitor, can display real time welding current.
9) Real-time welding effect monitoring, warning for NG welding spot.

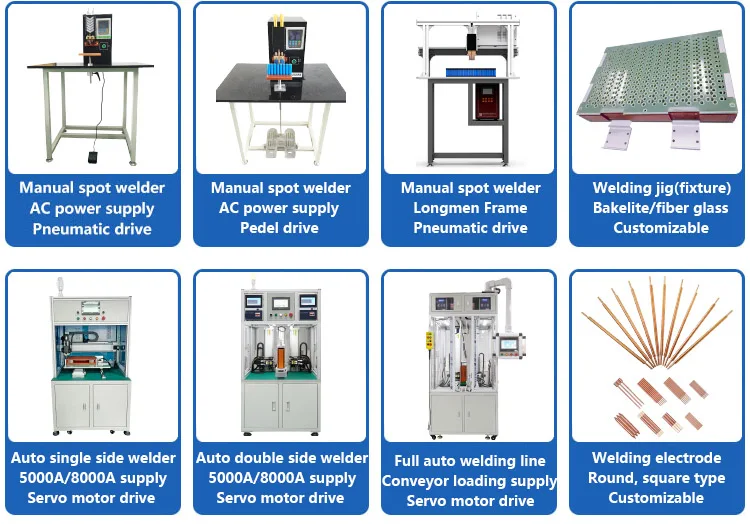

Spot welding machines
We have manual spot welding machine, automatic spot welding machine, production line conveyor spot welding machine for battery pack welding.
Customize jigs
We provide jig customize service. Can design the jigs according to your pack.

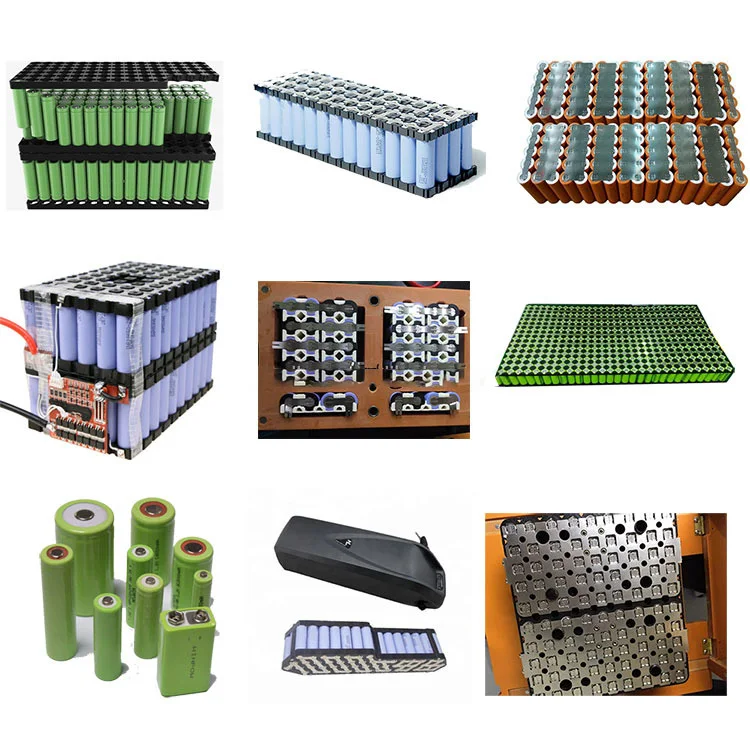

Spot welding samples
The spot welding machine suitable for all types of cylindrical cells pack and suitable for all shapes of packs. With high quality 5000A/8000A spot welding power supply, it can weld thickness from 0.1mm to 0.3mm. Welding spot is beautiful, firm and good conductivity.
XIAOWEI after-sales service policy
1. One year guarantee, one Year spare parts free if the machine parts damage, whole life technician support.
2. With professional engineers, you can go to the world for on-site mechanical maintenance
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
3. Operation Manual, Operation or repair Video,
4. 24-hours Email technical support, we will do our best to help the clients solve any question or problems.
5. Available to send our engineer to clients factory, to install the machines, train the workers, repair the machines.
