China Lithium Battery Locomotive for Underground Gold Mining Trantportation Coal Mine Tunnel Locomotives
- Category: >>>
- Supplier: Yimei Machinery Equipment Manufacturing Co. Ltd.
Share on (1600840250320):
Product Overview
Description
Company Profile
Products Description
Introduction of China Lithium Battery Locomotive for Underground Gold Mining Trantportation Coal Mine Tunnel Locomotives
The DC power provided by the battery enters the motor through the flameproof pin, controller, and resistance box, driving the motor to operate. The electric motor drives the wheels to rotate through a transmission device, thereby towing the train.zmwm15
Small overall size, short wheelbase, compact and flexible, fast and reliable brake expansion, simple structure, and easy maintenance, suitable for transportation in branch tunnels and small mines, as well as for shunting in small and medium-sized mines.

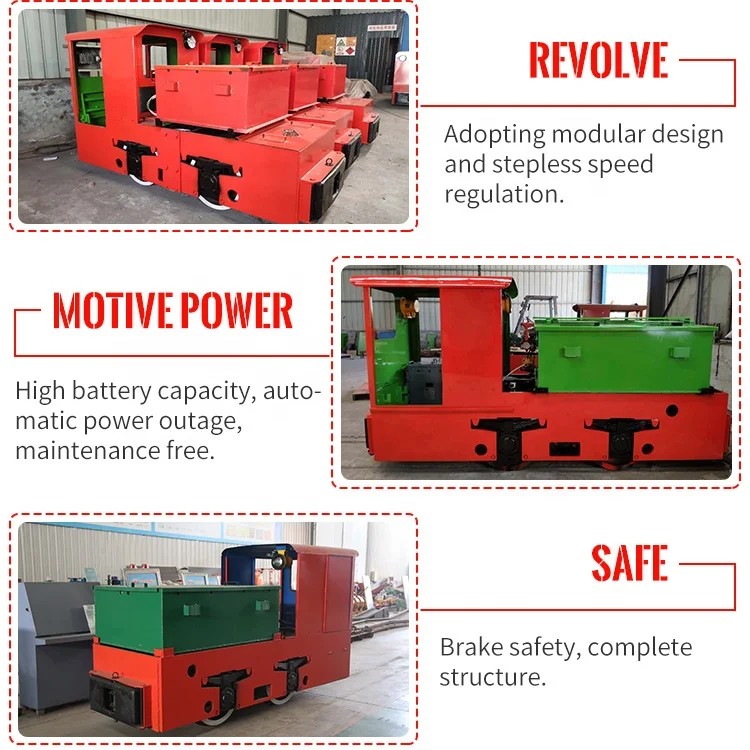

The battery electric locomotive adopts modular design and frequency conversion speed regulation technology, featuring smooth starting, stepless speed regulation, and good adhesion performance. The control section is equipped with multiple protections to improve the safety factor of the locomotive during operation. The locomotive has compact and practical structure, large starting torque, and stable operation.
Small overall size, short wheelbase, compact and flexible, fast and reliable brake expansion, simple structure, and easy maintenance, suitable for transportation in branch tunnels and small mines, as well as for shunting in small and medium-sized mines.
The battery electric locomotive adopts modular design and frequency conversion speed regulation technology, featuring smooth starting, stepless speed regulation, and good adhesion performance. The control section is equipped with multiple protections to improve the safety factor of the locomotive during operation. The locomotive has compact and practical structure, large starting torque, and stable operation.
Product Paramenters
Parameters of China Lithium Battery Locomotive for Underground Gold Mining Trantportation Coal Mine Tunnel Locomotives
Model | CTY2.5/6,7,9G | CTY5/6,7,9G | CTY8/6,7,9G(B) | CTY(L)12/6, 7, 9G | CTY18/6,7,9G(B) | CTY18/6,7,9G(B) | ||||
Self Weight(t) | 2.5 | 5 | 8 | 12 | 15 | 18 | ||||
Track Gauge(mm) | 600, 762 or 900 | 600,762 or 900 | 600,762,900 | 600, 762 or 900 | 600,760 or 900 | 600,762 or 900 | ||||
Traction(kN) | 2.55 | 7.06 | 11.18 | 12.83 | 16.48 | 18.47 | 29.4 | |||
Max Speed(km/h) | 4.54 | 7 | 6.2 | 7.8 | 8.7 | 9.6 | 9.8 | |||
Max. Traction(kN) | 6.13 | 12.26 | 19.62 | 29.43 | 36.18 | 44.15 | ||||
Power Supply Device | Voltage (V) | 48 | 90 | 110,132 | 140,144 | 192 | 256 | 208 | ||
Capacity (Ah) | 308 or 330 | 385 | 440 | 560 | 620 | 730 | ||||
Power(kW) | 3.5kW*1 | 7.5kW *2 | 11kW*2 | 15kW*2 | 22kW*1 | 30Kw * 2 | 45Kw * 2 | |||
Size | Length (mm) | 2330 | 2850 | 44,704,490 | 5100 | 5200 | 5100 | |||
Width (mm) | 914,1076 or 1212 | 920,1082/1220 | 1062/1190/1212/1350 | 1050, 1212 or 1350 | 1500 | 1500 | ||||
Height (mm) | 1550 | 1550 | 1600 | 1600 | 1920 | 1900 | ||||
Traction Height (mm) | 320 | / | / | / | / | / | / | |||
Wheelbase (mm) | 650 | 850 | 1100 | 1150 | 1220 | 1400 | 2100 | |||
Wheel Diameter (mm) | Φ460 | Φ520 | Φ680 | Φ600,Φ680 | Φ680 | Φ680 | Φ600 | |||
Min. Turning Radius(m) | 5 | 6 | 7 | 10 | 15 | 20 | ||||
Controller | Resistance or Pulsing speed regulation | Resistance or Chopped wave | Resistance,IGBT or Frequency conversion | Resistance, IGBT or AC Converter | Resistance, IGBT or AC Converter | Frequency conversion or chopper speed regulation | ||||
Brake Mode | Mechanical | Mechanism or hydraulic pressure | Mechanical | Mechanical and Pneumatic Brake | Mechanical and Pneumatic Brake | Mechanical, electrical, air brake | ||||
Details Images

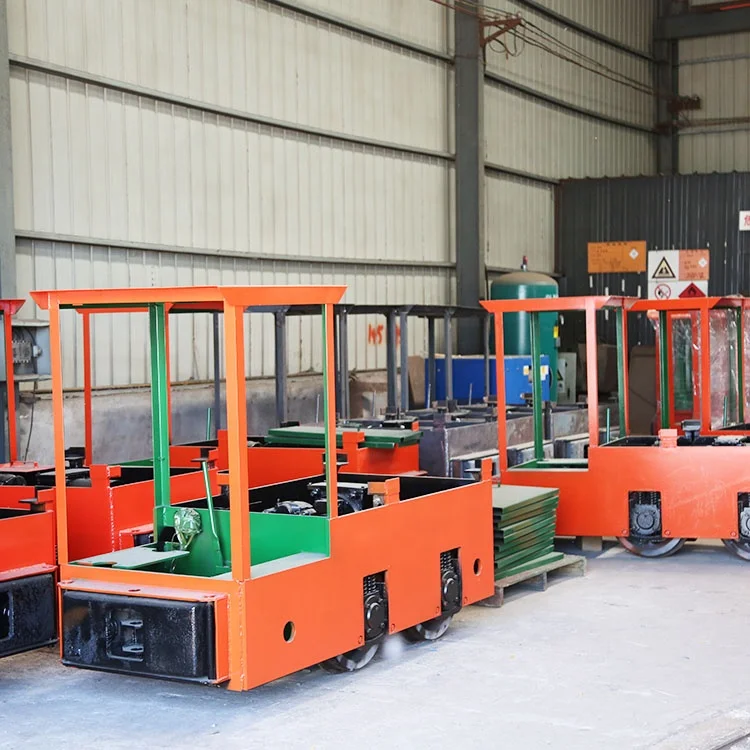

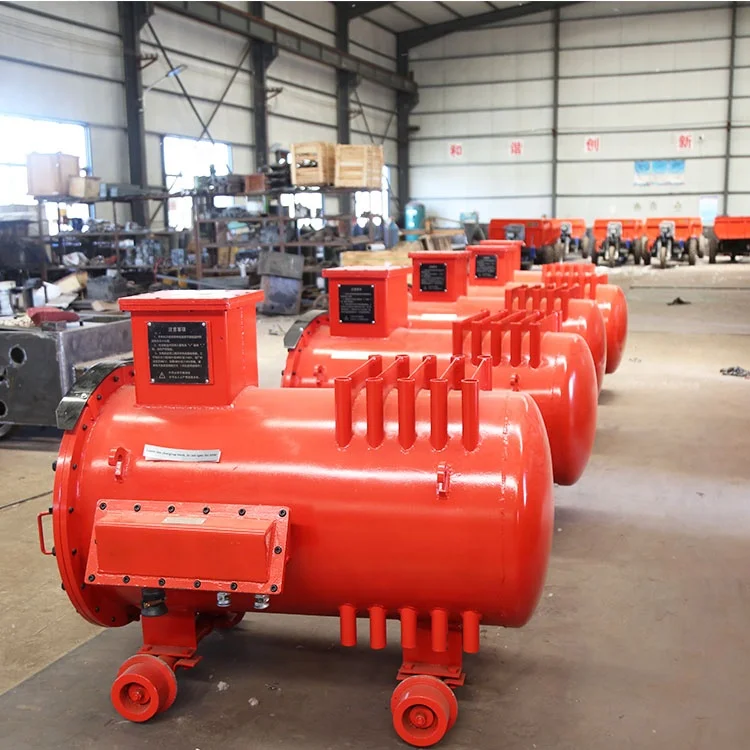

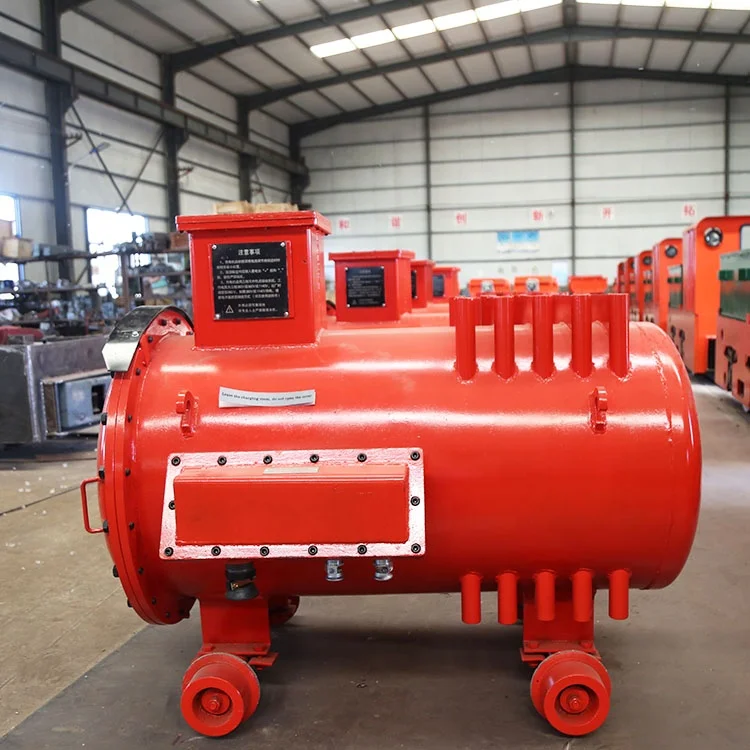

Photos of China Lithium Battery Locomotive for Underground Gold Mining Trantportation Coal Mine Tunnel Locomotives
FAQ
1.Factory
Q: Are you Battery Locomotives manufacturer?
A: We are the Electric Locomotive manufacturer. Yimei Mine Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Battery Locomotives for sale?
A: Our Battery Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Battery Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Electrical Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
Q: Are you Battery Locomotives manufacturer?
A: We are the Electric Locomotive manufacturer. Yimei Mine Locomotive factory address is:Jining cirty, Shandong province, China.
2. Warranty
Q: How to identify the quality about Battery Locomotives for sale?
A: Our Battery Locomotive have a 12 months warranty after sale.
3. Packing
Q:What is the container size of Tunnel Battery Locomotive?
A:Generally, 6 sets rides with 20 GP container or more, the actual size can adjust with how many you need.
4. Lead time
Q: How many days it takes before you deliver the goods to us?
A: For these Electrical Locomotive , we need 1 or 2 more days to order wooden boxes or pallets, and 3 days to book flight/vessel and ship the goods to named port/airport.
