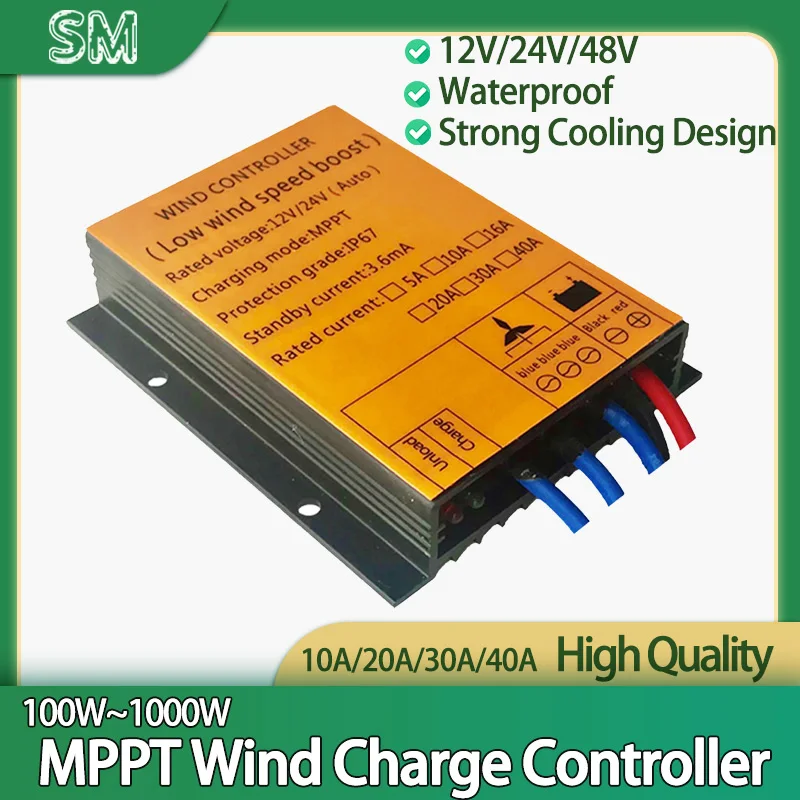

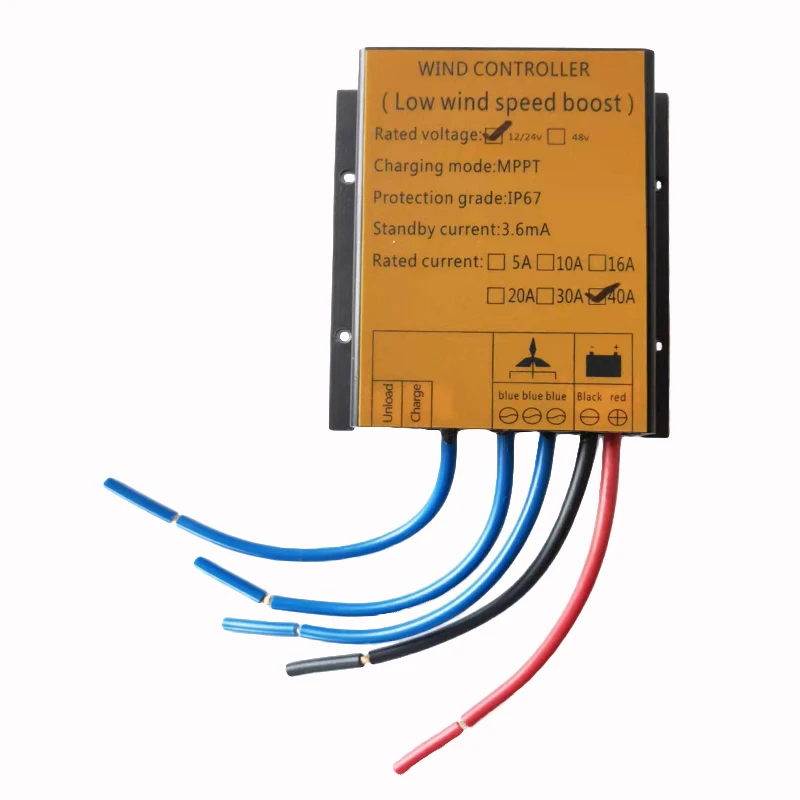

10A 20A 30A 40A Wind Turbine Charge Controller 12V 24V AUTO 48V Water Proof Regulator For 100W 1000W Small Windmill Generator
- Category: >>>
- Supplier: Shenzhen Core Chain Microtechnology Co. Ltd.Shenzhen Ltd.
Share on (1600841195659):
Product Overview
Description
Product Description
Product Name | Solar Charge Controller |
Type | Brand New |
Statue | In Stock |
MOQ | 1pcs |
Lead-time | 7 days |
100-1000W High Quality MPPT/PWM Wind Charge Controller 12v/24v AUTO 48V Good Price
Low Wind Speed Boost Water Proof High Heat Dissipation Design 10A/20A/30A/40A Wind Turbine Generator Water Proof Regulator
Notice:
1. first, please connect the battery. Second, connect the wind turbine. if you connect wind turbine before battery, the controller
may be burned if the wind is heavy.
2. please short-circuit wind turbine's 3 wires to brake the turbine before connecting the turbine to the controller.

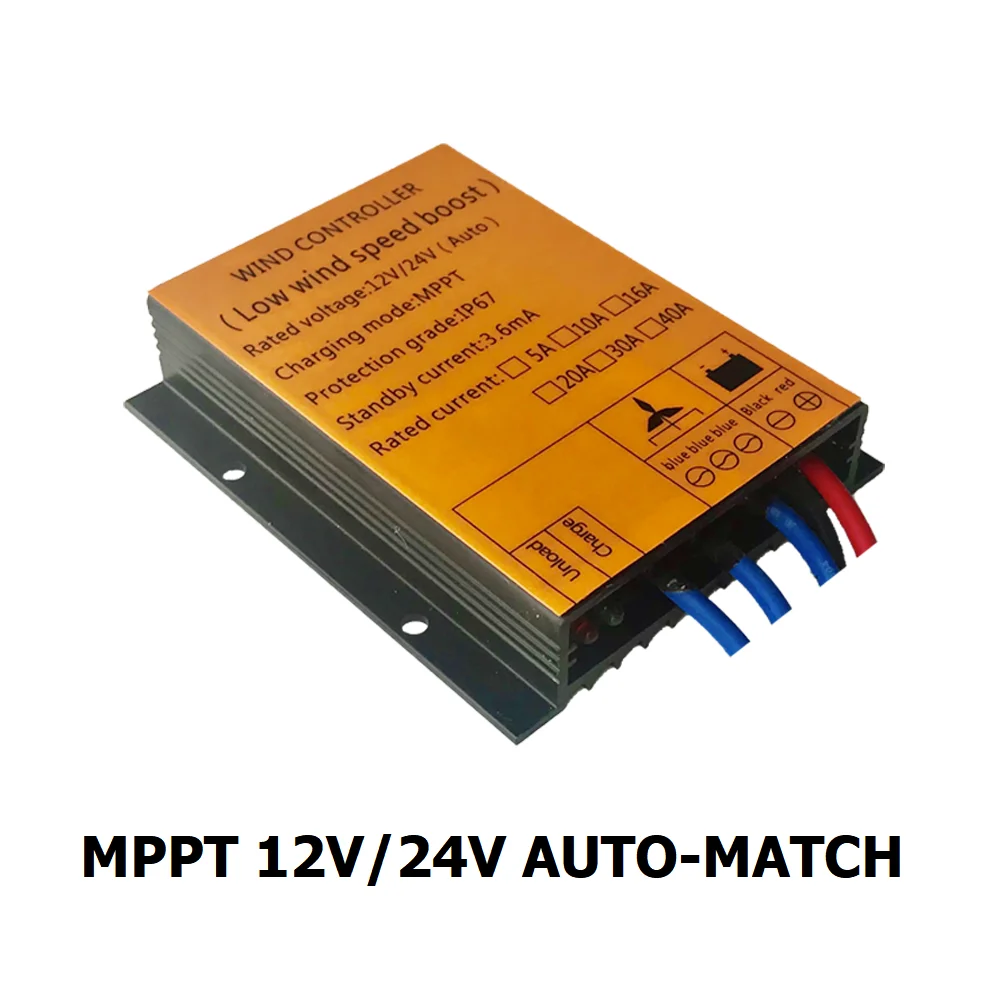

3. the controller chooses its working voltage model 12V or 24V by detecting the battery voltage. if the battery is 12V, the
contoller will work at 12V mode; if the battery is 24 V, the contoller will work at 24V mode.
4. "12V/24V auto" is suitable for charging lead acid battery, Stop charging voltage is 14.4V/28.8V. "15V/30V auto" is suitable for
charging Lifepo4 battery, Stop charging voltage is 15.0V/30.0V. It's better to use a BMS to protect Lifepo4 battery bank.
Features:
1. Good quality technical components guarantee its stability and reliability.
2. Complete electrical protection features that make the system more reliable.
3. Anti-water,anti-dust shell make it applicable in various outdoor environment.
4. Voltage/current control charging make sure storage batteries are
5. Alloy design,small size,good for heat dissipation.

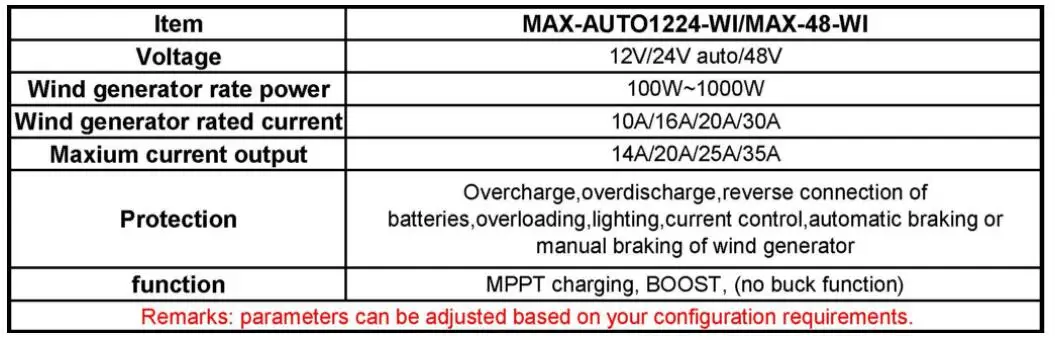

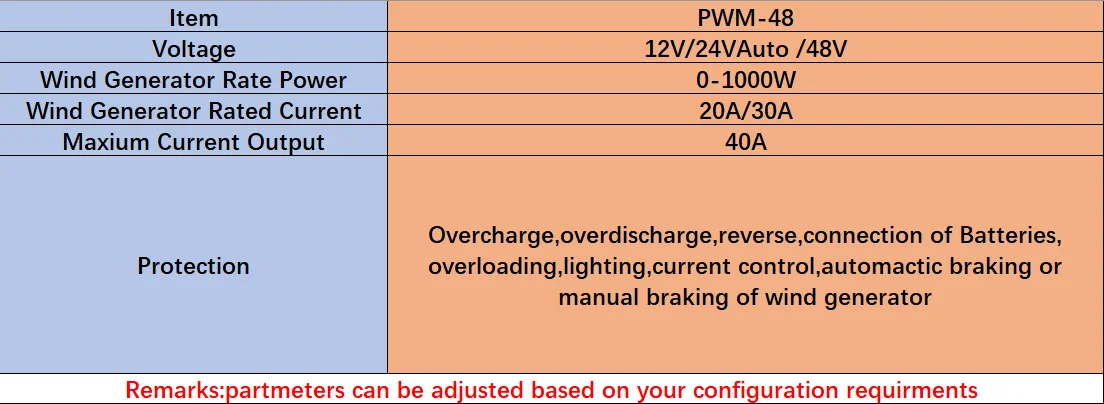

Specification:
Fit for Voltage: DC12V/24V, 48V
Maximum wind-generator power: 500/600/800/1000W(In fact, it can support the wind turbines (weight below 30kg) which are marked as
2000W/3000W on the Aliexpress.)
Waterproof: IP67
Protection: Battery overvoltage protect,wind-generator current limit,wind-generator brake,speed protection

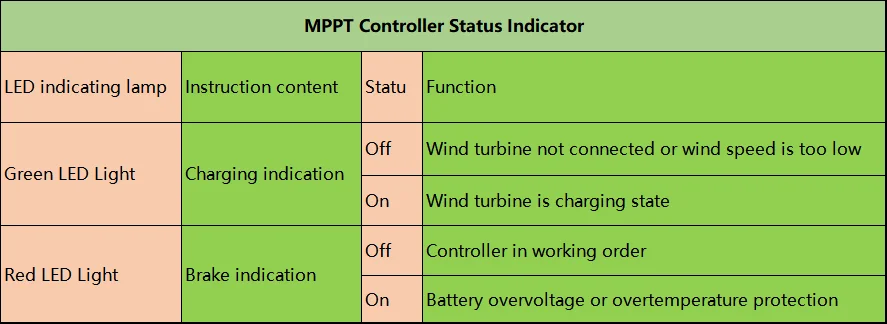

Indicator: LED
Capability: Mode charge
Unloading way: MPPT electrodeless and noiseless unloading
Working temperature: -35℃ +75℃/85%RH(no condensing)

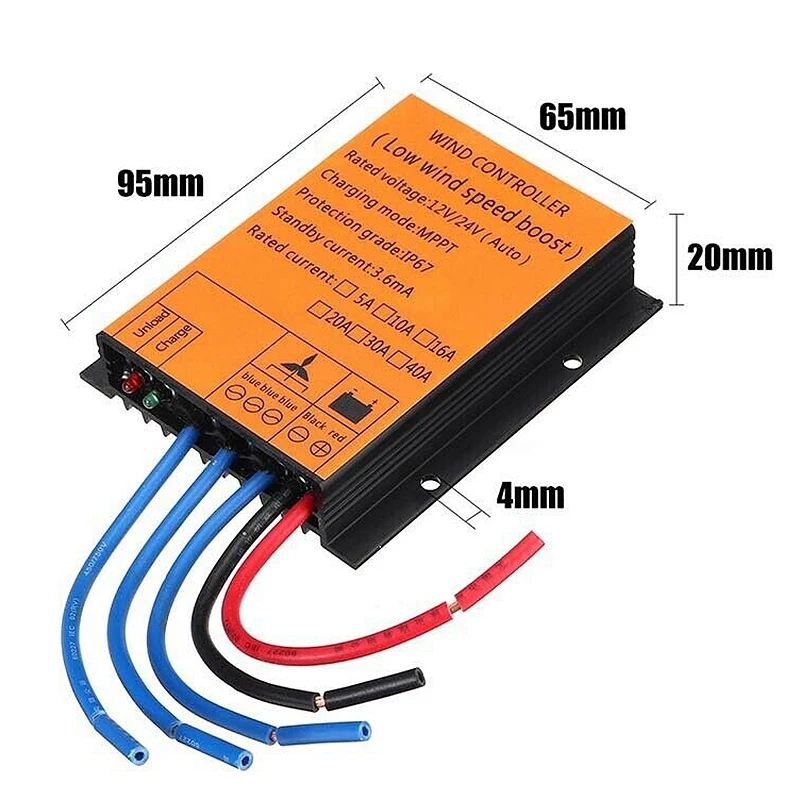

Size: 10 x 85x 23mm
1. first, please connect the battery. Second, connect the wind turbine. if you connect wind turbine before battery, the controller
may be burned if the wind is heavy.
2. please short-circuit wind turbine's 3 wires to brake the turbine before connecting the turbine to the controller.
3. the controller chooses its working voltage model 12V or 24V by detecting the battery voltage. if the battery is 12V, the
contoller will work at 12V mode; if the battery is 24 V, the contoller will work at 24V mode.
4. "12V/24V auto" is suitable for charging lead acid battery, Stop charging voltage is 14.4V/28.8V. "15V/30V auto" is suitable for
charging Lifepo4 battery, Stop charging voltage is 15.0V/30.0V. It's better to use a BMS to protect Lifepo4 battery bank.
Features:
1. Good quality technical components guarantee its stability and reliability.
2. Complete electrical protection features that make the system more reliable.
3. Anti-water,anti-dust shell make it applicable in various outdoor environment.
4. Voltage/current control charging make sure storage batteries are
5. Alloy design,small size,good for heat dissipation.
Specification:
Fit for Voltage: DC12V/24V, 48V
Maximum wind-generator power: 500/600/800/1000W(In fact, it can support the wind turbines (weight below 30kg) which are marked as
2000W/3000W on the Aliexpress.)
Waterproof: IP67
Protection: Battery overvoltage protect,wind-generator current limit,wind-generator brake,speed protection
Indicator: LED
Capability: Mode charge
Unloading way: MPPT electrodeless and noiseless unloading
Working temperature: -35℃ +75℃/85%RH(no condensing)
Size: 10 x 85x 23mm
