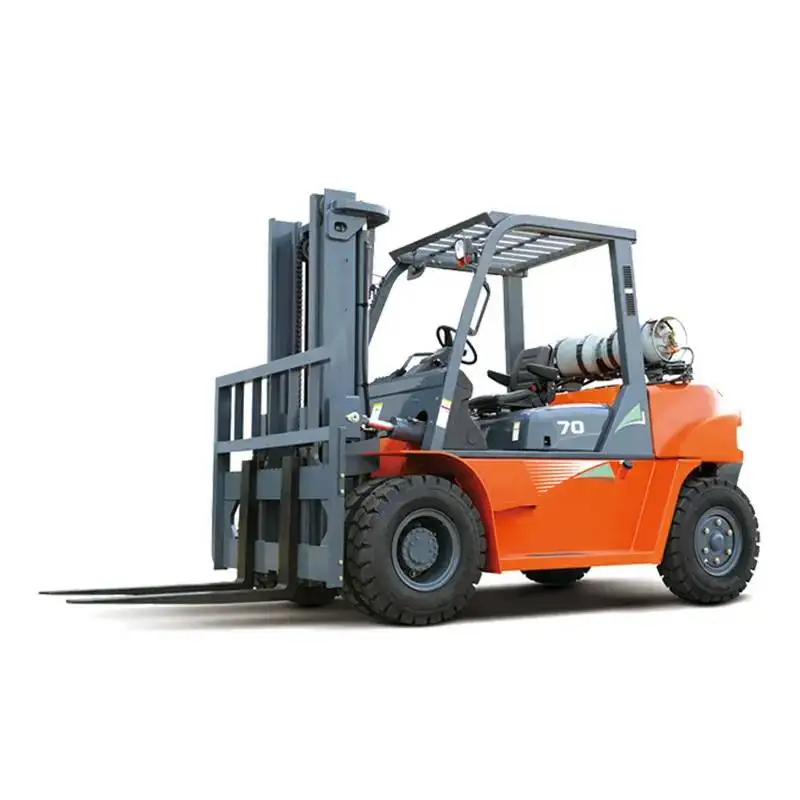

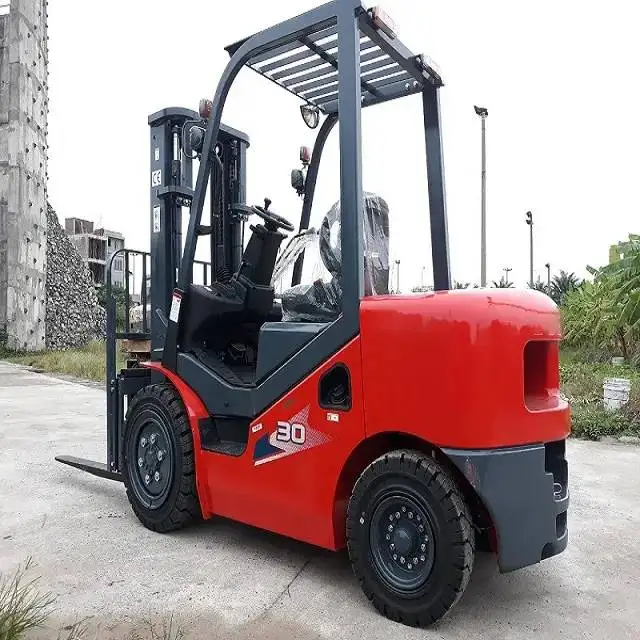

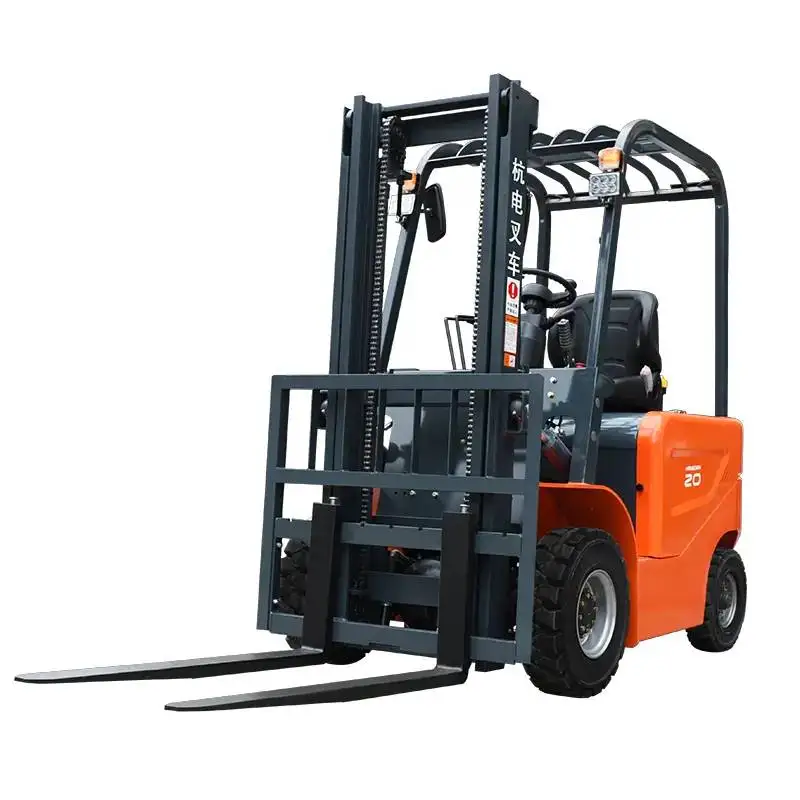

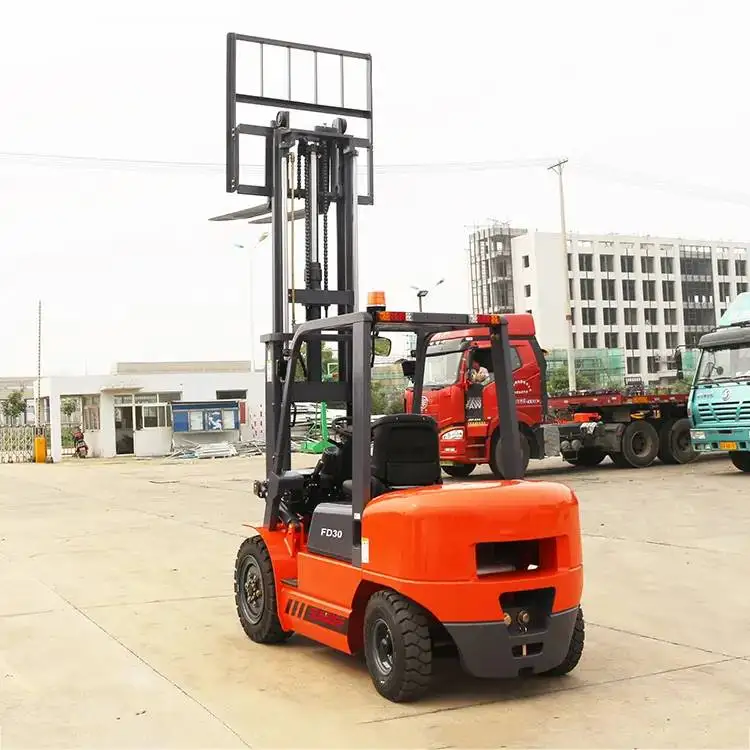

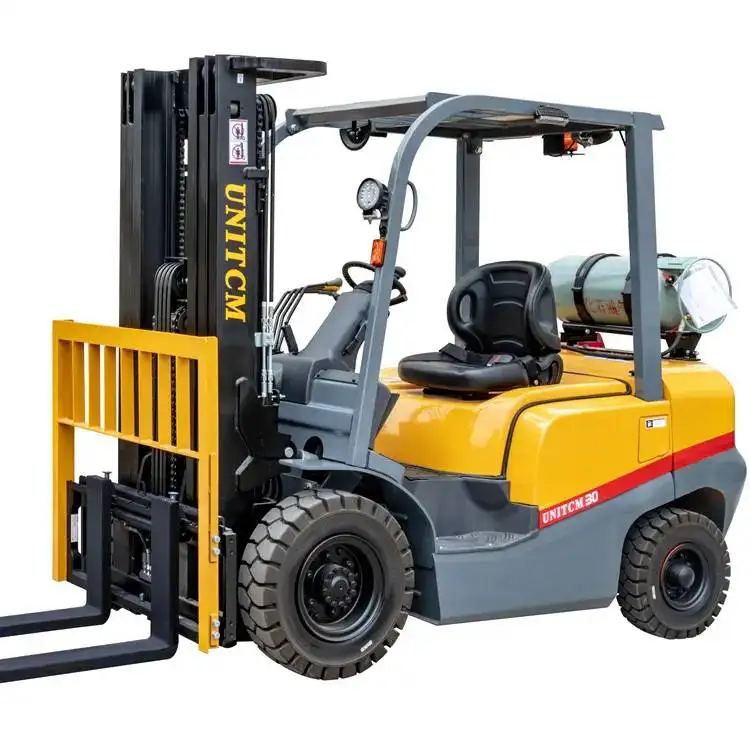

Instock cheap Forklift heavy duty Electric forklift 25ton 30ton 32ton forklift truck diesel folklifter pallet jack
- Category: >>>
- Supplier: CW Vier GmbH
Share on (1600841196835):
Product Overview
Description
| Product Name | Electric Pallet Stacker Forklift 1 ton 1.5 ton 2 ton 3 ton 5 ton Electric Forklift Price Forklift for Sale Manufacturer | |||||
| Model | CPD10 | CPD15A | CPD20A | CPD30A | CPD50 | |
| Power type | Storage battery | Storage battery | Storage battery | Storage battery | Storage battery | |
| Rated load | kg | 1000 | 1500 | 2000 | 3000 | 5000 |
| Load center distance | mm | 480 | 500 | 500 | 500 | 600 |
| Lifting height | mm | 3000 | 3000 | 3000 | 3000 | 3000 |
| Free lifting height | mm | 150 | 150 | 150 | 150 | 150 |
| Fork size | mm | 920×100×30 | 1070×100×35 | 1070×100×40 | 1070×120×45 | 1220×150×55 |
| Door frame dip angle | 43628 | 43628 | 43628 | 43628 | 43628 | |
| Min.turning radius | mm | 1300 | 2000 | 2300 | 2500 | 2750 |
| Minimum right channel width | mm | 2000 | 2300 | 2500 | 2800 | 4290 |
| Min .height off the ground | mm | 90 | 90 | 90 | 90 | 150
|
| Height of retaining feame | mm | 1950 | 2000 | 2170 | 2170 | 2350 |
| Distance from seat surface to top shieid | mm | 970 | 1000 | 1005 | 1005 | 1400 |
| Maximum travel speed | km/h | 43813 | 43813 | 43813 | 43813 | 14/13 |
| Max.lifting speed | mm/s | 340/280 | 340/280 | 340/280 | 390/360 | 410/250 |
| Maximum climbing ability | % | 12 | 12 | 12 | 12 | 15 |
| overall no fork | mm | 1700 | 2080 | 2380 | 2600 | 2950 |
| overall width | mm | 1000 | 1050 | 1150 | 1250 | 1510 |
| Maximum lifting height of forklift | mm | 4000 | 4000 | 4000 | 4000 | 4180 |
| Gantry height | mm | 2020 | 1990 | 2080 | 2080 | 2180 |
| Front tyre | 18×6×121/8 | 18*6 | 6.50-10 | 23×9-15 | 8.25-5 | |
| Rear tyre | 15×5×111/4 | 15*5 | 5.00-8 | 18×7-8 | 7.00-12 | |
