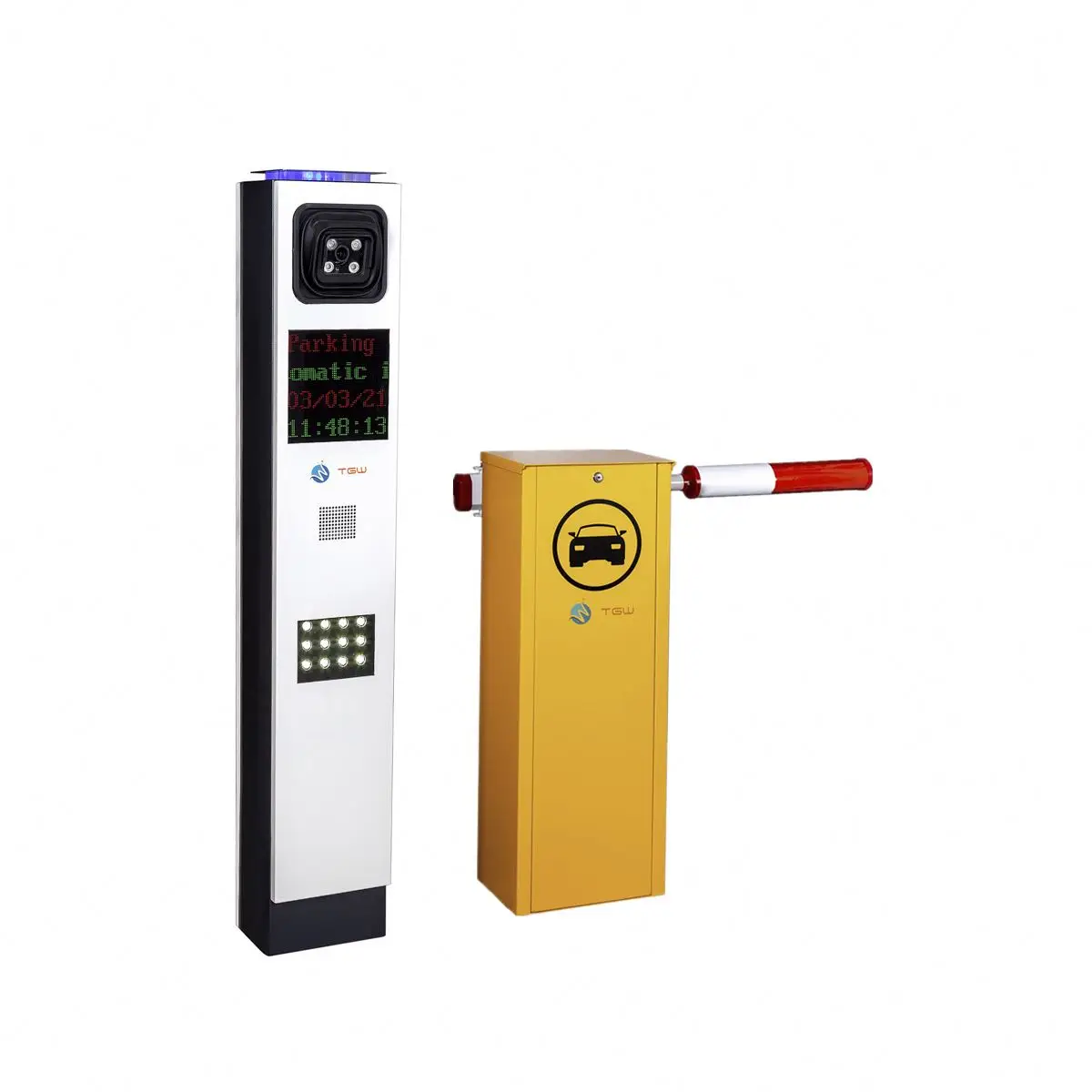

LPR/ANPR/ALPR Camera Vehicle License Plate Recognition And Capture Lpr Camera License Plate Recognition Access Gate Camera
- Category: >>>
- Supplier: Solarpione (shenzhen) Energy Technology Co. Ltd.
Share on (1600842809545):
Product Overview
Description

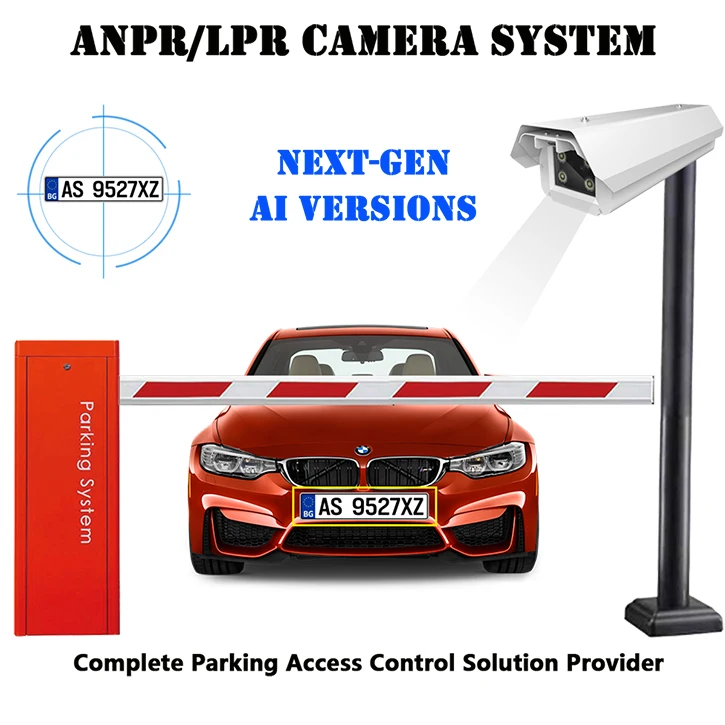

Automatic Number Plate Recognition System for Vehicle Access Control Parking Solution
Car parking ticket machine access control system is widely used in residencies, offices, shopping malls, hospitals and other public places for traffic control, management and revenue generation. It can greatly improve the efficiency of parking management,strengthen vehicle security, reduce manpower and cost, and avoid fraud, also gaining profit and revenue for parking manager.

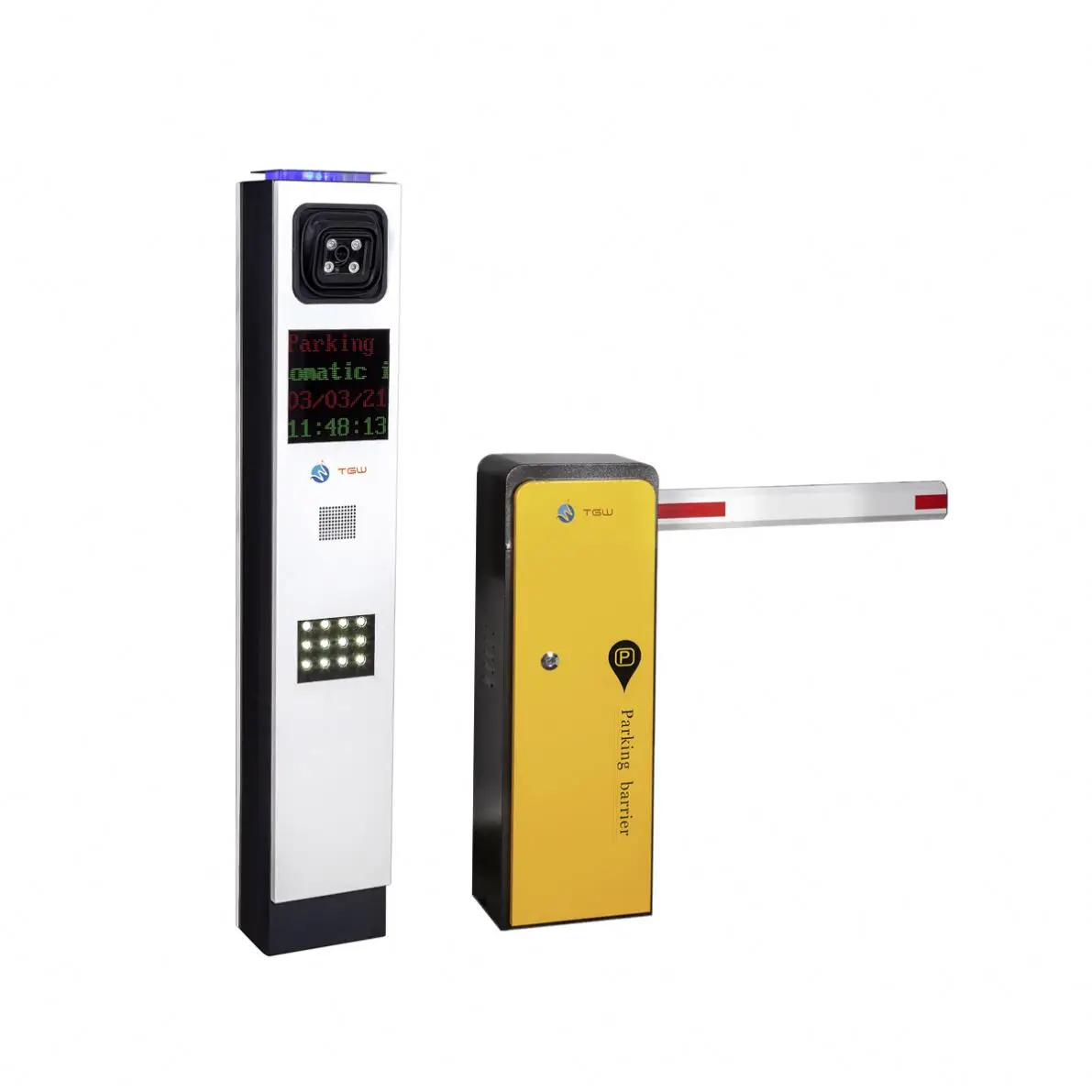

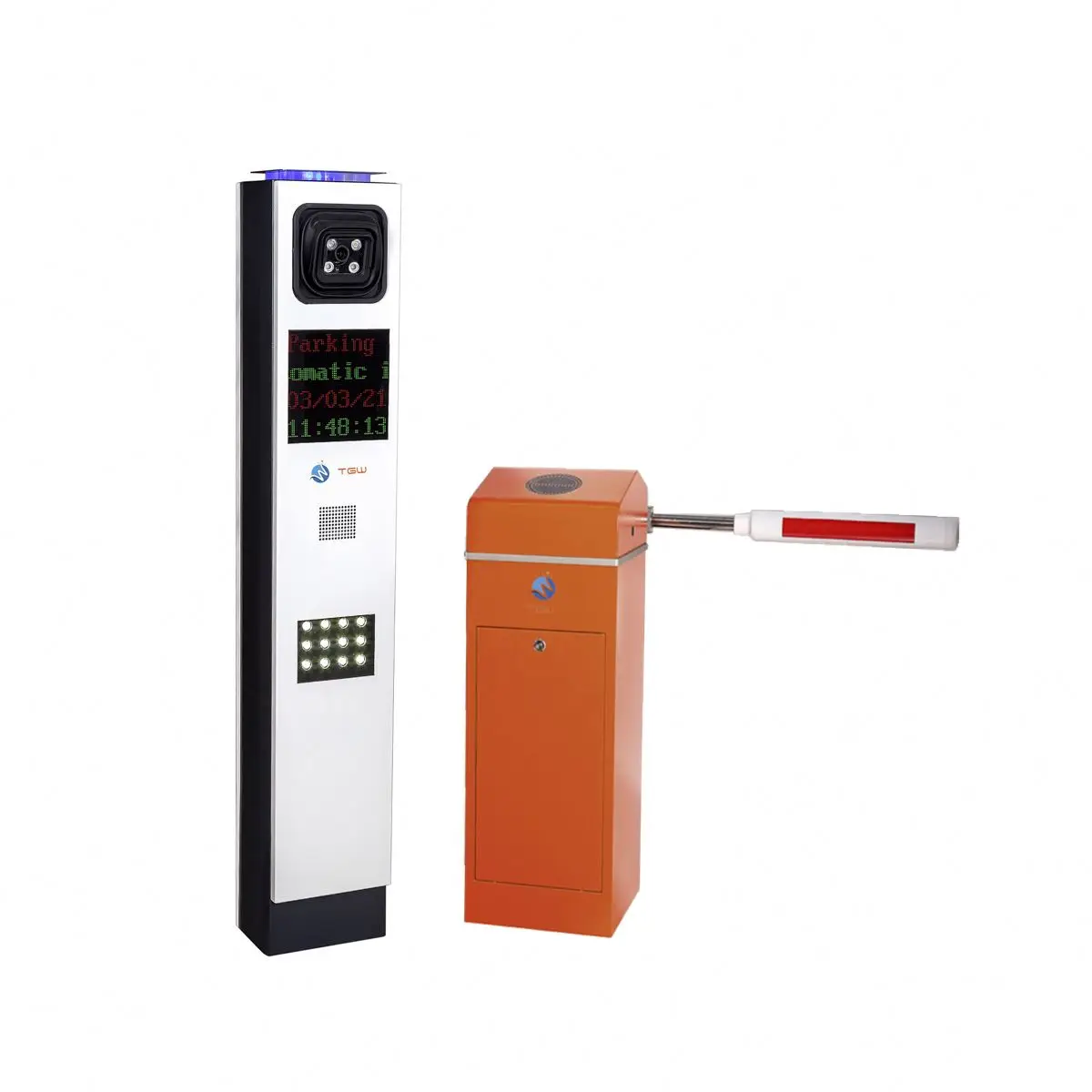

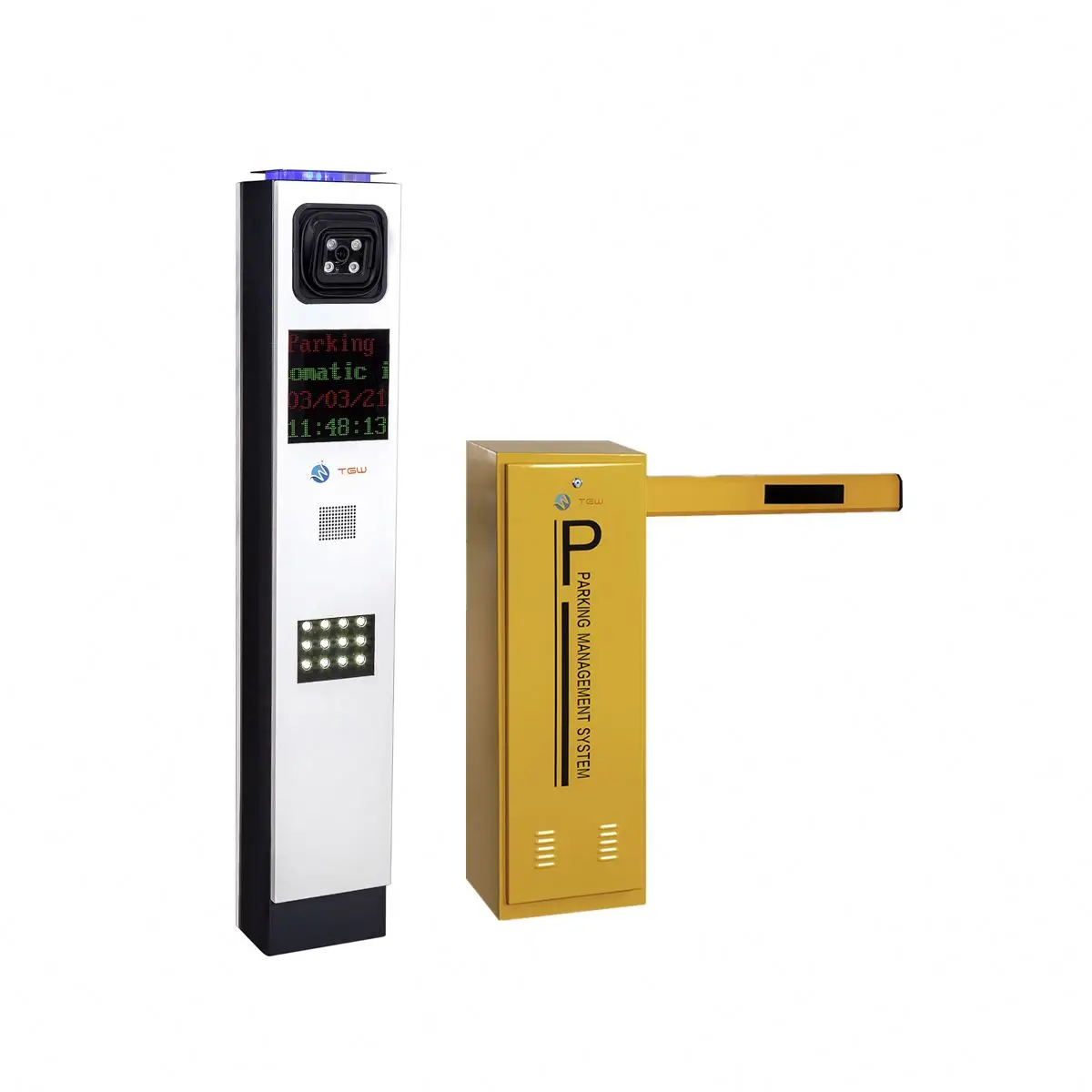

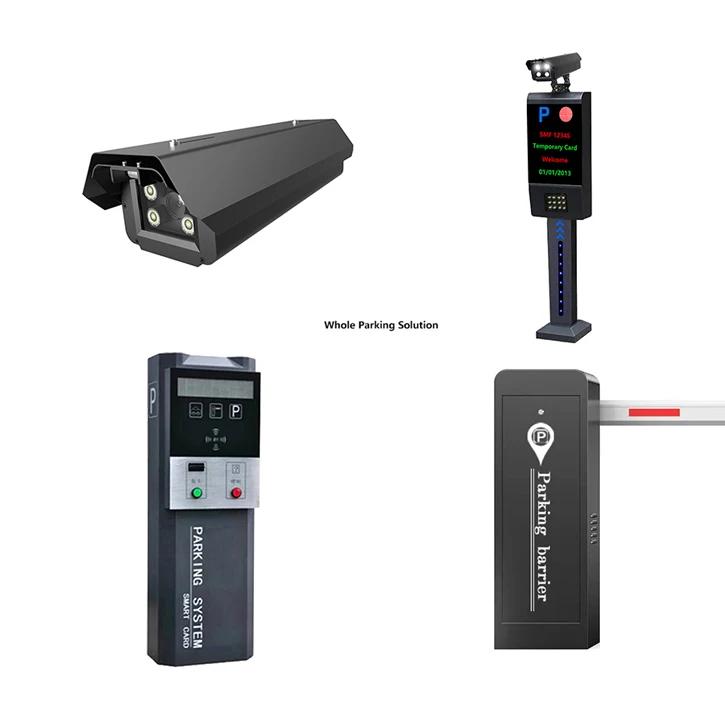

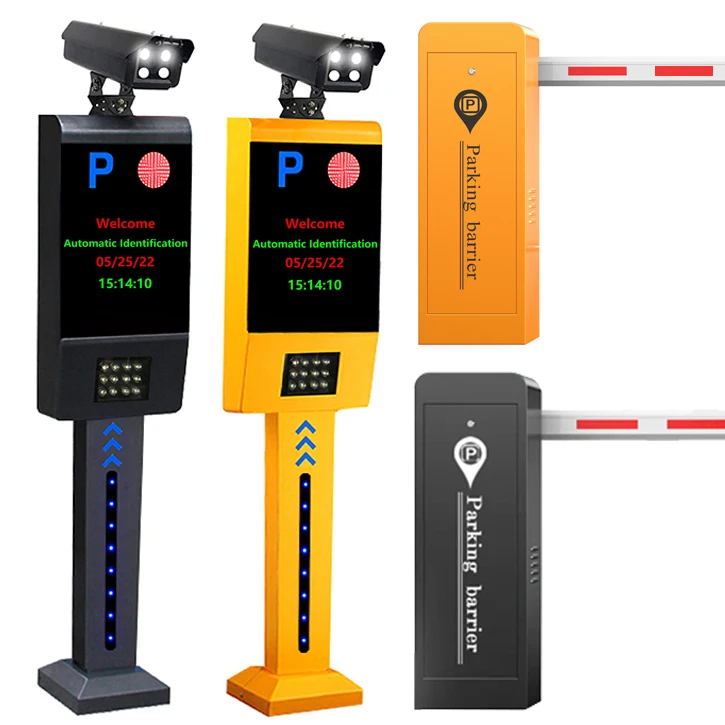

License Plate Recognition System Configuration

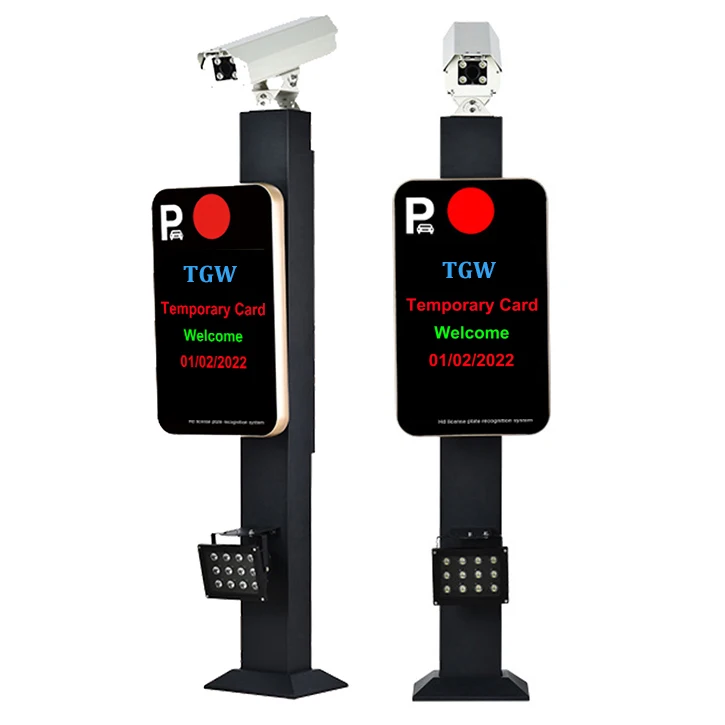

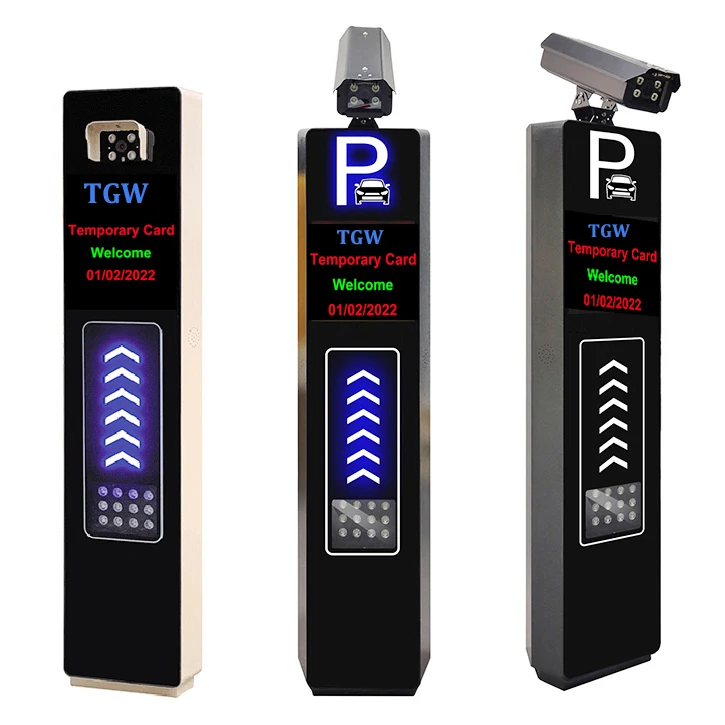

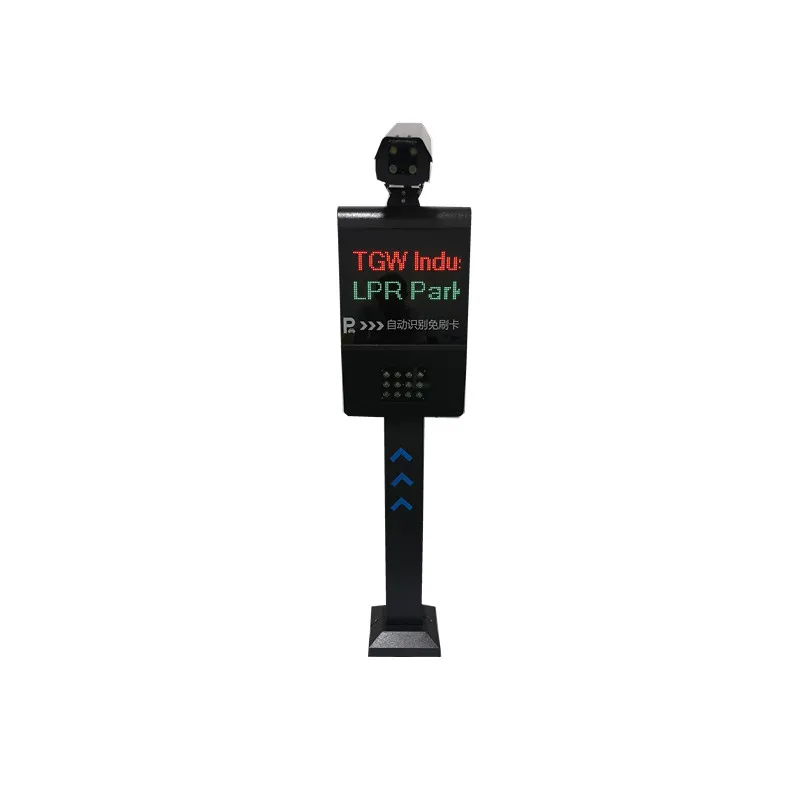

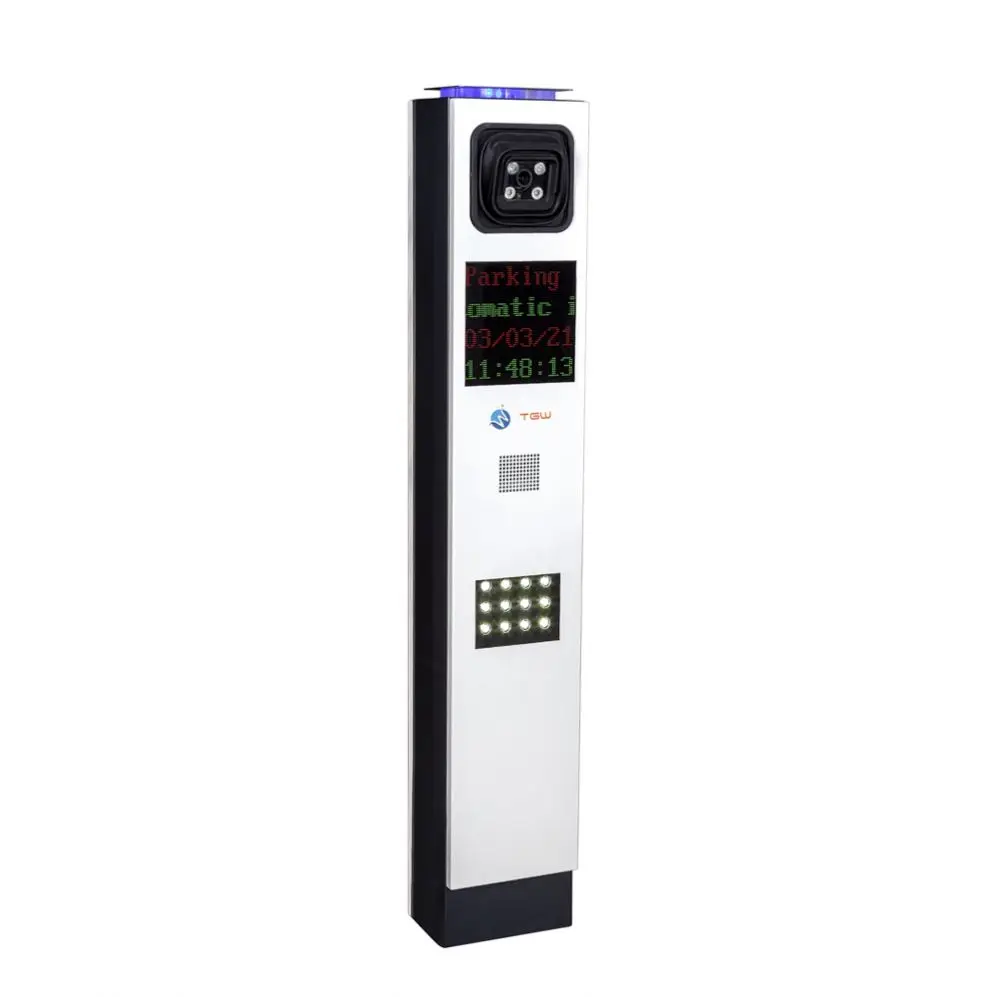

Camera & display:showing the vehicle's information, such as car plate number, entry/exit time etc.
Software:receiving the signal from the camera and clarifying the vehicle is VIP or temporary users etc, then output to the camera
again.
again.

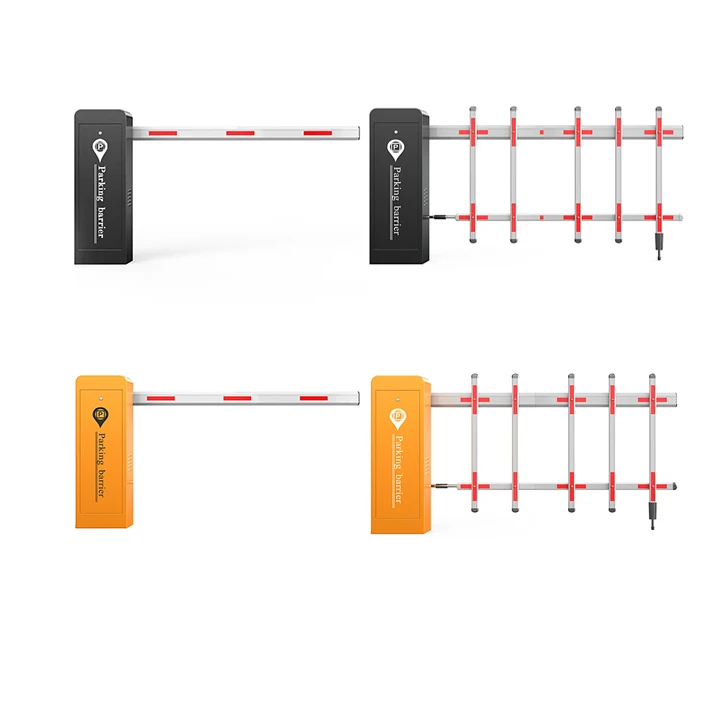

Barrier Gate:vehicle access controlling and open/close the barrier arm once received the signal from software
How Does the License Plate Recognition System works?
Entrance
* Step 1: Driver come to the entry parking machine and swipe card,system record the entry data automatically
* Step 2: Driver get the ticket/card and the barrier open. after pass the barrier. It will close automatically
Exit
* Step 1: Driver take his ticket/card to the payment station. Scan the ticket or read the card,then the Screen will show how long he stayed and how much he need to pay.
* Step 2: User make the payment.And the cashier will collect the IC/ID card to management center.
* Step 3: When driver arrive the exit barrier, the barrier will open manually ( the guard at the exit or the charging center can open the barrier with the remote controller)
* Step 1: Driver come to the entry parking machine and swipe card,system record the entry data automatically
* Step 2: Driver get the ticket/card and the barrier open. after pass the barrier. It will close automatically
Exit
* Step 1: Driver take his ticket/card to the payment station. Scan the ticket or read the card,then the Screen will show how long he stayed and how much he need to pay.
* Step 2: User make the payment.And the cashier will collect the IC/ID card to management center.
* Step 3: When driver arrive the exit barrier, the barrier will open manually ( the guard at the exit or the charging center can open the barrier with the remote controller)
* Step 4: After the driver pass the barrier. the boom will close
Technical Parameter: | ||||||||
Cabinet material | Iron plate metal 2.0 | |||||||

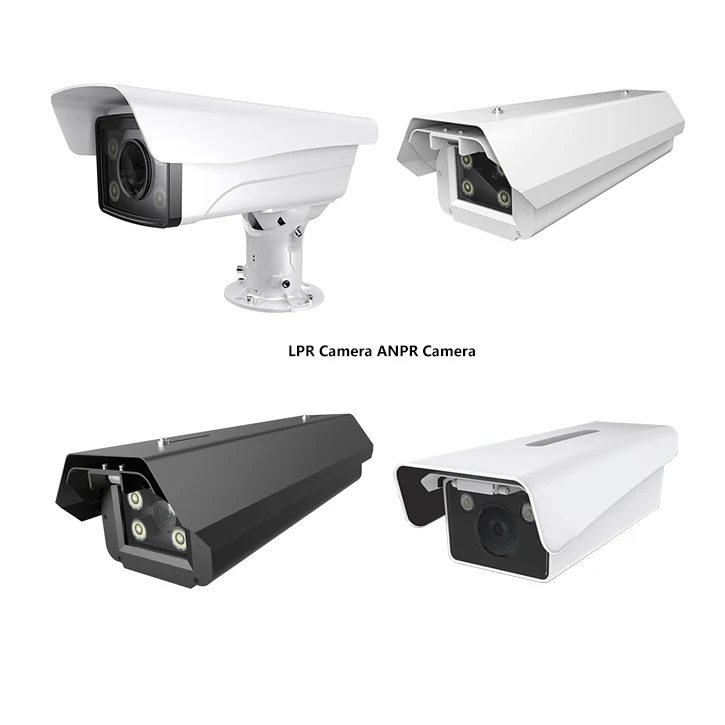

Housing | Weatherproof housing for camera | |||||||
Camera pixel | 1/3CMOS,2M pixel | |||||||
Camera lens | (2.8-12)mm automatic aperture | |||||||
Display | Optional, depends on models | |||||||
Fill light | Automatic light sensor <30Lux | |||||||
Recognition rate | >98% | |||||||
Recognition speed | <30KM/H | |||||||
Recognition distance | 3-6M | |||||||
Recognition method | TGW-software | |||||||
Communication interface | TCP/IP | |||||||
Network | RJ45, 100M | |||||||
Power Supply | DC12V | |||||||
Voltage | 220V/110V | |||||||
Working humidity | <85% | |||||||
Working temperature | -25℃-70℃ | |||||||
Display language | Support multi-language display | |||||||
TigerWong License Plate Recognition System Advantages:
1.Specializing in software R&D with professional team more than 20 years.
2.Adopting software recognition algorithm, customizing project solution for special requirements.
3. Language can be customized.
4. Recognizing global car plates more than 128 countries, recognition rate ups to 98%.
5. Providing global engineering case more than 10000 pieces.
Global Project Cases:
Clients Feedback:
Company Profile:
FAQ:
Q:Is there warranty for this system?
A:Yes, this system with 1 year warranty.
Q:What is the recognition rate of your system?
A:the recognition rate ups to 98%.
Q:Can your system recognize the plate with special character?
A:Yes, our system can recognize the global plates over 128 countries, including Arabic, Thai, Mongolian, Cambodian etc.
Q:The software language can be customized?
A:Yes, the language can be customized as you want.
Q:What is your recognition algorithm?
A:We use software recognition algorithm with more accurate data.
Q:Is it difficult to install this system?
A:No, it is not difficult, we will install the inside spare parts before delivery, and you just need to connect the power supply and network cable after received the goods.And the detailed user manual will be provided, also 24*7 online after-sales services supported.
