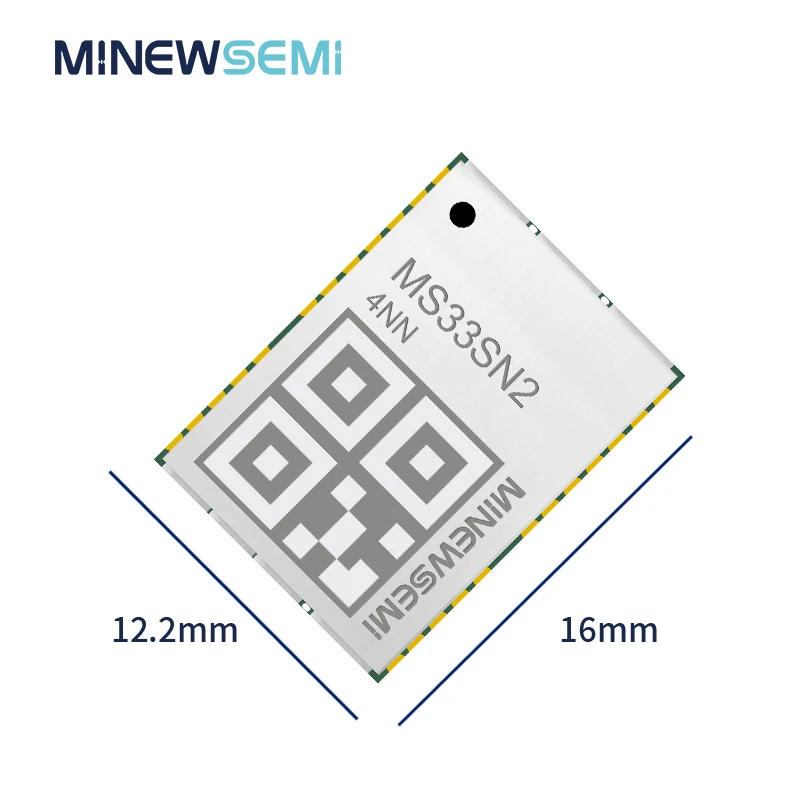

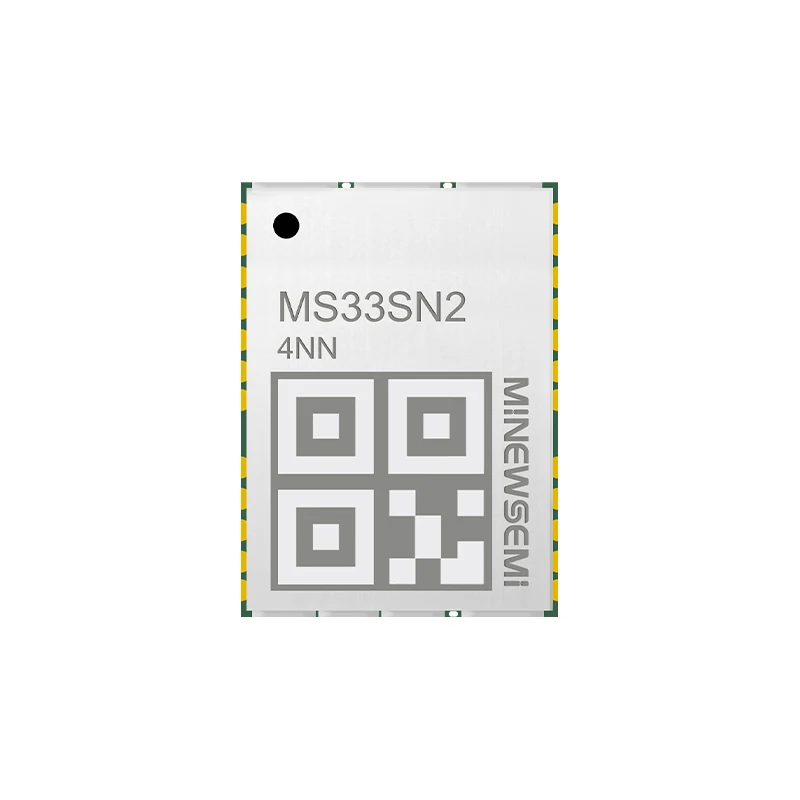

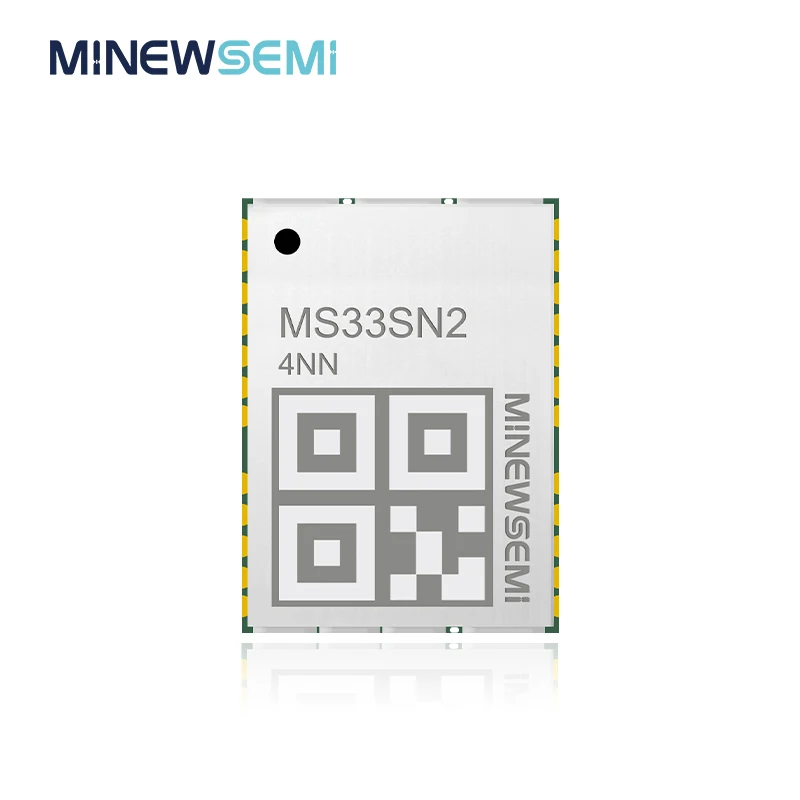

MS33SN2 Single band Multi constellation GPS Module Supports AGPS TCP Accelerate Positioning Solutions GNSS Module
- Category: >>>
- Supplier: Shenzhen Minewsemi Co. Ltd.
Share on (1600843017673):

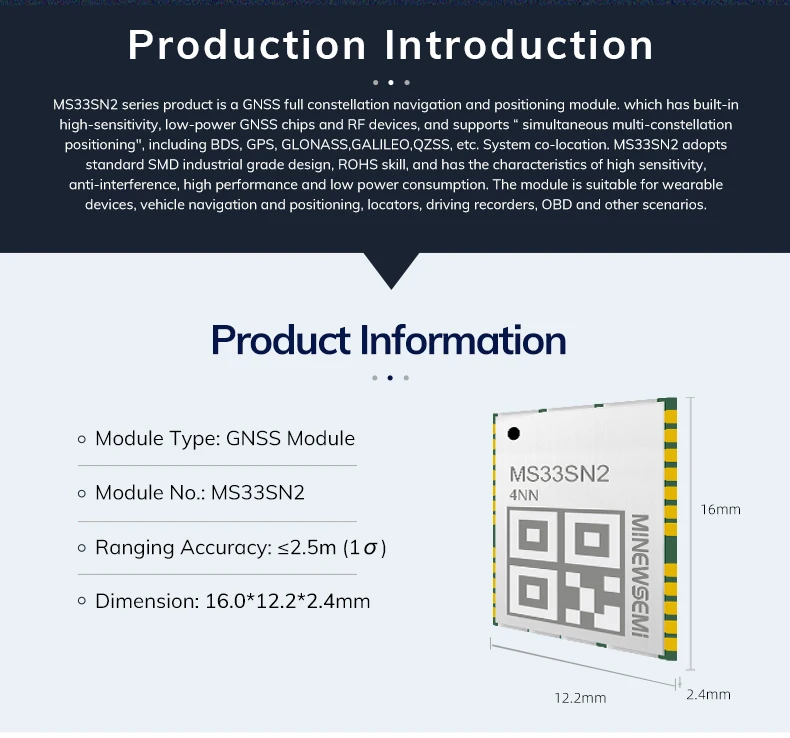

Product Overview
Description
Products Description
1: Supporting satellite system: GPS, BDS, GLONASS, GALILEO,QZSS
2: Supports AGPS TCP acceleration positioning solutions
3: Power system has full working mode and battery backup mode
The MS33SN2 supports concurrent GNSS satellite constellations, which can receive and track GPS (including SBAS and QZSS) signals, BDS signals, and GLONASS signals individually or simultaneously.
The receiving frequencies are: 1575.42 MHz (GPS), 1561.098±2.046MHz (BDS) and 1602.5625MHZ±4MHz (GLONASS).
Satellite System | GPS, BDS, GLONASS, GALILEO,QZSS |
Sensitivity | Tracking: -165dBm; Recapturing -160dBm; Cold Start: -148dBm |
Cold Start | Avg 24s |
Hot Start | Avg 1s |
Baud Rate | 115200bps (Factory Default) |
Power Consumption(Tracking) | 18mA @3.3V Typical |
Refresh Frequency | 1-10 Hz ( Software Adjusted) |
Protocol | Default support for NMEA0183 version 4.1 |
MS33SN1 supports concurrent GNSS satellite constellations, which can receive and track GPS (including SBAS and QZSS) signals, BDS signals, and GLONASS signals individually or simultaneously. The receiving frequencies are: 1575.42 MHz (GPS), 1561.098±2.046MHz (BDS) and 1602.5625MHZ±4MHz (GLONASS).

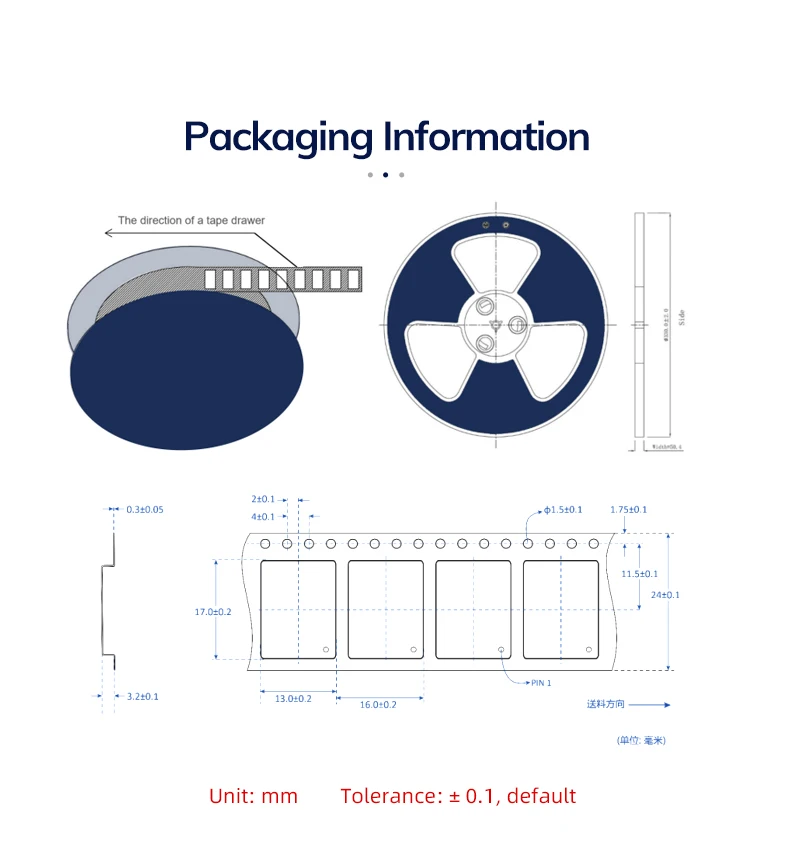

Packaging
