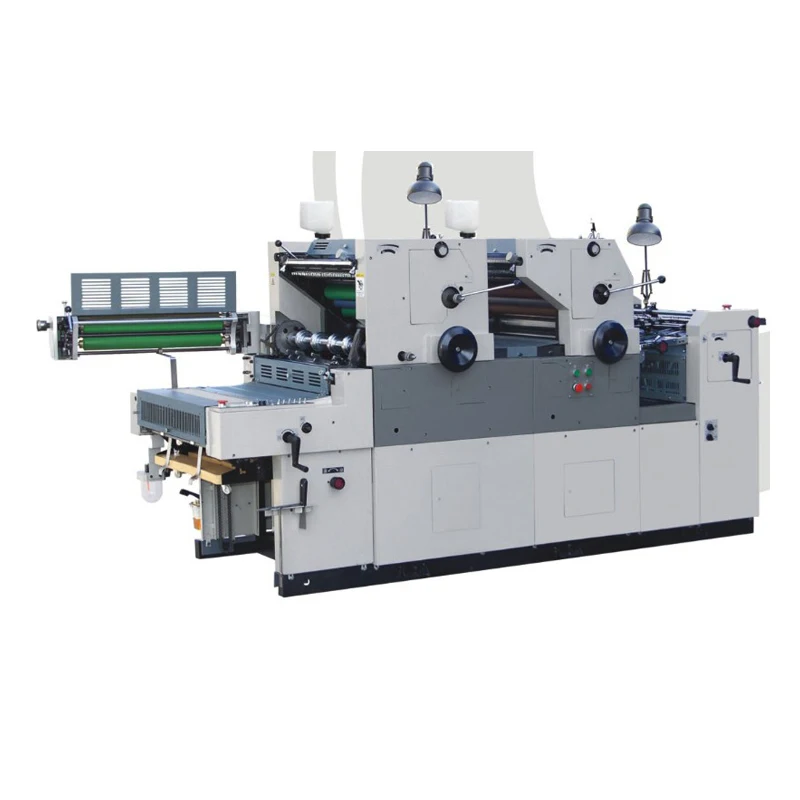

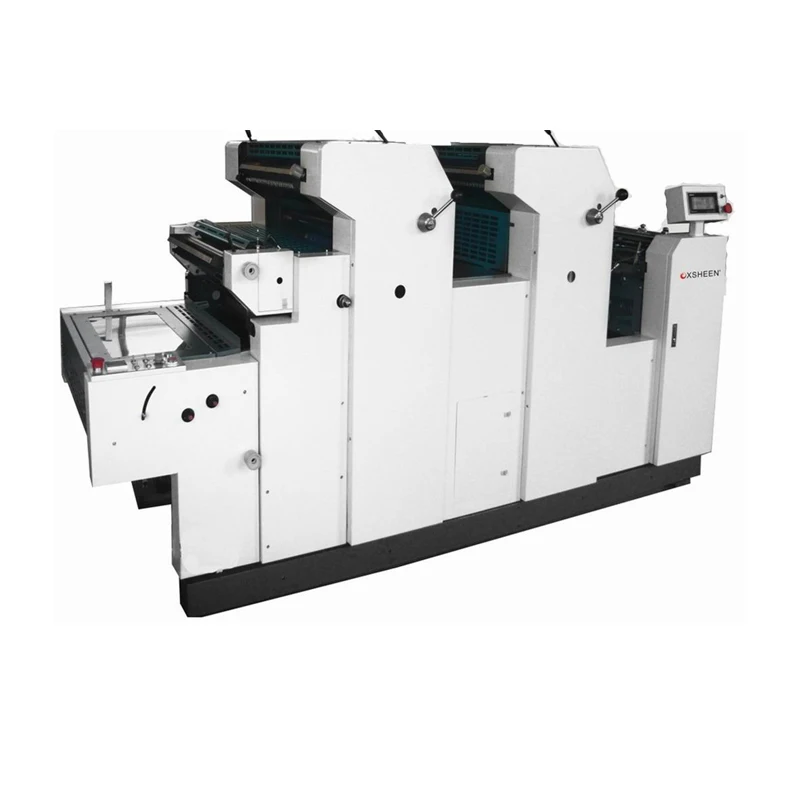

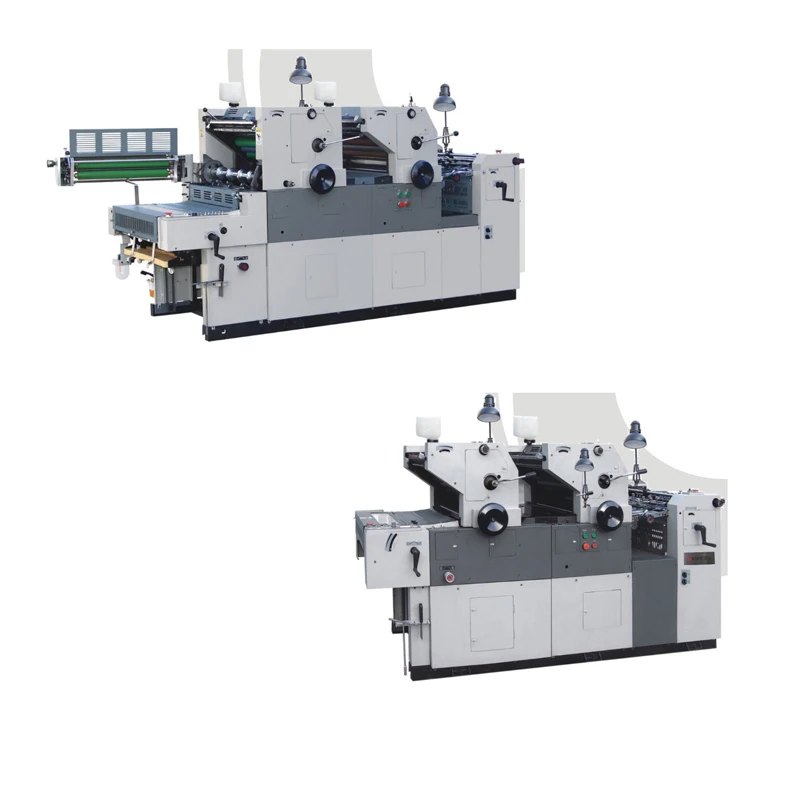

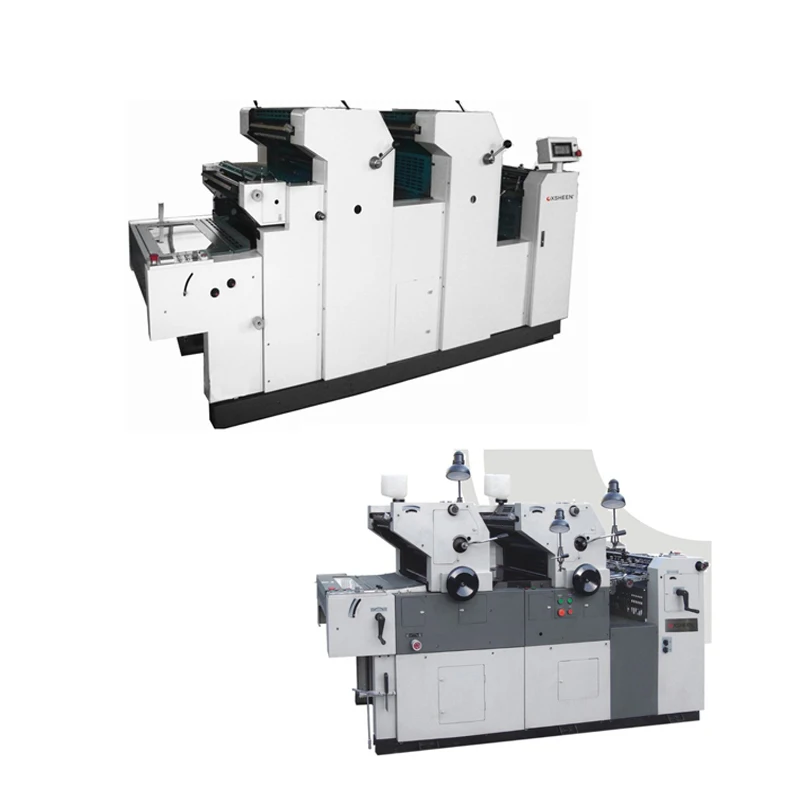

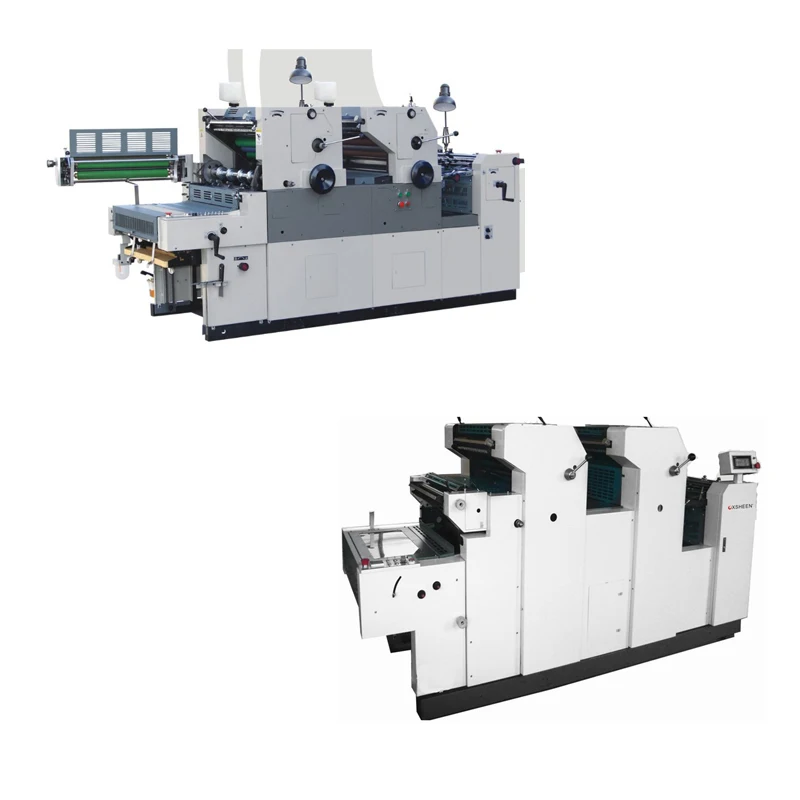

2 Color Offset Printing Machine Machine Computer Direct Offset Printing Machine Full Automatic
- Category: >>>
- Supplier: Shanghai Xsheen Machine Electron Technology Co. Ltd.
Share on (1600843026322):
Product Overview
Description
Standard Offset Printing Machine
Features:
1. Easy operation by one hand lever to control dampening, inking and pressing.
2. Accurate Location by front stop and both side-pulled stop ensures perfect printing.
3. Dampening and inking system is separate to adjust water and ink supplying easily.
4. PLC system is adopted to control the circuit.
5. Presetting Counter can make the machine stop automatically when finish preset quantity.
6. Doulbe sheets detection can eliminate the troubles of multiple sheets automatically
7. Powdering Function can avoid paper dirty.
8. Centralized lubricating system is more convenient for maintenance.
9. Numbering and perforating unit is optional.
Features:
1. Easy operation by one hand lever to control dampening, inking and pressing.
2. Accurate Location by front stop and both side-pulled stop ensures perfect printing.
3. Dampening and inking system is separate to adjust water and ink supplying easily.
4. PLC system is adopted to control the circuit.
5. Presetting Counter can make the machine stop automatically when finish preset quantity.
6. Doulbe sheets detection can eliminate the troubles of multiple sheets automatically
7. Powdering Function can avoid paper dirty.
8. Centralized lubricating system is more convenient for maintenance.
9. Numbering and perforating unit is optional.
Specification
Model | XHXJY-2C-47IIG-NP | ||
Max. paper size | 470x365mm | ||
Max. printing area | 450x345mm | ||
Paper weight | 28~250gsm | ||
Printing speed | 2000~7000 sheets/hour | ||
Plate/ Blanket size | 470x385/470x420mm | ||
Ink roller | 16 pieces(3 ink form rollers) | ||
Power of primary/air-pump motor | 1.5kw/0.55kw | ||
Power supply | 220V/50Hz | ||
Dimension | 2900x935x1400mm | ||
Net weight | 1900kgs | ||
Horizontal number machine | 7 lines*9rows=49 | ||
Vertical numbering machine | 5lines*8rows=40 | ||
Min. perforating spacing | Horizontal/Vertical: :5/ 25mm | ||
NP Ink roller number | 6rollers(2pc against ink roller) | ||
Model | XHXJY-4C-47IIG/47IIG-NP | XHXJY-4C-56IIG/ 56IIG-NP |
Max paper size | 470X365mm | 560X400mm |
Min paper size | 90X140mm | 90X140mm |
Max printing area | 450X345mm | 550X375mm |
Paper weight | 28-250g/m2 | 28-250g/m2 |
Printing speed | 2000-8000 sheets/hour | 2000-8000 sheets/hour |
Printing plate size | 470X395X0.15mm | 560X420x0.15mm |
Ink roller | 14 pieces (3 ink form roller ) | 14 pieces (3 ink form roller ) |
Damping roller | 5 pieces (2 damping roller ) | 5 pieces (2 damping roller ) |
Blanket size | 466X415x1.95mm | 560X455X1.95mm |
Power of primary motor | 2.2KW | 2.2KW |
Power of air-pump power | 0.75KW | 0.75KW |
Power supply | 220V/50HZ | 220V/50HZ |
Dimension size | 4600X935X1400mm | 4600X1040X1400mm |
Machine weight | 1800KG | 2400kg |
Product Description

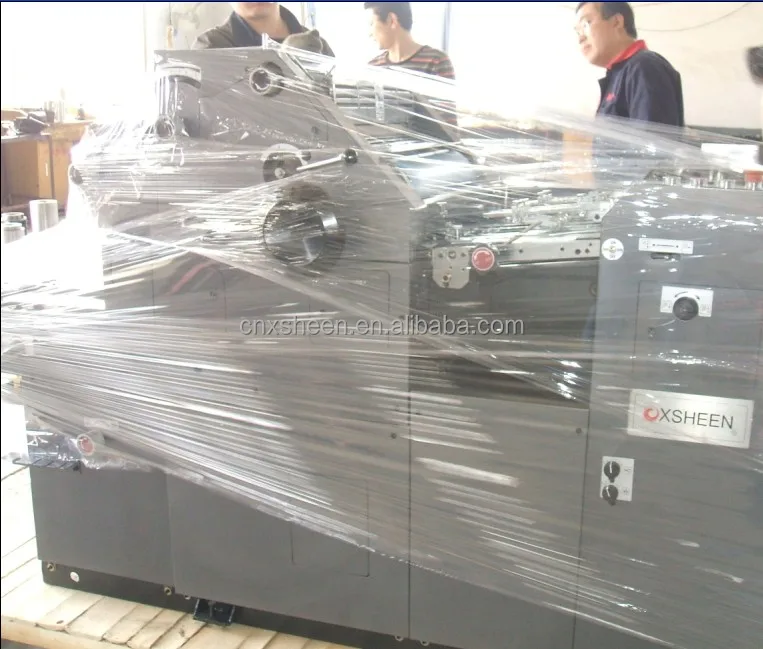

Packing & Delivery
Company Profile
FAQ
1. Are you manufacturer or trading company?
We are manufacturer.The factory address: Yiyuan Rd, Weicheng Disctric, Weifang, Shandong.
2.What is the price term ?
The price listed is FOB There might be additional forwarder costs depends on different forwarder and shipment method.
The price may fluctuate due to material cost / labor cost / exchange rate change. Please consult our sales people before
confirming an order.
We are manufacturer.The factory address: Yiyuan Rd, Weicheng Disctric, Weifang, Shandong.
2.What is the price term ?
The price listed is FOB There might be additional forwarder costs depends on different forwarder and shipment method.
The price may fluctuate due to material cost / labor cost / exchange rate change. Please consult our sales people before
confirming an order.
3. How long do you need to produce the products ?
We arrange the shipment in 7~15 days.
4. How to place order and arrange payment ?
If you buy our RTS product, you can contact our sales to draft PI or trade assurance order for you or you can press " start
to order " button on Alibaba .
5. What documents do you provide?
We provide Commercial Invoice, Packing List, Bill of Loading, Certificate of Origin, Fumigation Certificate. If your markets
have any special requirements such as SONCAP, PVoC, please let us know.
6. What is the payment term ? How can I arrange payment ?
We accept TT / LC / Trade assurance payment.
7.What's the loading port?
Usually is Shanghai, Qingdao. We can delivery goods to customer nominated port
8.If you have any other questions or any doubt about customization, please click“Chat Now” on the right or send us email, we provide 24 hours for you.
We arrange the shipment in 7~15 days.
4. How to place order and arrange payment ?
If you buy our RTS product, you can contact our sales to draft PI or trade assurance order for you or you can press " start
to order " button on Alibaba .
5. What documents do you provide?
We provide Commercial Invoice, Packing List, Bill of Loading, Certificate of Origin, Fumigation Certificate. If your markets
have any special requirements such as SONCAP, PVoC, please let us know.
6. What is the payment term ? How can I arrange payment ?
We accept TT / LC / Trade assurance payment.
7.What's the loading port?
Usually is Shanghai, Qingdao. We can delivery goods to customer nominated port
8.If you have any other questions or any doubt about customization, please click“Chat Now” on the right or send us email, we provide 24 hours for you.
