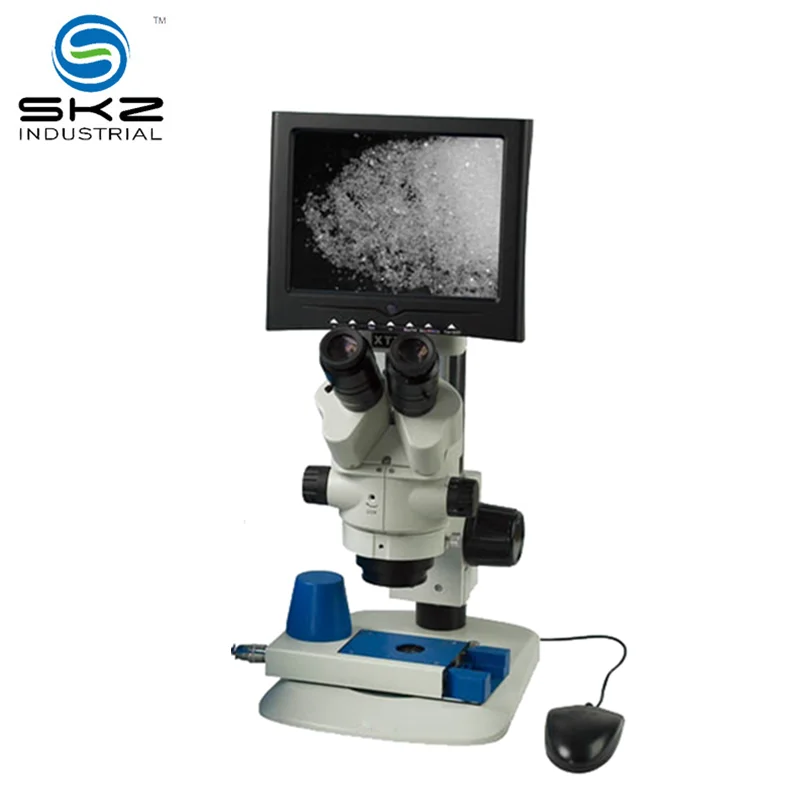

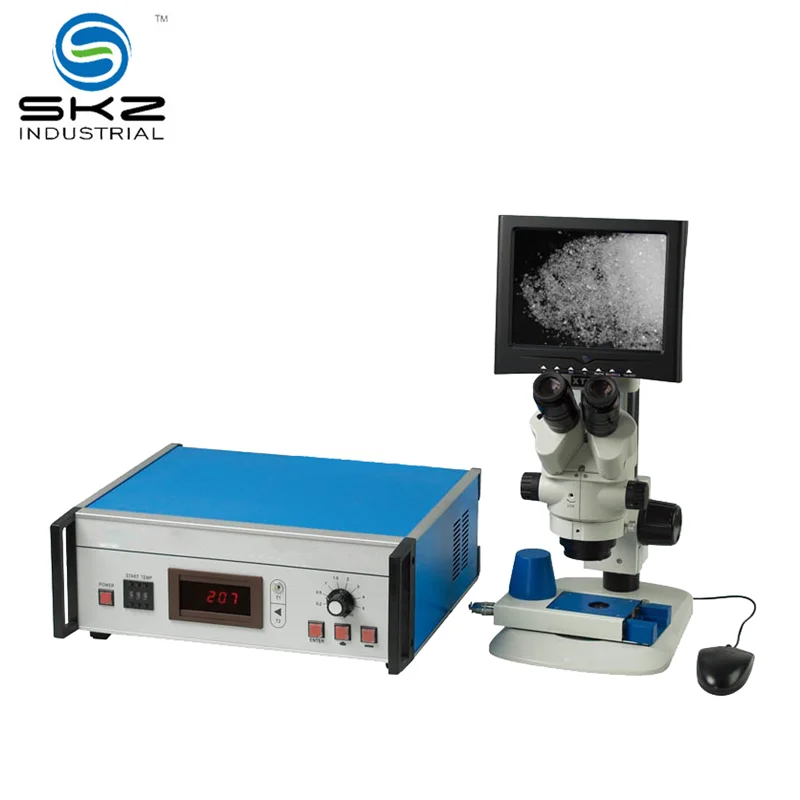

SKZ1040A 1 PWM pulse program digital melting point apparatus Melt Flow Index Machine Melting point tester
- Category: >>>
- Supplier: SKZ International Co. Limited
Share on (1600843203744):
Product Overview
Description
Product Description

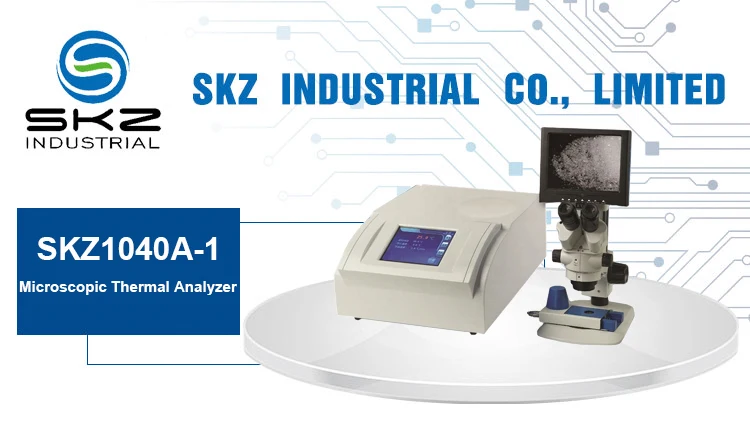

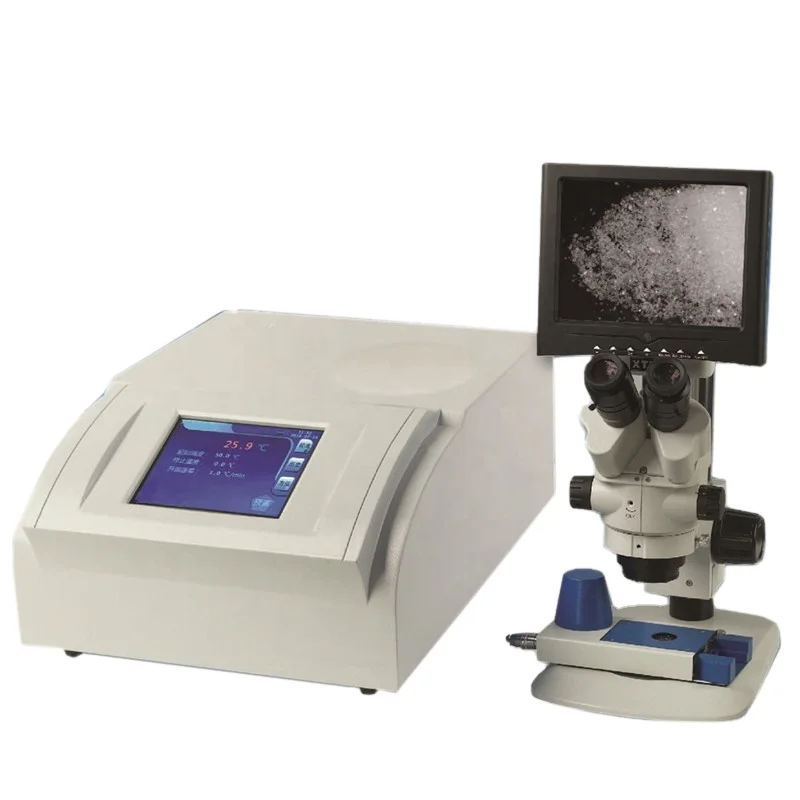

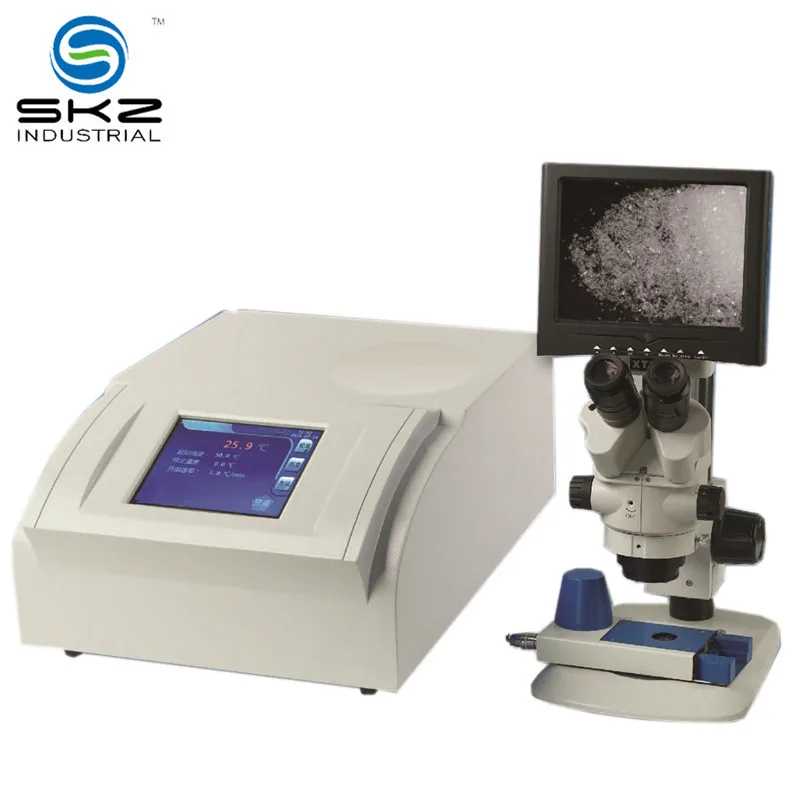

SKZ1040A-1 Microscopic Thermal Analyzer
Feature
1.Using PWM pulse program to control temperature and color touch screen display
2.With 3000 sets of test data storage.
3. With USB interface to transfer data to the PC, PS232 interface can be connected to a micro-printer (optional) for printing.
Specification
Measuring range | Room temperature ~300°C |
Measurement methods | Hot table method, visual inspection |
Minimum indication | 0.1°C |
Heating rate | 0.1°C/min—20°C/min |
Indication error | ≤200°C±0.5°C >200°C±0.7°C |
Repeatability | Heating rate is 1.0°C/min, 0.3°C |
Linear heating rate error | ±10% |
Data storage | 3000 groups |
Printer model | RD-TH32-SC (optional) |
Display method | 5.6-inch color LCD touch screen |
Communication Interface | RS232/USB |
Slide thickness | 0.8mm~1.2mm |
Cover glass thickness | 0.17mm |
magnification | ≥40×(depends on the configured microscope) |
power supply | 220V±22V, 50 Hz±1Hz |
Hot stage size | 195mm×28mm×85mm |
Digital display unit size | 290mm×170mm×360mm |
weight | 12.6kg (without microscope) |
