Meat Truck Washers Washing Machine High Pressure Stainless Steel High Pressure Water Pump Cleaning Truck and Bin Washing System
- Category: >>>
- Supplier: Zhucheng Lijie Food Machinery Co. Ltd.
Share on (1600843236285):
Product Overview
Description
Product Description
Automatic and highly systems for washing and sanitizing meat trucks of different types and sizes, with a washing capacity of 15 to 100 trucks/hour.Truck and vat washing systems which comply with the most stringent hygiene/sanitary standards, tailor-made to the customer’s requirements.
The truck washing systems designed to perfectly remove even the most stubborn residue.
The truck and bin washing systems are fully automated and manufactured according to extremely high quality protocols which, thanks to particular high pressure systems are able to remove even the most stubborn residue.
The truck and bin washing systems are fully automated and manufactured according to extremely high quality protocols which, thanks to particular high pressure systems are able to remove even the most stubborn residue.

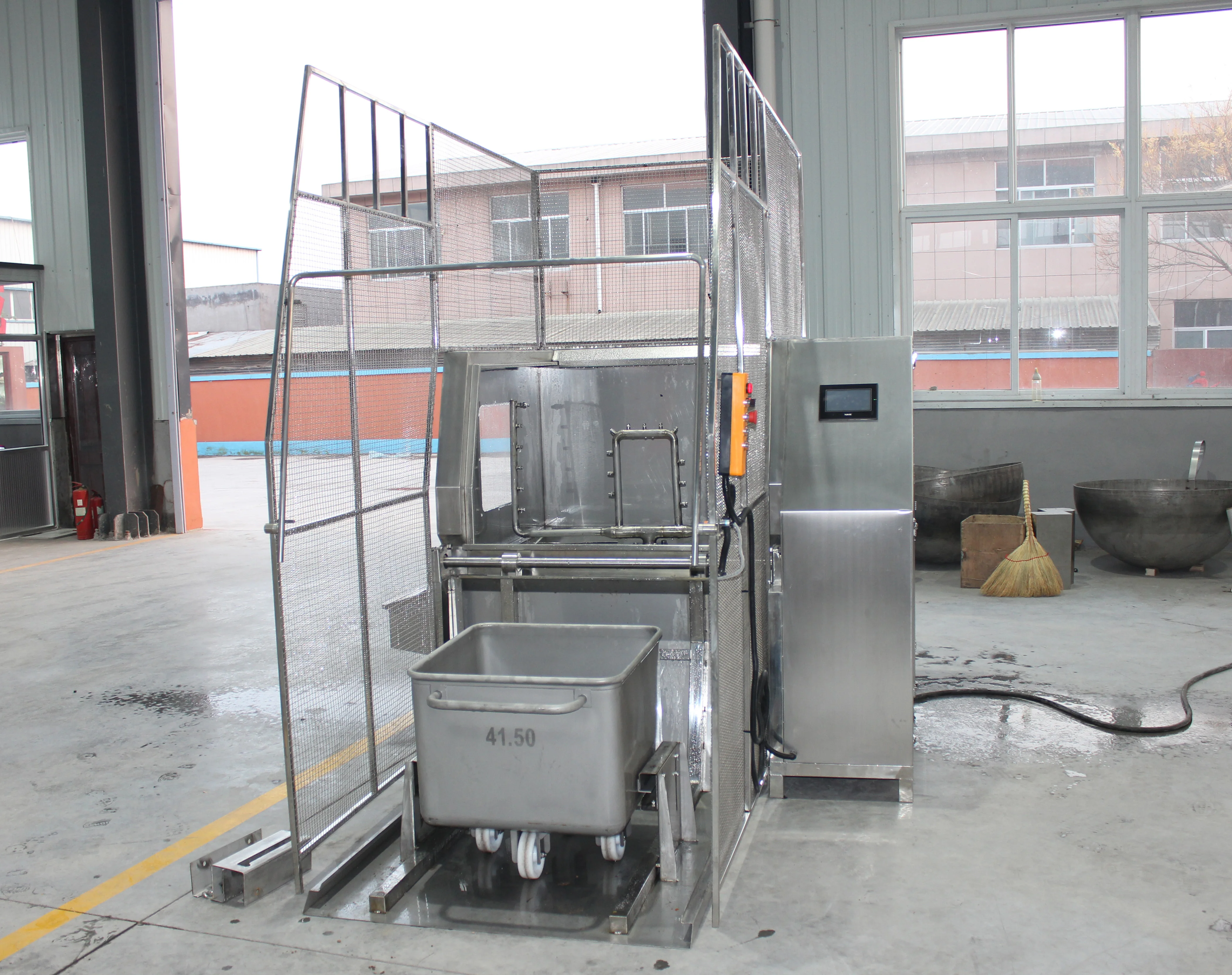

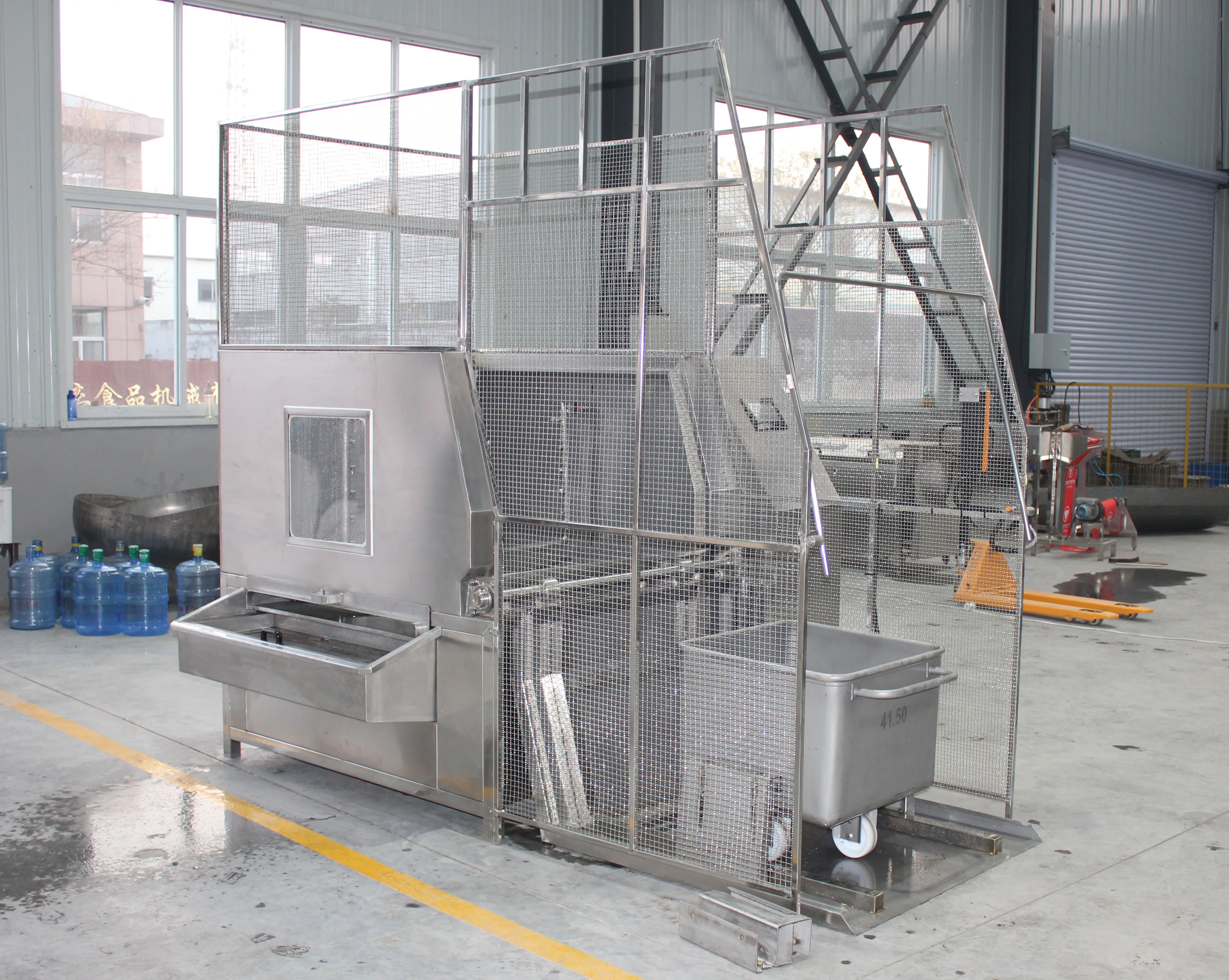

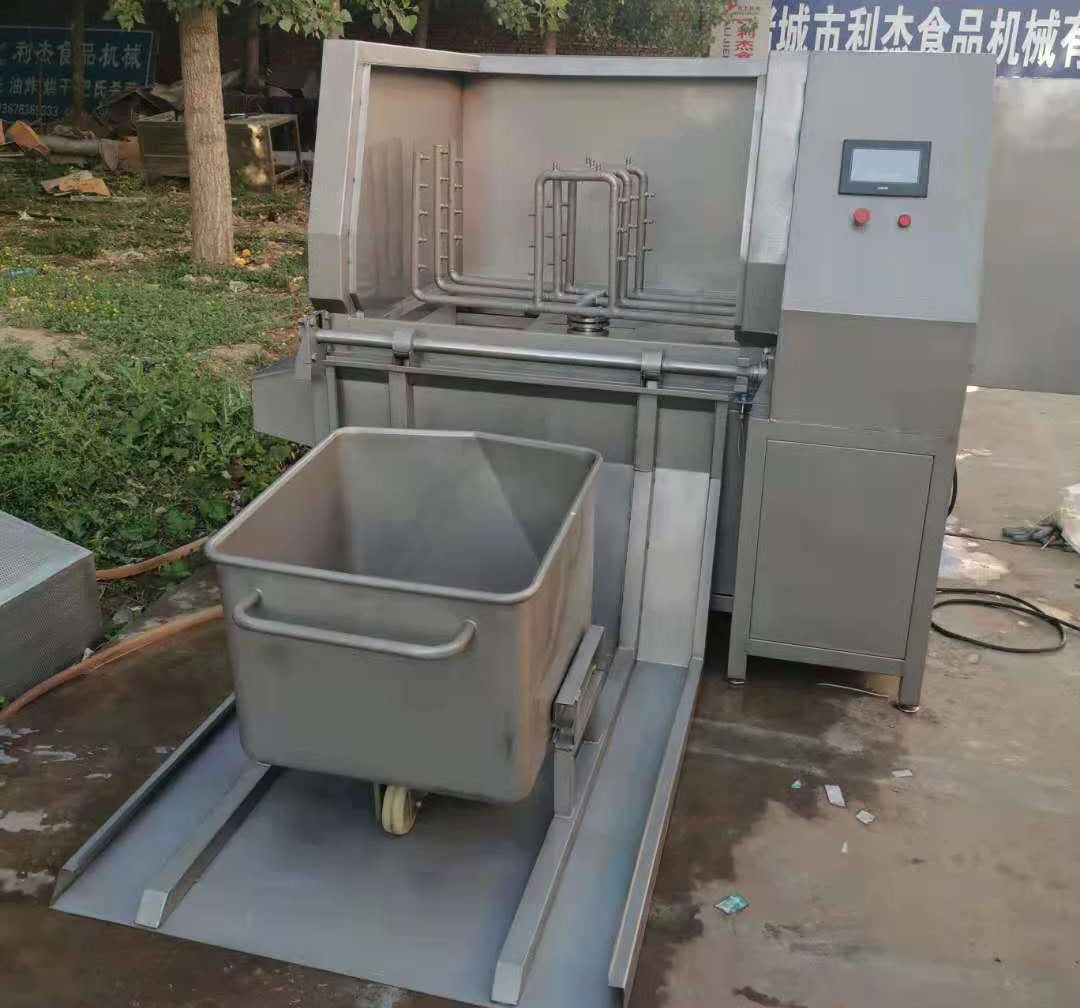

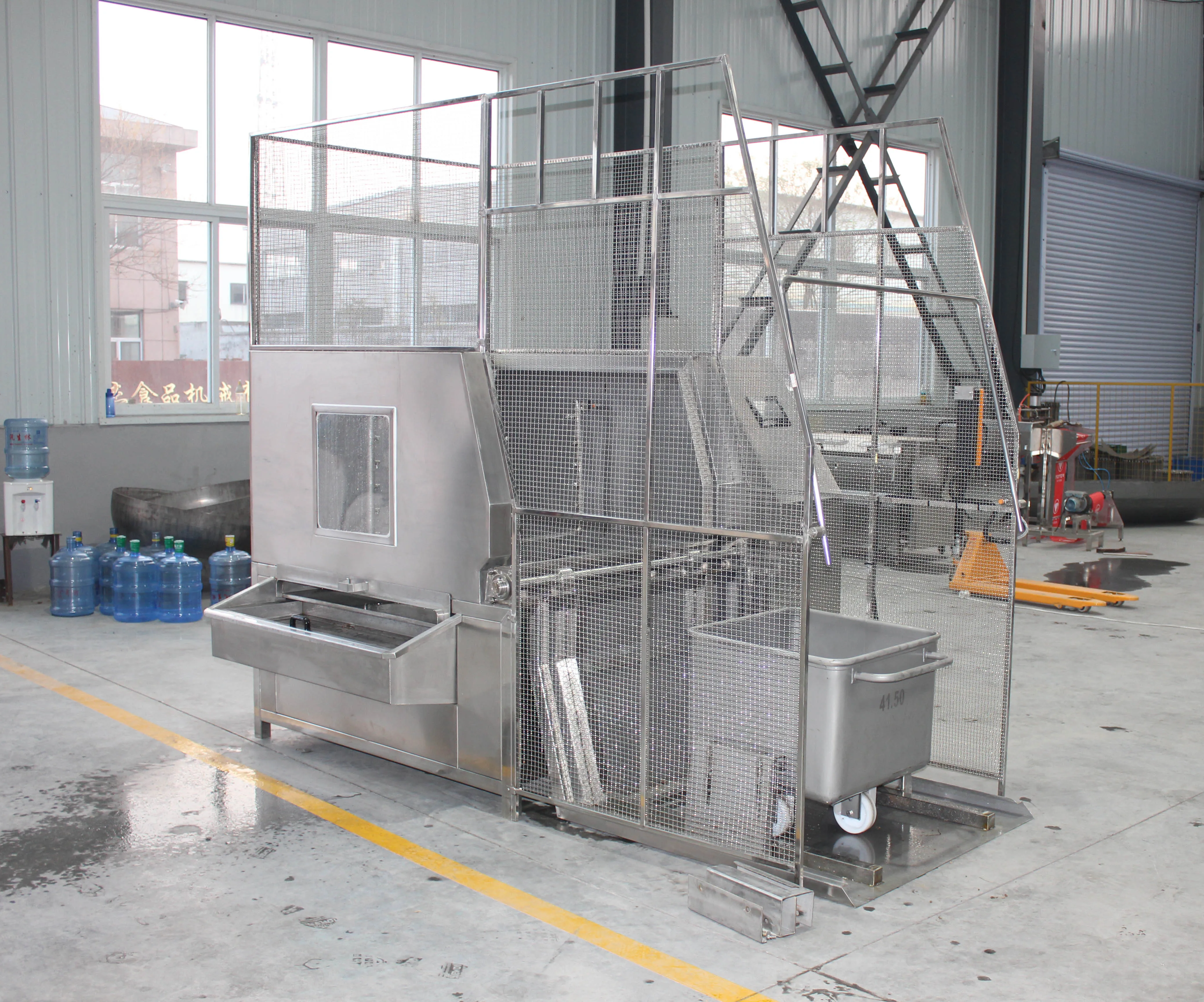

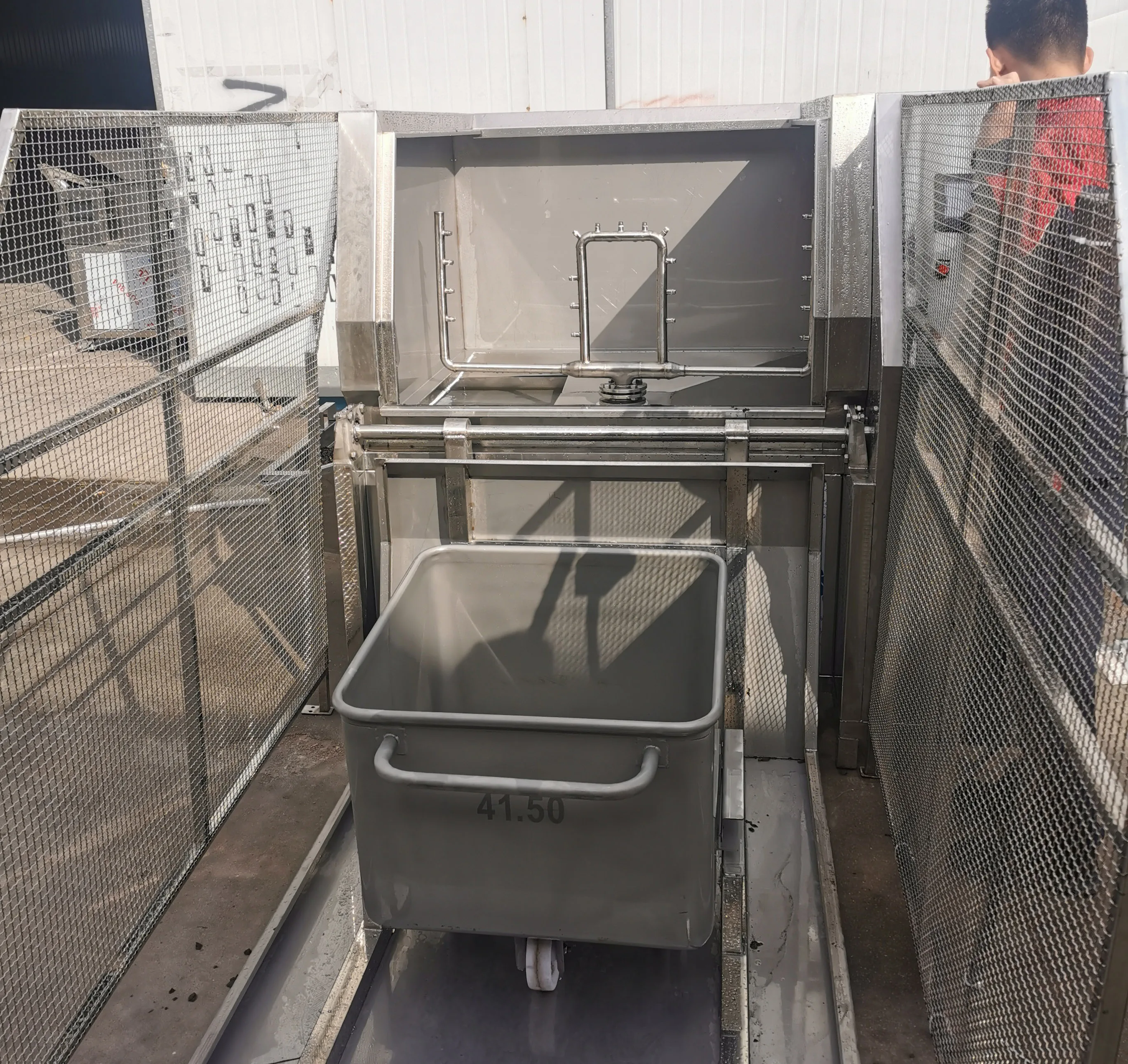

Bins washing machine
For washing one 200L bin. The machine is equipped with filter to catch bigger dirt.
The machine is electrical heated.
The water from the rinsing process is led to the main tank in order to reduce water consumption.
Hydraulic door to both load the buggy and close the washing section. Safety light barrier.
Machine corpus made entirely out of stainless steel, material No. 1.4301. The machine complies with the high CE-Requirement
The machine is electrical heated.
The water from the rinsing process is led to the main tank in order to reduce water consumption.
Hydraulic door to both load the buggy and close the washing section. Safety light barrier.
Machine corpus made entirely out of stainless steel, material No. 1.4301. The machine complies with the high CE-Requirement
We can customize equipment according to your needs！！
Product application
This machine is used for the needs of all food industries. We make sinks only from AISI 304 food grade stainless steel, this stainless steel is acid-resistant and is not afraid of the aggressive environment of detergents and disinfectants.
At the meat factory, there is always a question to wash the carts after minced meat or meat. The trolley is greasy and therefore it is necessary to wash it with detergents. The automatic detergent dispenser must be built into the washing bath with water. Water under the pressure of the pump, from special nozzles, is supplied to the dirty surface of the vat-cart and washes out the stain with a diameter of 5 cm.
Product detail

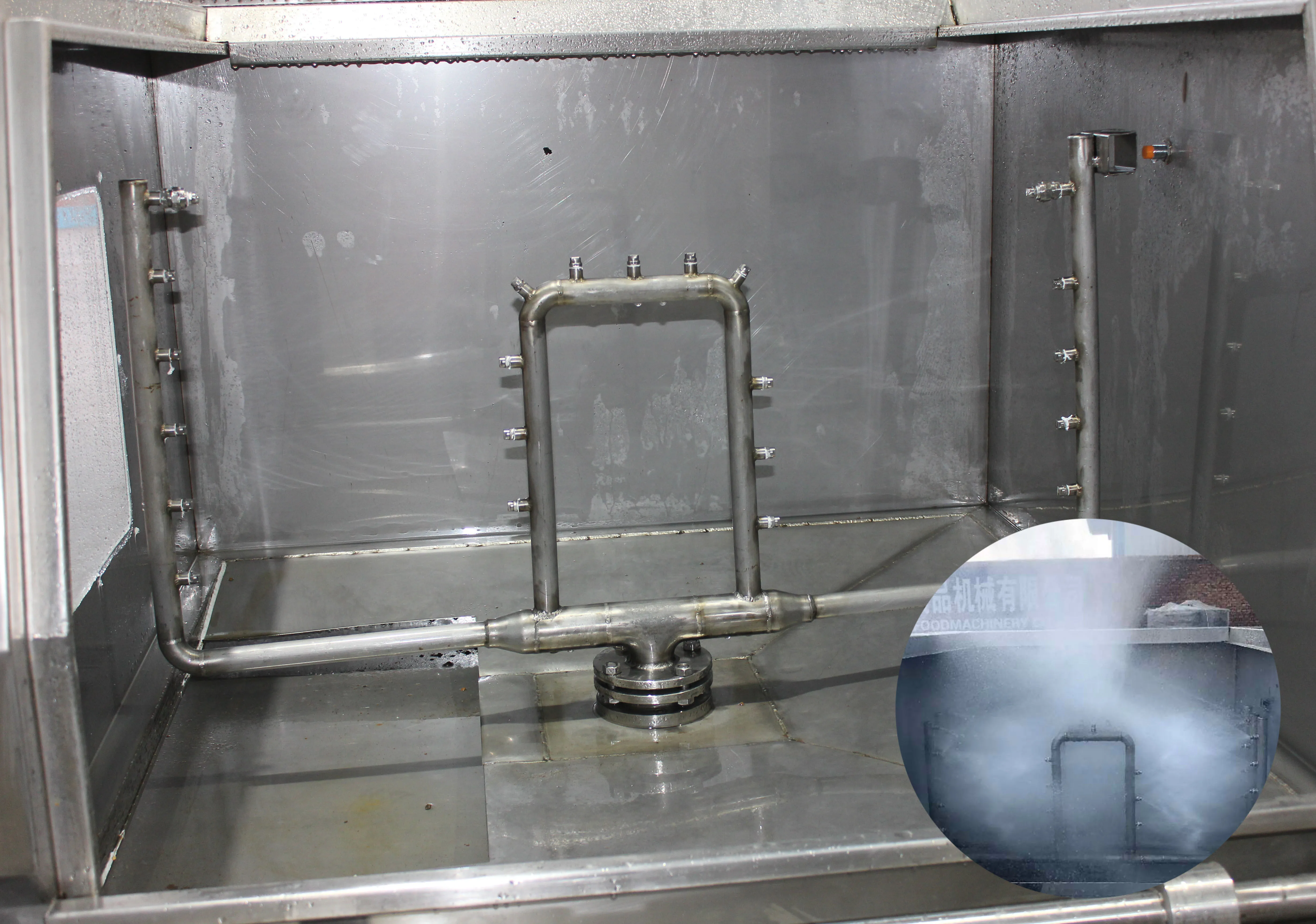

Adjustable cleaning nozzle
The adjustable cleaning nozzle adopts the internal and external installation structure, which is dispersedly distributed. The nozzle angle is adjustable, and the hot water washing makes the cleaning more thorough. All piping and fittings are designed with quick-connect assemblies that can be used with each nozzle tube. Realize fast and convenient disassembly and assembly, convenient cleaning, no dead angle for workers to clean and sanitate every shift, and no dead angle for cleaning the box;

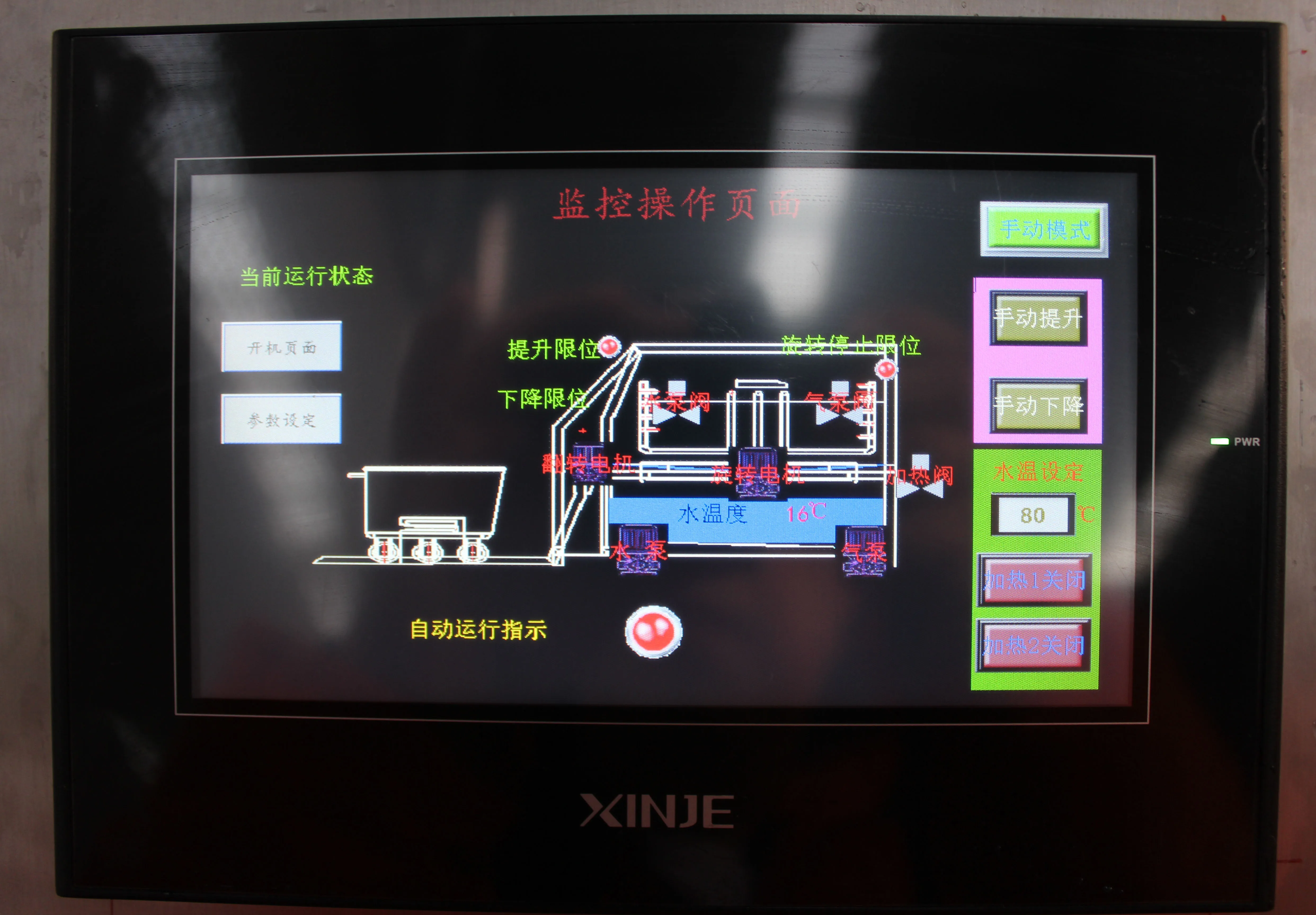

Automatic control system
The washing program is a touch screen control system, which can set the temperature, liquid level, washing liquid concentration, washing time, etc. according to the product. The operation is simple and fast.

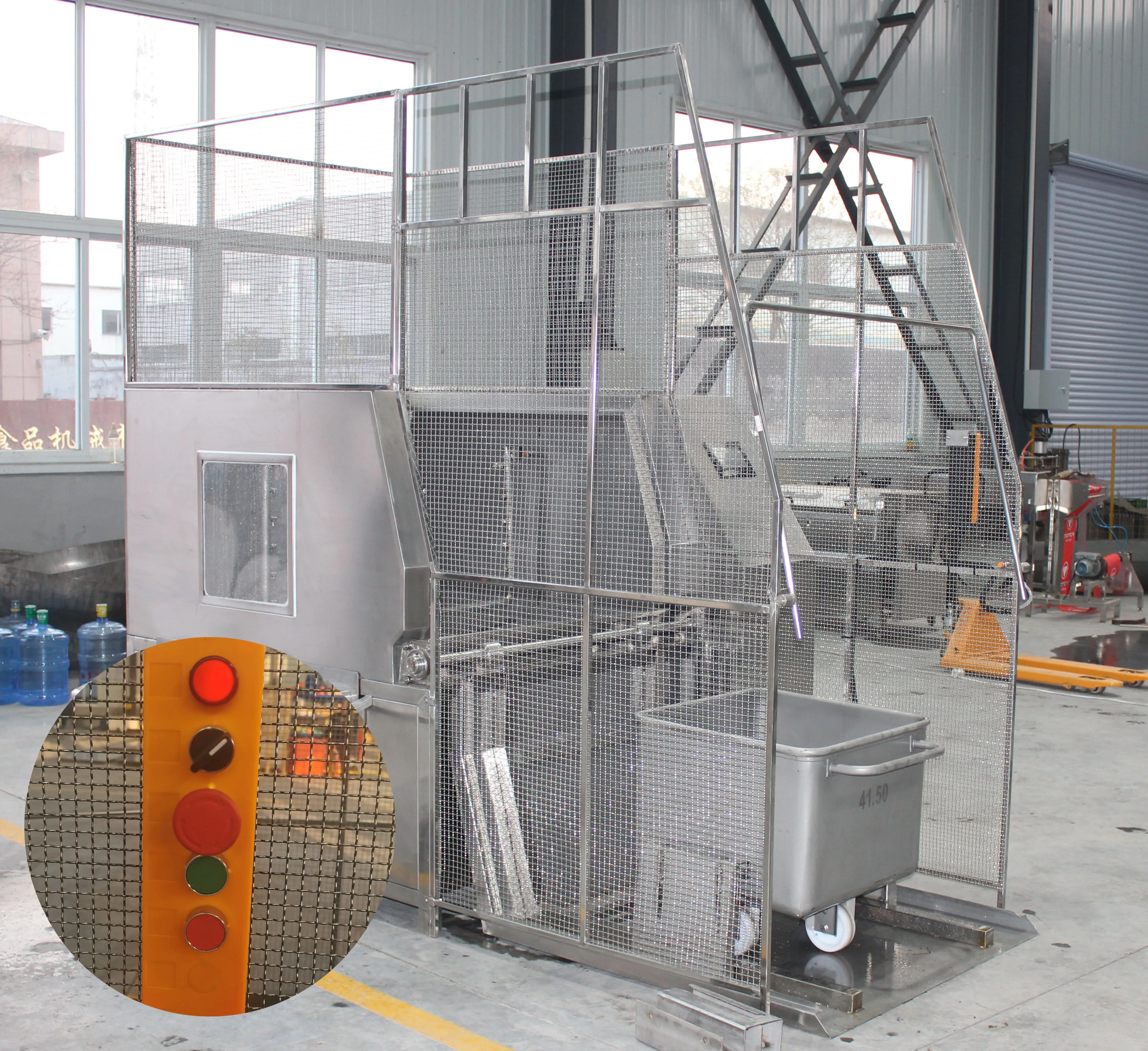

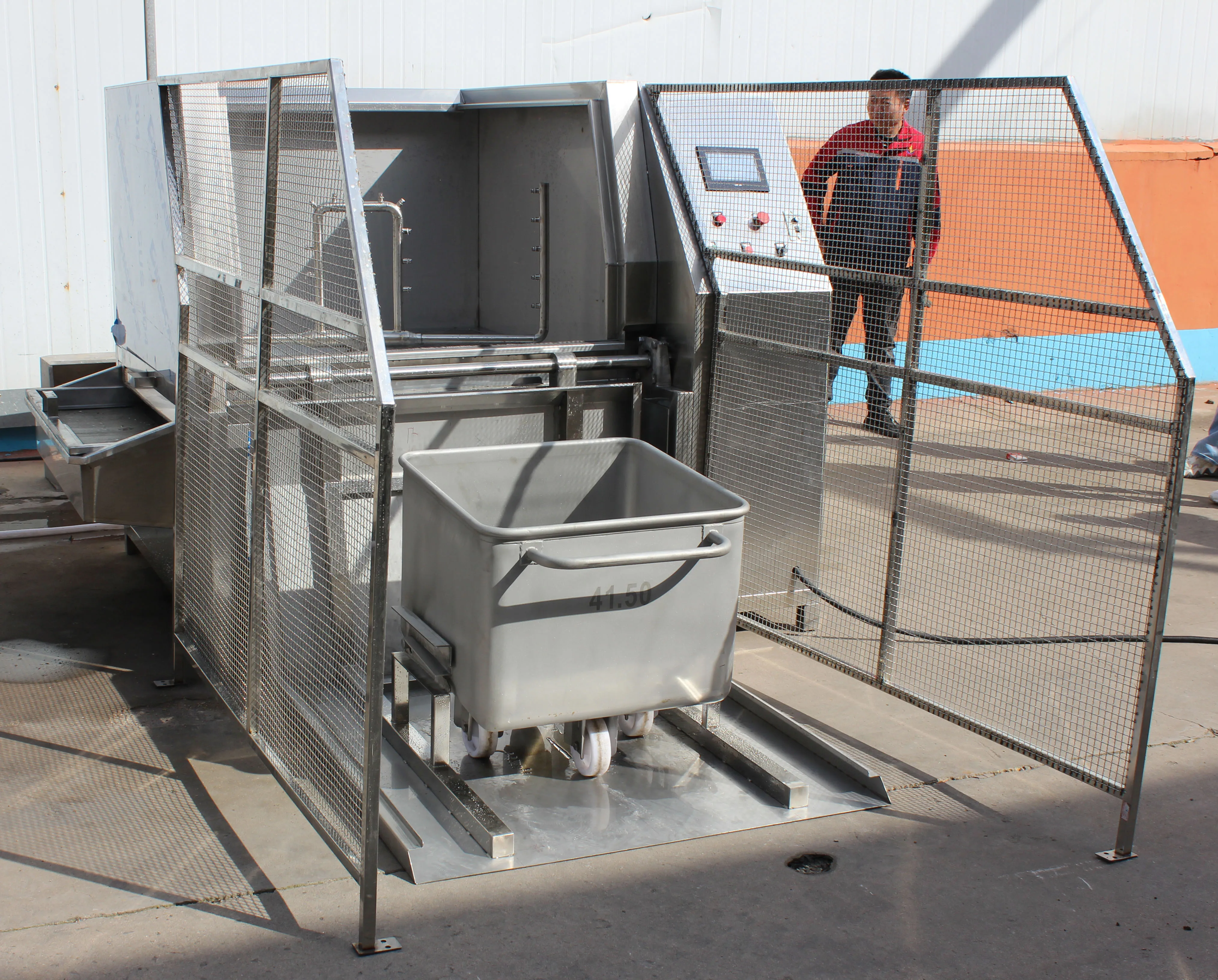

Safety fence &emergency stop button
The lifting part is equipped with a protective net and a safety grating, and any protective device that can be opened is equipped with a safety interlock device to ensure that when the safety protective device is opened, the equipment stops immediately and cannot be started. Once the safety interlock is off, the device must be reset to restart.

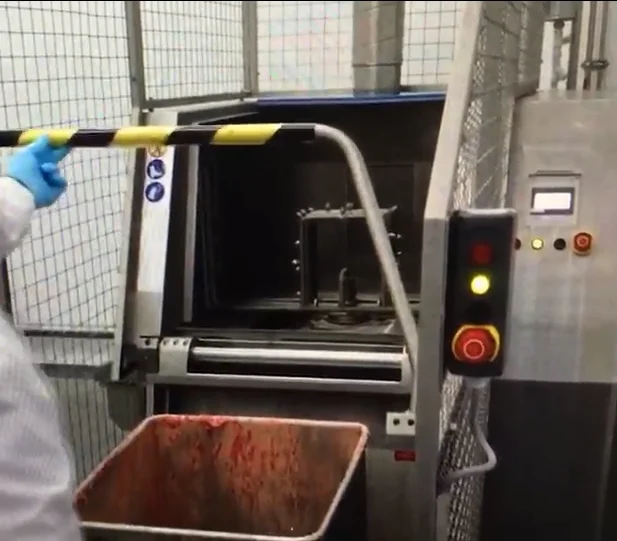

Equipped with an emergency stop , and the emergency stop switch is placed within the daily operation range, which is convenient for the operator to operate in an emergency.
1. There is an automatic water replenishment float inside, which can lower the water level of the water tank and automatically replenish water through the tap water pipe.

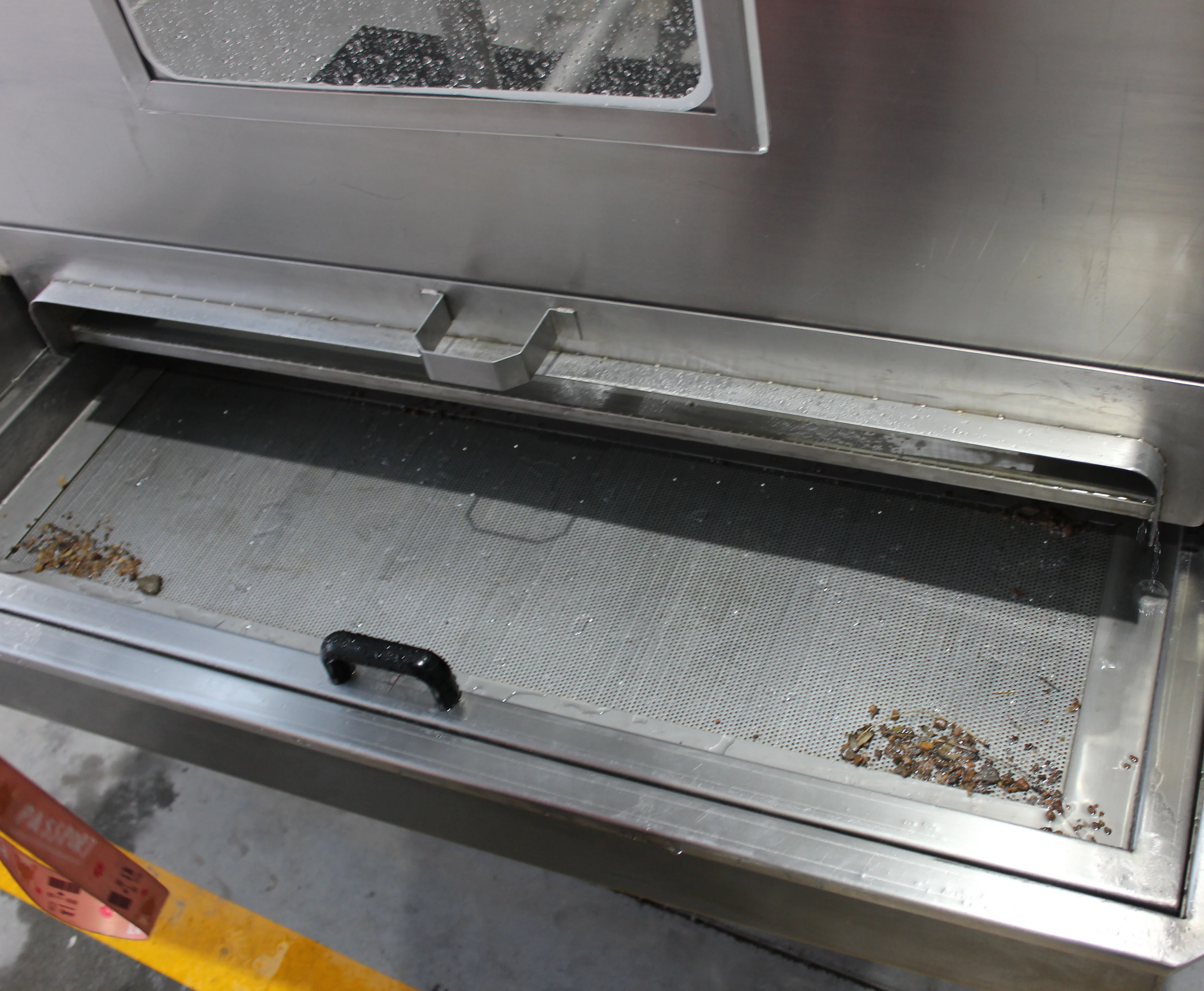

2. There is a drawer-type filter residue filter device in the water tank, which can filter out oil residue and sundries, protect the water pump, filter impurities in water, and reduce nozzle clogging.
3. There are foams and floating objects overflowing in the water tank to keep the internal environment clean;
2. There is a drawer-type filter residue filter device in the water tank, which can filter out oil residue and sundries, protect the water pump, filter impurities in water, and reduce nozzle clogging.
3. There are foams and floating objects overflowing in the water tank to keep the internal environment clean;
Technical parameter
Parameter
Size: 2100*1800*1750mm
Material: 304 stainless steel
Thickness: 2mm
Voltage 380V50Hz
Total power: 81.97kw,
Material: 304 stainless steel
Thickness: 2mm
Voltage 380V50Hz
Total power: 81.97kw,
water pump: 5.5kw,
feeding and discharging 0.37kw,
rotary nozzle: 0.1kw,
blowing air pump: 4kw,
electric heating: 72kw
Product Part Name | Parameter |
Feeding Motor | WPWEDKO60-100 1.5KW1:800 |
Nozzle drive motor | 40W1:100 |

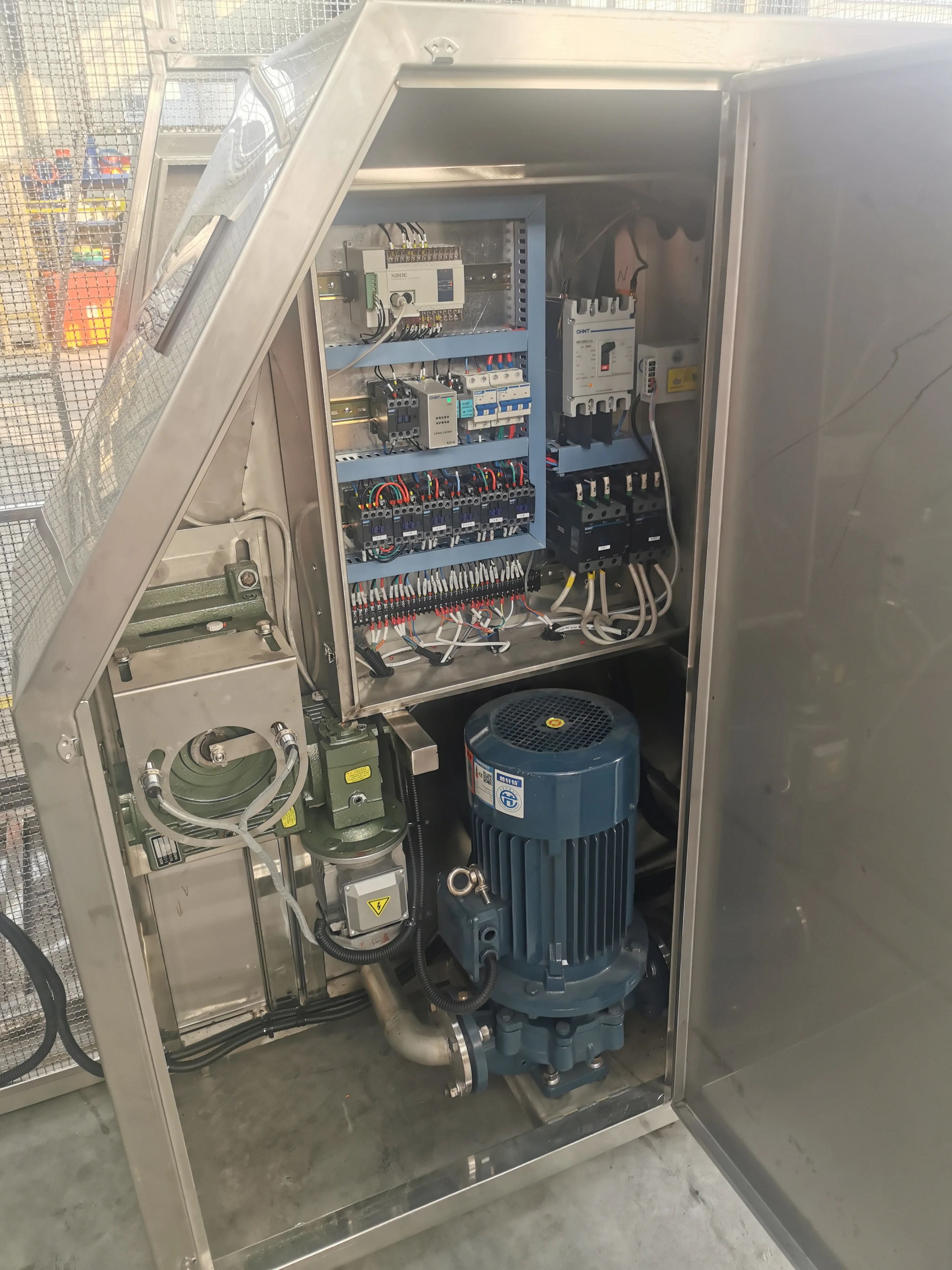

Water pump | 50-160（I)5.5KW |
Heating tube | 72kw |
Drying fans | 4kw |
