Environmental Tester IEC60068 2 1 Standard Three Zones Thermal Shock Tester
- Category: >>>
- Supplier: Shenzhen Autostrong Instrument Co. Ltd.
Share on (1600843249226):
Product Overview
Description
Environmental Tester IEC60068-2-1 Standard Three Zones Thermal Shock Tester
Product Description
1.Features:
The Thermal Shock Test Machine is divided into three chambers(three zones): the high temperature chamer,the low temperature chamber and the testing chamber
Reasonable structure, cooling speed quickly.
Import of refrigeration units, the main parts are imported international brands, the whole system is equipped with multiple protection devices, to improve reliability.
clever duct structure, small temperature deviation.
Door with observation window, the test specimen can be easily observed state.
Operation of the system is very simple, very easy installation and maintenance.
2.Application:
For electrical, electronics and machine parts to cold test, the temperature gradient through rapid changes in conditions or the suitability test. Especially suitable for electrical and electronic products, environmental stress screening options(ESS) test.
3.Technical Parameters:
| Model | AUTO-K150 | AUTO-K225 | AUTO-K800 | |
| Feature | Temperature Method | Balance the thermostat mode (BTC method | ||
| Temperature range | -40°C-+130°C(150°C) ,-60°C-+130°C(150°C) | |||
| Temperature uniformity | ± 2°C | |||
| Temperature fluctuations | ±0.5°C | |||
| The rate of temperature change | 3°C/min-15°C/min(Optional),Linear 3°C/min-10°C/min(Optional) | |||
| Inside volume | 150 | 225 | 800 | |
| Studio Size | 500X600X500 | 500X600X750 | 800X1000X1050 | |
| Material | The inside of material | SUS304 bright stainless steel thickness = 1.2-1.5mm | ||
| outer covering material | SUS304 brushed stainless steel cold-rolled steel plate or anti-rust treatment (spray | |||
| Insulation Heat | fine glass wool or polyurethane foam | |||
| Refrigerator sytem | Refrigerator | closed (import) compressor | ||
| Refrigerator | R23 R404A Condensation method: air-cooled or water cooled | |||
| Heater | Nichrome heating wire heater Inlet system: axial fan | |||
| Airflow Method | broadband type forced air circulation (on the next entry) | |||
| Control system | programmable touch screen thermostat Korea DZX5000 | |||
| Water supply | Water supply | Circulating water | ||
| Water tank | Built-in Drawer(30kg container) R23 R404A Condensation method: air-cooled or water cooled | |||
| Water Quality | Resistivity>500Ω.M | |||
| Standard configuration | observation window(double-layer hollow glass) a test hole diameter of 60mm (at left)1, layer 2 sample holder, box lights(FireflyLights)1,1 water tank, small casters 4, a power cord | |||
Package: 1piece per wooden case
Our Services
1).We’re factory which specialized in testing equipment field for 10 years.
2).We’re ISO9001 certificated company.Every step is well controlled with checking report from raw material purchase to production and shipment.
3).Production: strictly designed and manufactured in accordance with international standards.
4).Experienced engineer team: more than 60 engineers from Germany,Hong Kong and China.
5). Full certificates: CE,ISO17025 Cabliration Certificate, ISO9001 International Quality Certification System, RoHs etc.
6).Fast delivery: within 10 working days after order confirmed.
Company Information

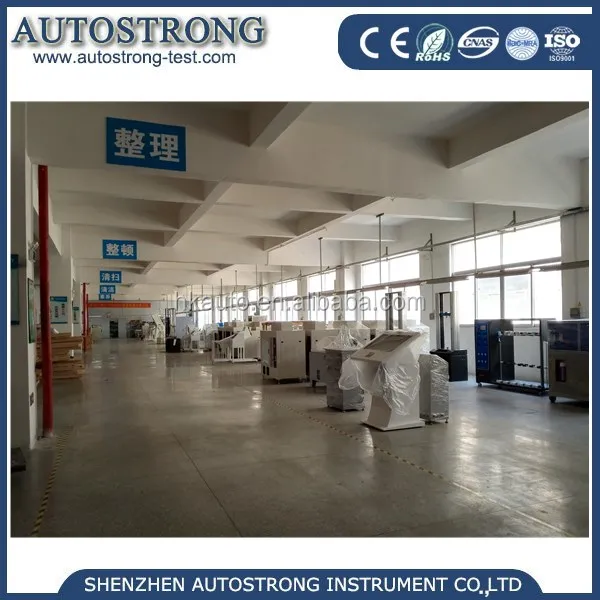

AUTOSTRONG(www.hkautostrong.com) are the leading testing equipment manuscript in China. We are professional manufacturer of laboratory and Industrial test equipmets for products safety application with headquarter in Kowloon HK and branch factory in SHEN ZHEN city. SHEN ZHEN Branch factory is over 3200 area,it besides SHEN ZHEN airport with very convenient transportation.
Main Products include:Glow wire tester, Needle flame tester, horizontal & vertical burning tester, tracking index tester, textile burning tester, protective clothing thermal conductivity tester, automotive interior combustion tester, melt dripping tester, salt spray test chamber , Constant Temperature and Humidity Test Equipment,building materials flammability tester, friction tester, test finger, test gauges, spring hammer, IPXX code dust & waterproof test equipment, Wire & cable testing machine, universal testing machine and other testing instruments.
If you have any questions or you need more details ,kindly contact us by trademanager or email for further discussion,Warmly welcome you to visit our factory. thanks for your visiting.
