Product Overview

Description



ARM processor with 1500MHz Quad-core CPU Hi3798MV200 Main chipset DVB-S2X+DVB-S2X twin tuner built-in 8GB EMMC FLASH / 1GB DDR3 Memory 2 x Common Interface slot (CI+) l Intemal 2.5” HDD Sata3 bracket (HDD Optional) Supported officially by OpenATV,OpenPLI www.Zgemma.org for more



You can use a USB Hard Disk Drive (HDD) to record all your favourite channels, listen to your music and watch a slideshow of your photos. What’s more, you can record up to 2 channels (on the same transponder) whilst watching a file from your USB HDD. You can even watch the .avi and .mkv file formats.



Make your TV screen more realistic, you can now watch channels in glorious High-Definition (HD), Full HD 1080p with Dolby Digital Plus to give you a superior audio experience. It’s also 3D ready**.

It’s even Eco-friendly with 0.5W standby power consumption.

HbbTV Enjoy interactive services on your own living room. Zgemma is the "HbbTV" supported set-top box. "HbbTV", Hybrid Broadcast Broadband TV, is a major new pan-European initiative aimed at harmonizing the broadcast and broadband delivery of entertainment to the end consumer through connected TVs and Set-Top Boxes. In other words, HbbTV enables you to experience web browsing while watching the Live channel interactively at the same time. Main applications include TV Guide, Catch-up service, web video, VOD, or portal service. Additionally, you can check the weather, sports, news and etc,.

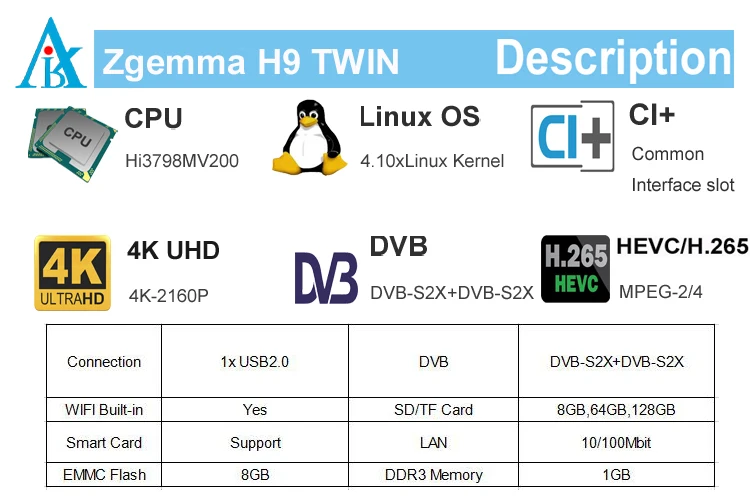

Specification: -



Linux Operating System

ARM processor with 1500MHz Quad-core CPU

Hi3798MV200 Main chipset

More than 4.10x linux kernel

DVB-S2X+DVB-S2X twin tuner built-in

Support 4K- 2160p

8GB EMMC FLASH / 1GB DDR3 Memory

1x smartcard reader

WIFI 300MHZ Built-in

Picture in Picture (PIP)

2 x Common Interface slot (CI+)

Intemal 2.5 HDD Sata3 bracket(HDD Optional)

SD card (TF card) for recording, 8GB, 64GB, 128GB (optional)

2 x USB2.0

x HDMI 2.0

MPEG-2 H.264 and H.265 Hardware Decoding

HEVC / H.265 2160p60 Main-10 multi-format decoder

0/100 Mbit Ethernet Interface

Multimedia plug-in supported

Advanced EPG (Electronic Program Guide)

User-friendly linux Menu system

Full automatic service scan

Various OSD skins supported

Various Channel Editing Programs

Easy and fast software-upgrade via USB

Low deep-standby power consumption under 1 W

Parental Control

Plugin Service

Excellent sound quality in Dolby Digital

OSD into many languages and graphics (Skins)

Web interface, WEB Remote control

DiSEqC 1.0 / 1.1 / 1.2 and USALS

External power supply 12V 3A



Official DHL/FEDEX Partners(fast and safty delivery)

Official Original Software Support





 Note: We supply these receivers strictly as FTA only. We will not provide them with any patches pre-loaded and we can not help with any support for this. We provide support for the actual ZGEMMA hardware and for FTA reception only.
