ZW8631S Portable Transformer Ttr Tester Turns Ratio Meter Ttr Testing Equipment Measurement
- Category: >>>
- Supplier: Baoding Zhiwei Electric Power Technology Co. Limited
Share on (1600843293285):
Product Overview
Description

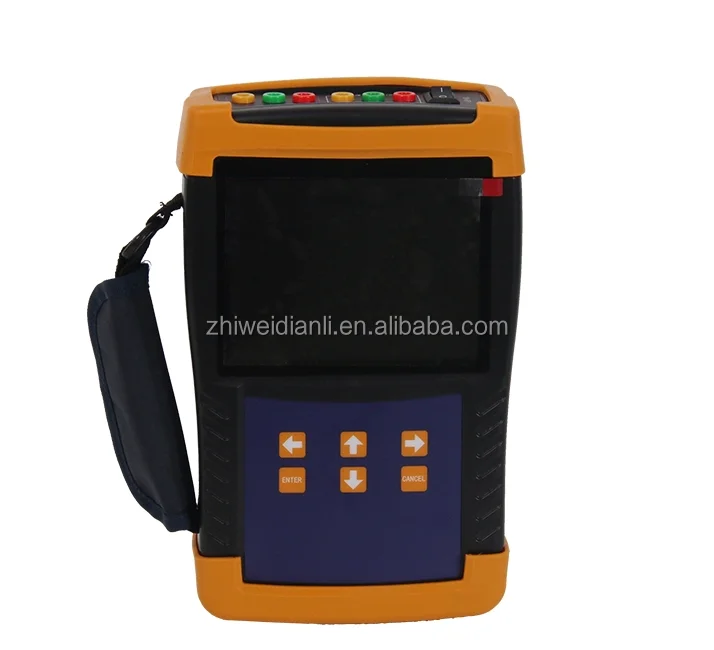

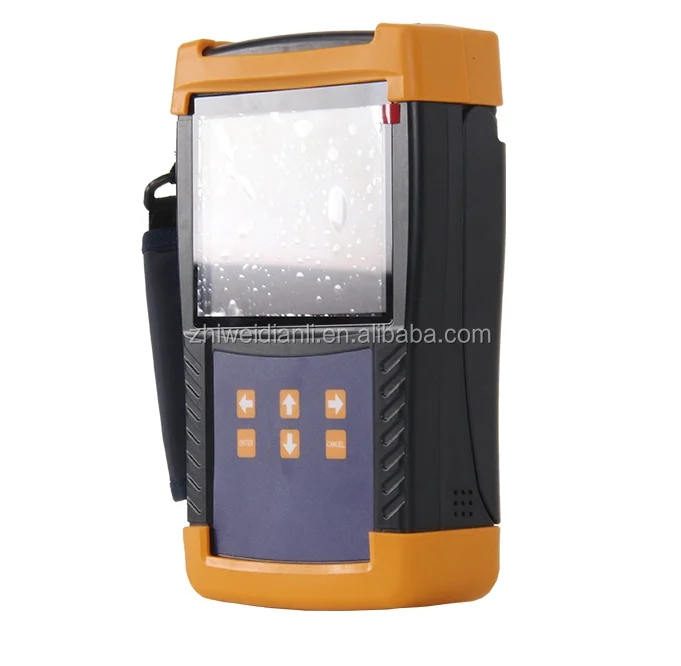

ZW8631S Handheld transformer turn ratio tester
Warranty | 18months |
Certification | CE |
Customized support | OEM |
Place of Origin | China |
Hebei | |
Brand Name | Zhiwei Electric |
Model Number | ZW8631S |
Power | Electronic |
Product name | Portable Transformer Turn Ratio Tester |
Working power supply | The built-in battery or external charger, charger conditions of use, |
Range | 0.9~10000 |
charger input | 100-240 VAC,50/60 HZ |
Charging time | About 2 hr |
Use of temperature | -10℃~50℃ |
Relative humidity | ≤90%,No dew |
Instrument dimension | 246 mm(L)*156 mm(W)*62 mm(H) |
weight | 1.7kg (Test line is not included) |
Accuracy | ±（Reading×0.1%+2 words）（≤500） |
±（Reading×0.2%+2 words）（>500≤3000） | |
±（Reading×0.3%+2 words）（>3000） | |
Resolution ration | 0.9～9.9999（0.0001） |
10～99.999（0.001） | |
100～999.99（0.01） | |
1000～9999.9（0.1） | |
10000 and above（1） |
Functional Characteristics
I.Introduction
Hand-held transformer turn ratio tester is an innovative product with compact size, hand-held operation, more portable and easy to carry.
Products are mainly applied to change than group test transformer, PT and CT polarity test, test speed, high accuracy.
II.Packaging Content
After receiving the packing box, open the packing box and check if there is any damage. If the freight packing box is damaged or the liner material is indented, please inform the freight company or our salesman immediately.
Please check if you have received the following items in the product package：

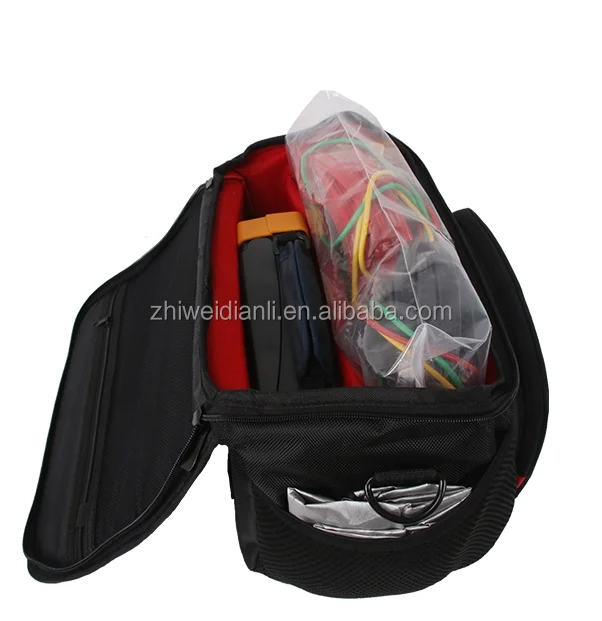

Standard accessories：
√1 Hand-held transformer turn ratio tester
√1 sets of test lines (red and black each)
√1 charger(optional)
√1 external printer (with printing cable attached）
√1 wrist band (attached to a hand-held tester)）
√1 print user manual
√1 copy of certificate and factory test report
III.Functional Characteristics
* Lithium battery power supply or 100-240V AC power supply is self-adaptive. After one charge, more than 100 transformers can be continuously tested in the ratio group. The test process is simple and convenient.
* It has the function of blind measurement, that is, to perform variable ratio and group test when there is no connection between high and low voltage.
* Based on the test of conventional transformer, Z-type transformer and PT sample, the polarity test function of CT variable ratio is added, and the application field is wider
* Wide range and high accuracy, the variable ratio measurement range can reach 10,000, and the test accuracy can be guaranteed 0.3% when the maximum value is 10,000.
* It has perfect protection functions such as reverse connection protection and output short circuit protection.

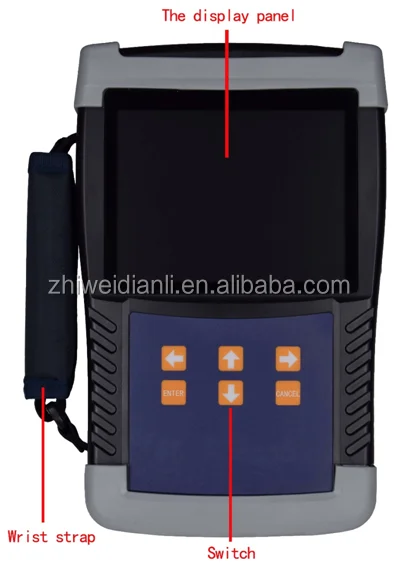

* 6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
* equipped with external printer, facilitate data printing
* It can be stored locally and on USB memory.
Hand-held transformer turn ratio tester is an innovative product with compact size, hand-held operation, more portable and easy to carry.
Products are mainly applied to change than group test transformer, PT and CT polarity test, test speed, high accuracy.
II.Packaging Content
After receiving the packing box, open the packing box and check if there is any damage. If the freight packing box is damaged or the liner material is indented, please inform the freight company or our salesman immediately.
Please check if you have received the following items in the product package：
Standard accessories：
√1 Hand-held transformer turn ratio tester
√1 sets of test lines (red and black each)
√1 charger(optional)
√1 external printer (with printing cable attached）
√1 wrist band (attached to a hand-held tester)）
√1 print user manual
√1 copy of certificate and factory test report
III.Functional Characteristics
* Lithium battery power supply or 100-240V AC power supply is self-adaptive. After one charge, more than 100 transformers can be continuously tested in the ratio group. The test process is simple and convenient.
* It has the function of blind measurement, that is, to perform variable ratio and group test when there is no connection between high and low voltage.
* Based on the test of conventional transformer, Z-type transformer and PT sample, the polarity test function of CT variable ratio is added, and the application field is wider
* Wide range and high accuracy, the variable ratio measurement range can reach 10,000, and the test accuracy can be guaranteed 0.3% when the maximum value is 10,000.
* It has perfect protection functions such as reverse connection protection and output short circuit protection.
* 6-inch super industrial high-brightness color LCD screen, still visible under strong sunlight.
* equipped with external printer, facilitate data printing
* It can be stored locally and on USB memory.
Baoding Zhiwei Electric Power Technology Co., Ltd. is a high-tech enterprise located in the National High-tech Industrial
Development Zone of Baoding, China. The company specializes in the research and development, production, sales, and service of electric power system automation testing equipment, providing customers with one-stop services.
The company mainly produces and sells various types of testing equipment and instruments, such as oil-immersed, high-voltage, SF6 gas, and cable testing equipment, and has been deeply involved in the power industry for more than 20 years.
Development Zone of Baoding, China. The company specializes in the research and development, production, sales, and service of electric power system automation testing equipment, providing customers with one-stop services.
The company mainly produces and sells various types of testing equipment and instruments, such as oil-immersed, high-voltage, SF6 gas, and cable testing equipment, and has been deeply involved in the power industry for more than 20 years.
The company's main customer base includes national power grids, railways, power research institutes, water conservancy, chemical industry, power plants, power installation companies, transformer factories, electrical companies, training schools, and others worldwide.
The company adheres to the principle of "Wisdom Wins Innovation, Micro-Improvements See Quality," and strives to achieve the ultimate customer satisfaction.
The company adheres to the principle of "Wisdom Wins Innovation, Micro-Improvements See Quality," and strives to achieve the ultimate customer satisfaction.
