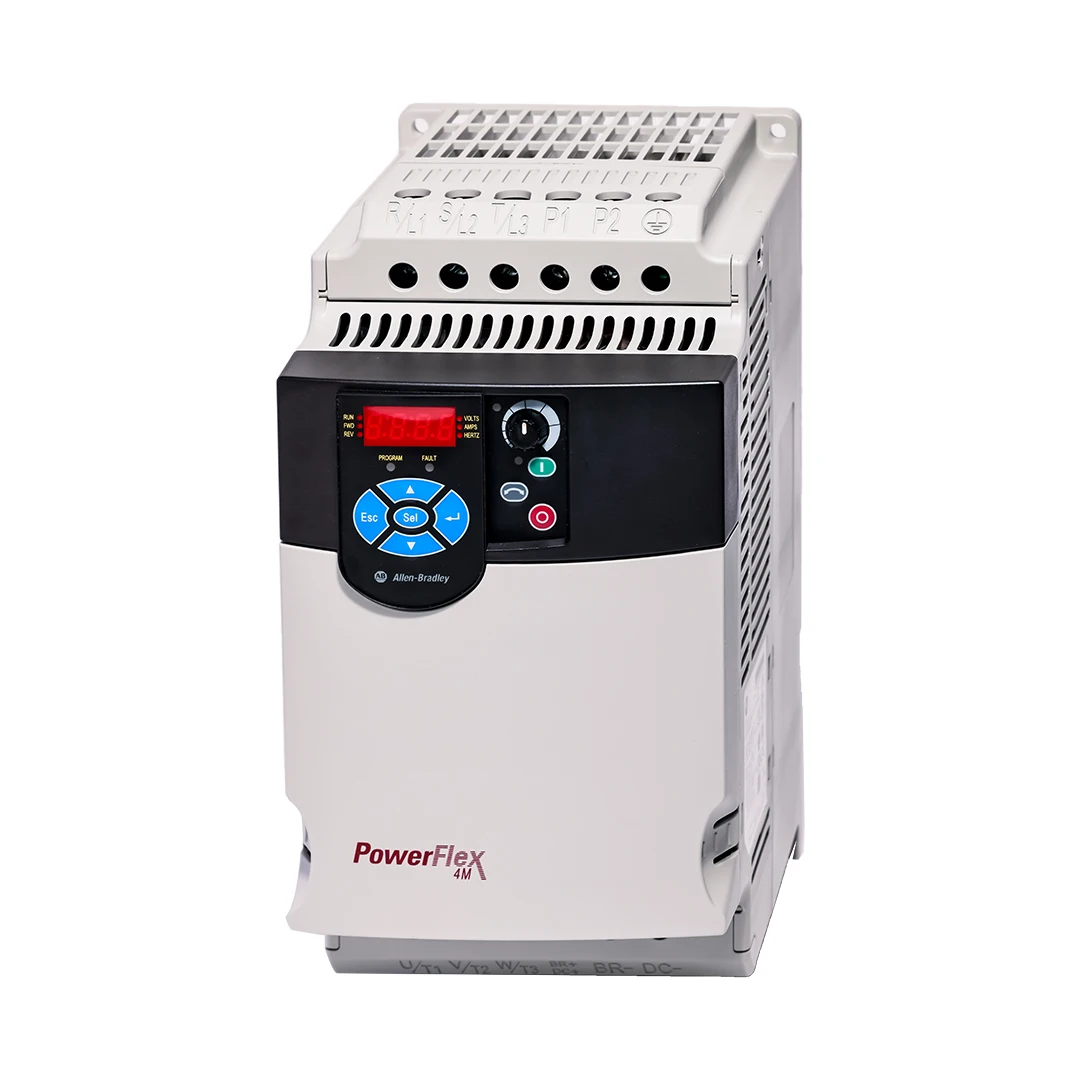

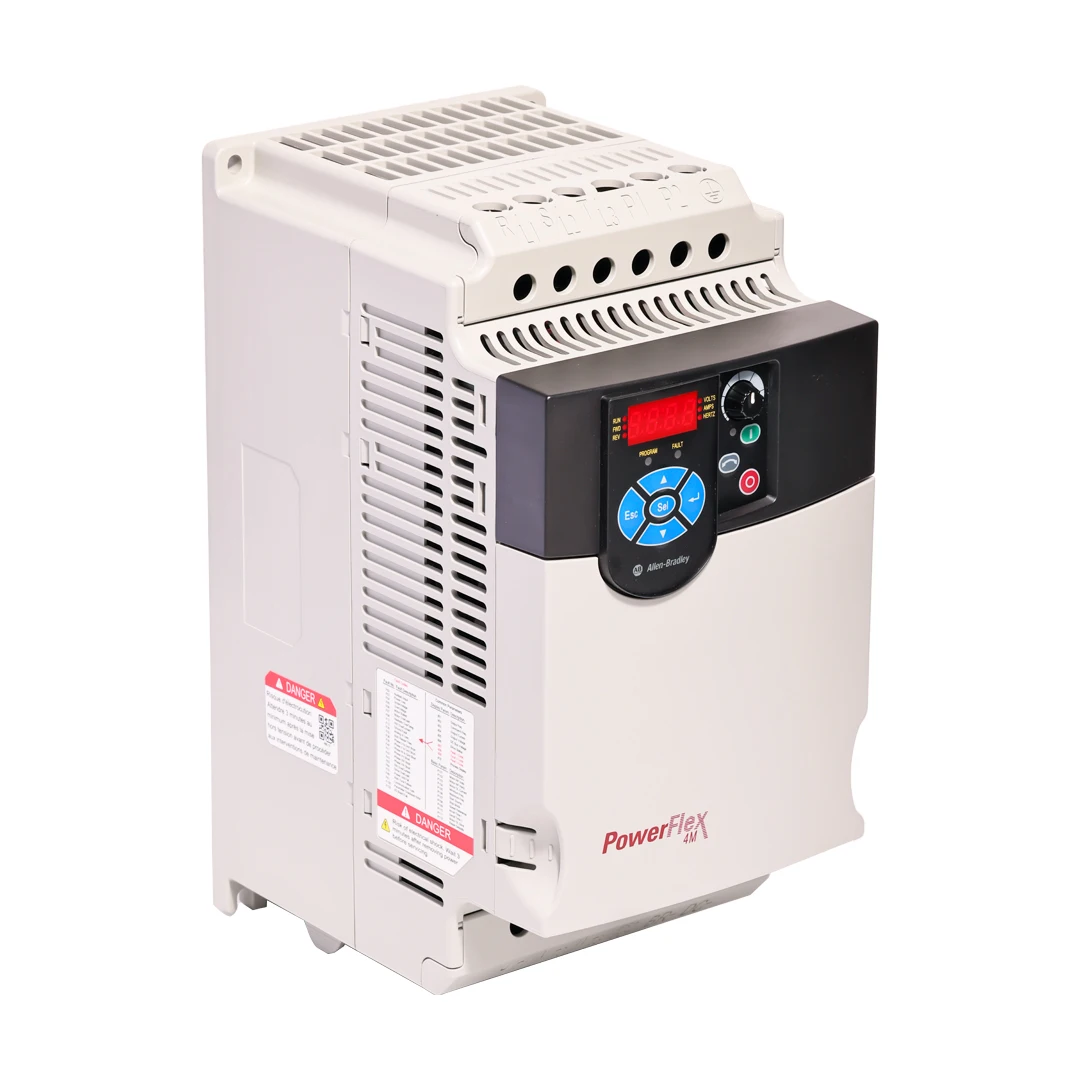

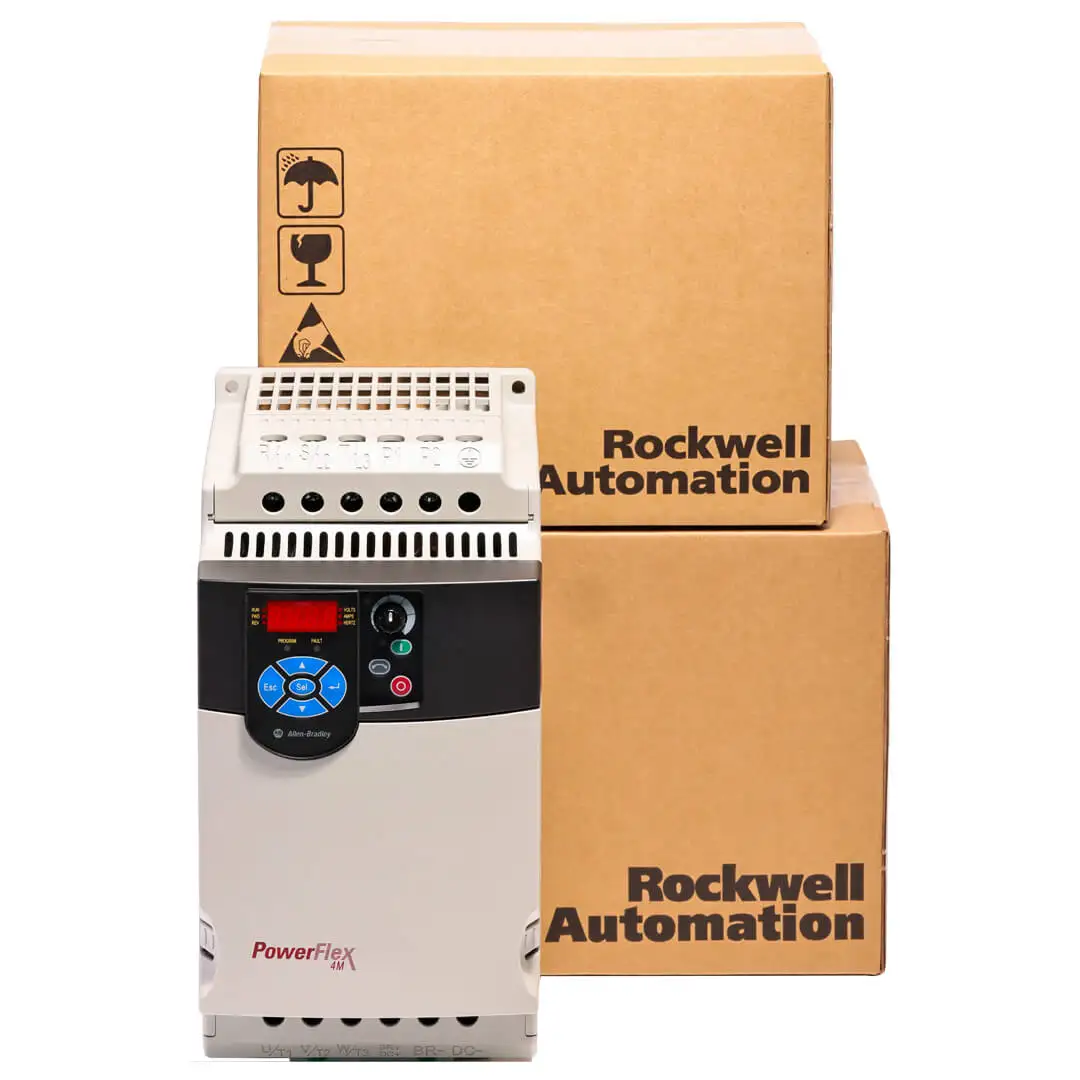

22F D2P5N113 100% New Original PowerFlex 4M Adjustable Frequency AC Drives 0.75 kW 1HP AC Drive
- Category: >>>
- Supplier: Shenzhen Gongfar Technology Co. Ltd.
Share on (1600843374058):
Product Overview
Description
Global Leader in Digital Transformation and Industrial Automation
Rockwell Micro Control Systems Designed for large standalone machine applications, its Micro Control system offers a cost-effective and customizable solution to machine builders. It helps to reduce development time and improve productivity with easy network connectivity at the convenience of one programming software.

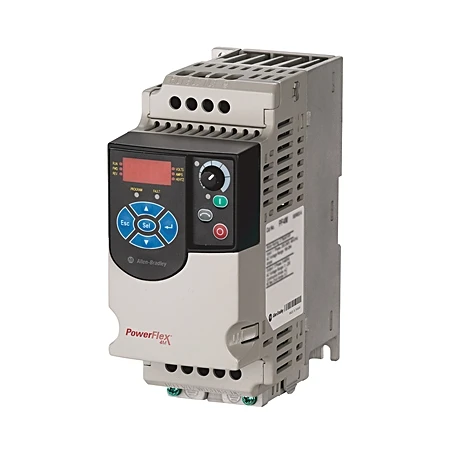

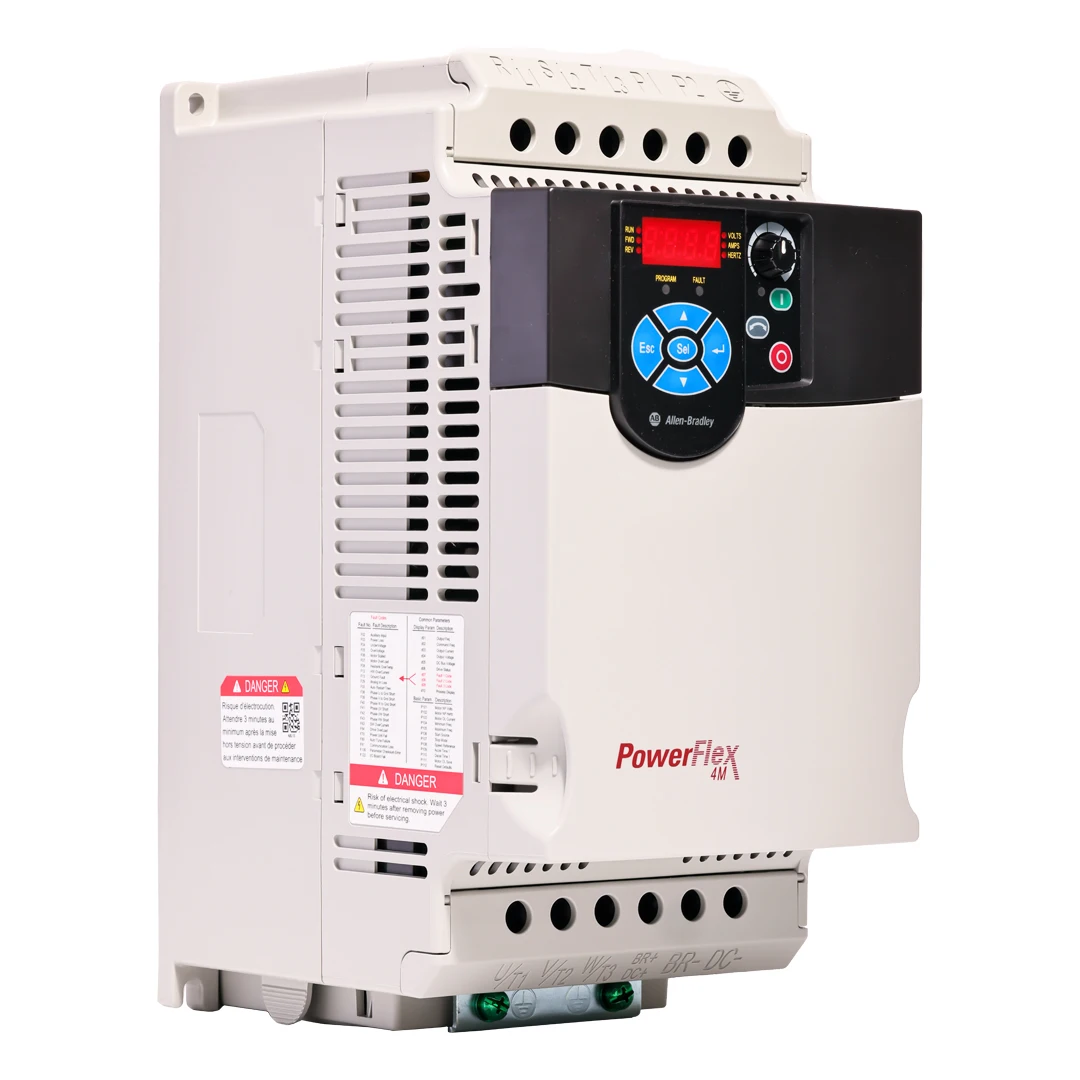

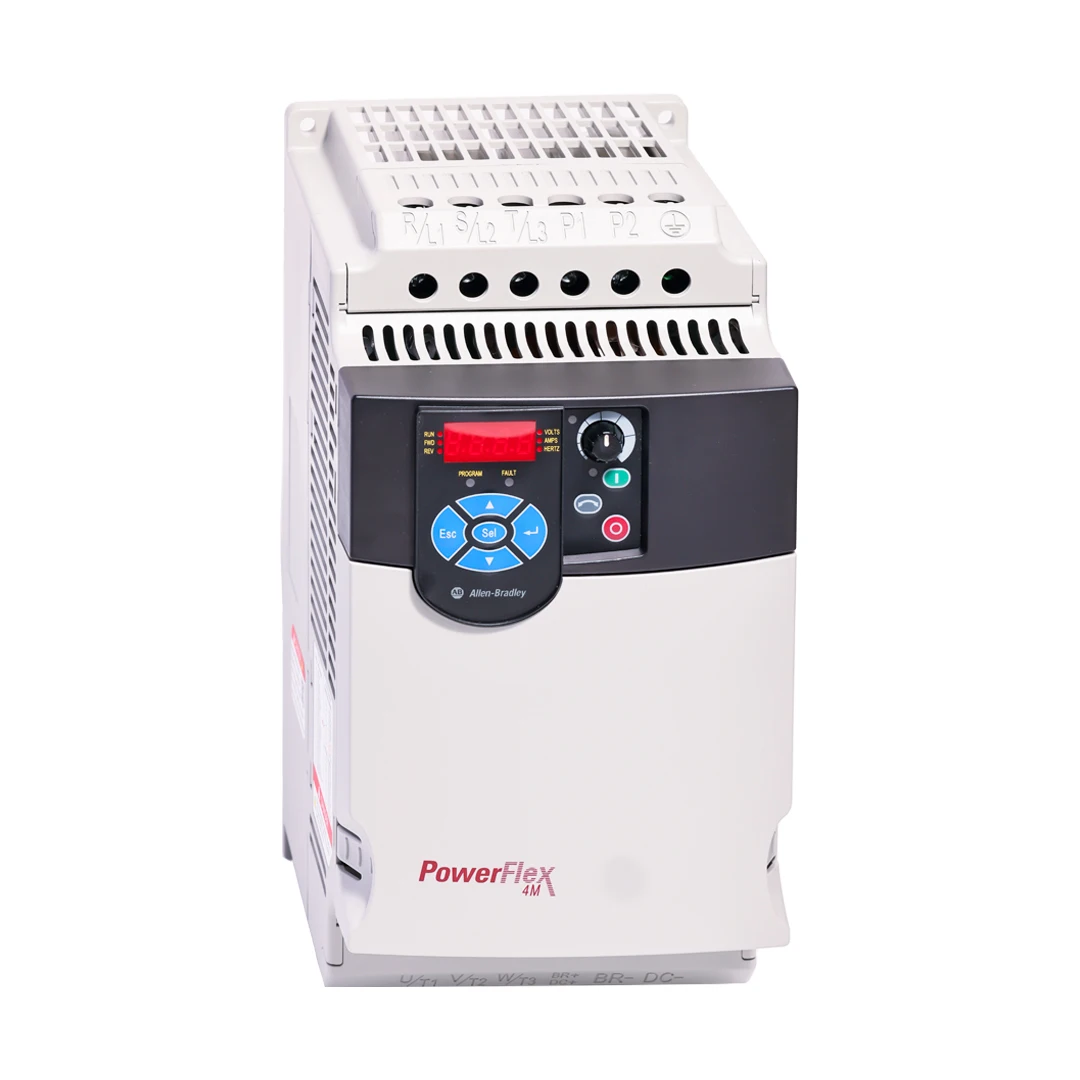

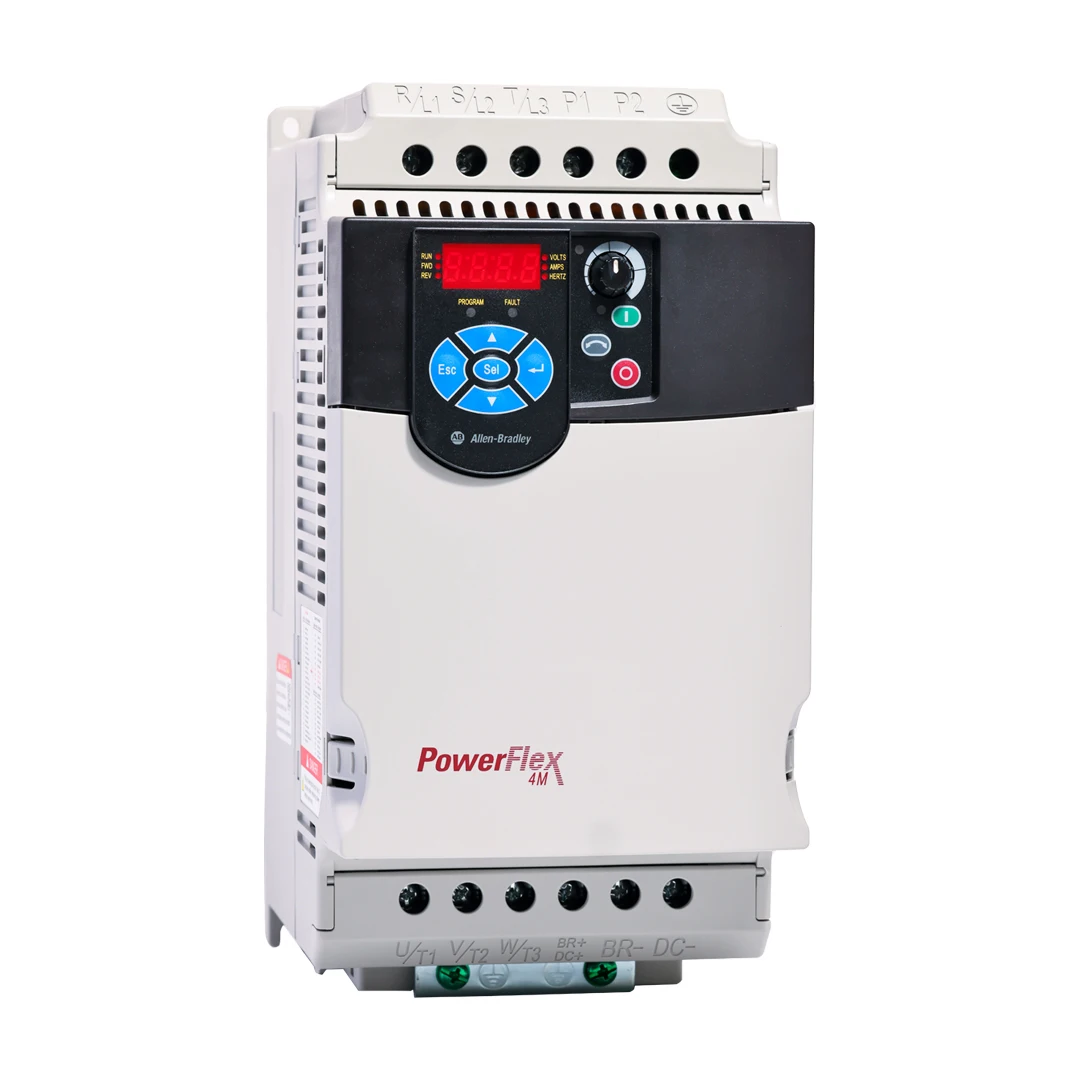

PowerFlex 4M Adjustable Frequency AC Drives
Allen-Bradley PowerFlex® 4M AC Drives are the smallest and most cost-effective members of the PowerFlex family of drives. Feed-through wiring and easy programming provide the flexibility to handle a broad range of applications.
Overview
* Power ratings:
* 100…120V: 0.2…1.1 kW / 0.25…1.5 Hp / 1.6…6 A
* 200…240V: 0.2…7.5 kW / 0.25…10 Hp / 1.6…33 A
* 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.5…24 A
* IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
* Integral RS-485 communications
* Feed-through wiring
* DIN rail mounting feature on A and B frame drives
* Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
* Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
* Drive overload protection and ramp regulation
* Configuration and programming via integral LCD keypad, remote keypad, or software
* Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
* 200…240V: 0.2…7.5 kW / 0.25…10 Hp / 1.6…33 A
* 380…480V: 0.4…11 kW / 0.5…15 Hp / 1.5…24 A
* IP20, NEMA/UL open type enclosures V/Hz control, slip compensation
* Integral RS-485 communications
* Feed-through wiring
* DIN rail mounting feature on A and B frame drives
* Ambient temperatures up to 50 °C (122 °F) permitted with minimal spacing between drives
* Zero Stacking™ Drives for ambient temperatures up to 40 °C (104 °F)
* Drive overload protection and ramp regulation
* Configuration and programming via integral LCD keypad, remote keypad, or software
* Premier Integration with PowerFlex AC drives uses the Logix control platform to simplify parameter and tag programming and reduces development time
Product Description
Allen-Bradley PowerFlex 4M 22F-D4P2N113
PowerFlex4M AC Drive, 1.5 kW (2 HP), 480V AC Input, 3 PH, 50-60 Hz, 4.2 A
BASE DRIVE INFORMATION
Input Voltage：480VAC, 3PH
Output Current：4.2 Amps
Enclosure Style：IP20 (Open)
Frame Size：Frame Size A
INSTALLED OPTIONS
Human Interface Module (Type)：LED Display, Fixed Digital Keypad
EMC Filtering Options：With Internal CE Compliant Filter
Internal Communication Module：No Brake Drive
Allen-Bradley PowerFlex 4M 22F-D2P5N113
PowerFlex4M AC Drive, 480VAC, 3PH, 2.5 Amps, 0.75 kW
BASE DRIVE INFORMATION
Input Voltage：480VAC, 3PH
Output Current：2.5 Amps
Enclosure Style：IP20 (Open)
Frame Size：Frame Size A
INSTALLED OPTIONS
Human Interface Module (Type)：LED Display, Fixed Digital Keypad
EMC Filtering Options：With Internal CE Compliant Filter
Internal Communication Module：No Brake Drive
Allen-Bradley PowerFlex 4M 22F-D013N114
PowerFlex4M AC Drive, 480VAC, 3PH, 13 Amps, 5.5 kW, 7.5 HP,Frame Size C,
BASE DRIVE INFORMATION
Input Voltage：480VAC, 3PH
Output Current：13 Amps
Enclosure Style：IP20 (Open)
Frame Size：Frame Size C
INSTALLED OPTIONS
Human Interface Module (Type)：LED Display, Fixed Digital Keypad
EMC Filtering Options：With Internal CE Compliant Filter
Internal Communication Module：RS485
Allen-Bradley PowerFlex 4M 22F-A2P5N113
PowerFlex4M AC Drive, 240VAC, 1PH, 2.5 Amps, 0.37 kW, 0.5 HP
BASE DRIVE INFORMATION
Input Voltage：240VAC, 1PH
Output Current：2.5 Amps
Enclosure Style：IP20 (Open)
Frame Size：Frame Size A
INSTALLED OPTIONS
Human Interface Module (Type)：LED Display, Fixed Digital Keypad
EMC Filtering Options：With Internal CE Compliant Filter
Internal Communication Module：No Brake Drive

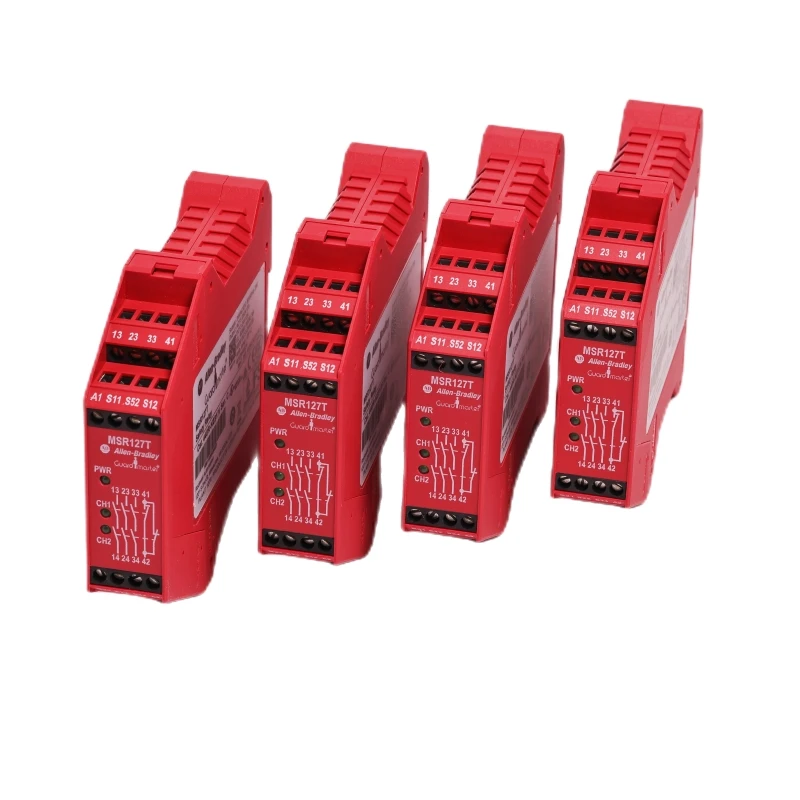

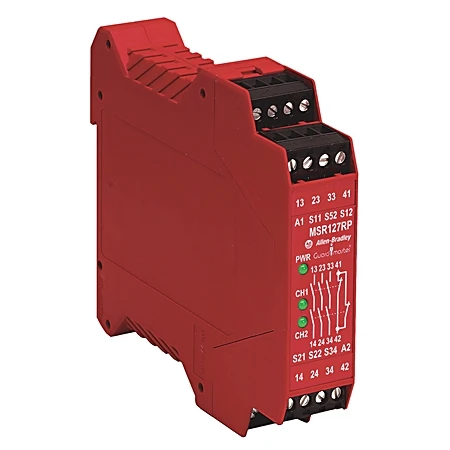

Allen-Bradley Allen-Bradley Guardmaster MSR127TP Safety Relay
440R Single Function Safety Relays, 1 N.C.,3 N.O., , 24V DC , Fixed,Automatic/Manual
SAFETY RELAY DATA
Single Wire Safe Input：N/A
Logic Configuration\tNone
Immediate Safety Outputs：3 N.O.
Immediate Auxiliary Outputs：1 N.C.
Delayed Safety Outputs：N/A
Single Wire Safe Output：N/A
Power Supply：24V DC
Removable Terminals：Fixed
Reset：Automatic/Manual Reset
SAFETY RELAY INFORMATION
Relay Model：MSR127RP/TP
Additional Details
Contact Rating：DC-13 6 A/24V DC, 0.1Hz
Enclosure：22.5 mm
Standard：CE/cULus/BG
HVAC——Fans, pumps, air conditioning
Energy savings calculator
Life time reminder
Speed tracing
Dry pump protection
Pump cascading
Life time reminder
Speed tracing
Dry pump protection
Pump cascading
Textile and Dyeing——Heat setting stenter, twister, air-flow spinning
Smart cooling concept
Import PCBA coating
Low voltage ride-through
DC generatrix
Import PCBA coating
Low voltage ride-through
DC generatrix
Woodworking machinery
Welt fitting machine, Tenoning machin, Grooving machine,
Carving machine, Sanding machine, CNC machine
Compact Size
Easy Operation
performance function design
Carving machine, Sanding machine, CNC machine
Compact Size
Easy Operation
performance function design
Metal processing machinery
Lathe, grinder, drill, planer, boring, cold forging
Compact design
High start torque
Quick and dynamic response
Over excitation braking
Safety Torque off(STO)
Compact design
High start torque
Quick and dynamic response
Over excitation braking
Safety Torque off(STO)
Food and packaging
Conveyor, blow molding, blender, cutter, labeling machines
Quick connectors and DIN rail mounting (up to 7.5 kW)
Counter function
Removable control panel
Integrated sequence control (16 steps)
Quick connectors and DIN rail mounting (up to 7.5 kW)
Counter function
Removable control panel
Integrated sequence control (16 steps)
Rubber and plastic machinery
Scroll extruder, pelletizer, bagging machine
Compact design
High start torque, 200 % at 0.5 Hz
High control accuracy, fast dynamic response
Torque limit and slip compensation
Compact design
High start torque, 200 % at 0.5 Hz
High control accuracy, fast dynamic response
Torque limit and slip compensation
