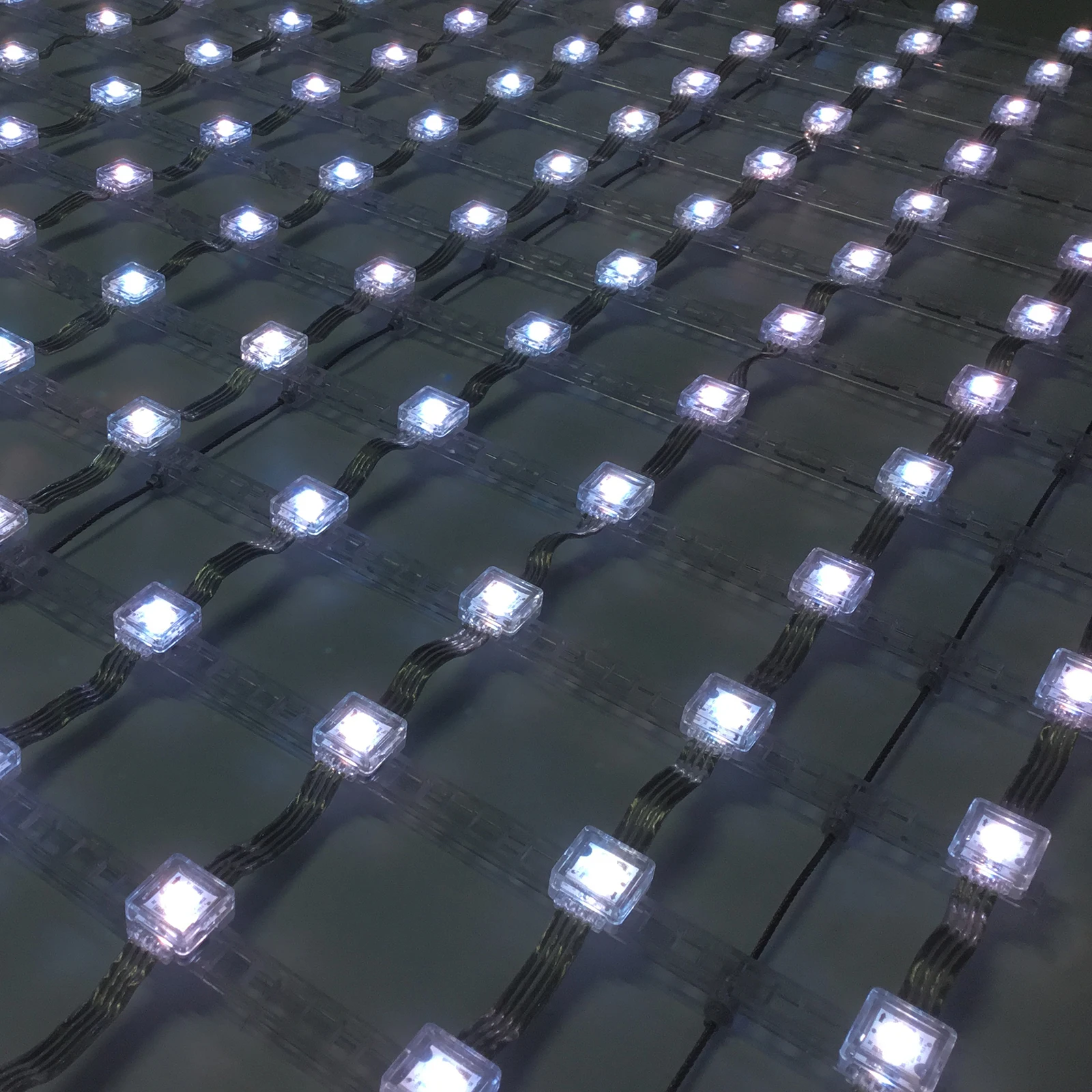

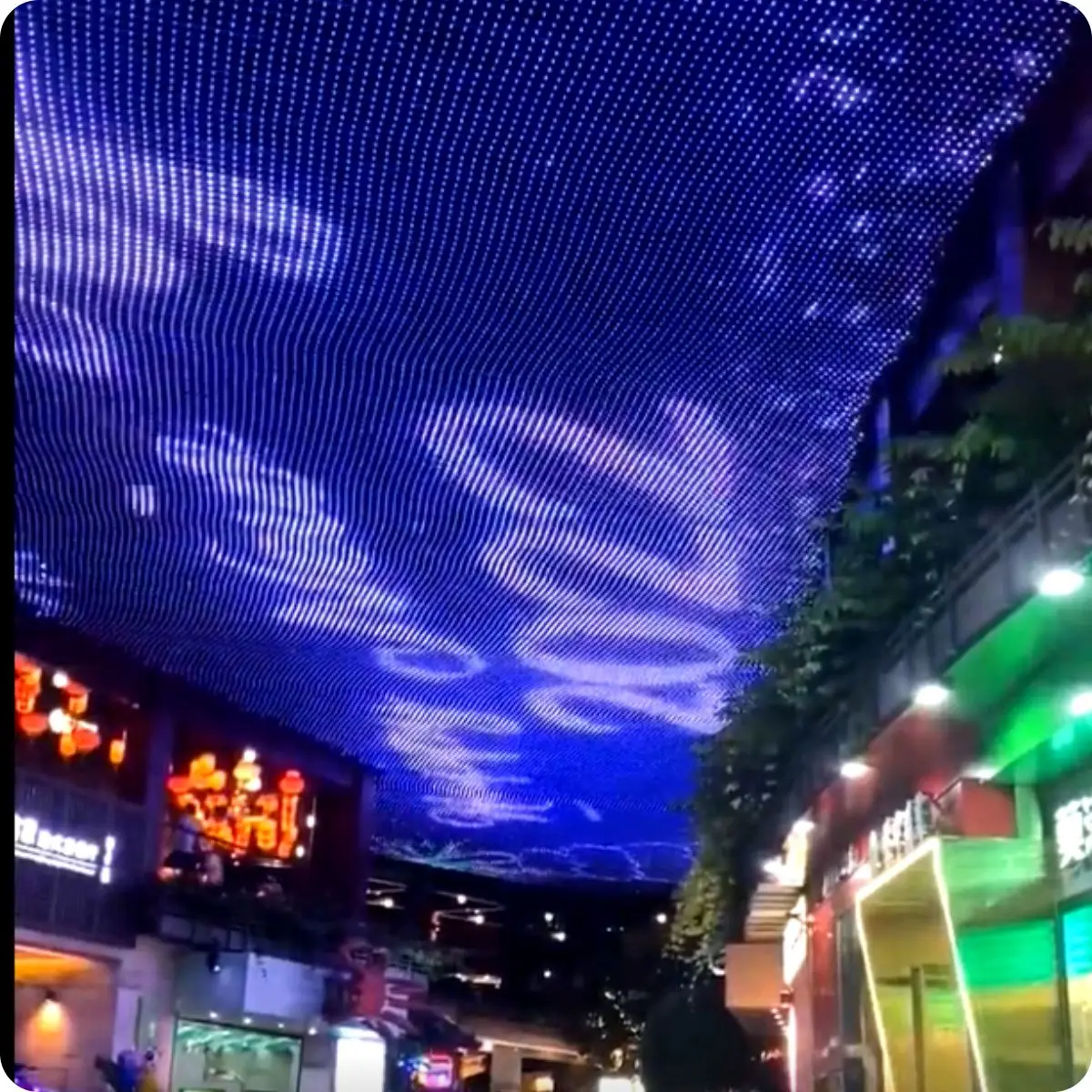

Factory direct sales 2020 RGB waterproof single light led display for advertising
- Category: >>>
- Supplier: Shenzhen Xinqidian Opto Technology Factory
Share on (1600843409018):
Product Overview
Description
Product Description
XQD-P40-2020-FX | |
LED Color | RGB |
Waterproof grade | Ip67 |
Product single weight | About 7g | Shell flame retardant | V-0 |
product size | 25mm*20mm*9.9mm | Anti-UV grade | 4 |
Maximum number of connections | 240PCS / string | Salt Spray Test | Anti-salt fog |
Between (on) centers | Minimum 40 CM | Electrical safety grade | Ⅲ class |
Radiancy | 2.6cd | Shock resistance | IK10 |
Product average life | For 50,000 hours | Security certificate | CE FCC RoHS |
Optional accessories | Steel wire card | Working temperature | -40℃-55℃ |
Wire core | 2x0.75mm²+2x0.35mm² | Luminescence Angle | 120° |
Wire material | PVC | Color resolution | 3*16bit |
Lamp bead | SMD5050*1LED | Pixel point light flux | 5.9lm |
Product size

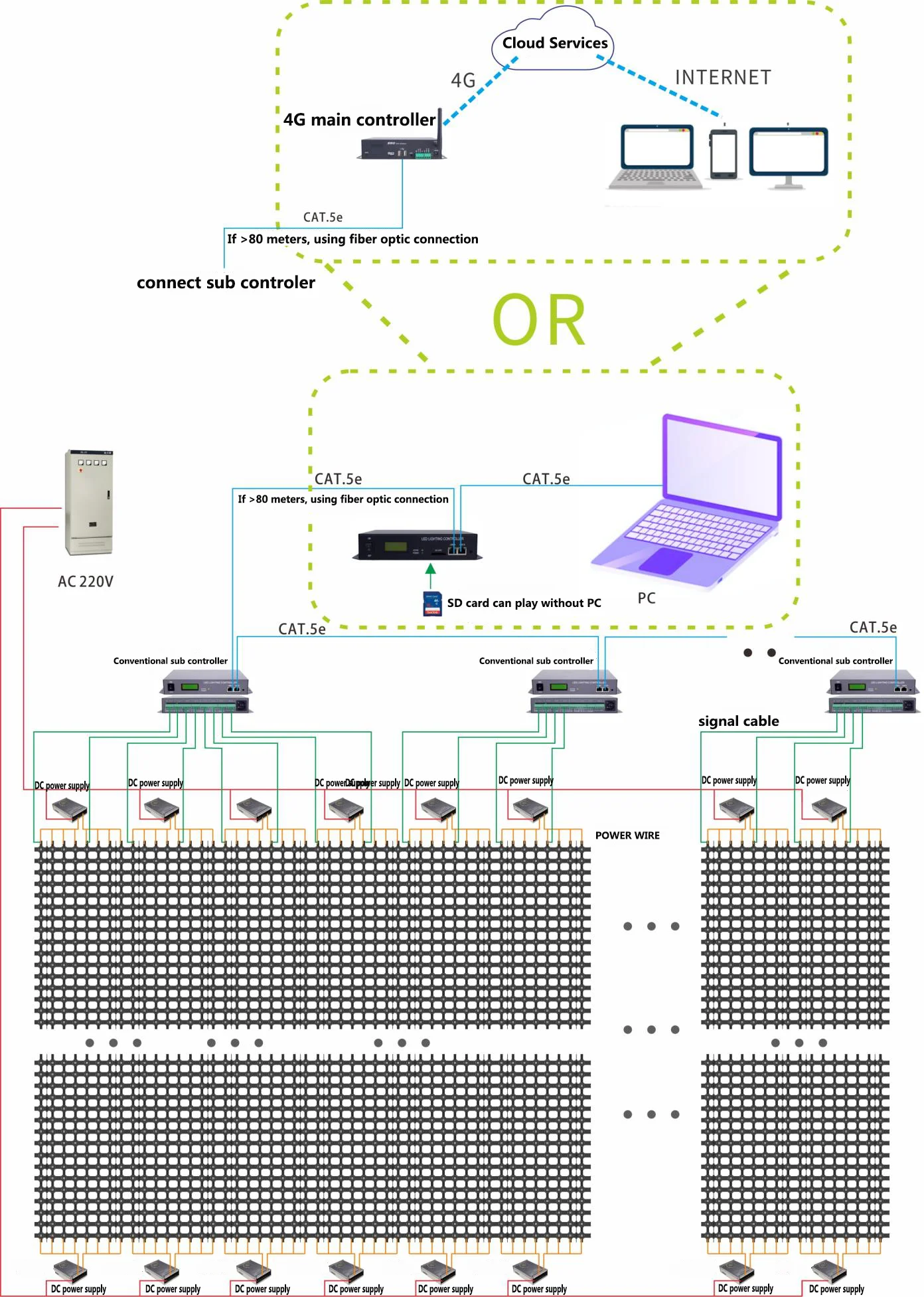

Installation accessories and control mode
Product features:
1. The point light source with larger wire diameter is adopted to support the power supply and signal transmission mode with a longer distance.
2. Flexible installation method: small size, light weight, with flexible steel wire rope,flexible and diverse installation methods can be realized.
3. It has the function of continuous transmission of bad points, even if one of the pixel points is damaged, it will not affect the subsequent pixel points
4. Signal reception to minimize product failure rate.

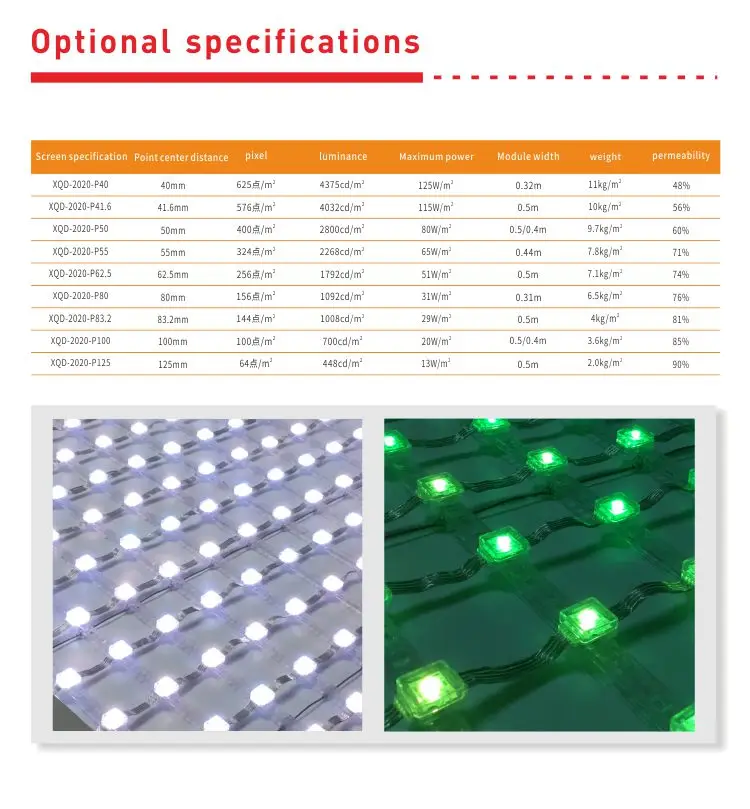

5. Multiple spacing options to flexibly control project costs.
2. Flexible installation method: small size, light weight, with flexible steel wire rope,flexible and diverse installation methods can be realized.
3. It has the function of continuous transmission of bad points, even if one of the pixel points is damaged, it will not affect the subsequent pixel points
4. Signal reception to minimize product failure rate.
5. Multiple spacing options to flexibly control project costs.

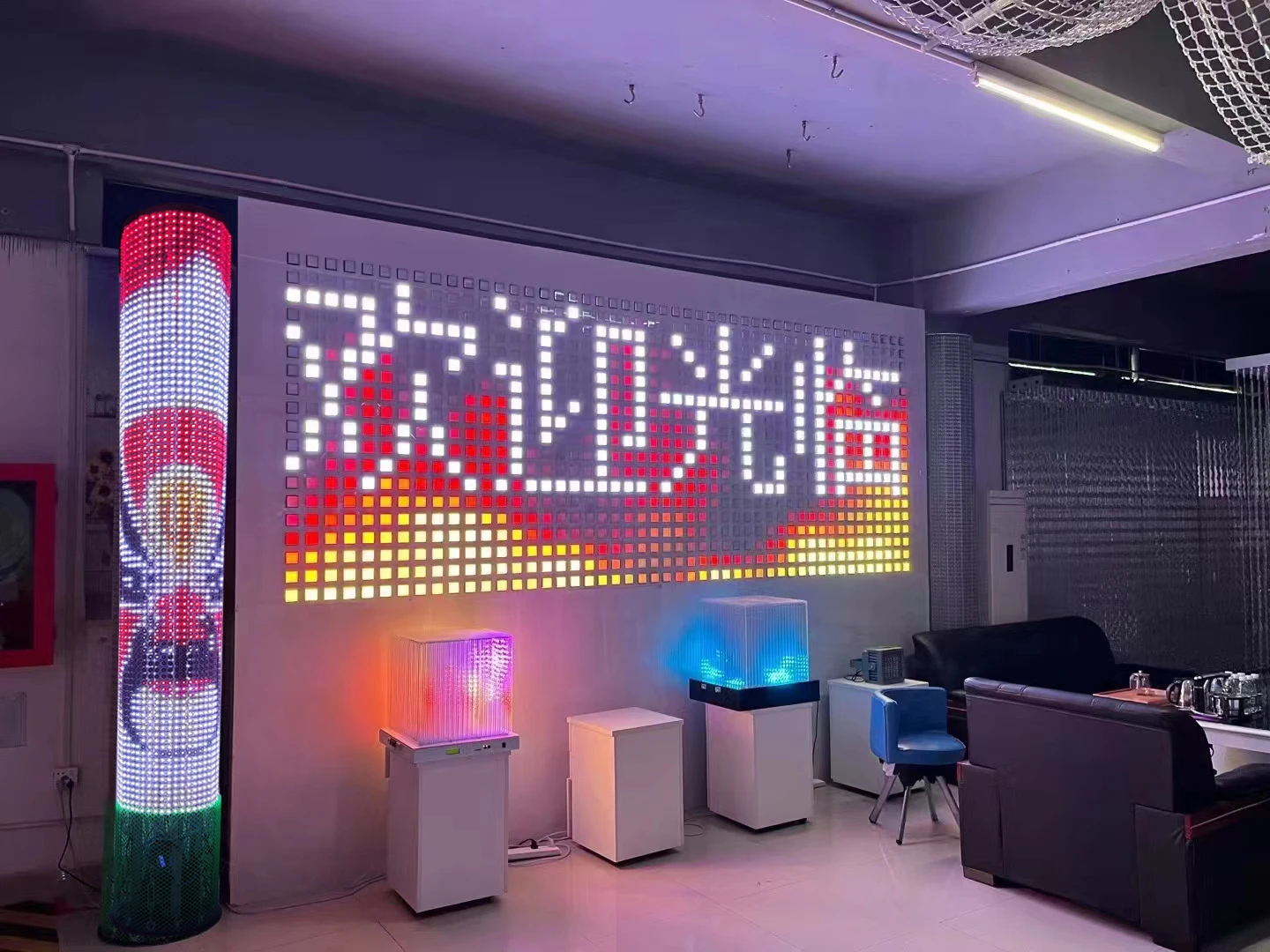

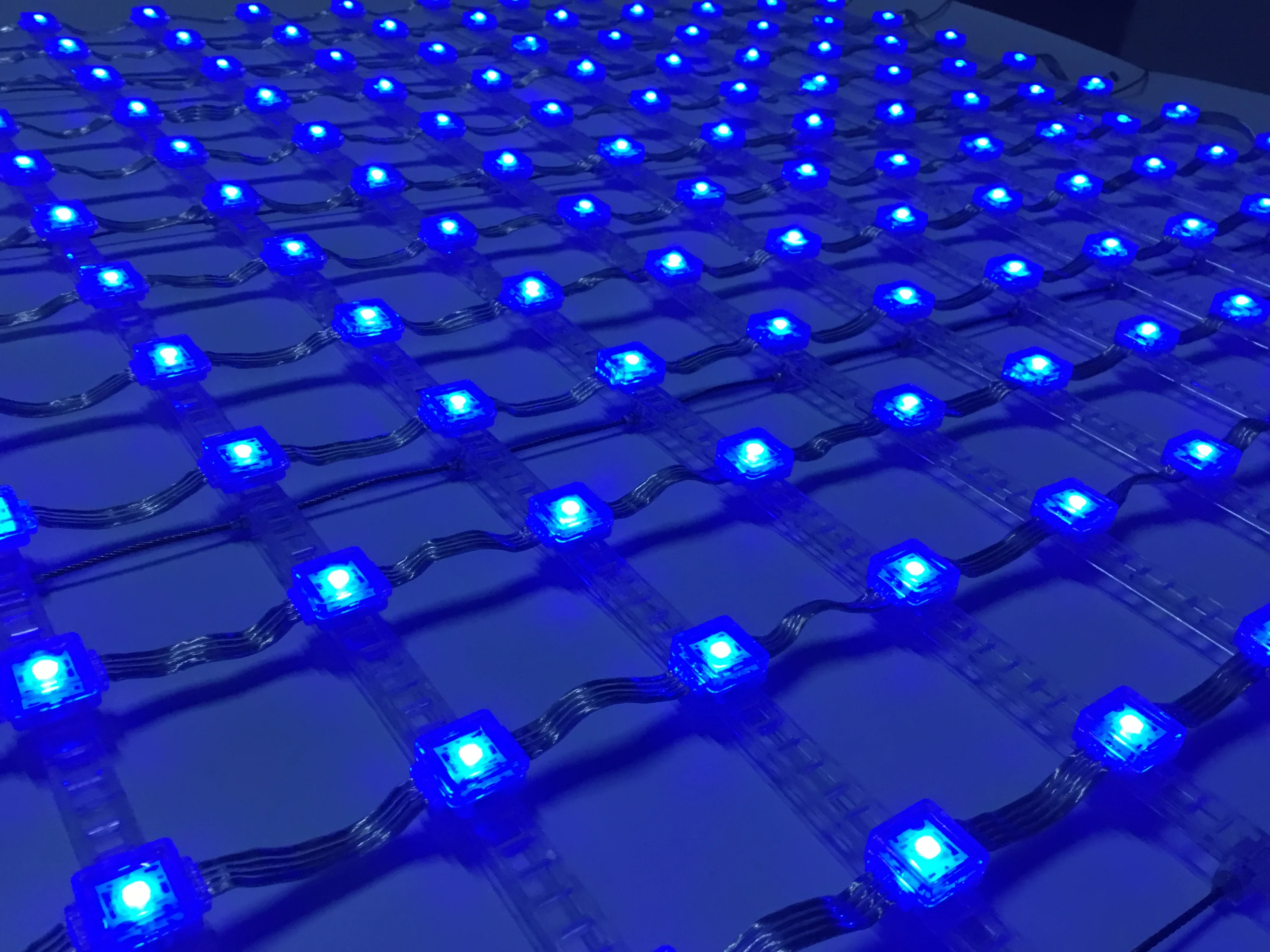

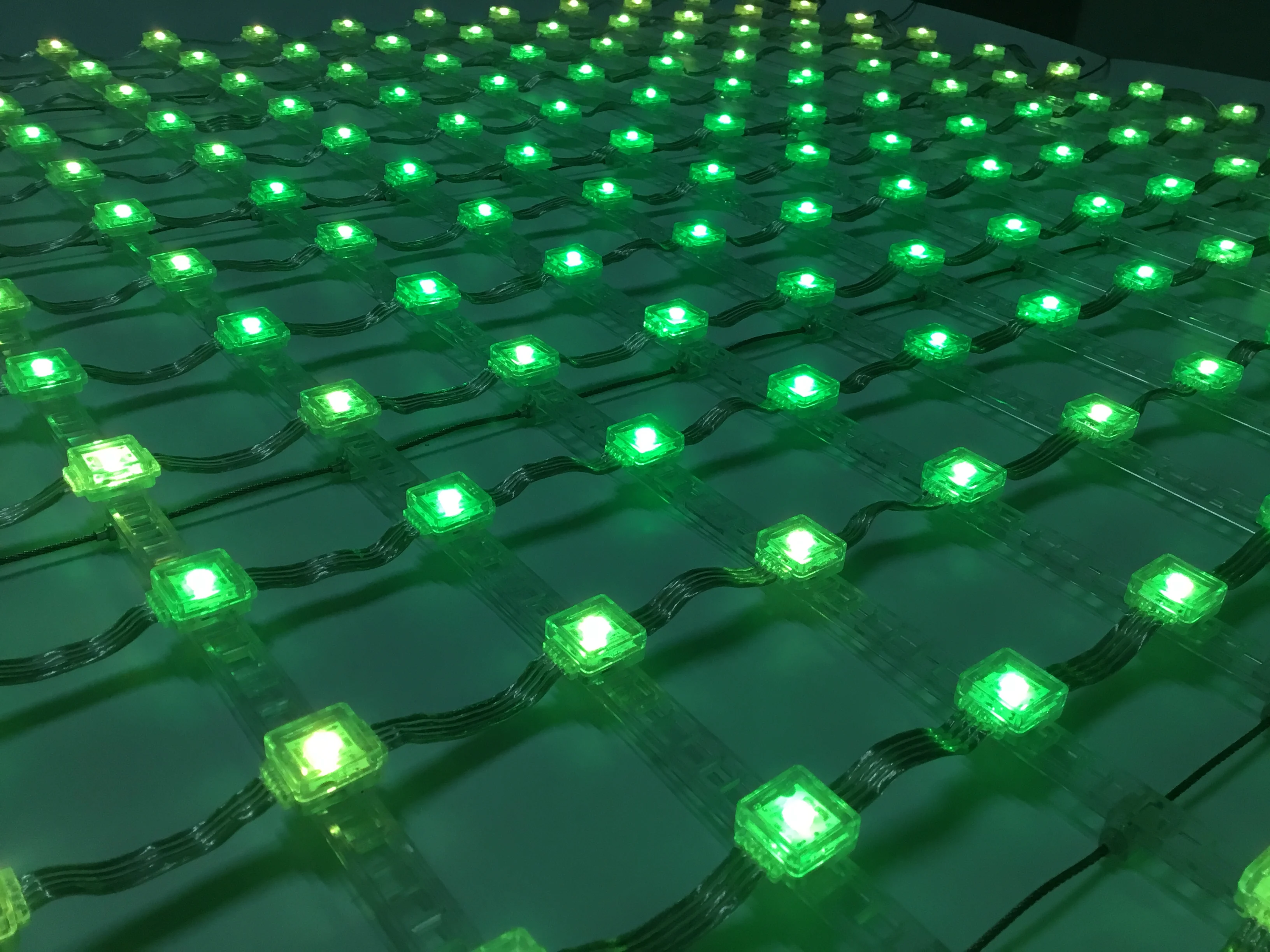

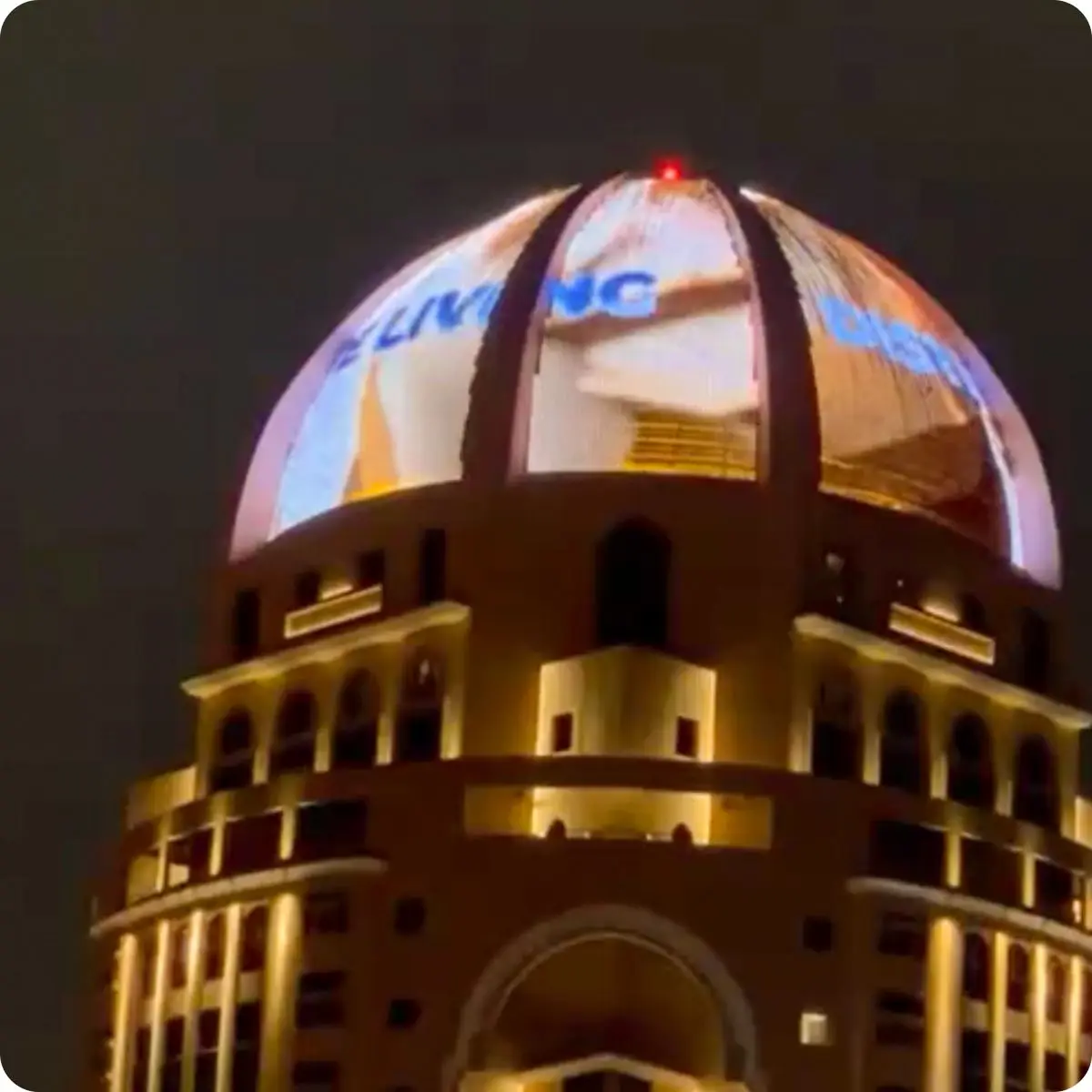

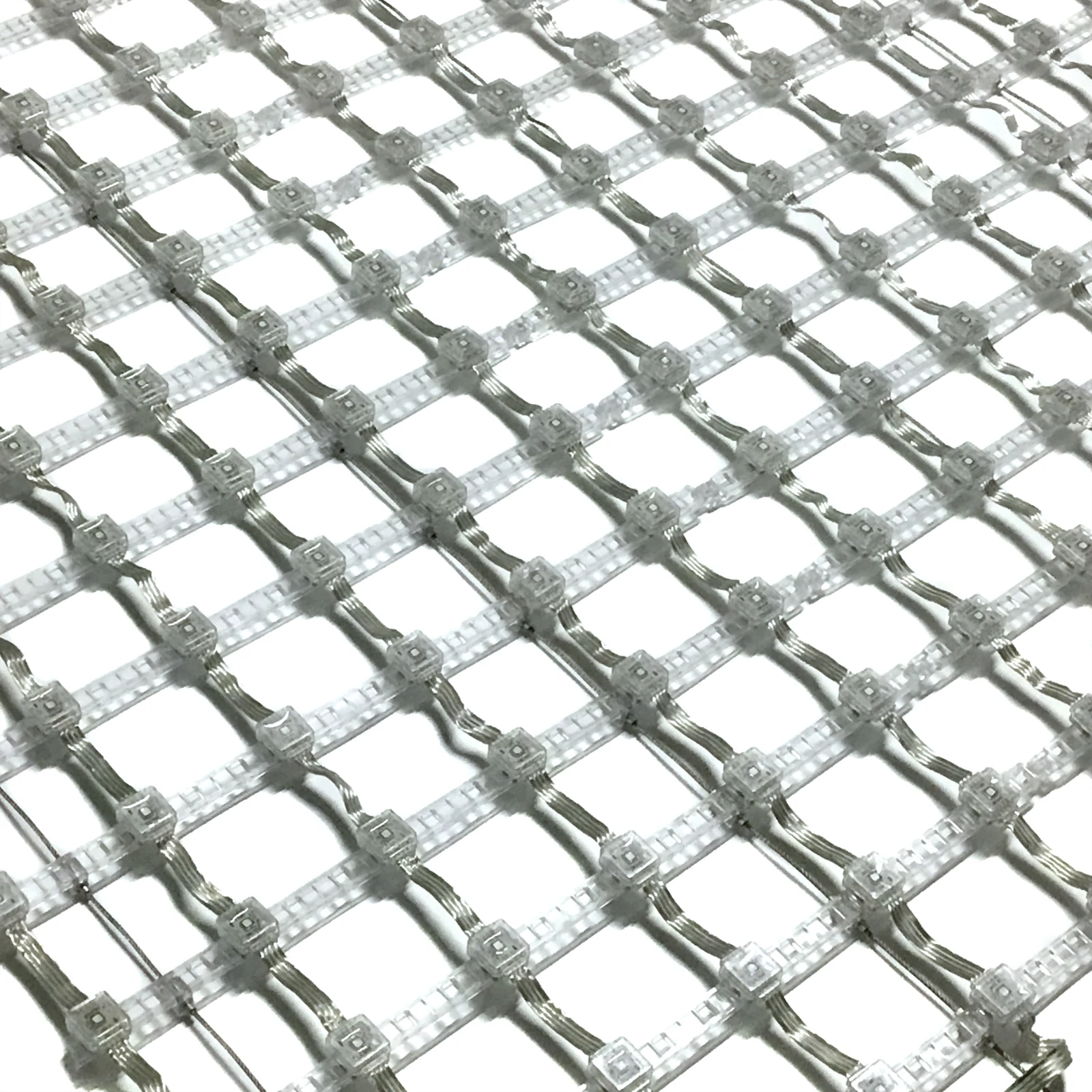

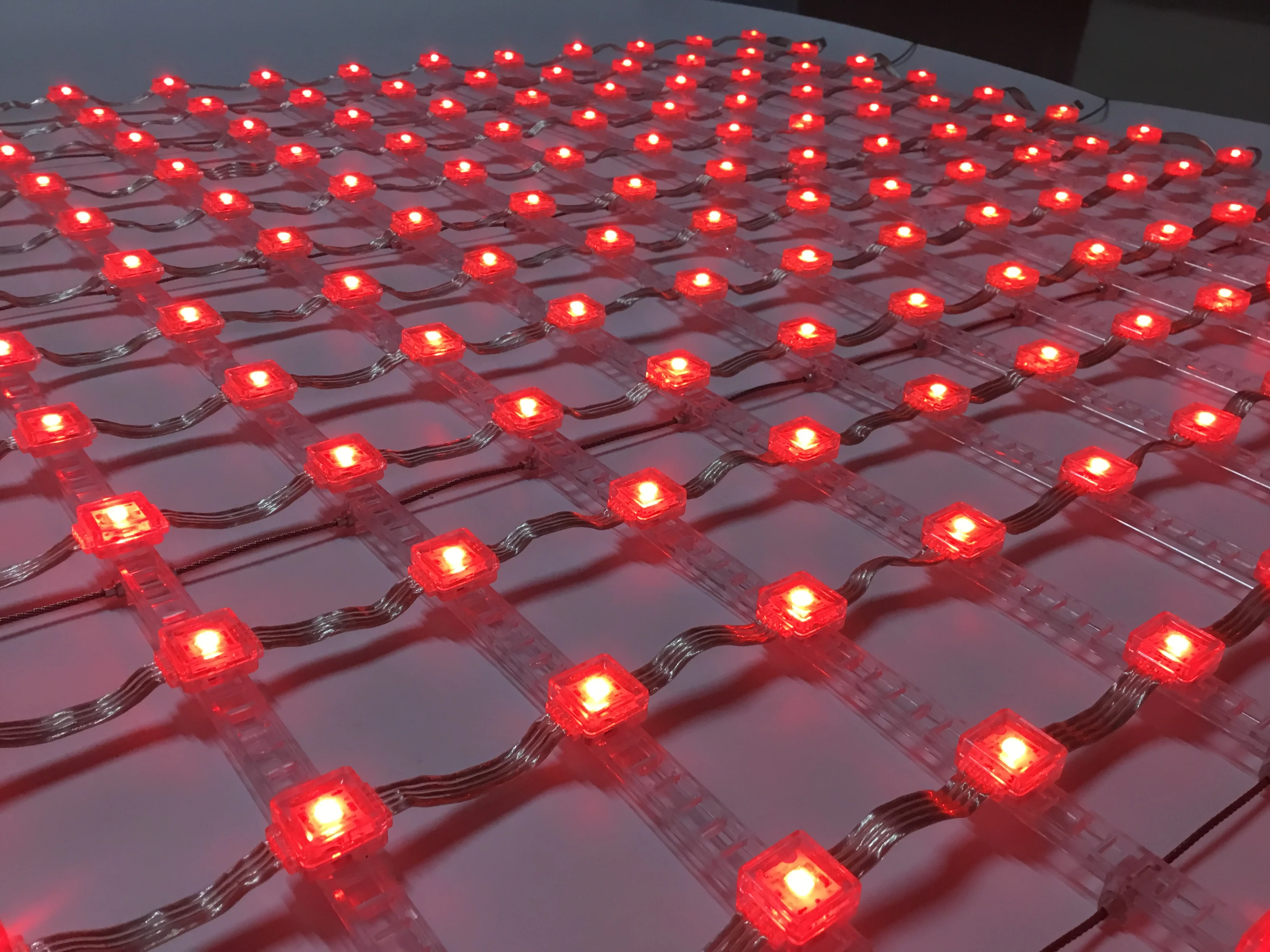

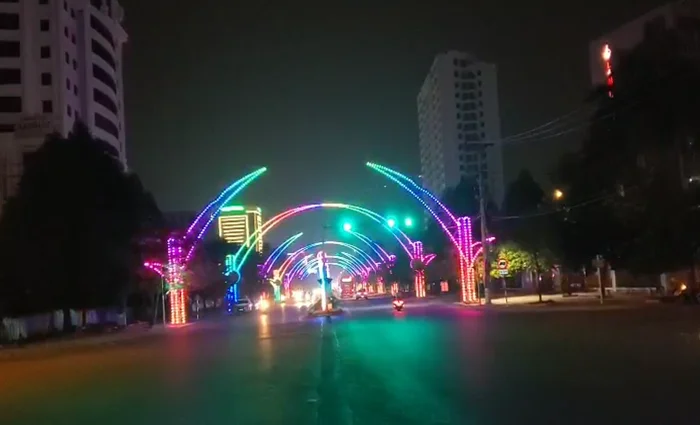

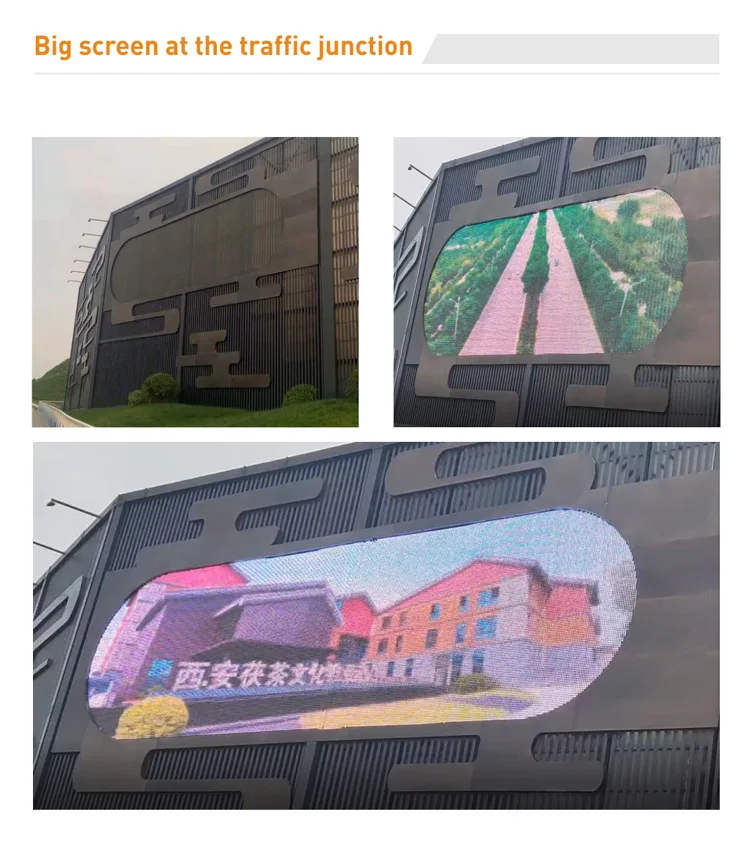

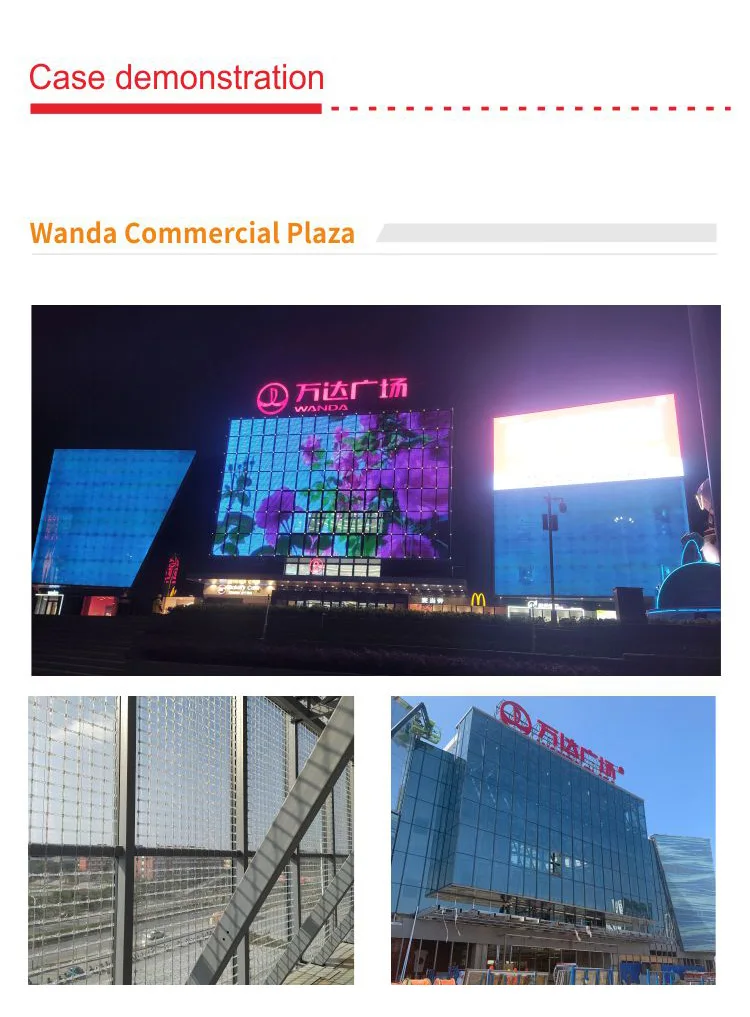

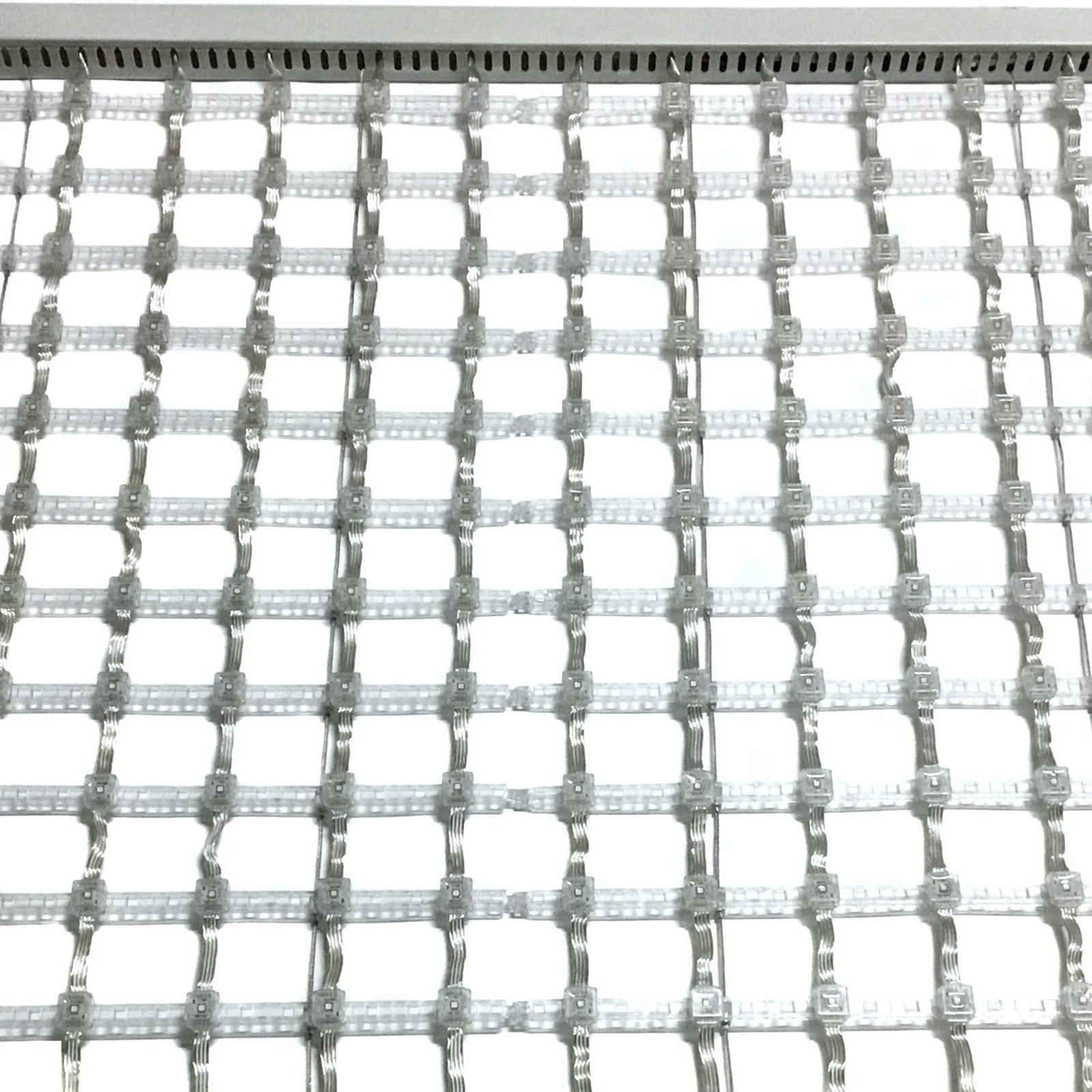

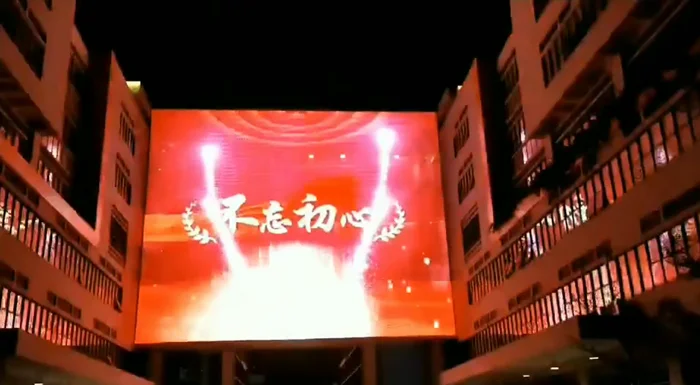

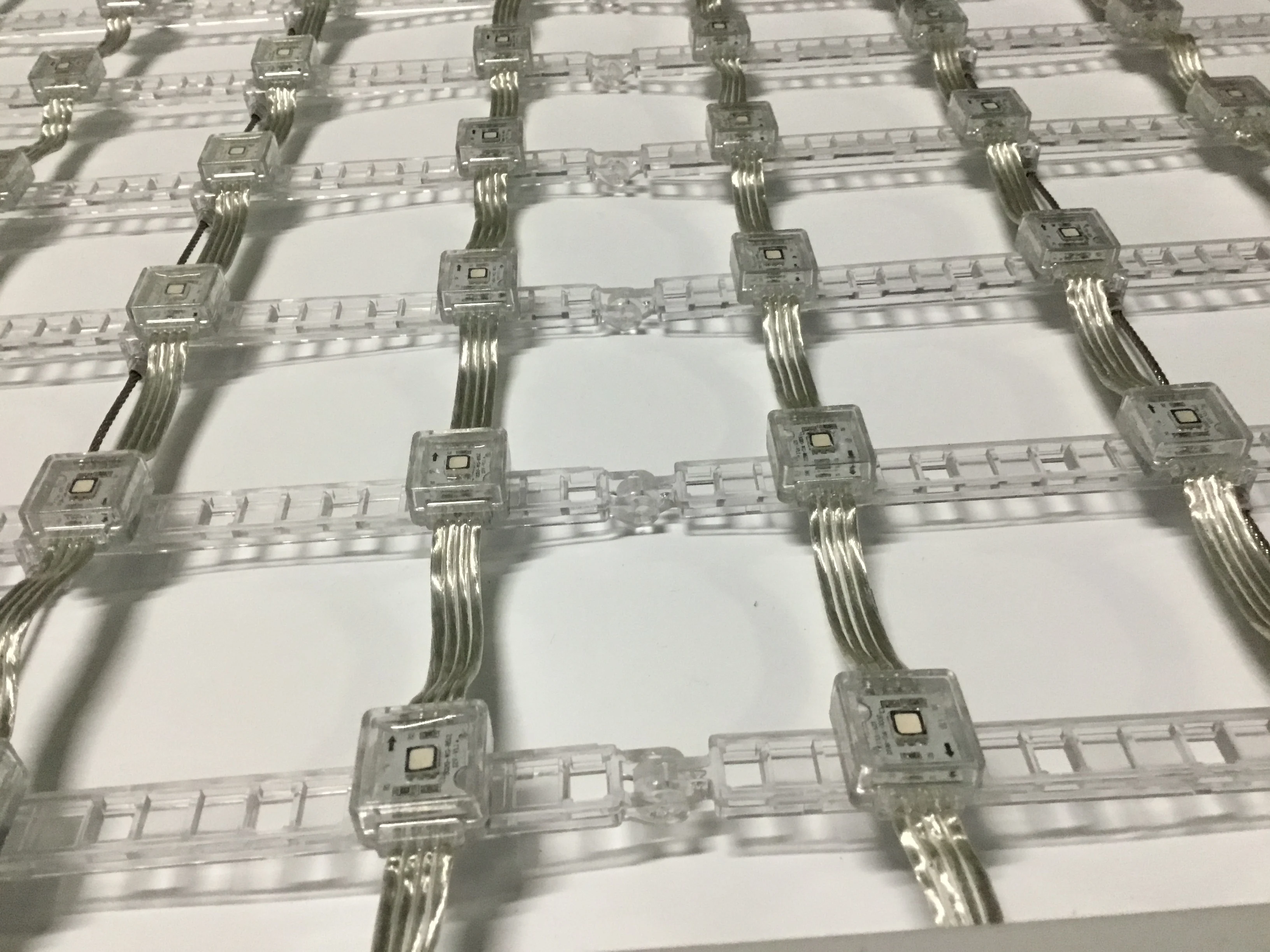

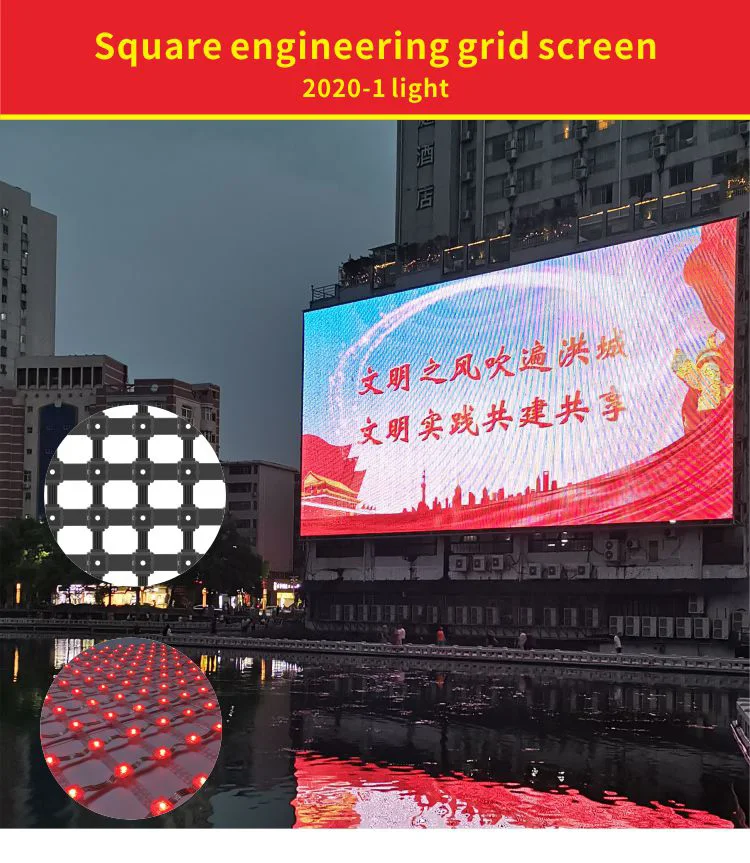

Product Presentation

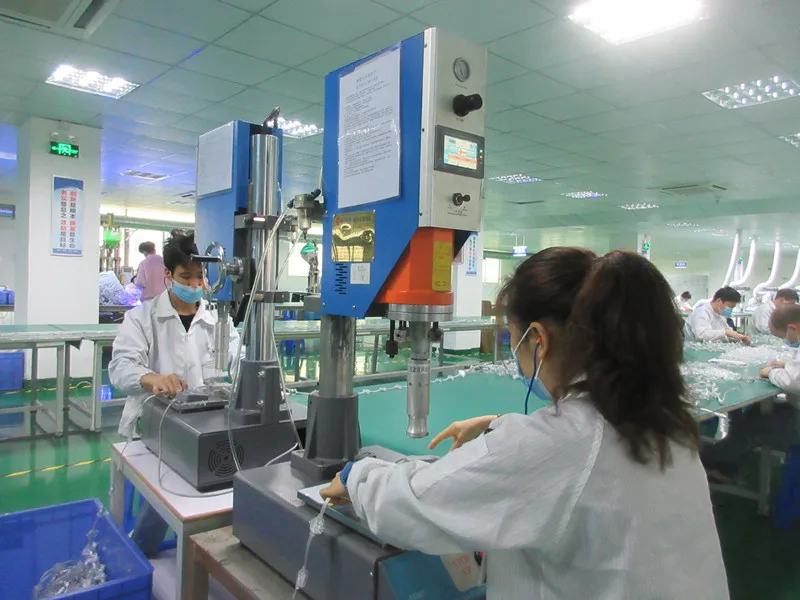

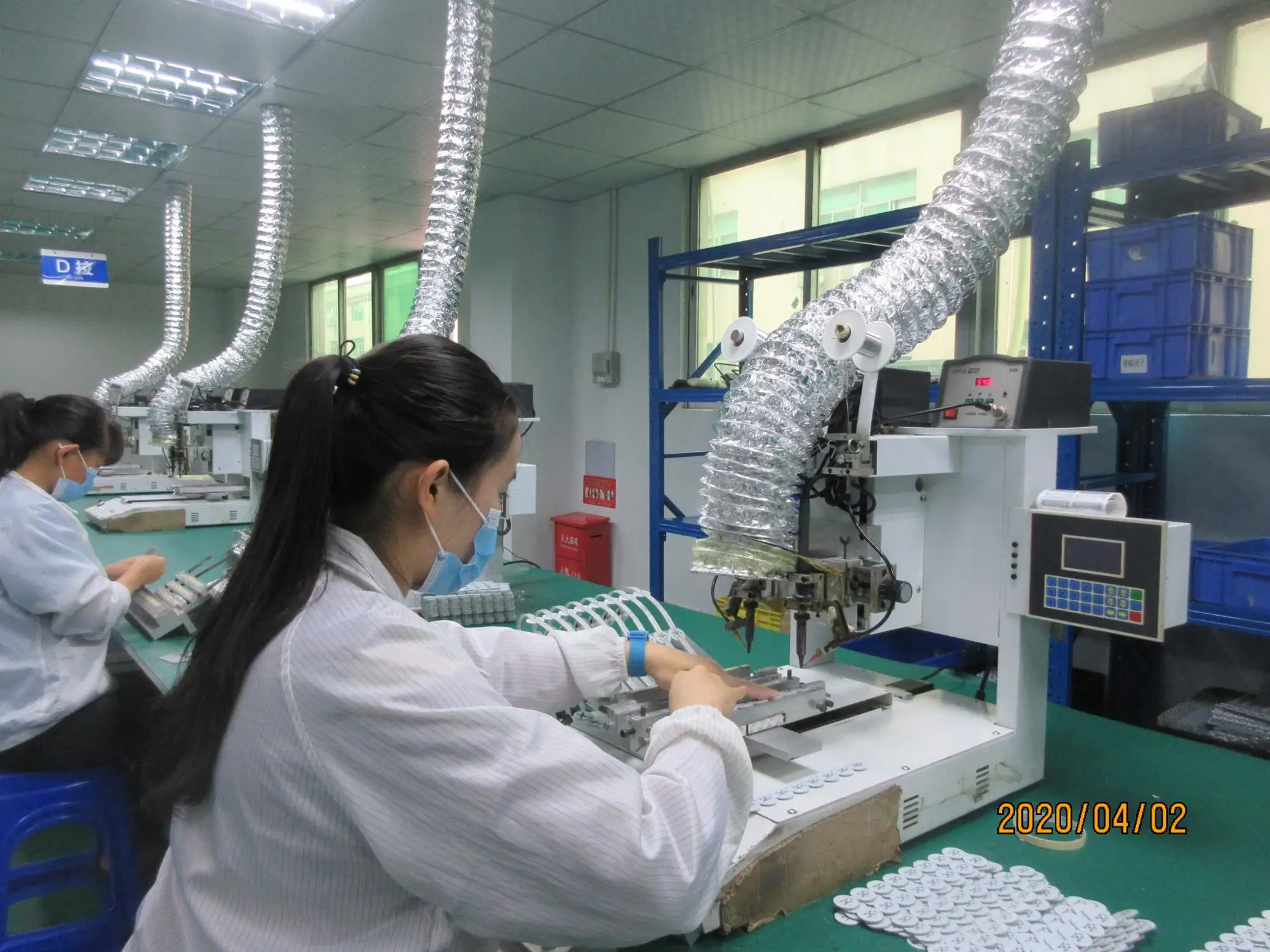

Company Introduction

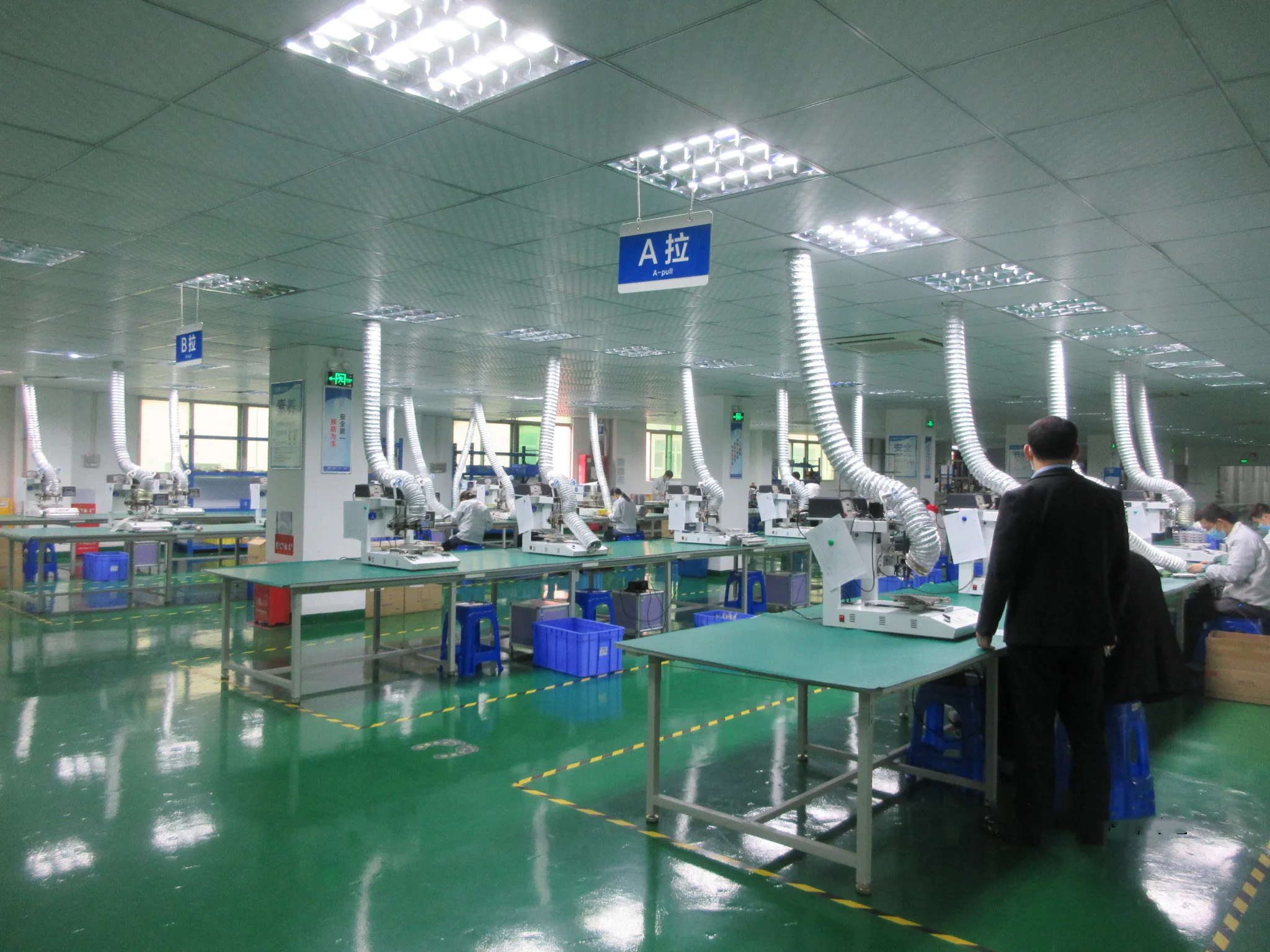

Shenzhen Xinqidan Optoelectronics Co., Ltd. was established in February 2010, is a professional LED optoelectronics products,production, research and development, sales and related services in one of the LED high-tech enterprises. Currently has more than 200 employees, plant covers an area of 6000 square meters.

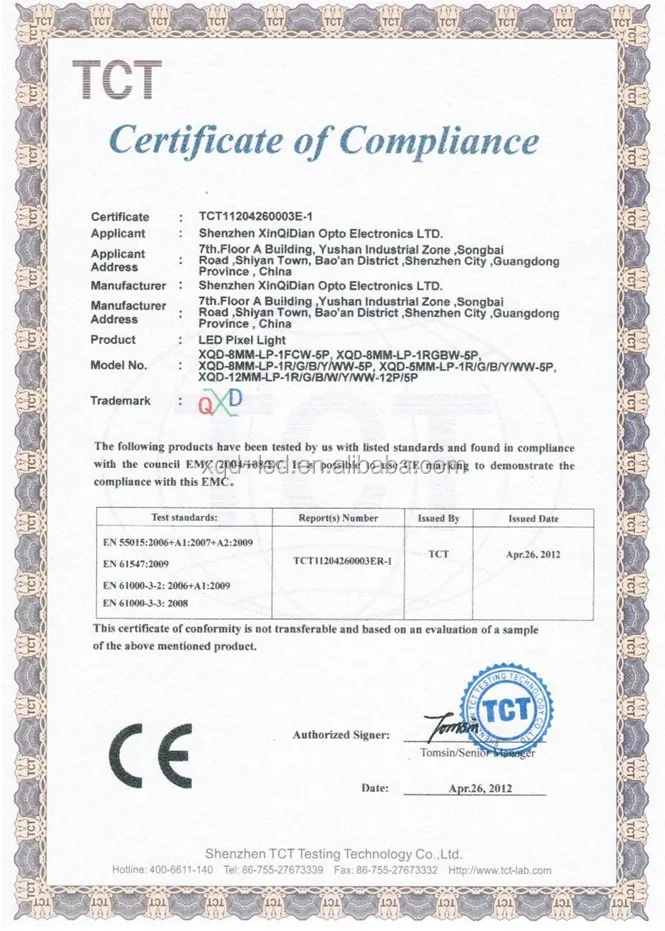

Certificate
