skid steer loader collocate buckets Bulldozers Filler Rippers Forks Snow blower Agitator Trailer Lawn mower Hammer Drill pipe
- Category: >>>
- Supplier: Shandong Nuoman Engineering Machinery Co. Ltd.
Share on (1600843479227):
Product Overview
Description
Product Description
What benefit can take you
A machine with multiple uses, he can give you more uses, not only shovel he also includes ditching, drilling, digging holes. Small size for family environment, low price and high cost performance.
Product Details

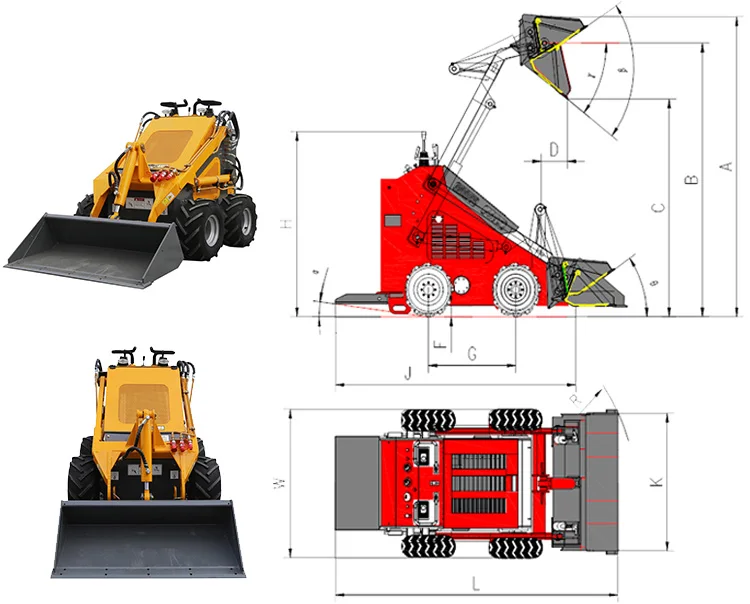

Item | Metric | Inch |
Max working height（A） | 2115 mm | 83.3 inch |
Max pin height （B） | 1856 mm | 73.1 inch |
Max dump height（C） | 1460 mm | 57.5 inch |
The highest point discharge distance（D） | 388 mm | 15.3 inch |
Bucket swing angle（β） | 55° | 55° |
Bucket unloading angle（γ） | 30° | 30° |
Opening-closing angle（θ） | 25° | 25° |
Angle of departure（α） | 8° | 8° |
Total height （H） | 1205 mm | 47.4 inch |
The height from the ground（F） | 90 mm | 3.5 inch |
Wheelbase （G） | 636 mm | 25.0 inch |
No bucket length（J） | 1752 mm | 69.0 inch |
Total width （W） | 1033 mm | 40.7 inch |
Bucket width （K） | 980 mm | 38.6 inch |
Total length（L）（with bucket） | 2206 mm | 86.9 inch |
Turning radius (R) | 1307 mm | 51.5 inch |

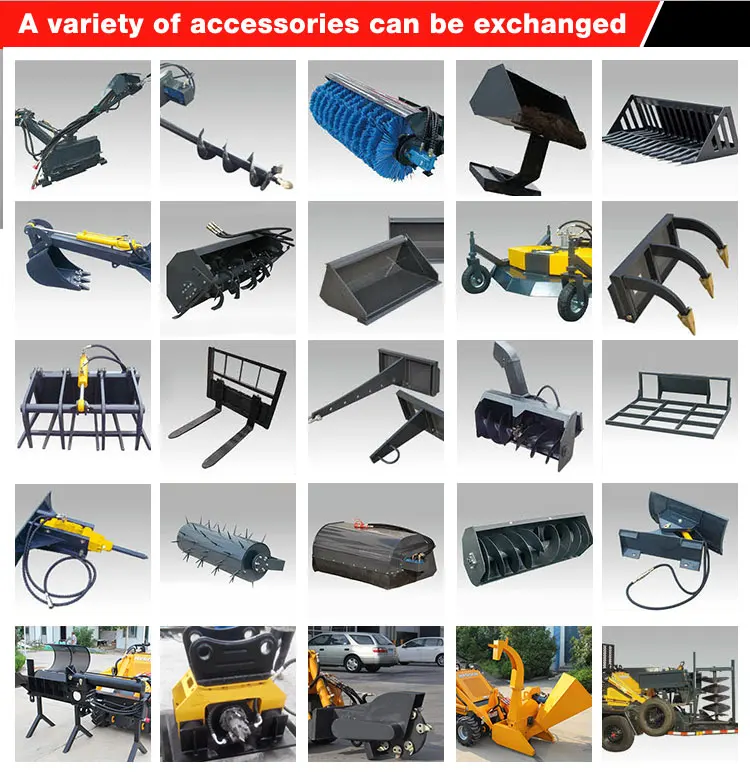

Various types of accessories can be customized according to your needs

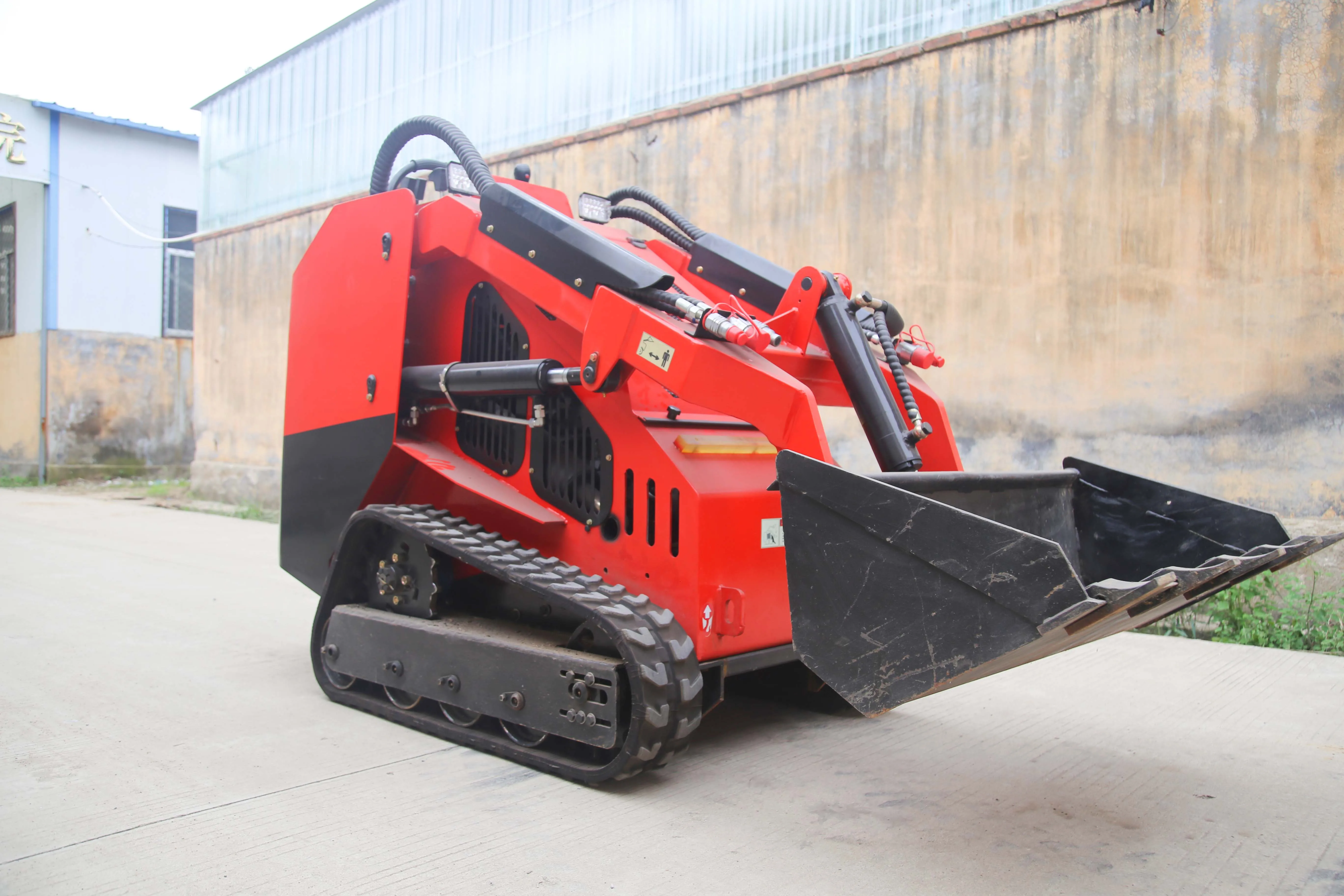

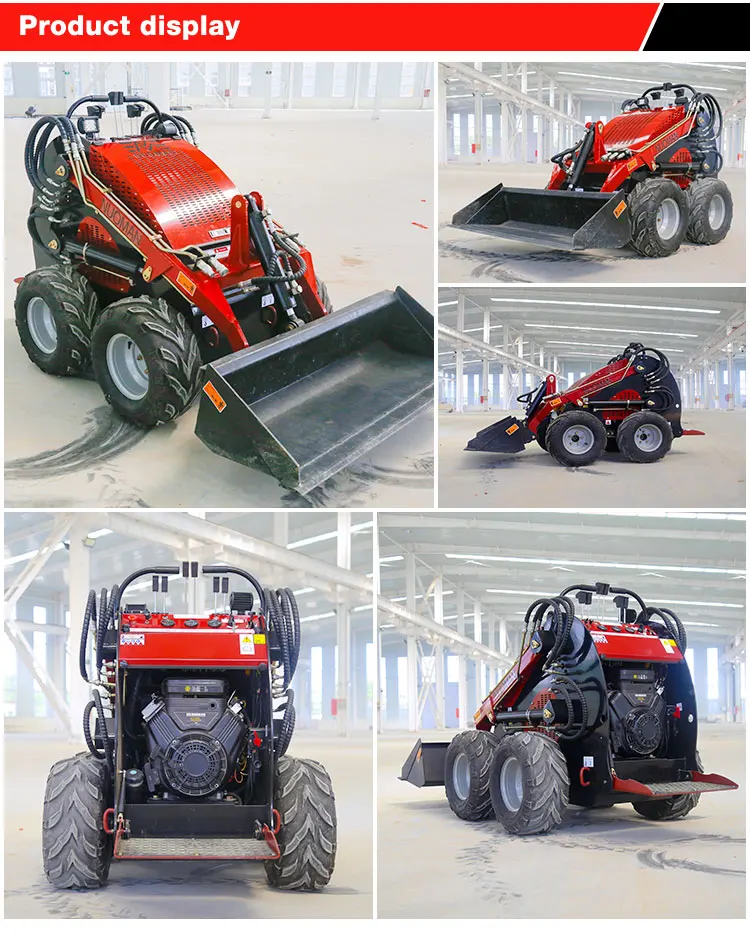

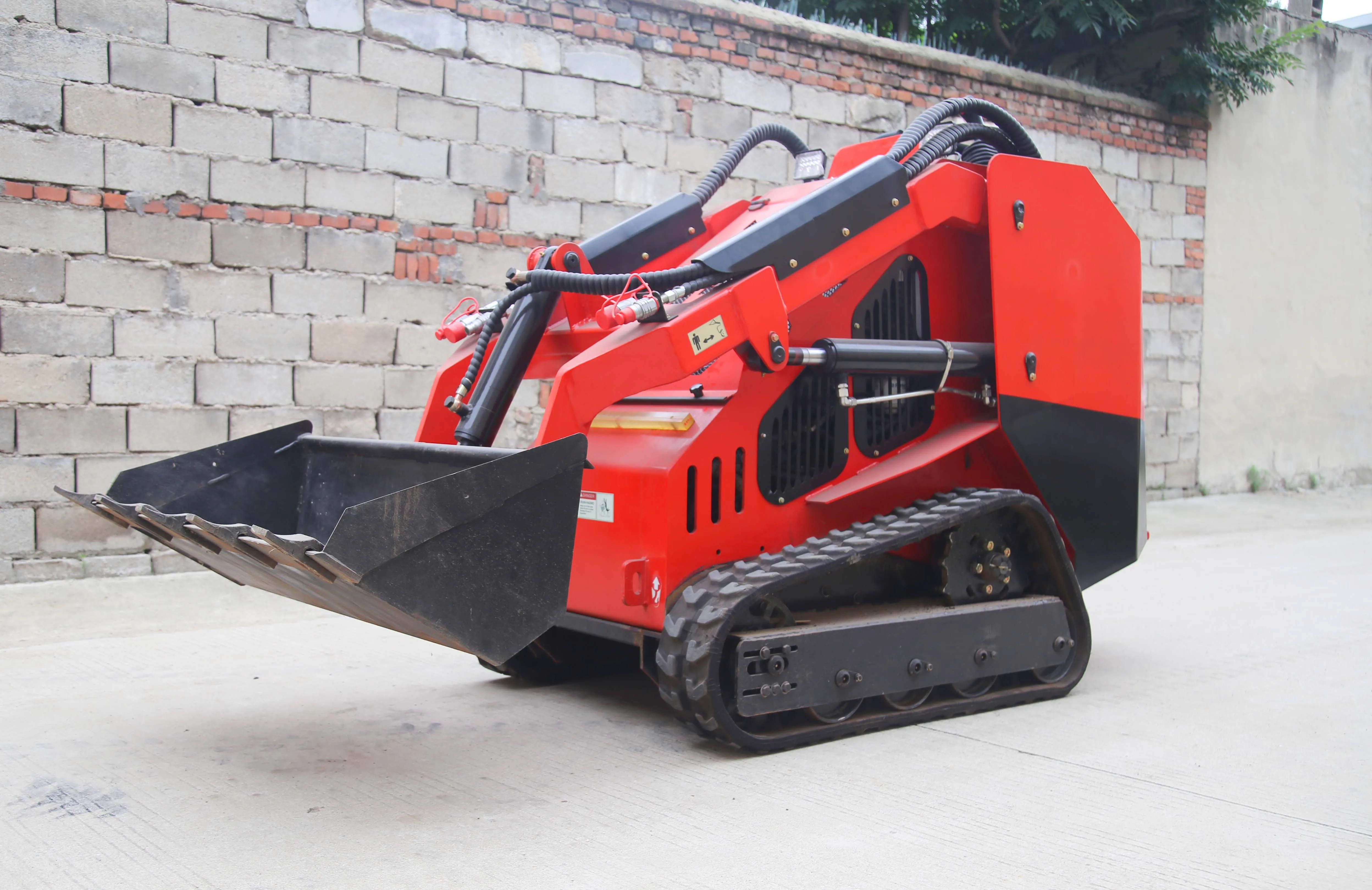

Loaders come in a variety of styles and specifications
You can choose according to your work style and construction environment.
