Wide Dynamic Range Security Monitoring Compact and Easy to Use IoT Applications Low Light USB Camera Module

Product Overview

Description



Wide Dynamic Range Security Monitoring Compact and Easy-to-Use IoT Applications  Low-Light USB Camera Module

Camera Module



   Features

· SONY IMX307 STARVIS Sensor, 1/2.8 inch 2 Mega

· Built-in ISP processing

· USB2.0 Interface,USB Video Class(UVC)

· Data fromat : YUY2 / MJPG / H.264

· Standard lens mount

· IR-CUT circuit

· BLC, Digtal WDR, 2D/3D noise reduction, Anti-fog

· Brightness, Contrast, Sharpness, Saturation adjustable



   Applications

l Industrial Computer l

l Machine Vision, AI l

l Smart Home l

l ADAS



Why Use H.264 camera?
1. Has higher coding efficiency.
2. Can provide high-quality video images at the low bit rate as well as the low bandwidth.
3. H.264 can work in real-time communication application low-latency mode, such as Video Conferencing systems,
Online video storage and streaming, video game consoles, mobile video through 3G/4G…



Electric Parameters

Technical Details
SENSOR
Sensor	SONY IMX307LQD-C STARVIS
Pixels	2.07M pixels
Resolution	1920*1080 MAX
Image Size	Diagonal 6.46 mm (Type 1/2.8)
Unit Cell Size	2.9um (H)*2.9um(V)
SNR1s Value	0.24lx
ISP
YUY2 Frame Rate	640*360@25fps / 30fps
MJPG Frame Rate	1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps
H.264 Frame Rate	1920*1080@25fps / 30fps, 1280*720@50fps / 60fps, 640*360@25fps / 30fps
Exposure	Auto or Manual
White Balance	Auto or Manual
Shutter	1/25(1/30)s to 1/50,000s
Slow Shutter	Coming Soon
Denoising	2D/3D noise reduction
Image Setting	Brightness, Contrast, Sharpness, Saturation,Flip, Mirror
Image Enhancement	BLC, Digtal WDR, Defog
Day/Night Switch	Manual or IR-CUT filter with external trigger
Lens & IR-CUT
Lens Mount with IR-cut	Support M12*0.5 or M16*0.5 depend on lens mount,MTV12 or MTV16
Mounting Hole	2 screw holes with diameter of 2.2mm,20mm Center-to-Center Spacing
Interface
Connector	MX1.25*4,USB2.0 Interface
Communication Interface	USB2.0,UVC Protocol
IR-CUT Control	IR-CUT motor control, 3.3VDC
Day/Night External Trigger	3.3VDC to 5VDC compatibility
General
Operating Conditions	-10℃~60℃, Humidity 95% or less, non-condensing
Power Supply and Consumption	5VDC,1.5W MAX

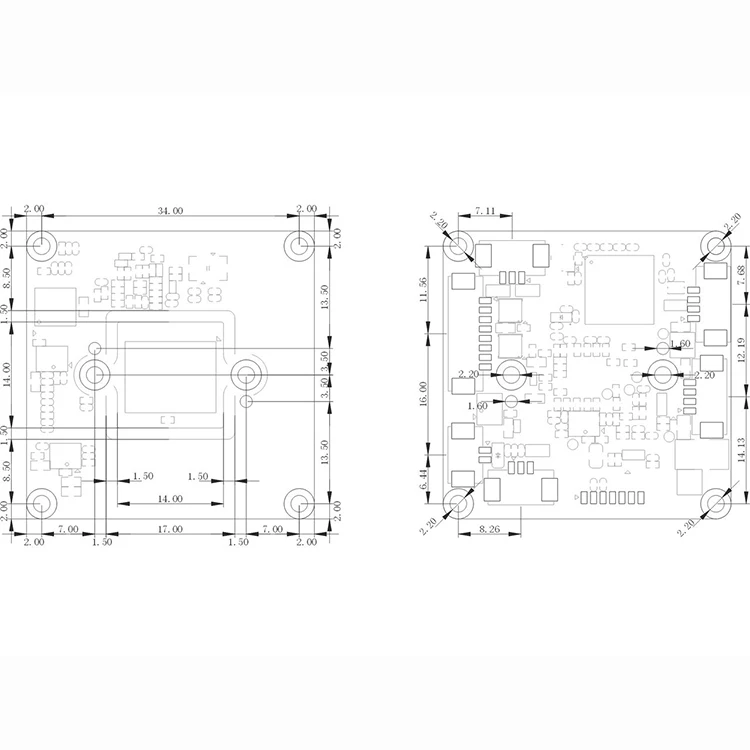

Dimension	38mm*38mm*10mm(not include lens and lens mount)





























Q1: Can I get some samples? Are they free?
A1: Of course you can get sample for testing before bulk order, but samples are not free.
Q2: What's the delivery time?
A2: Depend on product and quantity of your order. Usually, samples can be sent to you in 3 work days after your payment.
Q3: What about payment methods?
A3: Payment terms: Online payment, T/T and Western Union etc.
Q4: Can you list the product of your company?
A4: CCTV camera board,USB Web camera board,LCD memory controller board,LCD display module,Intercom Audio Board,Video Camera board for optical fiber tester
Q5: Where can we download the user manual of your products?
A5: Datesheet will be sent to you by email after get your email.
Q6: Warranty time?
A6: 2 years.
Q7: Can you accept ODM products?
A7: Yes,ODM is our main business. We will make quotation according to your details.
Q8: Product OEM?
A8: Yes, need your Gerber file and Drawing and BOM.
Q9: Customer service?
A9: Any questions of product after you receipt,please contact us,we'll reply you in 24 hours.
Q10: What shiping methods do you have?
A10: Since our products are small and expensive, the common shiping methods are post air mail or fast express.
