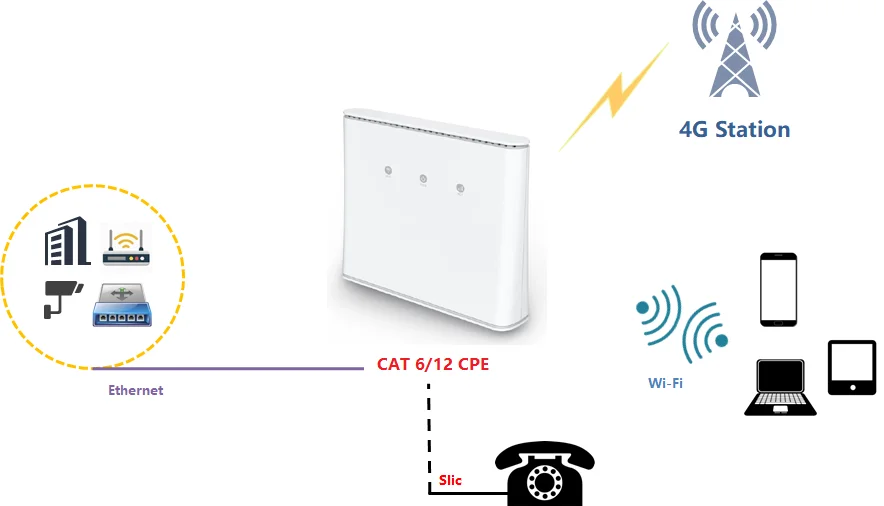

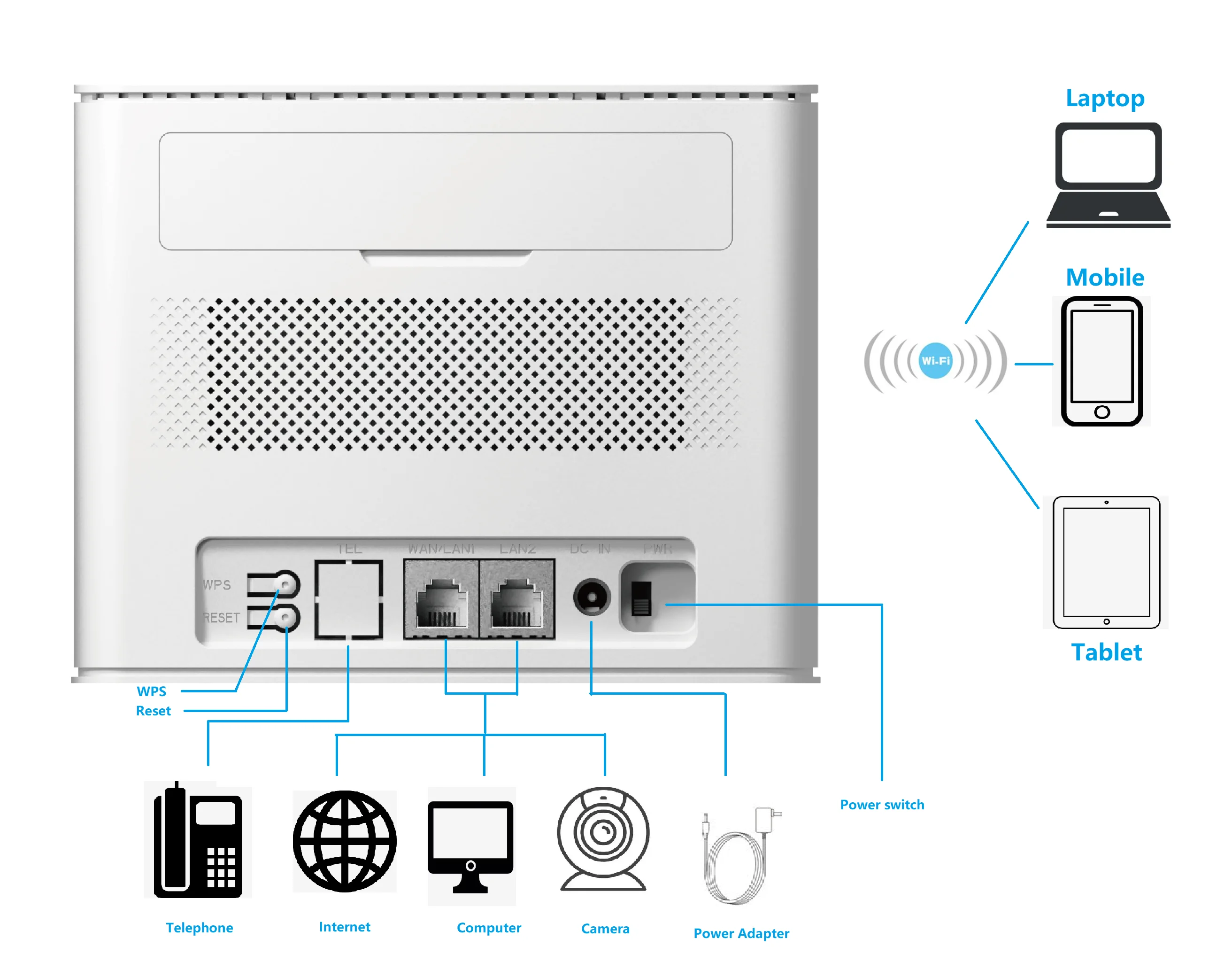

Indoor 4G LTE CPE application
HIR204 4G LTE CPE Wireless WIFI Router LTE CAT 6 or CAT 12 home CPE 4g WIFI router with outdoor antenna optional
- Category: >>>
- Supplier: Shenzhen Ex-Link Technology Co. Ltd.
Share on (1600844304641):
Product Overview
Description

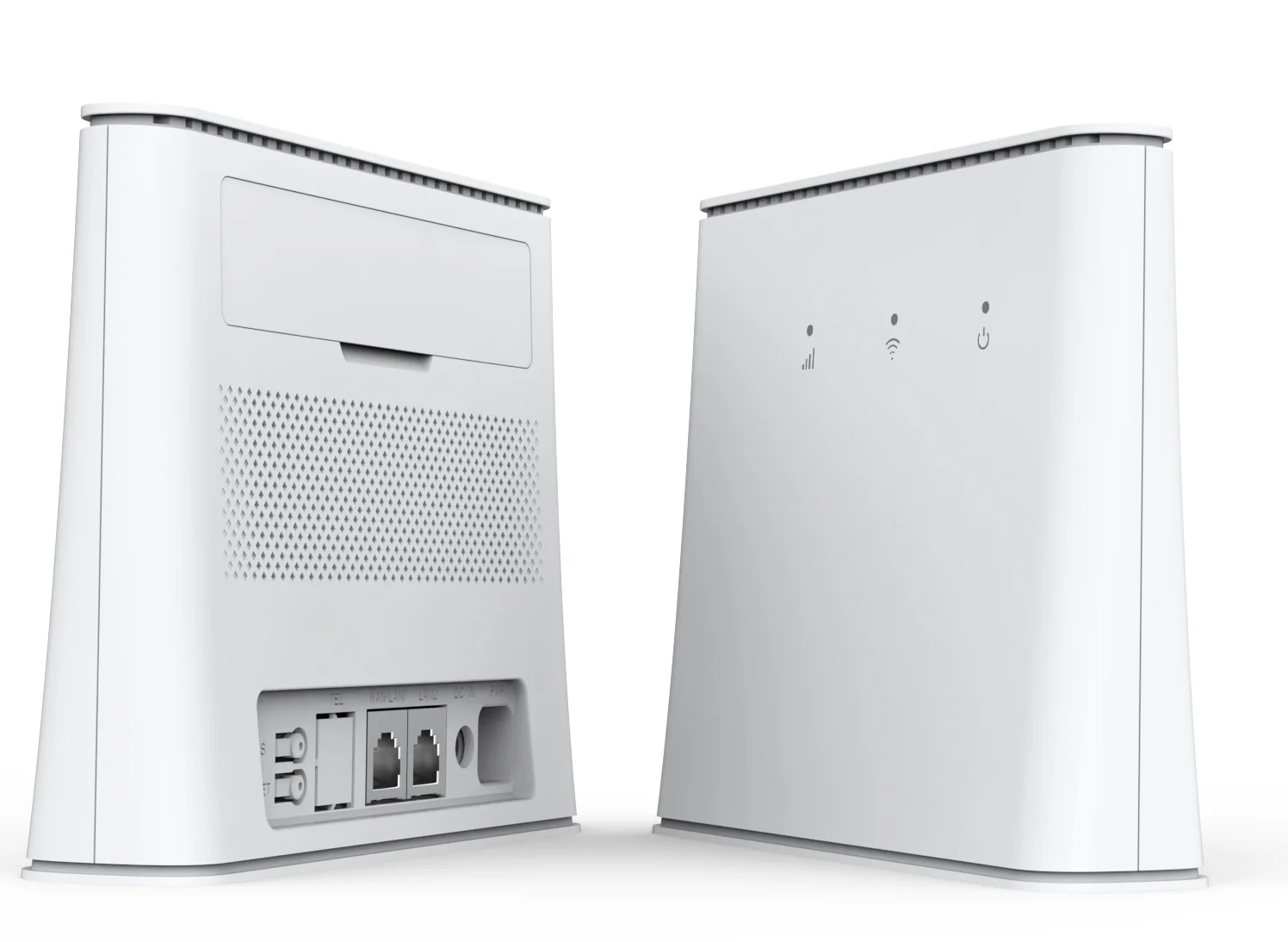

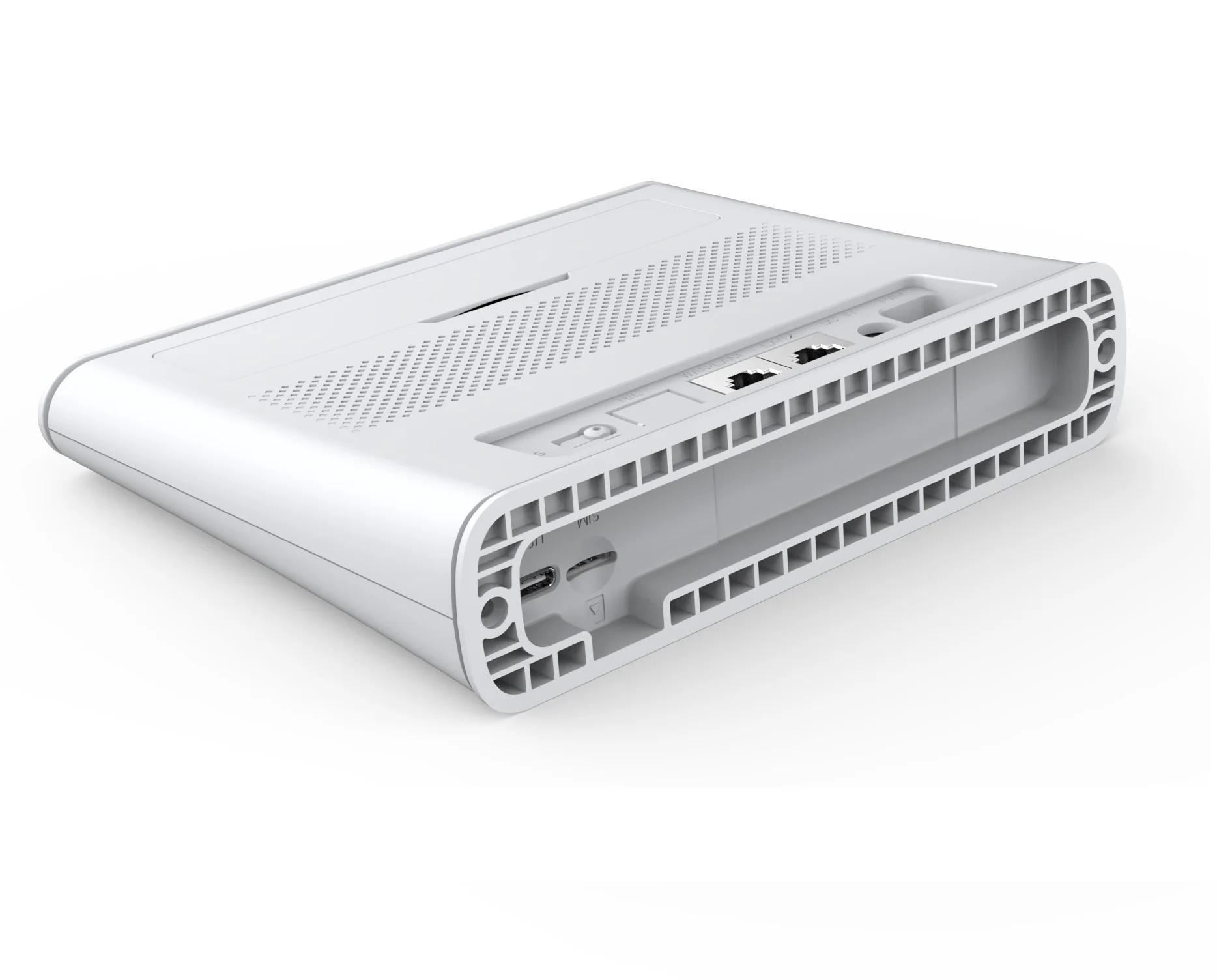

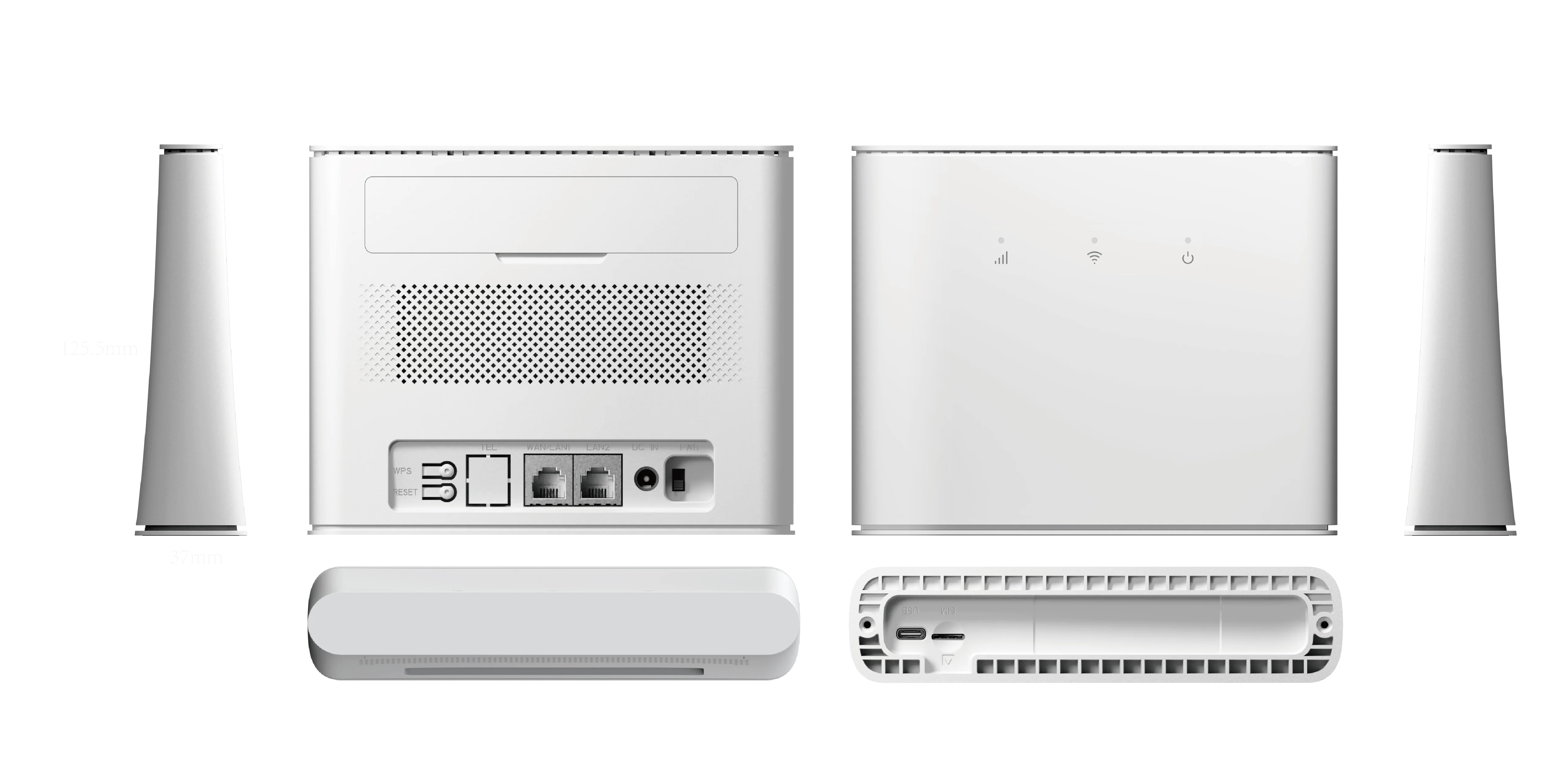

HIR204 4G LTE CPE Wireless WIFI Router LTE CAT 6 or CAT 12 home CPE 4g WIFI router with outdoor antenna optional
HiR204 4G CAT 12 CPE is a wireless high-speed complete solution developed based on 4G cellular
technology and Wi-Fi home network technology. It uses a MIPS CPU to provide dynamic data processing
and management computing power for the reference design, a high-performance firewall-router, and highperformance virtual private network (VPN) security acceleration. It can help broadband operators, Internet service providers (ISP) and OEMs to rapidly develop and deploy all-wireless home Internet for the latest 4G, by promoting plug-and-play gigabit connection solutions to replace DSL, cable and fiber deployment. Changes in the traditional home broadband industry.
technology and Wi-Fi home network technology. It uses a MIPS CPU to provide dynamic data processing
and management computing power for the reference design, a high-performance firewall-router, and highperformance virtual private network (VPN) security acceleration. It can help broadband operators, Internet service providers (ISP) and OEMs to rapidly develop and deploy all-wireless home Internet for the latest 4G, by promoting plug-and-play gigabit connection solutions to replace DSL, cable and fiber deployment. Changes in the traditional home broadband industry.
Highlight
Chipset Solution : MT7621A + CAT 12 modem
4G CAT 12 , 2*2 MIMO or 4*4 MIMO.
2* RJ45 for 1 *WAN/1* LAN ,1000Mbps ports.
802. 11 a/b/g/n/ac , 2T2R , 2.4GHz /5GHz, 2*2 MIMO, 64 user
hotspot sharing.
hotspot sharing.
1*RJ11 slic (Optional), VOLTE voice. (Optional)
USB2.0
WPS , Reset
Supports Route Function.
NAT/NAPT, RIP v1/v2
ACL, and prevents DoS attacks, WPA, WPA2, WPA-PSK, WPA2-PSK, WPS
security for WLAN.
Supports PSK.
Supports WebGui credentials.
Supports Protocols. TR069 ,PPOE, DHCP etc.
Supports Port Filter, DMZ, Port Forwarding, NAT (Network Address Translation),
MAC address Filter, IP address Filter, ALG etc.
Supports Access Control
Manual Firmware Updates.
Supports Router Settings Backup, SNTP (Simple Network Time Protocol).
Supports Diagnostic tools (PING, ARP, Router Logs).
ACL, and prevents DoS attacks, WPA, WPA2, WPA-PSK, WPA2-PSK, WPS
security for WLAN.
Supports PSK.
Supports WebGui credentials.
Supports Protocols. TR069 ,PPOE, DHCP etc.
Supports Port Filter, DMZ, Port Forwarding, NAT (Network Address Translation),
MAC address Filter, IP address Filter, ALG etc.
Supports Access Control
Manual Firmware Updates.
Supports Router Settings Backup, SNTP (Simple Network Time Protocol).
Supports Diagnostic tools (PING, ARP, Router Logs).
Item | Product specification |
Chipset | MT7621A+ CAT 12 modem |
MEMORY | FLASH 16MByte, DDR2 64MByte |
Hardware interface | 2* RJ45 for 1 *WAN/1* LAN ,1000Mbps ports. |
LTE Datarate | 4G CAT 12 , 2*2 MIMO or 4*4 MIMO |
LED | 8 LED, Power/2.4G WiFi/Telephone/Internet/4 Signal Strength |
SIM Card | 1.8V/3V 3FF USIM |
Voice (Optinal) | 1*RJ11 slic (Optional), VOLTE voice. (Optional) |
Carrier Agg | Inter/Intra 2CA |
DL MIMO | 2*2MIMO or 4*2MIMO |
Max. Transmit Power | LTE: 23 ±2dBm (Power Class 3) Wi-Fi: 18dBm |
LTE Antenna Gain | 700M~1GHz: 3dBi 1.5G~2.7GHz: 6dBi |
Wifi | 802. 11 a/b/g/n/ac , 2T2R , 2.4GHz /5GHz |
Wi-Fi Antenna | 2*2 MIMO, 64 user hotspot sharing |
DC 12V/1A | |
Key | WPS , Reset |
Weight | <500g |
Dimensions | 156*125*36*20mm |
Frequency Band | ||
CAT 6 | CAT12 | |
Version E. LTE-FDD: B1/B3/B5/B7/B8/B20/B28/B32(Optional) LTE-TDD: B38/B40/B41/B42(Optional) /B43(Optional) WCDMA: B1/B3/B5/B8 Verison A. LTE-FDD: B2/B4/B5/B7/B12/B13/B14B25/B26/B29/B30/B66/B71 LTE-TDD: B41/B48 Version LA. LTE-FDD: B2/B4/B5/B7/B8/B28/B66 LTE-TDD: B42(Optional) /B43(Optional) WCDMA: B2/B4/B5/B8 | CAT 12. 2x2 MIMO or 4*4 MIMO Data Rate (Max.) LTE-FDD. Max 600Mbps (DL), Max 150Mbps (UL) LTE-TDD. Max 430Mbps (DL), Max 90Mbps (UL) DC-HSPA+. Max 42Mbps (DL), Max 11.2Mbps (UL) WCDMA. Max 384Kbps (DL) , Max 384Kbps (UL) WiFi WLAN. IEEE 802.11a/b/g/n/ac , 2*2 MIMO WLAN. Built-in 2T2R | |
Indoor 4G LTE CPE application
Our Company
Our CompanyHead Weblink Corporation Founded in 2008, as the leading provider of 2G/3G/4G CPE/ LTE router, wireless M2M products and systems solutions, we have experienced technical teams and professional implementation of industry solutions. and independently developed 4G wireless router,4G CPE,4G DTU , traveling recorder, we are the professional industrial 3G/4G LTE router,3G/4G CPE,2G/3G/4G LTE modem manufacturer and 2G/3G/4G LTE wireless module distributor. Our products and solutions are widely used in finance, transportation, telecom, electricity, power meter, water conservancy and other industrial applications. Up to now, we have exported our products more than 70 countries and regions world widely.

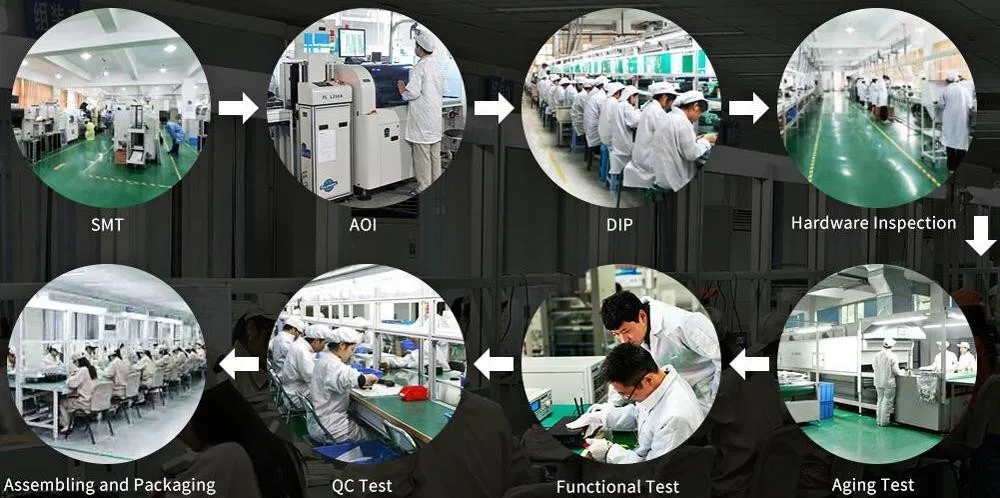

Production
Production
Our Service
Our Service
1. Reply your enquiry in 24 working hours.
2. Experienced staff answer all your quentions professionally
3. Customized design is available
4. Exclusive and unique solution can be provided by our professional engineers and staffs.
5. All the routers are inspected strictly by our QC department before delivery.
6. Provide after-sell service.
Related Products
Related Products

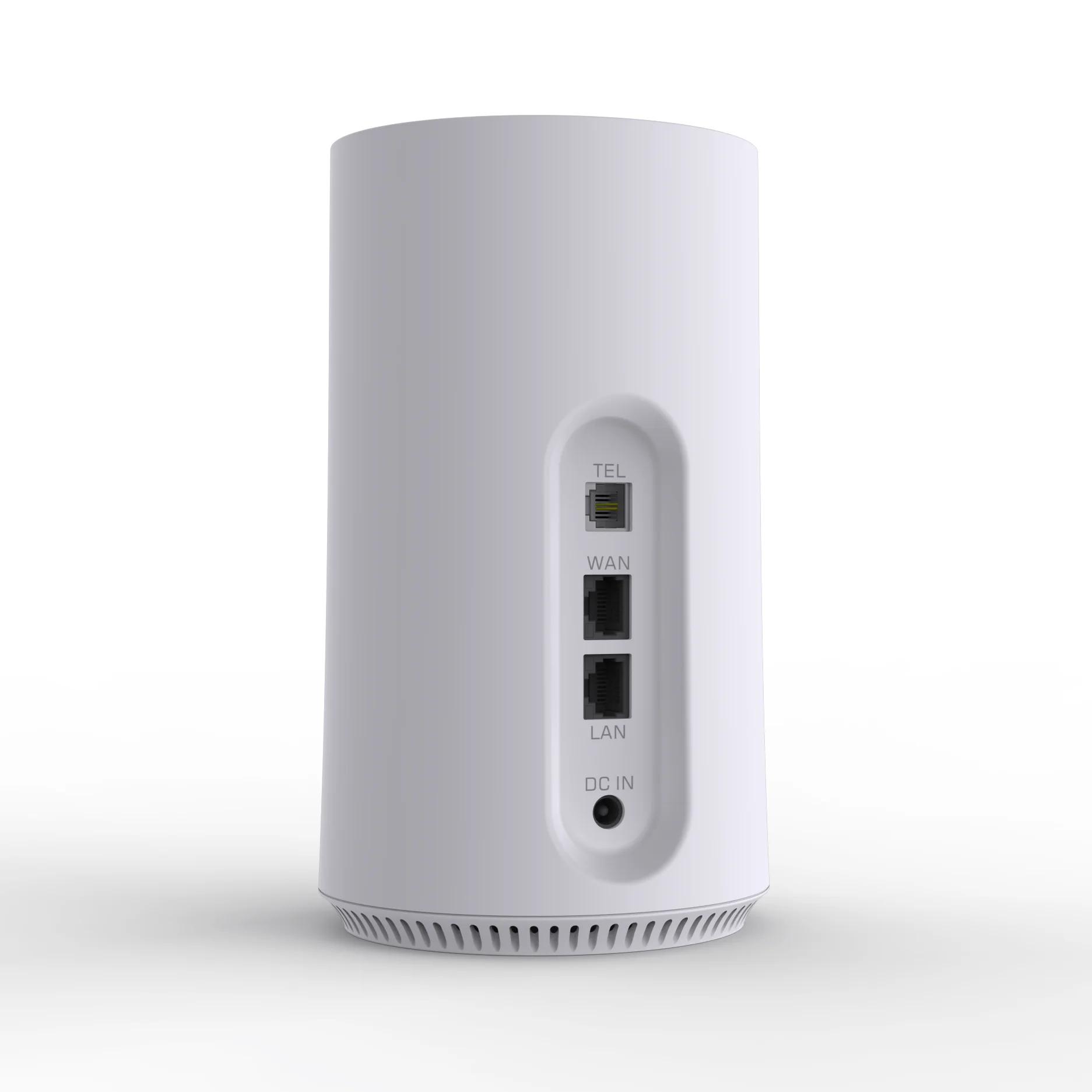

5G wireless router with WIFI6
4G industrial router sopport SD card storage and 2.4&5G dual frequency
4G wireless router with SIM card slot
FAQ
FAQ
1.Do you provide customer's Logo and package design?
Yes, we can provide customized logo and design if order quantity reach 1000pcs.
2.Do you accept PCBA orders only?
Of course, we can provide PCBA in a short time with good quality.
3.Do you provide firmware support?
Sure , unlike other companies which are buying solutions from design company, we have our own firmware development team to support you in 100%.
4.How does your factory do regarding quality control?
We promise to use all new material to produce. Production is strictly monitored, and 100% QC inspection is done before shipment.
