Cheap Device Price Wearable Sos Motion Sensor Receiver Accelerometer Proximity Bluetooth Marketing Beacon Card
- Category: >>>
- Supplier: HoneyComm IoT Technology (Shenzhen) Co. Ltd.
Share on (1600844322256):
Product Overview
Description
Bluetooth Low Energy Beacon Card Overview

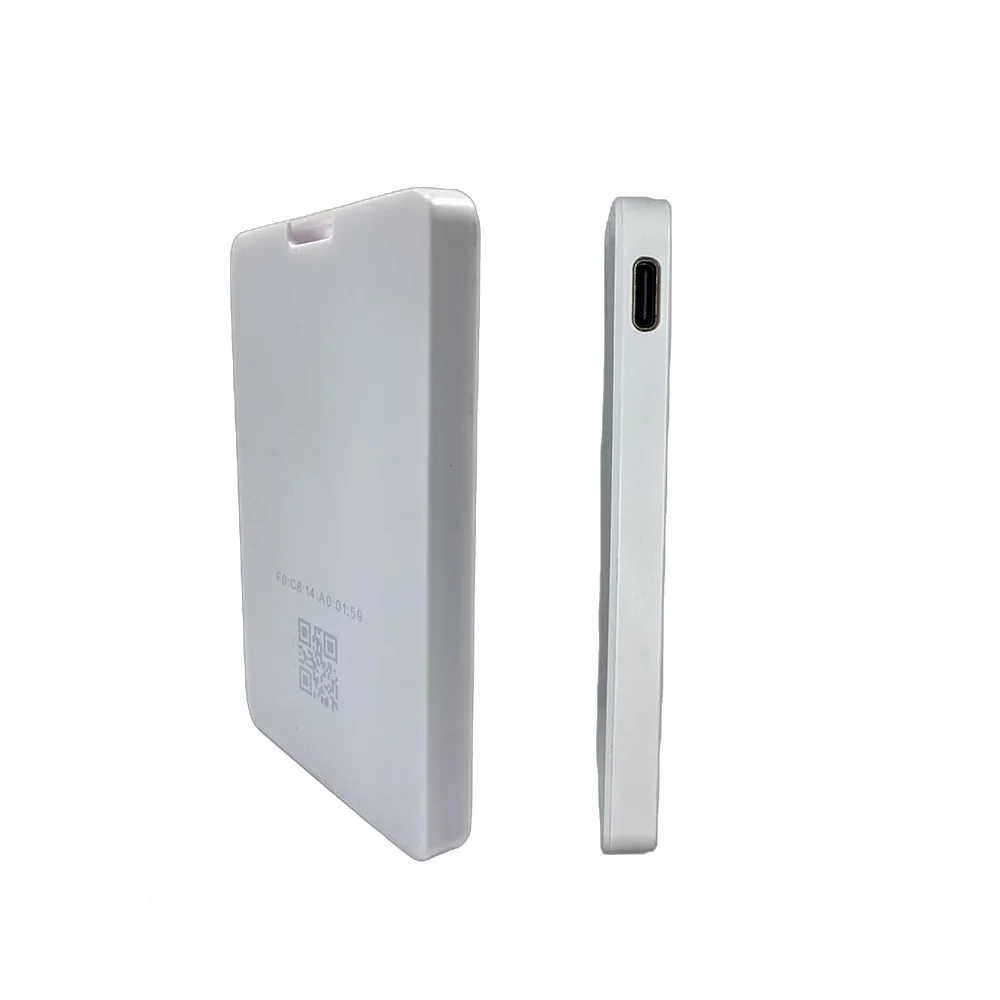

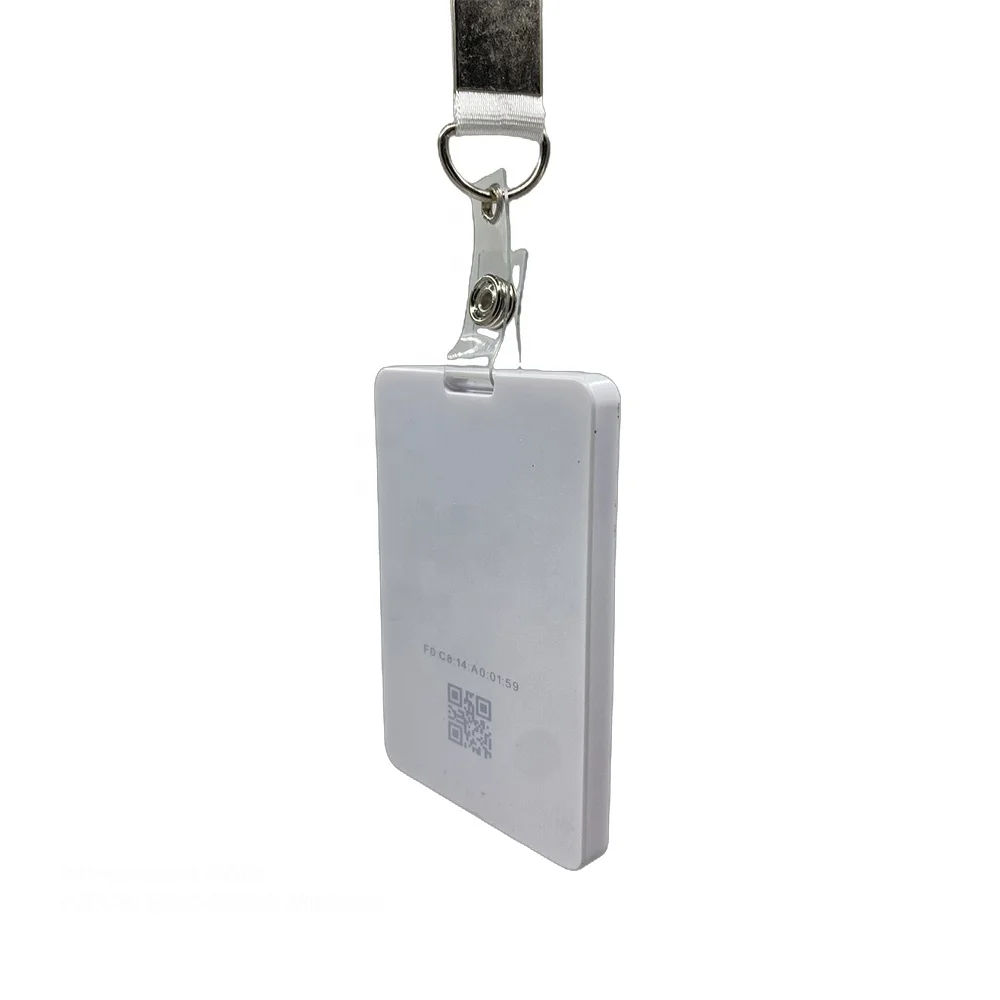

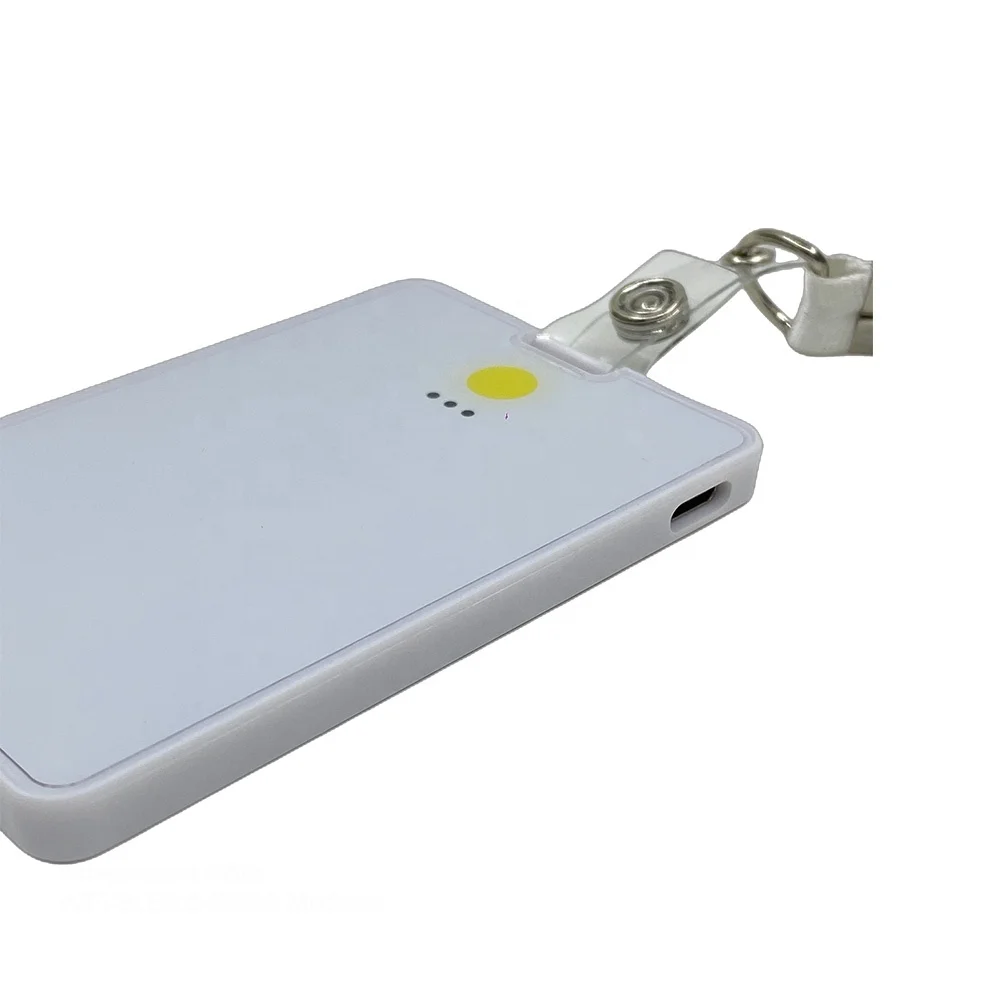

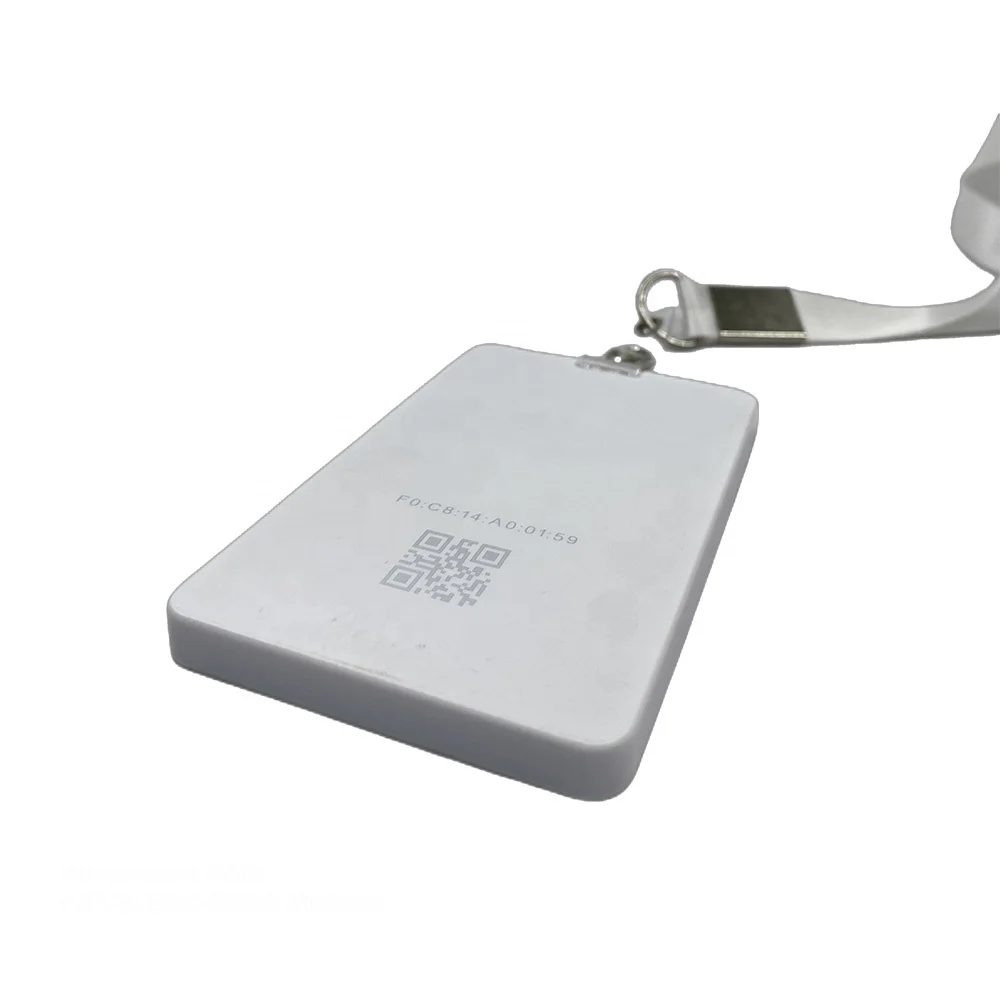

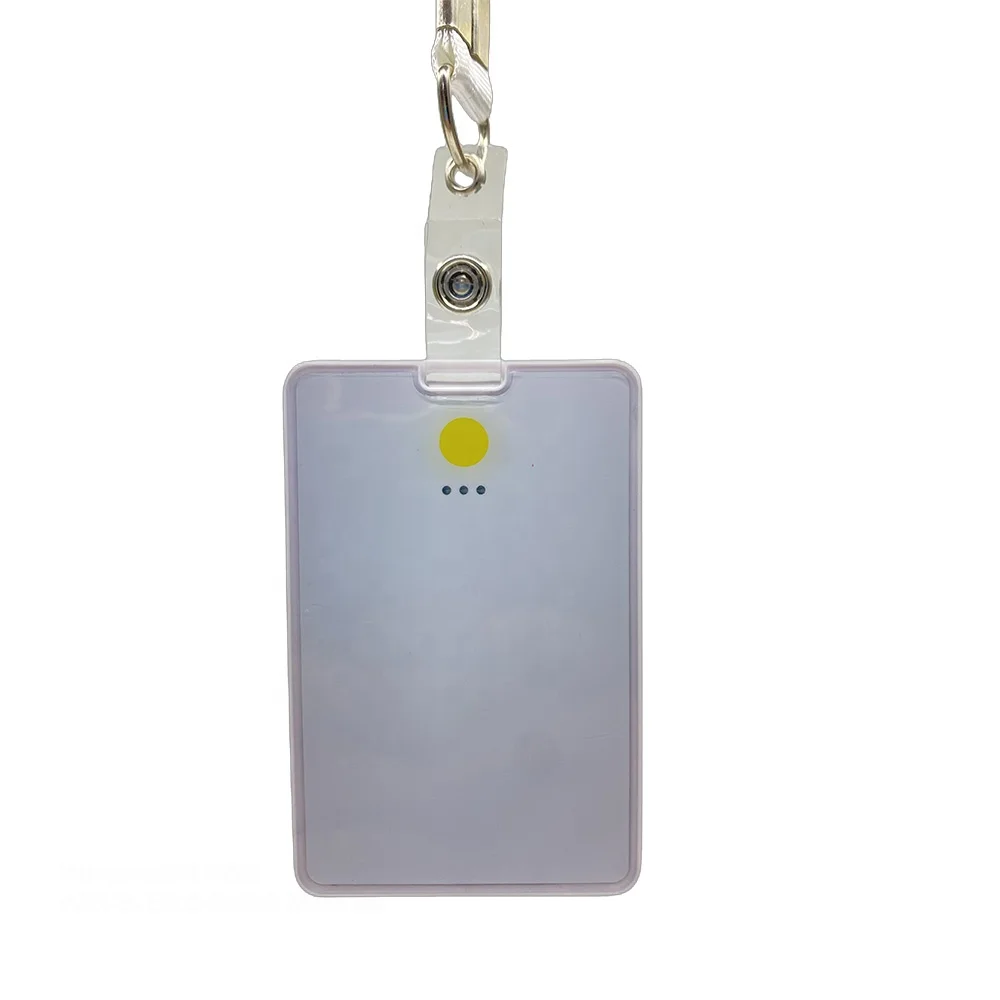

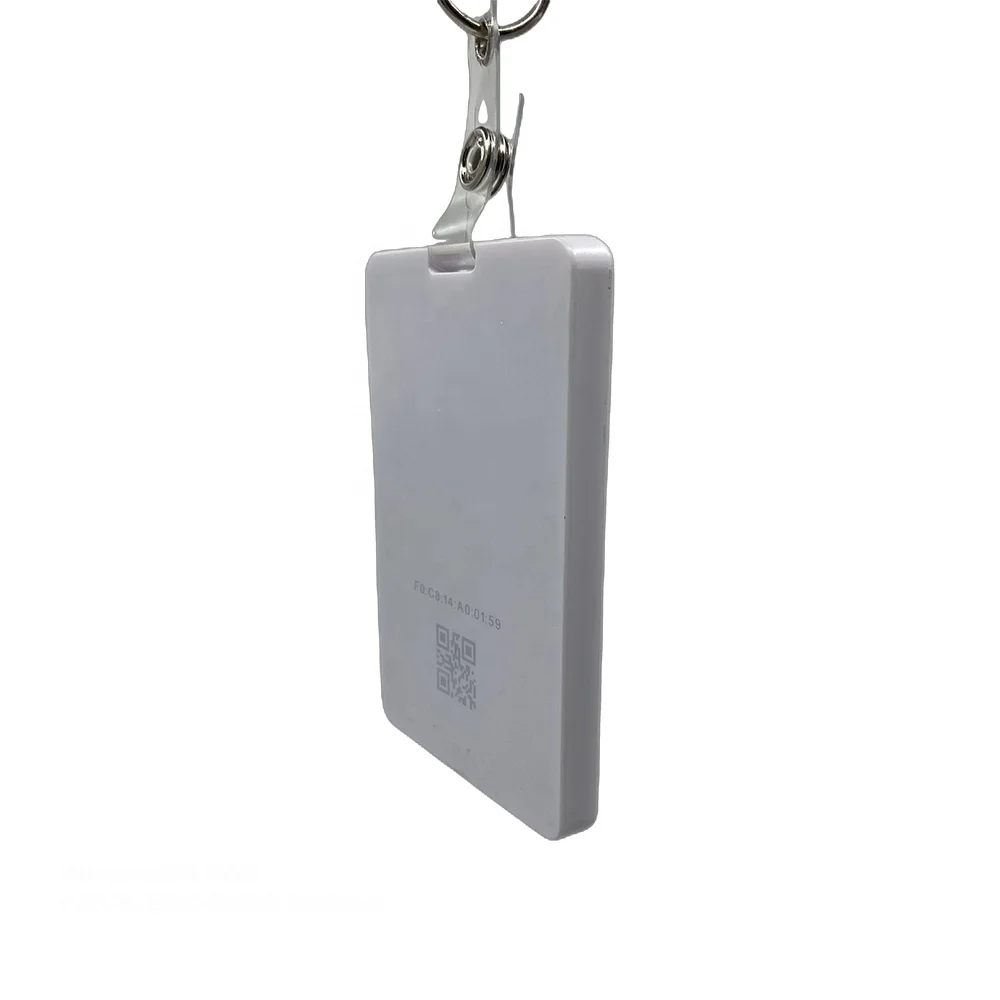

HCBB08 is a rechargeable card-type Bluetooth beacon independently developed by HoneyComm IoT. It is thin and light, mainly used in personnel management, indoor positioning, etc.
HCBB08 Built-in Nordic nRF 52 chip, can broadcast BLE iBeacon signal, or scan and broadcast BLE iBeacon signal, built-in acceleration sensor greatly increase the standby time. The touch-type emergency button is easy to use in any situation. If necessary, you can press the button to send the signal to the cloud platform to get help. HCBB08 broadcast distance can reach 100 meters.
HCBB08 Built-in Nordic nRF 52 chip, can broadcast BLE iBeacon signal, or scan and broadcast BLE iBeacon signal, built-in acceleration sensor greatly increase the standby time. The touch-type emergency button is easy to use in any situation. If necessary, you can press the button to send the signal to the cloud platform to get help. HCBB08 broadcast distance can reach 100 meters.
Features
▶Support for scanning + broadcasting
▶Support switch on/off (by touch button)
▶One key SoS button
▶Type-C interface for charging rechargeable battery
▶Integrate acceleration sensor
▶NFC card support (optional)
▶The broadcast distance can reach 100 meters
▶Low-voltage alarm
▶The Beacon parameters can be flexibly configured through the mobile phone APP
▶Support for the BLE4.2 protocol
▶Thin and light
▶Support for scanning + broadcasting
▶Support switch on/off (by touch button)
▶One key SoS button
▶Type-C interface for charging rechargeable battery
▶Integrate acceleration sensor
▶NFC card support (optional)
▶The broadcast distance can reach 100 meters
▶Low-voltage alarm
▶The Beacon parameters can be flexibly configured through the mobile phone APP
▶Support for the BLE4.2 protocol
▶Thin and light
ble beacon card
bluetooth beacon card
beacon card with pouch for badge card
Product characteristic | ||||
Model | HCBB08 | |||
Classification of waterproof | IP66 | |||
Case material | PC | |||
Shell color | White (by default) | |||
External size | 89*58*7mm | |||
Product weight | 42g (including the battery) | |||
Battery model | Rechargeable lithium battery (1500 mAh) | |||
Battery voltage | 3.6V | |||
Specification parameters | ||||
Bluetooth Protocol | BLE4.2 | |||
Work pattern | Broadcast or scan + broadcast | |||
Transmitting power | -40~ + 4dB, with a default value of 0dB | |||
Broadcast interval | 100ms~10s, with the default value of 1s | |||
Frequency | 2400-2483.5MHz | |||
Transmission distance | 100 Meters | |||
Safety | Support for password modification parameters, restart and non-connection mode, to prevent malicious connection | |||
Support system | IOS7.0 and above, Android 4.3 and above | |||
Electrical character | ||||
quiescent current | <=3uA | |||
peak current | <7mA | |||
average current | <30uA（0dB /500ms ） | |||
service time | Broadcast only (6 months), Scan + Broadcast (15 days) | |||
Other | ||||
service environment | Operating temperature: -15℃ ~ + 55℃ | |||
Storage temperature: -40℃ ~ + 85℃ | ||||
Working Humidity: 10%~90% Non-condensing | ||||
Storage Humidity: 5% to 90% Non-condensing | ||||
Key and LED function description
1. In the working state, the green LED flashes every 10 seconds.
2. Power on: In the shutdown state, long press the touch button for more than 3 seconds, the green LED light flashes for 3 times, and HCB08 power is on.
3. Shutdown: In the working state, quickly and short press the touch button for 3 times and then long press the button, when the red LED light is always on, leave the touch button, HCB08 shutdown.
4. SOS emergency call: in the working state, press the touch button for more than 2 seconds, the green LED light flashes continuously, the work card broadcasts the SOS signal, and the broadcast interval is adjusted to 200ms.
5. The blue LED light is on when charging the battery. The red LED light turns off means that the battery is charged full.
2. Power on: In the shutdown state, long press the touch button for more than 3 seconds, the green LED light flashes for 3 times, and HCB08 power is on.
3. Shutdown: In the working state, quickly and short press the touch button for 3 times and then long press the button, when the red LED light is always on, leave the touch button, HCB08 shutdown.
4. SOS emergency call: in the working state, press the touch button for more than 2 seconds, the green LED light flashes continuously, the work card broadcasts the SOS signal, and the broadcast interval is adjusted to 200ms.
5. The blue LED light is on when charging the battery. The red LED light turns off means that the battery is charged full.
