Low price multi plate vibrator feeder Z bucket conveyor for popcorn snacks feeding
- Category: >>>
- Supplier: Hangzhou Zon Packaging Machinery Co. Ltd.
Share on (1600844440476):
Product Overview
Description

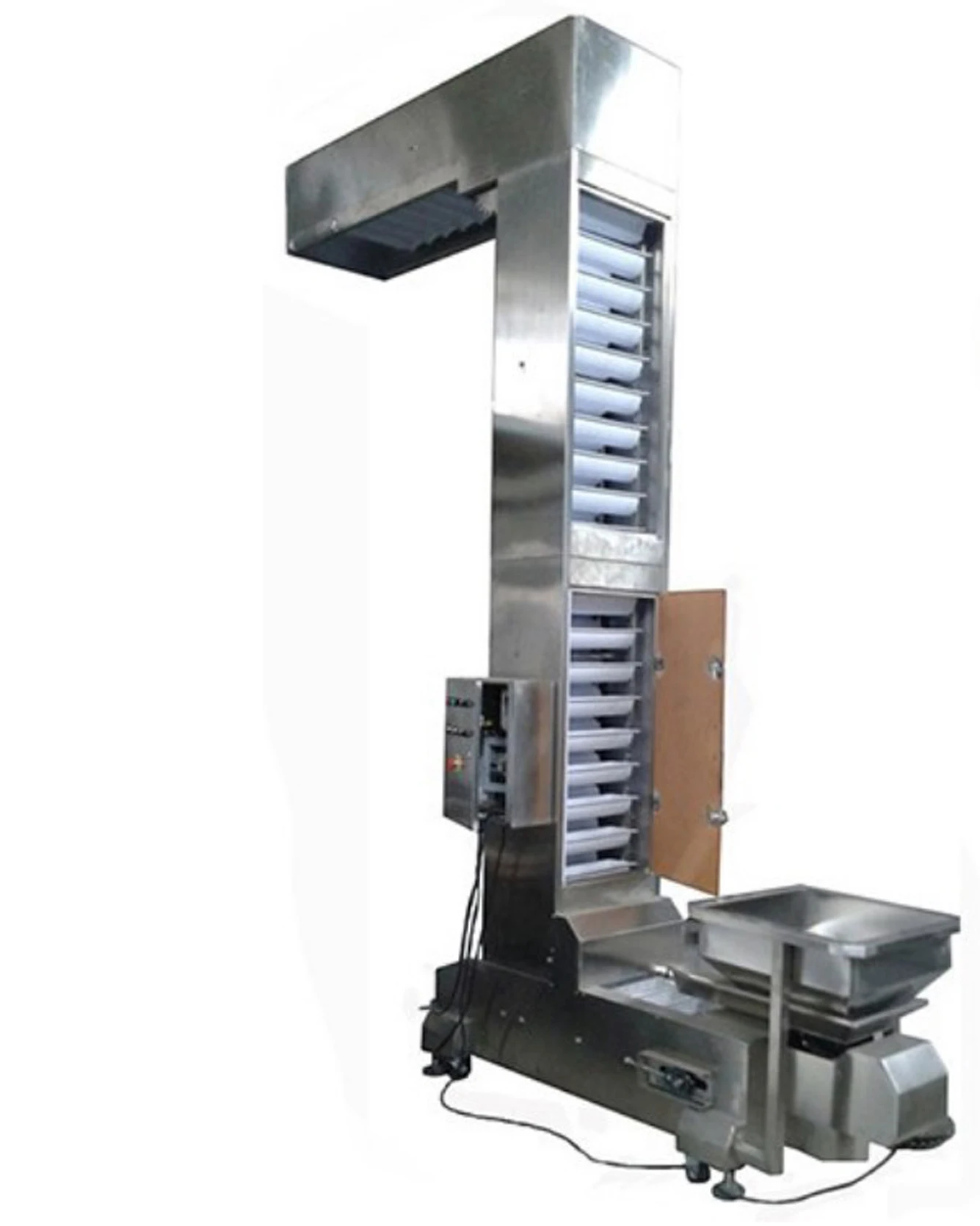

\t\t\t\t\t\t\t\t\tZ Conveyor \t\t\t\t\t\t\t
Model | ZH-CQ1 | ||||||
Convey Height | 1800-4500 mm | ||||||
Belt Width | 220-400 mm | ||||||
Bucket Material | White PP (Food grade) | ||||||
Vibrator Hopper Size | 650L×650W mm | ||||||
Power supply | 220V/50HZ or 60HZ Single Phase, 0.75KW | ||||||
Packing Dimension | 6000L×900W×1000H mm | ||||||
Gross Weight | 650kg | ||||||
Application
The conveyor is applicable for vertical lifting of granule material such as corn,jerry, snack, candy , nuts, plastic and chemical product, small hardware ,vegetable ,fruit and so on. For this machine, the bucket is driven by the chains to lift.
Product Introduction
Techinical Feature | 1.Speed is controlled by frequency converter , easy to control and more reliable. | ||||||
2.Easy to install and maintain | |||||||
Options | Belt or chain plate | ||||||
Stock Bin : 150L/200L/300L | |||||||
Machine Frame:304SS or Mildsteel Frame | |||||||

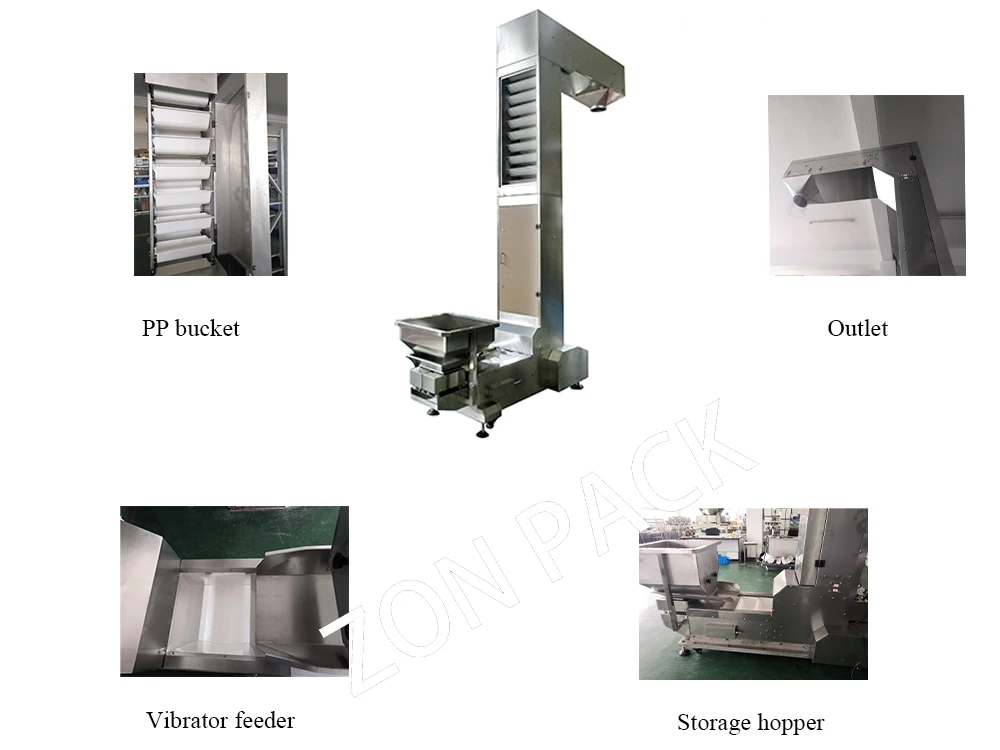

Main Parts
1.Big storage hopper
Our storage hopper and conveyor Height can be customize.
650*650mm storage hopper: 72L
800*800mm storage hopper: 112L
1200*1200mm storage hopper : 342L
2.Bucket hopper
Bucket hopper volume :0.8L,2L,4L,10L
Bucket hopper material: 304SS, Food grade plastics
Bucket can be removed, and it is convenient to clean
3.Motor and dischaerge port
Powder support:
220V/50HZ or 60HZ Single Phase, 0.75KW
4.Electric box
VFD control speed.
And easy to control.
Voltage: 380V/ 50HZ
About us
Exhibition case
FAQ
1.What is the transportation service?
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your
company. We will introduce your engineer how to install the weigher and how to fix problem.
2.How long is the warranty on our machines?
The maixmum warranty is 12 months.
3.What is the payment terms?
Our payment is T/T and L/C.
We will train your engineer to install our weigher. You can send your engineer to our factory or we dispatch our engineer to your
company. We will introduce your engineer how to install the weigher and how to fix problem.
2.How long is the warranty on our machines?
The maixmum warranty is 12 months.
3.What is the payment terms?
Our payment is T/T and L/C.
