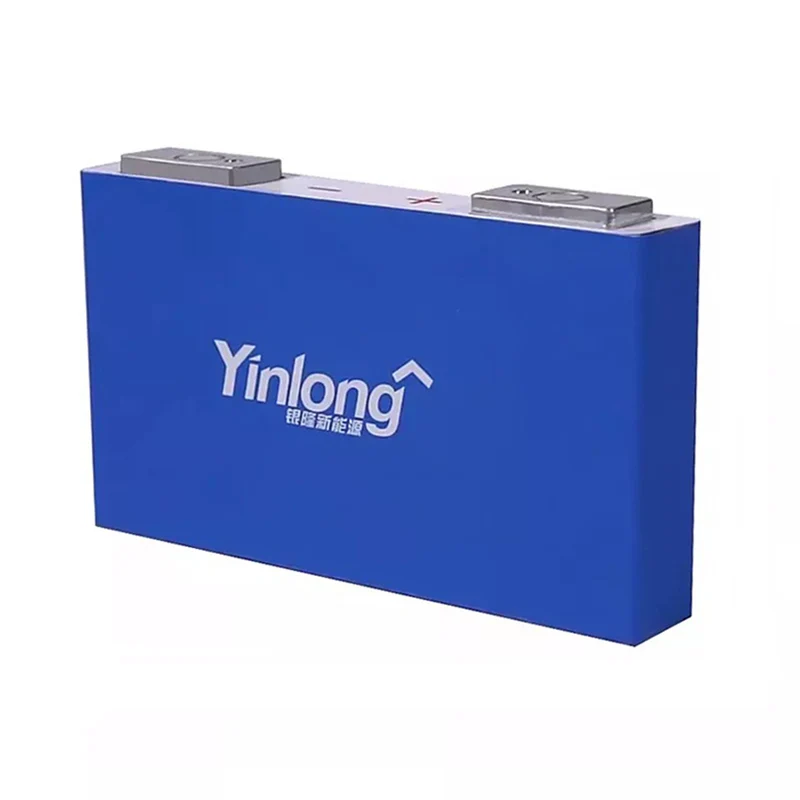

25000 Cycles Yinlong Square LTO Prismatic 10C 2.3V 30Ah 33Ah Lithium Titanate Oxide Battery Cells
- Category: >>>
- Supplier: Shenzhen Flyxure Technology Co. Ltd.
Share on (1600844463283):
Product Overview
Description
6 Minutes Fast Charging 2.3V 30Ah 33Ah Lithim Titanate Battery Cylindrical LTO Battery
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. As a new type rechargeable lithium battery,LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
LTO battery is named Lithium titanate battery(Li4Ti5O12), is a new generation lithium ion battery that used the LTO as cathode material instead of graphite, the anode can be LiCoO2, LiMn2O4, LiFePO4,and NiCoMn. As a new type rechargeable lithium battery,LTO battery has great performances of perfect high safety, high stability, super long cycle life, fast charging/discharging performance, and strong temperature tolerance.
Product Description
Advantages of LTO batteries:
1. Wide operating temperature between -50-65℃, can be widely used in most areas around the world.
2. Super high safety: The chemical reactivity between lithium Titanate Oxide and electrolyte is low, no SEI film formed to make sure the battery keeps stable and safe.
No smell come out even short circuit happens, can still keep working on conditions of testing like penetrating,overcharge to 5V & overdischarge to 0V,penetrating under water,drilling,cutting,buring.
3. Super fast charge & discharge in 6 mins, can deliver 10C discharge current continuously, give vehicles ultra high power on starting,speed up, climbing and Peak load regulation and low load regulation for energy storage power station.
4. Ultra long lifespan over 25000 times.
Item | Specification |
Normal Capacity | 30Ah,33Ah |
Normal Voltage | 2.3V |
Cell Weight | 1.01kg,1.237kg |

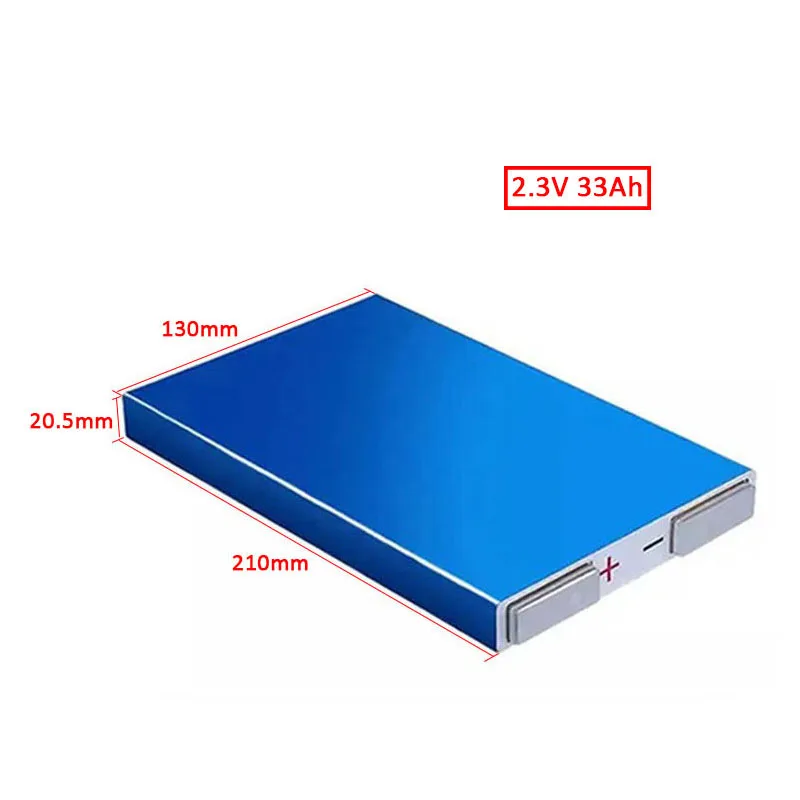

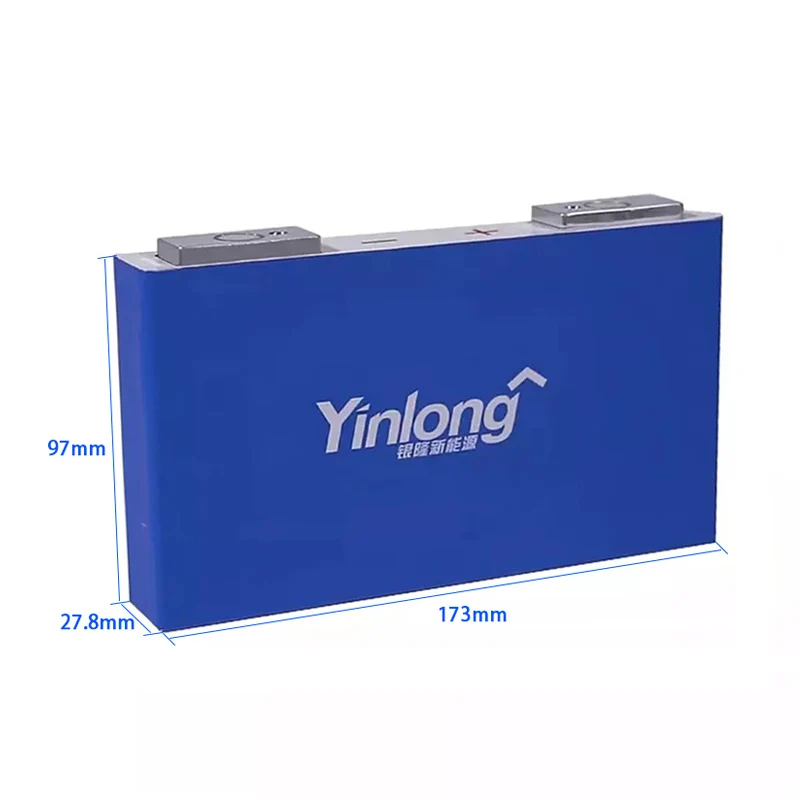

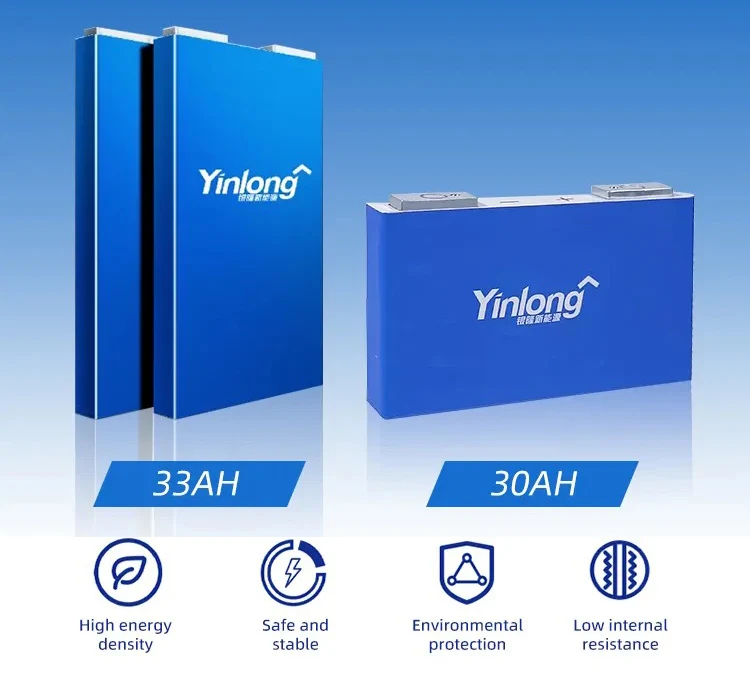

Cell Dimension | 173*97*28mm(30Ah) 210*130*20.5(33Ah) |
Operating Voltage | 1.5-2.9V |
Max Charging Current | 10C(300A) |
Max.conti.discharging Current | 10C(300A) |
Pulse charge/discharge | 20C(600A, 10s) |
Energy | 60Wh~75Wh |
Calendar life | 25 years |
Internal resistance | ≤0.43mΩ |
Operation temperature | -50~+65℃ |
Cycle life | 25000 times, 80% DOD |
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Excellent low temperature discharge characteristics.
Zero strain property, no formation of SEI film nor lithium.
plating when charging at low temperature or fast charging.
Long life time.
Fast charge capability and wide temperature range.
Among the safest types of Li-ion batteries.
Zero strain property, no formation of SEI film nor lithium.
plating when charging at low temperature or fast charging.
Long life time.
Fast charge capability and wide temperature range.
Among the safest types of Li-ion batteries.
Detailed images
Applications
Lithium batteries are widely used in many power fields:
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
1. Electric vehicles, e-scooters, ebikes, Rickshaws, Motorcycles,Racing cars, Tricycles.
2. Electric cars, Electric boats, Marines, Electric forklifts, Go karts, Golf karts.
3. Solar street lights, Solar or wind energy storage, Home energy storage, RV, UPS, Motorhome.
4. Power tools, electric vacuum sweeper, beauty or medical equipment.
We have A few types of LTO cells available with stable supply,those has become our hot-selling items.
They are:
1.Cylindrical ones----LTO 2.3V 30Ah,35Ah,40Ah,45Ah

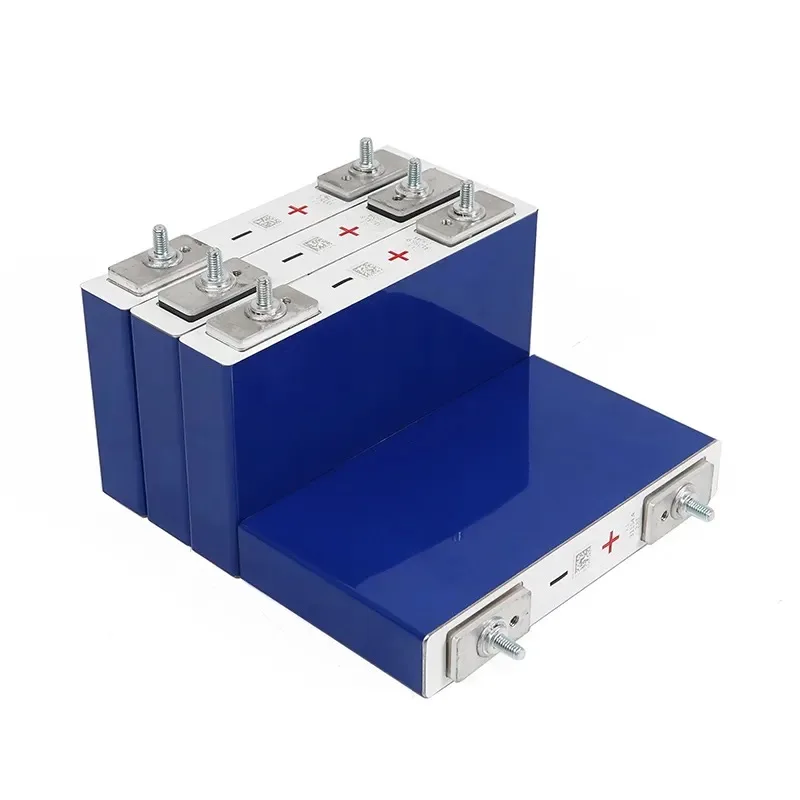

2.Prismatic ones-----LTO 2.3V 10Ah,20Ah from Toshiba Scib brand, LTO 30Ah,33Ah from Yinlong brand.
3.LTO pouch cells----LTO 2.3V 10Ah(LG brand,Microvast) and JEVE 70Ah
Please See some of it as below.
For more efficient contact, please email me at jason.lai@flyxure.com.
WhatsApp: +86 18617103102
They are:
1.Cylindrical ones----LTO 2.3V 30Ah,35Ah,40Ah,45Ah
2.Prismatic ones-----LTO 2.3V 10Ah,20Ah from Toshiba Scib brand, LTO 30Ah,33Ah from Yinlong brand.
3.LTO pouch cells----LTO 2.3V 10Ah(LG brand,Microvast) and JEVE 70Ah
Please See some of it as below.
For more efficient contact, please email me at jason.lai@flyxure.com.
WhatsApp: +86 18617103102
Why Choose Us
[1]. 5 years+Professionalism in lithium battery fields, multiple solutions offered from experienced sales and engineers team.
[2]. Various & stable availability of high quality items with low MOQ for retailers and wholesalers.
[3]. More upcoming new arrivals and promotions to save your costs.
[4]. Fast delivery and instant 24/7 online response, considerate after-sale services.

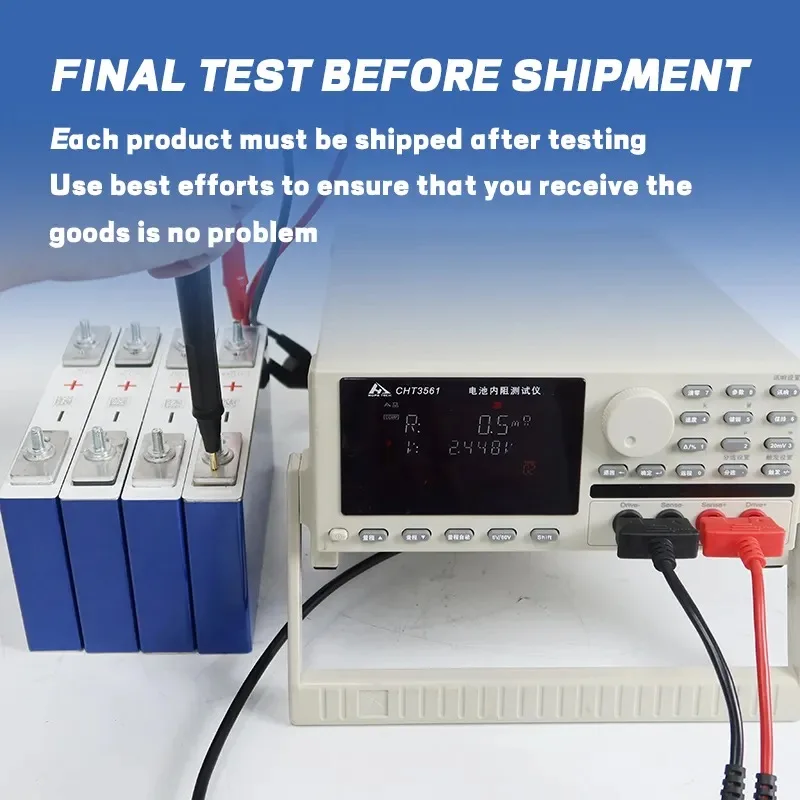

[5]. All-around product test pre-shipping, strict and excellent packing controls.
[2]. Various & stable availability of high quality items with low MOQ for retailers and wholesalers.
[3]. More upcoming new arrivals and promotions to save your costs.
[4]. Fast delivery and instant 24/7 online response, considerate after-sale services.
[5]. All-around product test pre-shipping, strict and excellent packing controls.
We are honored to be one part of your business, your trusted supplier.
Packing&Shipping

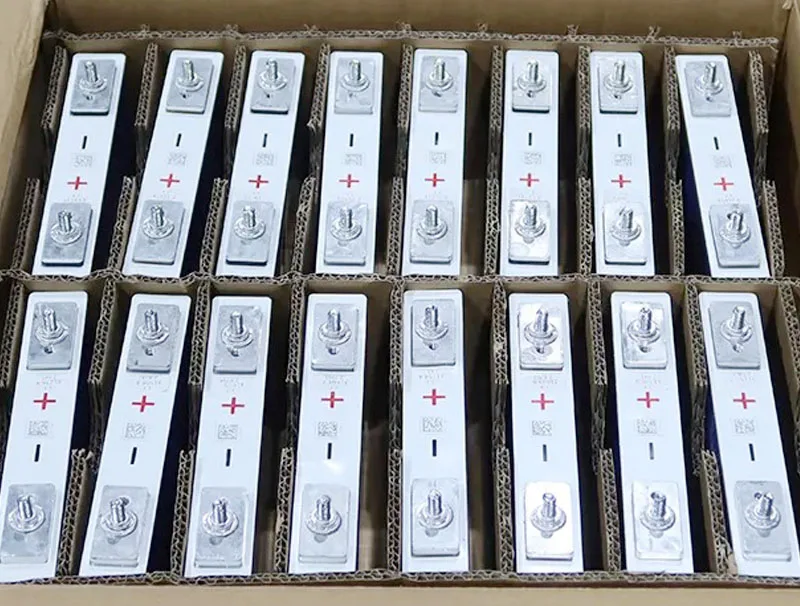

PACKING
Custom 5-layers hard carton boxes or the best quality UN box,wooden box packing(if required).
Each package<25kg.
Custom 5-layers hard carton boxes or the best quality UN box,wooden box packing(if required).
Each package<25kg.
SHIPPING
1.To USA/Canada/Australia: sea+ups/fedex combined (DDP & Tax free)
Unavailable: Military and PO box address,Puerto Rico,Virgin Islands,Guam
Addtional freight is needed and customs duties is not included for Hawaii.
ETD: 4~6 days
ETA: 30-45 days since Vessel voyage begins
2. To EU: railway + ups/dpd combined (DDP & Tax free)
ETD: 4~6 days
ETA: 30-45 days since train begins
For remote areas or islands: shipping availability is unsure, contact us before your buying.
3. To Taiwan,Vietnam,Thailand,Cambodia, Singapore, Malaysia, Philippines,
Indonesia : special line
ETD: 4~6 days
ETA: 10-20 days since dispatch begins
Note:
The tracking status can be updated after customs clearance finished and picked up by
local express, please wait patiently or contact us for help.
Other countries which is not stated above, please check shipping fee with us before order.
