57mm 24V 125w high power bldc motor, original manufacture bldc motor
- Category: >>>
- Supplier: Dongguan ICAN Technology Co. Ltd.
Share on (1600844560038):
Product Overview
Description
24V 125w high power bldc motor, original manufacture 57mm 70w 100w bldc motor
Product Description
Quick Details
| Voltage: DC24V Flange Size: 57mm Output power : 62~188W range of speed regulation: ≤1500rpm/≤3500rpm Adaptive Driver:BLD120A,BLD300B |

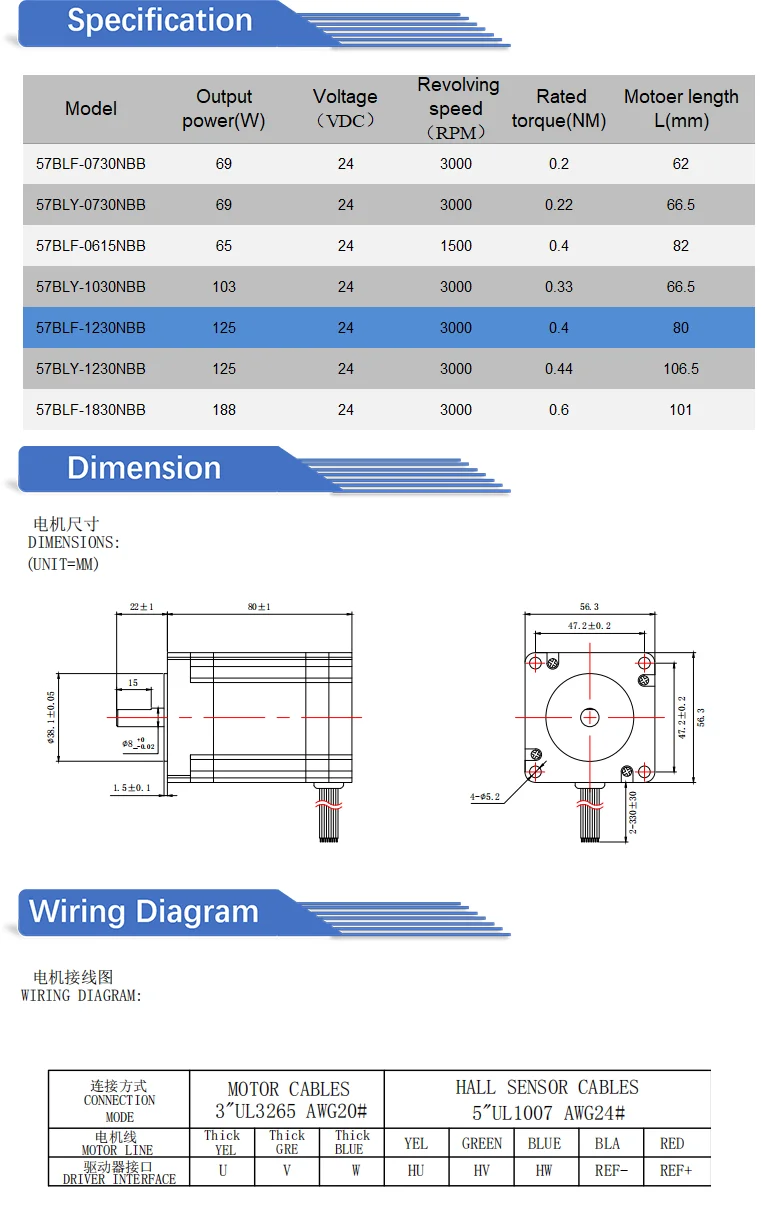

Parameter specification
| Model No | Voltage (V) | Output power(W) | Rated Revolving Speed (rpm) | Rated Torque (Nm) | Length L(mm) | axial length LA(mm) | Shaft Diameter LB(mm) |
| 57BLF-0615NBB | 24 | 62 | 1500 | 0.4 | 80 | 21 | 8 |
| 57BLF-0630NBB | 24 | 65 | 3000 | 0.2 | 62 | 21 | 8 |
| 57BLF-1230NBB | 24 | 125 | 3000 | 0.4 | 80 | 22 | 8 |
| 57BLF-1830NBB | 24 | 188 | 3000 | 0.6 | 101 | 22 | 8 |
Company Information
Original factory: YES
Year Established: 2009
Total Employees: 80-100People
Manufacturing Equipment: Ultra-precision CNC universal grinder (Sweden), CNC (Germany), DMG lathe and milling, etc.
Detection Capacity:
Motor: Full detection one by one; Motor driver aging time: 8H
Certifications
All our motors and motor drivers passed CE Certifications. ISO9001:2008 is also passed.
