Product Overview
Description
Highlight HPC168 Vehicle 3D Passenger Counting Camera Electronic Automatic Passenger Counter System for Buses
Summary
HPC168 visual passenger flow counter is widely applied in buses, coaches, metros and other public transportation tool passenger automatic counter application field. It possesses high-performance communication media processor with Hisilicon video purpose hardware acceleration engine. Adopted with main development dual-camera depth algorithm model, it conducts dynamic detection on cross-section, height and movement trajectory of the passenger target, and in turn, obtains comparatively high-precision real-time passenger flow data, providing RS45 or RS485 interface to conduct data interaction and sharing with third-party equipment, which is very convenient for data depth development.
HPC168 counter depth camera can be adjusted from 0-180 degrees, to meet all passenger car environment installation requirements. The built-in wiring method enables perfect integration of HPC168 counter and passenger car environment.
HPC168 counter adopts integrated design which combines depth camera and calculation main control board, so as to minimize interference factors on camera image information to the lowest level, and possibly to the uttermost decrease construction wiring difficulty level. The one-button debugging mode can quickly complete environmental parameters collection required by HPC168 counter, with no assistance from other equipment terminals.
HPC168 counter provides rich data interface:
1. RJ45 network interface
Via RJ45 interface and HPC168 counter connection, client tool program views or sets working status and operates parameters. At the same time, HPC168 counter submits passenger flow data to the designated server in real time through RJ45 network interface.
2. Composite video output interface
Can be connected with vehicle-mounted display to visually display passenger counting results. Can also be connected with vehicle-mounted video recorder to save the passengers dynamic video of getting-on and getting-off in real time.
3. RS485 interface or RS232 interface
Provides one-way RS485 or RS232 for third-party equipment to conduct data calls, customizes baud rate and communication ID code.
4. Vehicle door switch signal
Can receive 8-36V voltage range vehicle door switch signal input. HPC168 counter stops counting once vehicle door is closed, and automatically starts counting when vehicle door is opened.
| 485 | 232 |
Network interface | √ | √ |
Video interface | √ | √ |
Vehicle door switch | √ | √ |
Communication interface | RS485 | RS232 |
Main Functions of HPC168 Bus Passenger Counter
- Built-in image anti-shake algorithm, strong environment adaptability;
- Algorithm correction function, adaptive lens angle, focus information, allowing a certain angle tilt with the horizontal direction;
- Counting accuracy is not affected by passenger body form, clothing color, hair color, hat and scarf, etc.
- Counting accuracy is not affected by passengers passing side by side, crossing passing, and blocking traffic;
- Height limit can be set on target, passenger baggage error can be filtered;
- With the status of the bus door switch as the trigger condition, it starts counting when door is opened, captures real time statistical data, and stops counting when door is closed;
- Possess strong scalability and portability, can be installed according to the number of vehicle doors;
- Unaffected by the season and weather, unaffected by figure shadows or shades, unaffected by external light, automatically activates infrared fill-in light at night to have the same recognition accuracy;
- Easy to install, support 180°installation, strong environment adaptability.
Specification
Benefits of deploying bus passenger counting system:
• Comparing and verifying fare collection figures with passenger counts
• Validating passenger counts to justify payments due to transportation companies
• Scheduling maintenance and cleaning based on vehicle usage
• Optimizing vehicle load across regions, time periods, or other factors
• Monitoring service quality
Product Advantages
Our HPC168 3D bus passenger counter uses the latest generation of chips, with high calculation accuracy, fast calculation speed, and small error. Moreover, HPC168 integrates all the hardware in one device, including the processor and 3D camera. So it has the following advantages:
1. All in 1 system, very easy installation, plug and play. Other companies still use the camera and external processor, and many cables between them are needed.
2. Fast calculation speed. For the bus with multiple doors, because each door has a processer, the calculation speed is 2-3 times faster than the passenger counters from other companies. Besides, we use the latest chip, so the speed will be much better than that of our peers.
3. Low cost. For 1-door bus, only 1pc HPC168 sensor is enough, this cost is much lower than "camera + external processor" from other companies.
4. Light weight, save more shipping cost. Our shell is made of ABS material, and the processor is also integrated, so the weight is very light, only a fraction of the weight of other passenger counters in the market, which greatly saves air freight cost, especially for the remote countries. Other companies generally use metal shell for both camera and external processor, the total weight is very heavy, which leads to the inconvenient installation and very expenside air freight cost.

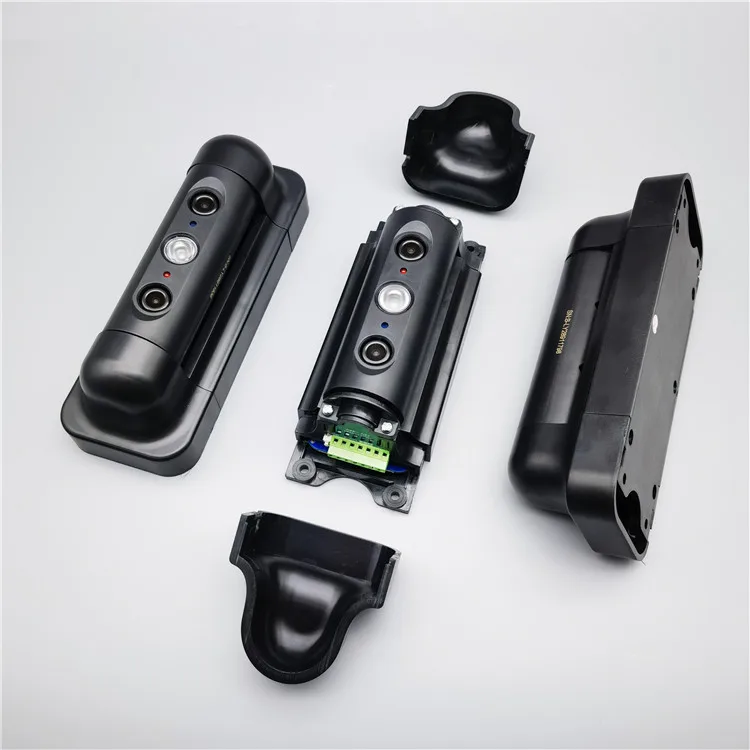

5. Our counter shell uses an integrated design, the mounting bracket and the camera are perfectly combined, supports 180-degree rotation installation, and uses high-strength ABS to meet the vibration environment.
6. The arc shape avoids damage to passengers from collision, and the wiring is hidden, which is beautiful and durable, while greatly saving labor.
Product Show

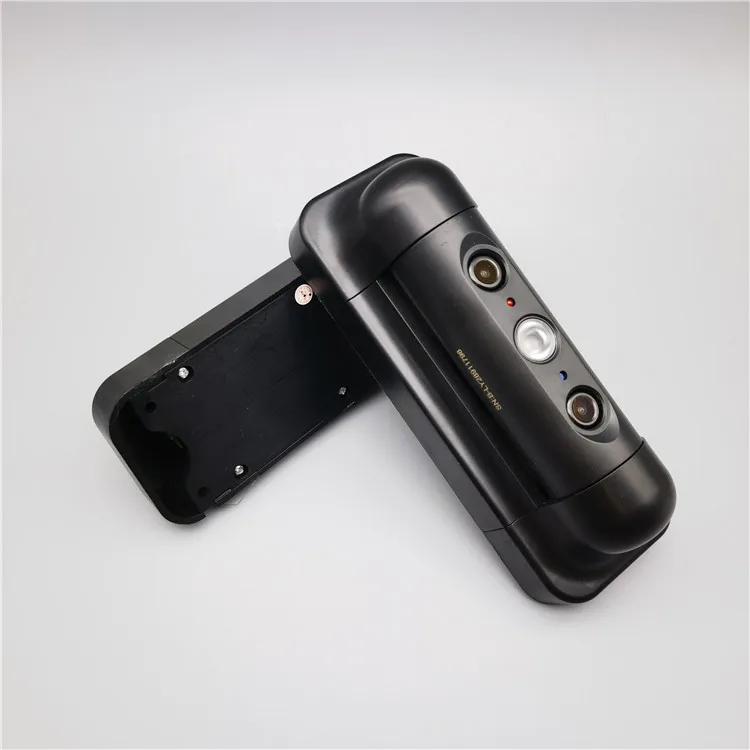

HPC168 Binocular Camera Bus Passenger Counter
Dimensions:
Installation Size:
Ports Introduction
Product Introduction
Basic Device
1. Sensor (HPC168)
Processor and camera are integrated all-in-one. Mounted on the ceiling of the door, counts people get in or out of the bus.
1 piece sensor per door, so 1 piece sensor for 1-door bus, 2 pieces sensors for 2-door bus.

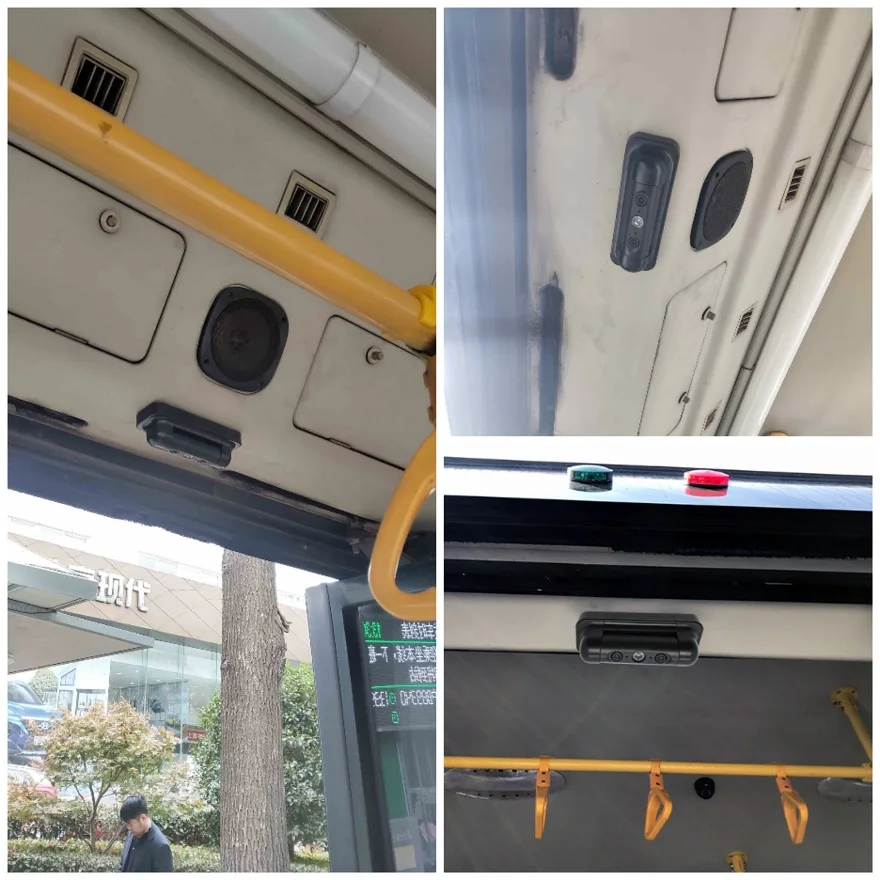

Bus Installation Example
Simple configuration software to debug the device
Optional Solutions
1. SD card storage
1 piece HPC168-SD per bus.
Data is only stored in the SD card, data can be pulled out from SD card to computer for checking directly.
This solution suit for no wifi and no GPRS in the bus.
Related Products
Highlight also designs people counting solutions for retail chain stores. Highly introduce two popular models as follows:
More people counting systems in Highlight
Full range of EAS retail solution products with high quality, competitive price and fast delivery
Certification
Quality is our life. We follow the CE/ISO strickly to guarantee the quality.
Company Information
ABOUT HIGHLIGHT
Highlight is a professional EAS/ ESL/ People Counting Systems/ DVR supplier and exporter with over 20 years experience in China.
There is a full range of EAS products: 40 kinds EAS systems, 107 tags, 18 labels, 44 safers, 25 detachers, 20 pins, 13 deactivators, 9 lanyards, 10+ people counting systems, ESL, vehicle DVR and so on. You can find whatever you want here.
We develop new products every months and accept the OEM and ODM.
Welcome to join us, we will show you a professional and excellent partner.
