Share on (1600844613162):


Price:$0.11 - $0.13

Quantity:


Product Overview

Description











Type of battery cell
single crystal
Number of battery cells
144pcs (6*24)
Component dimensions
2279mm×1134×35mm
weight
About 28.5kg

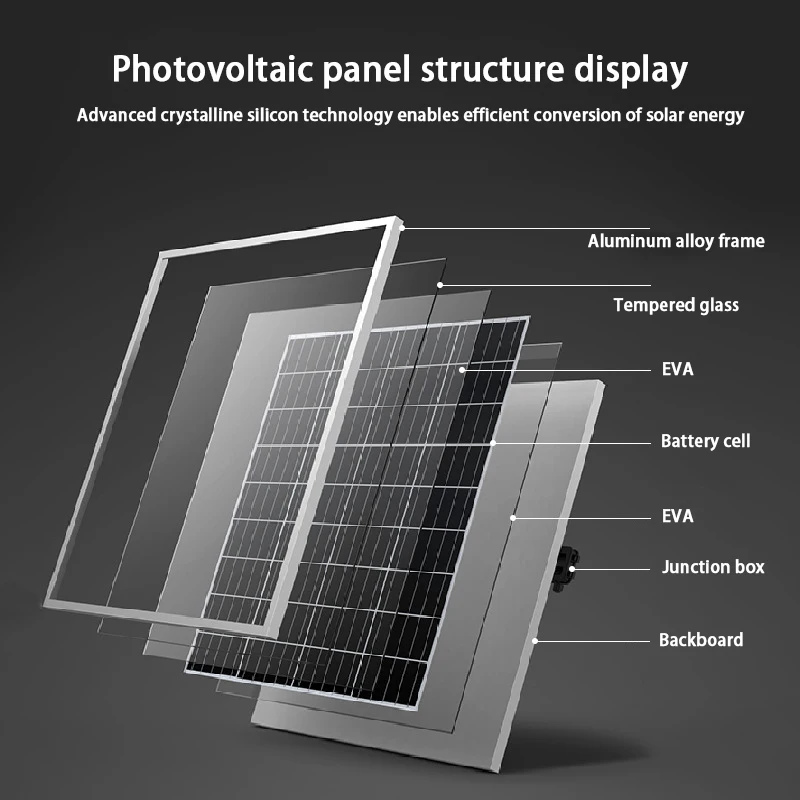

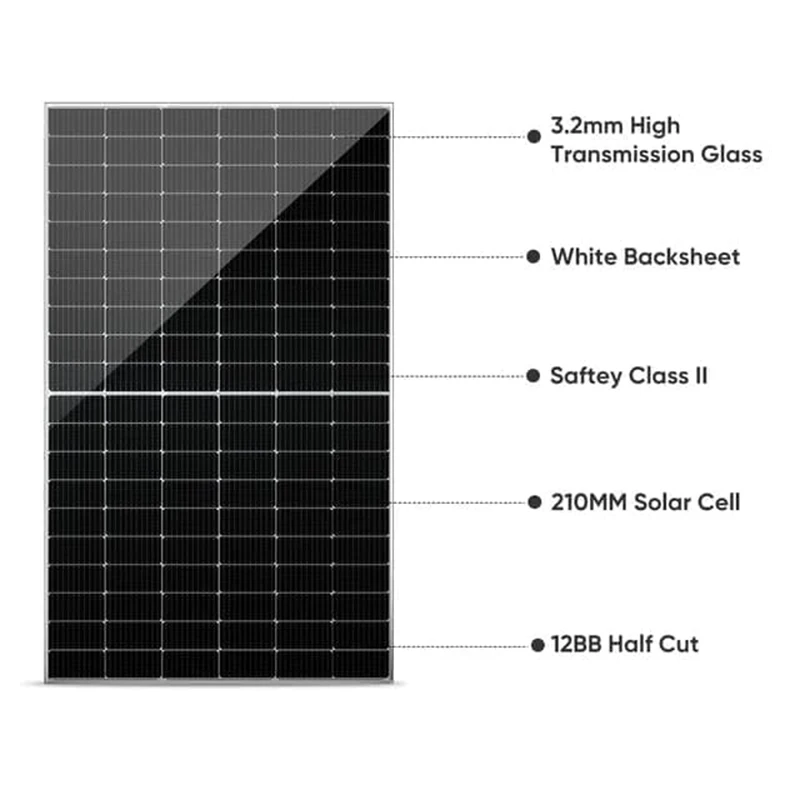

structure
3.2 High permeability coated tempered glass+EVA adhesive film+white backing plate

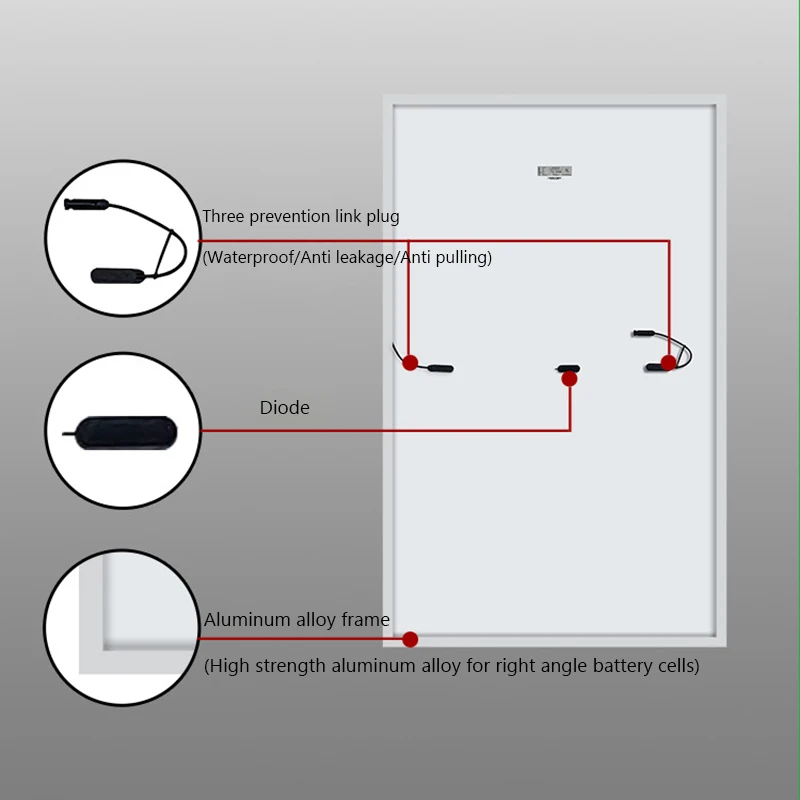

frame
Anodized aluminum alloy
Junction box
Triple body, protection level IP68
Cable
4.0mm², (+) 300mm/(-) 400mm (customizable)
Connector
Original MC4/Compatible MC4
Mechanical load
Front 5400Pa/back 2400Pa (static pressure bearing)



Component model
HSP-520W
HSP-525W
HSP-530W
HSP-535W
HSP-540W
HSP-545W
HSP-550W
Maximum power PMAX/W
520
525
530
535
540
545
550
Open circuit voltage VOC/V
48.75
48.95
49.15
49.35
49.55
49.75
49.95
Short circuit current ISC/A
13.59
13.67
13.74
13.82
13.89
13.97
14.05
Maximum working voltage PMP/V
40.93
41.1
41.27
41.45
41.62
41.8
41.97
Maximum working current IMP/A
12.71
12.78
12.85
12.91
12.98
13.05
13.11
Component efficiency
20.10%
20.30%
20.50%
20.70%
20.90%
21.10%
21.30%
 STC: irradiance 1000W/m ²、 Air mass AM1.5, battery temperature 25 ° C

Power tolerance
0 to+5W
working temperature
-40~+85°C
Maximum system voltage
DC 1500V






Rated operating temperature
45士2°C






Fire rating
GLASS C






Maximum protection current
25A






Open circuit voltage temperature coefficient
 -0.276%/K






Short circuit current temperature coefficient
 +0.046%/K






Maximum power temperature coefficient
 -0.350%/K
