Big Productivity Factory Supply Wire Stripping Machine For Sale Copper Cable Stripper Scrap Electric Wire Stripping Machinery
- Category: Waste Treatment Machinery >>>
- Supplier: Zhengzhou Yatai Energy Environmental Protection Technology Co. Ltd.
Share on (1600844632536):
Product Overview
Description
Product Description

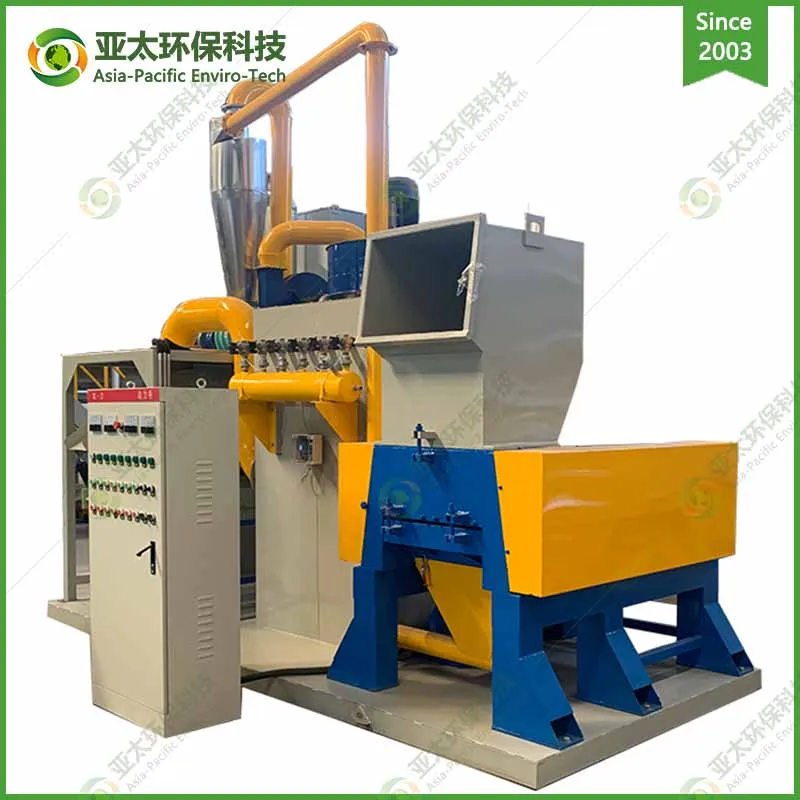

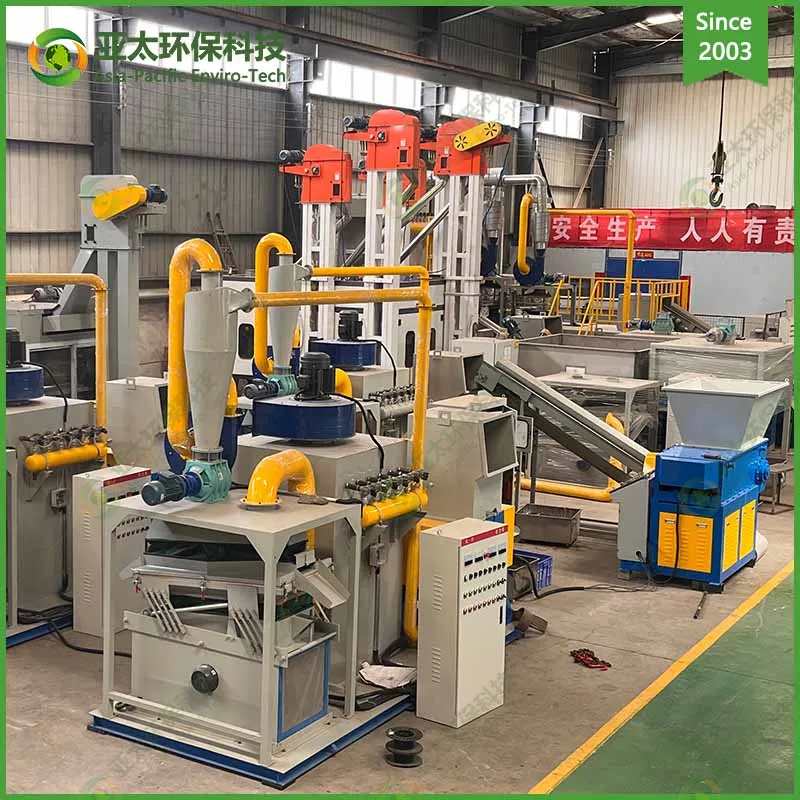

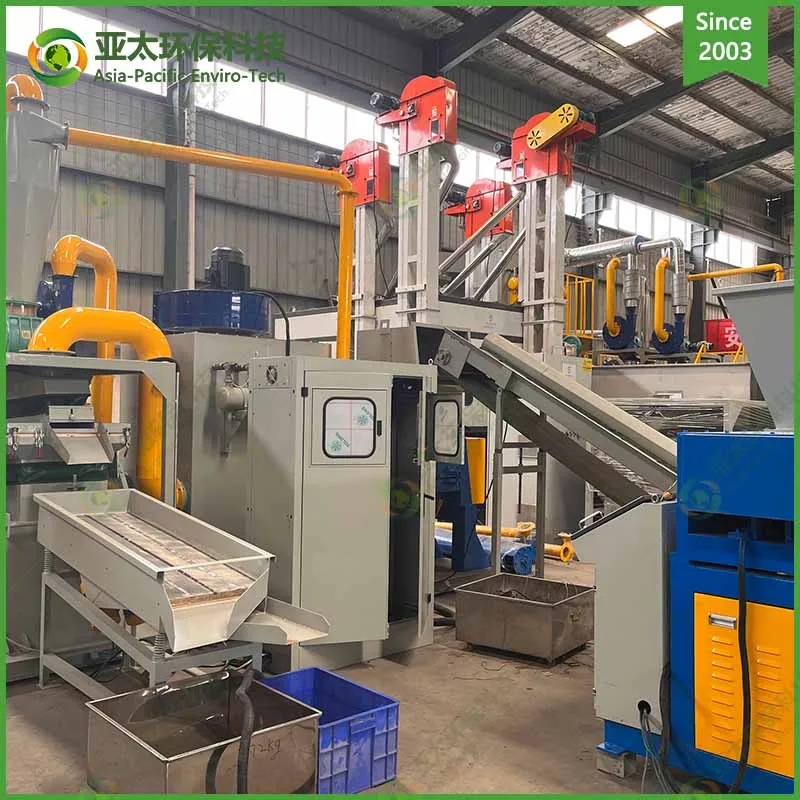

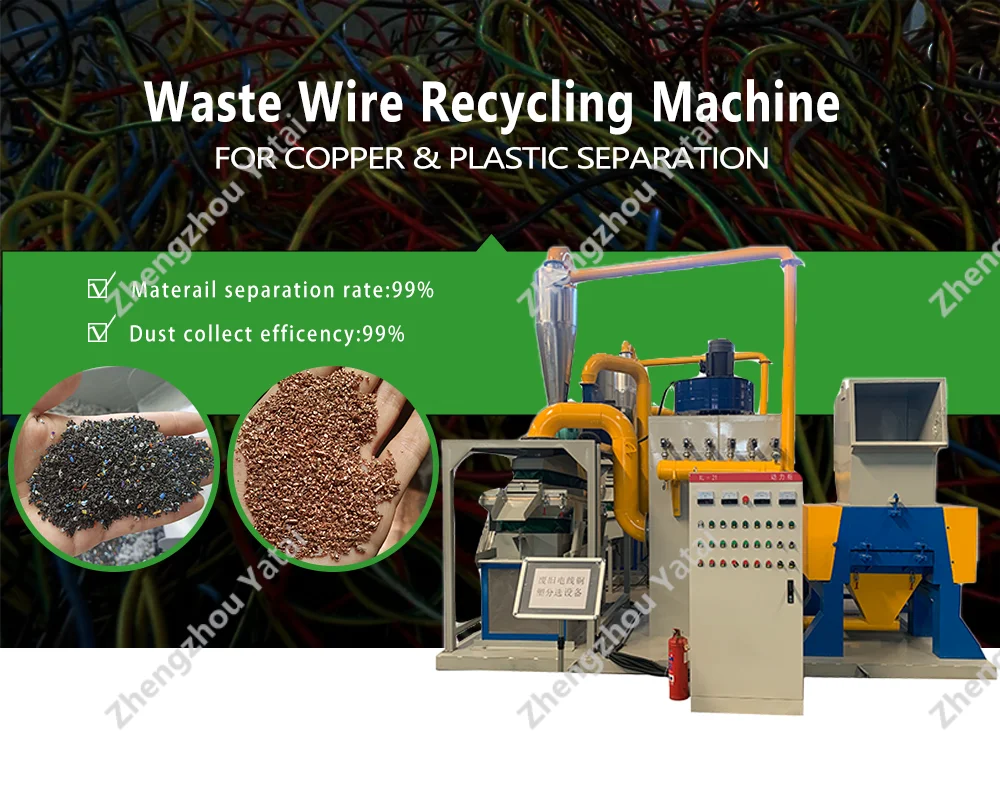

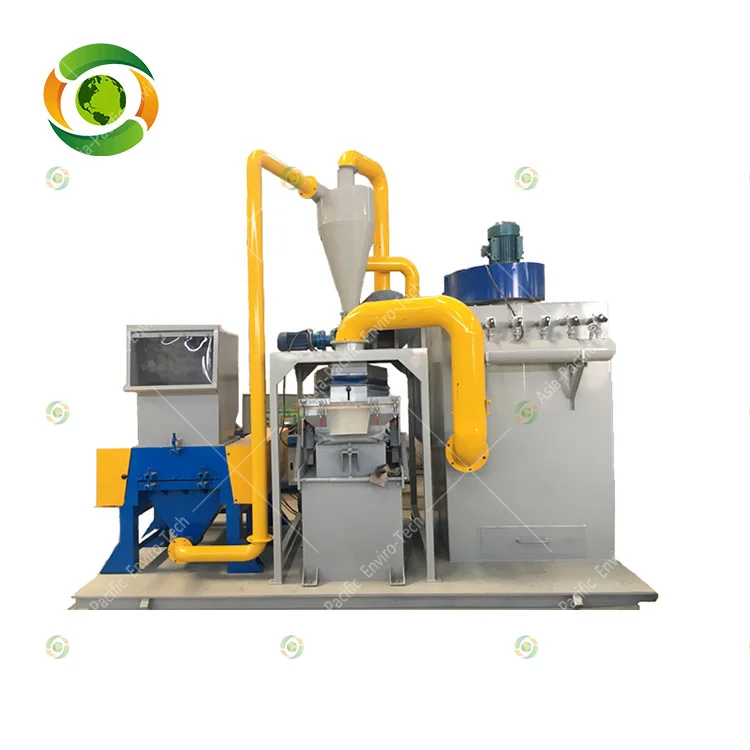

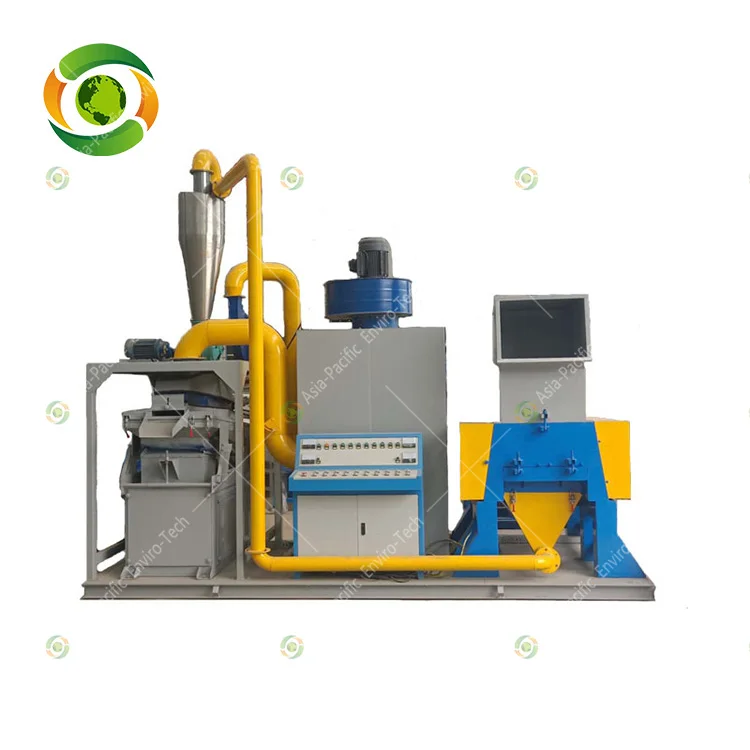

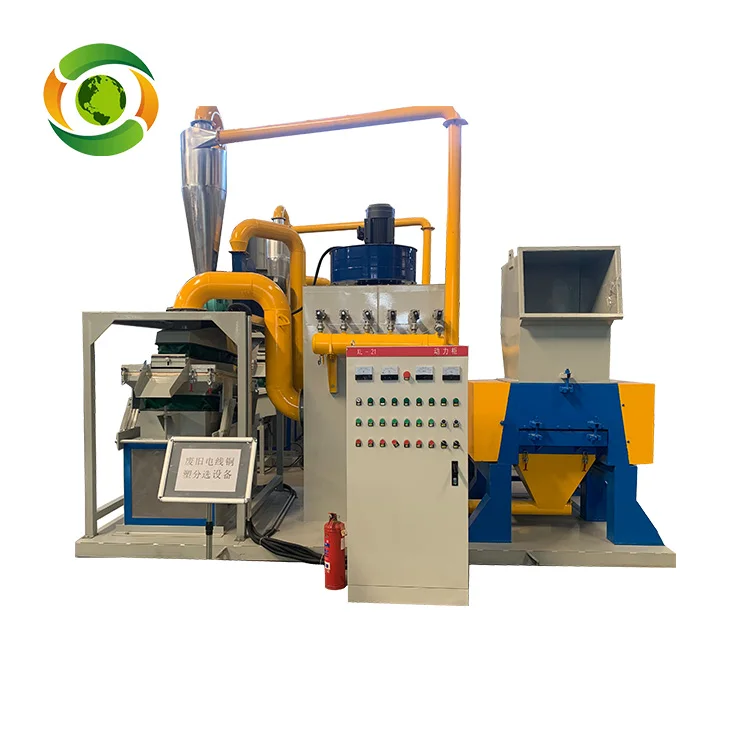

Copper Cable Wire Recycling Machine
It is a production line for recycling waste copper wires and cables to obtain copper particles and plastic particles. It is mainly used to recycle various waste cables, separate raw materials into fine copper meters and PVC, and apply to wire diameters ranging from 0.3 mm to 20 mm, such as automobile wires, car bottom wires, motorcycle wires, computer wires and communication wires, etc.
Process waste wire and cable into copper and plastic pellets. Copper and plastic are separated, and the separation efficiency can reach 99%. Copper pellets can be sold directly or further refined. Copper can be refined into cathode copper with a purity of over 99.99%. Plastic particles are generally PVC or rubber materials, and can also be sold directly.
Raw Material
Raw Material: automobile wires, car bottom wires, motorcycle wires, computer wires and communication wires, etc.

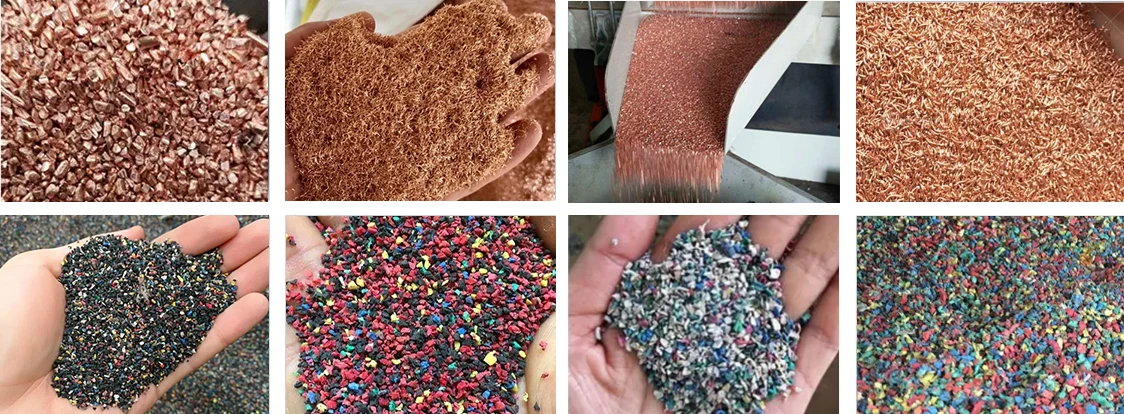

Final Product

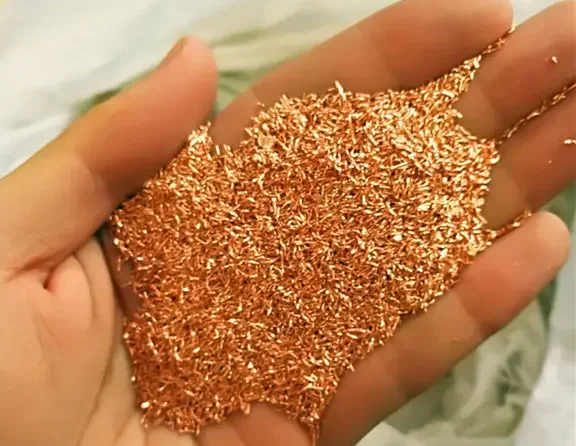

Final Products: Copper Powder And Plastic Powder
Work Flow

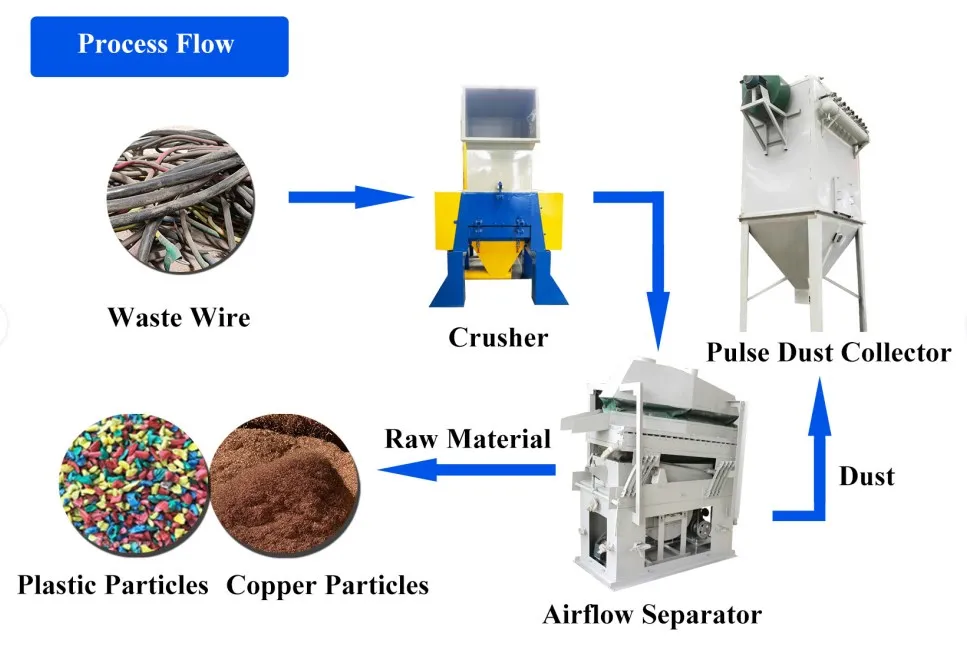

First, a shredder is used to shred the material, which is about 3cm long, and then the material is further shredded by a knife pulverizer to peel off plastic and copper. The pulverized materials enter the high-precision airflow sorting machine through the wind conveying system for sorting to obtain plastic and copper. The unsorted plastics enter the electrostatic sorting machine for secondary sorting to ensure the reuse rate of copper. At the same time, pulse dust collection equipment is used to effectively control dust overflow, and the dust removal efficiency is as high as 99% to ensure that there is no dust pollution in the production process.
Product Paramenters
Model | Capacity(KG/H) | Power(kw) | Size(mm) | Weight(KG) |
YT-TMJ-200 | 100-200 | 30 | 2400*1800*2800 | 2390 |
YT-TMJ-500 | 300-500 | 53 | 6000*6000*4600 | 4790 |
YT-TMJ-1000 | 800-1000 | 154 | 20000*12000*4600 | 12000 |
Our Advantages
1. Compact structure, beautiful appearance, reasonable layout and convenient installation.
2. Using PLC control, the equipment is uniformly fed, intelligent operation, automatic alarm function, easy to operate, and the equipment runs stably.
3. The shredder adopts a high-hardness main shaft, which makes the shredder more impactful when carrying objects. The tearing type is adopted, which is composed of a micro cutter head and a cylindrical cutter shank, which greatly reduces the investment of wearing parts.
4. The grinding machine, sorting equipment and dust collecting equipment are combined with a platform, which makes the equipment easy to move and transport, and increases the flexibility of the equipment.
5. The rotor of the grinding machine adopts alternate cutter shafts, which makes the grinding machine have higher production efficiency, lower noise and more stable operation.
6. This equipment adopts the combination of airflow sorting equipment and high-voltage electrostatic equipment, so that the sorting rate can reach more than 99%.
7. The bag dust collection equipment effectively controls dust overflow, and the dust removal efficiency is as high as 99%, which meets the requirements of the national Hamburg "Comprehensive Emission Standard of Air Pollutants" GB16297-1996, without secondary pollution.
8. The blade and screen of the wearing parts are made of special wear-resistant and high-toughness alloy material, which improves the service life and reduces the production cost.
9.The recycling system re-shreds the raw material to ensure the complete separation of copper and plastic.
7. The bag dust collection equipment effectively controls dust overflow, and the dust removal efficiency is as high as 99%, which meets the requirements of the national Hamburg "Comprehensive Emission Standard of Air Pollutants" GB16297-1996, without secondary pollution.
8. The blade and screen of the wearing parts are made of special wear-resistant and high-toughness alloy material, which improves the service life and reduces the production cost.
9.The recycling system re-shreds the raw material to ensure the complete separation of copper and plastic.
Packing & Delivery
Company Profile
Zhengzhou Asia-Pacific Enviro-Tech Profile
Service is what we know. Providing innovative recycling technology products and solutions is what we strive for. Backed by over 20 years of experience of R&D, manufacturing, marketing and distributing premium E-waste dismantling, crushing and sorting, comprehensive extraction of precious metals, waste aluminum and plastic sorting, waste solar pv panel recycling, waste lithium battery recycling and other new environmental protection equipment worldwide, we’re committed to providing a range of high quality, innovative, cost-effective products and solutions.
As a leading manufacturer, we design and customize various solutions for many foreign trade enterprises and do OEM for them. With more than 10 years of experience in OEM for foreign trade enterprises, cost-effective and high-reliability products supplied by us are exported to more than 30 countries and regions, which enjoys good reputation.
