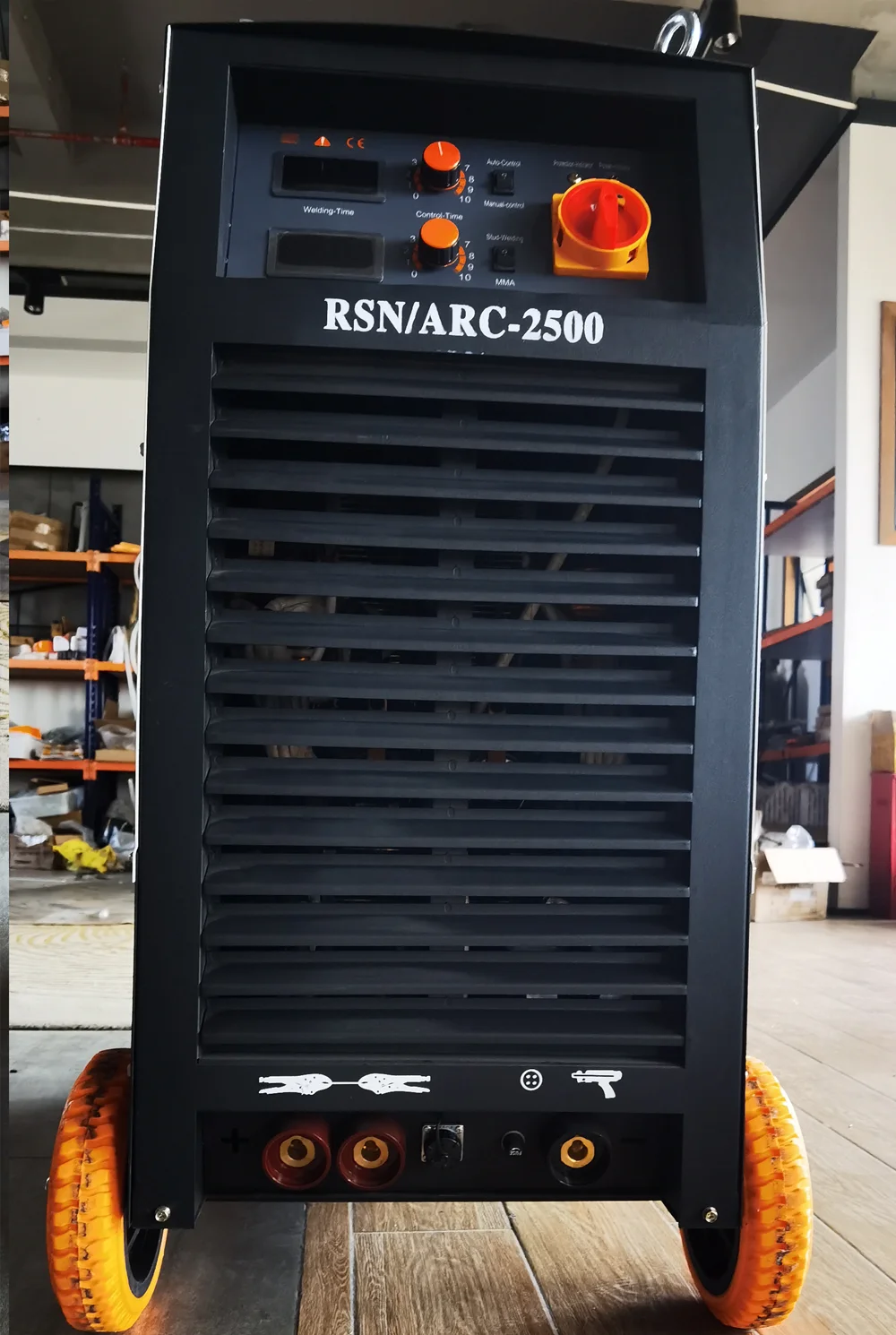

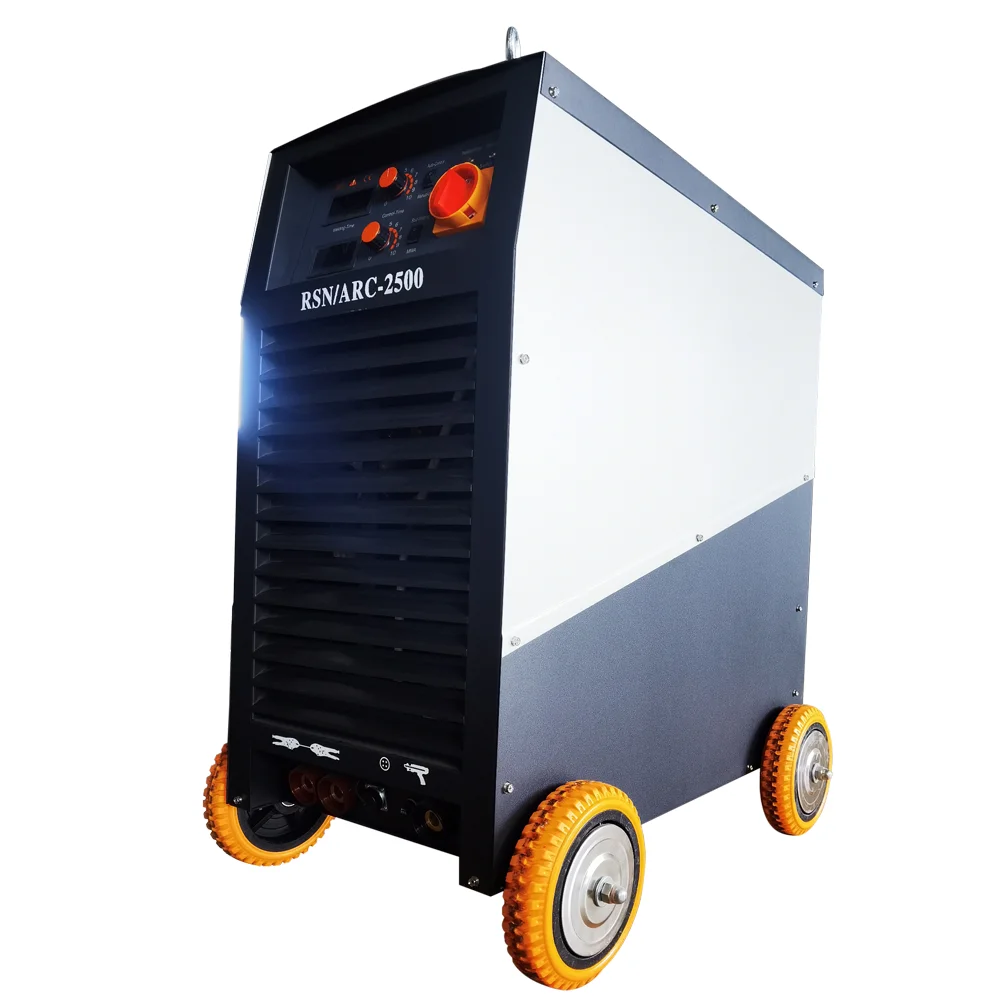

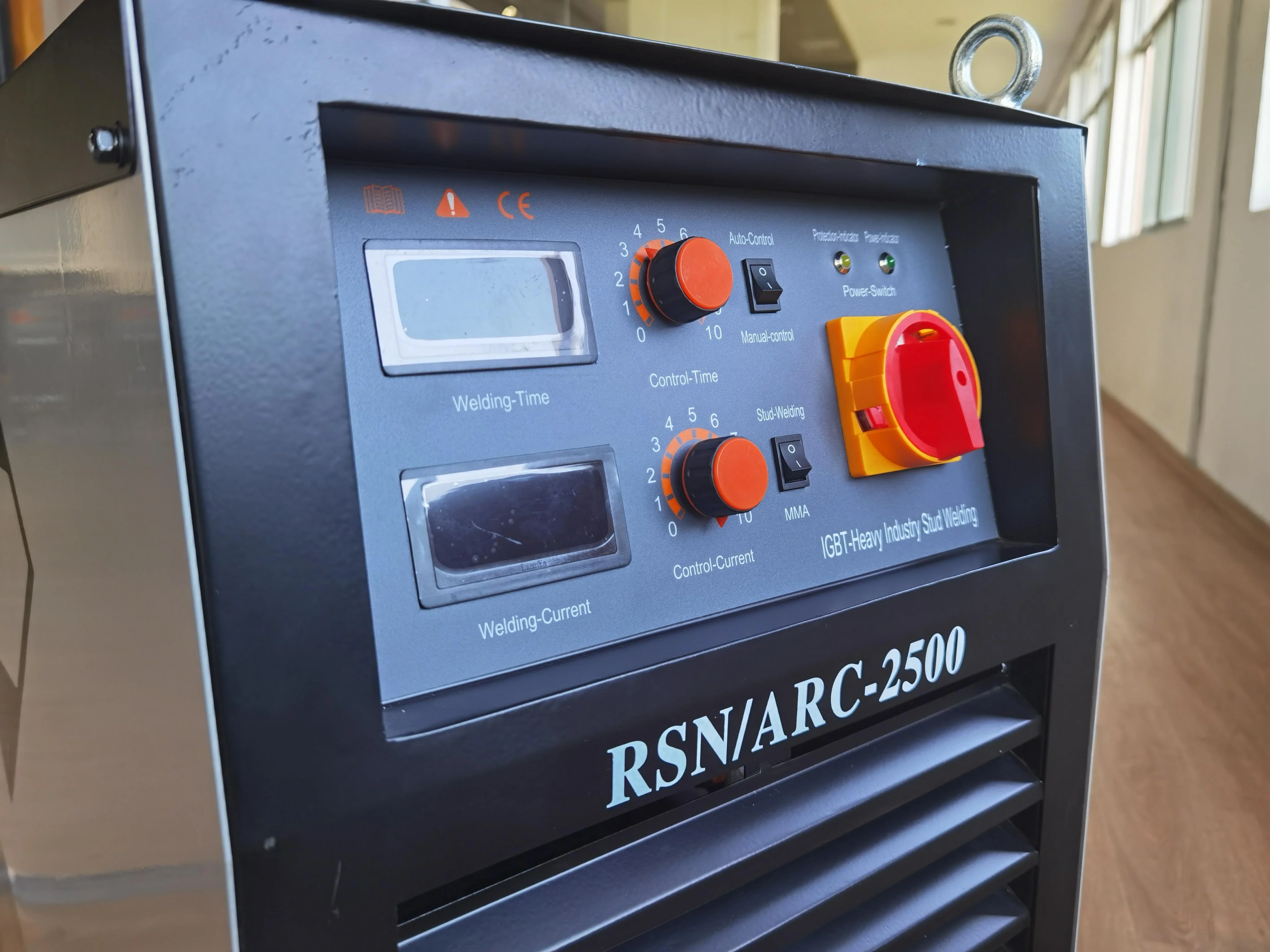

RSN/ARC 2500, Stud welding machine, RSN 2500, RSN7 2500 updated model DONSUN brand welder, Pedal type resistance, spotter
- Category: >>>
- Supplier: Shanghai Donsun Welding Equipment Co. Ltd.
Share on (1600844710799):
Product Overview
Description
Product Description
Features:

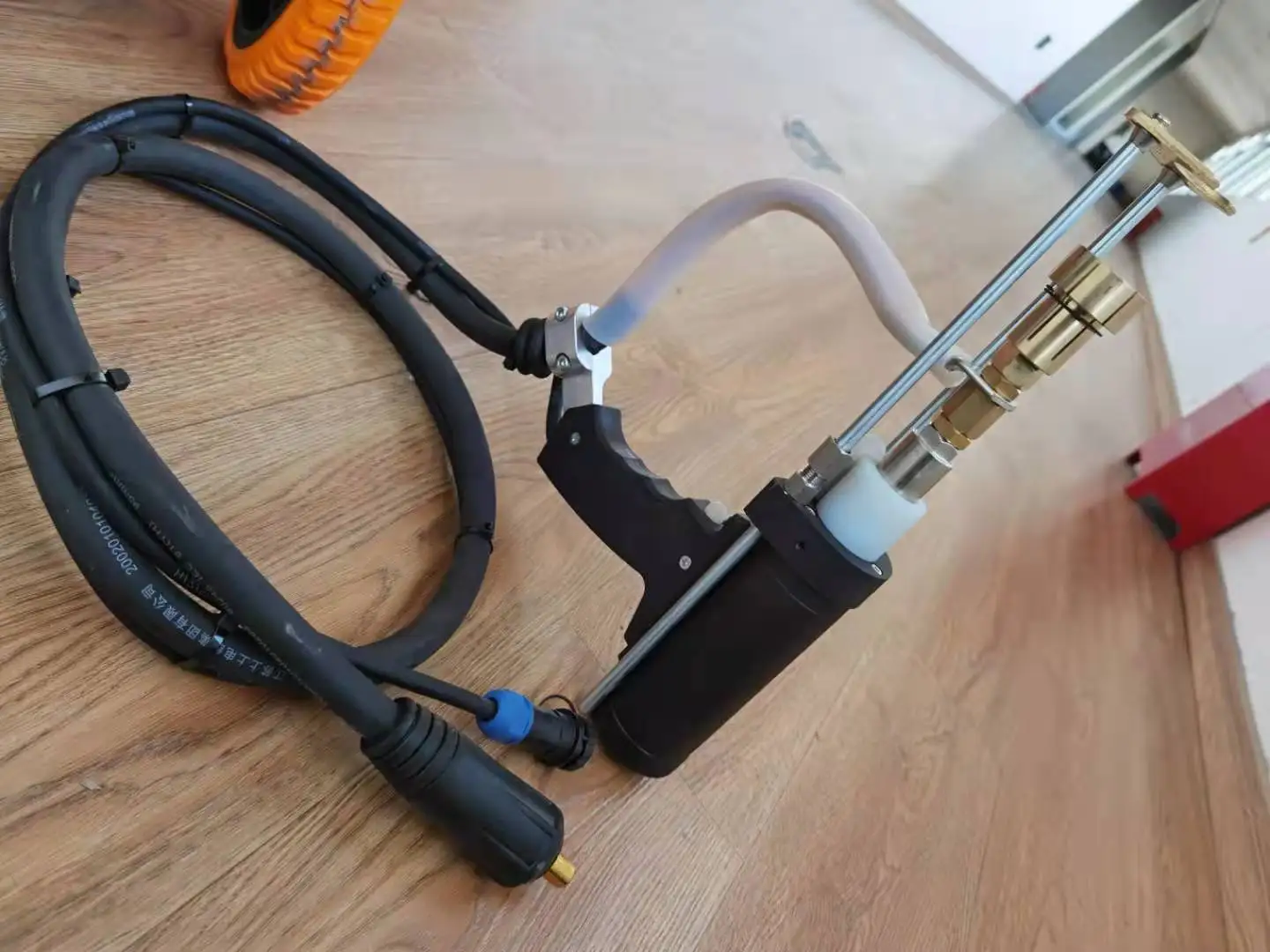

—RSN/ARC series arc stud welding machine consists of three parts: arc stud welding power source, welding torch and welding cable. Has the following characteristics:
Features of ordinary stud welding machine:
—weldable carbon steel, stainless steel, copper, aluminum, electroplated layer materials, and can weld different metal materials.
— short welding time, about 0.1 to 2 seconds, high efficiency, can be welded 16-minutes per minute 25 studs.
— the studs have good verticality, no weld marks on the back plates of the welded studs, no deformation, high yield of finished products.
—convenient for penetration welding, in most cases, no pre-opening, no Destroy the integrity of the sheet.
— the strength of the joint is high, up to the strength of the base metal and the stud.
— The three major pollutions of smoke, arc and noise are greatly reduced compared with manual arc welding. The use of porcelain rings and superior performance optimize the working environment, greatly reduce the negative impact on the welder's body and reduce the labor intensity.
— Easy to master.
| Model/Parameters | RSN/ARC-2500 |
| power supply voltage(V) | 3 ~380V±10% |
| Fre.(HZ) | 50 |
| Rated Input Power (KW) | 94 |
| Rated Input Capacity(KVA) | 107 |
| Rated Duty Cycle | 80% |
| Rated Welding Voltage(V) | 32 |
| Adjustment Range of Welding Current(A) | 250A~2500A |
| Pin Diameter (mm) | Φ 6~Φ 25 |
| Welding Time(S) | 0.01~9.99 |
| Dimensions(mm) | 780×390×800 |
| The Stud Length of welding(mm) | ≤400 |
| Protection Class | F |
| Insulation Class | IP21S |
| Weight(KG) | 105 |

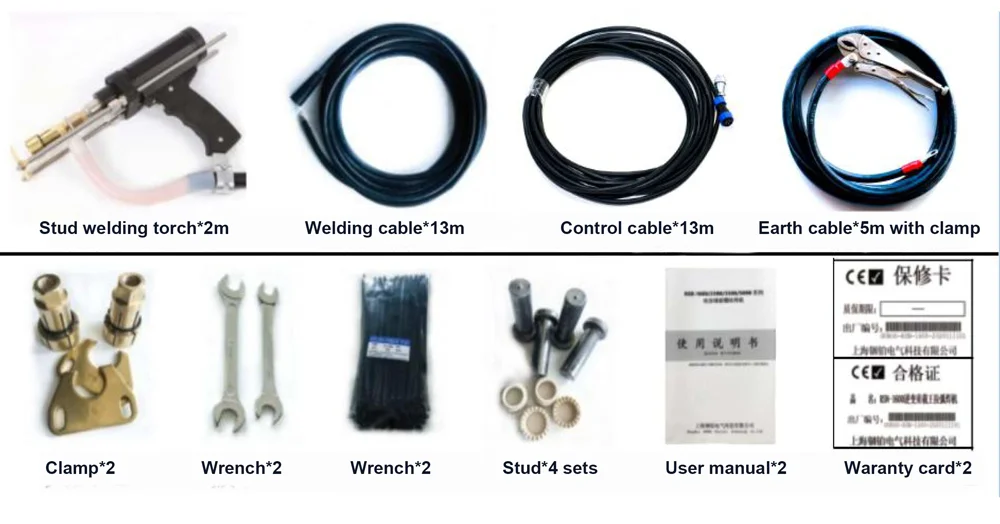

Standard accessories
