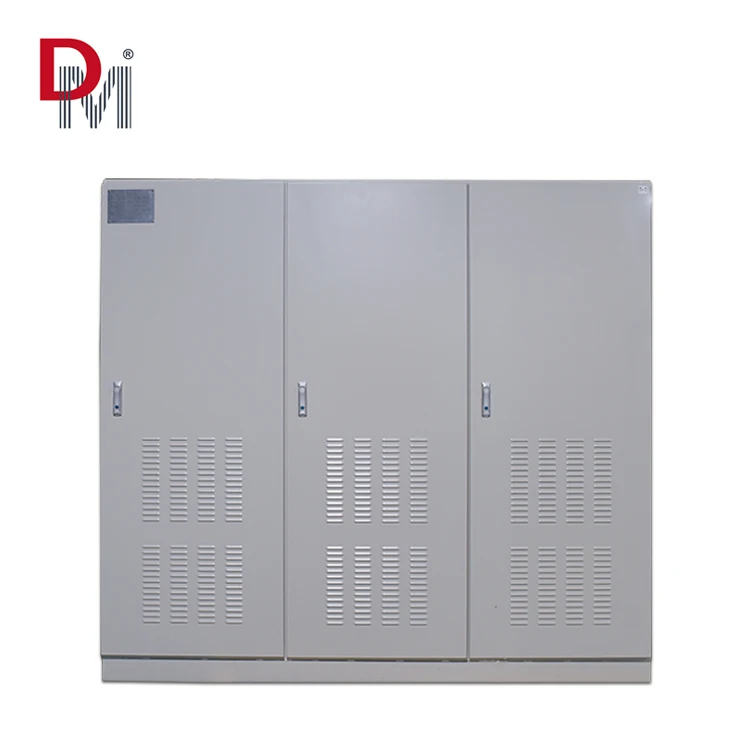

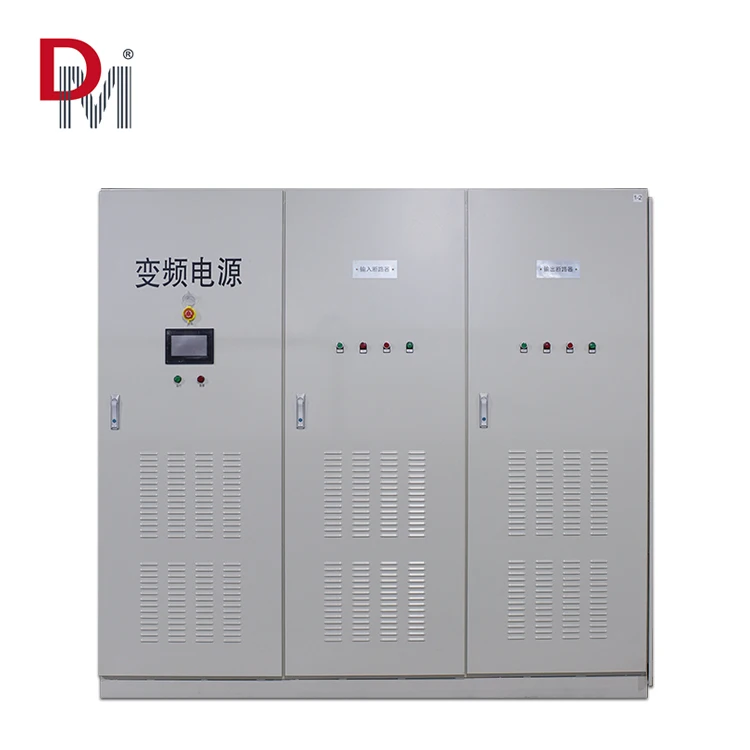

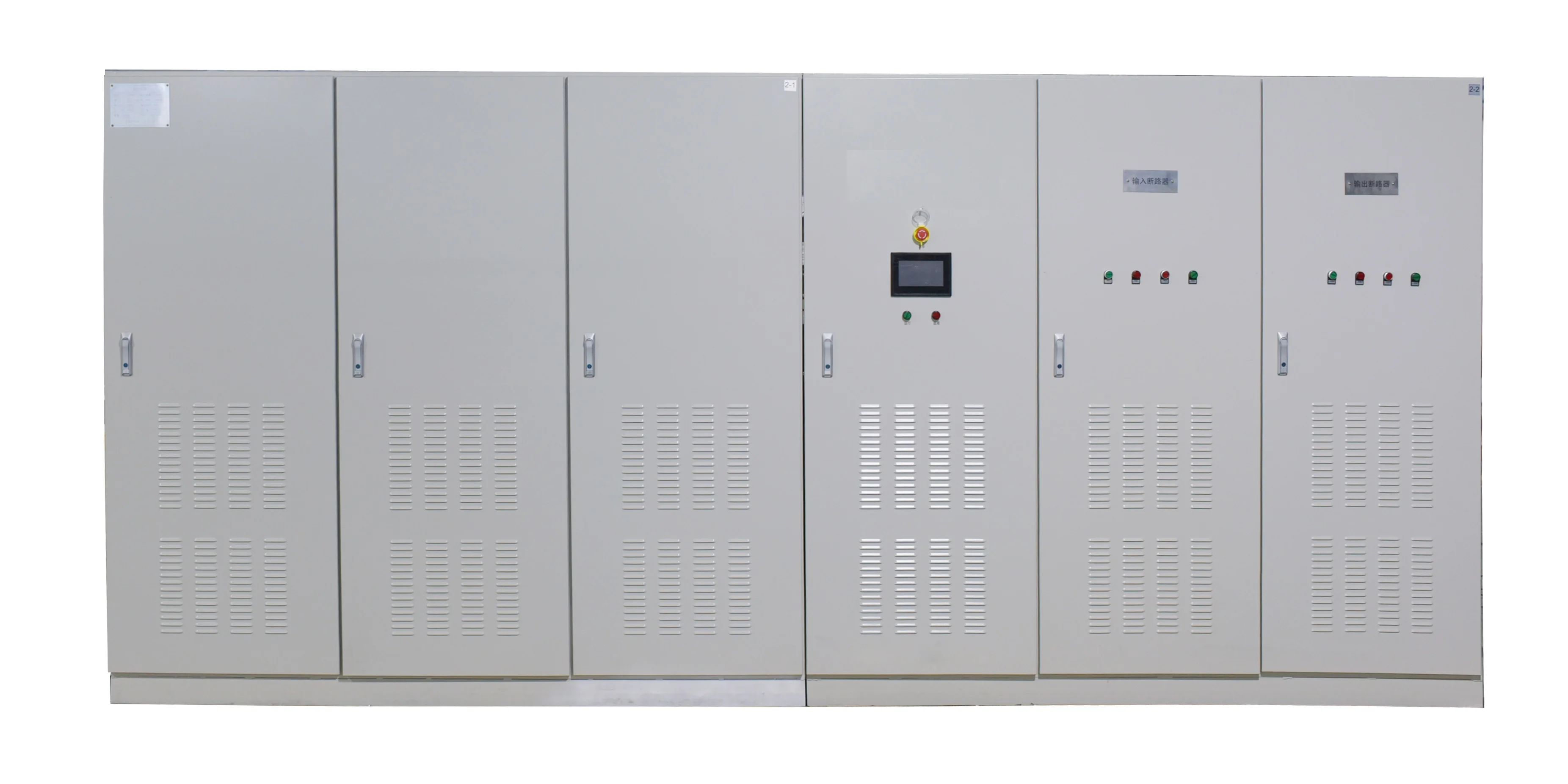

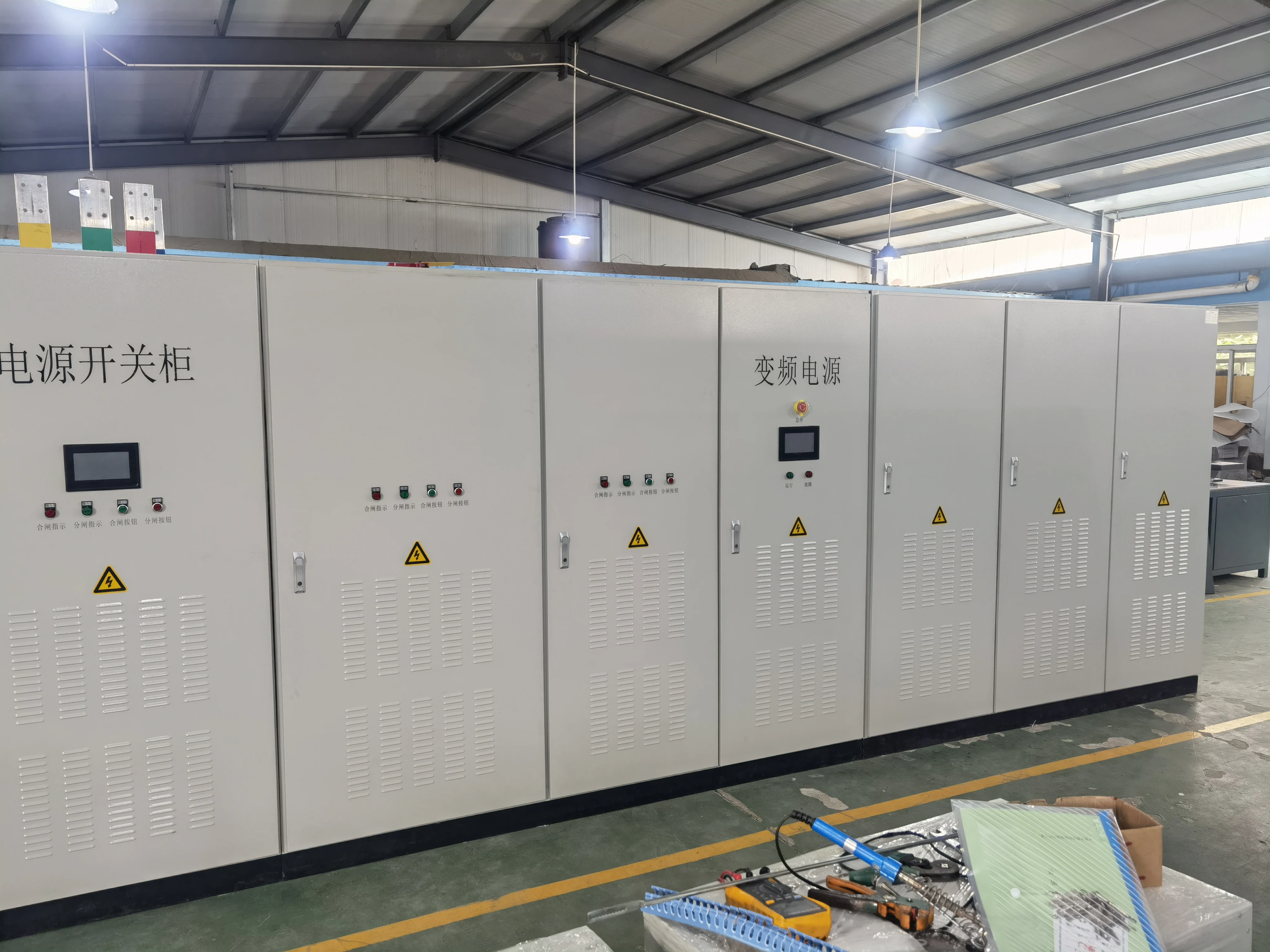

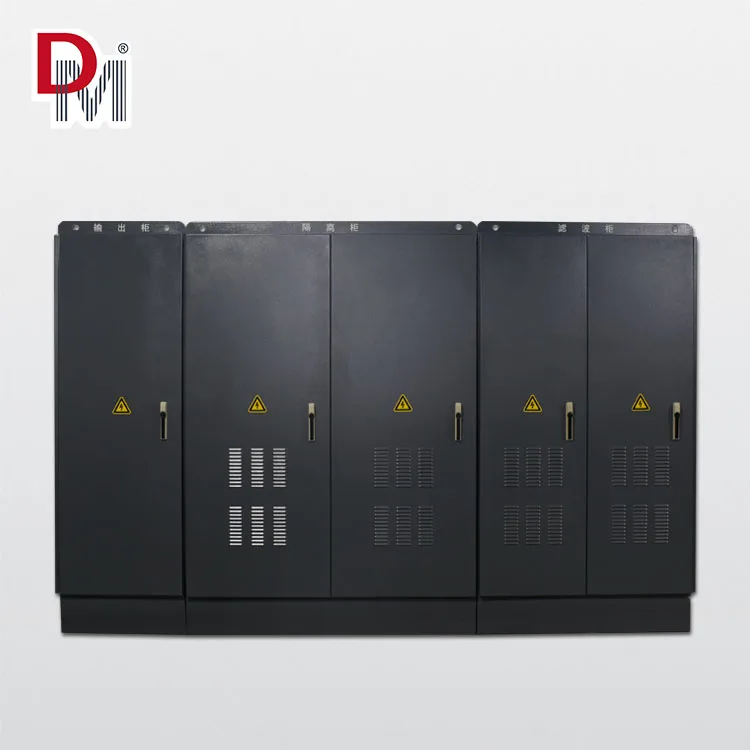

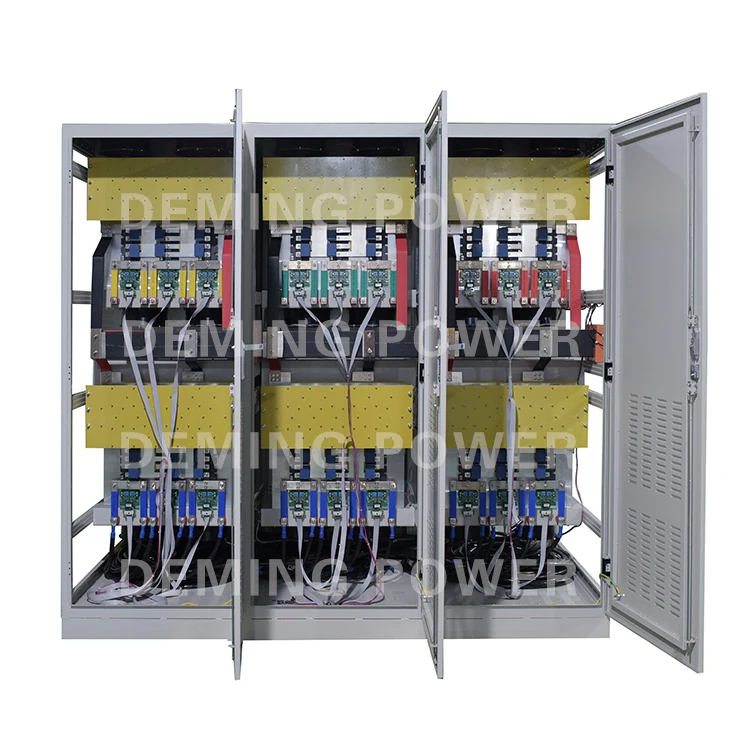

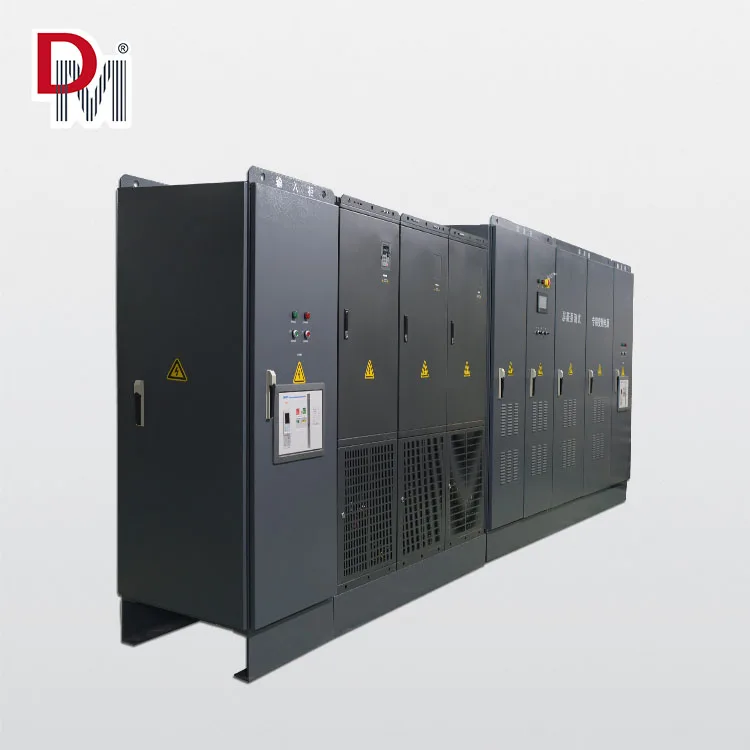

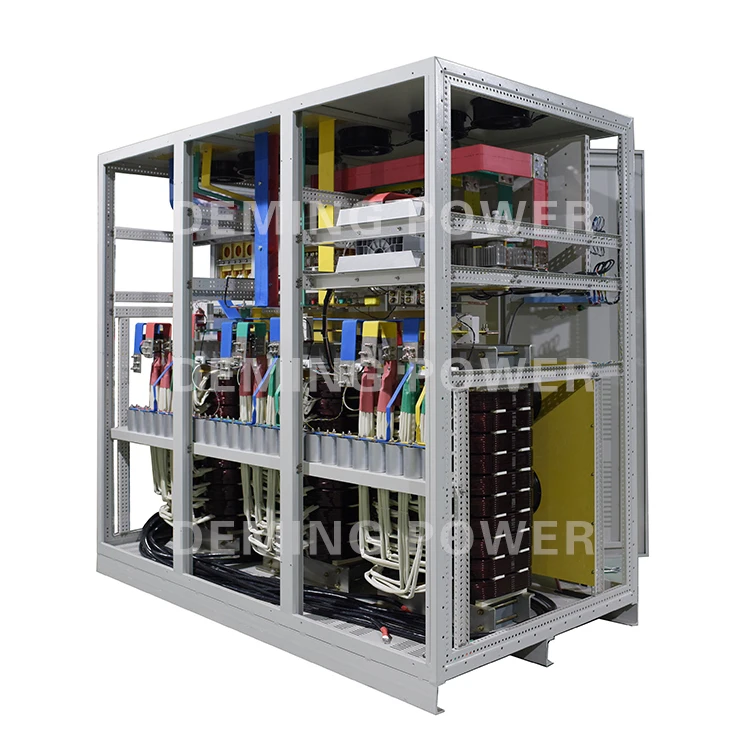

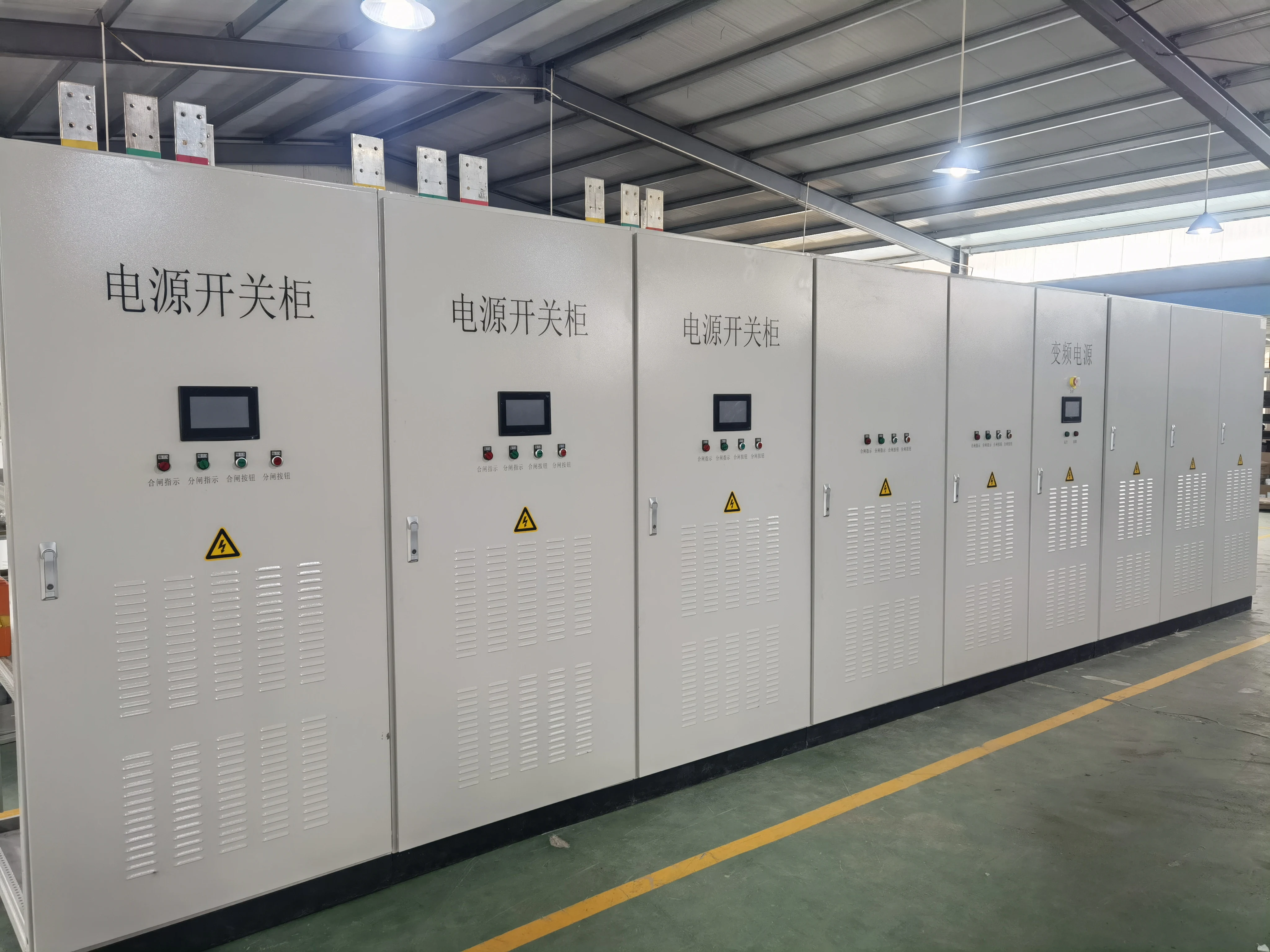

1000KW Voltage and Frequency Converter 50HZ To 60HZ Three Phase Converter Pure Sine Wave Output

Product Overview

Description

       Product Description:

AC power source is a device capable of converting the frequency of alternating current. It precisely controls the grid frequency and voltage through advanced power electronics technology and microcomputer control technology. Here is an introduction to some of the features and application scenarios of AC power source:



Features:

1. Adjustable Frequency: The frequency of the output can be adjusted within a certain range to meet the power frequency requirements of different devices.

2. Stable Output: It can provide stable voltage and frequency, ensuring stable output even under significant input power fluctuations.

3. High Efficiency: Efficient power electronic components are used to minimize energy loss during the conversion process.

4. Energy Saving and Environmental Protection: Compared with traditional power supplies, AC power source have clear advantages in energy saving, reducing the waste of electrical energy.

5. Intelligent Control: Equipped with a microcomputer control system that enables remote monitoring, fault diagnosis, and protection functions.

6. Strong Adaptability: Able to adapt to working needs in different environments, such as harsh conditions like high temperature, high humidity, and salt mist.



Application Scenarios:

1. Export Equipment Testing: Used for testing electrical products exported to different countries and regions that require simulation of the destination country or region's power grid frequency and voltage.

2. Research and Development Laboratories: Different frequency power supplies are needed during product development and testing stages to simulate actual usage environments.

3. Imported Equipment Operation: For equipment imported from abroad, which may be designed based on a specific power source frequency, using the AC power source ensures the equipment's normal operation.

4. Production Line Aging Test: In the production process of electronic products, aging tests are conducted using the AC power source to ensure product quality and stability.

5.  Aviation Fields: In special fields such as aviation, equipment often needs to work under specific power conditions, and the AC power source can provide the necessary power support.

6. Medical Equipment: Some precision medical devices may require a stable power supply to ensure their accuracy and reliability, and the AC power source can meet these requirements.



Overall, due to its flexibility in adjustment, high stability, and energy-saving and environmental protection features, the AC power source are widely used in various fields such as industry, scientific research, and medicine.









     Three phase input  and three phase output 1000K



Power type		Three phase in and three phase out
Capacity		1000KVA
Circuit mode		IGBT/SPWM
AC Input	Phase number	Three-phase four-wire + ground wire
	Input voltage range(Vac)	480V±15%
	Input frequency range(Hz)	30-70
AC output	Phase number	Three-phase four-wire + ground wire
	Wave form	Pure sine wave
	Output Voltage(V)	380Vac
	Output Voltage Accuracy(V)	≤1%
	Output frequency range(Hz)	45-65
	Output Frequency Accuracy(Hz)	≤0.01%
	Output rated current(A)	455.8
	THD	≤3%
	Dynamic response time	2ms
	Power factor(PF)	0.8
	Overload capacity	110%,10min;200%,10s
	Peak Coefficient(CF)	3:1
	Efficiency	≥90%(Resistive load 80%)
Display	Type	LED/Touch Screen
	Communication	RS485/RS232/WIFI/GPRS
Environment	Insulation strength	1500VAC,1min
	Noise (1 m)	≤55dB
	Ambient temperature	-10℃~+50℃
	Humidity	0-90%(No condensation)
	Altitude(m)	≤2000m
Indicator light	Electricity, Inverter (Power Supply, Overvoltage, Undervoltage, Overcurrent, Overheat, LED Model Configuration)
Protection	Input connection, input under voltage, output over voltage , output over current , output overload , output short circuit , overheat
Cooling mode	Fan
