Polyimide Film For Insulating Circuit Boards And Transformers Manufacturing
- Category: >>>
- Supplier: Shenyang Youda Insulation Materials Co. Ltd.
Share on (1600844761108):
Product Overview
Description
Product Description

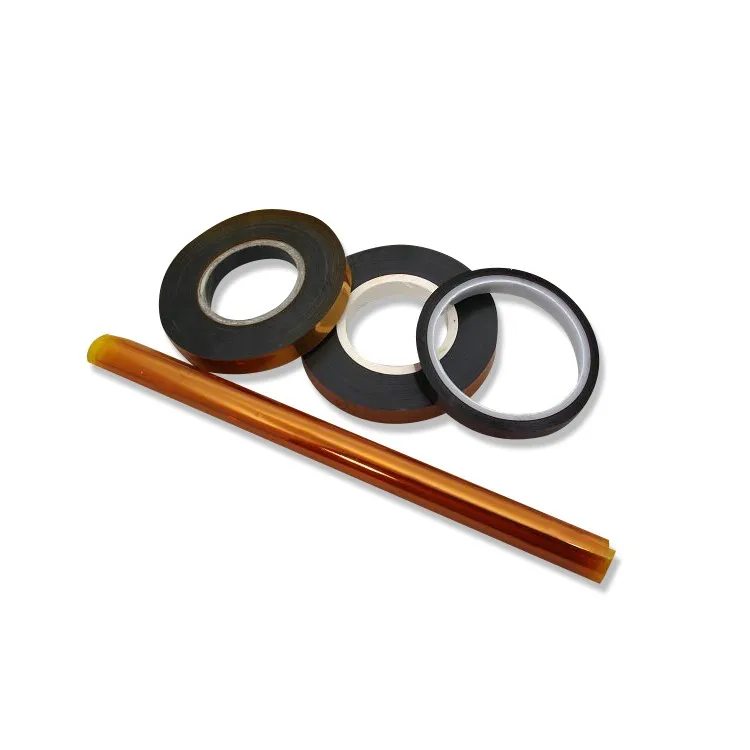

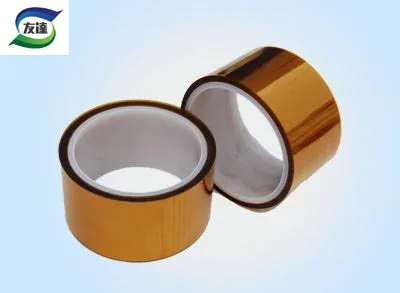

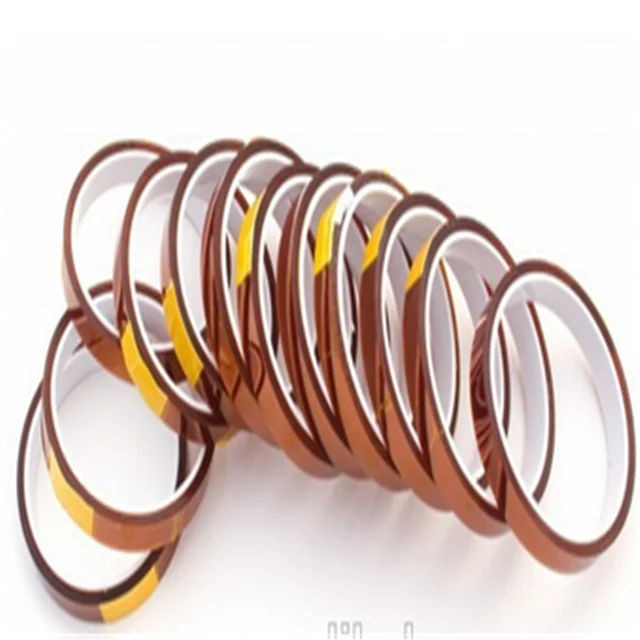

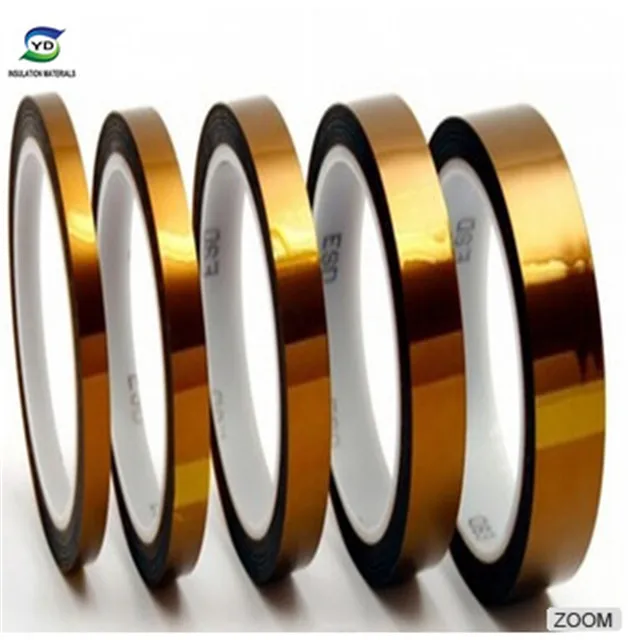

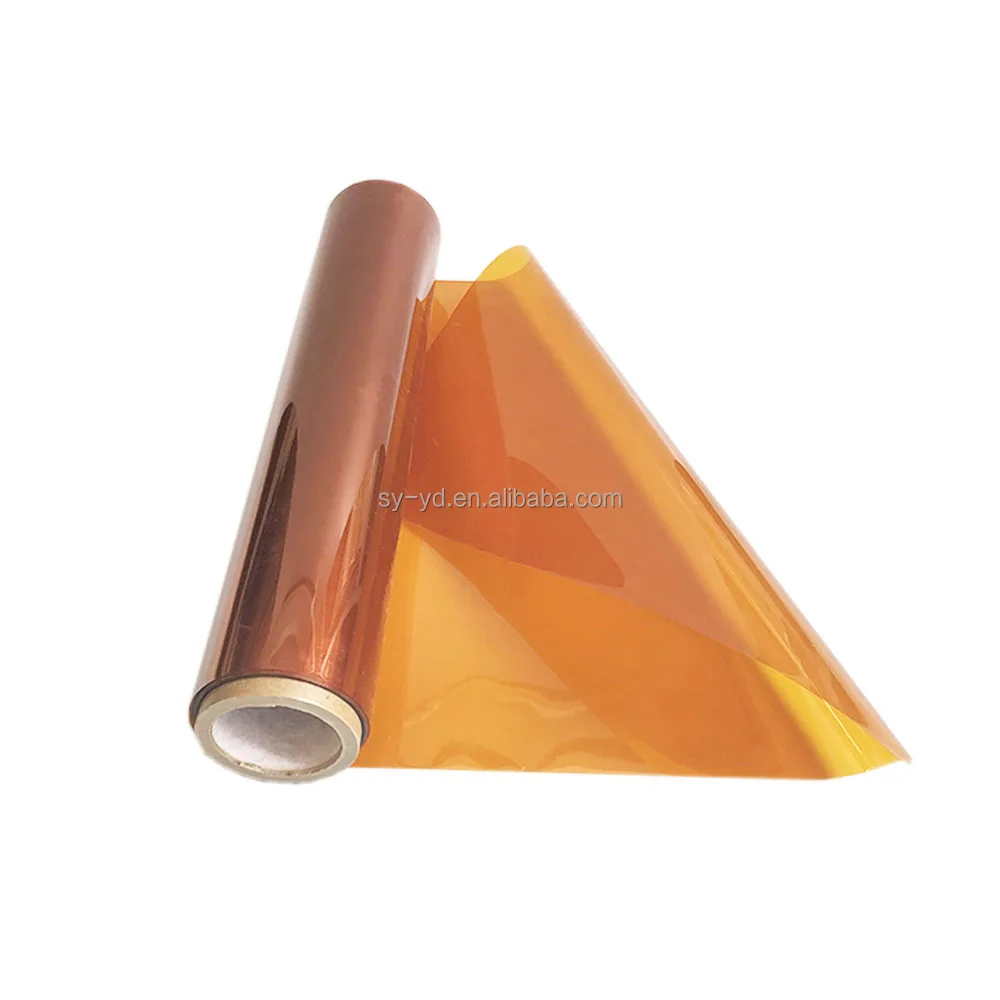

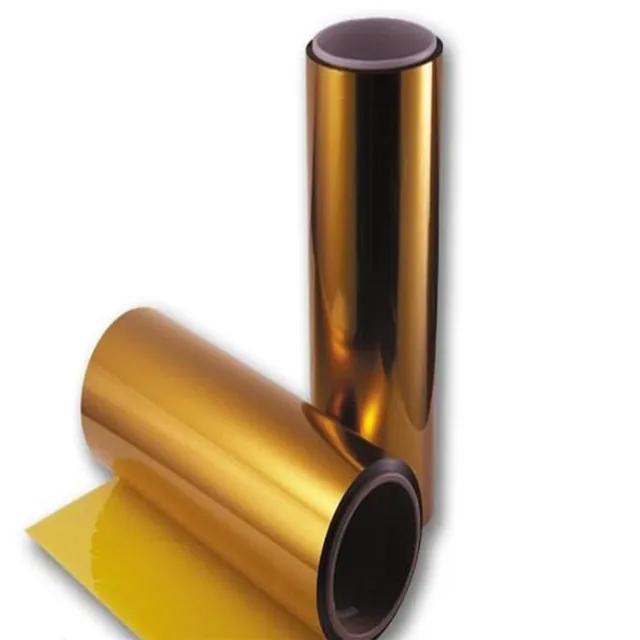

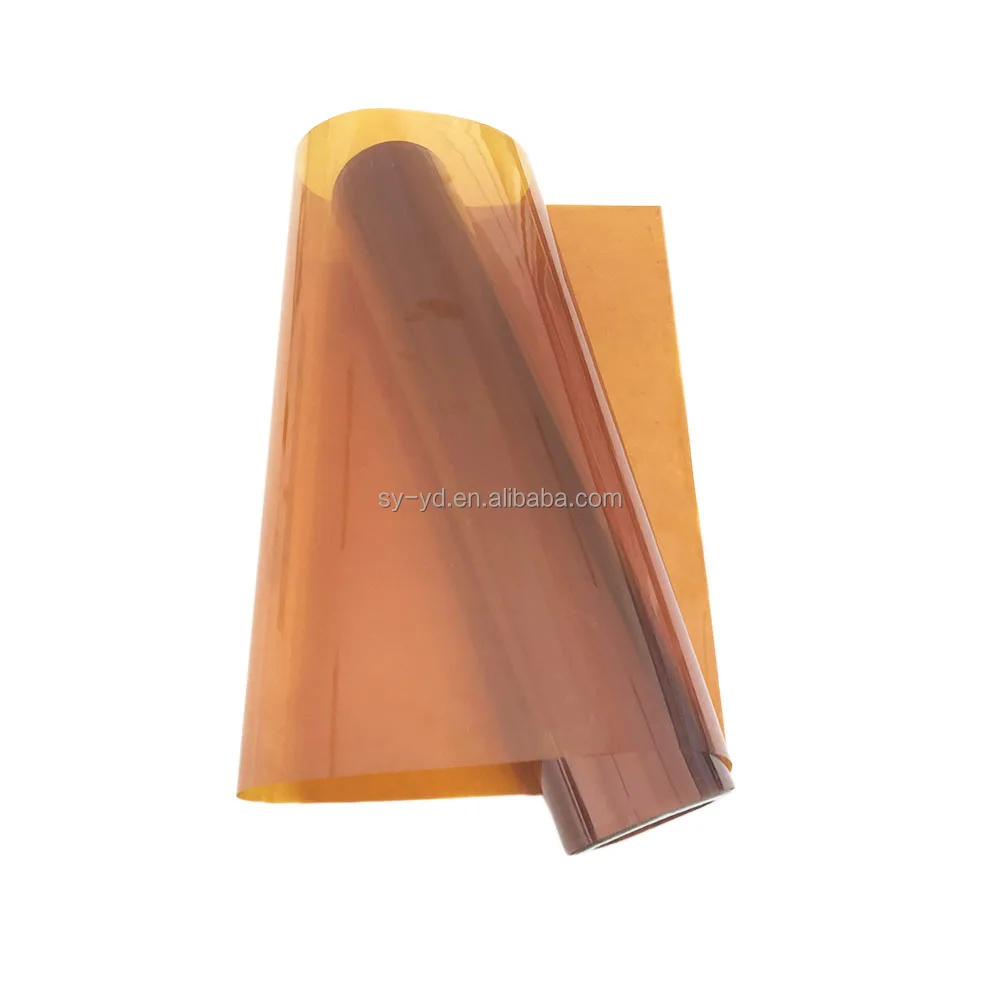

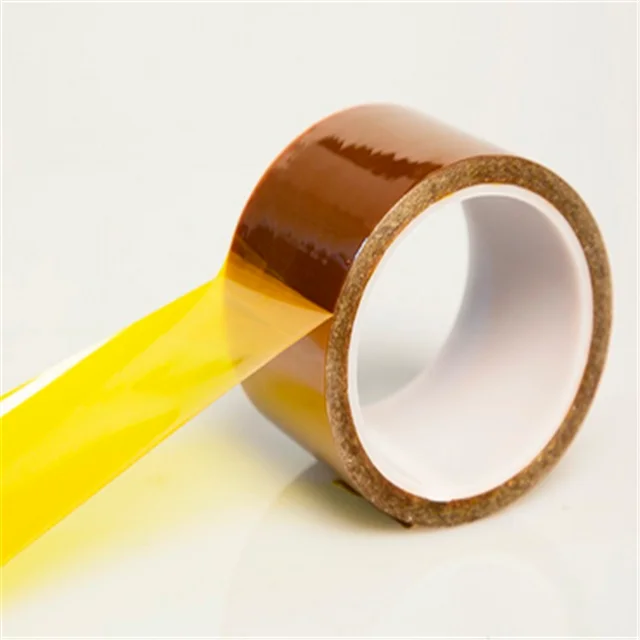

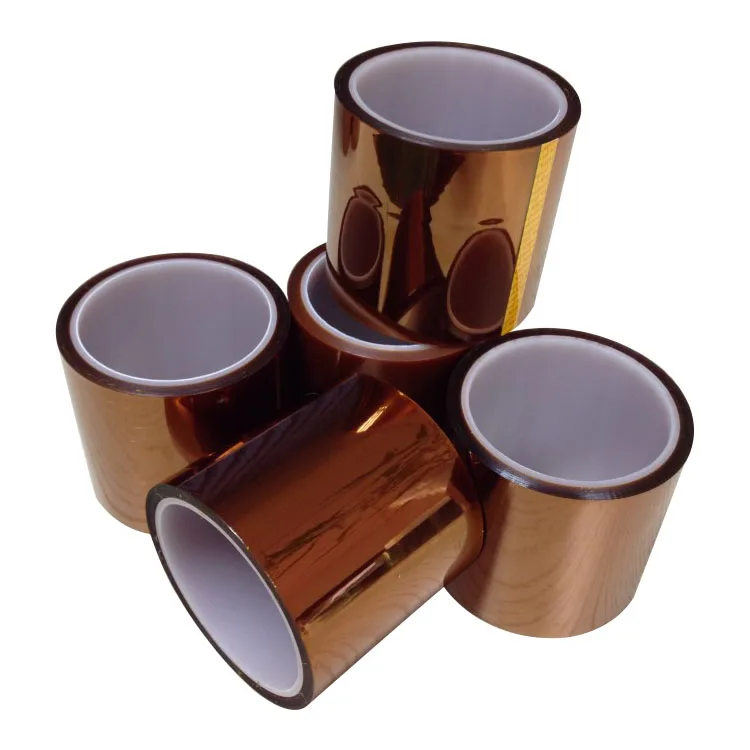

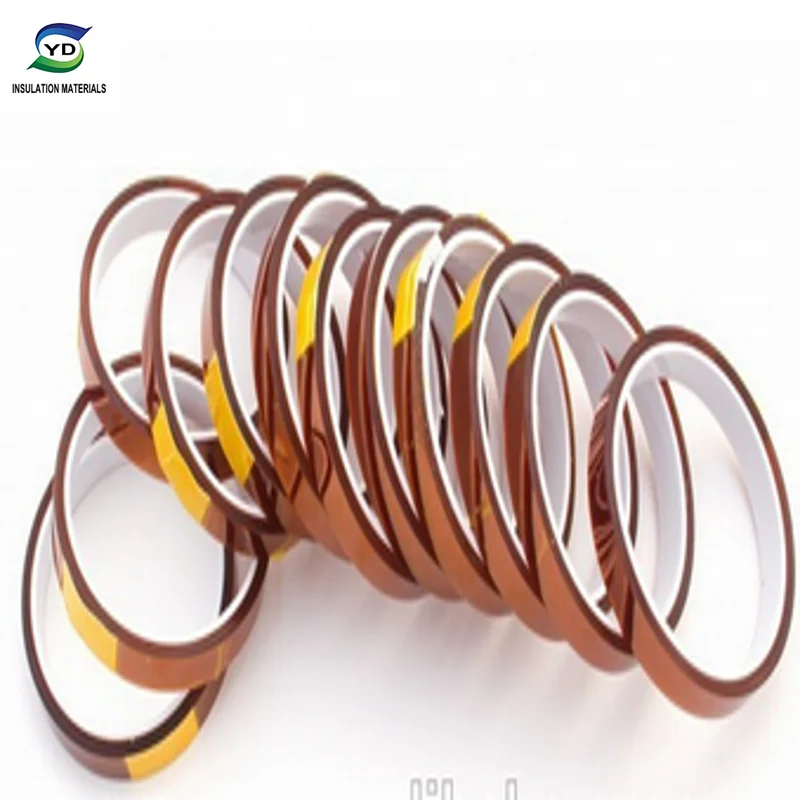

Polyimide Film
Polymide film is a kind of special plastic film, flat and smooth, no crease, no particular air bubble and no pinhole, with excellent mechanical properties, dielectric properties, long-term working temperature-195 degree to 280 degree.
 | * 6051 polyimide film maded by "casting method" * High performance, reliability and durability, with a unique combination of electrical, thermal, chemical and mechanical properties. | |
 |  | |
 |  |  |
| NO. | Index Name | Unit | Index |
1 | Density | g/cm3 | ≥1.4 |
| 2 | Melting Point | ℃ | - |
| 3 | Tensile Strength | MPa | ≥100 |
| 4 | Elongation | % | 25-55 |
| 5 | Heat Shrinkage | % | - |
| 6 | Volume Resistivity | MΩ/m | ≥1.0x107(20℃) |
| ≥1.0x104(20℃) | |||
| 7 | Relative Dielectric Constant | Hz | ≤4 |
| 8 | Dielectric Strength | V/um | ≥100(60)(20±5℃) |
| ≥80(48)(200℃) | |||
| 9 | Heat resistance grade | H 180℃ |

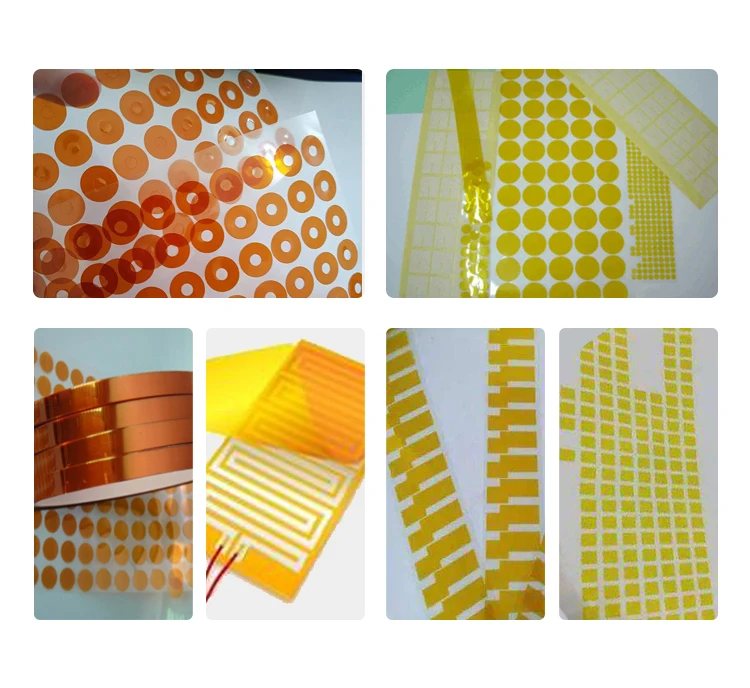

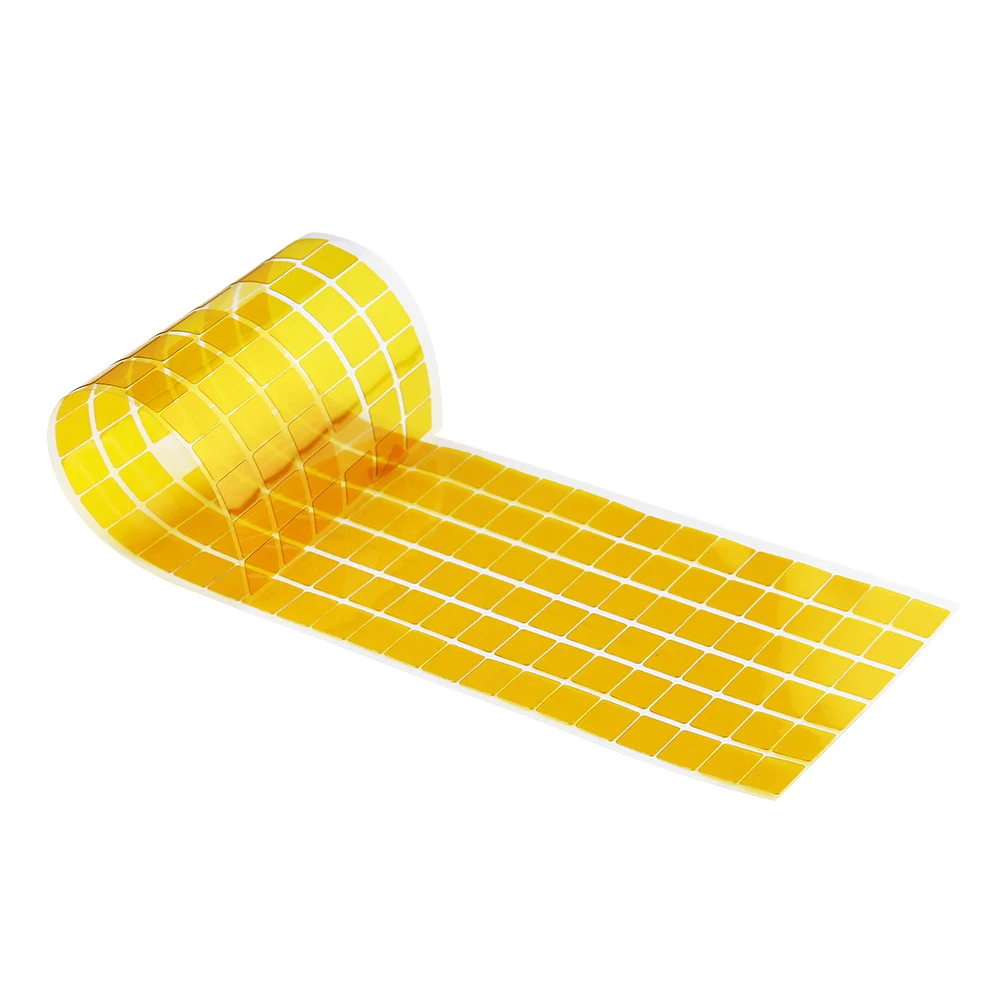

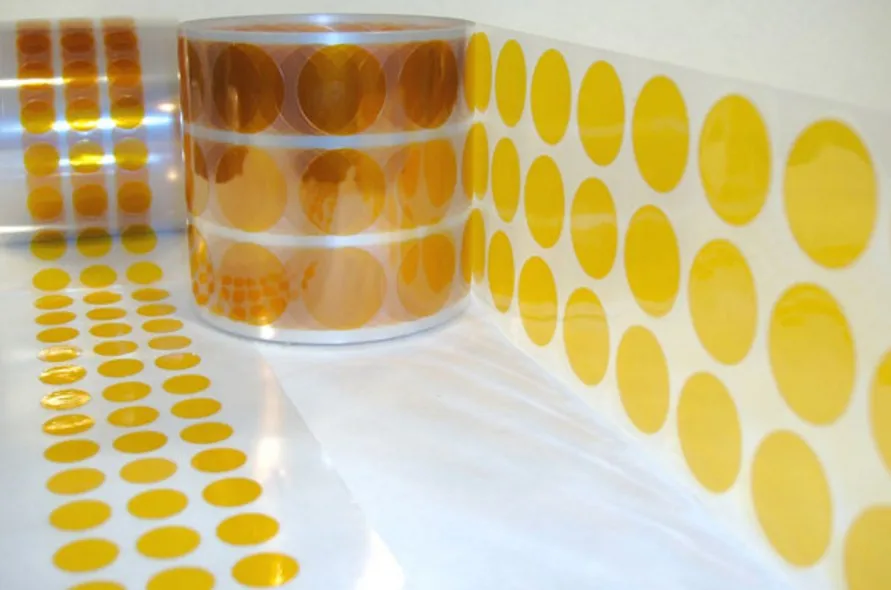

Processing Parts
We can customize according to your requirements. Just be free to contact us.
 |  |
Application
Widely used in sophisticated products in military appliance, statellite navigation, digital product, electric motors, computer, mobile phone and OTHER, such as the base dielectrics in flexible printed circuits (FPC), tape automated bonding (TAB), pressure sensitive tape (PST), and insulation for electric motor(Insulation), etc.

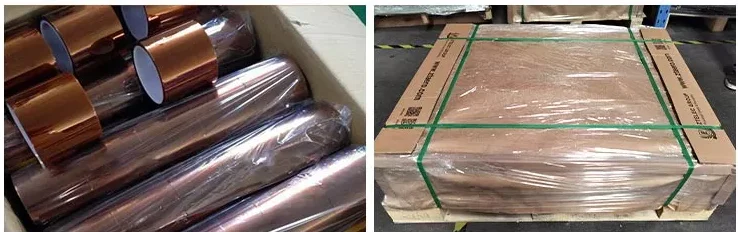

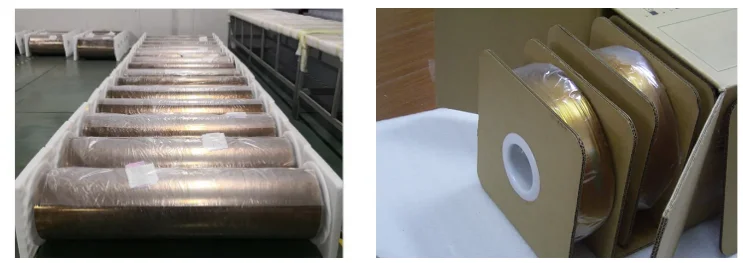

Packing & Shipping
 |
 |

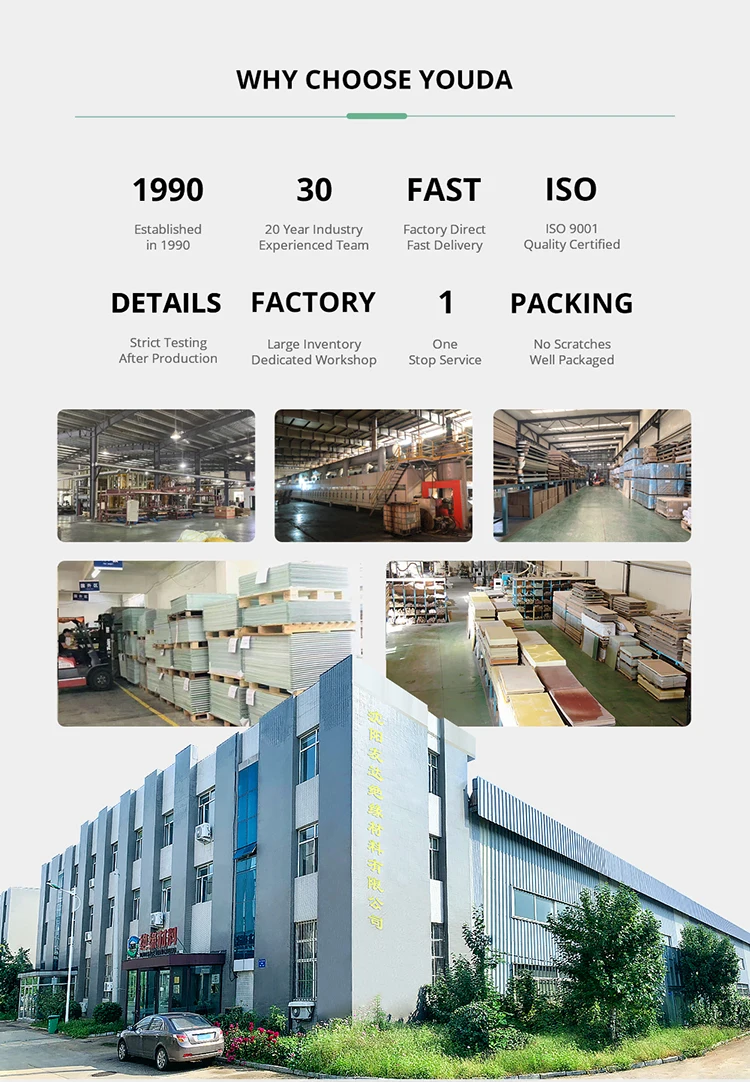

Company Profile
1. What about the MOQ?
Usually 100kg, but we can do less to meet various needs if we have it in stock.
2. Can you provide a sample?
The sample is available, and the freight collect.
3. What about the raw material you use?
We usually use imported materials from Japan, Korea, Germany, and America.
4. Do you have enough stock and accept customized?
Yes, we have enough stock for our best-seller, we have a warehouse where most hot sale products are prepared. Customized is available.
5. What about the production and delivery time?
Usually 7 days, it depends on the order quantity and processing requirement. The goods will be delivered once they were inspected.
6. Can we place mixed thicknesses for one order?
Yes, We could match your ordering request and even mix different thicknesses and colors .
7. Can you provide a discount?
Yes, it depends on the order quantity, the larger the order is, the more discount will be enjoyed.
