100L Vacuum Distillation Continous Stirred Tank Ultrasonic Glass Reactor

Share on (1600844770938):


Price:$3,200.00 - $3,538.00

Quantity:


Product Overview

Description


100L Vacuum Distillation Continous Stirred Tank Ultrasonic Glass Reactor

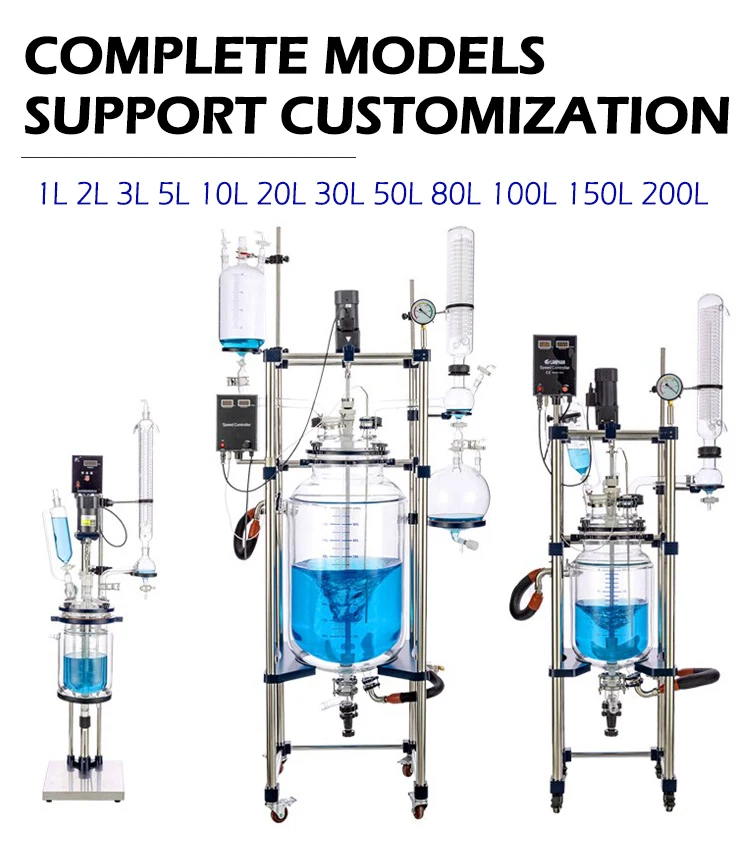

-_03



Product Description


        The double-layer glass reactor is designed with interlayer ,high or low temperature reaction can be done to the metal  by circulating heat transfer .The reflux of the reaction solvent can be controlled by distillation .The interlayer is circulated through a cold and hot medium(freezing liquid ,water ,heat conducting oil) ,the inner layer can realize constant temperature heating or cooling reaction .





Specifications













































































100L Chemical Pharmaceutical Machinery Vacuum Cylindrical Glass Reactor
Model

XHSF-100L


Volume  100L
Outline size 63*63*260cm
Glass  MaterialGG17 high borosilicate glass
 Interlayer33L
 Cover dimensions  Inner diameter:300mm ,outside diameter:340mm
 Stirring motor   250W
Optional :explosion proof motor can increase the power according to the demand.
 Controller Variable frequency governor, digital display thermometer speed
 Constant pressure funnel 2000ml
Stir SealCeramics and graphite seal, wear-resistant, corrosion-resistant, high temperature resistance.
 Blade

PTFE material stirring paddle, using anchor type + three blades stirring.


Different types of stirring paddles can be customized according to requirements

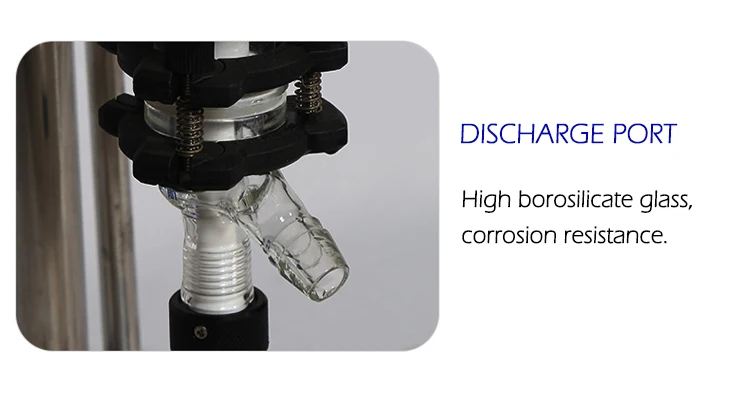

Discharge valveNew type of glass discharge valve, glass and tetrafluorine combined seal, no leakage, no dead angle
Condensation and reflux Adopt high efficiency GG17 high borosilicate glass condenser, cooperate with reflux head to realize: switch operation between distillation and reflux
Receiving bottle Selection of collecting bottles: 2-10L according to requirements
Operating Temperature Range -90~250  /Use pressure :normal pressure or negative pressure -0.098mpa
Pressure gauge

-0.1Mpa~0Mpa


Standard: Pointer pressure gauge      Optional: Explosion-proof digital pressure gauge

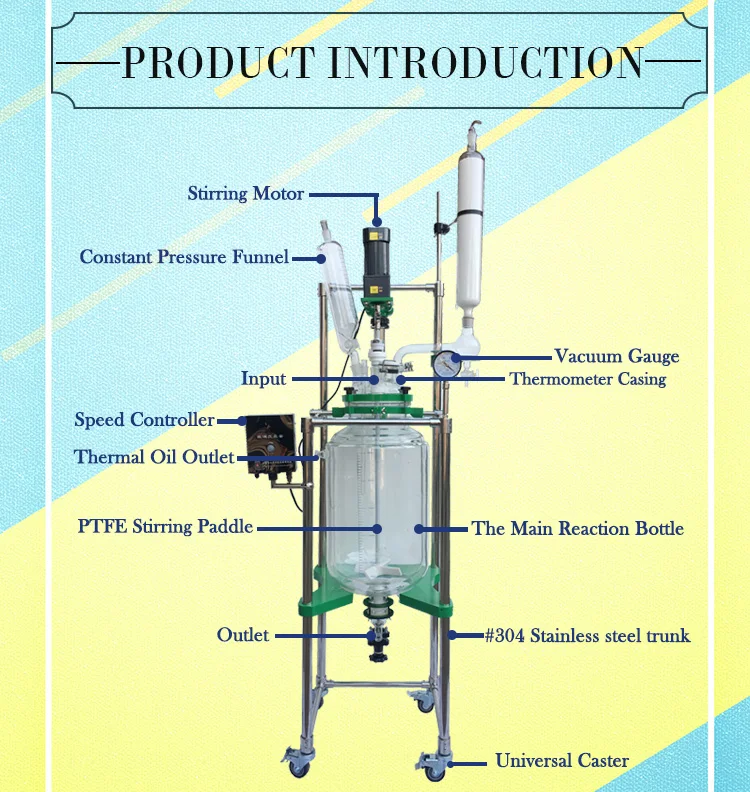

jacketed glass reactor product introduction


_01_02


glass reactor application area





Detailed Images

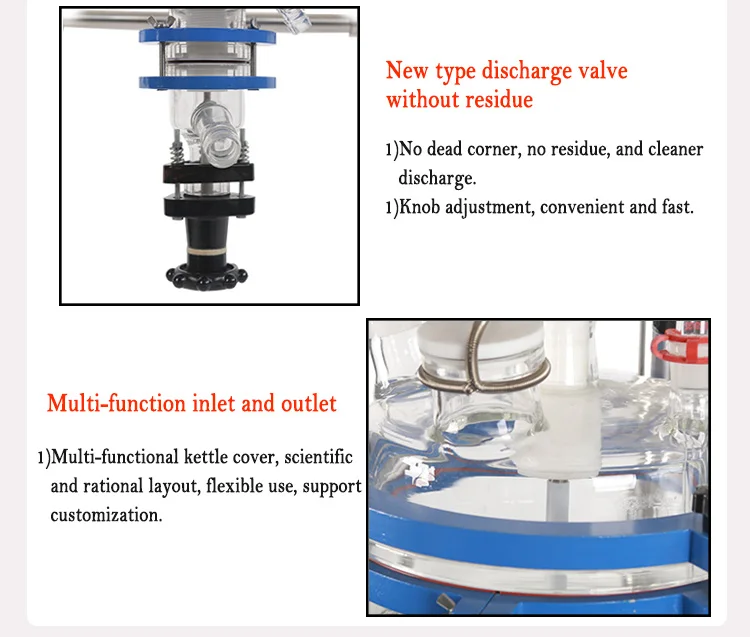

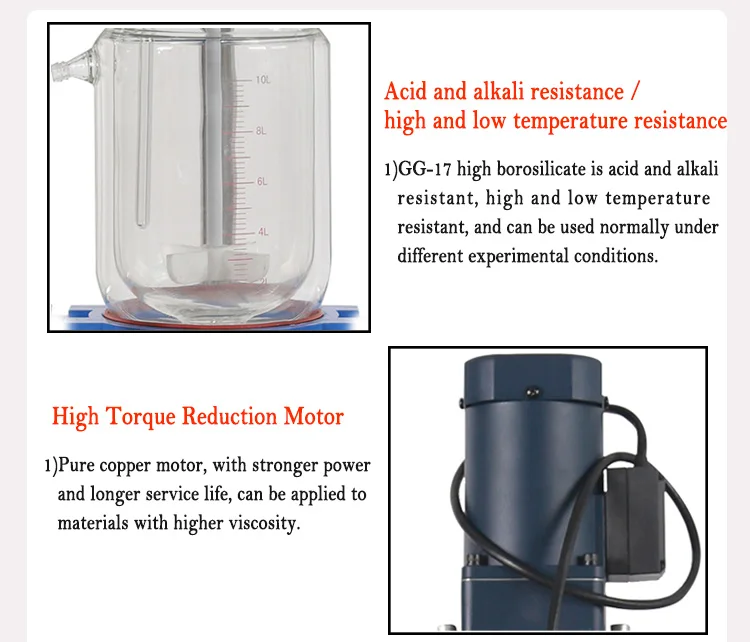

 2 glass reactor product details12 glass reactor product details2glass reactor product details 3





Related Products





















Company Profile








Packaging & Shipping







FAQ




Where's your company? How do I get to your company?


Our company is located in Building A3, Dongtai Founder Industrial Park, No. 78 Luntou Road, Haizhu District, Guangzhou City, Guangdong Province, China. You can fly to Guangzhou Baiyun International Airport, and then we will arrange a special person to pick you up.





Are you a what type company?


We are an innovative enterprise integrating processing, manufacturing and trade.





What kind of service does it offer?


We can provide customers with common laboratory equipment and equipment and pharmaceutical, chemical industry applications of reactor tanks and supporting temperature control equipment.





How strong is your company?


Our company was founded in 2006, has its own leading brand in the country, our products sell well in China, covering most of the laboratories, deeply loved and praised by users. We have many cooperative production bases in different cities in China, concentrating the best production resources and providing the best quality products. We design a wide range of products, we have professional technical engineers, can provide customers with solution design, product customization services.





How about the quality of your products?


Product quality is not only a customer concern, but also our most important issue! We even the importance of product quality, the company has set up a strict testing system, only after strict performance testing of products, issued testing certificates can be allowed to leave the factory, you can rest assured to buy.
