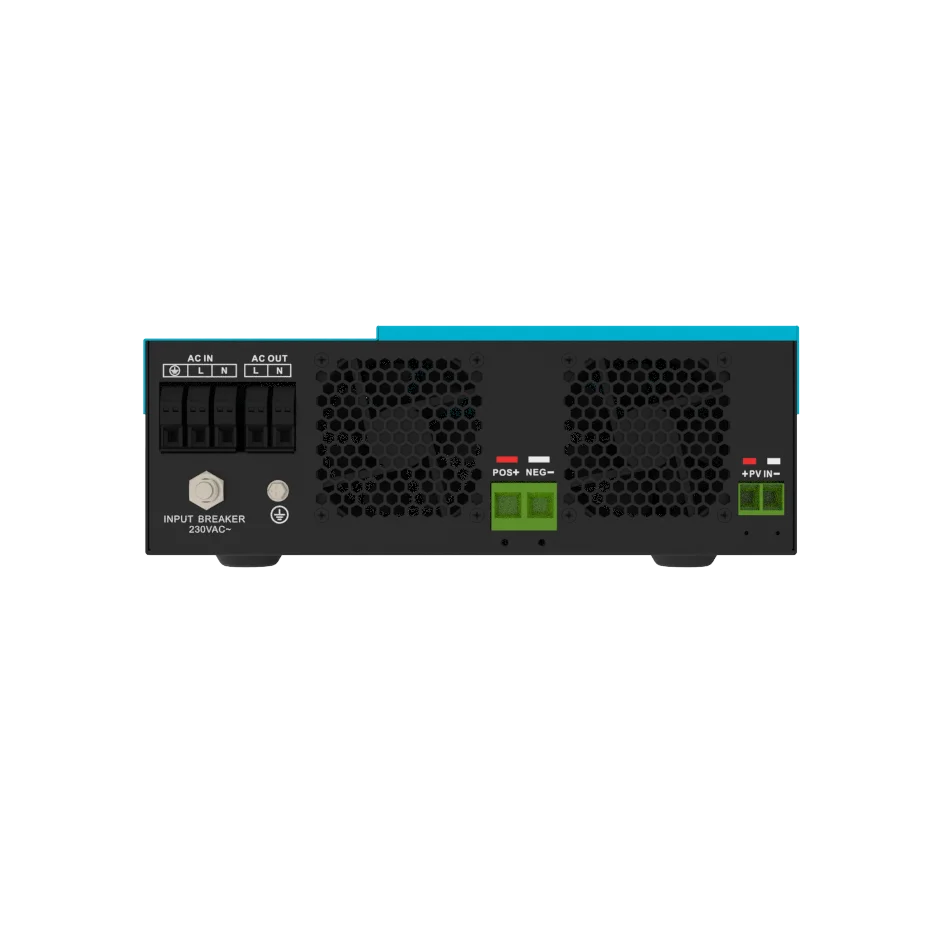

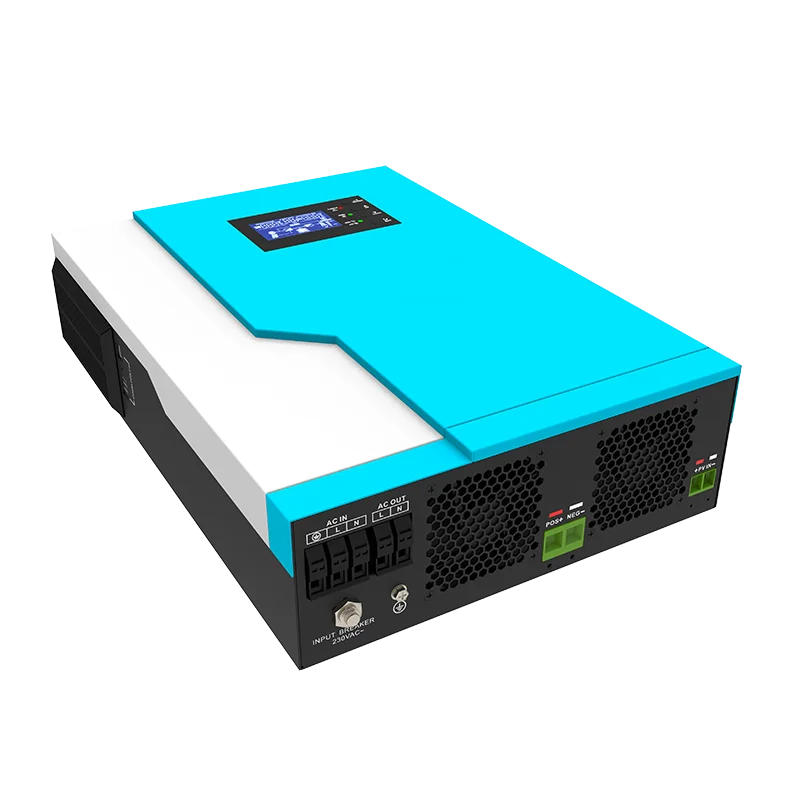

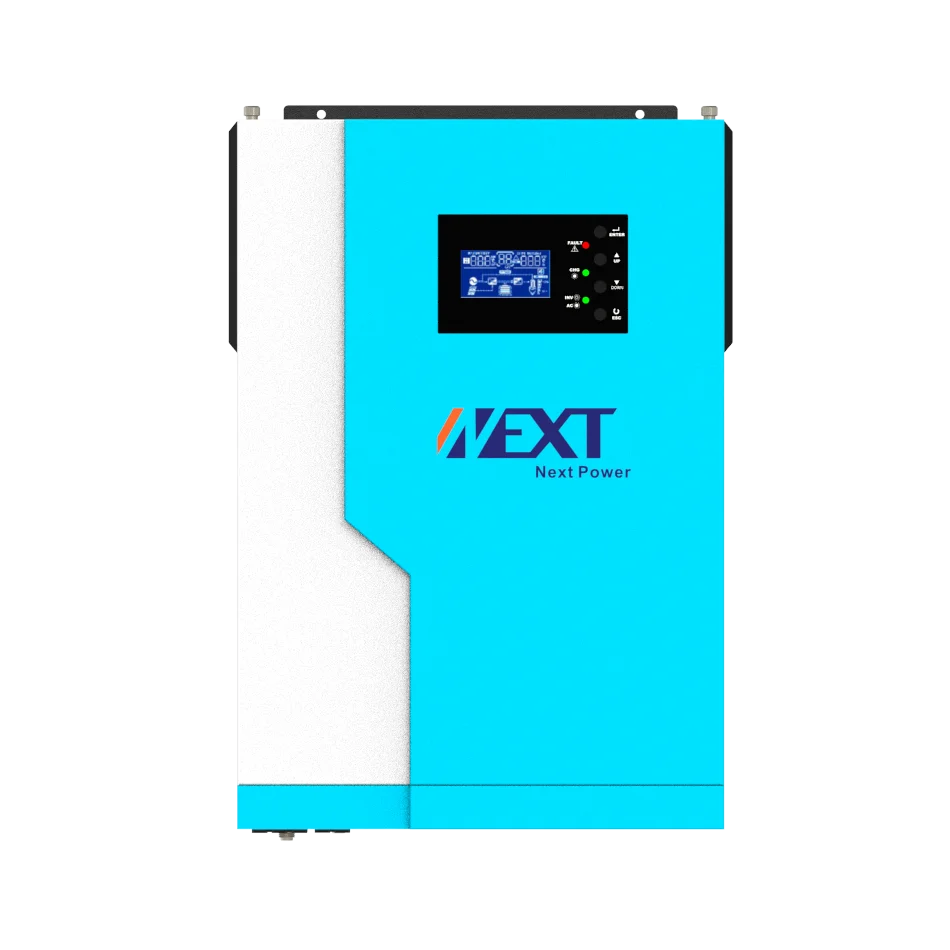

NEXT Factory NM II Plus Solar Inverter 3.5KW/5.5KW Built in 100A MPPT Off Grid Solar Inverter power supply
- Category: >>>
- Supplier: Shenzhen Next Power Technology Co. Ltd.
Share on (1600844772192):
Product Overview
Description
Key Features:
▲Pure sine wave solar inverter(on/off Grid)
▲Output power factor 1.0
▲WIFI&GPRS available for IOS and Android

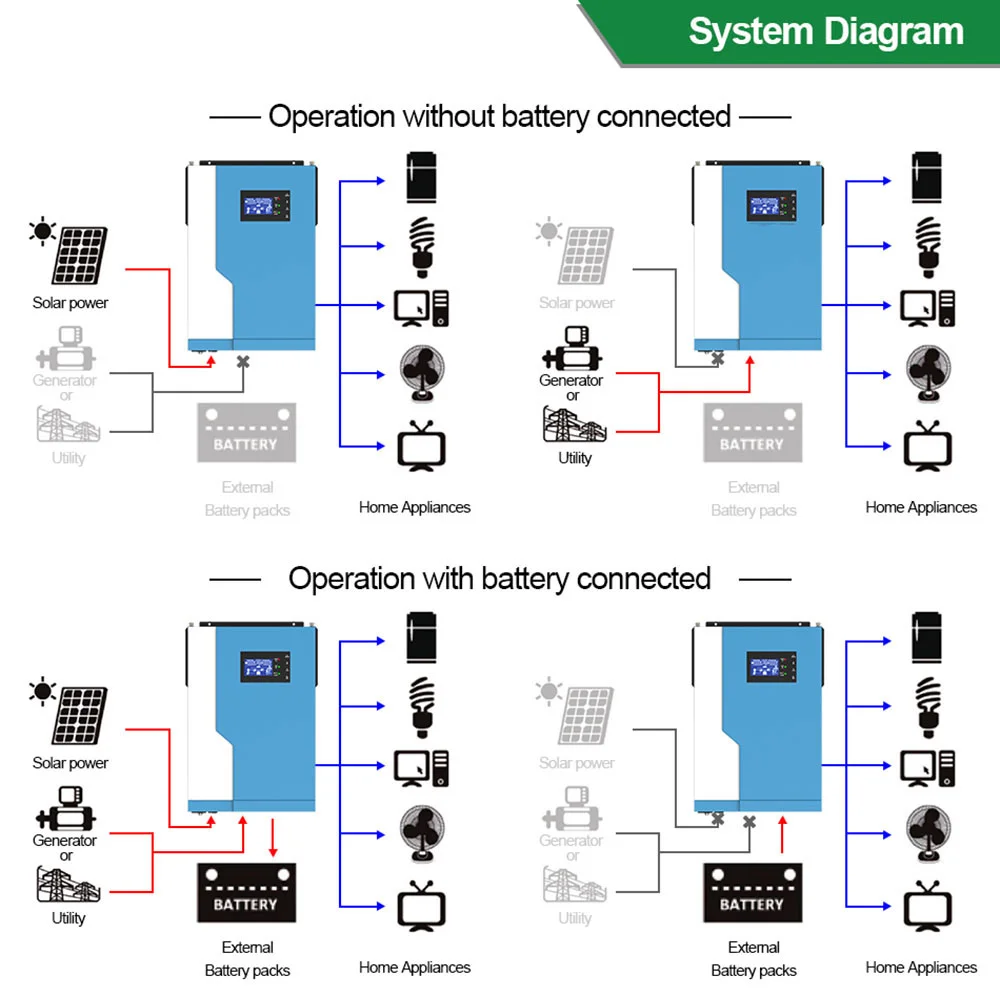

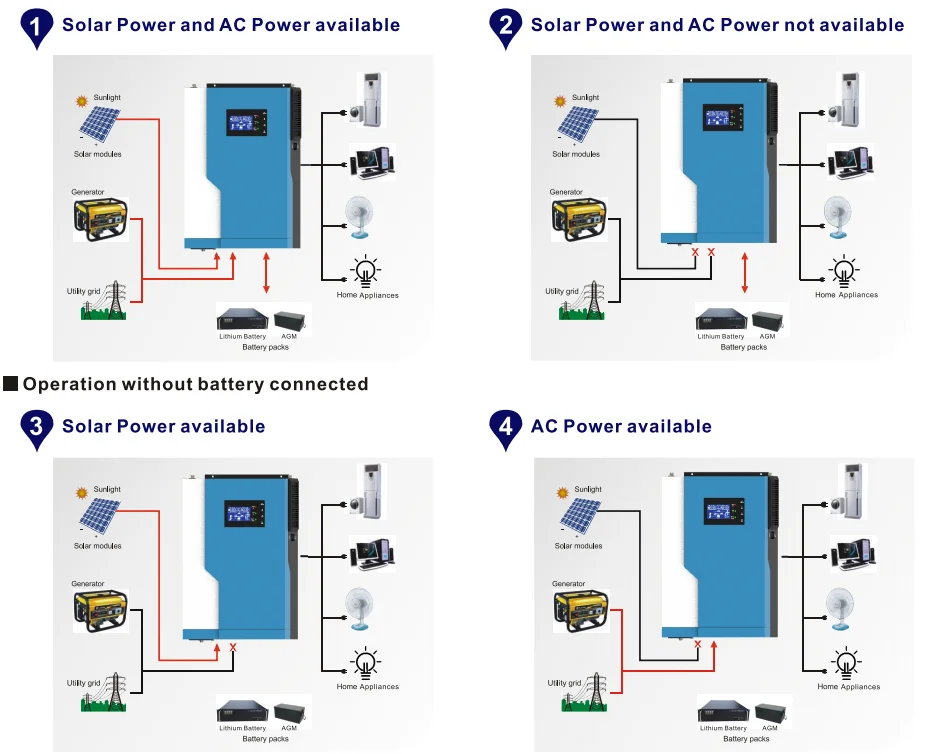

▲Inverter running without battery
▲Built-in 100A MPPT solar charger
▲High PV input voltage range(120~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life
Specification
Model | VICTOR NM-II-3500W-PLUS | VICTOR NM-II-5500W-PLUS | ||
Rated Output Power | 3500W/3500VA | 5500W/5500VA | ||
INPUT | ||||
Voltage | 230VAC | |||
Selectable Voltage Range | 170~280VAC(For Personal Computers) | |||
90~280VAC(For Home Appliance) | ||||
Frequency Range | 50Hz/60Hz(Auto Sensing) | |||
OUTPUT | ||||
AC Voltage Regulation(Batt.Mode) | Around 230VAC | |||
Surge power | 7000W | 11000W | ||
Efficiency(Peak)PV to INV | 97% | |||
Efficiency(Peak)Battery to INV | 94% | |||
Transfer Time | 10ms(For Personal Computers);20ms(For Home Appliance) | |||
BATTERY&AC CHARGER | 48VDC | 48VDC | ||
Battery Voltage | 24VDC | 48VDC | ||
Floating Charge Voltage | 27VDC | 54VDC | ||
Overcharge Protection | 33VDC | 63VDC | ||
Maximum Charge Current | 80A | 80A | ||
SOLAR CHARGER | ||||
Maximum PV Array Power | 5000W | 6000W | ||
MPPT Range & Operating Voltage | 120~450VDC | |||
Max PV Array Open Circuit Voltage | 500VDC | |||
Max Charging Current | 100A | |||
Max Efficiency | 98% | |||
PHYSICAL | ||||
Dimension,D*W*H(mm) | 440*300*100 | |||
Net Weight(Kgs) | 11 | 12 | ||
INTERFACE | ||||

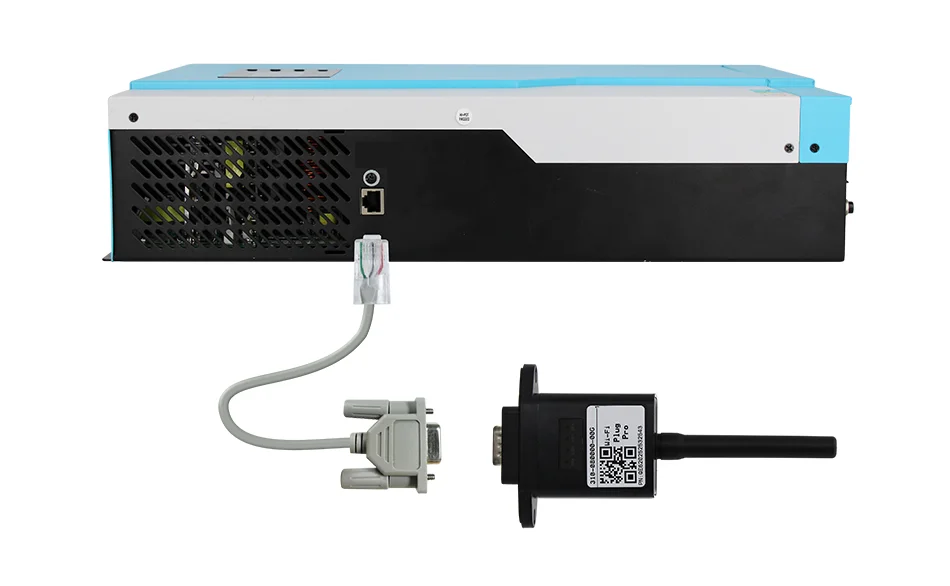

Communication Port | RS232/WiFi/USB/GPRS | |||

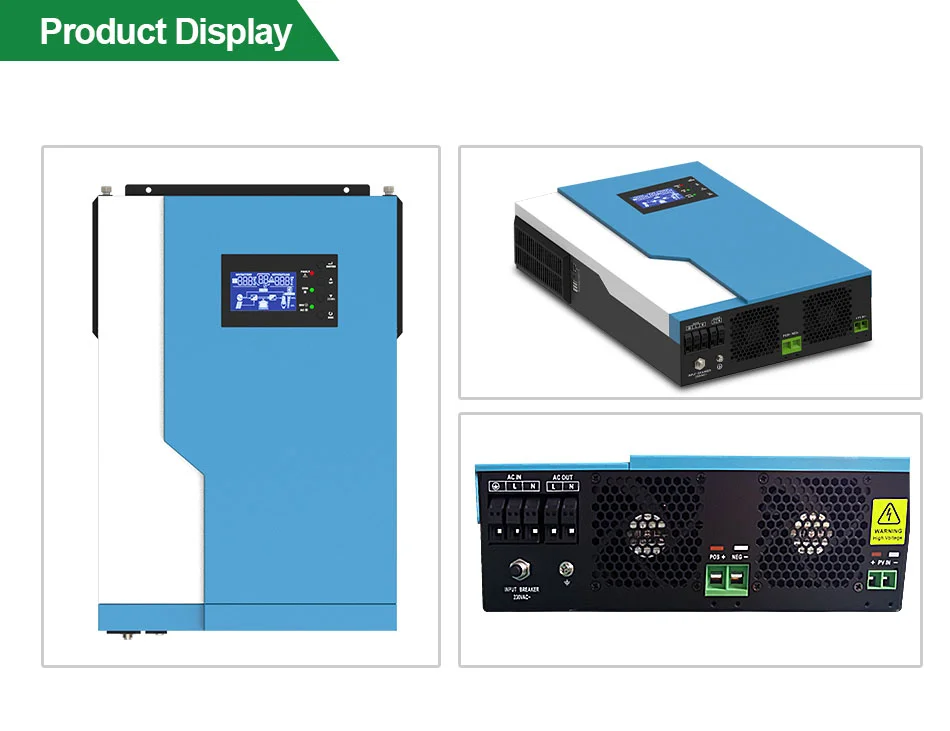

Products Description
Company Profile
Original Factory
Shenzhen Next Power Technolog Co., Ltd. was established in 2017 with the registered trademark of Next Power. It is a high-tech enter price and specializing in developing and manufacturing inverter. battery and solar power systems.The company covers an area of 10000 square meters, more than 500 employees, the company's headquarters is located in Shenzhen. Next Power has perfect production management system, first-class production equipment and various quality system certification.
Certifications

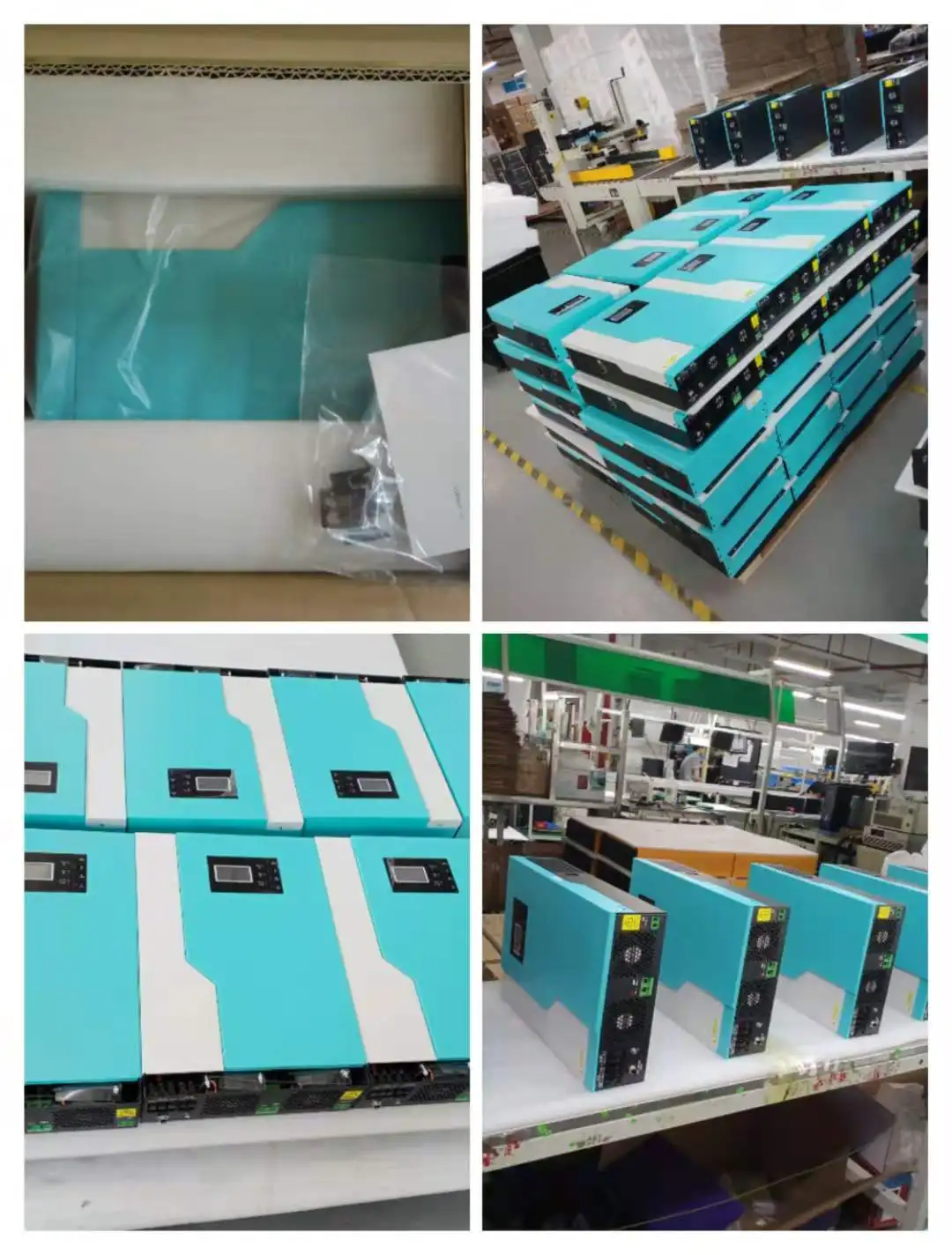

Our production line

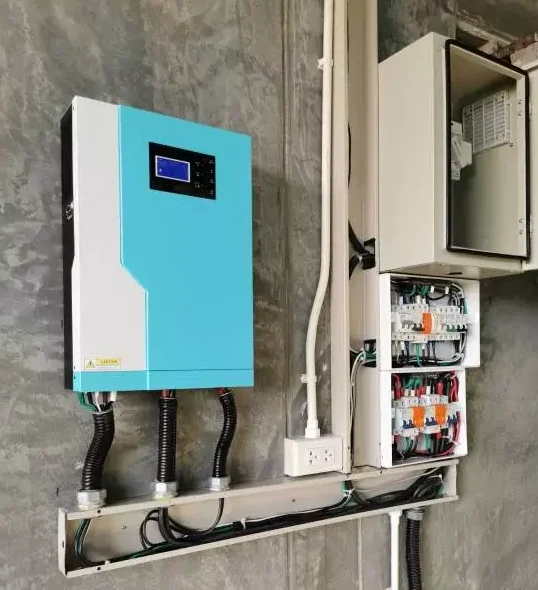

Our Application
Service Provided
FAQ
Q:Are you factory?
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time
when you are in Shenzhen
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer's own packing
Q:Can we customize product?
A:YES.OEM&ODM.
A: Yes, our factory and sales department are located in Shenzhen and we would be pleased to welcome you in our factory at any time
when you are in Shenzhen
Q:What is the warranty for this inverter?
A:, All products are at least 1 year warranty.
Q: What is the shipping way?
A: DHL,UPS,TNT,EMS,FedEx, Ship by sea.
Q:What is the payment method?
A:We normally require a T/T advance payment. 30% deposit and 70% before shipping.
Q:Can we design packaing?
A:YES.We can do customer's own packing
Q:Can we customize product?
A:YES.OEM&ODM.
