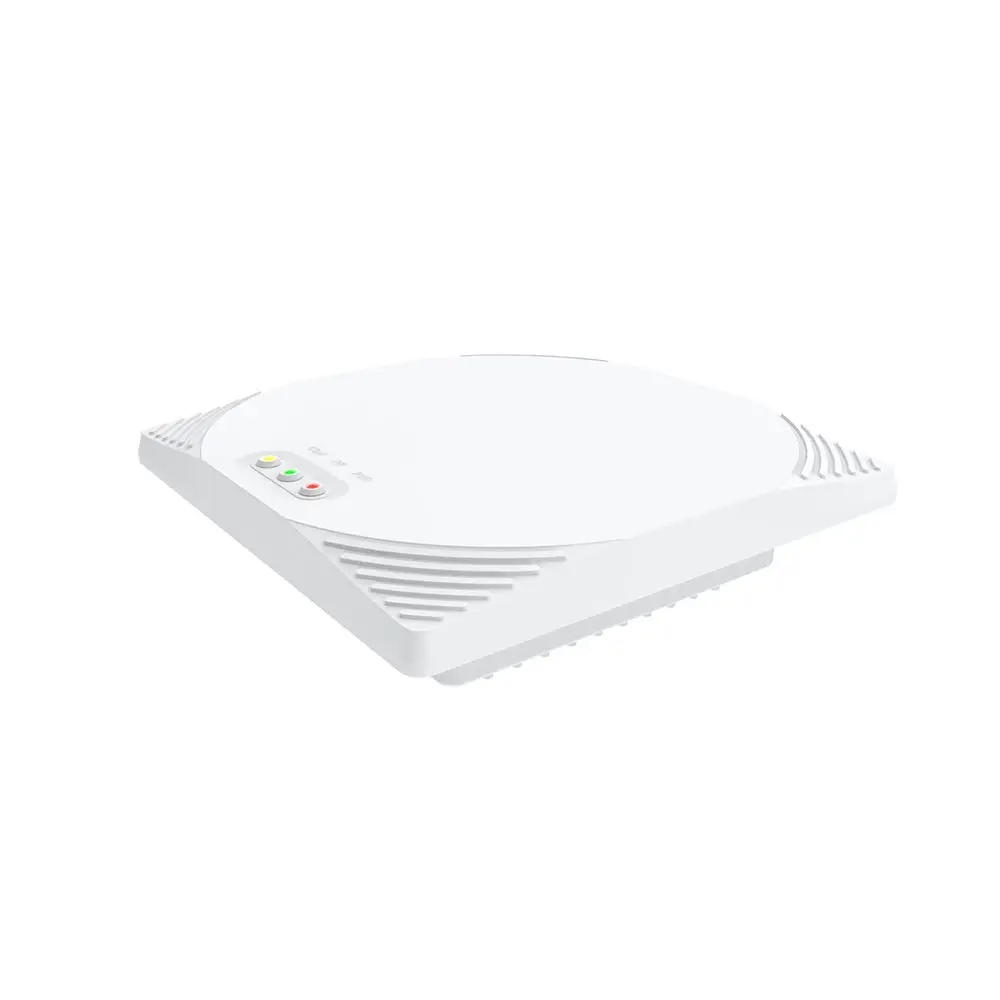

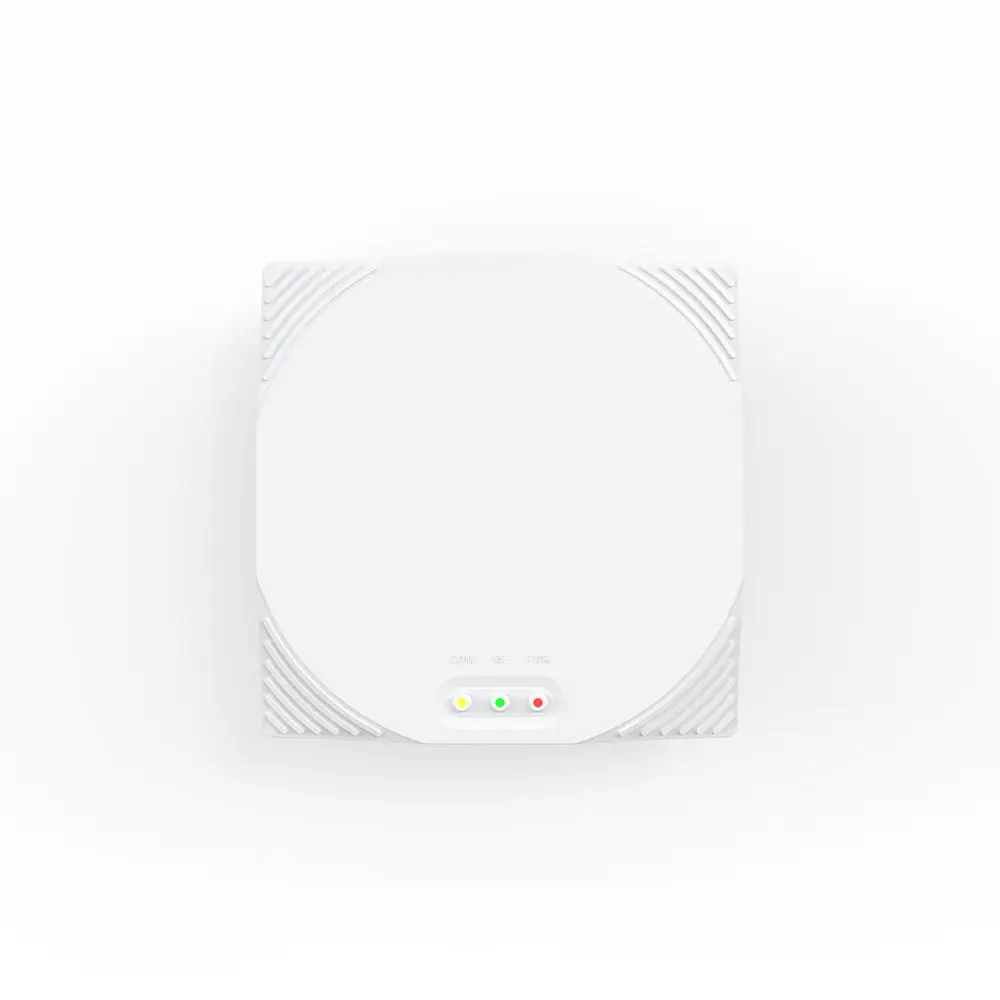

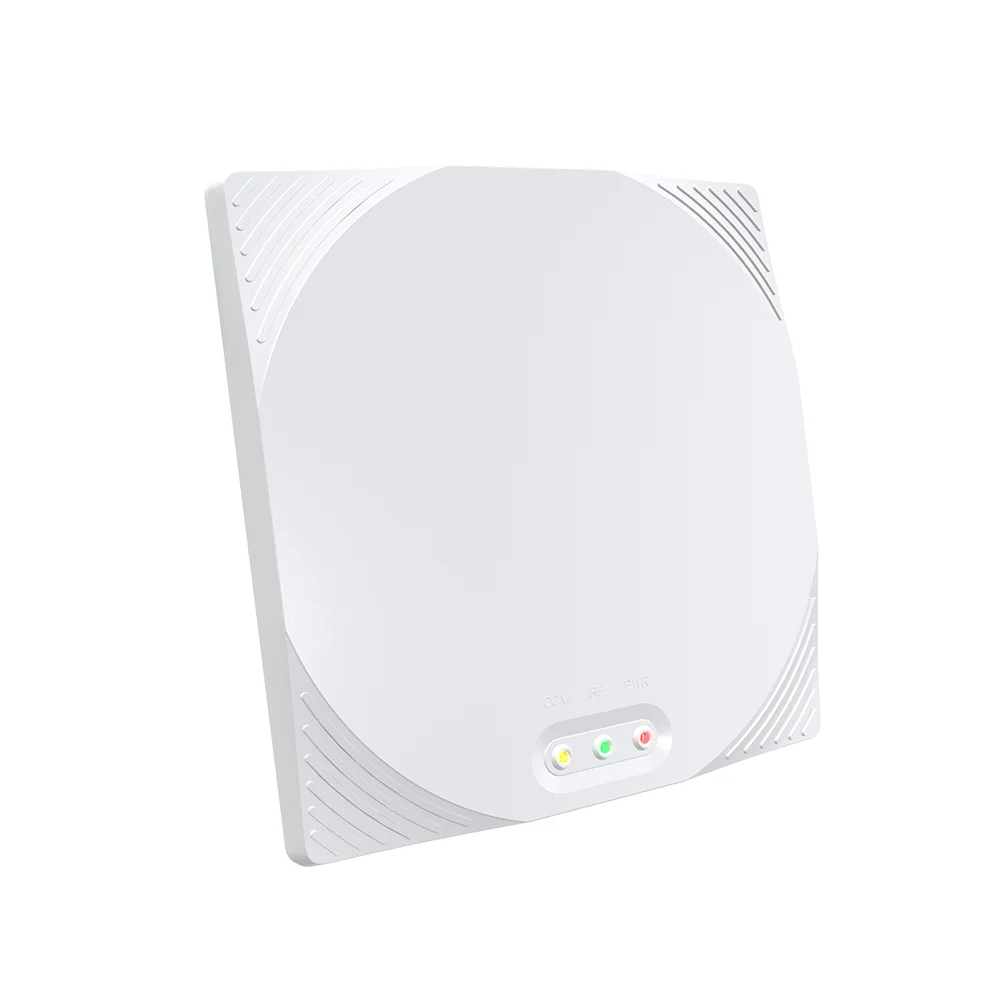

RFID integrated reader/writer RS232 Wiegand multi tag RFID remote reader/writer warehouse management software IP67
- Category: >>>
- Supplier: Shenzhen Vanch Intelligent Technology Co. Ltd.
Share on (1600844827148):
Product Overview
Description
Product Description
Specification
Model No. | VI-89R | |
RF IC used | IMPINJ R2000, E710 | |
Performance Index | ||
Frequency range | 902-928MHZ/865-868MHZ（customized optional） | |
Antenna polarization | Right-handed polarization | |
Half power lobe width (°) | Level: 65 Vertical plane: 60 | |
RF output adjust | FHSS or customized by software | |
RF output | 0-33dBm adjustable, 50 ohm load | |
Communication port | RS232, RS485, Wiegand26/34, TCP/IP or wireless (option) | |
Communication rate | RS232 with 9600～115200bps，RJ45 with 10Mbps | |
Input/output（GPIO） | I/O port (12 pin+4 pin) | |
Power consumption | Average <10W | |
SDK language | VC, VB, JAVA, C#, C++ etc. | |
Tag operation Index | ||
Read/write distance | 9dbi antenna, 6-10m reading range (depend on tag performance) | |
Protocol | EPC global UHF ISO-18000-6C（EPC G2），ISO-18000-6B | |
Mechanical electrical performance | ||

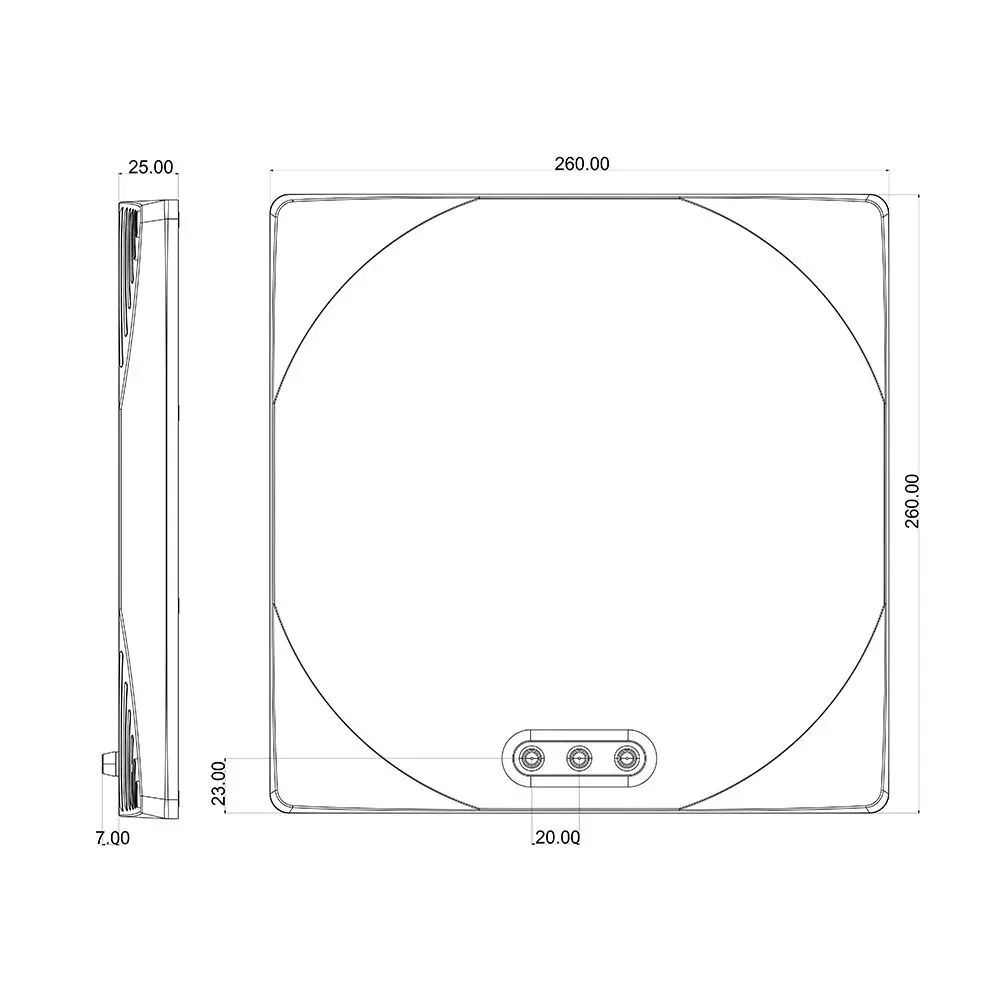

Unit Dimension | 260(length)*260(width)*65(height)mm（without frame and cables） | |
Power supply | With 220V AC input, the output of +12 V/3A DC power converter | |
Indicator type | LED light Indicator | |
Antenna shell material | ABS | |
Antenna shell color | White or Grey | |
Weight | 3Kg | |
Installation type | Pole installation | |
Support rod diameter | 35-50mm | |
Humidity | 5% to 95%, Non-condensing | |
IP protection | IEC IP65 | |
Work temperature | -20 ºC to +60 ºC | |
Lightning protection | DC ground | |
Port type | IP67 waterproof quick connector | |
Tips: | For more information, please consult online customer service, thank you | ||||||
Application and Cases
FAQ
Q: You are factory or trading company?
A: We are original equipment manufacturer in RFID UHF reader for over 10 years.
Q: How is your QC?
Q: How is your QC?
A: We have strict QC process and all the products will be 100% testing before shipping.
Q: What is your payment term?
Q: What is your payment term?
A: 100% payment should be paid before shipping.
Q: What is your payment way?
Q: What is your payment way?
A: T/T, Western Union, MoneyGram
Q: What is your warranty?
Q: What is your warranty?
A: within 1 year.
Q: Can I get technical support from you?
Q: Can I get technical support from you?
A: Sure. Our sales are of all good knowledge in the field. Besides, we have a technical team behind to support.
