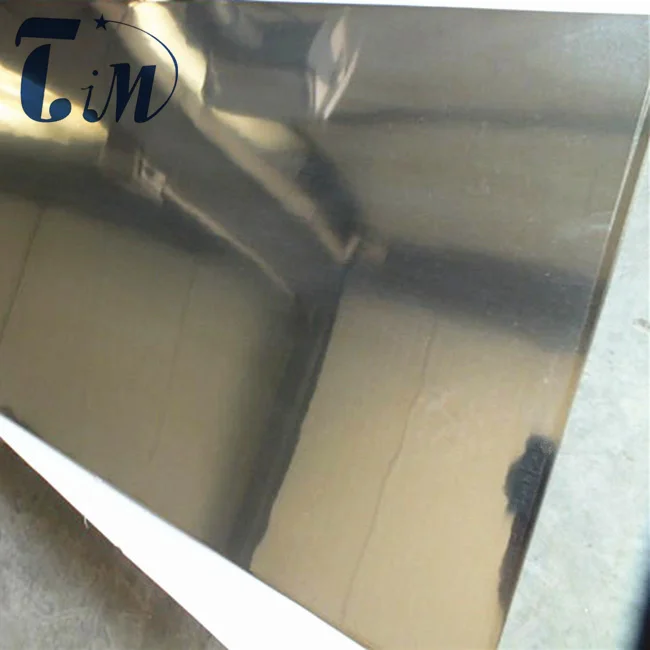

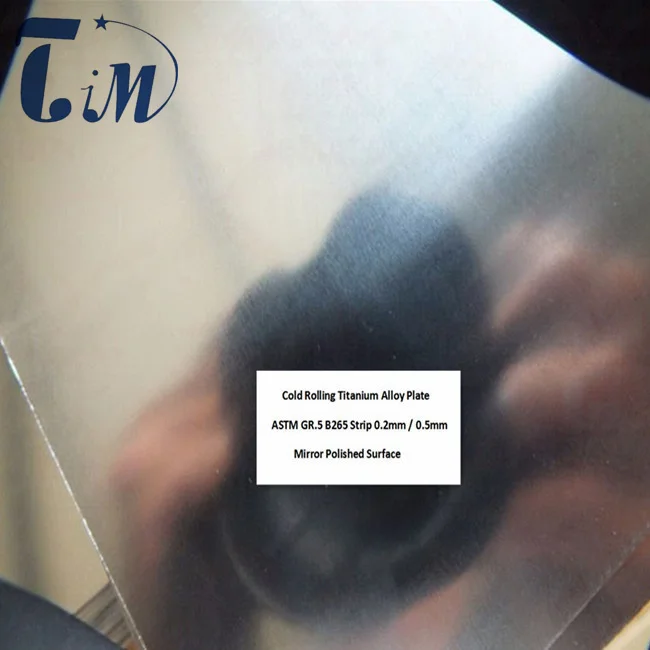

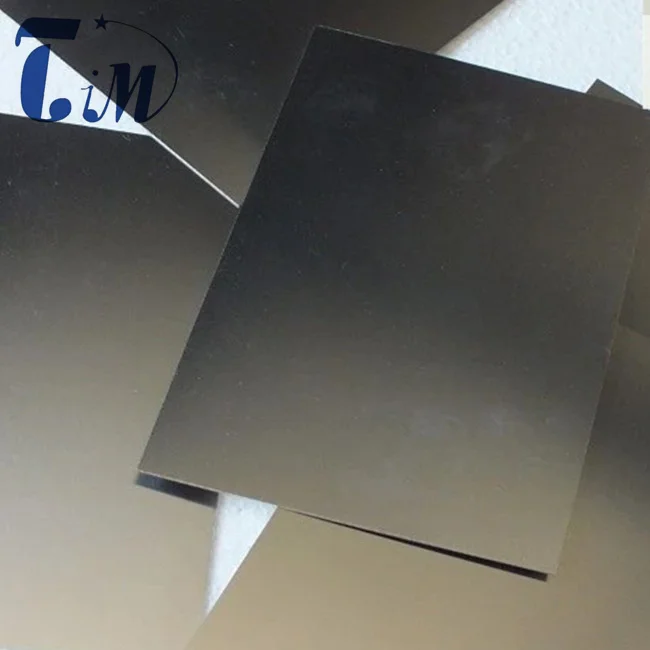

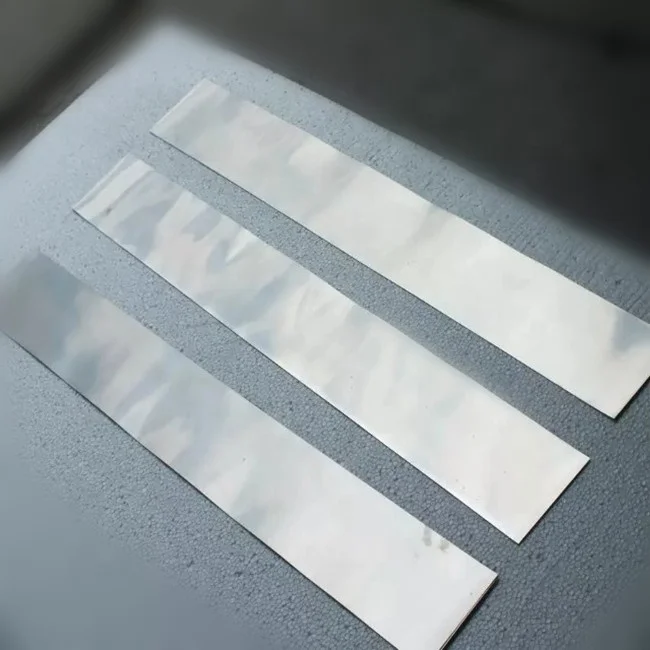

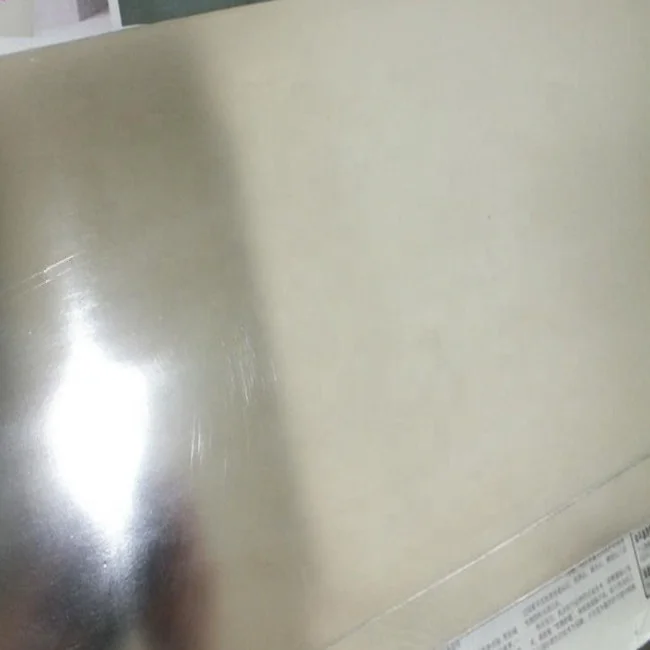

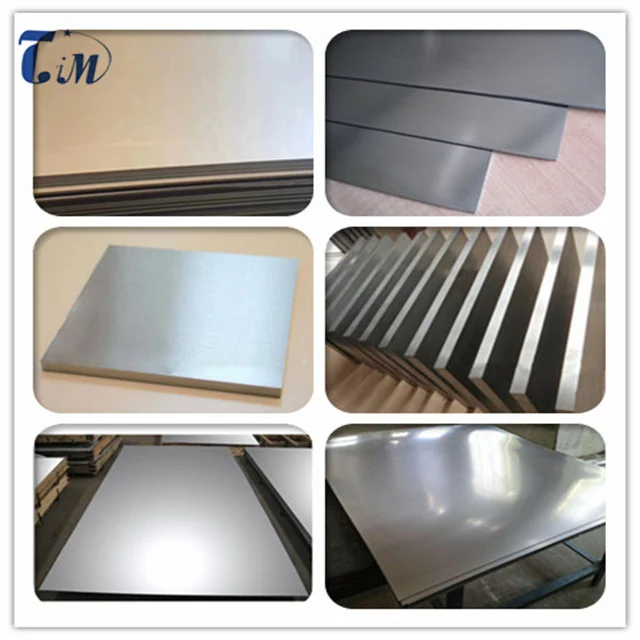

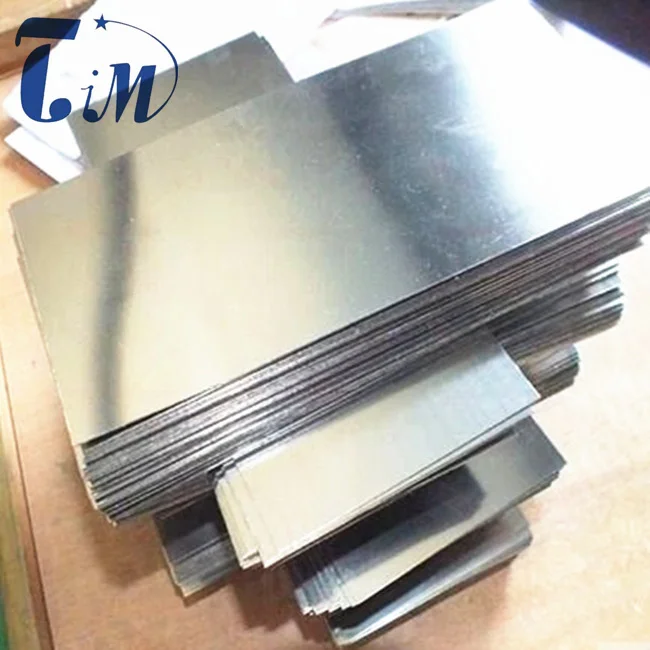

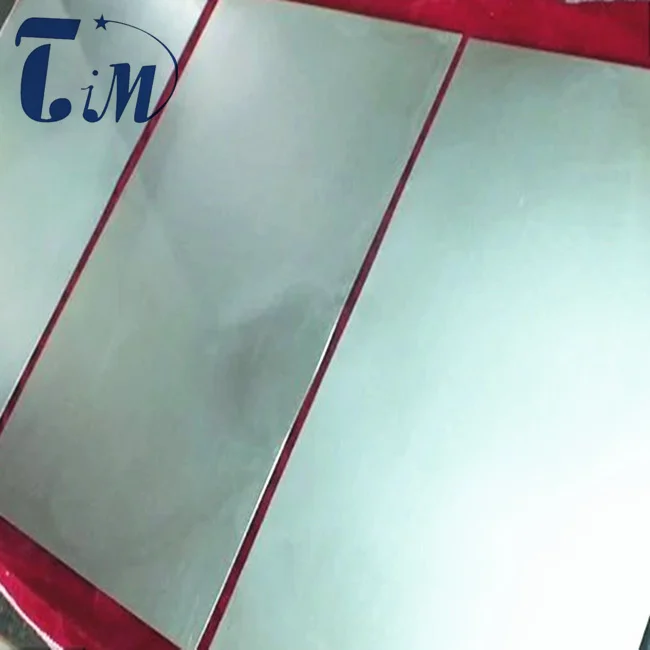

0.5mm Thickness Superelastic Nickel Titanium Shape Memory Alloy Nitinol Sheet/Plate
- Category: >>>
- Supplier: Baoji Taimei New Material Technology Co. Ltd.
Share on (1600844853340):
Product Overview
Description
Product Description
1. Products Name: Nitinol Shape Memory Alloy
2. Material Grade:NiTi-01/NiTi-02/NiTi-SS/TN3/TNC/NiTiCu/NiTiNb/NiTi-yy
3. Density :6.45g/cm3
4. Melting point: 1310℃
5. Standard: ASTM F2063, ISO 5832-3, Q/XB1516.1 ,Q/XB1516.2
6. Feature: Superelastic/ shape memory
7. Size: - Wire dia 0.1~6.0mm x L in shape Round & Flat ( Straight , spool ,coil)
2. Material Grade:NiTi-01/NiTi-02/NiTi-SS/TN3/TNC/NiTiCu/NiTiNb/NiTi-yy
3. Density :6.45g/cm3
4. Melting point: 1310℃
5. Standard: ASTM F2063, ISO 5832-3, Q/XB1516.1 ,Q/XB1516.2
6. Feature: Superelastic/ shape memory
7. Size: - Wire dia 0.1~6.0mm x L in shape Round & Flat ( Straight , spool ,coil)
- Rod & Bars Size: 3.0~80mm x L
- Sheet & Plates, Strip & Foils Size: th.0.05mm min
- Tube & Pipes: OD 0.1mm x Th.0.05mm min x L , seamless
8. Surface: Black Oxide, Pickled, Polished
9. Available Material: 55%-56% Nickel and 44%-45% Titanium
10. Custom Size & Design: available
11. Application: eyeglass frames & accessories,cellular phone antennae, Fishing , Actuators, Mechanical devices, Operation instruments, Medical Devices, Surgical Implants,Bra underwire, implantable devices, bone staples, vascular stents etc
- Sheet & Plates, Strip & Foils Size: th.0.05mm min
- Tube & Pipes: OD 0.1mm x Th.0.05mm min x L , seamless
8. Surface: Black Oxide, Pickled, Polished
9. Available Material: 55%-56% Nickel and 44%-45% Titanium
10. Custom Size & Design: available
11. Application: eyeglass frames & accessories,cellular phone antennae, Fishing , Actuators, Mechanical devices, Operation instruments, Medical Devices, Surgical Implants,Bra underwire, implantable devices, bone staples, vascular stents etc
Tensile Strength (MPa) | Yield Strength (MPa) | Elongation (%) | reduction of aera | grain size | Bend Test a>130 | ak (J/cm²) | IE Impact strength (mm) | |
1050 | 230 | 17 | / | 6 | Qulified | / | / | |
Chemical Composi-tion | Ti % | Fe % | C % | O % | Nb % | H % | Co % | N % |
balance | 0.008 | 0.044 | 0.026 | 0.002 | 0.001 | / | 55.76 |
Product type | Grade | Transformation Temperature | Surface | Specifications | Standard |
Shape Memory Nitinol Alloy | NITI-01 | -35℃ to 40℃ | polished, pickling , Black oxide | 0.1-6.0mm | |
NITI-02 | polished, pickling , Black oxide45℃ to 90℃ | ||||
Superelastic Nitinol alloy in room temperature | |||||
Low temperature super-elastic nitinol alloy | TN3 | -5℃ to -35℃ | polished, pickling , Black oxide | 0.1-6.0mm | ASTMF2063 Q/XB1516.1 Q/XB1516.2 |
TN4 | -20℃ to -30℃ | polished, pickling , Black oxide | 0.1-3.0mm | ||
3 3℃ ±3℃ | polished , pickling | ASTMF2063 , ISO 5832 Q/XB1516.1 Q/XB1516.2 |
Nitinol (also known as Nitinol or NiTi) is a shape memory alloy and in the unique class of shape memory alloys. These properties
are resulting from the phase transformation of its crystal structure. The transformation is occuring when temperature is applied.
Specifically, at lower temperatures the crystal structure is martensitic (weak form) and at higher temperatures austenitic
(stronger than martensitic). Moreover, the martensitic structure can be found at higher temperatures where stress forces are
applied.The mechanical properties of Nitinol are changing with applied stresses and small changes in temperature.
are resulting from the phase transformation of its crystal structure. The transformation is occuring when temperature is applied.
Specifically, at lower temperatures the crystal structure is martensitic (weak form) and at higher temperatures austenitic
(stronger than martensitic). Moreover, the martensitic structure can be found at higher temperatures where stress forces are
applied.The mechanical properties of Nitinol are changing with applied stresses and small changes in temperature.
There are two primary categories of Nitinol.
The first, known as "SuperElastic", is characterized by extraordinary recoverable strains and kink resistance. A thermoelastic martensitic phase transformation in the material is responsible for its extraordinary properties. Nitinol alloys are typically made of 55%-56% Nickel and 44%-45% Titanium. Small changes in composition can significantly impact the properties of the material.
The second category, "Shape Memory" alloys, is valued for the Nitinol's capacity to recover a pre-set shape when heated above its transformation temperature.
The first, known as "SuperElastic", is characterized by extraordinary recoverable strains and kink resistance. A thermoelastic martensitic phase transformation in the material is responsible for its extraordinary properties. Nitinol alloys are typically made of 55%-56% Nickel and 44%-45% Titanium. Small changes in composition can significantly impact the properties of the material.
The second category, "Shape Memory" alloys, is valued for the Nitinol's capacity to recover a pre-set shape when heated above its transformation temperature.
