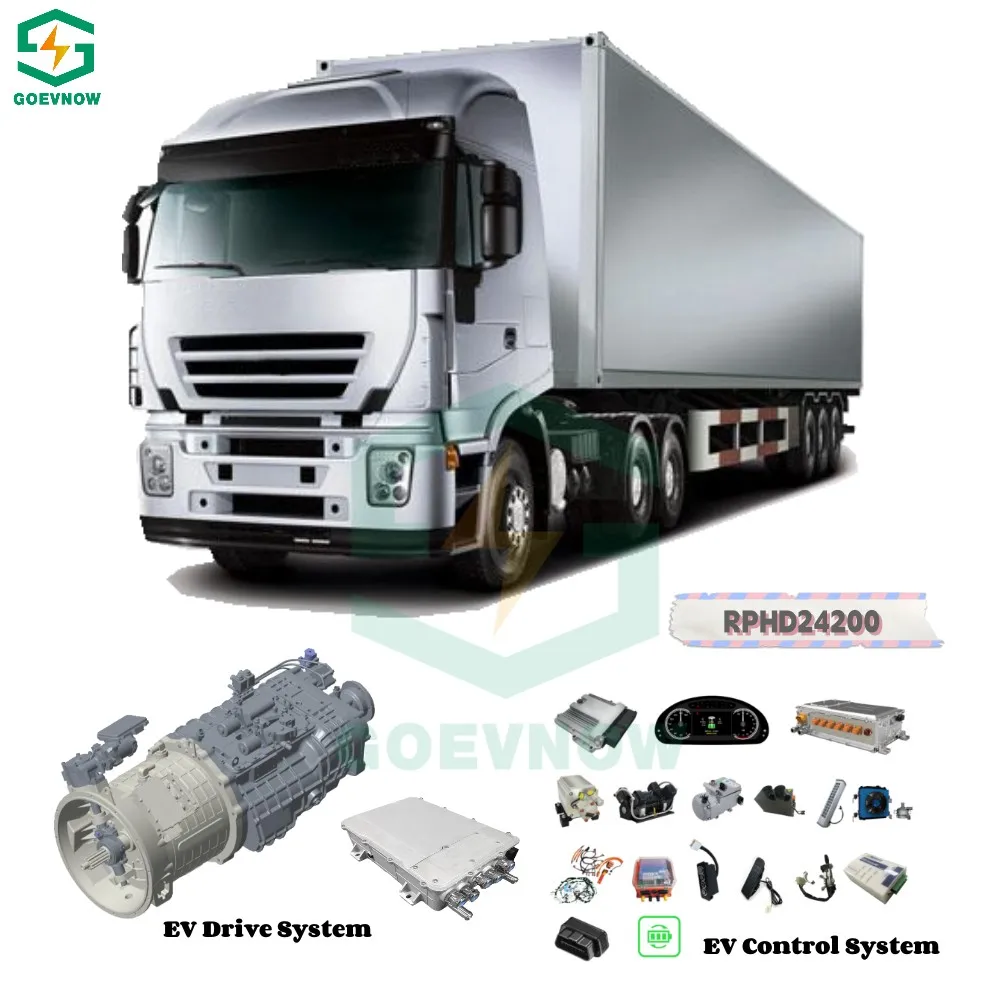

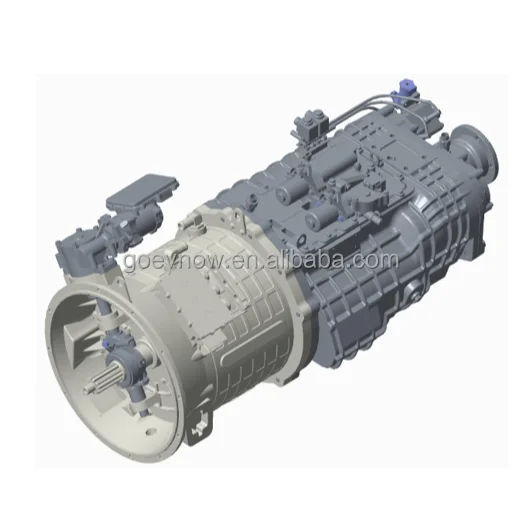

149Kw Hybrid heavy truck electric conversion kit RPHD24200 TM motor IP67 12 gear AMT complete kit Electric hybrid drive control
- Category: >>>
- Supplier: Shantou Goevnow Technology Co. Ltd.
Share on (1600844857749):
Product Overview
Description
Product Description
149Kw Hybrid heavy truck electric conversion kit RPHD24200 TM motor IP67 12 gear AMT complete kit Electric hybrid drive control

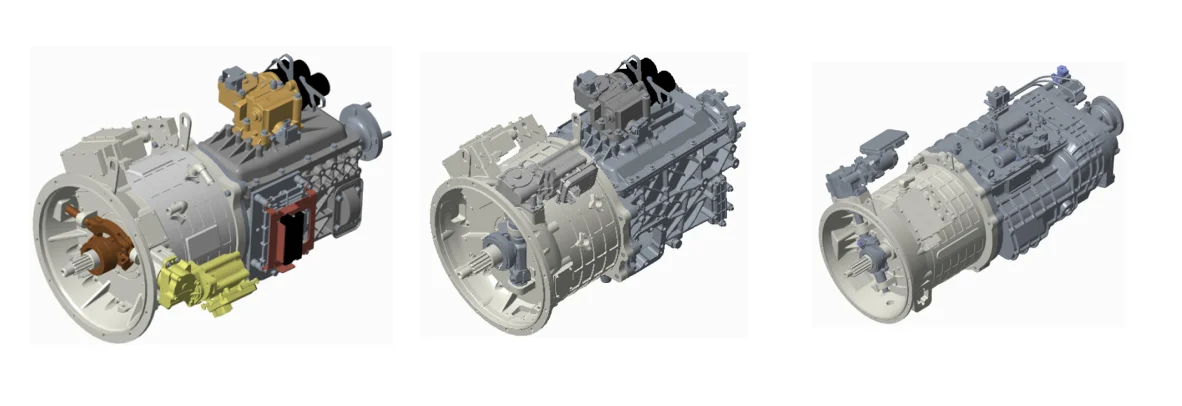

RPHD Series Motor

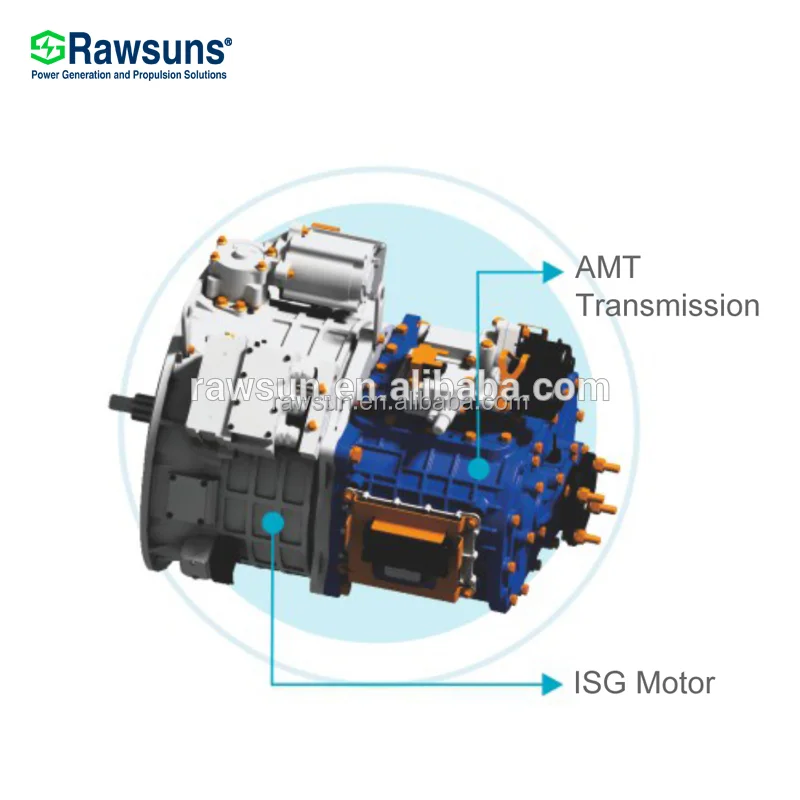

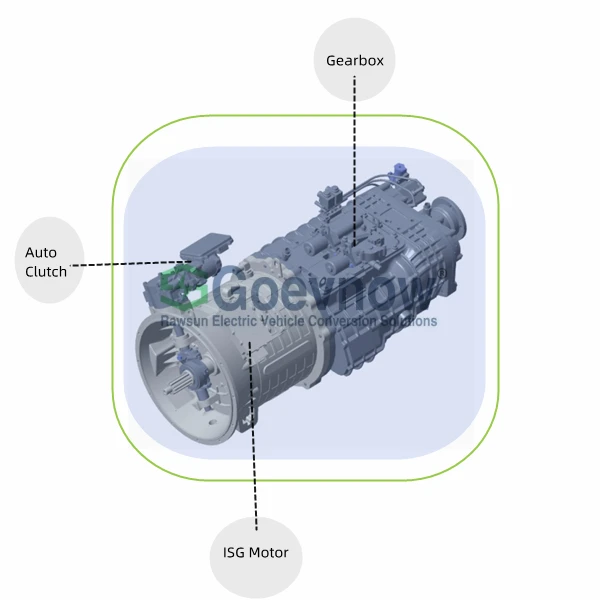

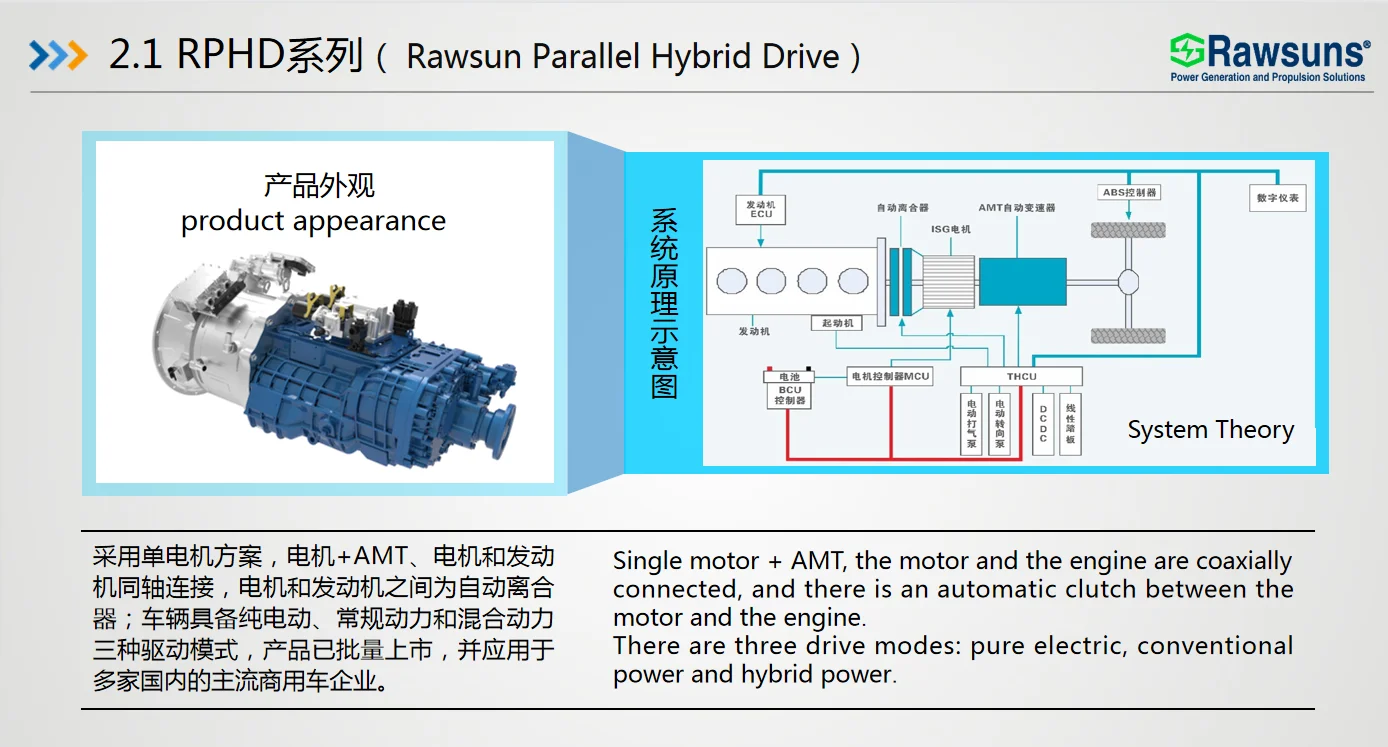

Single motor + AMT, the motor and the engine are coaxially connected, and there is an automatic clutch between the motor and the engine.
There are three drive modes: pure electric, conventional power and hybrid power.
There are three drive modes: pure electric, conventional power and hybrid power.
motor type | PMSM |
IP Grade | 67 |
battery rated voltage | 540V |
motor rated | 80Kw |
motor peak | 149Kw |
rated speed | 1232Rpm |
EV Conversion Kits Supporting Documents and Service
Drive System
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
1. Component Data sheets
2. Component installation drawings
3. System Performance Plan
4. Component 3D step files
5. CANbus protocols
6. System Electrical schematic diagram
7. System Fault codes table
8. System testing report.
9. Remote installation support.
10. Wiring diagram
11. Installation training.
12. On site installation guide service (optional)
Vehicle Control System
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault codes table
10. System Electrical schematic diagram
11. System CANbus topological diagram 12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. On site installation guide service (optional)
1. Vehicle performance simulation
2. Component Data sheets
3. Component installation drawings
4. Component 3D step files
5. CANbus protocols for all components
6. VCU control strategies
7. VCU high level software for vehicle parameter configuration
8. CANbus Analyze Software
9. System Fault codes table
10. System Electrical schematic diagram
11. System CANbus topological diagram 12. Wiring diagram
13. Dashboard logic functions table
14. System bench testing report.
15. System testing video
16. System operation manual
17. Remote installation support.
18. Installation training.
19. On site installation guide service (optional)

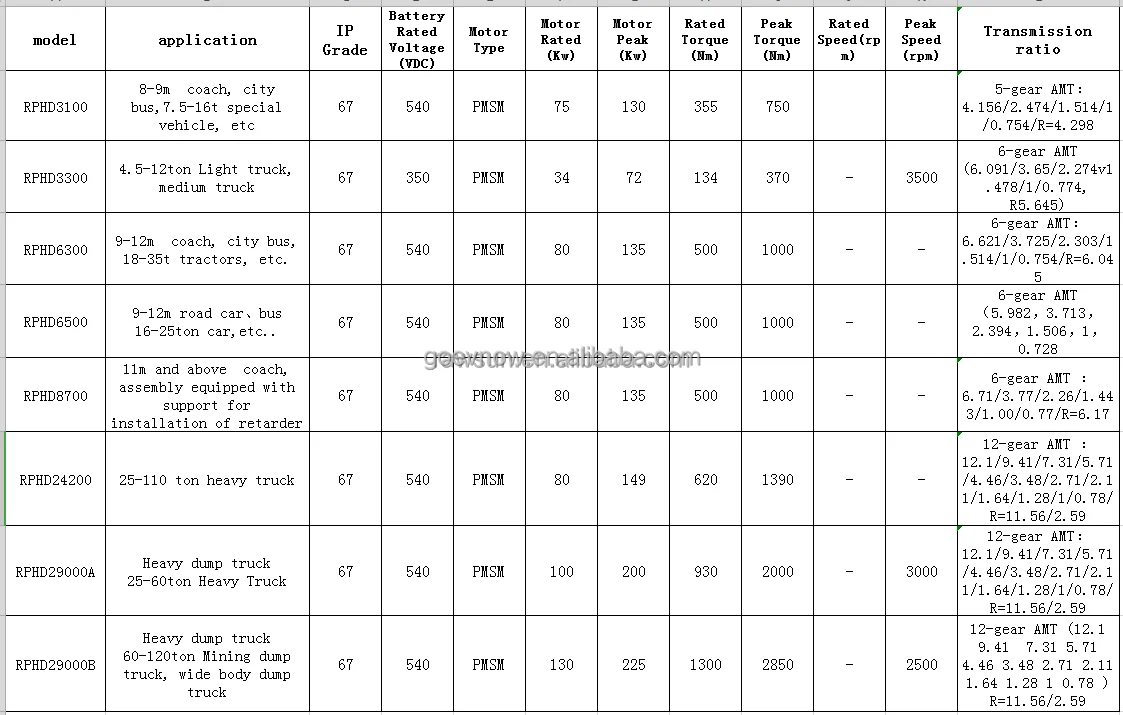

Related Detail

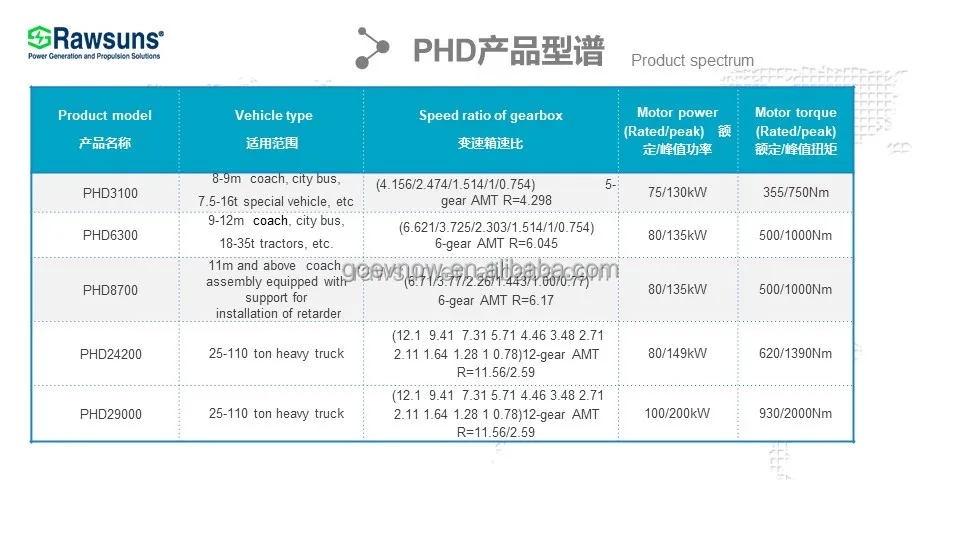

Model | Vehicle type | Battery rated voltage | Motor rated (Kw) | Motor peak (Kw) | Rated torque(Nm) | Peak torque(Nm) | Rated speed(Rpm) |
RPHD3100 | 8-9m coach, city bus,7.5-16t special vehicle, etc | 540 | 75 | 130 | 355 | 750 | 2018 |
RPHD3300 | 8-9m coach, city bus,7.5-16t special vehicle, etc | 350 | 34 | 72 | 134 | 370 | 2423 |
RPHD6300 | 9-12m coach, city bus, 18-35t tractors, etc. | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD6500 | 9-12m road and bus; 16 and 25 tons of car, etc | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD8700 | 11m and above coach, assembly equipped with support for installation of retarder | 540 | 80 | 135 | 500 | 1000 | 1528 |
RPHD24200 | 25-110 ton heavy truck | 540 | 80 | 149 | 620 | 1390 | 1232 |
RPHD29000B | 60-120 tons of mine self-discharging, wide-body self-discharging | 540 | 100 | 200 | 930 | 2000 | 1027 |
RPHD29000C | 25-49 tons standard load (main line traction) | 576 | 78 | 147 | 620 | 1390 | 1201 |
RPHD29000D | 60-120 tons mine self-unloading, wide-body self-unloading | 576 | 200 | 360 | 1250 | 2000 | 1528 |
RPHD29000E | 25-49 tons standard load (main line traction) | 576 | 80 | 154 | 650 | 1365 | 1175 |
RPHD29000F | 60-120 tons mine self-unloading, wide-body self-unloading | 576 | 130 | 225 | 1300 | 2850 | 955 |

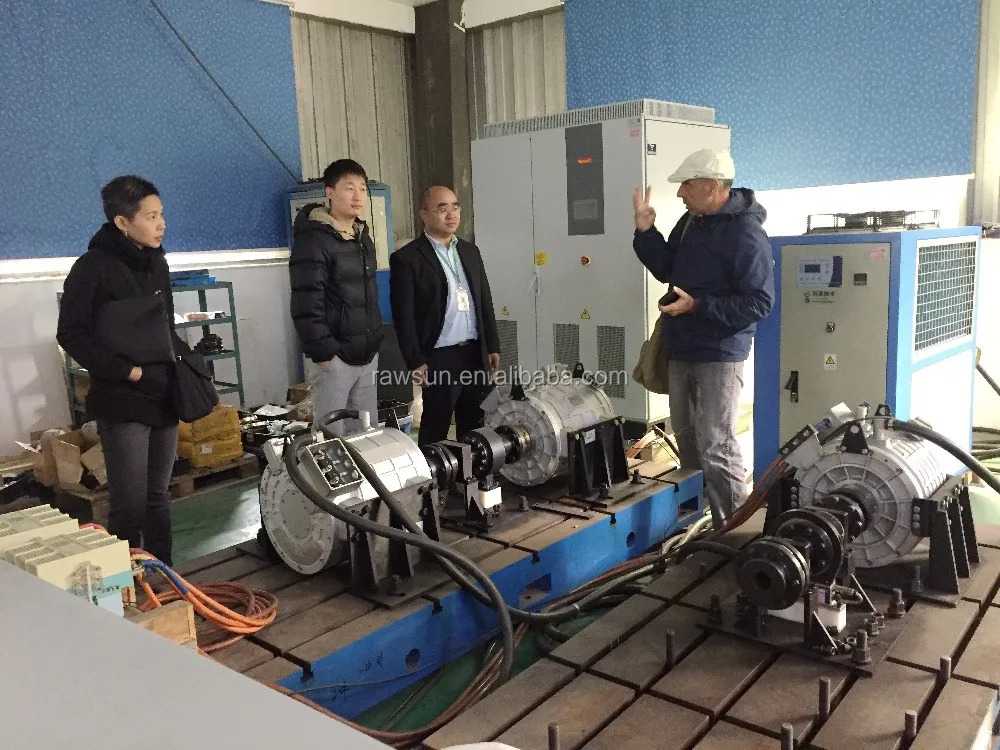

Customer Photo

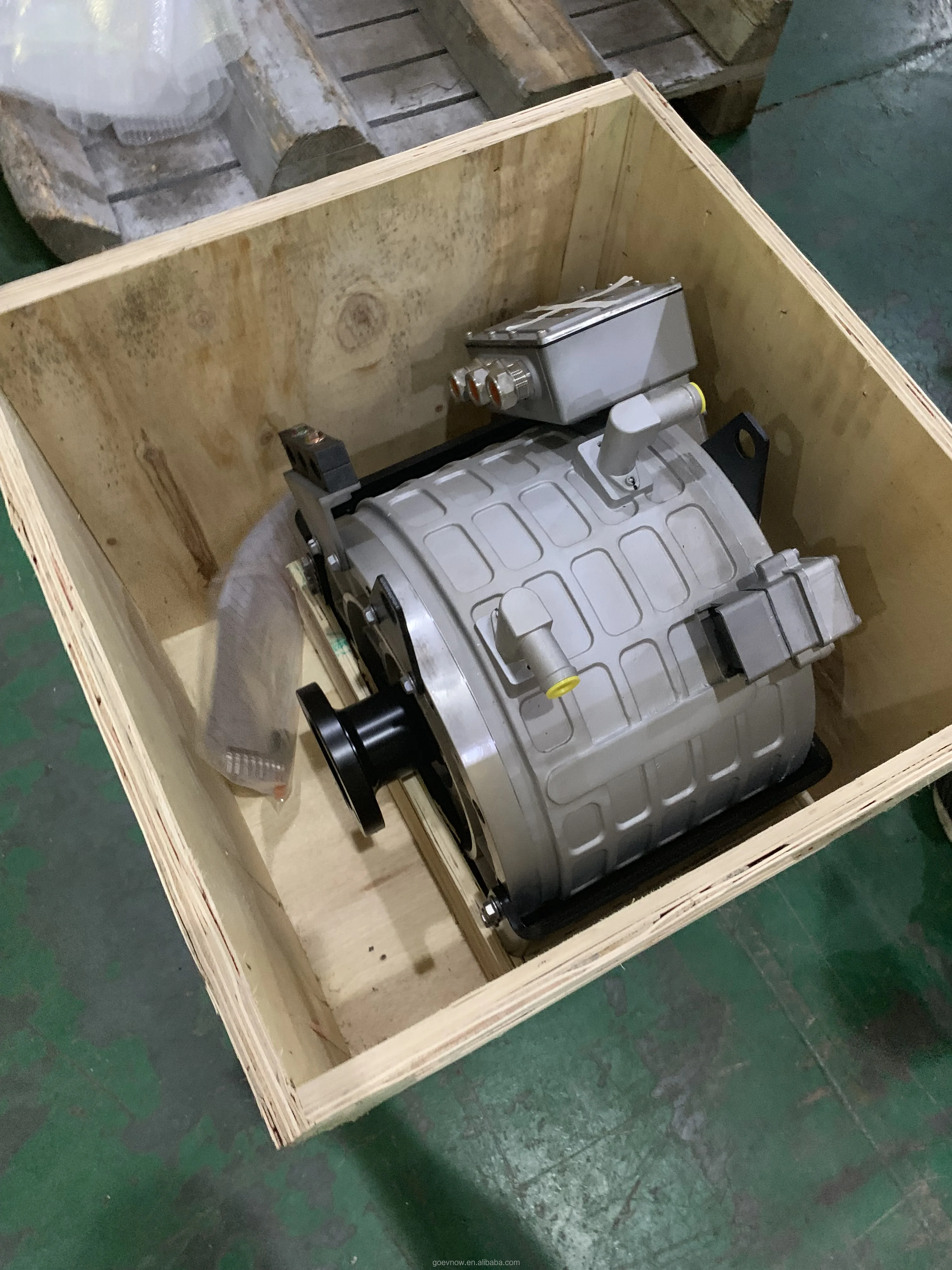

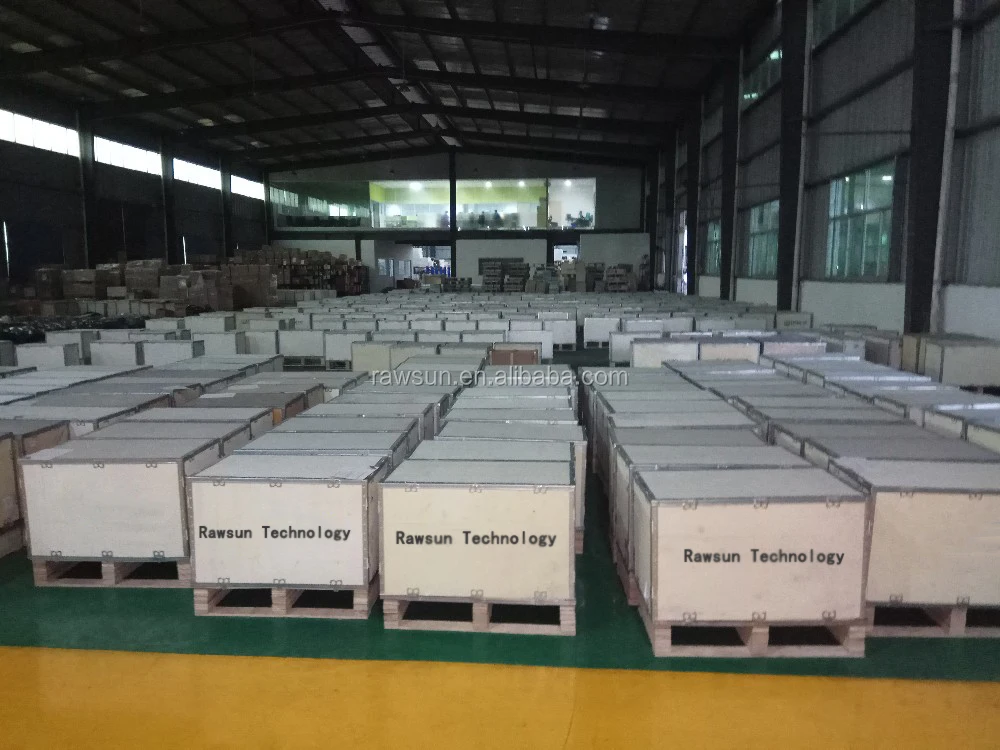

Product Packaging
Company Profile/Our Advantage
Shantou Goevnow Technology Co Ltd
A sub company of Rawsun Technology, is a growing company committed to sales and service of Rawsuns complete electric propulsion solutions. Goevnow products conform to the trend of green environmental protection concept of all countries in the world, Electric vehicles and electric boats with our EV systems are conducive to reduce road exhaust pollution and oil pollution on the water surface. Rawsuns EV systems cover 10kw to 450 kw automotive and Marine electric systems, which include EV drive systems, EV control systems and lithium battery systems, Rawsuns EV solutions are mainly applied in electric passenger cars, special electric commercial vehicles, electric buses from 6 meters to 18 meters, electric trucks from 2 tons to 110 tons, electric boats, and electric engineering machineries. Goevnow customize complete set of Rawsuns electric vehicle/electric boat solutions for overseas customers according to different vehicle parameters. Goevnow has provided full electric systems for electric trucks, electric yachts, electric farming vehicles, electric buses, electric trucks, electric garbage trucks, electric sightseeing boats,electric winches, hybrid amphibious vehicles, electric tractors, electric heavy trucks ect.We have provided customized services to customers in East China, Africa, Southeast Asia, Europe and America ect.
Why choose us
1. We have a professional team to provide system solutions for converting your diesel vehicles into electric vehicles.
2. Provide your car information, we can recommend suitable products for you or customize the products you need.
1. We have a professional team to provide system solutions for converting your diesel vehicles into electric vehicles.
2. Provide your car information, we can recommend suitable products for you or customize the products you need.
