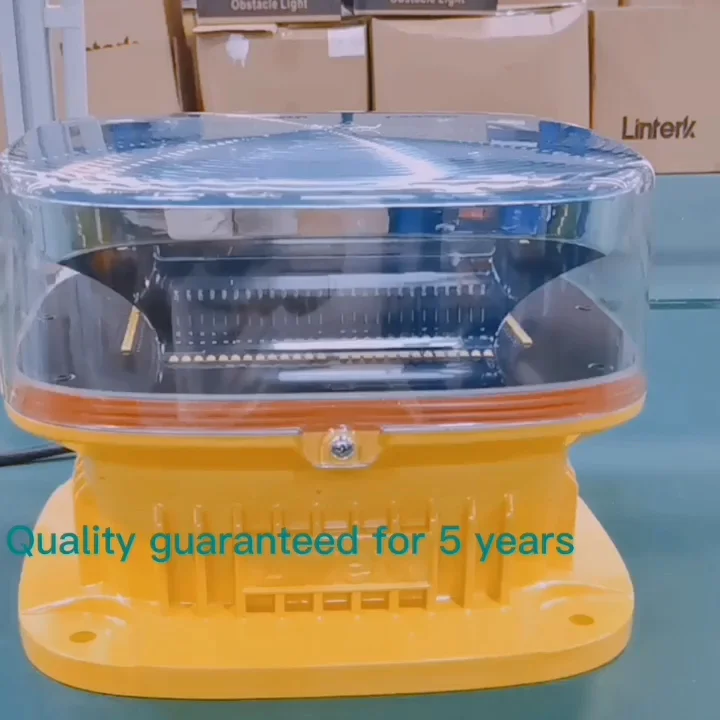

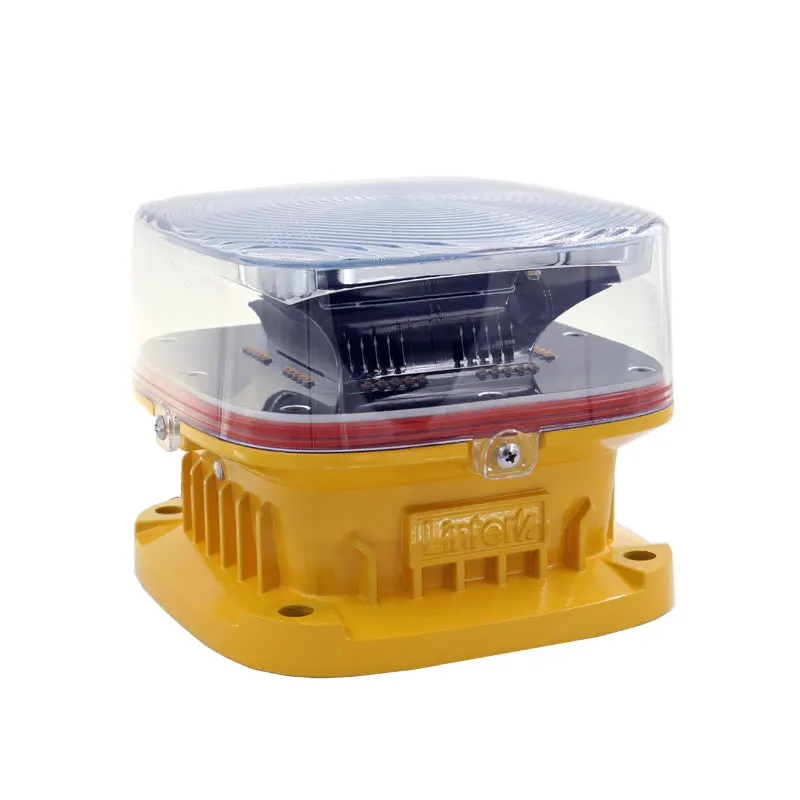

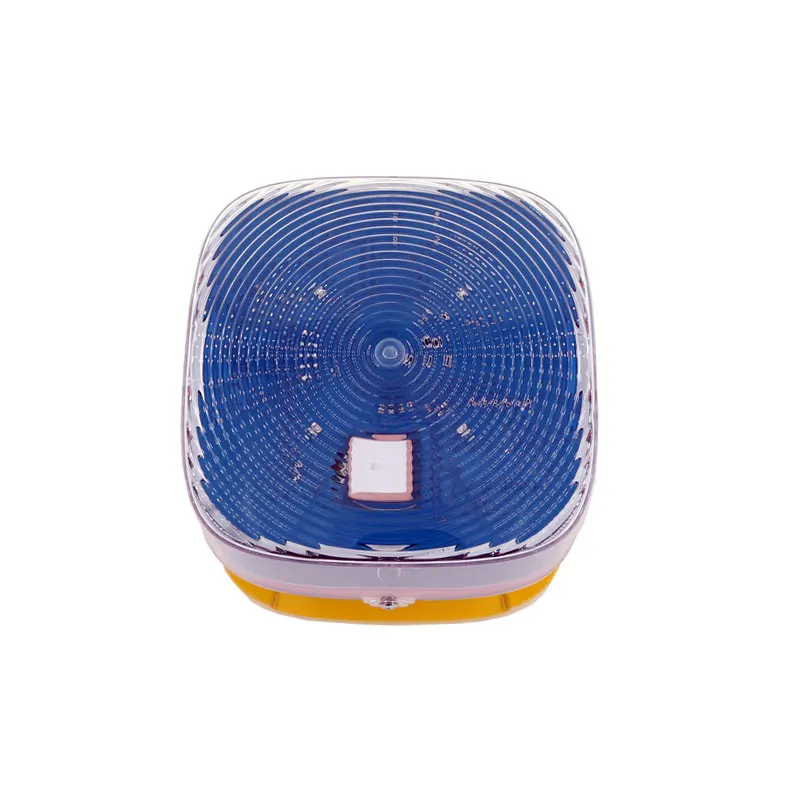

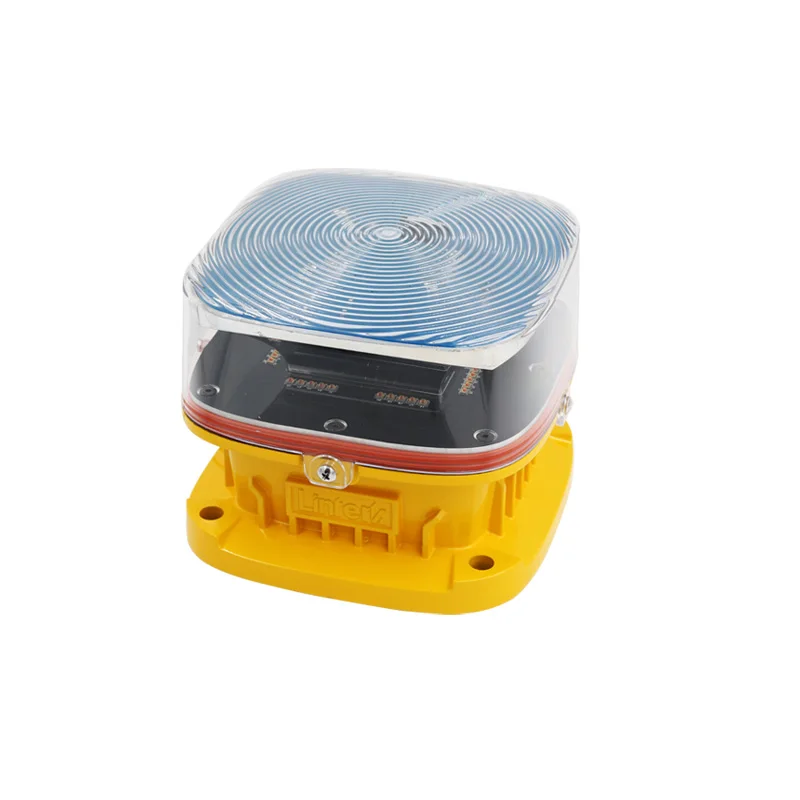

ICAO FAA Marine Heliport Helipad Airport Runway Aircraft Solar Powered Navigation Obstacle Aviation Warning Light
- Category: >>>
- Supplier: Hunan Lingte Technology Co. Ltd.
Share on (1600844874301):
Product Overview
Description
Product Description
Product features: low power consumption, easy to install, high brightness.
* Application: Suitable for installation on fixed buildings, structures, such as electric power towers, communication towers,chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
* Type: Medium intensity type B aviation obstruction light：red flashing at night
* Application: Suitable for installation on fixed buildings, structures, such as electric power towers, communication towers,chimneys, high-rise buildings, large bridges, large port machinery, large construction machinery, wind turbines and other obstacles.
* Type: Medium intensity type B aviation obstruction light：red flashing at night
Package
Our standard package is cartons. 1 pcs per 1 carton.
Product Descripiton
* Environmental conditions for use:
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Operating temperature: -40 ° C ┉ +55 ° C;
* Relative humidity: 0% to 95%;
* Wind power: no more than 240km/h;
* Rain: exposed to rain in any wind direction;
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
* Working conditions: input voltage: AC85-265 V
* Salt spray: exposed to salt spray;
* Irradiation: exposed to solar radiation.
* Working conditions: input voltage: AC85-265 V

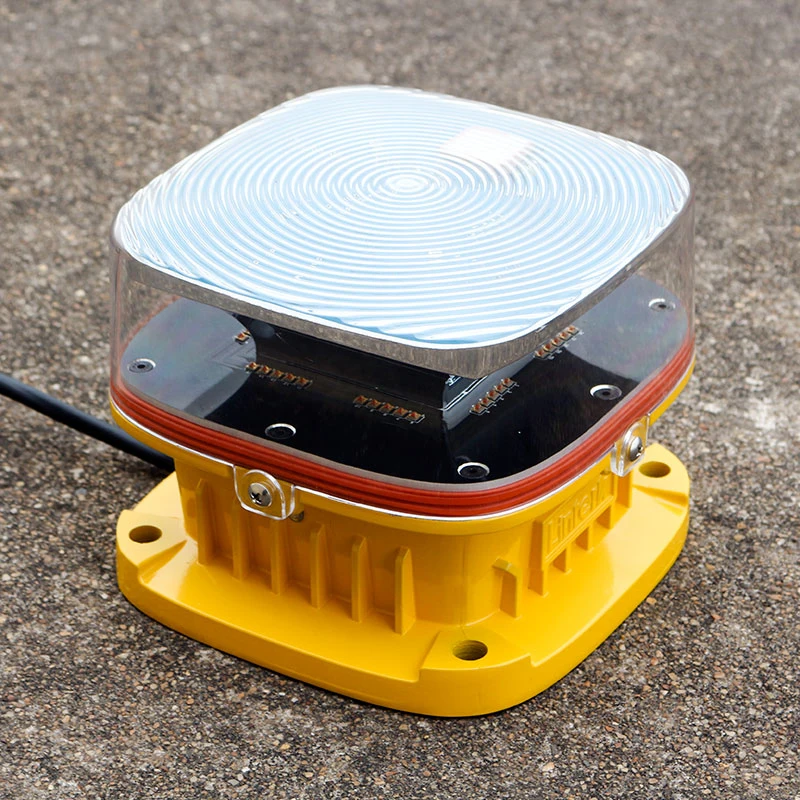

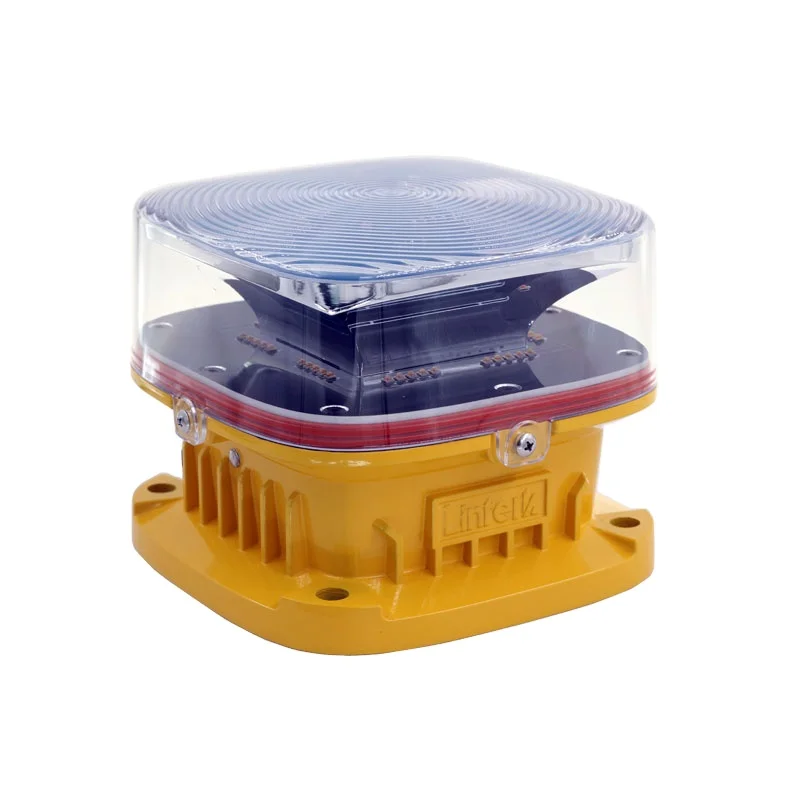

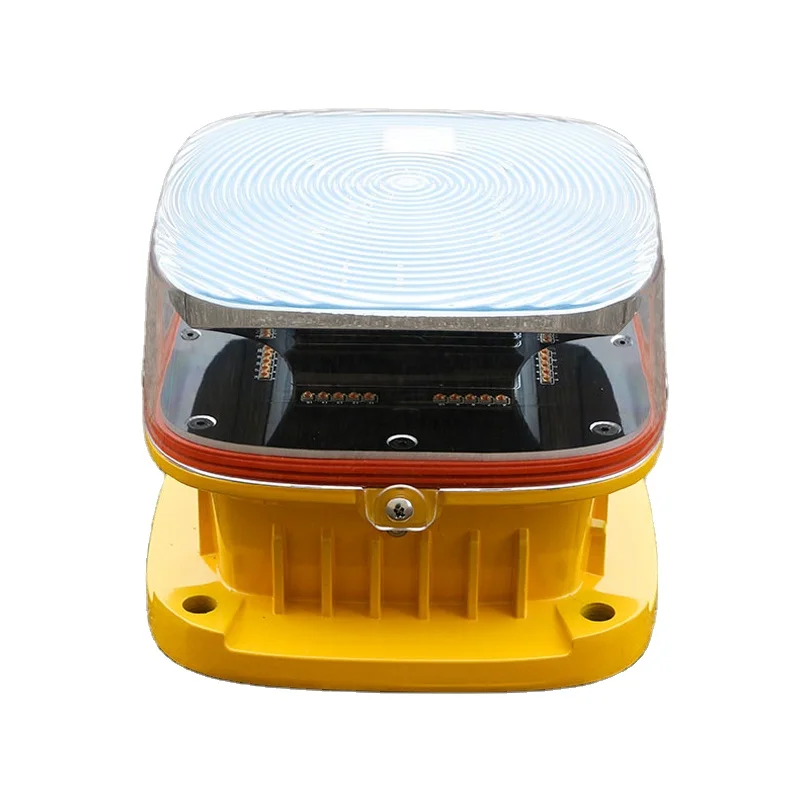

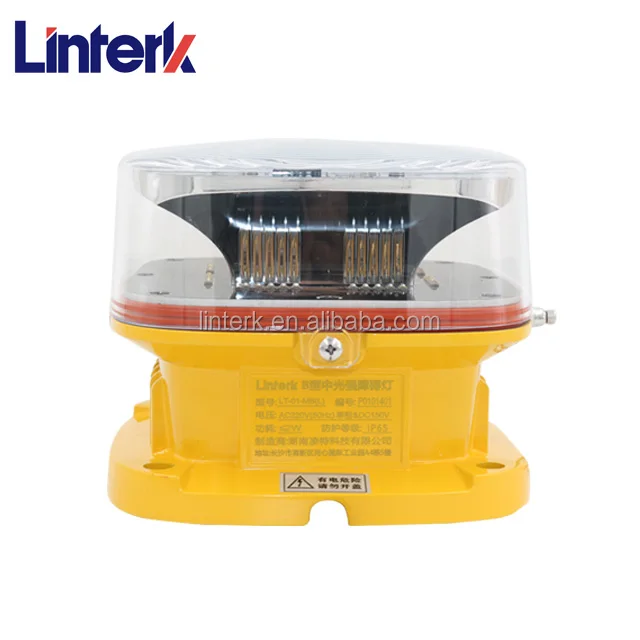

Detailed Images

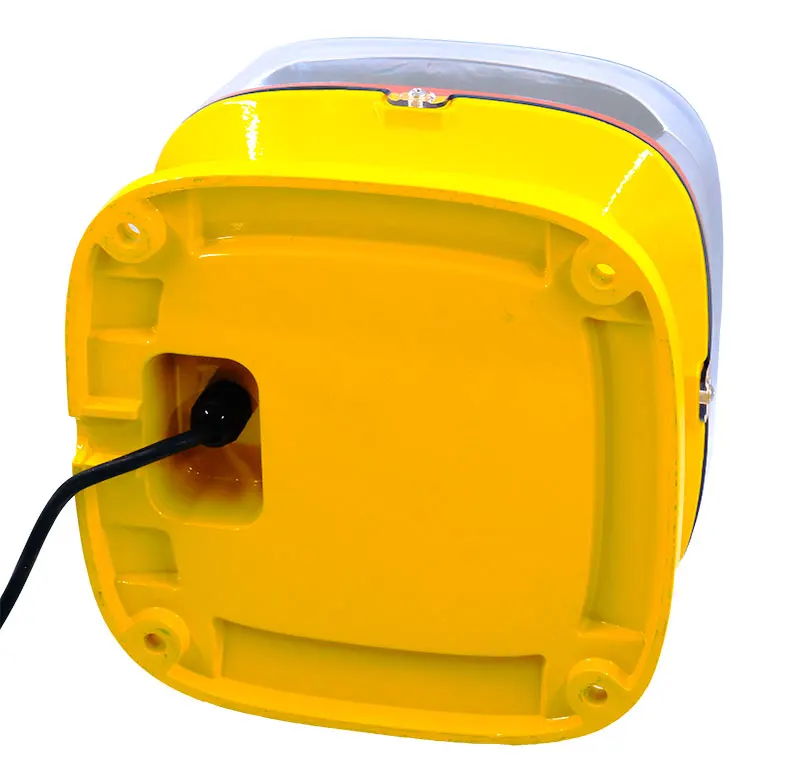

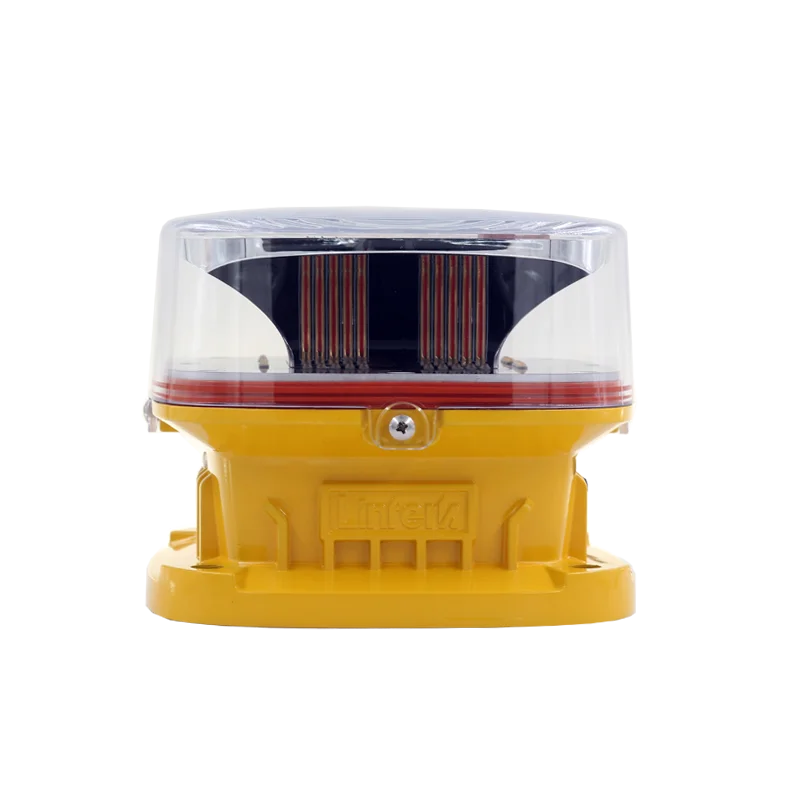

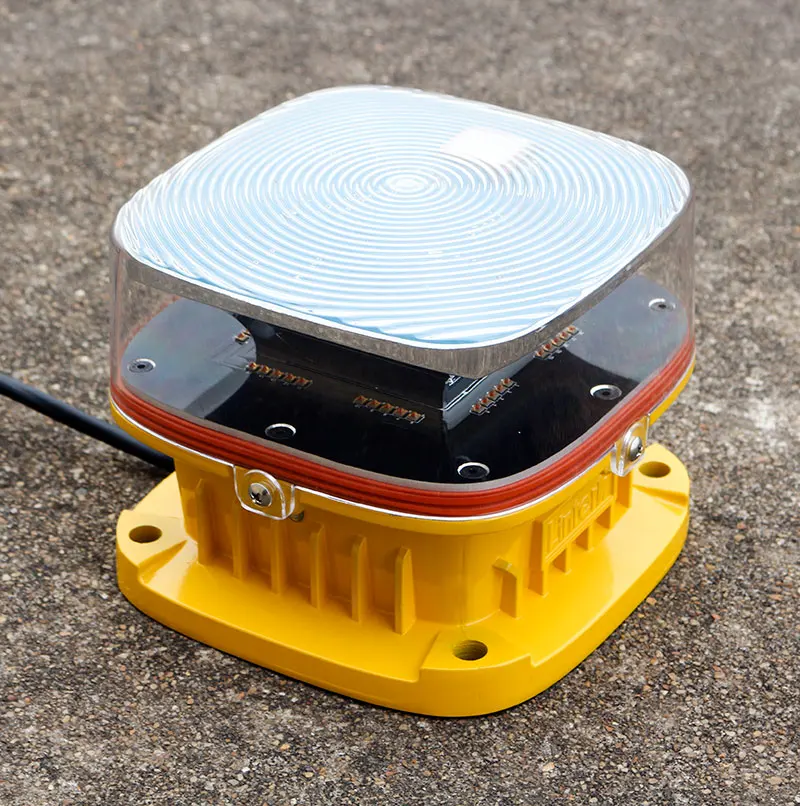

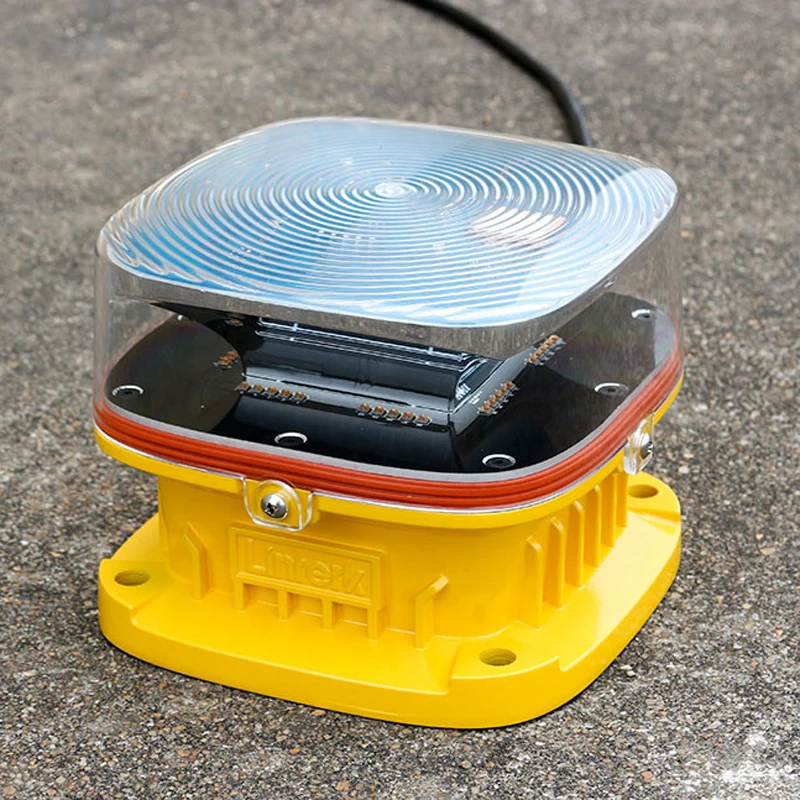

Product detail drawing
Products Features
Unique patented pretty good looking design, aluminum alloy precision die-casting body
Surface coating with signal yellow electrostatic powder, anti-vibration, corrosion-resistant
Using UV-resistant, shock-resistant PC lens and Import LEDs are build-in
Extremely low energy consumption, high efficiency and super long lifespan
Professional EMC design, anti-electromagnetic interference
GPS synchronization for the units is fully compatible
Surface coating with signal yellow electrostatic powder, anti-vibration, corrosion-resistant
Using UV-resistant, shock-resistant PC lens and Import LEDs are build-in
Extremely low energy consumption, high efficiency and super long lifespan
Professional EMC design, anti-electromagnetic interference
GPS synchronization for the units is fully compatible
* All connections must be wired in strict accordance with the wiring diagram, otherwise the lamps may be damaged. Please check the logo and instructions carefully.
* The power supply of this model controller is AC85-265 V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V, otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect
the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the companywill not guarantee it.
* The power supply of this model controller is AC85-265 V, 50HZ/60HZ. It is forbidden to use other power sources, such as AC380V, otherwise the lamps will be damaged.
* Avoid installation at the top and bottom of the building. If installed on the top floor of a building, it is best to connect
the ground wire to the lightning protection belt or install a lightning rod to avoid lightning strikes.
* When working on the product, it is strictly forbidden to open any part of the lamp body to prevent danger.
* This product will have a temperature rise during operation, which is normal.
* This product is a sealed structure. Non-professional maintenance personnel should not disassemble it. Once found, the companywill not guarantee it.

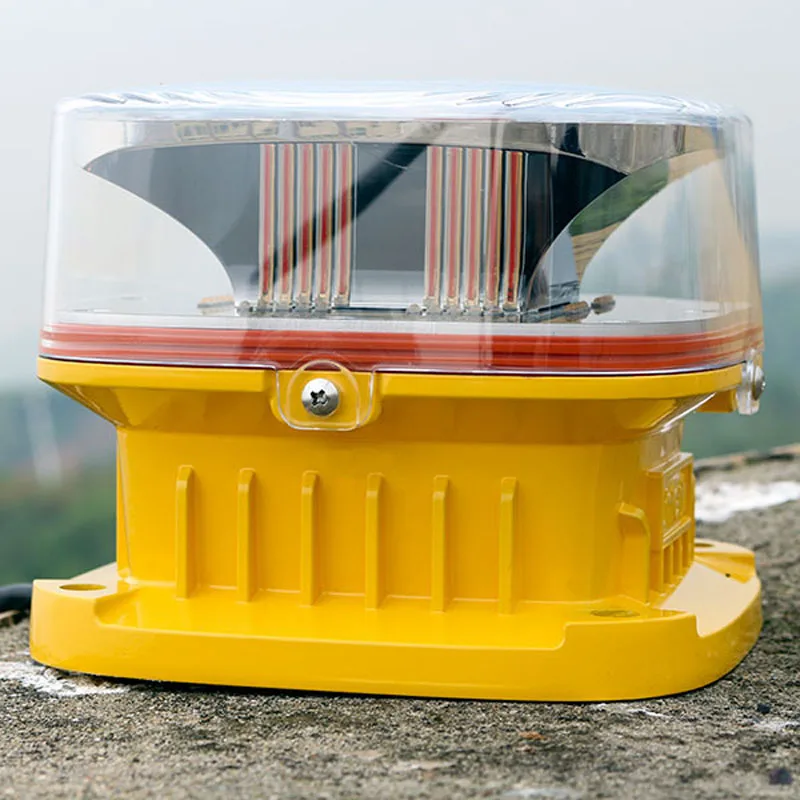

Product Presentation
Product introduction: Product Specification
Product Name | Medium intensity Aviation Obstruction Light type B |
Material | PC+Aluminum Alloy |
Power | 2W |
Voltage | AC85-265V |
Model | LT-01-MB(L) |
Emitting Color | LED Red |
Flashing Frequency | red flashing light 20fpm-60fpm |
Light Source | High brightness LED |
Light Intensity | 2000cd |
Life Span | 100,000 hours |
Overall Size | 132mm×179mm×145mm |
Beam Angle | 360° horizontal beam angle 10° vertical beam angle |
Ingress Protection | IP65 |
Background Luminance | 50cd/㎡ |
Net Weight | 2.2 kg |
Wind Load | 240km/h |

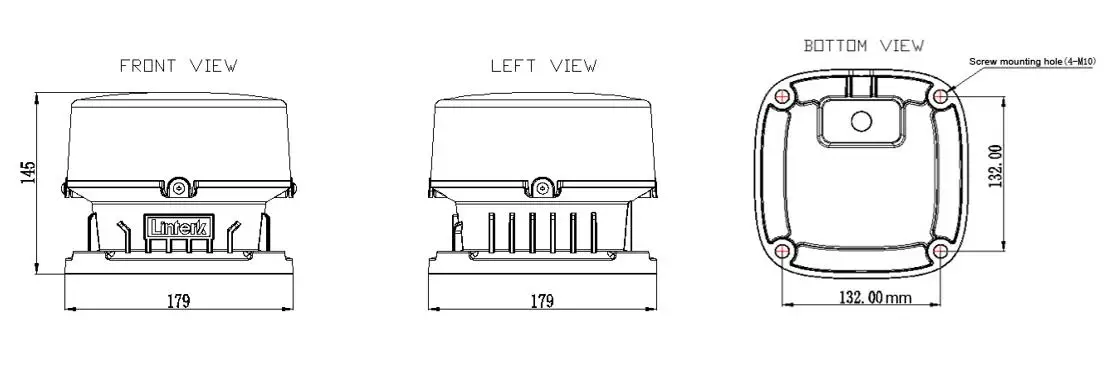

Size introduction and size picture
Certificate
Standard as ICAO annex 14,our product got the ICAO compliant by Intertek.What's more, we got the CAAC compliant also.Most of our products are used to the telecom tower,electrical transmission line,high-rise building,chimney,electrical towers and so on.

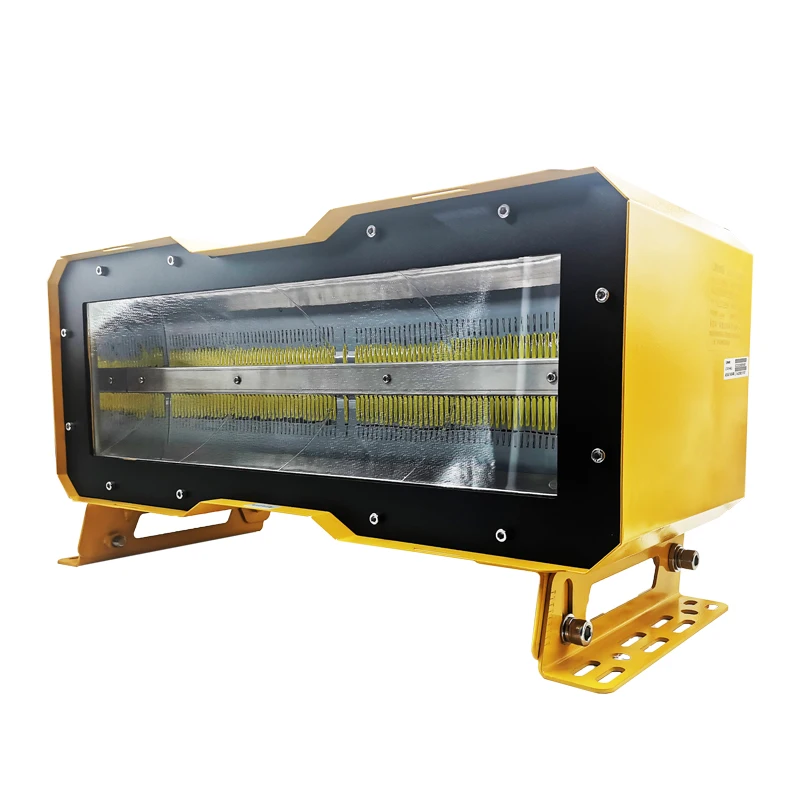

Related Products

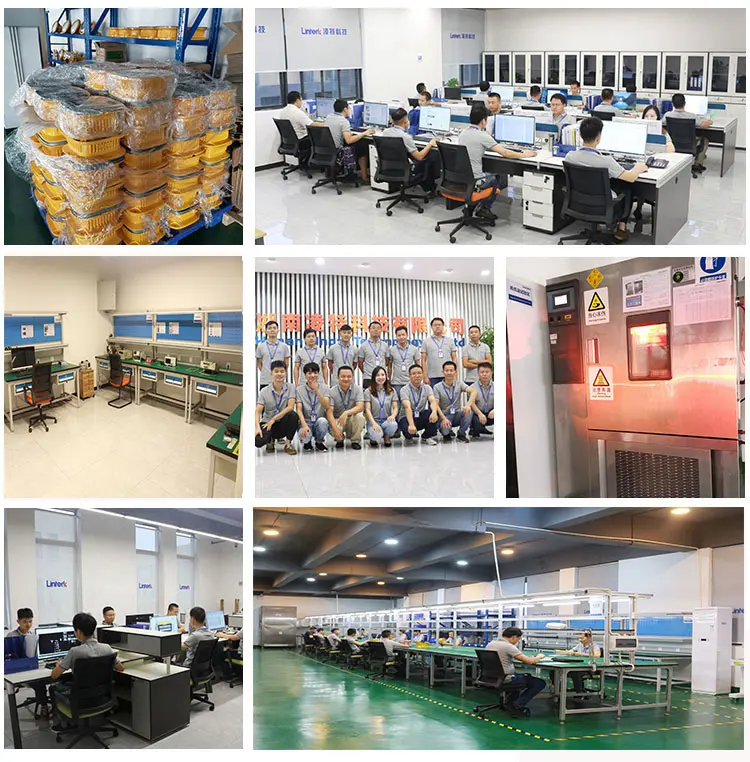

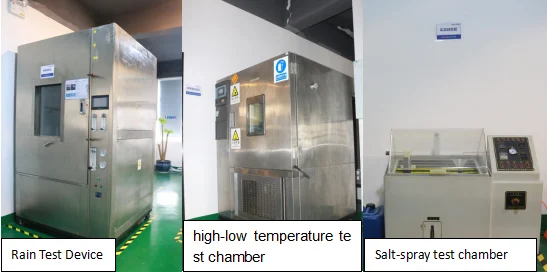

Company Introduction
Hunan Linterk Technology Co., Ltd was founded in 2018, located in the national high-new technology industrial park, Changsha,Hunan. We are a manufacturer specialized in R&D, management and production of aviation safety lighting, airfield lighting system,industrial lighting, power supply system and intelligent controller with high reliable quality and efficient customer service. Our investor is a specialist with over twenty years of experience in the field.
Linterk was devoted in airfield lighting solutions and move forward with all of our integrity, professionalism, carefulness,adhere. Currently, our registered capital of USD 10.79 million, more than 2000 square meters of office and production space. There are more than 30 staffs and a core R&D team specialized in the development and the quality control of the new products. Continuous team grow will be in line of fast increasing of the company business. Our company set up perfect training and checking system to upgrade our professional level constantly.
Linterk was devoted in airfield lighting solutions and move forward with all of our integrity, professionalism, carefulness,adhere. Currently, our registered capital of USD 10.79 million, more than 2000 square meters of office and production space. There are more than 30 staffs and a core R&D team specialized in the development and the quality control of the new products. Continuous team grow will be in line of fast increasing of the company business. Our company set up perfect training and checking system to upgrade our professional level constantly.
Packing&Shipping
FAQ
Why Choose us?
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24 Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.
1.We are the Factory of aviation obstruction light.Best quality.Best performance,Best service.
2.All products are passed QC inspection.
3.CE,RoHS,ICAO Certificate.
4.Short Time delivery.Competitive price.
5.24 Hours online technical support and lifetime after-sale services.
What's the warranty？
Our warranty is 3 years.
What's the delivery time?
Our delivery time is different as different quantities. Usually,the order quantity is below 50 pcs,the production time is 7 days.

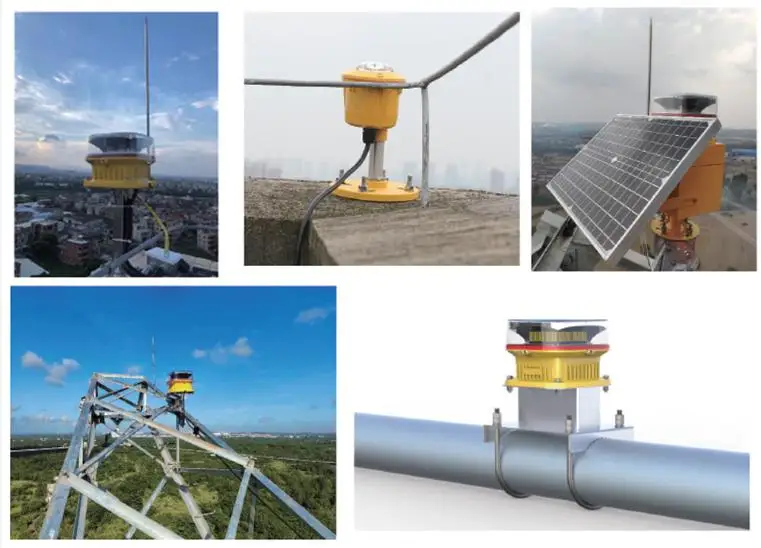

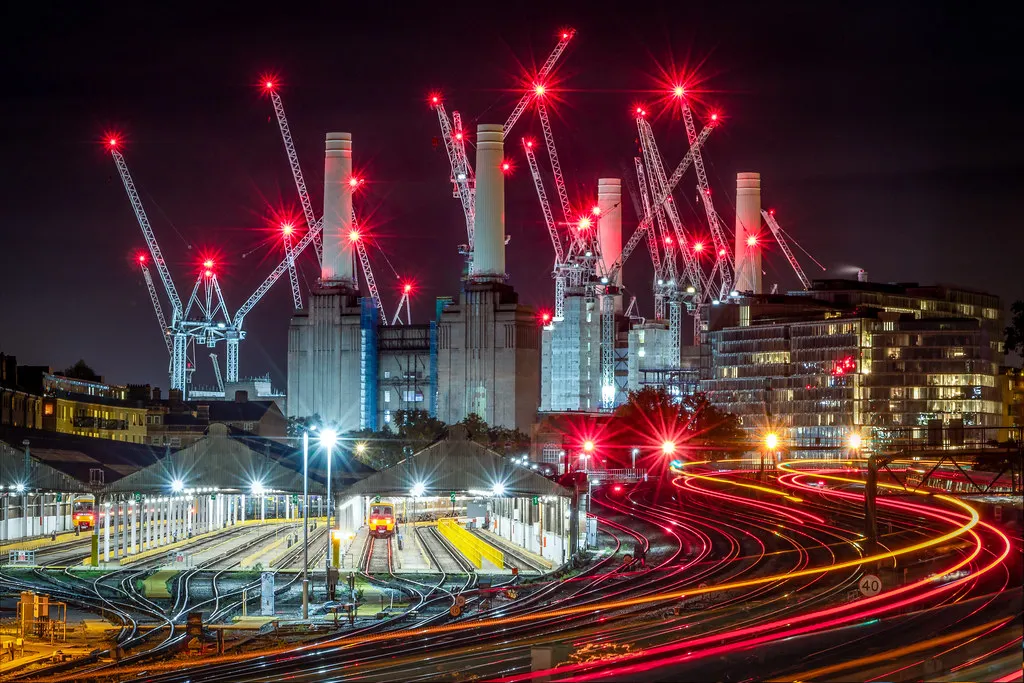

Project Case
