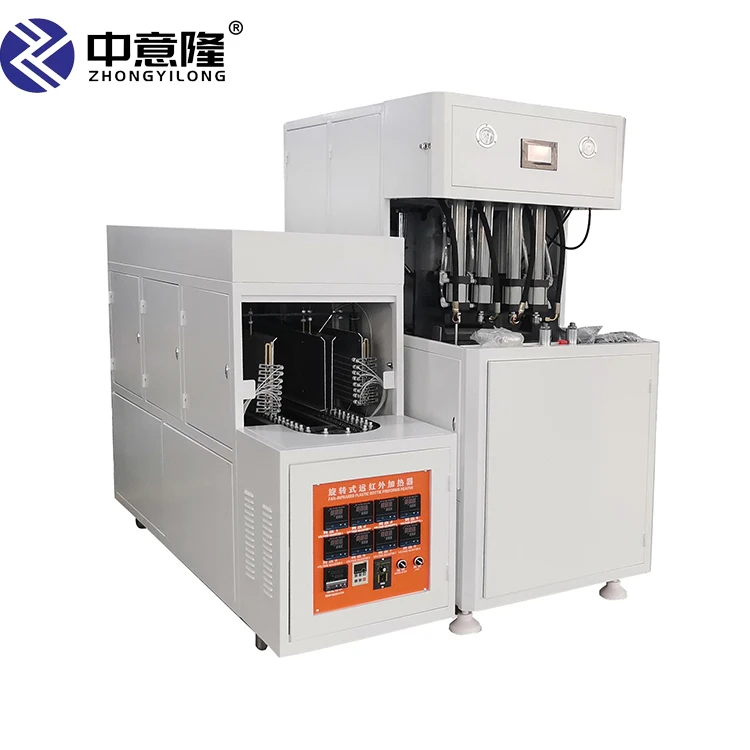

250ml 500ml 1L 1.5L 2L 2.5L Manual Water Oil Plastic Pet Bottle Container Blower PET Semi Auto Blow Molding Machine
- Category: >>>
- Supplier: Henan Zhong Yi Long Machinery Equipment Co. Ltd.
Share on (1600844874706):
Product Overview
Description

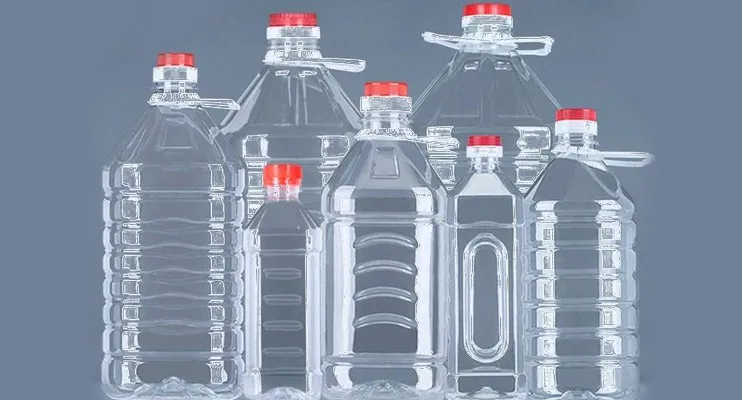

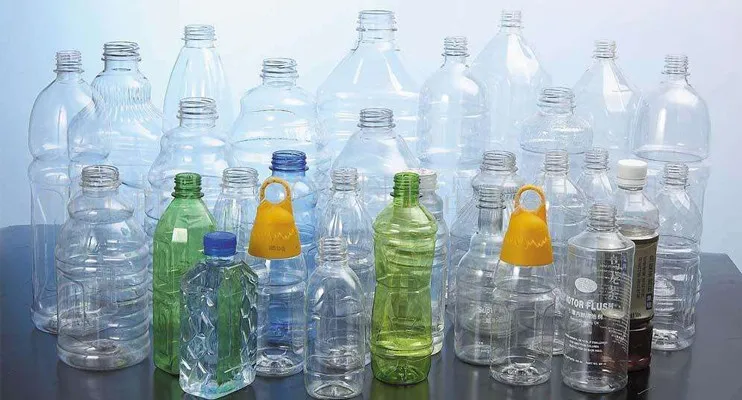

The two–step high speed automatic linear blow molding machines which are applicable in a wide range of PET packaging practice,such as for beverages, edible oil, food, pharmaceutical products and cosmetics,etc.
With more than 10 years experience in developing and producing blow molding machine as well as the advanced technology absorbed domestic and abroad, we have developed
with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.
with our constant innovation dozens of high speed and high precision equipments which have won the top reputation in the filed.
Products Description
Type | ZYL-2L-2 | ||
Volume(L) | 250ml-2.5L | ||
Theoretical output(pcs/h) | 800-1200 | ||
Max height(mm) | 380 | ||
Max diameter(mm) | 120 | ||
Max mould plate dimension(L*H)mm | 420*500 | ||
Max mould thickness(mm) | 110-230 | ||
Mould opening stroke (adjustable)(mm) | 160 | ||

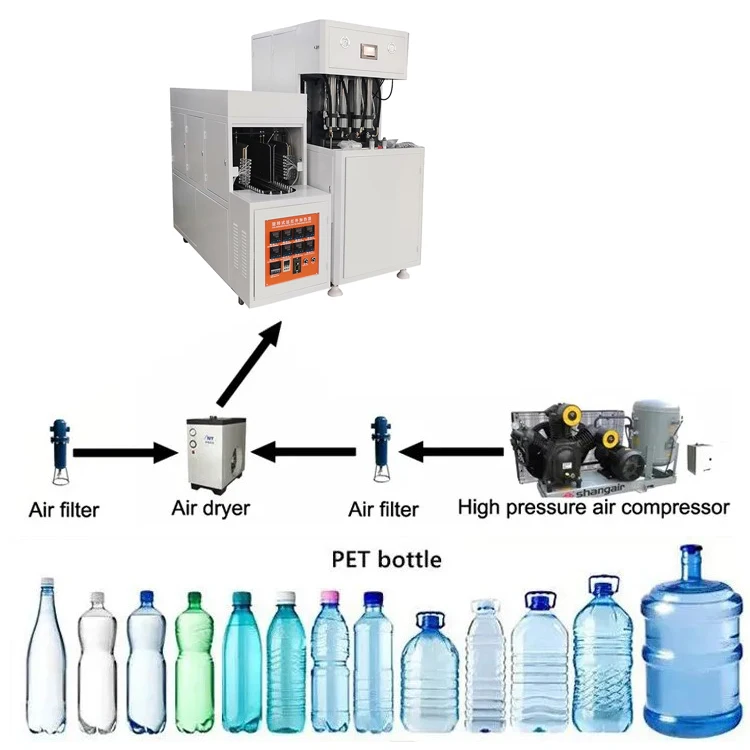

High pressure compressor (m³/Mpa) | >=0.70/3.0 | ||
Precision air filters(m³/Mpa) | >=1.0/3.0 | ||
Main machine electricity | Power(Kw) | 12 | |
Voltage | 220-380V/50-60HZ | ||
Main body dimension(mm) | 1450*600*1750 | ||
Main body weight | 600kg | ||
Product details
Mould
Adopting double crank to adjust mould ,heavy locking mould, stable and fast.

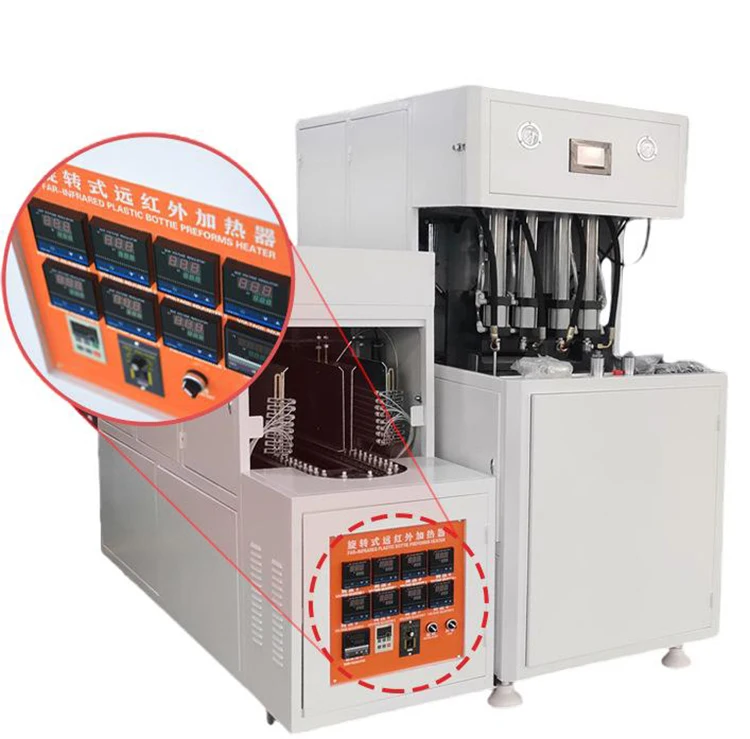

Control panel

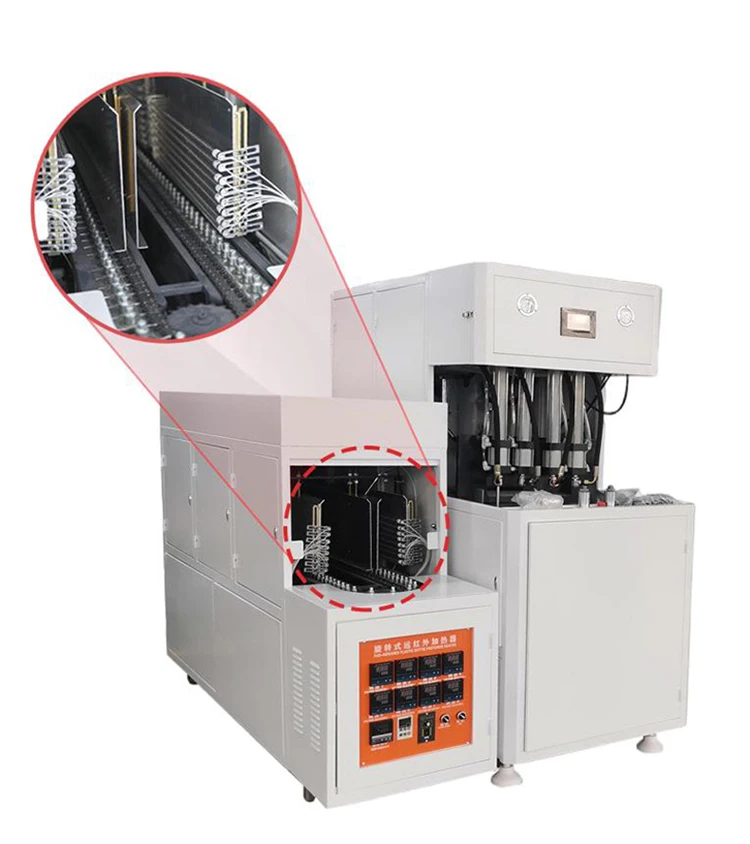

Adopt infrared oven to heat the perform ,the perform rotated and heated equally.
Valve design
Wide-mouth jar and hot-fill bottles can also be made.
Related Products
About us
FAQ
Q1: Where is your factory? How can I visit your factory? A: Our factory is located in Henan Province. If you have a travel plan, we warmly welcome you to visit our factory.
Q2: Can you send me a video to show me how the machine works? A: Of course, we made videos of each machine
Q3: How do I know your machine is designed for my product? A: You can send us your product samples, and we will test them on the machine
Q4: How do I pay for my order? Answer: Usually we accept L/C, D/A, D/P, T/T, Western Union, MoneyGram and cash payment
Q5: Do you have a Ce certificate? A: For each model of machine, it has CE certification
Q2: Can you send me a video to show me how the machine works? A: Of course, we made videos of each machine
Q3: How do I know your machine is designed for my product? A: You can send us your product samples, and we will test them on the machine
Q4: How do I pay for my order? Answer: Usually we accept L/C, D/A, D/P, T/T, Western Union, MoneyGram and cash payment
Q5: Do you have a Ce certificate? A: For each model of machine, it has CE certification
