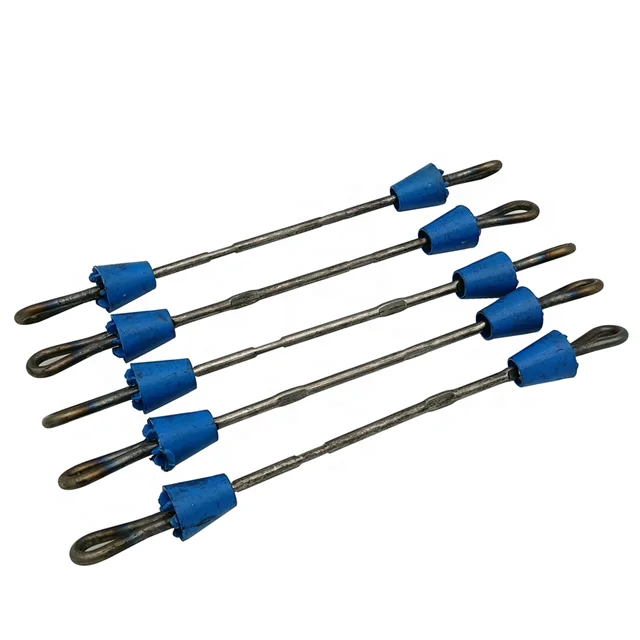

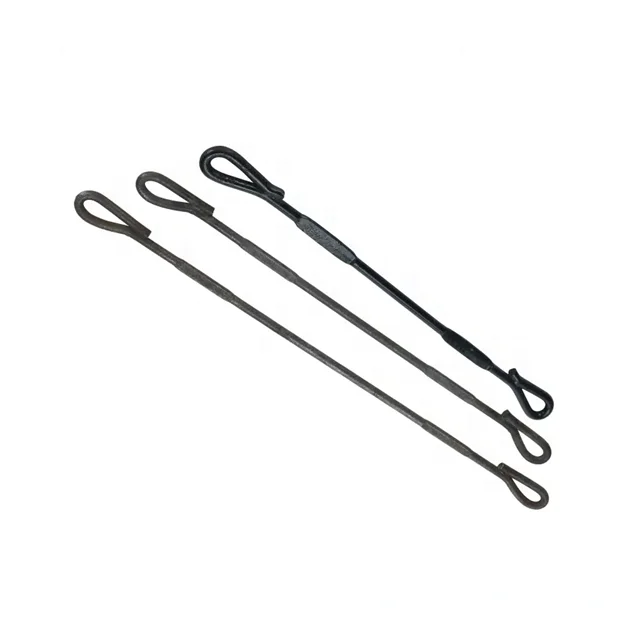

Standard Snap Ties 2250 lbs with Hex Head 1 inch Plastic Cone for Steel Framed Modular Panels
- Category: >>>
- Supplier: Shanghai Baily Metal Products Co. Ltd.
Share on (1600844878591):
Product Overview
Description
Product Description
Snap Ties are used to vertically form concrete walls that can have a wide variety of widths and heights. There are various systems you can use to create the form system you require depending on your needs. Snap ties make the installation of concrete formwork and the subsequent removal extremely easy and efficient.
Snap Tie | Material | Standard head | Wall thickness | Cone length |
Standard snap tie (short tails) | Carbon Steel, 304 stainless | Round head, Hex Head, 4-3/4" tails | 6" ~ 36" | 1" |
Standard snap tie (long tails) | Carbon Steel, 304 stainless | Round head, Hex Head, 8-1/4" tails | 6" ~ 36" | 1" |

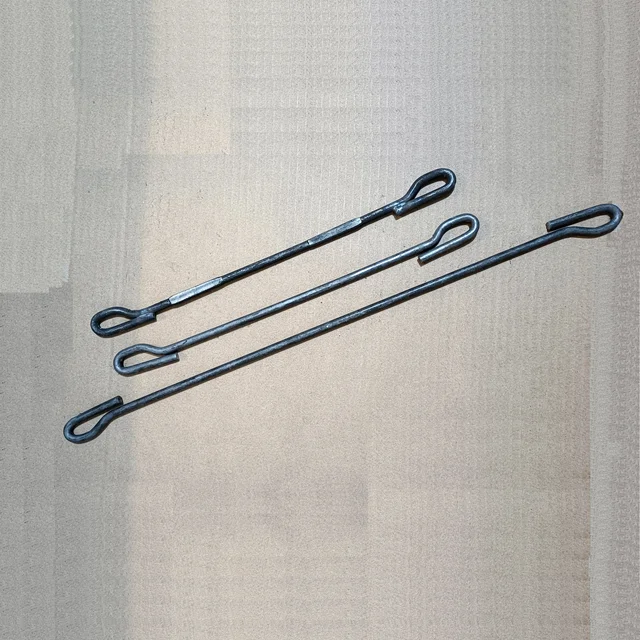

Heavy-duty loop ties | Carbon Steel, 304 stainless | 1" Breakback, 2-1/8 tails | 6" ~ 24" | 1" |
Combo Snap Ties | Carbon Steel, 304 stainless | Two different tails | 6" ~ 36" | 1" |
Features.
1> Short-end (SE) Snap Tie measure 4-3/4” at each end, plus the wall thickness for conditions with single on both sides;
2> Long-end (LE) Snap Tie measure 8-1/4” at each end, plus the wall thickness for conditions with waler / strongback on both sides;
3> Odd-end (OE) San Tie measure 4-3/4” at one end and 8-1/4” at the other end, plus wall thickness for conditions with a single waler on one side and waler/strongback on the other;

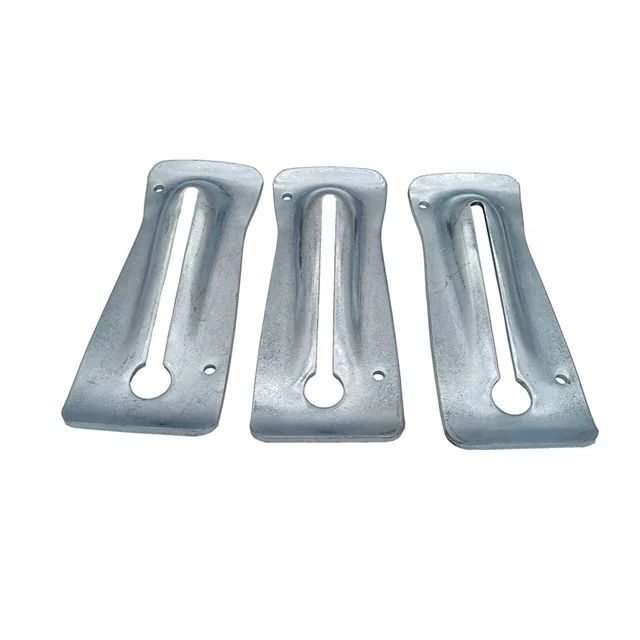

4> Galvanized Steel Snap-tie Wedge is designed to resist corrosion and hold up to both standard and heavy snap ties for any sized job, can be reused time and again without performance suffering;

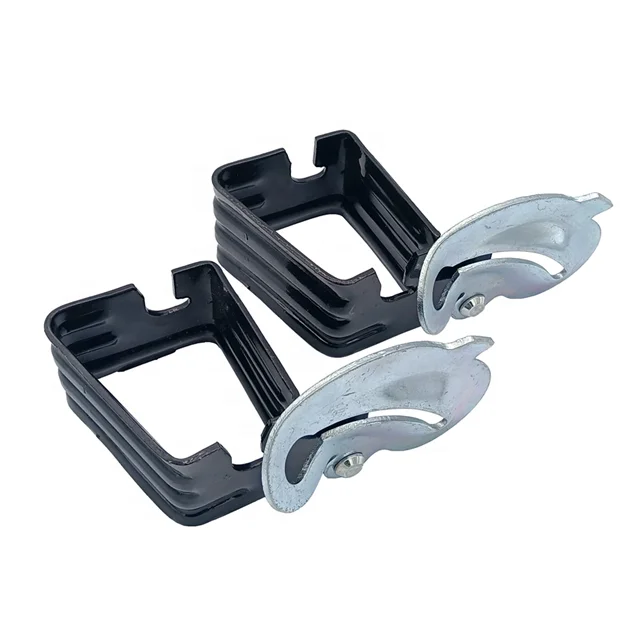

5> Jahn-A Brackets are fabricated from high strength steel with a cad plated eccentric and painted body and can be utilized to hold a single horizontal wale or a single vertical stud with any size and type of wall form.

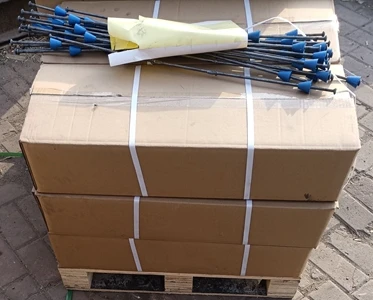

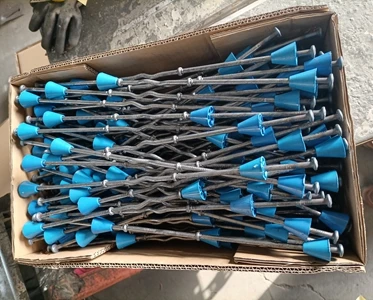

Packing & Delivery
100pcs/box, and 50 boxes/pallet for the wall thickness 8" to 22";
50 pcs/box, and 50 boxes/pallet for the wall thickness 24" to 36"
Customized package for the size of wall thickness above 36"
Company Profile
Recommend Products
Others Forming Accessories

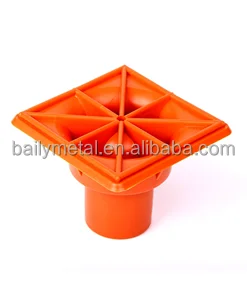

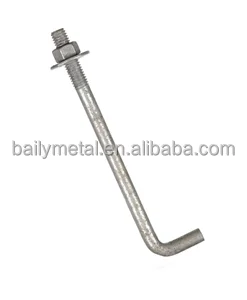

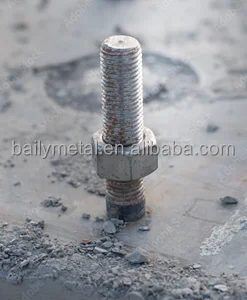

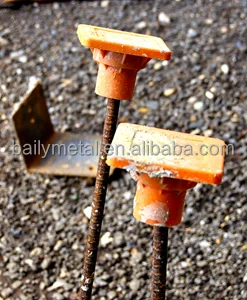

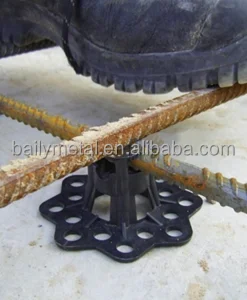

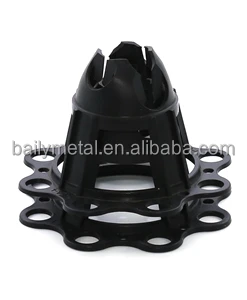

Threaded pullout tie, Spandrel point tie, Spandrel hook tie, Spandrel plate tie, tie key, Base tie, Rebar safety cap, Anchor bolt, Rebar chair spacer, Slab bolster are available.
Installation Instructions
1.\tDrill holes in plywood 1/8" larger than the snap tie head (usually 5/8" diameter drill bit will be required) ;
2.\tPlace the ends of snap ties through the holes in the plywood;
3.\tPlace the bracket (Jahn "A", Jahn "C" or wedge) on the tie;
4.\tThe proper tie head position is at the midpoint or higher of the wedge slot. Correct spacing between double wales is 5/8" to 3/4";
5.\tJahn "A" bracket is utilized to hold a single wale and can be installed before or after the wales have been positioned.
