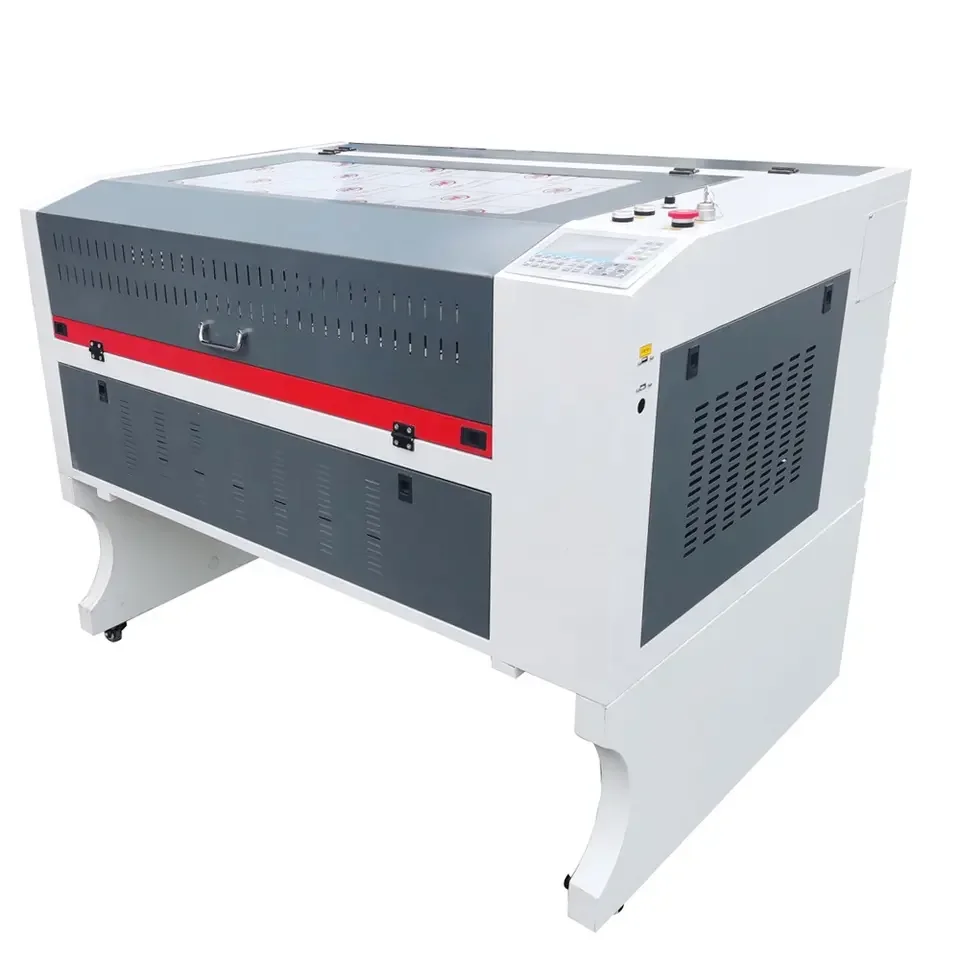

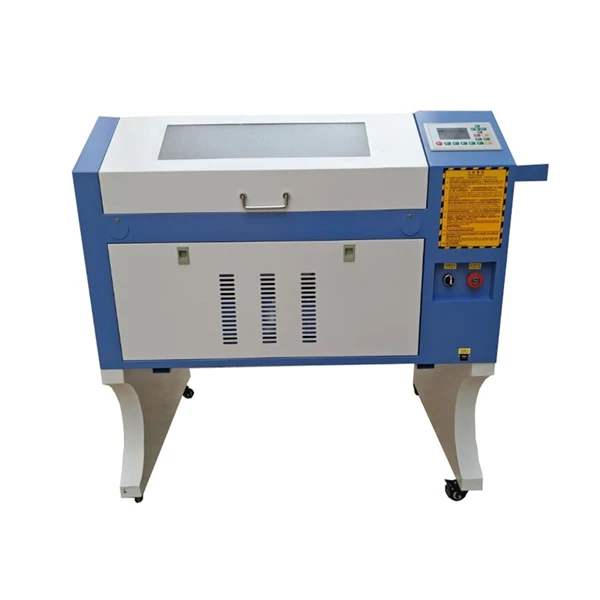

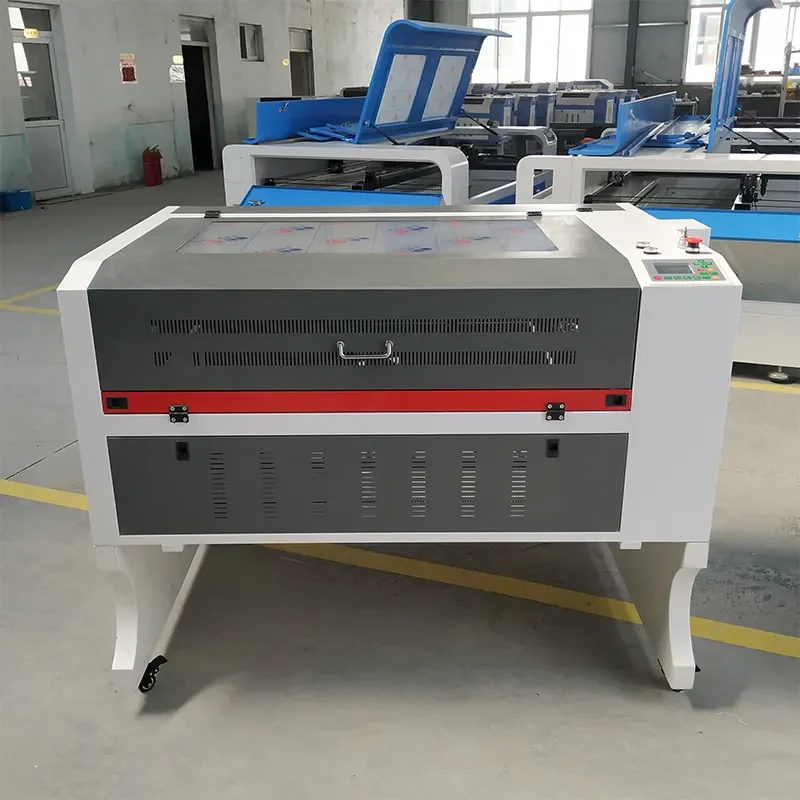

CO2 laser engraver and cutter Wood MDF Glass Engraving Machine 4060
- Category: >>>
- Supplier: Jinan Gold Mark Cnc Machinery Co. Ltd.
Share on (1600844994528):
Product Overview
Description
100W CNC CO2 laser engraver and cutter machine 4060 Wood MDF Glass Engraving Machine
Dear sir/madam:
We are the OEM who has been in this field since 2006, and we are looking for the agent of our machines,
we will give you the best price all of the world to build the long cooperation,we are always waiting for you.
Specifications
Specifications
Advantages

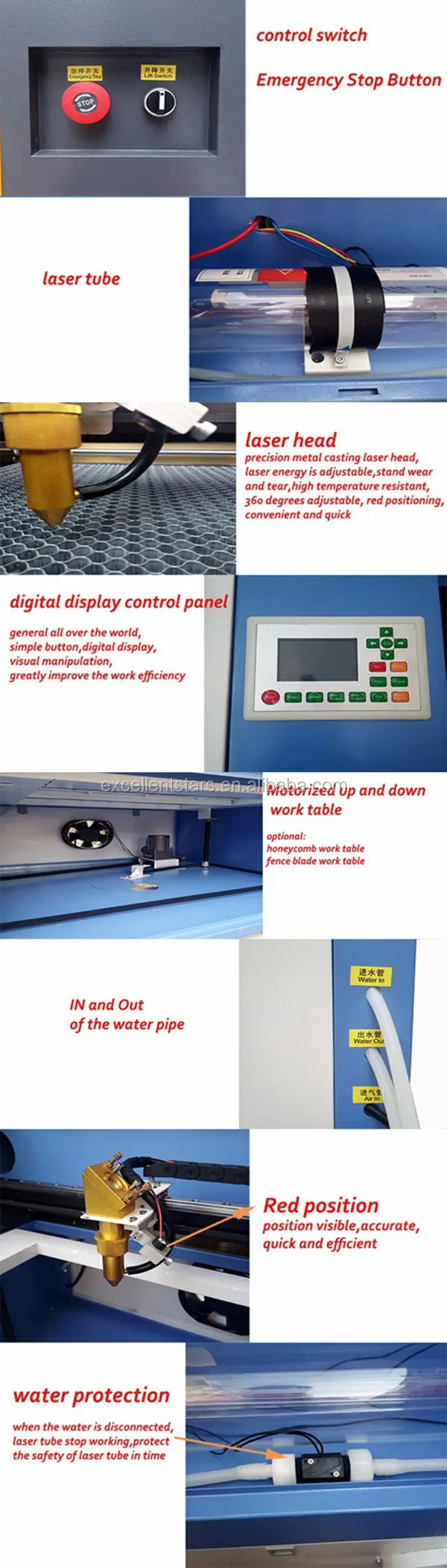

1/ USB Interface
2/ Reddot Laser position.
3/ Motorized up&down worktable

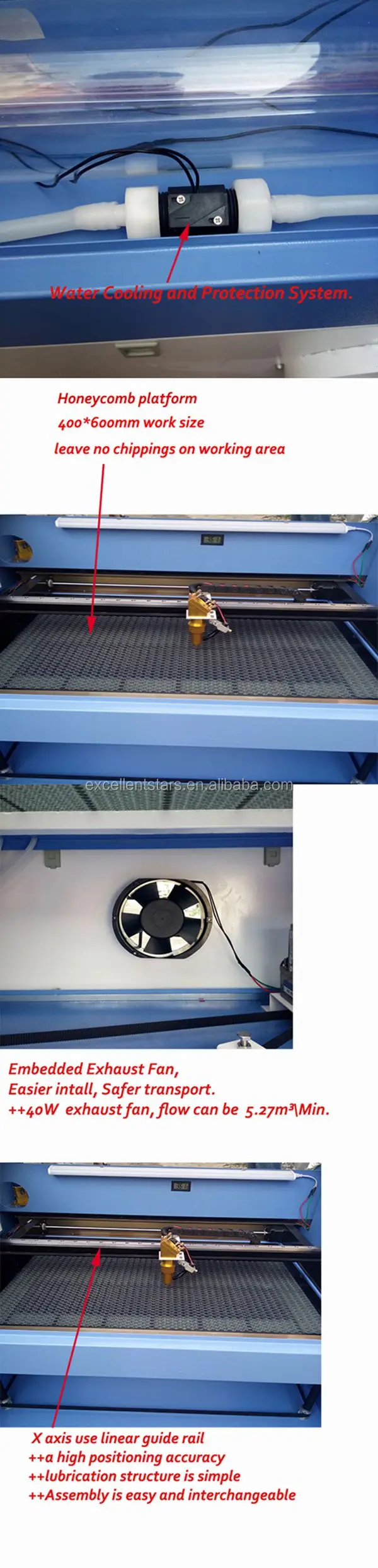

4/ Linear Guide Rail on X axis
5/ Cellular platform, leave no chippings on working area.
6/ Drag - and - chain transmission line
7/ Larger Size, 400*600mm working area
8/ Emergency Stop Button
9/ Intuitive Control Panel, Set Speed, power and more controls directly from the laser.
10/ Adjustable Speed and Power, Smooth and Precise Engraving and Cutting
11/ Water Cooling and Protection System.
35W Water Pump, big power .
12/ Air Assist, Remove heat and combustible gases from the cutting surface.
45W Air pump, flow can be 70L/Min.

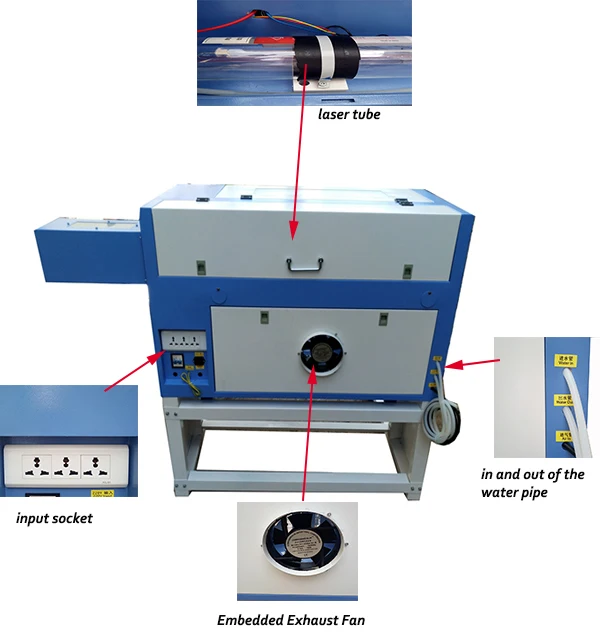

13/ Embedded Exhaust Fan, Easier install, Safer transport.
40W exhaust fan, flow can be 5.27m³/Min.
14/ Rotary Axis is optional , Engrave any cylindrical object.
15/ A limit switch let it only work when the cover is closed (Optional)
Model | TS4060 laser engraving and cutting machine |
Colour | Blue and white |

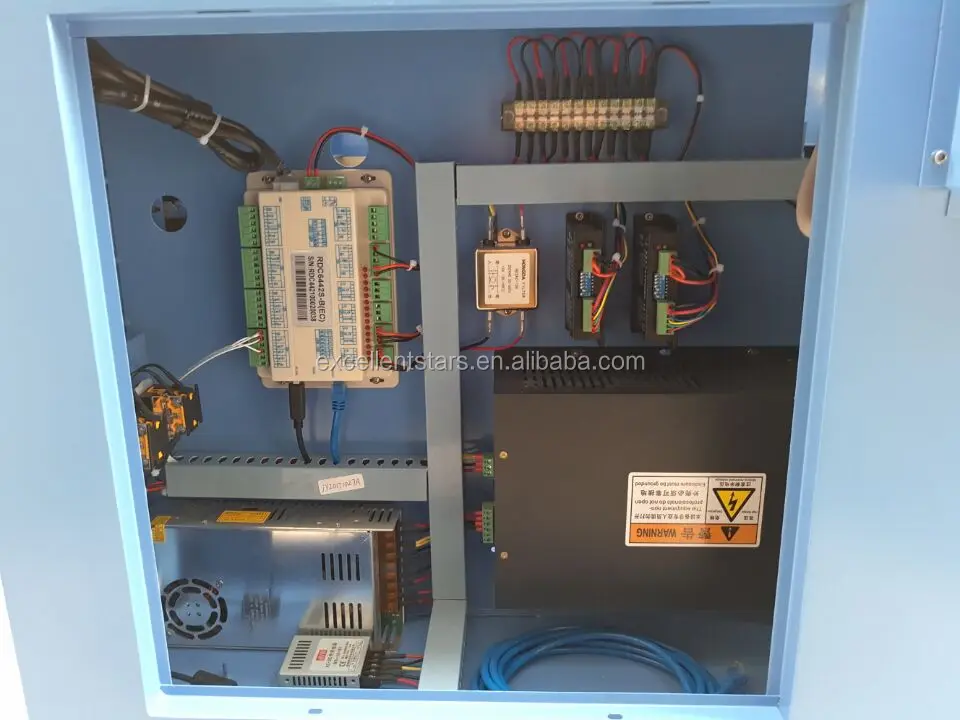

System | Ruida System 6442S |
offline work | support |
X-axis | Linear guide rail |
Working Table Size | 600mmm *400mm |
Laser Tube | Sealed CO2 glass Tube |
Working Table | Honeycomb (Aluminum optional) |
Laser Power | 50W /60W/80W /90W reci |
Cutting Speed | 0-400 mm/s |
Engraving Speed | 0-1000mm/s |
Resolution | ±0.05mm/1000DPI |
Minimum Letter | English 1×1mm |
Support Fils | BMP,HPGL,PLT,DST and AI |
Interface | USB2.0 |
Software | RD Works V8 |
Computer system | Windows XP/win7/ win8/win10 |
Motor | Stepper Motor |
Power Voltage | AC 110 or 220V±10%,50-60Hz |
Power cable | European Type/China Type/America Type/UK Type |
Working Environment | 0-45℃(temperature) 5-95%(humidity) |
Power consumption | <900W (Total) |
Z-Axis Movement | Automatic (0-180mm adjustable) |
Position system | Red-light pointer |
Cooling way | Water cooling and protection system |
Cutting thickness | Please consult sales |
Rotary device | Optional |
Industrial Water cooler | Optional |
Packing Size | 148*85*86cm |
Gross Weight | 135KG |
Package | Standard plywood case for export |
Warranty | All life free tech support, one year warranty, except consumables |
Free accessories | Air Compressor/Water Pump/Air Pipe/Water Pipe/Software and Dongle/ English User Manual/USB Cable/Power Cable |
Optional parts | Spare focus lens Spare reflecting mirror Spare rotary for cylinder materials |
CNC CO2 laser engraver and cutter machine 4060 jinan for sale

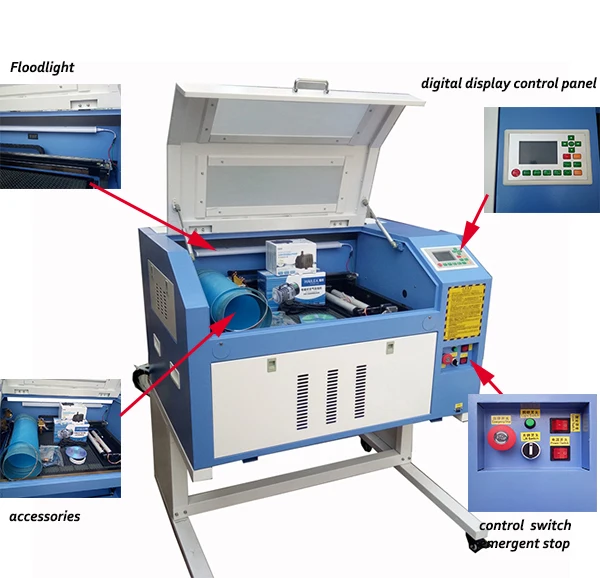

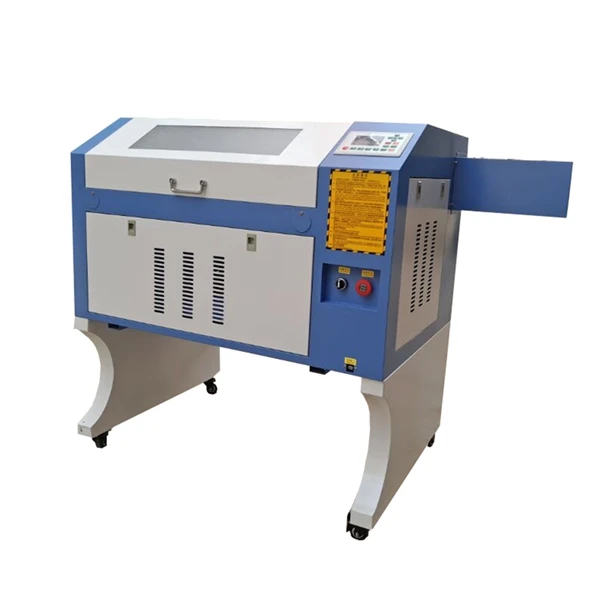

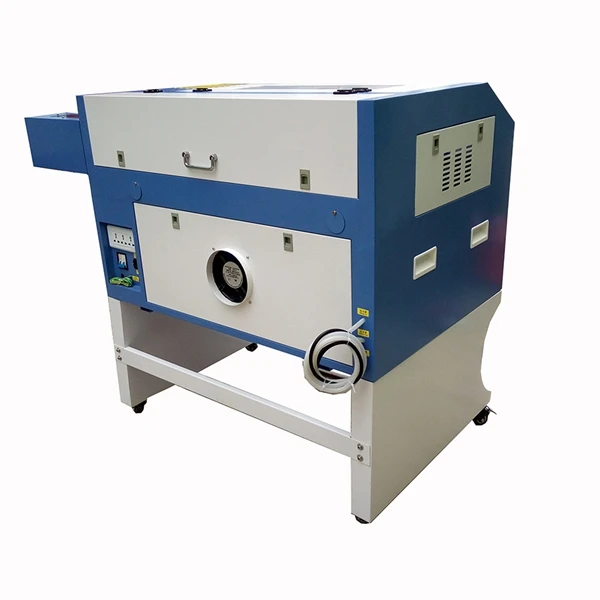

Product Photos

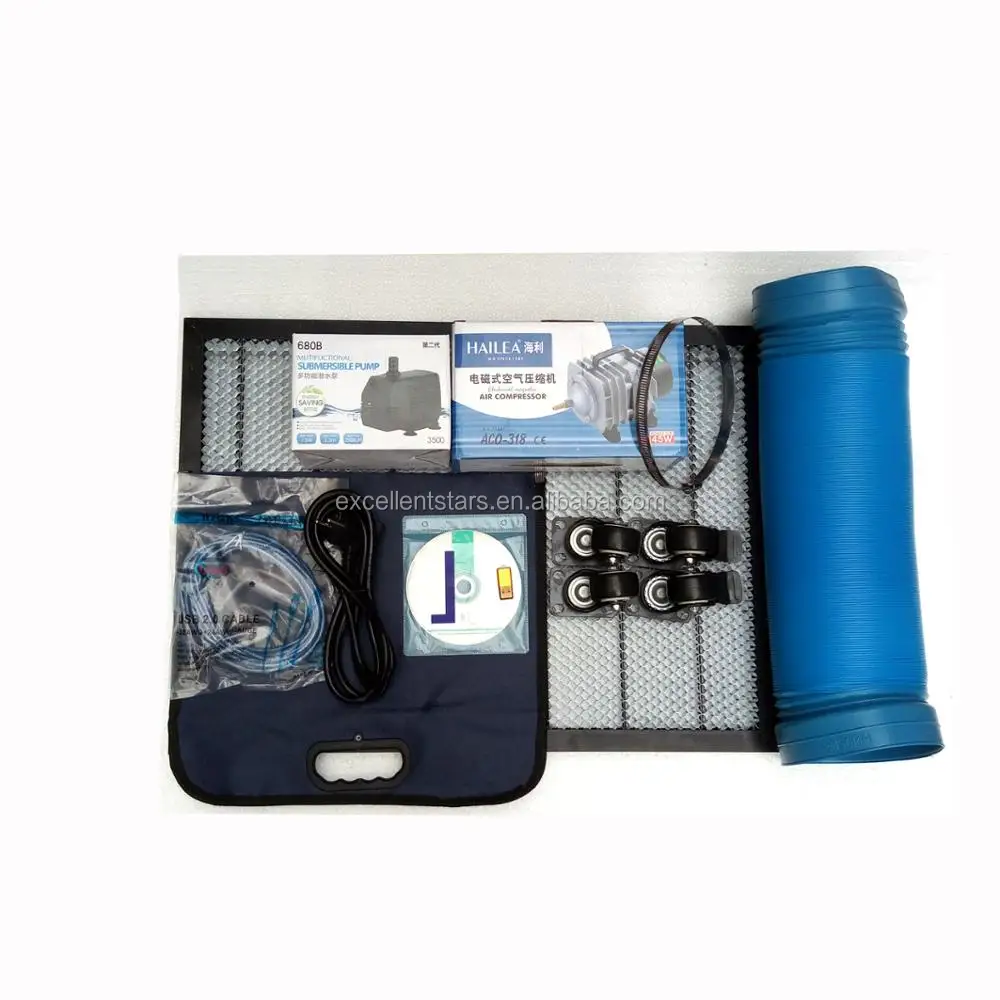

Package details
(01)Laser Engraving software Package(English Version)
(02)User Manual(CD)
(03)Water Pump
(04)Air Pump and Air Tube
(05)USB cable&Power Cable

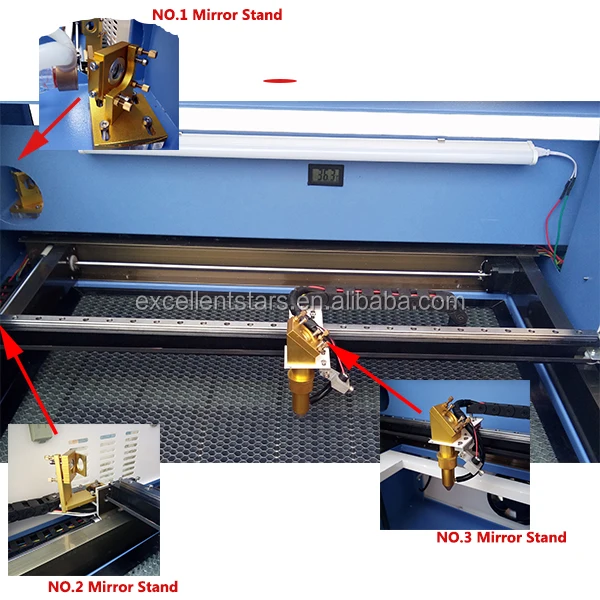

(06)3 Reflect optics(installed in the machine)
(07)1 Focus optics(installed in the machine)
(08)1 Laser tube (installed in the machine)
Sample Photos
FAQ
Q1. How to get the most suitable machine and best price
Please tell us the material you want to engrave or cut? Max size and thickness?
Q2. If we don't know how to use the machine,can you teach us?
Yes, we will, English manual and video will come along with the machine. You also can contact our service team if you need any help during use our machines.
Q3.How about your after-sales service?
we offer you 24 hours service by phone, Skype or Whatsapp.
Q4. Quality Control:
The whole production procedure will be under regular inspection and strict quality control. The
complete machine will be tested to make sure they can work very well before being out of factory.
Our machine passed CE Certificate, meet European and American standard, were exported to more than 100 Countries.
Q5. How we pay you?
A. Consult us about this product on line or by e-mail.
B. Negotiate and confirm the final price , shipping , payment methods and other terms.
C. Send you the proforma invoice and confirm your order.
D. Make the payment according to the method put on proforma invoice.
E. We prepare for your order in terms of the proforma invoice after confirming your full payment.
And 100% quality check before shipping.
F.Send your order by air or by sea.
Packaging & Shipping
Payment
About us

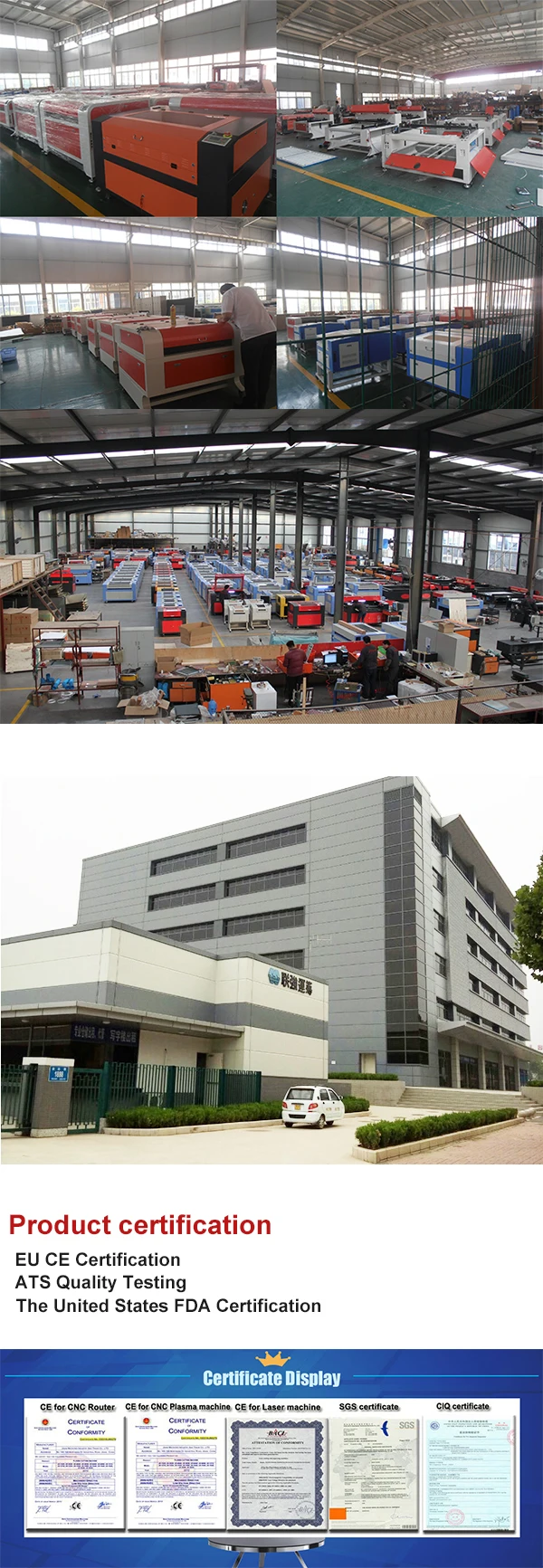

Jinan Gold Mark CNC Machinery Co.,Ltd, founded in 2006, is a high-tech industry enterprise of 10 years experience specialized in researching, manufacturing and selling the machines Engraver, CNC router......
