HJCLEAN Our factory for dependable AG 230 portable aerosol generator.
- Category: >>>
- Supplier: Suzhou Hjclean Tech Co. Ltd.
Share on (1600844995219):
Product Overview
Description
Product Description

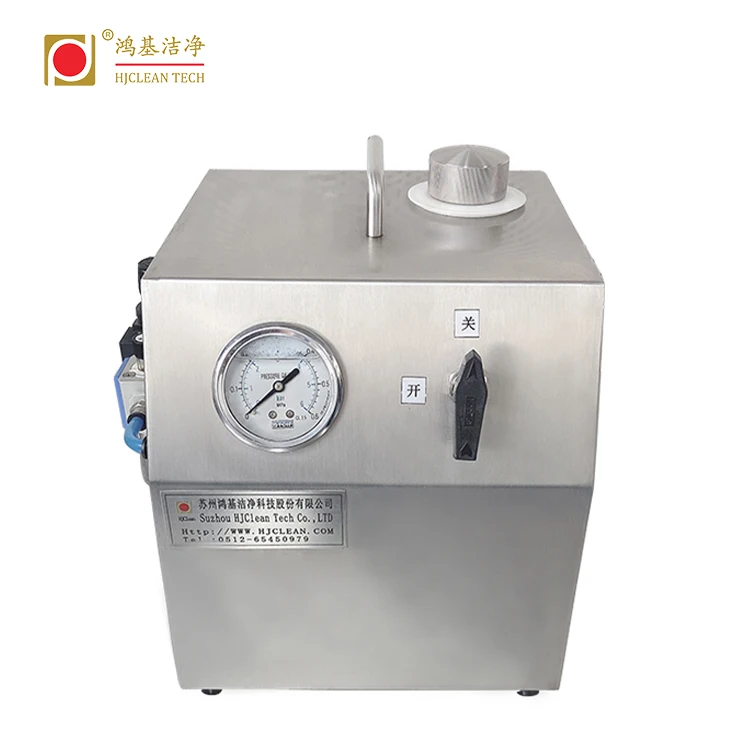

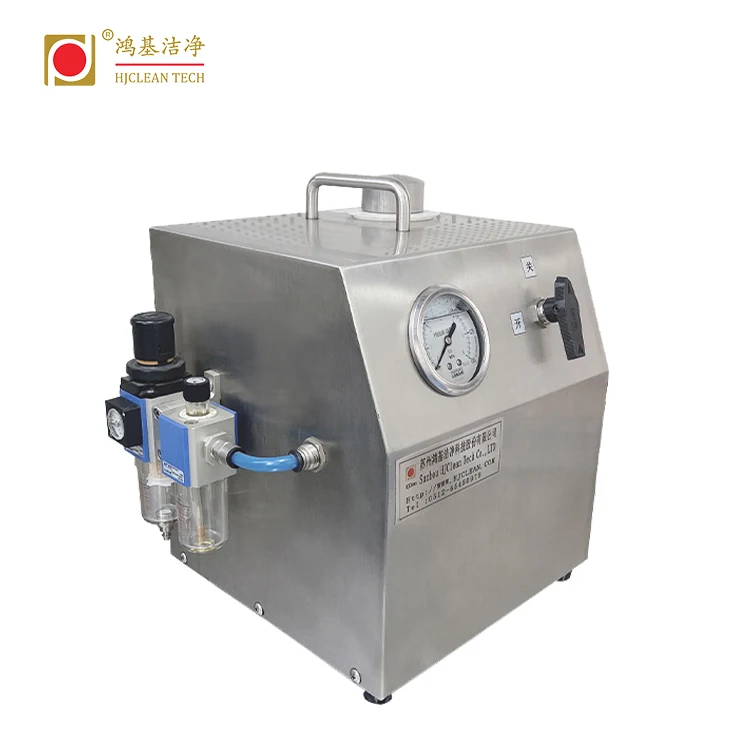

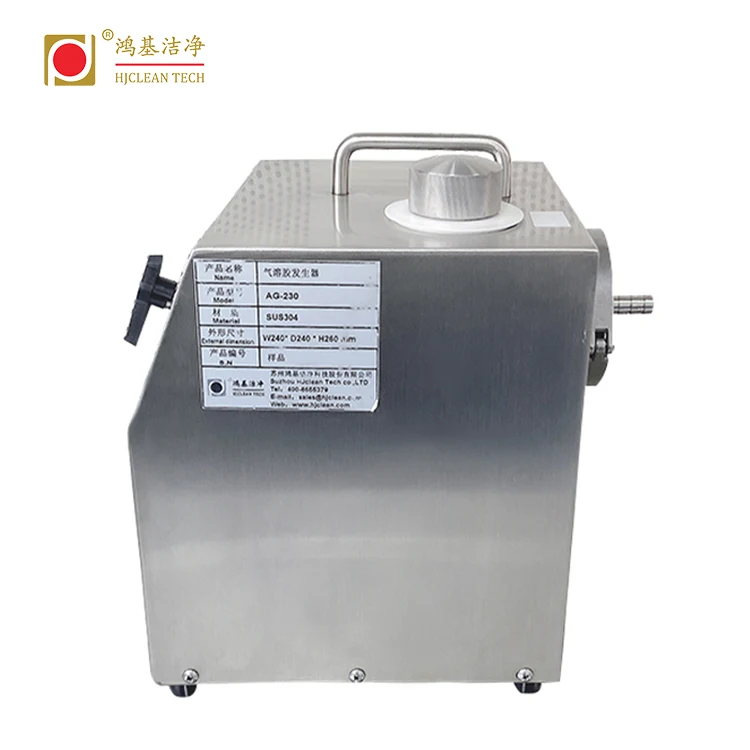

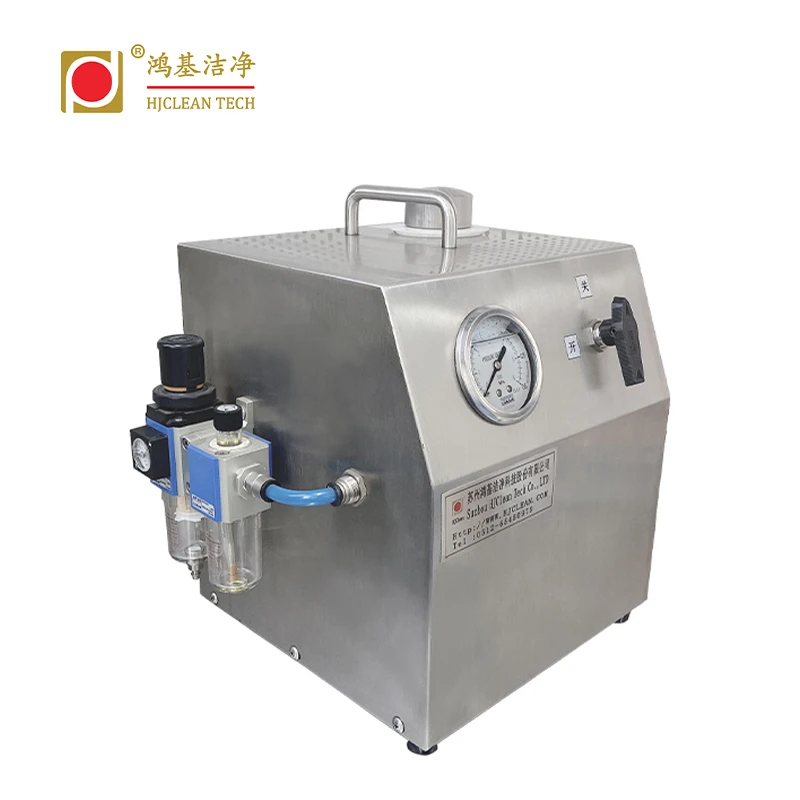

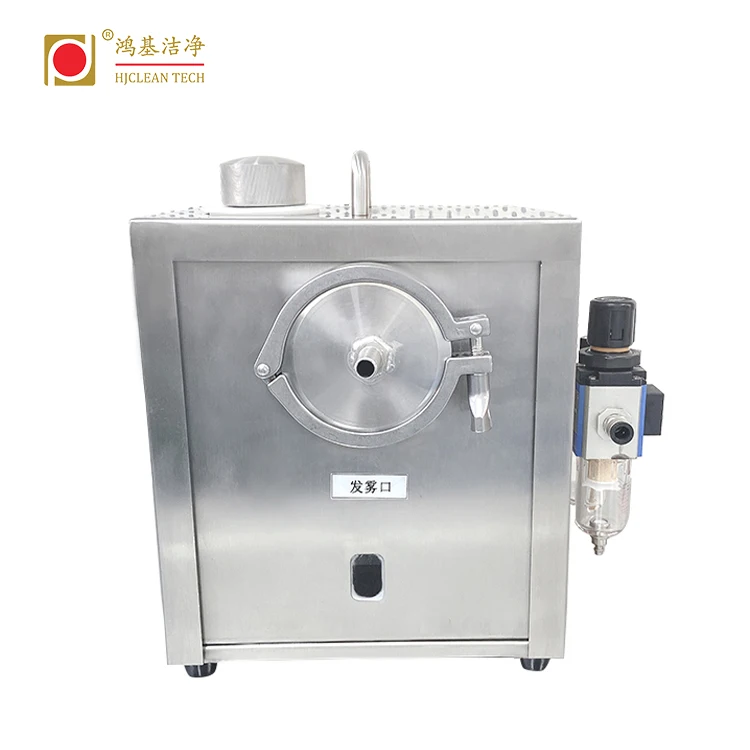

AG-230 aerosol generator is our company independent research and development production of the latest light weight stainless steel condensing shock generation generator. It only requires clean compressed gas to produce polydisperse particles.
The AG-230 has four pullers. At a pressure of 20 psig and an air flow of 540 cfm, the aerosol concentration is about 100 ug / L.
Two Adjustable Valves Adjustable instruments use 2 to 4 nozzles to provide different ranges of aerosol particle concentrations.
The AG-230 aerosol generator is often used to detect high efficiency filter systems with air flow rates of no more than 5400 cfm.
It is more suitable for high efficiency filter unit, negative pressure filter device, biological safety cabinet and other
equipment.
The AG-230 has four pullers. At a pressure of 20 psig and an air flow of 540 cfm, the aerosol concentration is about 100 ug / L.
Two Adjustable Valves Adjustable instruments use 2 to 4 nozzles to provide different ranges of aerosol particle concentrations.
The AG-230 aerosol generator is often used to detect high efficiency filter systems with air flow rates of no more than 5400 cfm.
It is more suitable for high efficiency filter unit, negative pressure filter device, biological safety cabinet and other
equipment.
Product Paramenters
Model / Parameters | AG 220 (with pump type) | AG 230 (compressed air type) | AG-1800(heat generation type) | ||
Available flow rates range | 50-2000cfm(1.4-55m³/min) | 50-5400cfm(1.4-150m³/min) | 1500-65000cfm42-1800m³ / min) | ||
Suspended particle concentration | 10ug/L：air flow 2000cfm（about 55m³/min） | 10ug/L：air flow 5400cfm（about 150m³/min） | 10ug / L: air flow 65000cfm (about 1800m ³ / min) | ||
Suspended particle concentration | 100ug/L：air flow 200cfm（about 5.5m³/min） | 100ug/L：air flow 540cfm（about 15m³/min） | 100ug/L：air flow :6500cfm（about180m³/min） | ||
The occurrence of particles | DOP PAO , Polydisperse | DOP PAO , Polydisperse | PAO, DOP, polydisperse | ||
Method of occurrence | 2-6 Laskin nozzles | 2-4 Laskin Nozzles | |||
Compressed gas | Built-in compressed air machine | 3-12cfm(85-340L/min)20pis（0.14Mpa） | Nitrogen, Argon, Carbon, Dioxide or Helium (50psi) | ||
Power supply | no need | 220V AC，50Hz | 220V AC，50Hz | ||
Outer dimension | 20cm W× 27cm D ×55cm H | 22cm W× 28cm D ×30cm H | 35 W× 25D ×25 H(cm) | ||
Weight | 25kg | 6.5kg | 9.1kg | ||
Company Profile
About HJClean.
Suzhou HJ Clean Tech Co., Ltd was established in 2004 in Suzhou, Jiangsu Province, the home of purification in China. It mainly produce equipments and instruments of clean room deals in business of clean room projects for pharmaceutical factory , laboratory, medical organization etc. .
The company has more than 30 patents products, ISO9001 certification 、GMP certification and CE certification. The company is a member of China clean room Association and is one of Jiangsu Engineering Technology Research Center.
The company's products including airborne particle counter、air sampler、 sterility isolator 、sampling booth 、dynamic pass box、VHP pass box , vhp generator, BIBO bag in bag out filter system , online monitoring dust particle and plankton system, air flow capture hood 、aerosol generator , Glove Integrity Tester、 laminar air flow hood 、clean bench 、FFU、air shower、etc. Those have been sold to countries around the world, from the establishment to the present.
The company has a professional team of R&D , design and experienced worker , and is equipped with advanced testing instruments and installation tools. In addition, the company has introduced the advanced management , and the products we provide are high quality and cost performance.
The company adheres to the tenet of customer first, technology leader, service first, and pioneering and enterprising, and
wholeheartedly serves domestic and foreign enterprises.
The company's products including airborne particle counter、air sampler、 sterility isolator 、sampling booth 、dynamic pass box、VHP pass box , vhp generator, BIBO bag in bag out filter system , online monitoring dust particle and plankton system, air flow capture hood 、aerosol generator , Glove Integrity Tester、 laminar air flow hood 、clean bench 、FFU、air shower、etc. Those have been sold to countries around the world, from the establishment to the present.
The company has a professional team of R&D , design and experienced worker , and is equipped with advanced testing instruments and installation tools. In addition, the company has introduced the advanced management , and the products we provide are high quality and cost performance.
The company adheres to the tenet of customer first, technology leader, service first, and pioneering and enterprising, and
wholeheartedly serves domestic and foreign enterprises.
