Book Binding Machine/Three Knife Book Cutting Machine/High Precision Guillotine Cutter 3 Knife Trimmer/MF STM300
- Category: >>>
- Supplier: Dongguan Maufung Machinery Co. Ltd.
Share on (1600845072270):
Product Overview
Description
Amy Li: We chat/Whats app: +86 180 3840 8763 Email: mf02@mfjx.net
RELATED PRODUCTS
DESCRIPTION

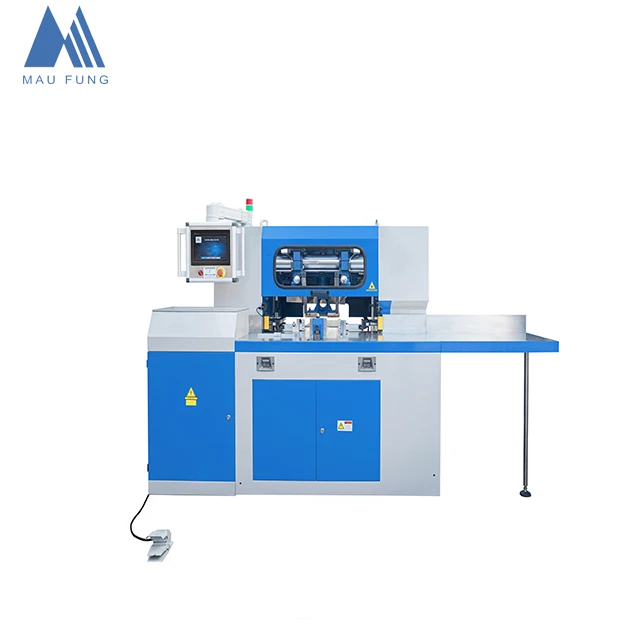

MF-STM300
Machine Description：
Semi-automatic Three knife Trimmer MF-100C adopts servo drive system and touch screen operation. Fully automatic knife adjustment, high cutting precision, safe and efficient. It can flexibly change the version when cutting small batches, and it is convenient and quick to change jobs.features:
1.Machine adopts a servo transmission system, which can accurately match the operation accuracy of other parts of the machine and the protection of torque setting, greatly improving the cutting accuracy and life span of the machine. 2.The machine has a single-person operation mode and multi-person operation mode, which can be freely converted.
3. Use touch screen can fully automatically adjust the specifications of the front knife, side knife and mechanical book arranger.
4. Equipped with a front knife quick knife installation device and side knife quick knife installation device.
5.Each door is equipped with a protective switch, and the machine automatically stops running when the cover door is opened.
Specification
型号 | Model No. | MF-STM300 |
最大裁切尺寸（mm） | Max. Cutting Size (mm) | 420 * 300 |
最小裁切尺寸（mm） | Min. Cutting Size (mm) | 80 * 80 |
最大裁切高度（mm） | Max. Cutting Height mm) | 100 |
最低裁切书本高度（mm） | Min. Cutting Book Height (mm) | 8 |
最小单体裁切高度（mm） | Min. Single Cutting Height (mm) | 5 |
最高裁切速度（times/m） | Cutting Speed (times/m) | 28 |
电机总功率（KW) | Power (KW) | 6.2 |
气 压（Pu） | The pressure（Pu） | 6 |
外形尺寸（mm) | Overall Dimension (L*W*H / mm) | 2800*2370*1700 |
机器重量(KG) | Machine Weight (Kg) | N.W 2800 G.W 3000KG |
机器包装尺寸 | Packaging Size | L2280x W1780xH1980mm |
Product of Details

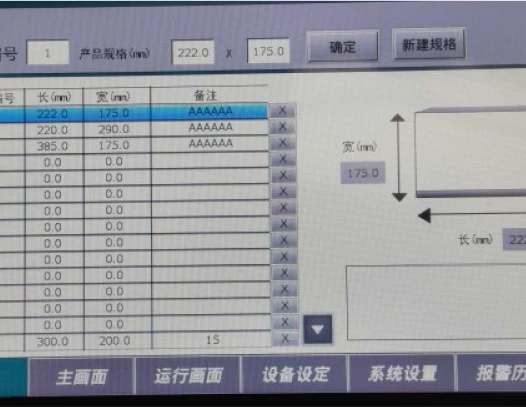

触摸屏设定所需裁切尺寸
Set the required cutting size on the touch screen

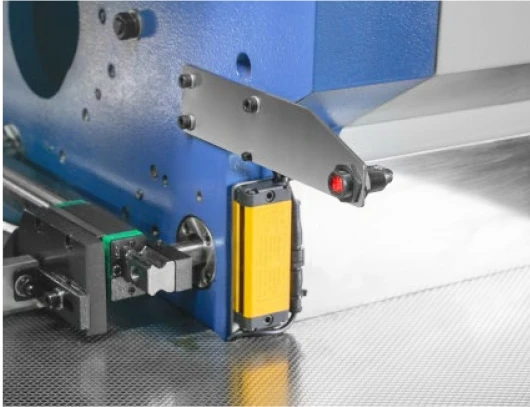

光电和光幕双重保护
double protection of sensor and light curtain
double protection of sensor and light curtain

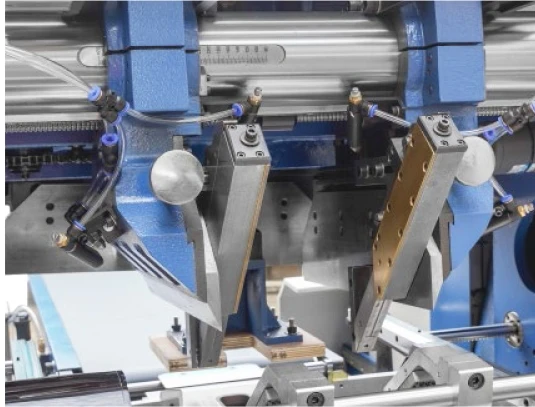

配备防止书背破裂装置
device to prevent the back of the book from cracking
device to prevent the back of the book from cracking

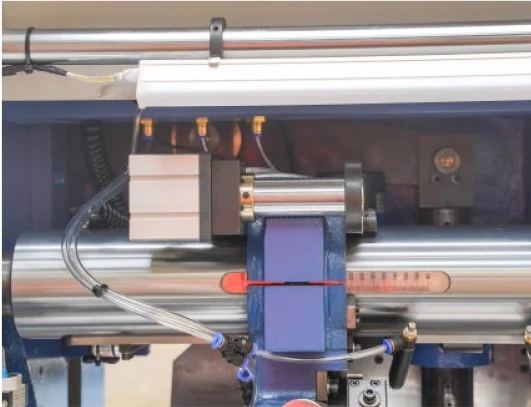

费斯托气缸锁紧侧刀装置
The FESTO cylinder for locking the side cutter
The FESTO cylinder for locking the side cutter
