Product Overview
Description
South Korea ’s 15 -Ton Battery Locomotive Design Plan And Manufacturing
Product introduction
Lithium Battery Locomotive
Lithium battery locomotive adopts lithium battery as power source. Lithium batteries have the characteristics of high energy density, high conversion efficiency, no memory effect, no charge-discharge delay, low self-discharge rate, and wide operating temperature range. In particular, lithium iron phosphate batteries have the advantages of non-toxic, non-polluting, good safety performance, long life and wide sources of raw materials, \tand long life. Its application on locomotives effectively solves the lead-acid battery problems of requiring frequent maintenance, frequent charging and insufficient cruising range in long tunnels.

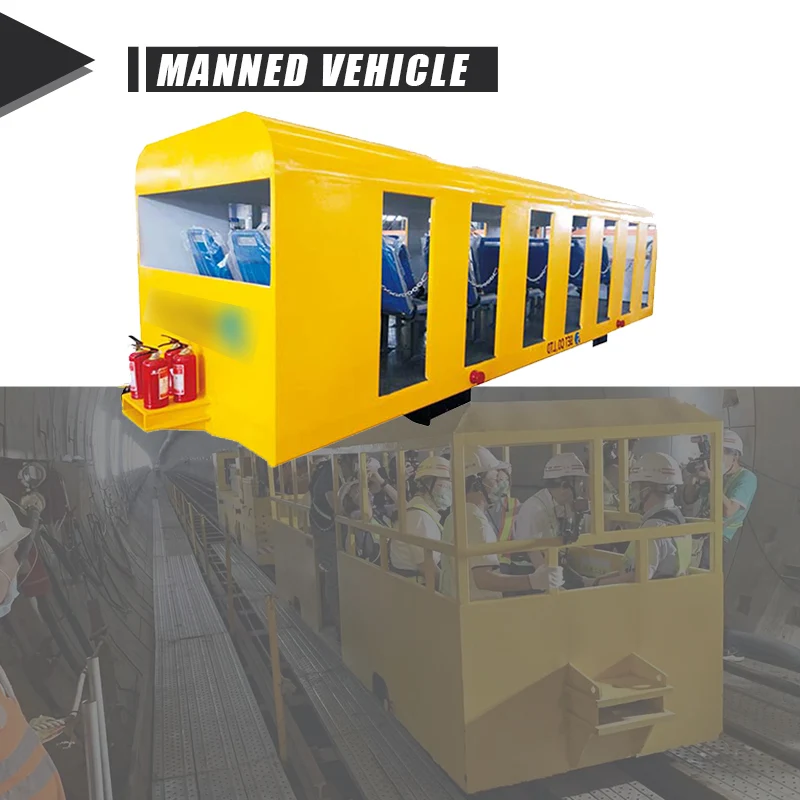

Passenger Car
Passenger car is specially designed for transporting construction personnel in tunnel shield construction, whose capacity is available 8-25 people seat variously.
Flat Car
Flat car is specially designed for transporting materials, tools and machines in tunnel shield construction, which offers capacity of 10 ~ 90 tons.

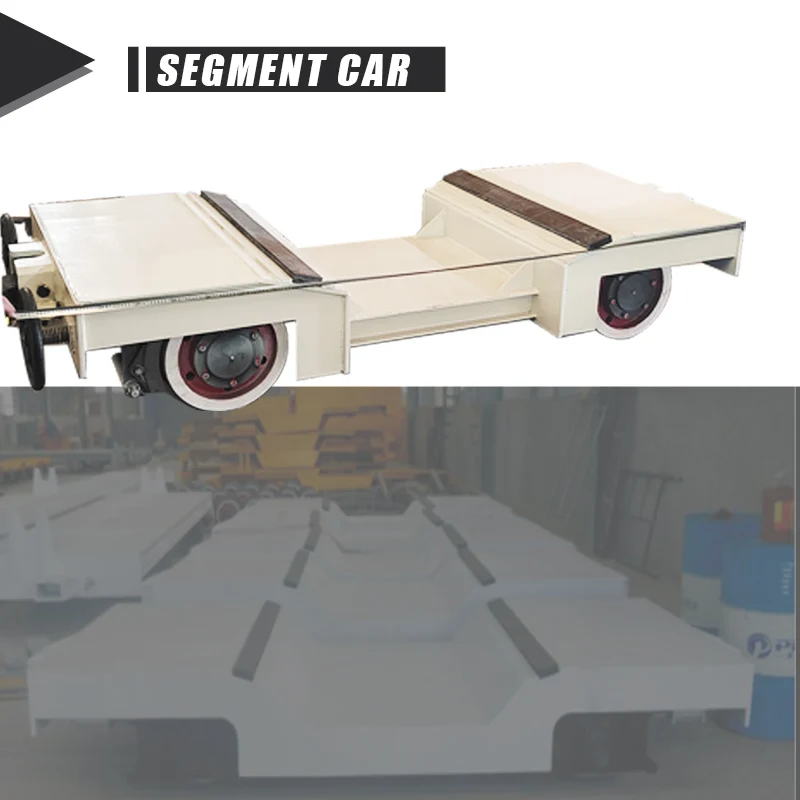

Segment Car
Segment Car is specially designed for transporting tube pieces in tunnel shield construction, and it also has the task of transporting materials. At present, our company manufactures more than ten types of pipe cars with a load capacity of 10-45t.

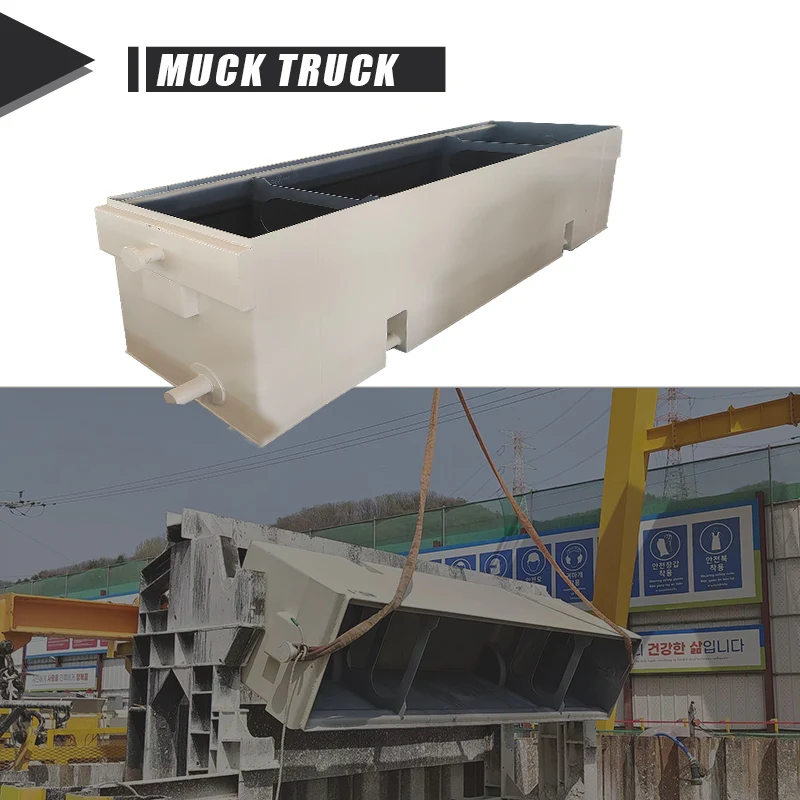

Muck car
Muck car is composed of a bogie, a frame, a slag bucket and other parts. The running device adopts the structure of two-axle bogie. Capacity of 3m³~35m³ Muck Car is available.
Product Paramenters
15 Tons Tunnel Locomotives Mining Battery Narrow Gauge Locomotive | ||||||
Item Name | Parameter | Item Name | Parameter | |||
Locomotive external dimensions | 5807×1000×1400（mm) | Locomotive control method | Computerized intelligent traction control | |||
Track gauge | 600mm | Braking mode | Electric system, air system, hand brake | |||
Adhesion weight | 15000Kg | Braking multiplier | 8 | |||
Adhesion coefficient | 0.26 | Braking valve type | Hand-operated reversing valve | |||
Transmission mode | DC-AC | Braking distance on straight | Rated speed ≯ 20 m. | |||
Power | 37KW×2 | Emergency braking method | Air brake | |||
Starting traction force | 36.4KN | Height of traction pin centerline from rail surface | 250mm | |||
Continuous traction force | 25.6KN | Center distance of traction pin | 5703mm | |||
Continuous speed | 7.8Km/h | Wheelbase | 2000mm | |||
Climbing degree of heavy load | 30‰ | Wheel diameter | 680mm | |||
Traction weight | 70t | Axle weight | 7.5T | |||
Through the minimum curve radius | 20m | Transmission ratio 12.6 | 12.6 | |||
Vibration damping method | Rubber spring | Monitoring system | Wired transmission infrared monitoring system | |||

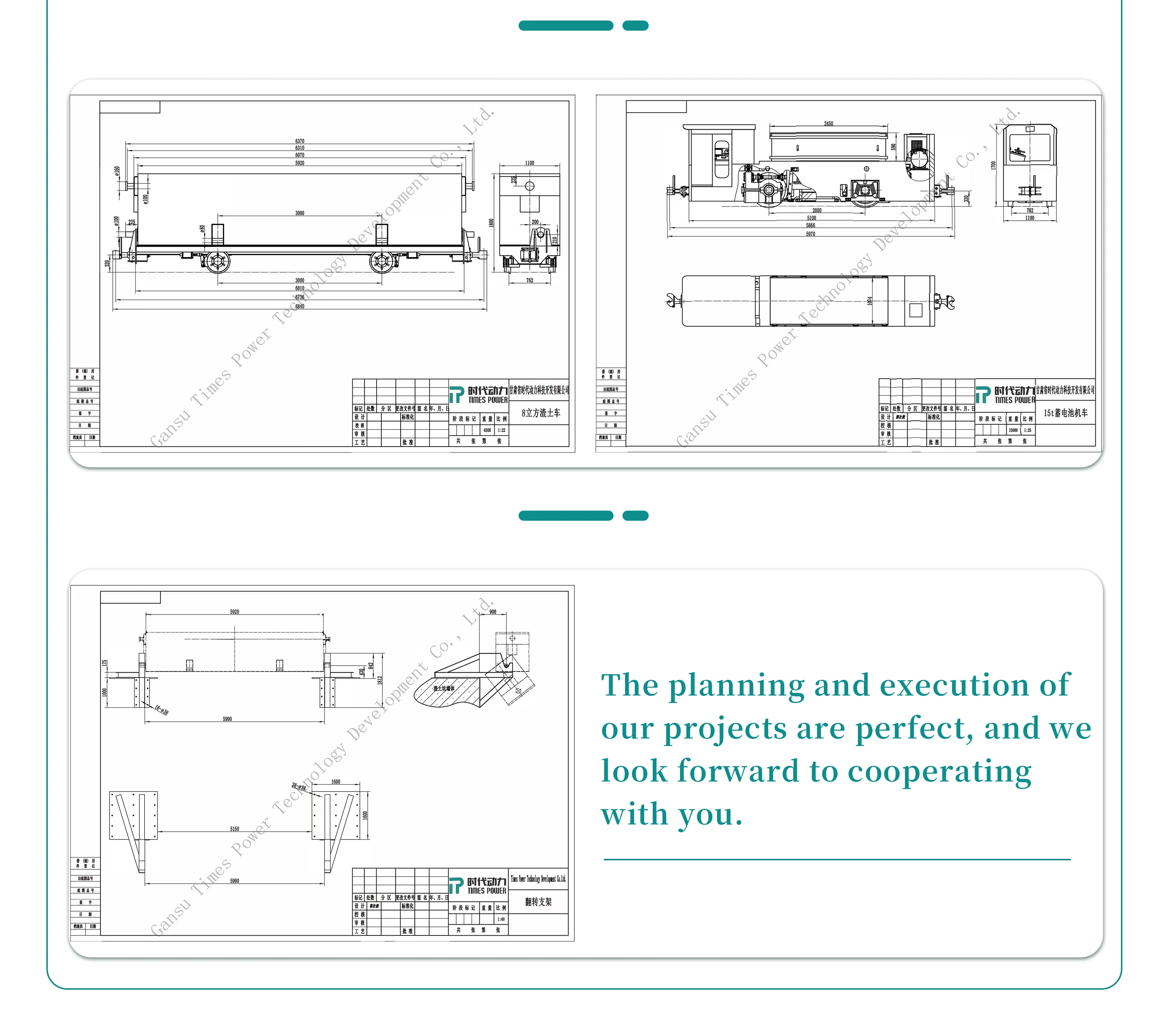

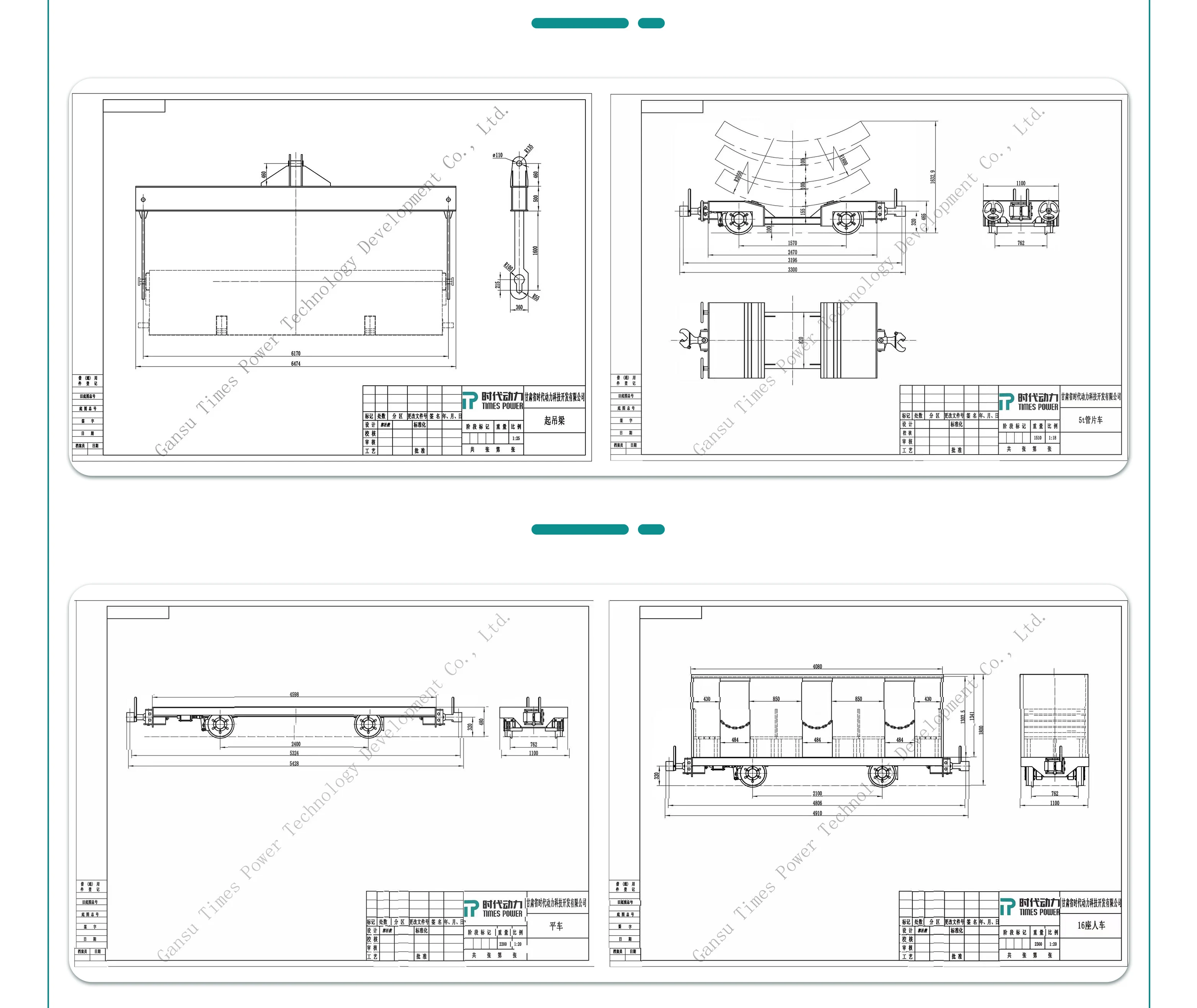

Design Solutions
Product Display
Company Profile
Packing & Shipping
Contact Us
FAQ
Q:Do you have after-sales support?
A:Yes, we are pleased to give advice and also have skilled technicians available to maintain the machine if needed.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: What can you do if the machine is broken?
A:Our machine's warranty period is 12 months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the shipping cost by yourself. if the warranty period is expired, we will negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Do you have overseas engineers?
A:Yes, we provide overseas engineers, but also support technical training.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Can one machine only produce one size?
A:It’s depends on the machine parameters.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Can you be responsible for transport?
A:Yes, we will provide the best shipping methods according to your address. we have rich experience in transport.
A:Yes, we are pleased to give advice and also have skilled technicians available to maintain the machine if needed.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: What can you do if the machine is broken?
A:Our machine's warranty period is 12 months. if the broken parts can't repair, we can send the new parts to replace the broken parts, but you need to pay the shipping cost by yourself. if the warranty period is expired, we will negotiation for solving the problems, and we supply the technical support for the whole life of the equipment.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Do you have overseas engineers?
A:Yes, we provide overseas engineers, but also support technical training.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Can one machine only produce one size?
A:It’s depends on the machine parameters.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: Can you be responsible for transport?
A:Yes, we will provide the best shipping methods according to your address. we have rich experience in transport.
TimesPower 85T train underground mine tunnel driving battery locomotive
Q: You are a trade company or manufacture?
A:We are a Manufacturer.
Q: You are a trade company or manufacture?
A:We are a Manufacturer.
TimesPower 85T train underground mine tunnel driving battery locomotive
