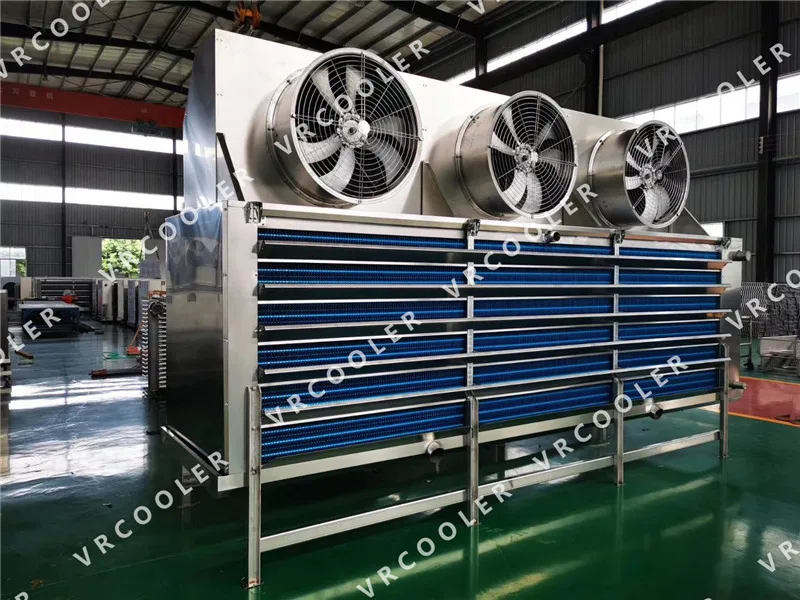

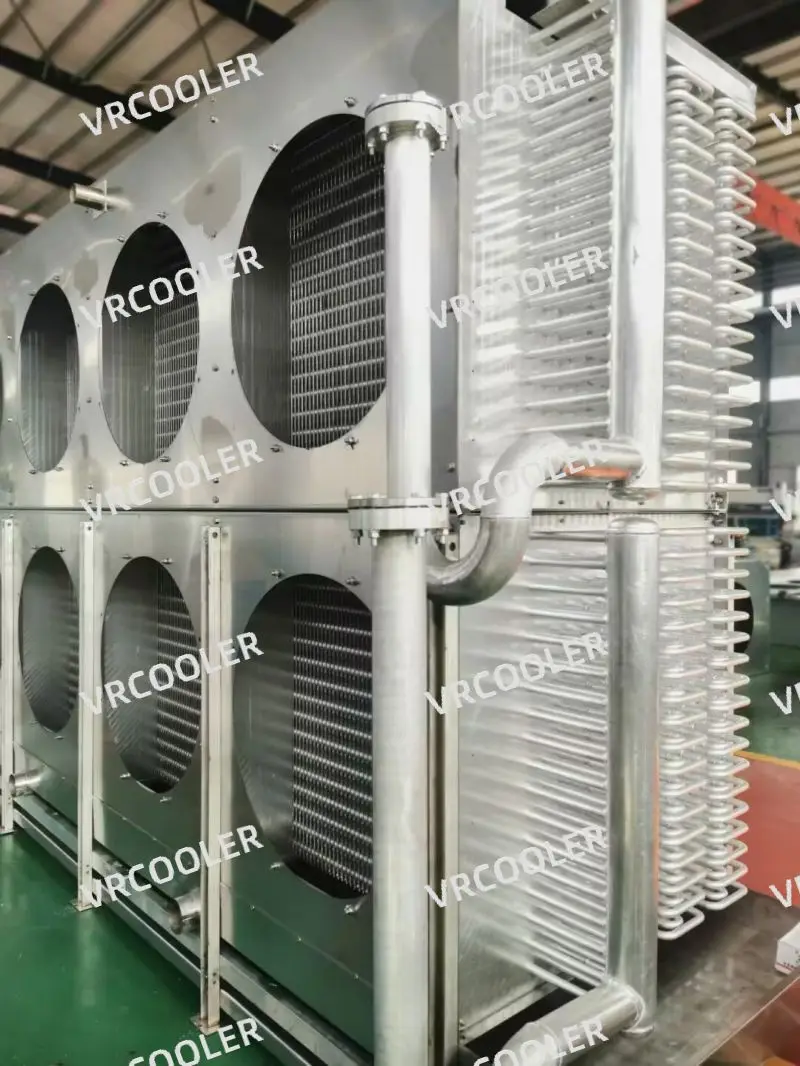

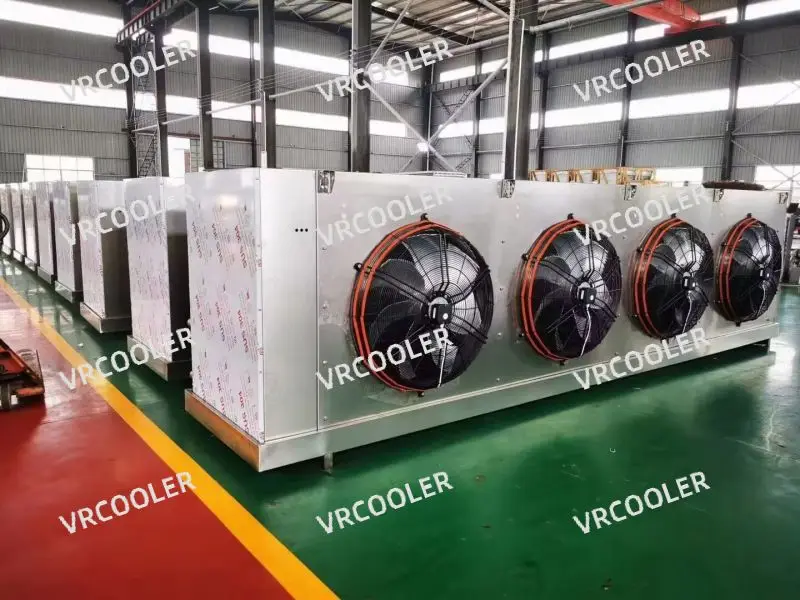

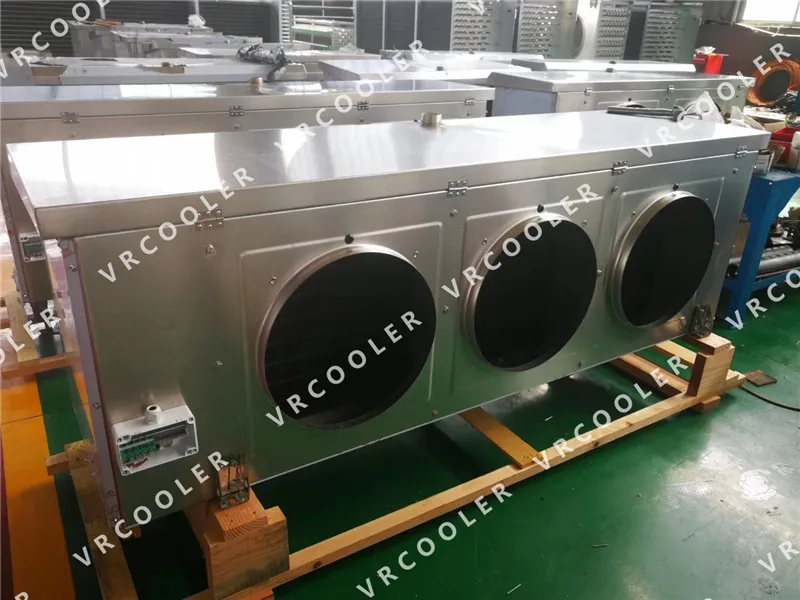

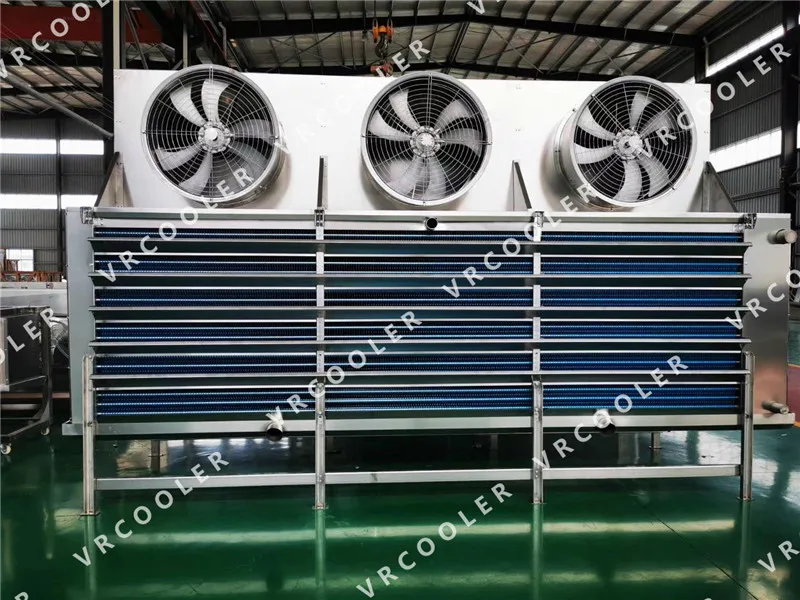

Flexibility Design Stainless Steel Tube Ss304 Ss316L Ammonia Blast Room Unit Cooler
- Category: >>>
- Supplier: Changzhou Vrcoolertech Refrigeration Co. Ltd.
Share on (1600845124099):
Product Overview
Description
Product Description
Ammonia Evaporator Product Feature
Our range of ammonia air cooling units is best suited for Potato/fruit/vegetables/ vanaspati plants/ katha plants/milk processing units and meat/ fish/ ice cream/ butter freezing units.
Material & Components specified to World Class Standards.
Longer life through appropriate material selection and robust construction.
Longer life through appropriate material selection and robust construction.
Ammonia Evaporator Product Feature
Coils are designed with a contemporary design for optimized refrigerant distribution.
High-grade Aluminum fins are in a corrugated pattern with rippled fin edges.
Branded European Axial fans for low-temperature application.
One-year warranty for all VRCOOLER heat exchanger products.
Ammonia Evaporator Product Applications
Low Temperature Blast Freezing
Blast Freezing Tunnels and Rooms
Low Temperature Test Chambers
Low Temperature Refrigerated Ships Holds (Marine)
Low temperature blast freezing
Blast chilling
Cold chain
Carcass cooling
Carcass chilling room
Cold Rooms
Walk in Freezer & Walk in Chiller
Air Blast Freezer & Air Blast Chiller
Commercial Refrigeration
Frozen & Chilled Food Display Cases
Details Image

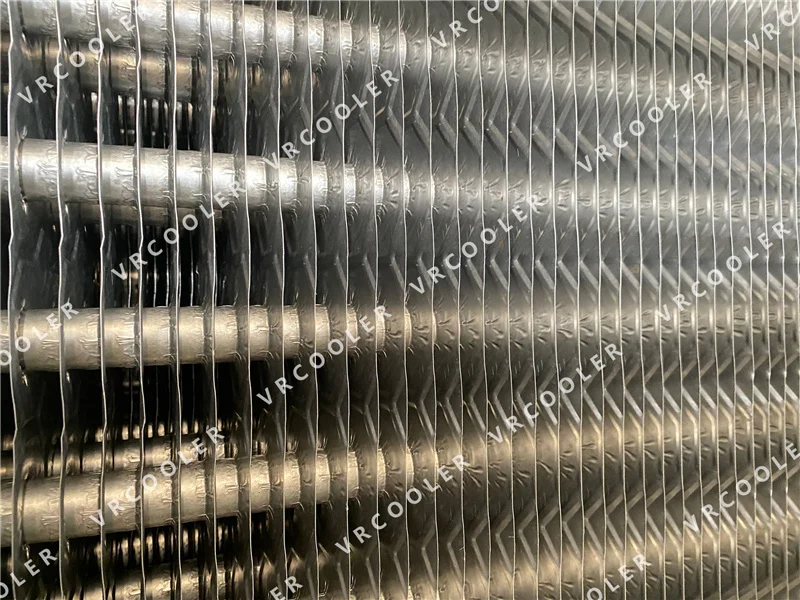

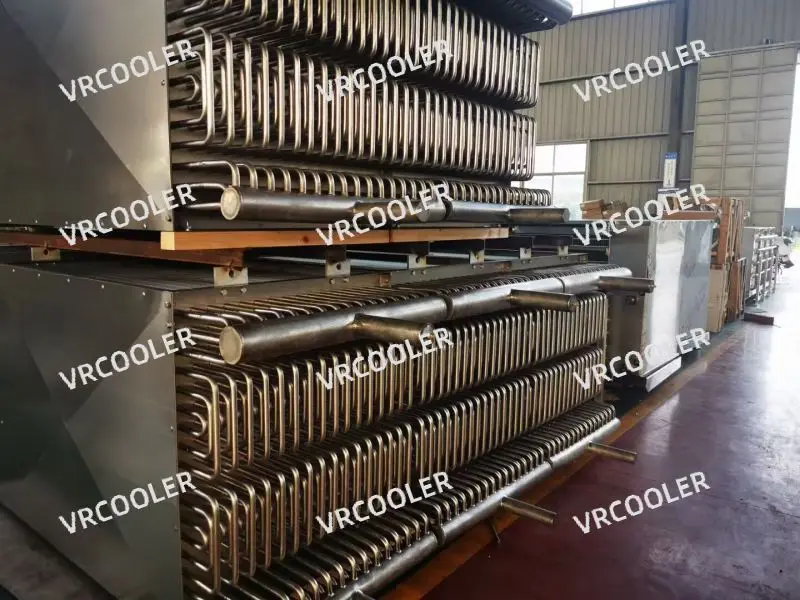

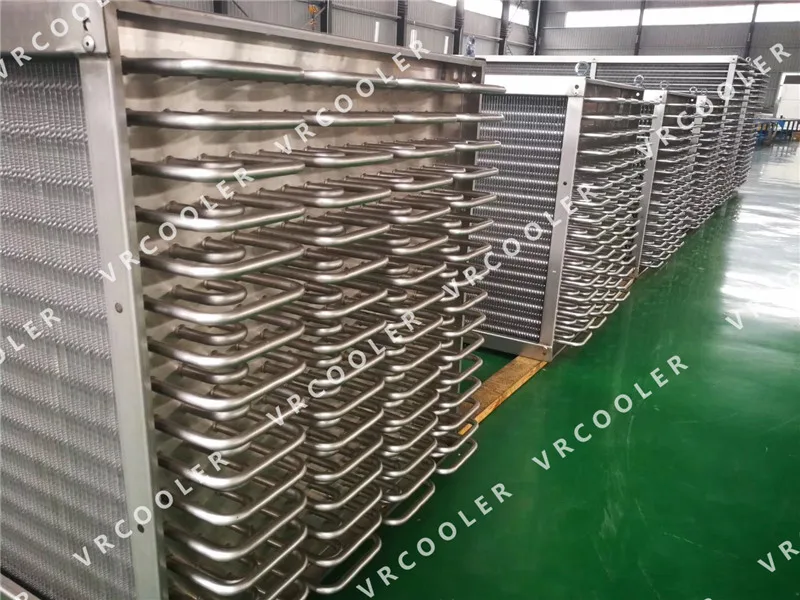

Cooling Coil
Cooling coils made of stainless steel/ spray galvanized tubes & die formed plate-type aluminum fins with excellent bonding between them give efficient heat transfer & durability.
High quality powder coated GI sheet or SS casing with heavy duty outer frame.
Aluminum fins ensure rapid heat absorption from the air.
The staggered tube construction increases air turbulence at the coil to increase efficiency.
Fans
Low noise Axial flow fans made up of aluminium/ FRp alloy blades for higher static pressure/ air throw.
Weather proof TEFC type fan motors with IP55 enclosure having pre-lubricated bearings with low temperature grease.
Weather proof TEFC type fan motors with IP55 enclosure having pre-lubricated bearings with low temperature grease.
---- Optional Defrosting heaters/Hot gas arrangement for fast defrosting of coils in case of low temperature application.
---- Optional heater for drain pan or insulation in case of low temperature application.
---- Heavy duty galvanised /stainless steel drain pan with sloped end for fast water drainage, All coils can be circulated for flooded system, liquid recirculation, brine circulation & chilled water.
---- Longer life through appropriate material selection and robust construction.
---- Custom built coil for special application.
---- Optional heater for drain pan or insulation in case of low temperature application.
---- Heavy duty galvanised /stainless steel drain pan with sloped end for fast water drainage, All coils can be circulated for flooded system, liquid recirculation, brine circulation & chilled water.
---- Longer life through appropriate material selection and robust construction.
---- Custom built coil for special application.
How we design for you?
Through 8 years of cooperation with them, we have designed, processed and exported coils and unit coolers to various countries all around the world.
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
We will send you the 3D model drawing, data sheet together with the quotation list as you required.
Case study
Project name: air cooler for Vietnam cold room
My client needs 12 units of 50 kw air cooler that made of all stainless steel for cold room to storage fruit.
At the beginning we were difficult to going on because my client knew little about what he need.
Then I tried to ask him step by step: (It only took 5 days to conclude a transaction. )
Me: May I know what medium will you use for the unit cooler?
Client: What is medium ? Sorry I don't understand.
Me: That's ok. Medium is something to cool the temperature. It maybe water, glycol, CO2, ammonia, refrigerant and etc.
Client: Thanks. The medium for my air cooler should be ammonia.
Me:OK we have solved one problem. Next, what is the room temperature and the ammonia inlet temperature?
Client: room: +5 ℃, ammonia: -5℃. Totoro, I am a little worried becasue I can't sure if those datas are reasonable.
Me: Don't worry about it. I will send you the sketch and data sheet that calculated by professional software to check all specifications.
Me: There is last thing need to confirm: Defrost type? Water defrost, air defrost or electrical defrost?
Client: Electrical defrost.
Me: Please kindly confirm the data sheet, sketch and the quotation list.
Client: Perfect! My engineer has checked that. Everything is ok. Please directly send me the PI.
In summary, to design a ammonia air cooler, those information are needed:
---- Cooling capacity?
---- Evaporating temperature?
---- Room temperature?
---- Material you need? Stainless steel tube aluminum fin galvanized steel frame or not?
---- Defrost type? Water defrost, air defrost or electrical defrost?
---- It is aqua ammonia or ammonia?
---- It’s pump system or direct expansion system?
---- Evaporating temperature?
---- Room temperature?
---- Material you need? Stainless steel tube aluminum fin galvanized steel frame or not?
---- Defrost type? Water defrost, air defrost or electrical defrost?
---- It is aqua ammonia or ammonia?
---- It’s pump system or direct expansion system?
Data sheet
To protect my clients's business secret, we only display small prats of the datas with his consent.
Sketch
To protect my clients's business secret, we only display small prats of the sketch with his consent.
Client feedback:
All of customers feedback is that the actual cooling performance is almost the same as the theoretical design value.
Japan spiral freezer cooler
Netherlands project for cold room (stainless steel)
Our Factory
VRCOOLERTECH CST Company
We specialize in designing, manufacturing and exporting refrigeration equipments for the varied industries since 2004.
When it comes to building heat exchanger for any application VRCOOLERTECH CST Company has the capability to meet your requirements. If you need a heat exchanger using water, steam, refrigerant, glycol, ammonia, CO2 or any other medium, CST Company can build it for you. We build heat exchanger for replacement of existing heat exchanger or for new jobs, as well. We make standard copper tube / aluminum fin commercial heat exchanger and we build heavy industrial heat exchanger for process applications. You will be hard-pressed to come up with a job we can't handle.
Our main products:
Commercial heat exchangerIndustrial heat exchanger
Dry cooler
Unit cooler
Charge air cooler
Charge air cooler
Compressor cooler(intercooler, aftercooler, oil cooler)
Our equipments
How to contact and visit us?
Changzhou Vrcoolertech Refrigeration Co.,Ltd
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: info@cstheatexchanger.com
CST Heat Exchanger Co.,Ltd
Address: Xinsheng Road 56, Luoyang, Changzhou, China. （Near Shanghai）
E-mail: info@cstheatexchanger.com
Packing & Delivery
Water pressure test
Before package, we will do the pressure test in the pool to check if the product leak. (Process: Connect the inlet/outlet of the product to the tube s then put nitrogen in it, and put the product in water. If there is no bubbling, there is no leak.)
The normal package is wooden box. If export to european countries,the wooden box will be fumigated.
If container is too tigher,we will use PE film for packing or pack it according to customers special request.
We will delivery on time by sea or by air according to your requiremnts.
Where our customers come from？
We serve for buyers from all over the world.
We have export our product to moran than 60 countries.
