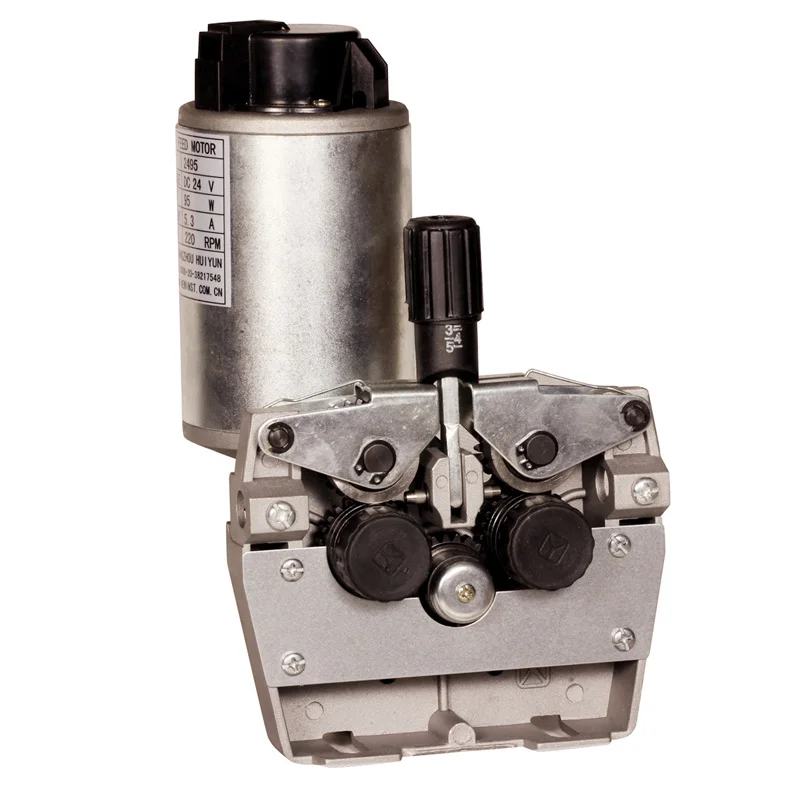

Wewin 404A Aluminium Alloy 4 Roller 24V Automatic Mig Welding Wire Feeder For Miller




Specification


wire feeder for mig welding machine

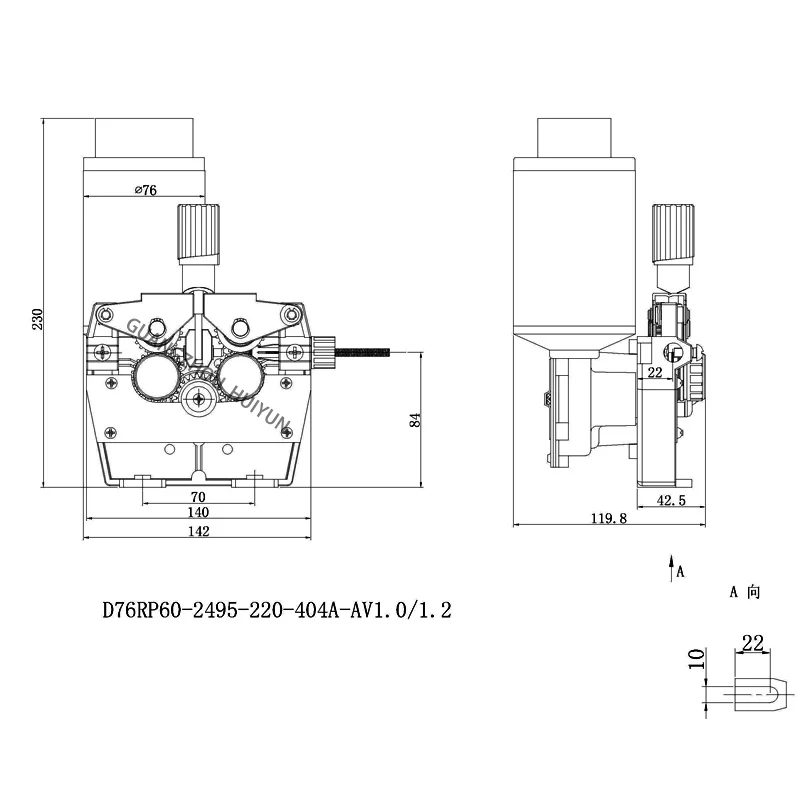

Model number: D76RP60-2495-220-404A-AV1.0/1.2


This wire feeder can be use for the welding machine which the welding current is less than 500A,the welding machine can work at spot weld and continue weld.




Motor
Motor Type
D76R
SIZE OF MOTOR
Diameter 76mm
VOLTAGE
DC24V
OUTPUT POWER
95W
NO LOAD SPEED
220RPM
NO LOAD CURRENT
1.8A
Stall torque
24N.M
Stall current
20A
FRAME
TYPE
404A
WIRE FEEDER ROLL SIZE
30mm*22mm
Apply for wire roll weight
15kg,5kg
Feed wire diameter
0.6mm 0.8mm 0.9mm 1.0mm 1.2mm
Maximum feed speed
22m/min
Minimum steady operation voltage in load
DC4.5V




Products Description


Product Specialty

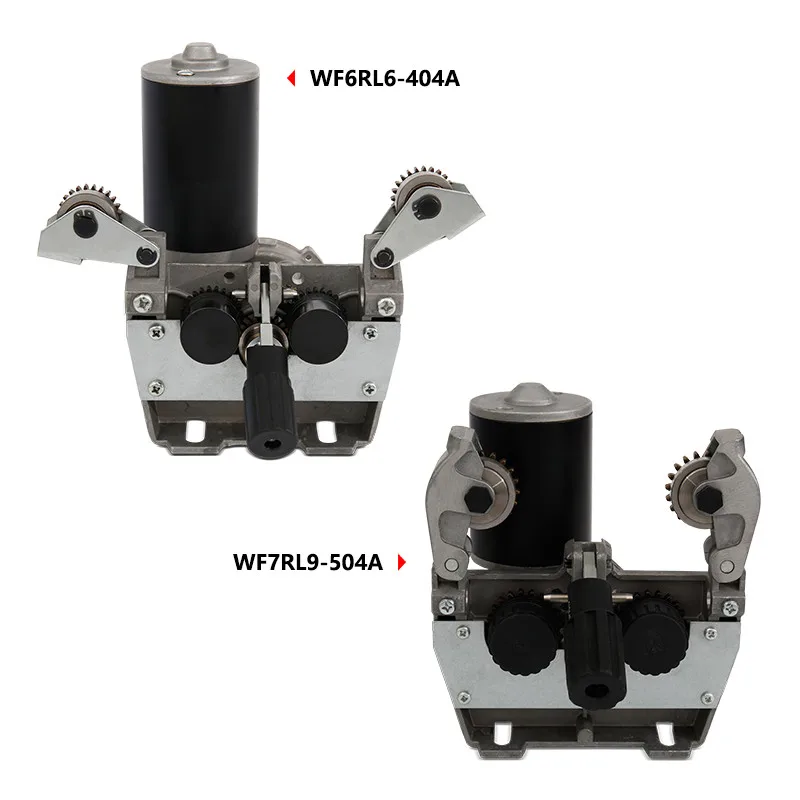

1.404A series wire feeder frame is an all-aluminum alloy 4-wheel wire feeder frame with the characteristics of stable and large wire feeding torque.

2.The standard motor for this kinds wire feeder is 95w 220rpm,also you can use the 65w 220rpm motor.

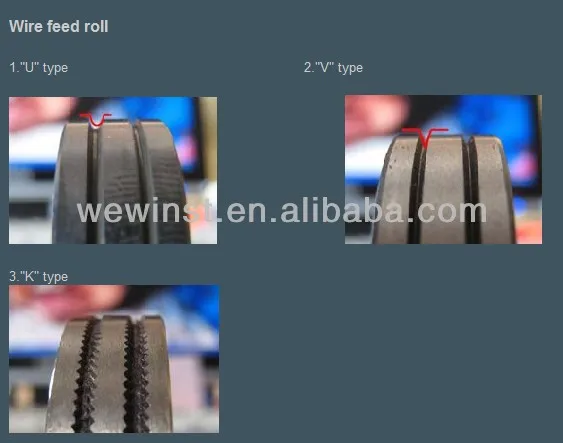

3.The roll only use the 30mm*22mm rolls.

4.The motor can be installed with a 60P/R photo electric switch as a speed feedback component ,raster(100p/r) and hall sensors(8p/r) can also be installed.


Recommend Products

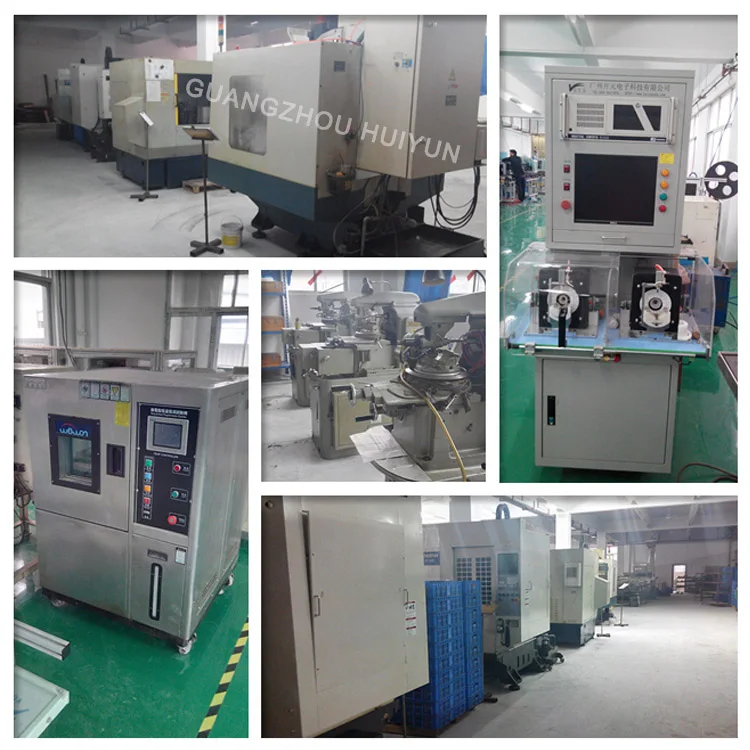

Exhibition




Our Certificates

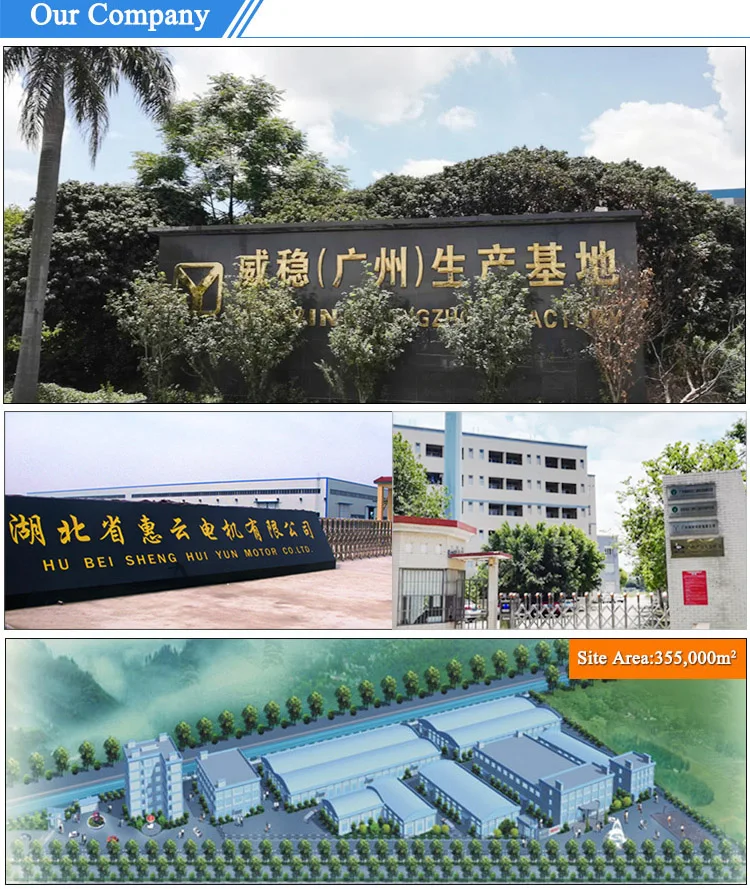

Company Profile


Company Advantages:
1.Professional motor OEM & ODM manufacturer
2.20 years motor design experience 3.Experienced engineering designers
4.Fast delivery time,about 15-20 days if use our conventional output shaft
5.We have strict quality control system,each batch of goods will be tested for torque and noise before leaving the factory




Our main market:
Europe,America and Asia,including United Kingdom, Germany, Italy, France, Sweden, United State, India,Korea and so on.
Guangzhou Wewin Motor Co.,Ltd. is a professional company specialized in design and customization of small dc worm gear motor. The motor models mainly include D49 D59 D63 D76 D88 series, and all the motors can be installed with hall sensor, encoder, opto sensor and brake,so we accept OEM and ODM orders ,and manufacture the motor according to your required like voltage, power, speed,torque,dimension and motor direction.

Our boss is a doctor of dc gear motor with over 20 years experience in motor customization and production,we also has professional R & D team and testing centers to test gears and motors, and could guaranteed high quality products for customers,welcome to contact our customer service center.

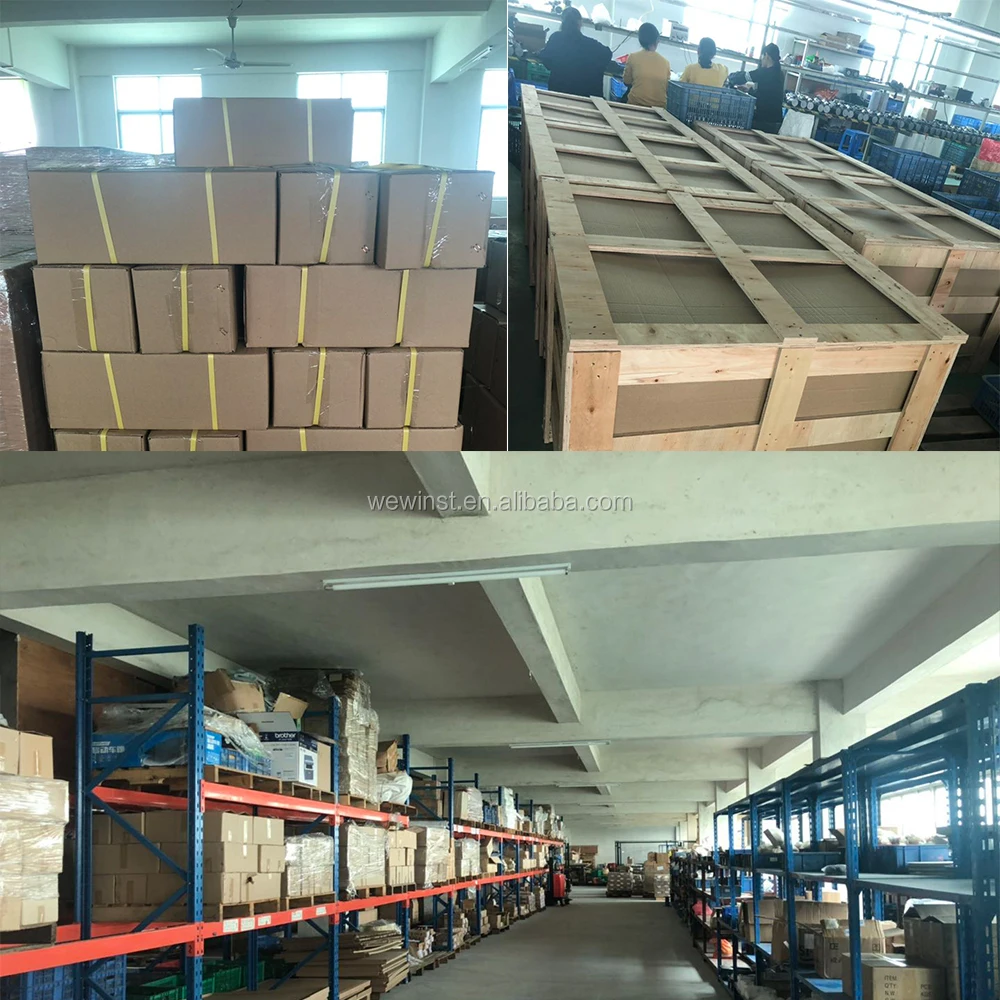

Product packaging
