Deep Cycle Graphene Battery Pack 48V Lithium Ion Battery Solar Storage Telecom Backup Battery
- Category: >>>
- Supplier: Anhui Sungeter New Energy Technology Co. Ltd.Anhui Ltd.
Share on (1600845792964):
Product Overview
Description

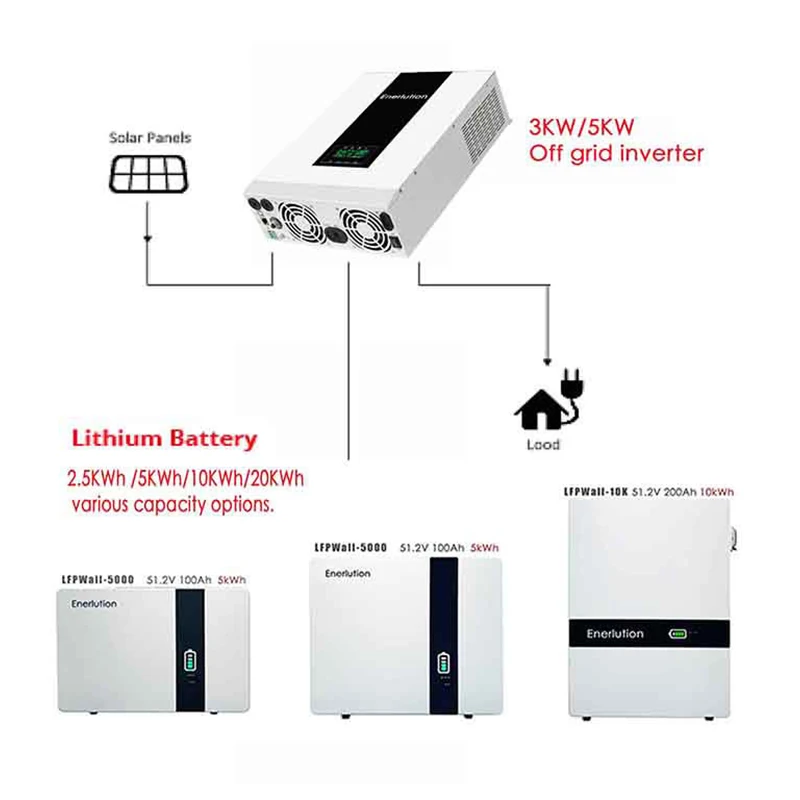

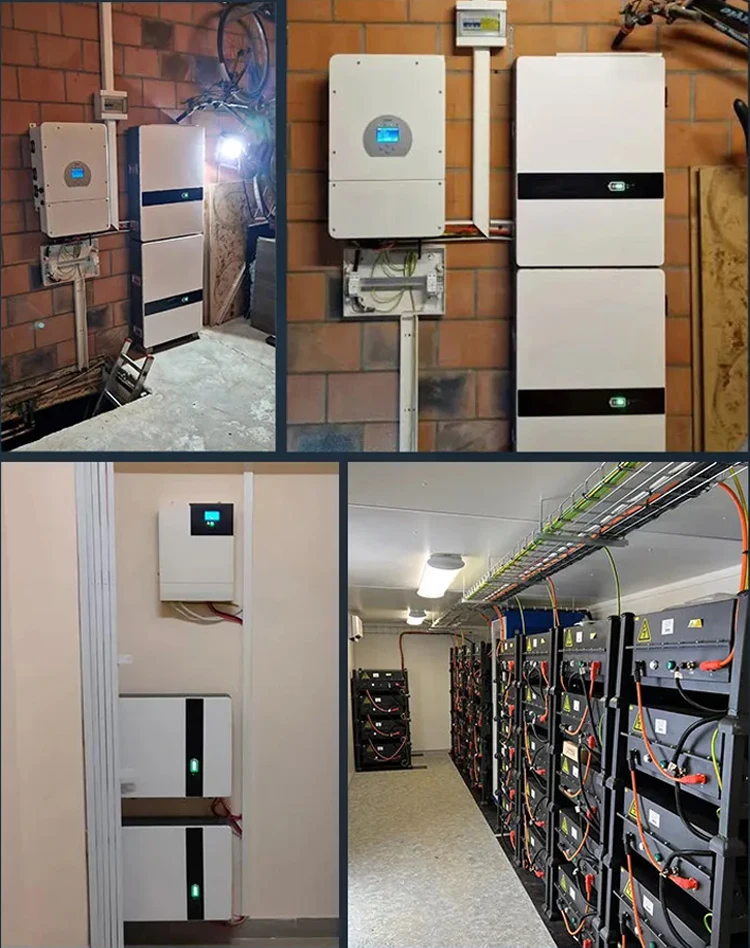

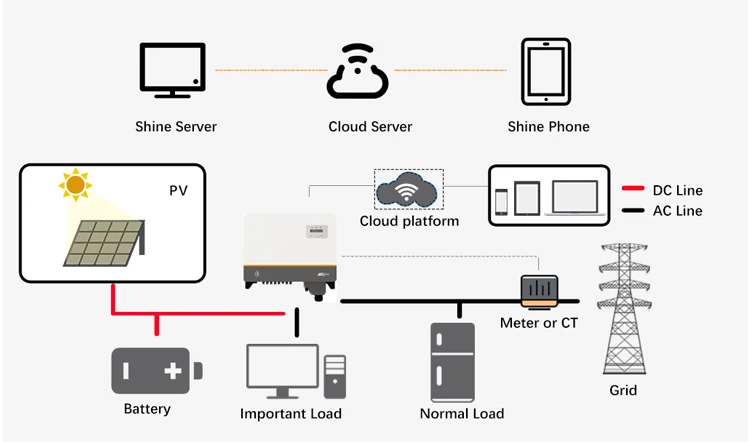

Application scenario
Product Details
Mode Capacity | LFPWall 2500 | LFPWall 5000 | LFPWall 10K | ||
Energy Capacity | 2.56kWh | 5.12kWh | 10.24kWh | ||
Nominal Voltage(V) | 51.2V | ||||
Operation Voltage(V) | 43.2V-58.4V | ||||
Ah Capacity | 50Ah | 100Ah | 200Ah | ||
Suggested SOC | 10% ~ 100% | ||||
Usable Energy | 2.3kWh | 4.6kWh | 9.21kWh | ||
Nominal Voltage | 51.2V, 48V optional | ||||
Operation Voltage | 44.8V ~ 57.6V | ||||
Maximum Charge/Discharge Current | 35A | 70A | 100A | ||
BMS | Yes, intelligent monitoring and protection BMS per install | ||||
Scalable (Parallel Function) | Yes | ||||
Cycle Life | ≥ 6000 | ||||
Warranty BTT | Standard 5 year, 10 years optional 10MWh per kWh BTT (battery total throughput) | ||||
Operation Temperature | Charge 0℃ ~ 45℃ ， Discharge -20℃ ~ 45℃ | ||||
Storage Temperature | -20℃ ~ 45℃ | ||||
Net Weight | 30kg | 52kg | 96kg | ||
Dimensions | 537*365*196mm | 542*468*197mm | 694*581*219mm | ||
Certifications | MSDS, UN38.3, CE, RoHS | ||||
IP Grade | IP65 | ||||
Communications | RS485, CAN, RS232, BMS has been compiatble with most of hybrid inverter brands in market | ||||
More options | Nominal 48V or 51.2V options Fire suppression per install Heating system per install OEM & ODM support | ||||
Note | LFPWall 2500, 2.6kWh (51.2V) 2.4kWh (48V) LFPWall 5000, 5.12kWh (51.2V) 4.8kWh (48V) LFPWall 10K, 10.24kWh (51.2V) 9.6kWh (48V) | ||||

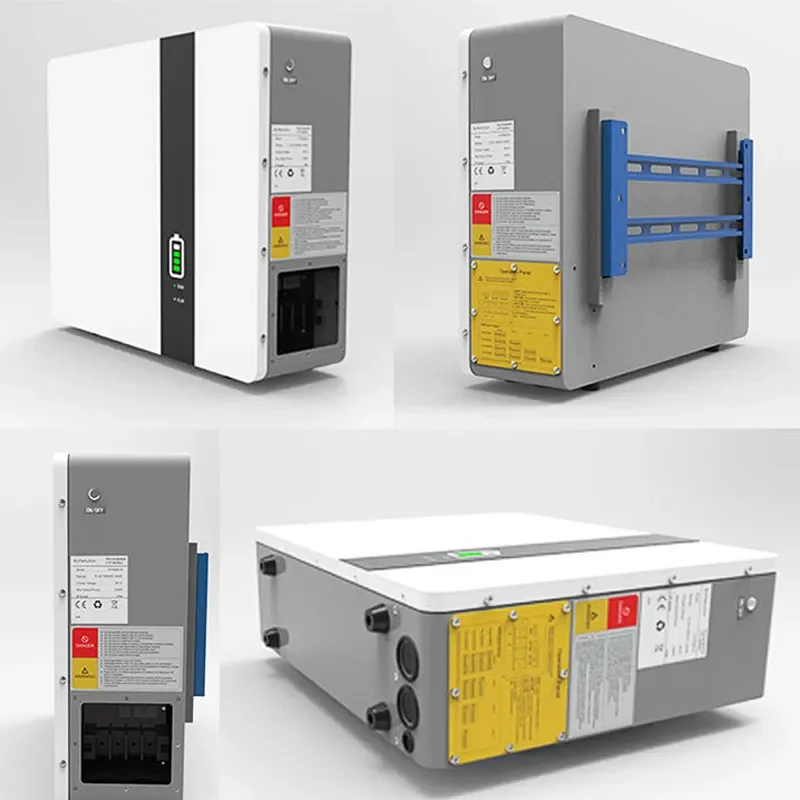

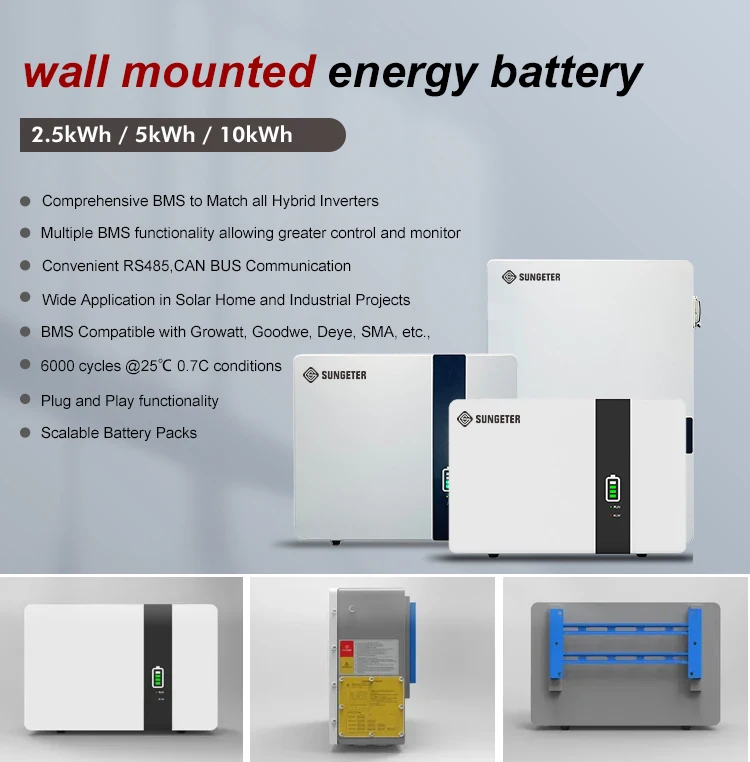

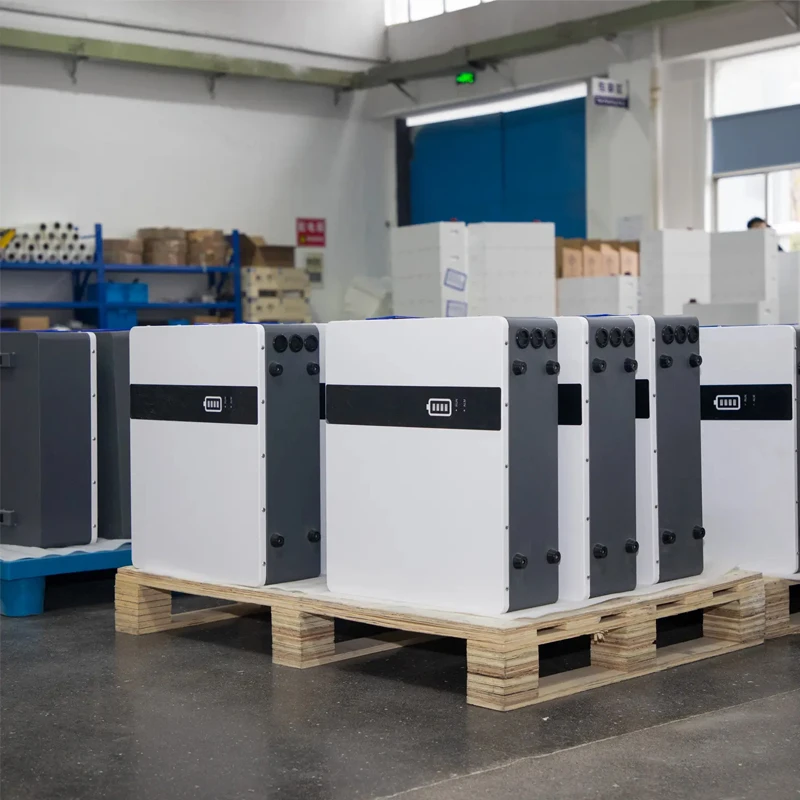

Appearance Description
Warranted throughout of 10MWh per 1kWh of stored capacity
1C Discharge rate and 0.5C Charge rate 158Wh per Kg+/-5% for cells
1C Discharge rate and 0.5C Charge rate 158Wh per Kg+/-5% for cells
BMS Compatible with Growatt, Goodwe, Deye, SMA, etc.,

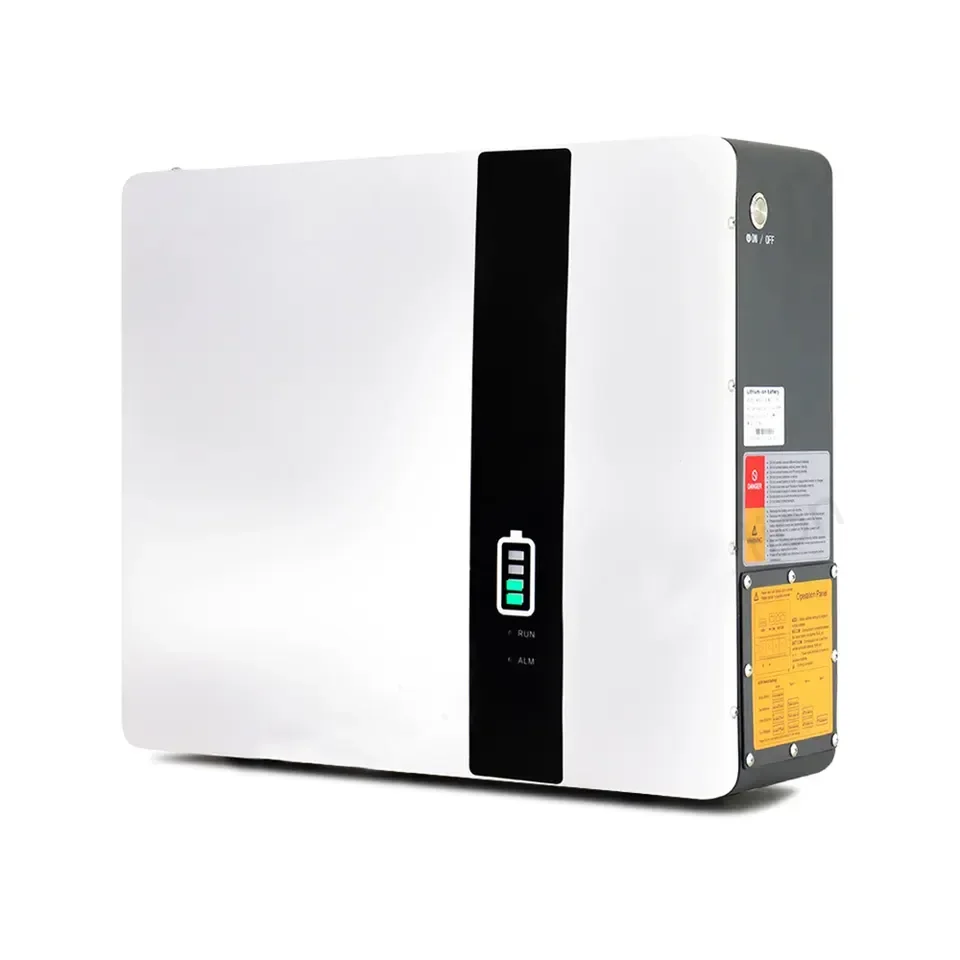

Wall mounted lithium battery is mainly for home energy stoarge solutions.There are models with different capacities to choose from

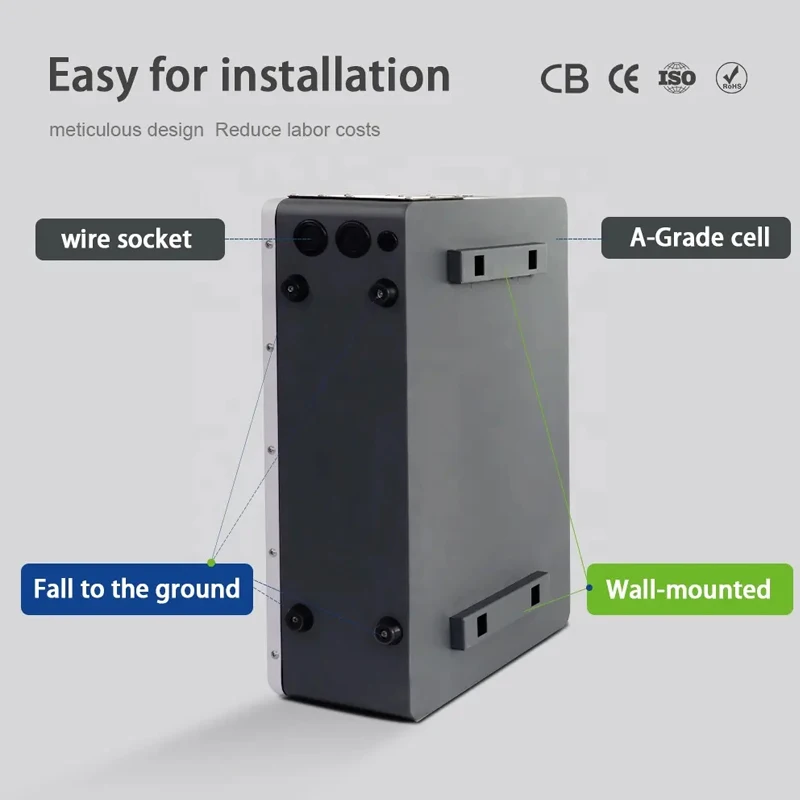

Wall mounted and Ground type selectable

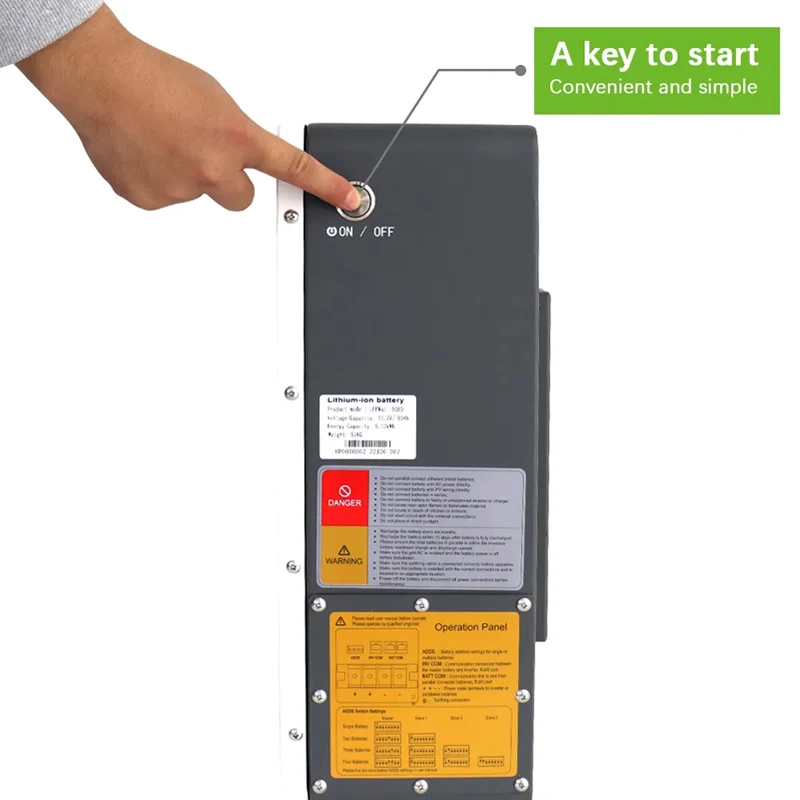

Plug and Play functionality

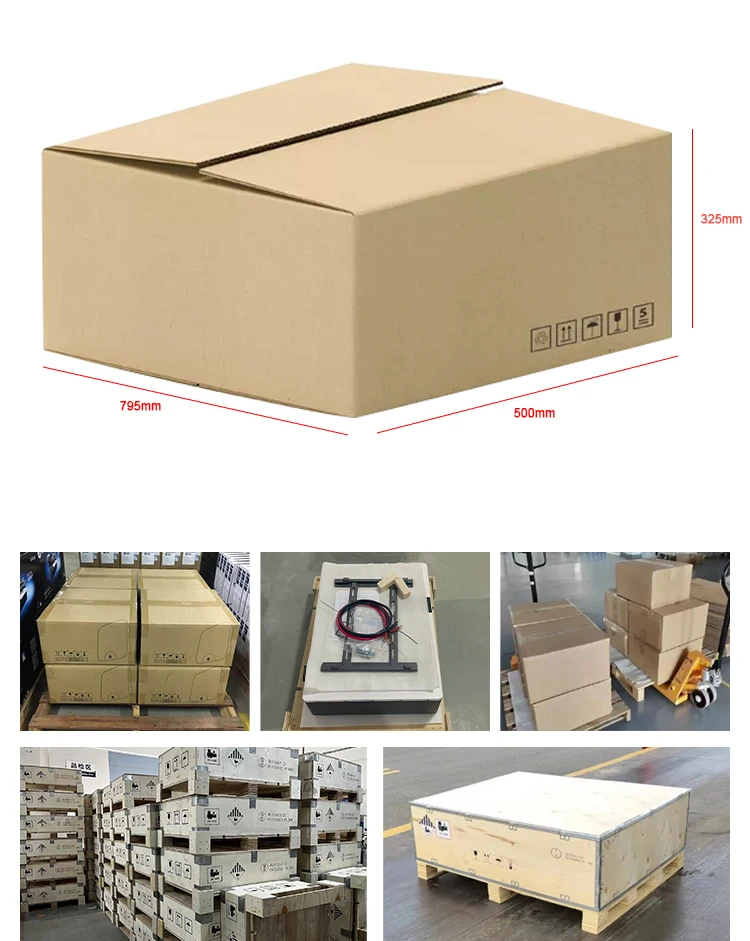

Packing & Delivery

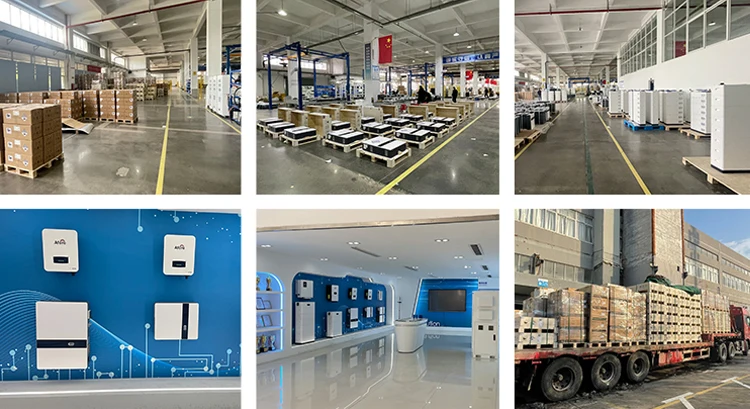

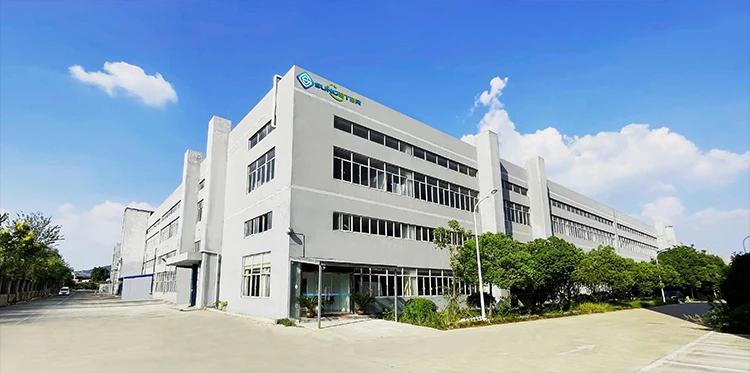

Company Profile
Anhui Sungeter energy Co.,Ltd., located in Hefei, an international manufacturing city in the center of the Yangtze River Delta,is a high-tech photovoltaic enterprise integrating R & D, production and sales. Holding the concept of “Focusing on quality,technology upgrading, customers’ demand and professional service”, Sungeter has become the strategic partner with many famous solar energy companies in the world. Adhering to the development strategy of being professional and international, Sungeter makes great efforts to provide high-quality comprehensive services to customers around the world. As the participant and promoter of the development of the global photovoltaic energy storage industry, Sungeter realizes self-worth by continuously improving its
services. Sungeter’s main products include solar photovoltaic energy storage inverters, energy storage battery systems, solar photovoltaic panel etc.Our mission is to promote the development of renewable energy globally, benefiting all humanity. Sungeter brings warmth to your life by helping you access clean energy anywhere in the world!
services. Sungeter’s main products include solar photovoltaic energy storage inverters, energy storage battery systems, solar photovoltaic panel etc.Our mission is to promote the development of renewable energy globally, benefiting all humanity. Sungeter brings warmth to your life by helping you access clean energy anywhere in the world!
Exhibition
Certificates
FAQ
Q1:ls the battery BMS included?
A1:Yes.It's advanced BMS included and very safe to use.
Q2:How do you ship lithium battery?
A2:We can ship by sea.
Q3:Does the battery have overcharge and overdischarge protection?
A3:Yes.We use advanced BMS and it can protect the battery well from overcharge and overdischarge.
Q4:What's the lead time?
A4:Sample lead time:3-7 days.Order lead time:12-25 days.
Q5.What is the payment term?
A5:T/T, L/C, Credit Card, Alibaba Trade Assurance,etc.
Q6.How can guarantee quality?
A6:Always a pre-production sample before mass production; Always final Inspection before shipment.
Q7.Do you provide after-sales serive?
A7:Yes,the warranty for lithium battery is 5 years or 10 years optional, if any quality problems on our side in this
period, we can send new one as replacement.
period, we can send new one as replacement.
