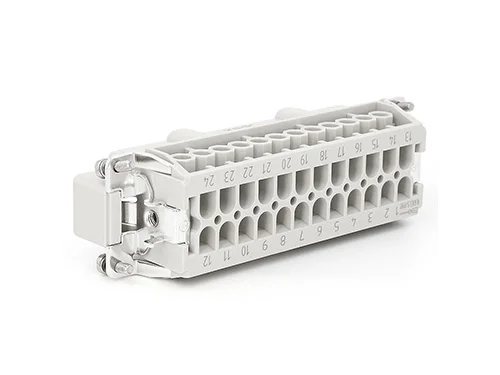

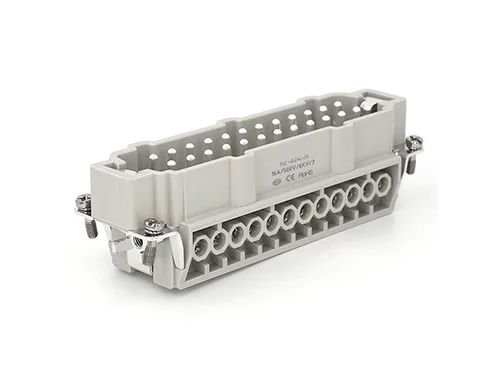

SVLEC MALE 24 PIN HEAVY DUTY RECTANGULAR CONNECTORS TEMPERATURE CONTROLLER CONNECTOR
- Category: >>>
- Supplier: Kunshan SVL Electric Co. Ltd
Share on (1600845822091):
Product Overview
Description
Product Description
SVLEC Modular units series are a new system of inserts designed to meet the specific requirements of individual customers. In close cooperation with potential users, a range of modular inserts have been developed allowing the simple assembly of custom designed complete connectors.
Modular units is a logical development of the product series which already offers the combination of power and signal circuits in one connector.
Modular units is a logical development of the product series which already offers the combination of power and signal circuits in one connector.
The heavy-duty plug connectors of the Heavy series from SVLEC guarantee secure transmission of signals, energy, data and pneumatics – even in the roughest of industrial environments. They consistently protect interfaces from water, coolants
and lubricants, dirt and high mechanical loads.
Maximum Variety
* Different housing types.
* Housing up to degree of protection IP68 – maximum tightness
* Different fixed-pole and modular contact inserts for high flexibility
SVLEC HD-064 high pin count heavy duty connector inserts male and female 64-pole, Crimp Terminal.
Product name | HD-064 Heavy Duty Connector Inserts |
Material | Polycarbonate |
Color | Grey |
No. of poles | 64+ PE |
Termination | Crimp terminal |
Rated current | 10A |
Rated voltage | 250V |
Wire gauge | 0.14-2.5 mm2 |
Rated impulse voltage | 4KV |
Pollution degree | 3 |
Limiting temperatures | -40℃ ...+125℃ |
Flammability | V0 |
Mating cycles | ≥500 |
Contact material | Copper alloy |
Contact resistance | ≤ 3mΩ |

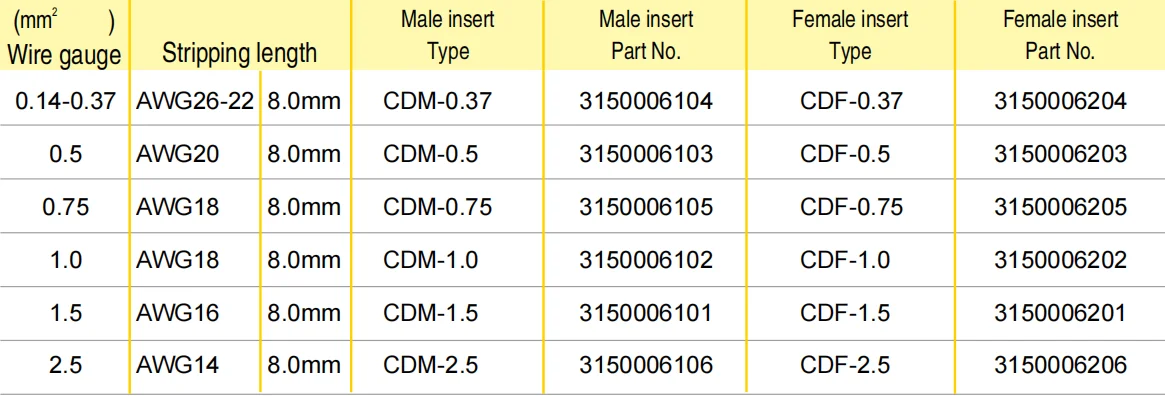

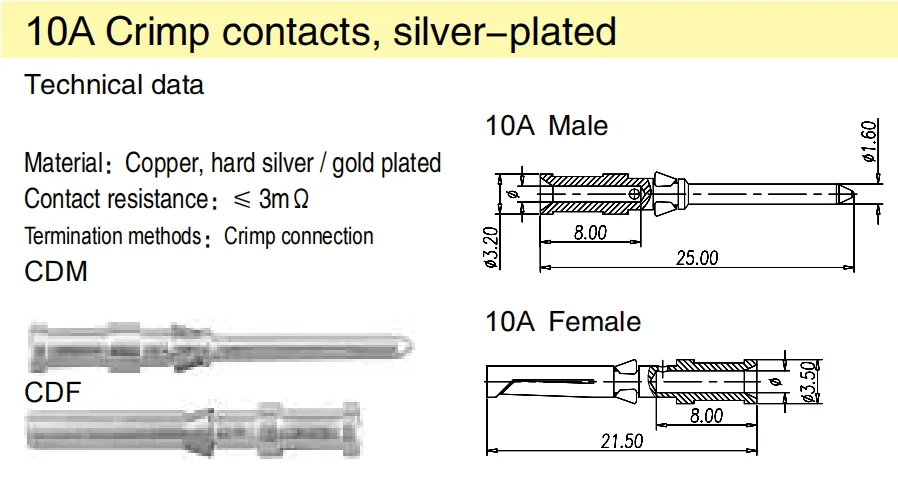

Crimp contacts& ordering information:
Packing & Delivery
For product in stock, we will ship within 3-7 days.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
For OEM product, please inquire.
Transport Package: PE bag/Bubble bag→Carton→Pallet
Payment: T/T , 50% Deposit, 50% Balance Before Delivery.
Trade term: EXW , FOB , CIF, CFR, DDU.
Shipment: Express, air cargo, sea shipment.
Company Profile
Kunshan SVL Electric co., LTD., located in German industrial zone, kunshan city, jiangsu province, with a workshop area of 3000square meters.We are innovative Scientific and technological enterprise integrating R&D, production and sales. SVLEC can provide automatic components such as connectors and wiring harness, heavy-duty connectors, servo wiring harness, panel interface, valve plug, cable entry system, magnetic switch, pressure switch, industrial LED lighting, bus module, etc.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively. SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry,process industry, infrastructure, factory automation and other industrial fields.
SVLEC ‘s high-quality, innovative products are strictly tested in the laboratory and long-term user integration. Our laboratory fully conforms to the IEC 61984 & IEC 17025 construction standards. Our products have passed CE, TUV, UL certification successively. SVLEC provide reliable products and high-quality and efficient services for customers in the energy industry,process industry, infrastructure, factory automation and other industrial fields.
Certifications
Our Customer
FAQ
1. Q: What is the necessary information needed for quotation?
A:The series(M8/M12/M23...),coding,male or female,pin number,cable material(PVC or PUR) color and length.
2. Q: What is the minimum order quantity(MOQ)?
A: Negotiable. We are manufacture there is no MOQ, large quantities can have a discount.
3. Q: What quality standard does SVL have?
A: ISO9001:2015, CSA.
4. Q:What product certifications can SVL provide?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: Normally 5 days, for customized connectors 2 weeks.
6. Q: Volume order lead time?
A: 2-3 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms are available?
A: EXW, FOB, FCA HK, Telex releases are available.
A:The series(M8/M12/M23...),coding,male or female,pin number,cable material(PVC or PUR) color and length.
2. Q: What is the minimum order quantity(MOQ)?
A: Negotiable. We are manufacture there is no MOQ, large quantities can have a discount.
3. Q: What quality standard does SVL have?
A: ISO9001:2015, CSA.
4. Q:What product certifications can SVL provide?
A: IP67, UL, CE and RoHS.
5. Q: Sample lead time?
A: Normally 5 days, for customized connectors 2 weeks.
6. Q: Volume order lead time?
A: 2-3 weeks.
7. Q: Do you provide inspection on the incoming materials before production and inspect the finished products shipment?
A: Yes. We have Incoming material inspection, In process quality check and Outgoing goods quality check.
8. Q: How do you ship the finished product?
A: Based on the customer request.
9. Q: What kind of delivery terms or trade terms are available?
A: EXW, FOB, FCA HK, Telex releases are available.
