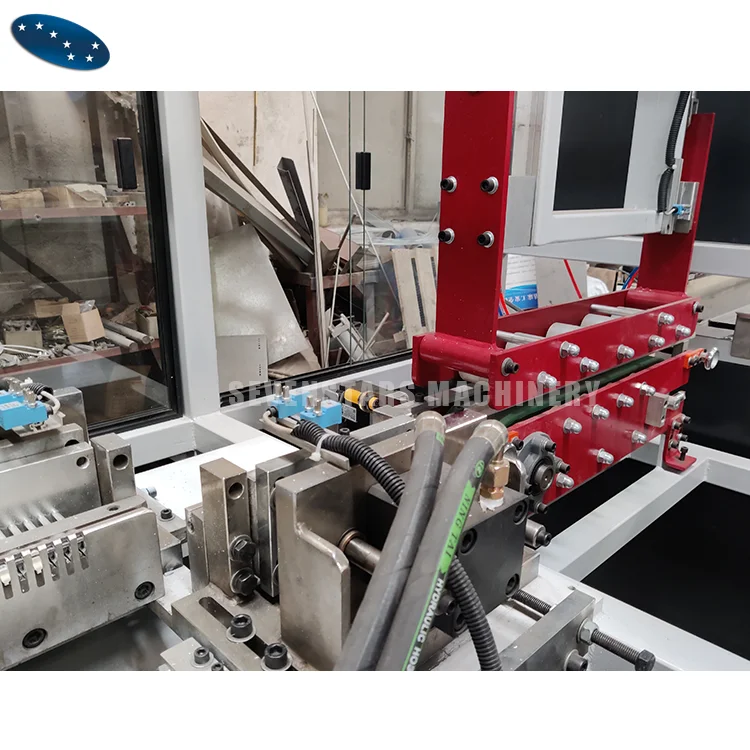

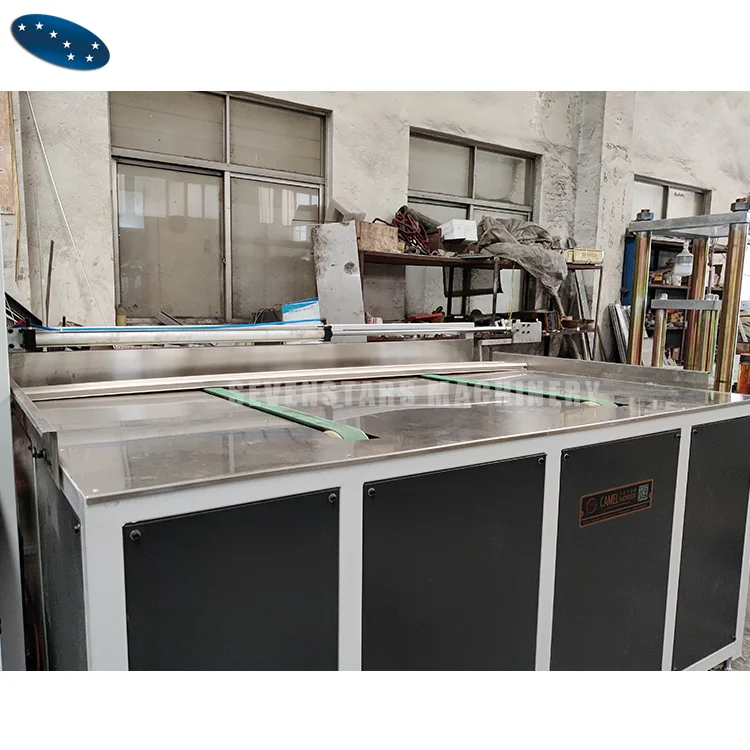

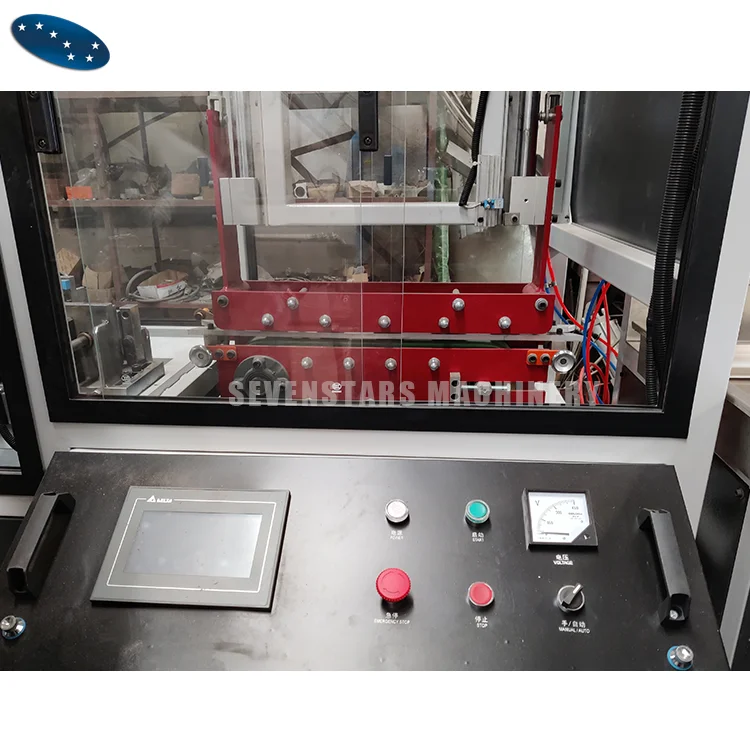

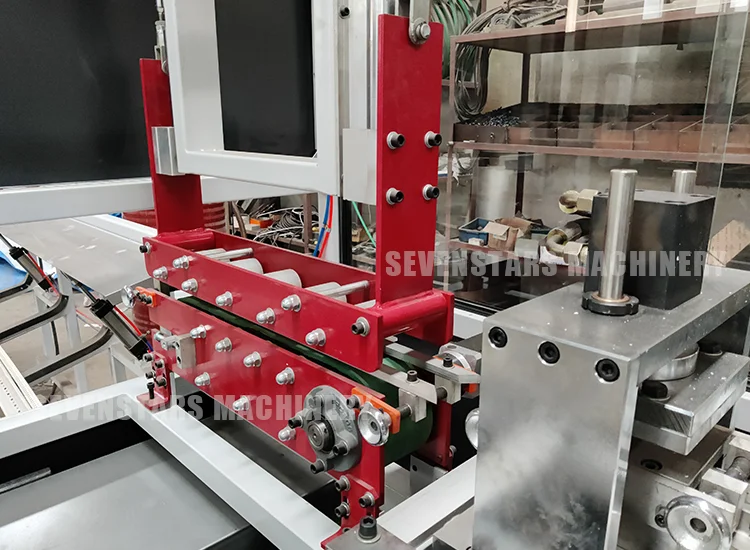

Sevenstars Automatic Plastic PVC trunking cable profile punching machine
- Category: >>>
- Supplier: Zhangjiagang Sevenstars Machinery Co. Ltd.
Share on (1600845860071):
Product Overview
Description
Product Description

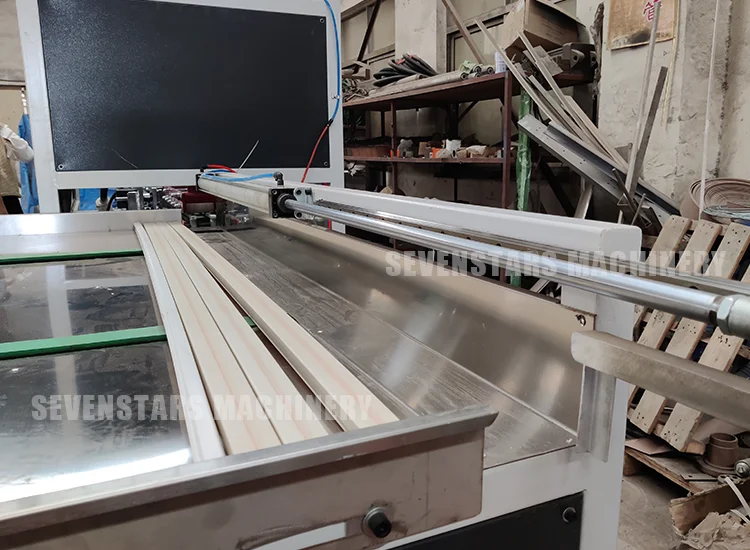

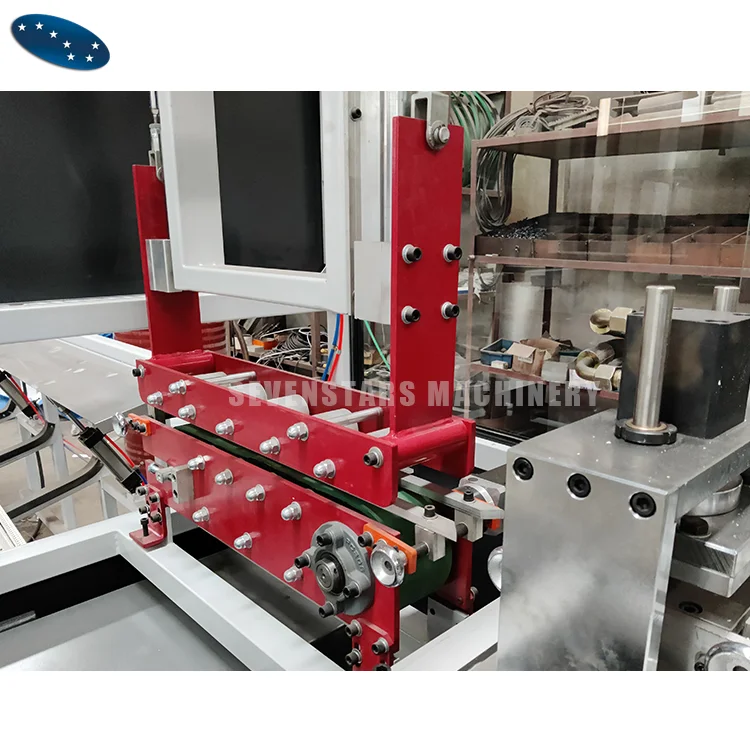

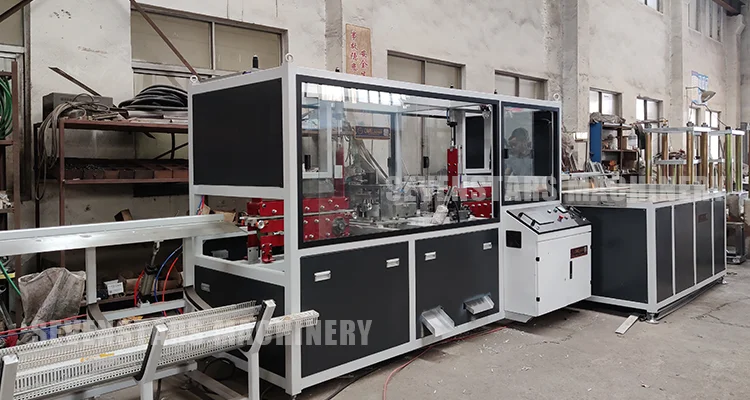

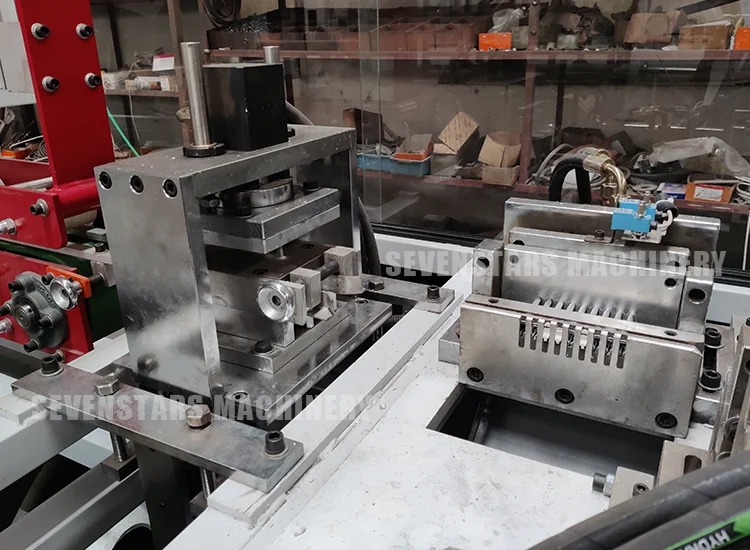

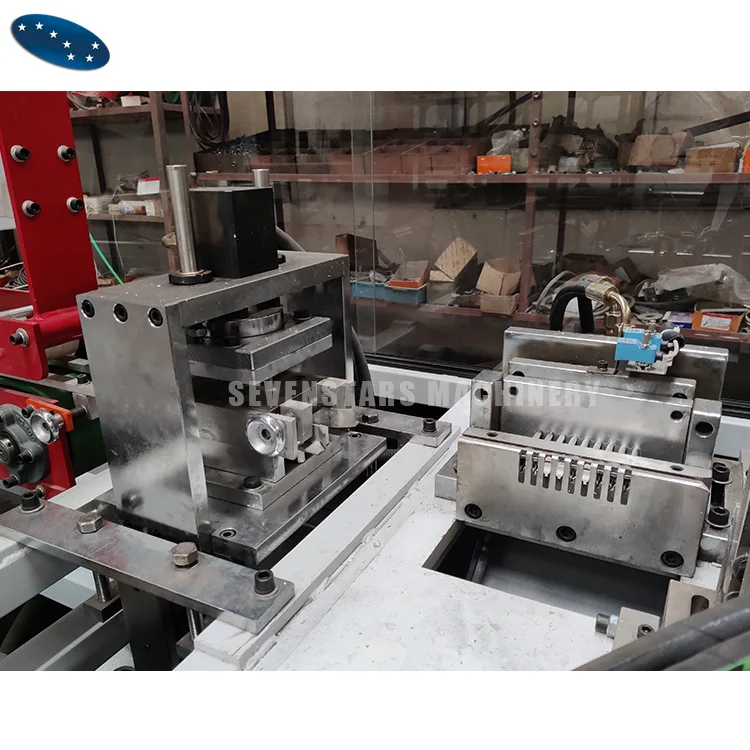

Sevenstars Automatic Plastic PVC trunking cable profile punching machine
Used to drill holes and holes for threading slots and conduits, facilitating subsequent installation and wiring. It is an
indispensable auxiliary machine in the production line of threading groove profiles.
indispensable auxiliary machine in the production line of threading groove profiles.

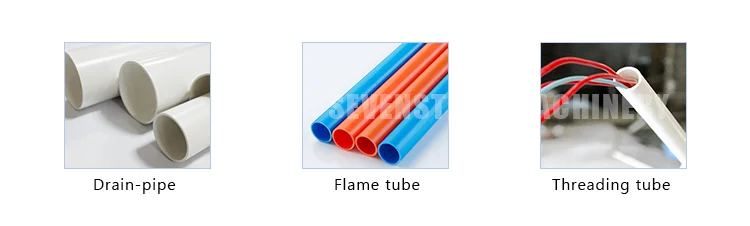

Final production display
Details Images

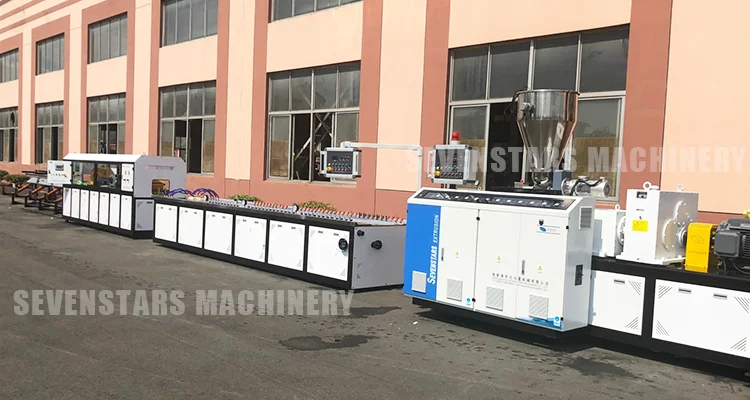

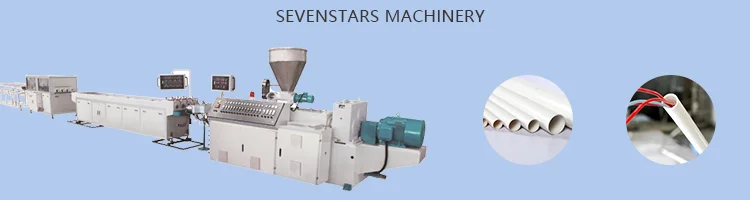

PVC trunking Extrusion line
-Φ16-32mm four cavities PVC electrical tube,water supply pipeextrusion line can extruder four pipes at same time onone machine.
-This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.
-SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.
-The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.
-This line can save investment cost in factory buiding and production,which increase the capacity a lot and reduce production time.
-SJSZ65/132 conical twin-screw extruder can easily reach 5.5-6.5 ton/per day,the production speed take 16mm as example can get more than 8-10m/min.
-The whole line is composed of conical twin-screw extruder 65/132,4 cavity mould,4 cavity coling 4 calibration tank,4 station haul off,4 station cutter and 4 station tipping table.

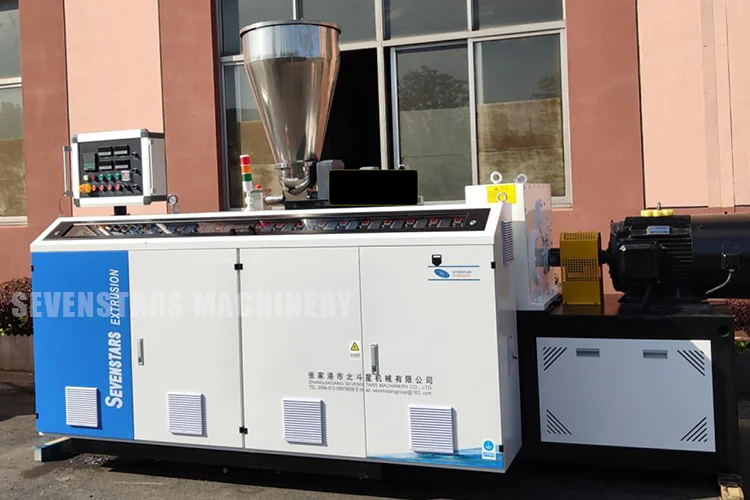

Conical Twin-Screw Plastic Extruder
①Good shearing ＆ high output actual
②High accuracy and easy control.
③Good plasticizing, large capacity
④High-grade materials and parts with steadfast performance

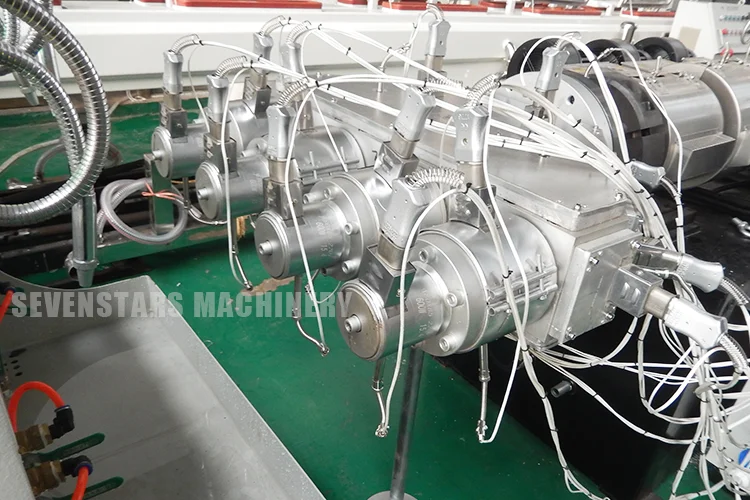

4 cavity die mould
Wall thickness :According to customer request
Mould body material :40Cr
Material of the calibrator: Stannum Bronze

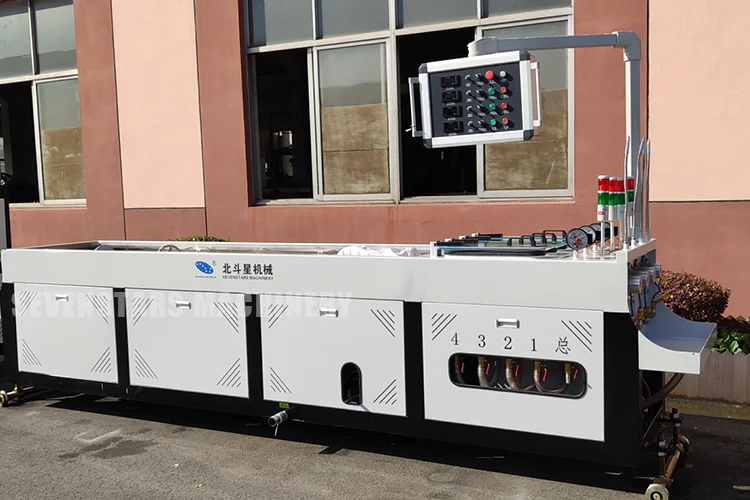

Vacuum Calibration Tank
Material: The components in contact with water are made of stainless steel to avoid rusting
Electrical: Schneider
Haul-off unit
Equipped with encoder to confirm the length of the pipe
Clamping method: pneumatic.
Speed regulation method: variable frequency.

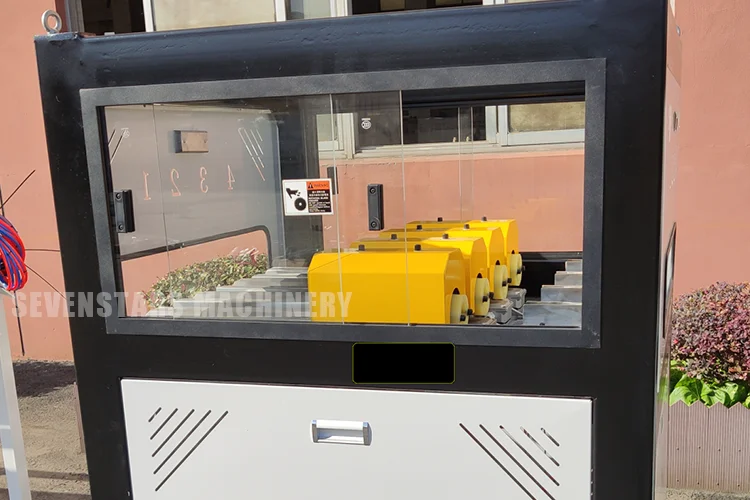

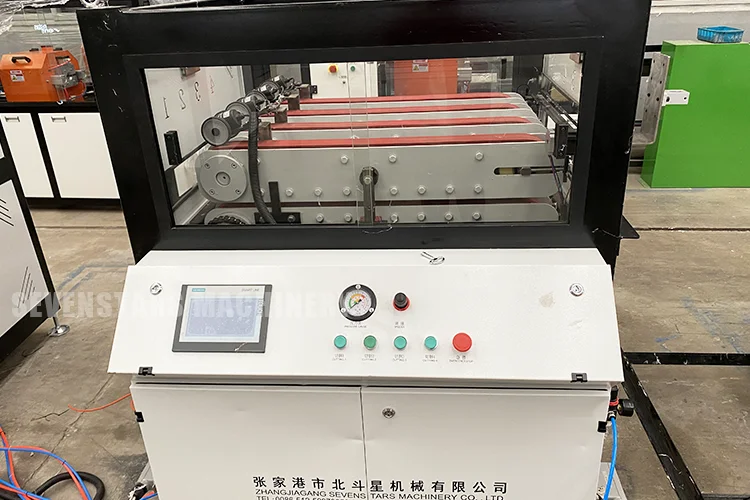

Cutter machine
Technical Parameters
Model | Pipe range(mm) | Extruder machine | Main Power | Output | Speed(m/min) |
PVC-32*4 | 16-32 | SJSZ65/132 | 37kw | 300 kg/h | 10 |
PVC40*2 | 16-40 | SJSZ65/132 | 37kw | 300 kg/h | 10 |
PVC63*2 | 16-63 | SJSZ65/132 | 37kw | 300 kg/h | 10 |
PVC-63 | 16-63 | SJSZ51/105 | 18.5kw | 120kg/h | 10 |
PVC-110 | 20-110 | SJSZ55/110 | 30kw | 200kg/h | 10 |
PVC-160 | 50-160 | SJSZ65/132 | 37kw | 300kg/h | 5 |
PVC-250 | 75-250 | SJSZ80/156 | 55kw | 400kg/h | 3.5 |
PVC-315 | 110-315 | SJSZ80/156 | 55kw | 400kg/h | 3 |
PVC-450 | 160-415 | SJSZ92/188 | 90/110kw | 600kg/h | 1.5 |
PVC-630 | 315-630 | SJSZ92/188 | 90/110kw | 600kg/h | 0.9 |
Related product
Recommend Products
Why Choose Us
Zhangjiagang Sevenstars Machinery Co.,Ltd. was founded in 2006. It is an enterprise specialized in producing plastic machinery. It lies to the south of the middle and lower reches of Yangtze River. It is located in the National civilization and hygienic city-zhangjiagang, surrounded by the economic belt of Suzhou, Wuxi, Changzhou, Nanjing and Shanghai. Both land and river transports are rather convenient. We sell our products to Europe middle, Africa and Asia, etc country and region. Our products enjoy a high reputation home and abroad.
FAQ
1. Who are we?
We are a plastic machinery manufacturing factory located in Zhangjiagang City, Jiangsu Province, with over 10 years of production experience.
We have rich industry experience and export to over 50 countries in Asia, Africa, South America, and more.
2.What products do we offer？
①：Plastic Shredder Machine
②：Plastic Washing Recycling Line
③：Plastic Pelletizing Recycling Line
⑤：Pet Bottle Recycling Line
⑥：Plastic Crusher Machine
⑦：Plastic Extrusion Line
⑧：PP Meltblown Fabric Machine
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
We are a plastic machinery manufacturing factory located in Zhangjiagang City, Jiangsu Province, with over 10 years of production experience.
We have rich industry experience and export to over 50 countries in Asia, Africa, South America, and more.
2.What products do we offer？
①：Plastic Shredder Machine
②：Plastic Washing Recycling Line
③：Plastic Pelletizing Recycling Line
⑤：Pet Bottle Recycling Line
⑥：Plastic Crusher Machine
⑦：Plastic Extrusion Line
⑧：PP Meltblown Fabric Machine
3. How can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;
If you are interested, please contact us
