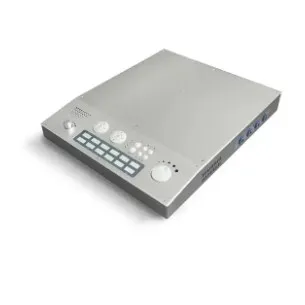

Electromyography System PC based 4 Channel EMG/EP system Machine

Product Overview

Description

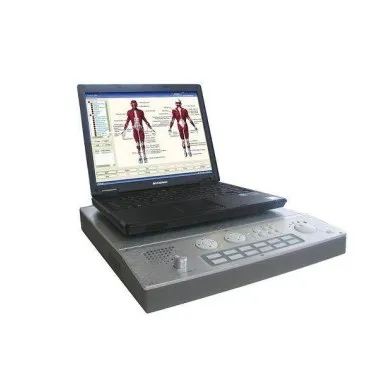

EMG & EP System CMS-6600B





Feature

 PC-based EMG/EP measuring system

 Professional hardware technology. Its performance is credible and steady.

 Multi processing unit parallel dispose technology , which makes data collection and graphics  display more rapid, it has 4 channels, which satisfies different work modals in the clinic EMG examination .

 Low noise, high CMRR, montage programmable electrode  junction box.

Independently programmable stimulators allows sophisticated examinations.

Professional electromygram operation space, shortcut and steady.

Intraoperative monitor capability.

High speed and completely self-motion data collection and analysis, more nicety and more rapid with electrical stimulus , voice stimulus and light stimulus.



Specifications

1.Main System Part

A/D conversion resolution 16 Bit

Sampling ratio 200kHz

Analysis time  5-5000ms

Stimulating frequency 0.1-50Hz

2.Amplifier Part

Four leads

Sensitivity  0.05μV-20mV/Grid

Earth noise  EMG <= 4μV(Vpp)

EP <=0.1μV(Vpp)(1000 times in average)

Common-mode rejection ratio >= 100dB

50Hz Ban wave setting

Upper limit Filter-frequency 20kHz

Lower limit Filter-frequency 0.01Hz

Plus amplifies 25 times-400000 times

3.Stimulator Part

Current stimulator: constant current 0.2-100mA   pulse width 50-1000μS  short circuit and over loading protection.

Visual stimulator: Field: full view,half view,quart view   Pattern: tessellation,horizontal bar,vertical bar

Audio stimulator: Type: 40Hz, Click sound  Intensity: 0~120 db

Standard Configuration

No.	Contents	Qty	Remark
1	Main Unit	1
2	Power Adapter	1
3	Power Cable	1
4	USB Data Cable	2
5	Audio Cable	1
6	Current Stimulator	1
7	Machine Ground Cable	1
8	Reuseable Needle Electrode 0.35*40 mm	1
9	Reuseable Needle Electrode 0.6*70  mm	1
10	One-off Bipolar Needle Electrode 0.35*40 mm	5
11	One-off Bipolar Needle Electrode 0.6*70  mm	5
12	One-off  Unipolar Needle Electrode	10
13	Surface Electrode	1	package
14	Discal Electrode	1
15	Disc Electrode	1
16	Ring Electrode	1
17	EMG Extension Cable	2
18	NCS Extension Cable	2
19	form 1 to 2 conversion Cable	1
20	Ground Cable	1
21	Software CDROM	1
22	Flash Stimulator	1
23	Audio Stimulator	1
