Product Overview
Description
Automatic Wood Breaker Machine Round 20cm Diameter Wood Log Multi-Blade Cutting Sawmill
Product Description
Product Introduction of Wood breaker sawmill:

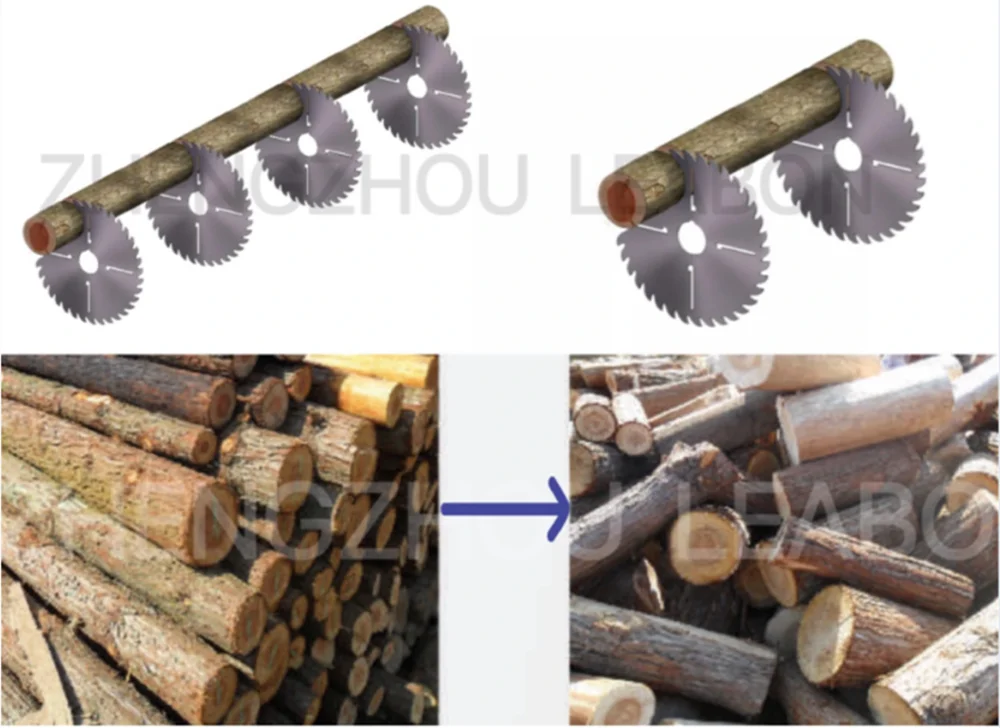

Cutting saw adopts mechanical side-shifting saw blade to cut off, cycle cutting, fully automatic feeding, the wood is divided into many parts. Saw blade under the design table, truly safe, unlimited length design, processing specifications diversification.Automatic, efficient cutting saw is the choice!

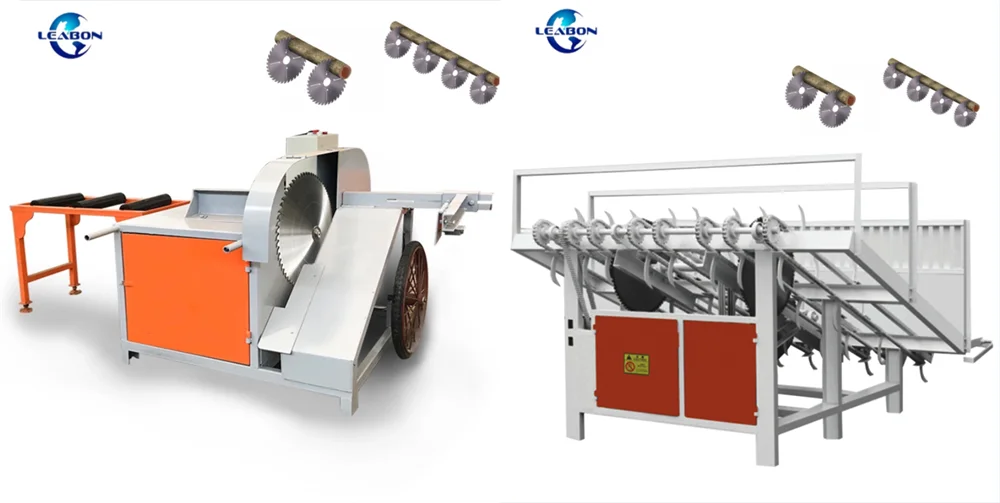

Different type of wood breaker sawmill

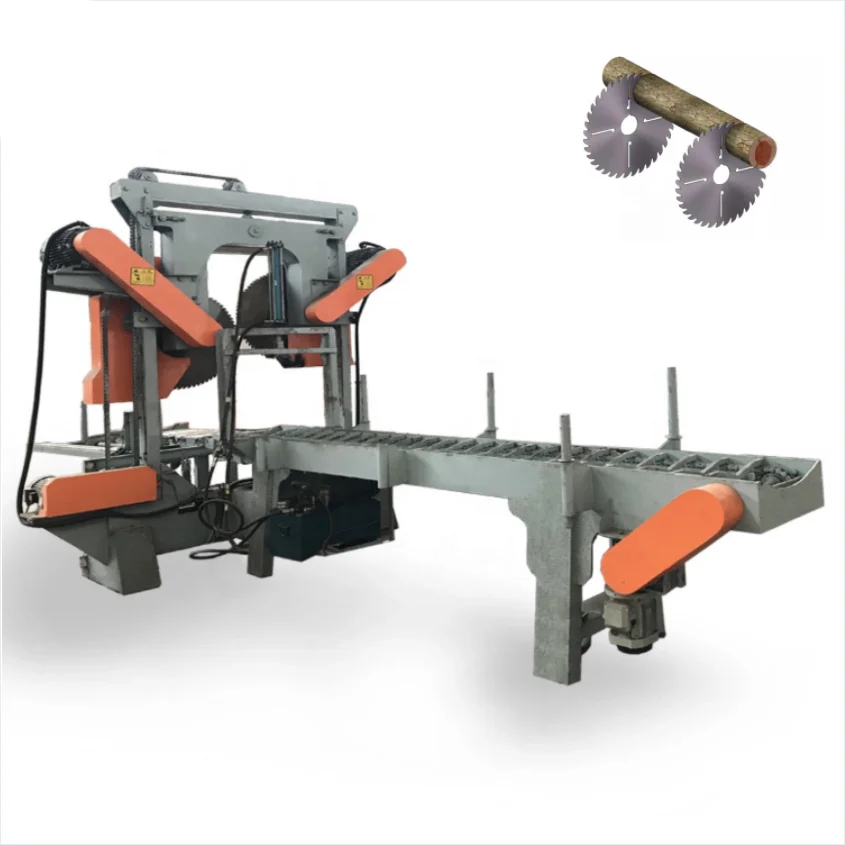

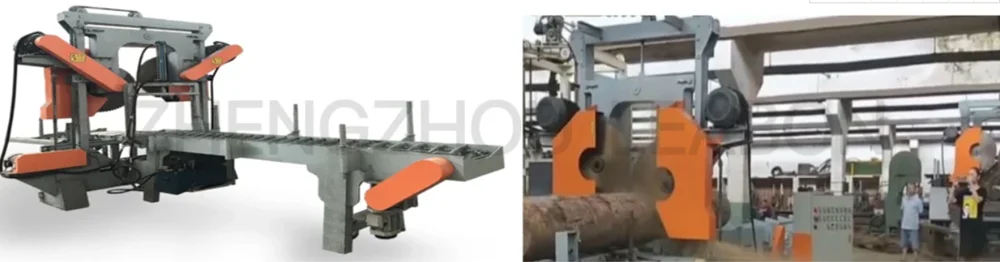

1. Gantry type Logs Breaking Saw
1.Gantry upper and lower high speed cutting saws are mechanical or hydraulic.
2.Move the saw blade up and down to cut the logs, and feed the material to the fully automatic cycle repeat feeding,
3.Light control fixed length positioning. Left and right saw blade design. Can be fixed length design.
2.Move the saw blade up and down to cut the logs, and feed the material to the fully automatic cycle repeat feeding,
3.Light control fixed length positioning. Left and right saw blade design. Can be fixed length design.
Model | LBD20-40 | LBD25-50 | LBD30-60 | ||
Minimum processing diameter(cm) | 20cm . | 25cm | 30cm | ||
Maximum processing diameter(cm) | 40 | 50 | 60 | ||
Processing length (cm) | Above 100cm(continuous feeding) | ||||
Saw blade diameter (mm) | 600 | 700 | 800 | ||
Equipment total power(kw) | 15x2 | 18.5x2 | 22x2 | ||
Feeding speed (m/min) | More than 10 meters | ||||
Feeding method | Semi-automatic | ||||
Outer dimension(m) | 3x1.5x2 | 3x1.5x2 | 3x1.5x2 | ||
Equipment weight (kg) | 1300kg | 1500kg | 1800kg | ||
2. Automatic Logs Breaking Machine
The side-moving cutting saw adopts a mechanical side-moving saw blade for cutting, automatic induction of fixed length, cyclic cutting, and automatic feeding.
Model | LBD5-25Z |
Cutting diameter (cm) | 5-25cm |
Processing length (cm) | Customized |
Main motor power (kw) | 7.5 |
Auxiliary motor power (kw) | 0.75 |
Saw blade diameter (mm) | 700 |

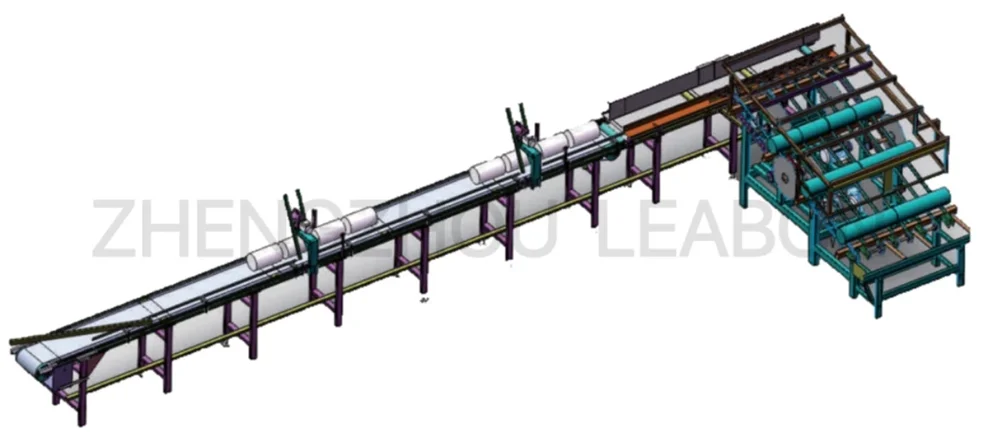

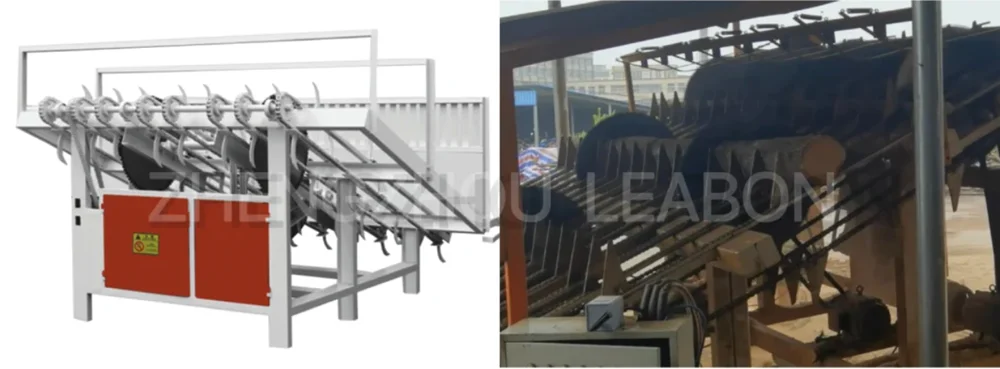

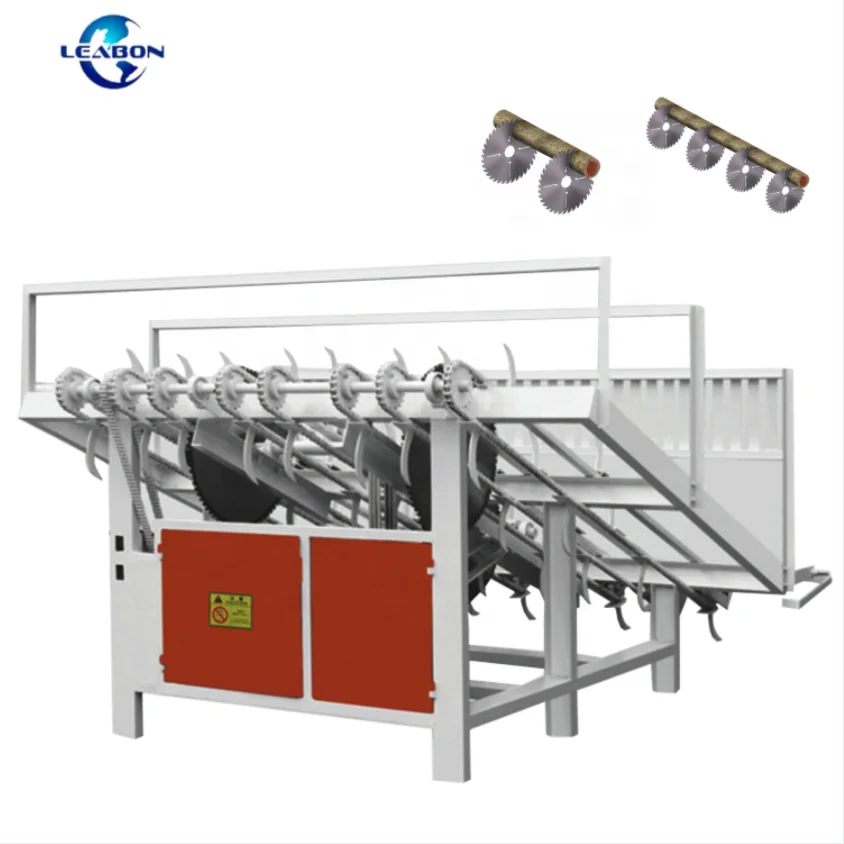

3. Automatic long Logs Breaking Machine (2m/4m)
1.This is a cutting machine suitable for processing long materials and automatically cutting them into multiple sections.
2.It adopts automatic chain feeding, segment cutting, continuous feeding and cycle completion.
2.It adopts automatic chain feeding, segment cutting, continuous feeding and cycle completion.
Model | LBD25-4 | LBD25-2 |
Cutting length range (m) | 1-4m | 1-2m |
Cutting diameter (cm) | 5-25 | 5-25 |
Working table length (m) | 4.6 | 2.6 |
Main motor power (kw) | 7.5x7 sets | 7.5x3 sets |
Loading motor power (kw) | 2.2 | 1.5 |
Loading speed (m/min) | 0-6(Inverter for speed regulation ) | 4.5(Inverter for speed regulation) |
Main axis rotating speed | 1500RPM . | 1500RPM |
Saw blade diameter (mm) | 700 | 700 |

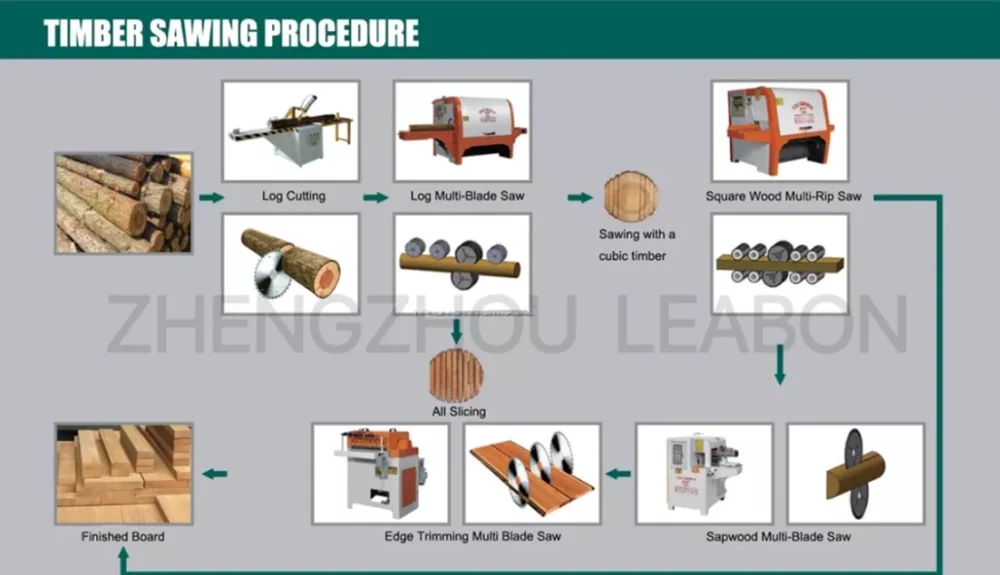

Timber Sawing Procedure
