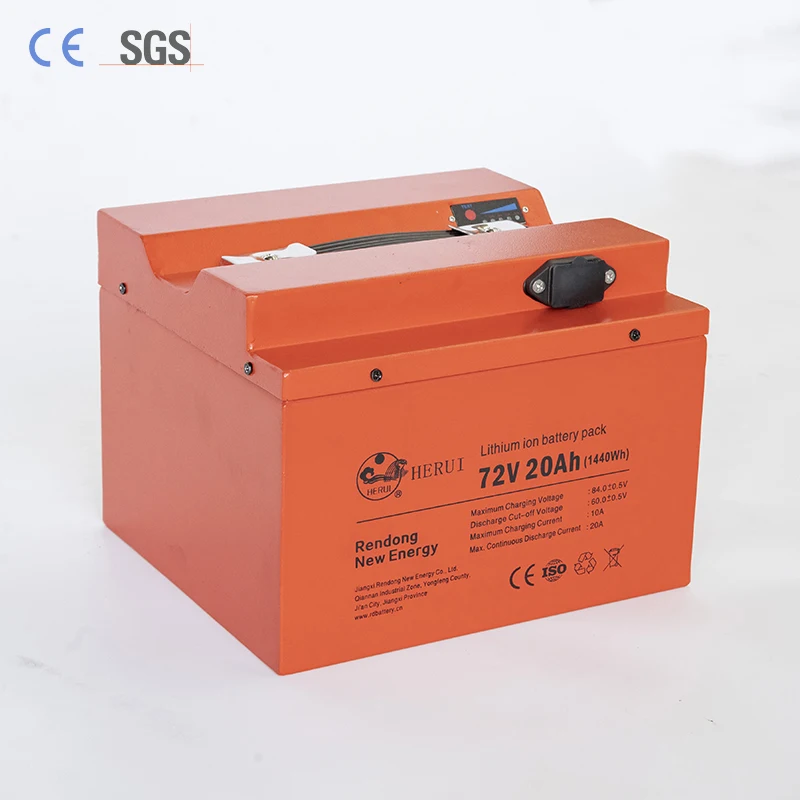

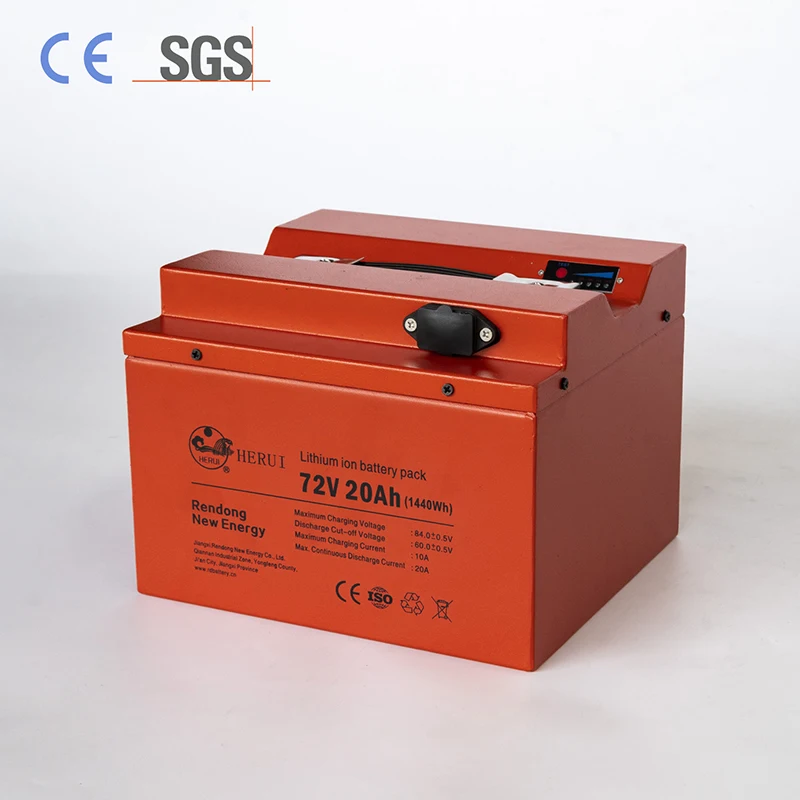

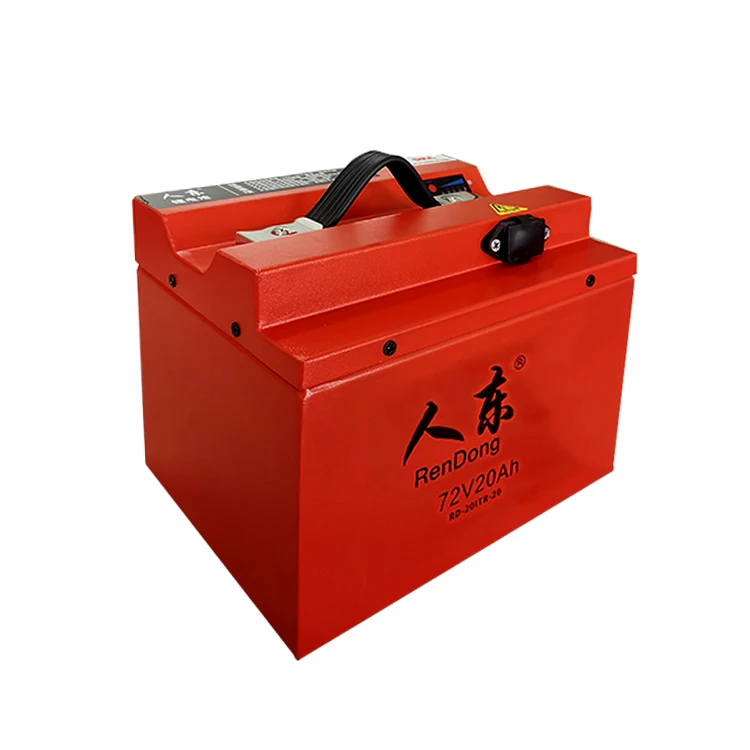

Factory Price Lithium 72v 20ah Lithium Ion Lifepo4 Battery with Charger
- Category: >>>
- Supplier: Jiangxi Rendong New Energy Co. Ltd.
Share on (1600845904463):
Product Overview
Description
Product Description
Item | General Parameter | ||||
Model | 26650-50EC-5000mAh-20S4P | ||||
Standard capacity(0.5C) | Typical:20Ah Min:20Ah | ||||
Rated voltage | 72V | ||||
Max.Charge voltage | ≤ 84V(standard:84V) | ||||
Discharge Cut-off voltage | 60V | ||||
Standard charge current | ≤ 5.0A | ||||
Rated Continuous discharge current | 20A | ||||
Max continuous discharge current | ≤ 20A | ||||
Over-Current Protection value | Continuous working current | ≤ 20A | |||
Time-delay discharge current | 20A≤ I ≤30A | ||||
Max Instantaneous discharge current | 30A≤ I ≤40A | ||||
Single cell charge protection voltage | 4.2V±0.05 | ||||
Single cell cut-off voltage | 3.0V±0.05V | ||||
Impedance(Max,at 1000Hz.) | ≤ 150mΩ | ||||
Battery dimension | MAX L230×W205×H170mm | ||||
Weight(approx) | 10.5kg | ||||
Mass Ratio of Energy | 193Wh/Kg | ||||
Interface | charge/discharge: 3 pins socket and Anderson plug | ||||
Working Condition (CC/CV) | Standard | -20℃~60℃ | |||
Humidity | 50%~85% | ||||
Storage | 0℃~40℃ | ||||
If you need a matching lithium charger, please directly contact us for more details. click here>>>
