YUSHI YUT2600 flaw detection by ultrasonic with ultrasonic testing methods DAC curve function
- Category: >>>
- Supplier: YUSHI INSTRUMENTS
Share on (1600845948585):
Product Overview
Description
Product Description

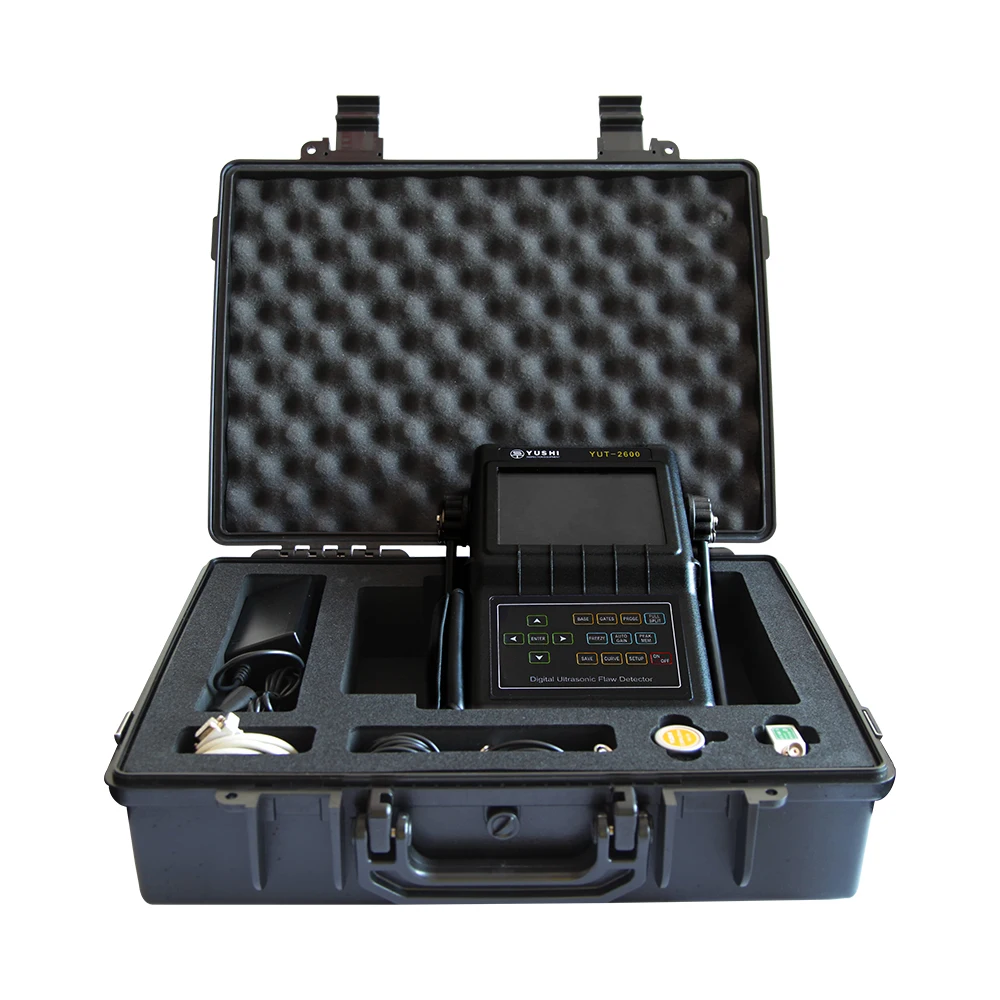

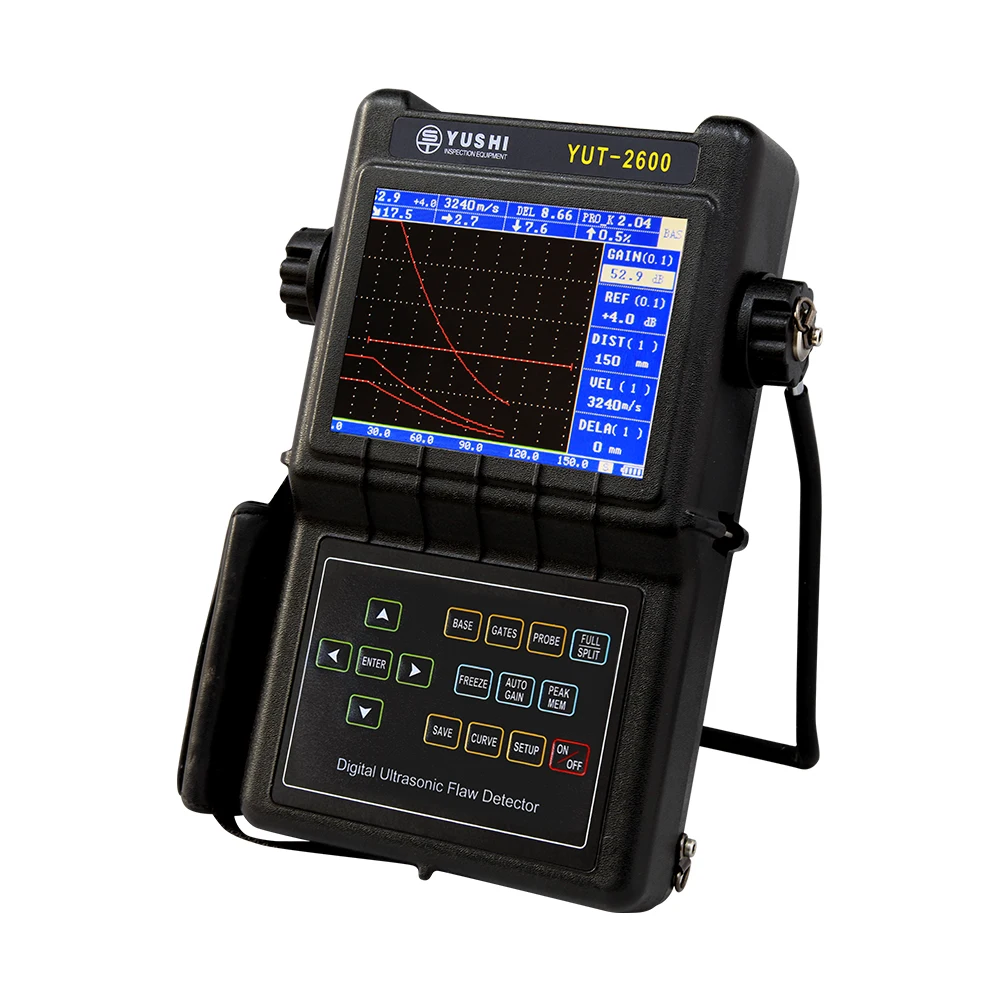

YUSHI Instruments’ comprehensive range of portable ultrasonic flaw detectors provide with unrivalled flexibility and performance in the field of Non Destructive Flaw detection.Ultrasonic Flaw Detector, YUT series, is designed for the severe environment. Its domestically unique omniseal design enables it to resist the damp, sandstorm, dust, and pollution in all sorts of environmental extremes ranging from ocean to desert.
Features and Functions
The firm and durable YUT2800 are specially designed for the hostile site environment. The pan-seal design which is particular in the nation enables it to defend against dampness, sandstorm, dust, or pollution caused by all sorts of harsh environments from sea to desert.
-

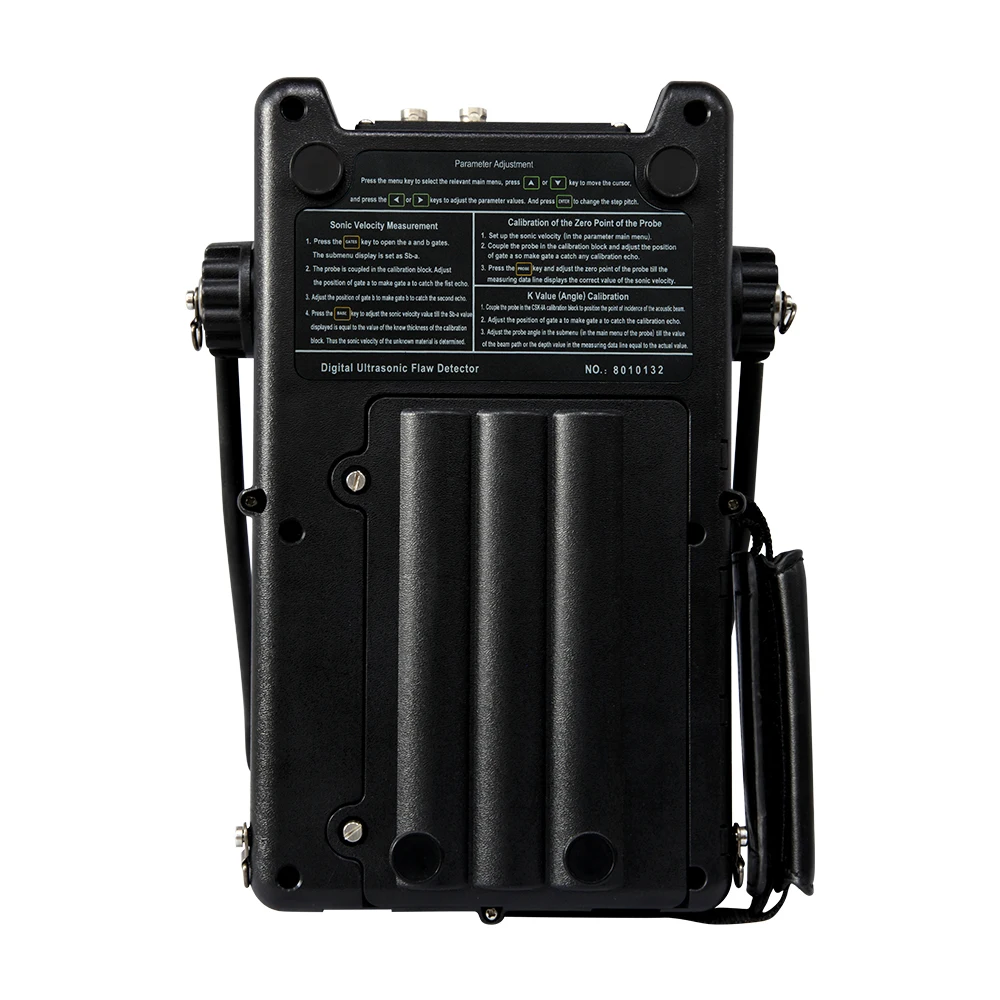

Pan-seal design, including tool housing, battery case, fastening screws, and external interface
31 copper screw nuts are inlaid in the hard plastic casing
The innovative rotating positioning stand is convenient
The hand strap can be installed for both hands so that you can hold the machine with your left or right hand
The probe interface is optional for BNC or Lemo
The D-shaped ring on the instrument is convenient for you to install a cheststrap
The nice surface of the casing is antiskid with eroded textures
Two battery schemes which are particular in the nation, when there is no AC supply, if the battery pact exhausts, you can use 6 ordinary LR14 batteries
Innovative high power lithium batteries of notebook style
6 ordinary LR14 batteries
Full screen function, the echo display area can cover the entire screen, which provide you with the sense of the maximum window
Solid waveform display, the visual contrast of waveforms is increased so the undetection is hard to happen when fast scan is carried out
Bulk storage, up to 1000 data sets can be stored, including waveforms, curves, and parameters (containing the traditional 1000 channels)
Echo-echo thickness measurement, zero calibration is avoided, and the net thickness of the base material can be directly measured through the coating
Two operation interfaces are available, i.e., Chinese and English
Easy to use, the user can master the operation method very fast
Squared ultrasonic pulse generator with changeable width and scope is initiative domestically. It replaces the traditional method of matching probe by changing damping with adjusting the pulse energy and pulse width. Thus, the probe can be exactly fit for the testing and the resolution and penetrating power of the approaching surface can be enhanced significantly. It is specially fit for the testing of large scale of forge piece, casting piece and non-metal with the requirement of higher penetrating power and lower electric noise.
The voltage of the pulse generator can be changed between 50V to 400V continuously, so that no matter thin plate or hard-penetrated work-piece can be matched with the most fitful probe.
The width of the pulse can be change d between 25ns to 1000ns continuously, so that the best sensitivity can be realized with the help of different probes with different frequency.
Damping can be changed among 4 levels: 33/50/100/500Ω, so that the best performance of the probe can be attained and the different requirements of the sensitivity and resolution can be realized.
Wave signal filter can be changed between 2 levels: 1-4MHz/0.5-15MHz. Each individual advantage of narrowband and broadband filter can be achieved.
Repeating frequency can be changed freely to avoid unreal signal.
True color TFT LCD display, whose brightness is adjustable.

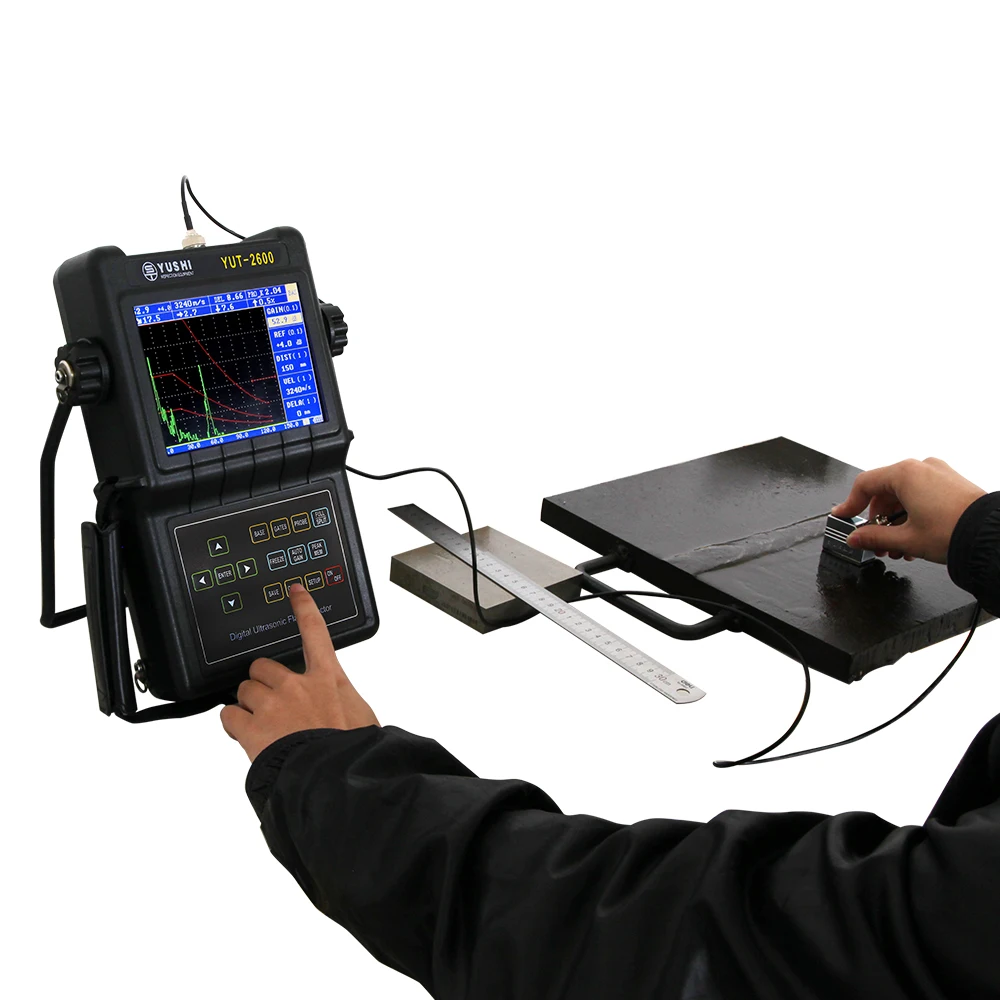

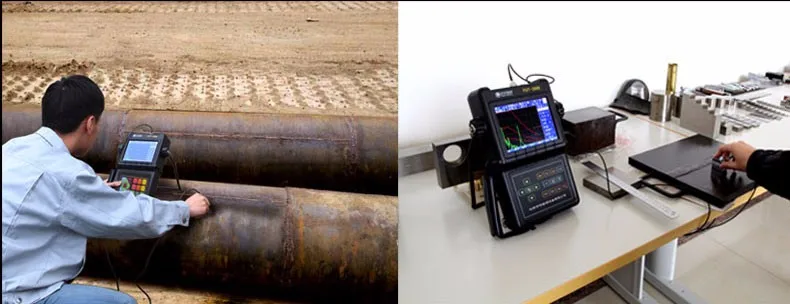

The Actual Application of DAC Curve in detection
With industry-leading probe production technology,We select the high performance of piezoelectric ceramic chips,regardless of the cost to build high quality.
Demension
| Model | YUT2600 | YUT2620 | YUT2800 | YUT2820 |
| True Color TFT LCD | √ | √ | √ | √ |
| DAC Curve | √ | √ | √ | √ |
| AVG Curve | χ | √ | χ | √ |
| Φ Value Calculation | χ | √ | χ | √ |
| Distance Compensation | χ | √ | χ | √ |
| Changeable Squared Ultrasonic Pulse | χ | χ | √ | √ |
| Wide/Narrow Band Filters | χ | χ | √ | √ |
| Four Impedance Matching | χ | χ | √ | √ |
| Data Logger | √ | √ | √ | √ |
| UtView Software | √ | √ | √ | √ |
Parameter
| Item | Index | Item | Index |
| Working Frequency | (0.5-15)MHz | Sensitivity Excess | ≥60dB (deep Φ2 Flat-bottom hole) |
| Material Sound Vecocity | (1000-9999) m/s | Definition | ≥32dB |
| Operation Mode | Pulse echo, double crystal | Dynamic Range | ≥30dB |
| Pulse Shift | (0-1000)mm | Average Noise Level | ≤10% |
| Probe Zero | (0-199.99)us | Battery Working Time | 9 hours |
| Gain Control | (0-110)dB,(0.1,1-2,6)dB stepping | Power Supply | 12V DC ,220V AC |
| Vertical Linearity Error | ≤3% | Dimensions | 270mm x190mm x 60mm |
| Horizontal Linearity Error | ≤0.3% | Weight | 2kg(including batteries) |
Product Uses

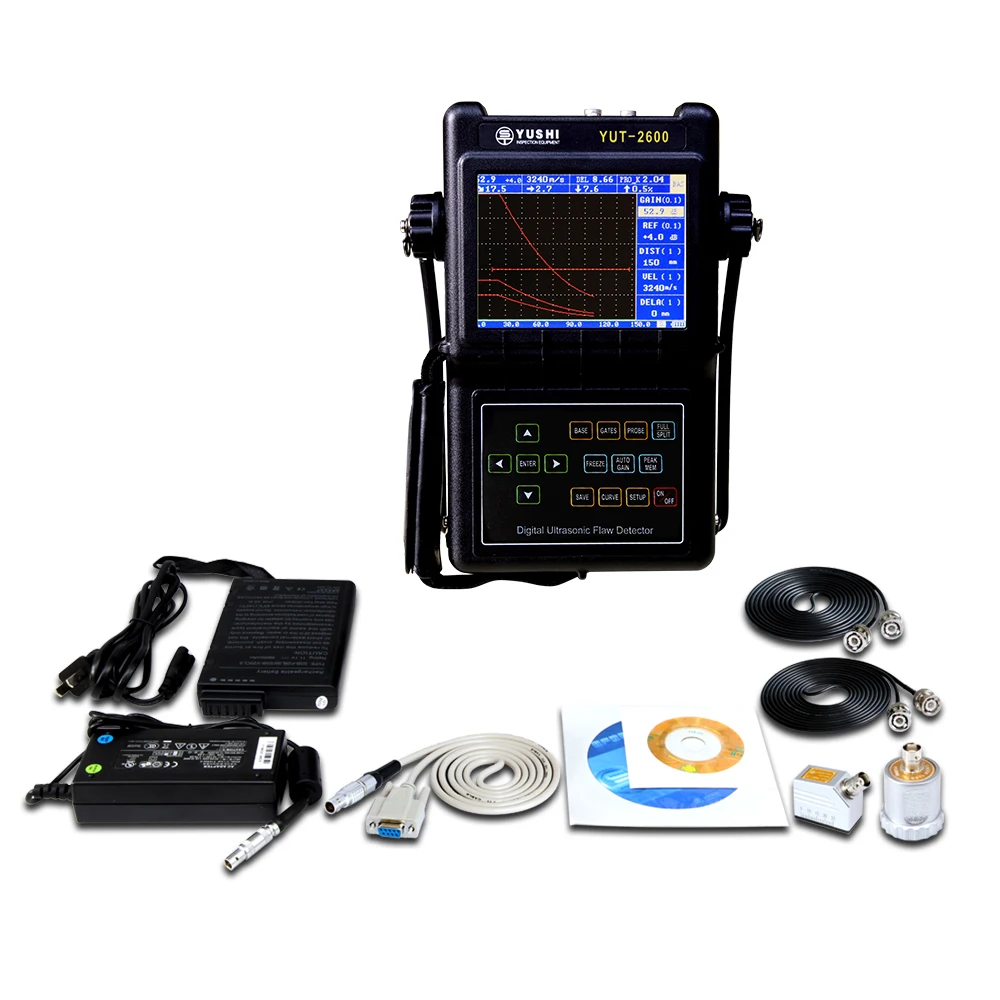

Standard Delivery of YUT2800 Ultrasonic Flaw Detector
| NO. | Item | Quantity |
| 1 | Ultrasonic Flaw Detector | 1 |
| 2 | Lithium battery | 1 |
| 3 | Charger (with power line) | 1 |
| 4 | Communication Cable | 1 |
| 5 | Straight Beam Probe | 1 |
| 6 | Angle Probe | 1 |
| 7 | Probe Cable (BNC-BNC) | 2 |
| 8 | Instrument Case | 1 |
| 9 | Instrument Case Belt | 1 |
| 10 | User Manual, Packing List, Warranty Card | 1 |
| 11 | Data Communication Software (electronic-directions inside) | 1 |
| 12 | Demo Disc | 1 |
