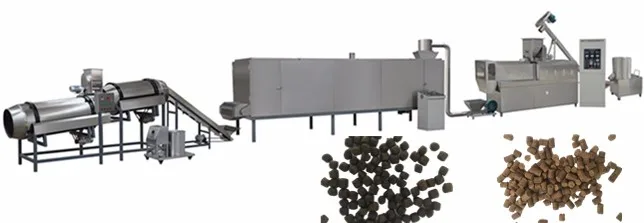

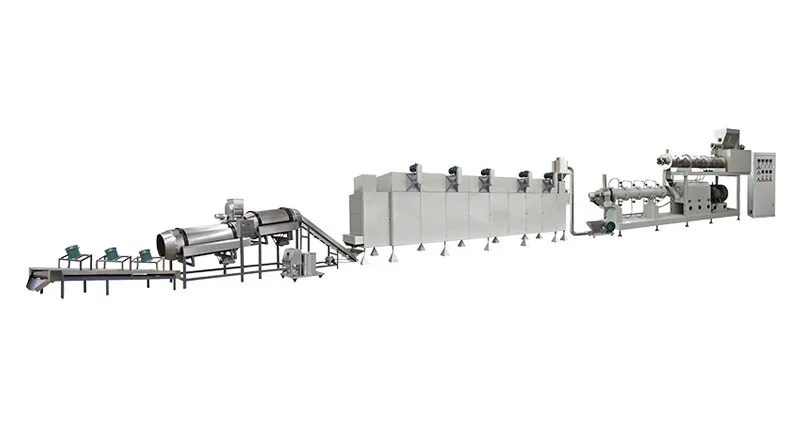

cat dog food machine/croquettes dog food extrusion machine/dog food and cat food pet feed puffing machine
- Category: >>>
- Supplier: Jinan Delon Machinery & Equipment Co. Ltd.
Share on (1600845953154):
Product Overview
Description
Product Description
Main Features
1. Output: 500Kg/hr.
2. Square for work shop: 90 m2 and 2.5 m high
3. Installed Capacity: 72.65kw Power consumption: 56.05kw
4. Voltage / Frequency: 380V / 50Hz
5. Dimension (m): 18.0 x1.5x 2.1 m
6. Workers Required: 1-2 Workers
7. Warranty: At least 1 year from the date of completion of the commissioning.
8. Installation/Operation/ Service/ Maintenance Manual: Provided In English
Detailed Images
Lobster feed screw .
1) high temperature resistance, no deformation at high temperature;
2) wear resistance and long life;
3) corrosion-resistant and corrosion-resistant;
4) high strength, high torque and high speed;
5) good machining performance;
6) small residual stress and thermal deformation after heat treatment.
Lobster feed motor.
motor adopts the best brand in China.This motor is durable, durable and cheap.At the same time, our company can also use ABB, Siemens, schneider and other international brands as required by customers
Lobster feed control cabinet.
Electrical control cabinet is made of anti-leakage, waterproof and explosion-proof insulating steel plate, with beautiful appearance and easy operation.Internal electrical components use top domestic brands.And internationally renowned brands such as Siemens
Technical parameters
Model Parameters | DL-56 | DL-70 | DL-85 | DL-90(Gas style drying) |
Input Voltage | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P | 380V/50Hz ,3P |
Installed Power | 66.84 kw | 97.65 kw | 146.65 kw | 128.2 kw |
Power Consumption | 47.84 kw | 76.65 kw | 97.05 kw | 116 kw |
Capacity(output) | 100-150 kg/h | 200-300 kg/h | 300-550 kg/h | 600-1000kg/h |
Installation Size | 17.0 x1.2x 2.5 m | 18.0 x1.2x 2.5 m | 22.0 x1.2x 2.5 m | 28.0 x3.0x 3.5 m |
Manpower Needed | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers | 1 ~2 workers |
Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel |
Machine Parts

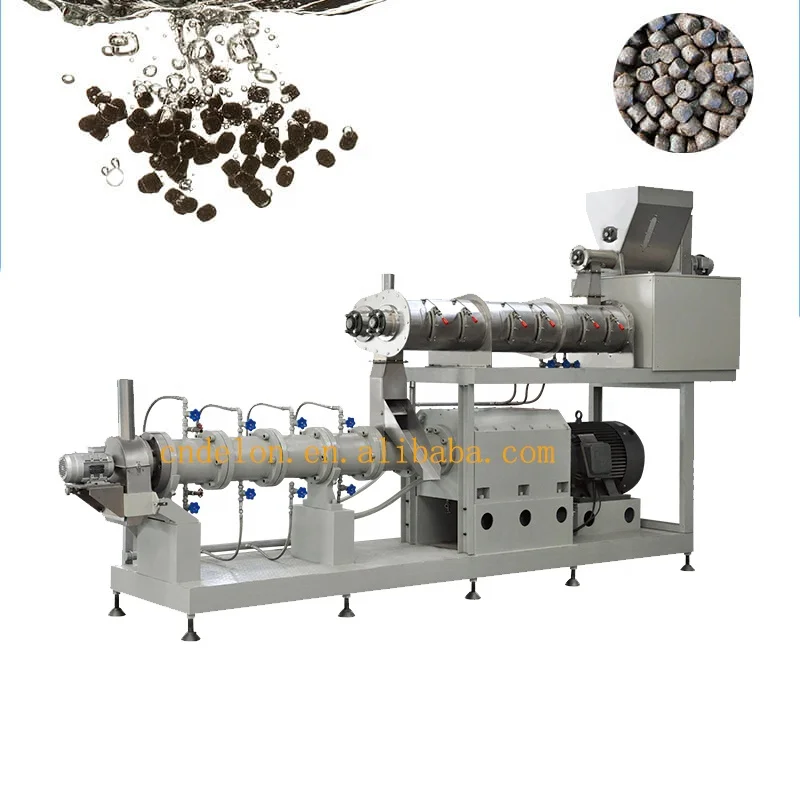

Name: double extruder
Input Voltage:380V/50HZ
Power Consumption:55KW
Output:500Kg/h
Size:3.5×0.8×1.8m
Material:SS304
Equipment Introduction:
Machine consists of feeding system, extruding system, peeling systems, heating system, transmission system, control system. Advanced screw extrusion technology, the use of high temperature and pressure curing and extrusion molding the material, once completed. Host with frequency control, to ensure the stability of the production process. Product color, species diversity, looks beautiful, natural and realistic, delicate texture, materials widely used.
Main Features
Name: cooling drying machine
Input Voltage:380V/50HZ
Power Consumption:10KW
Output:500Kg/h
Size:5.0×1.2×1.8m
Material:SS304
Equipment Introduction:
Used for air drying material surface moisture, material surface cooling
Machine Parts

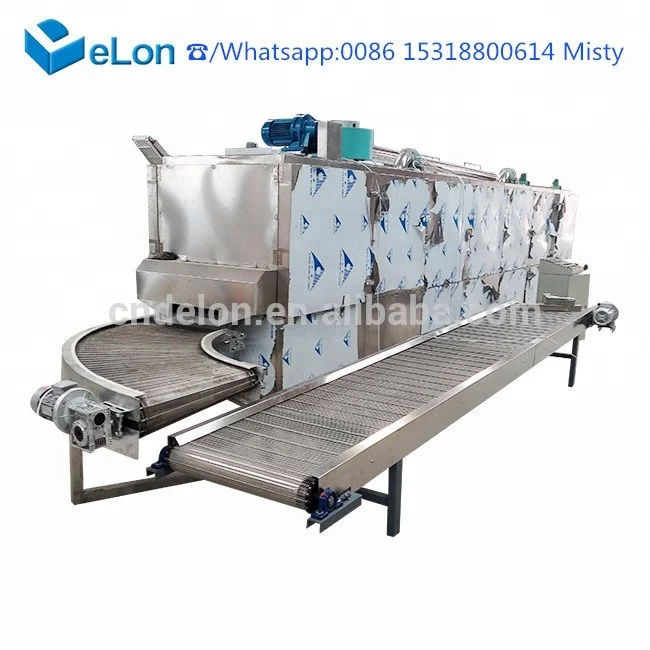

Name: drying machine
Input Voltage:380V/50HZ
Power Consumption:80KW
Output:500Kg/h
Size:9.0×1.5×2.1m
Material:SS304
Equipment Introduction:
Produced semi-finished products for dry and dehydrated with drying device,a certain amount of heating device installed inside the oven , use of electric heating to dry . The most commonly used for extruded products desiccation device.
Main Features
Name: flavoring machine
Input Voltage:380V/50HZ
Power Consumption:4KW
Output:500Kg/h
Size:5.0×1.2×1.8m
Material:SS304
Equipment Introduction:
Used to adjust the product taste , in the previous section drum for seasoning after section roller is used to separate injection, seasoning and injection operations , and the seasoning to improve the quality of many.
Our Service
Pre-Sales Service
a). Supplier should trial run whole line at supplier's factory before shipment;
b). Supplier has to run the machine at least 1hour for each product;
c).Frying Fried Doughnut Snack Making MachineAll raw materials for that trial run to be arranged by supplier at their cost.
After-Sales Service
a). Free consultation service before, during, and after sales;
b). Free project planning and design services;
c). Free debugging of equipment until everything is functional;
d). Free management of equipments long distance shipping;
e). Free training of equipment maintenance and operating personally;
f ). Free new production techniques and formulas;
g). Provide 1 year complete warrantee and life-time maintance service;
Packing & Delivery
Packaging | ||
Size | 12000 (L) * 2300 (W) * 2300 (D)mm | |
Weight | 7.8T | |
Packaging Details | The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request. | |
